Electrical modular enclosures
New

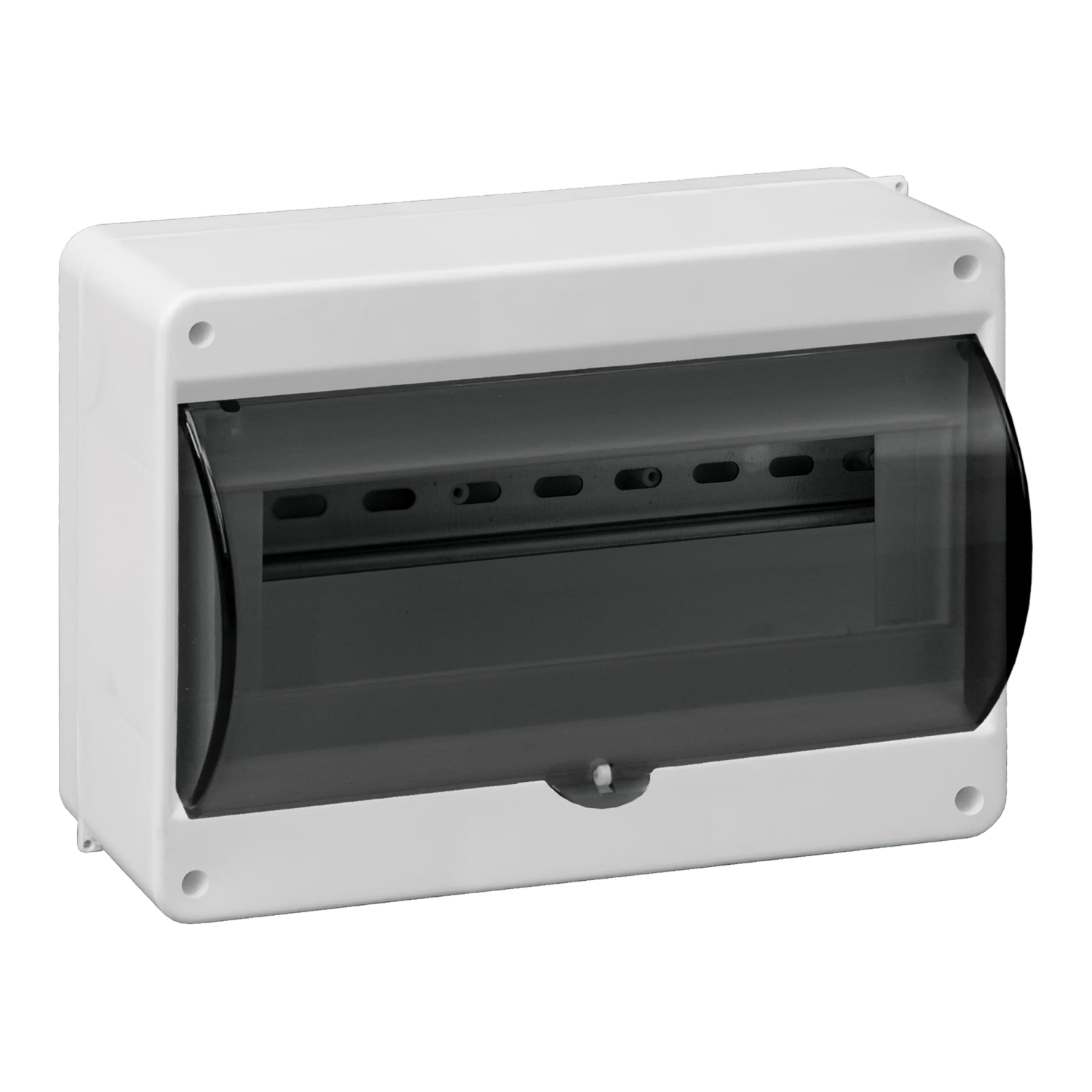

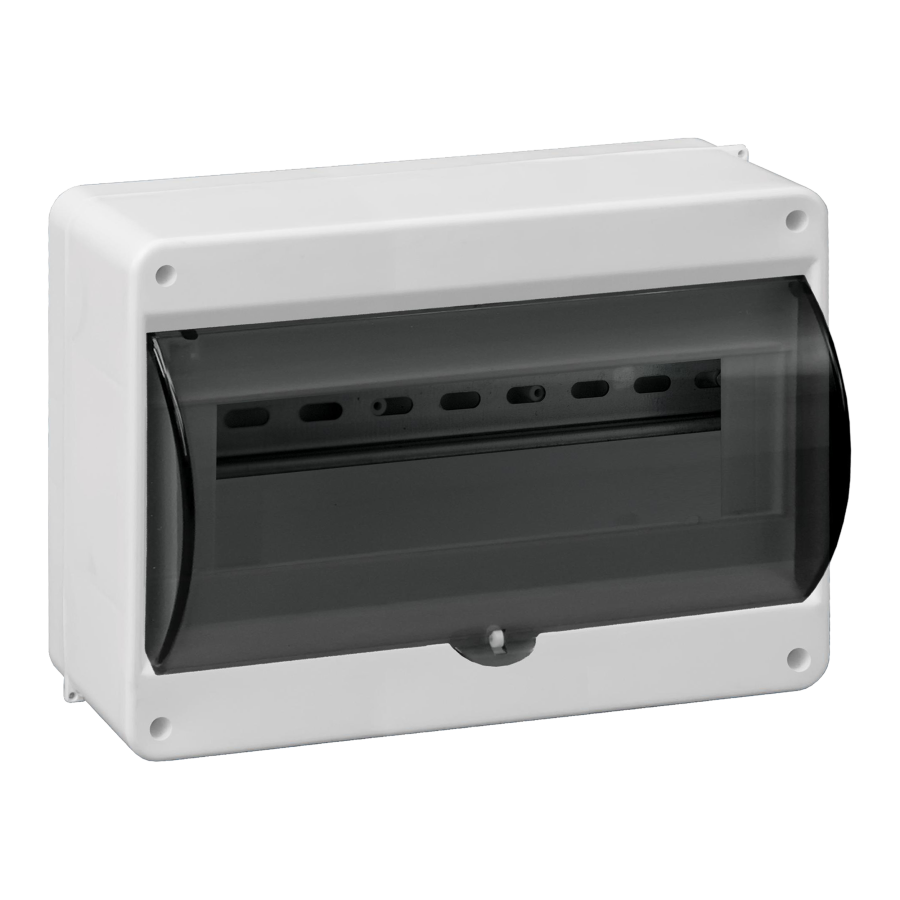

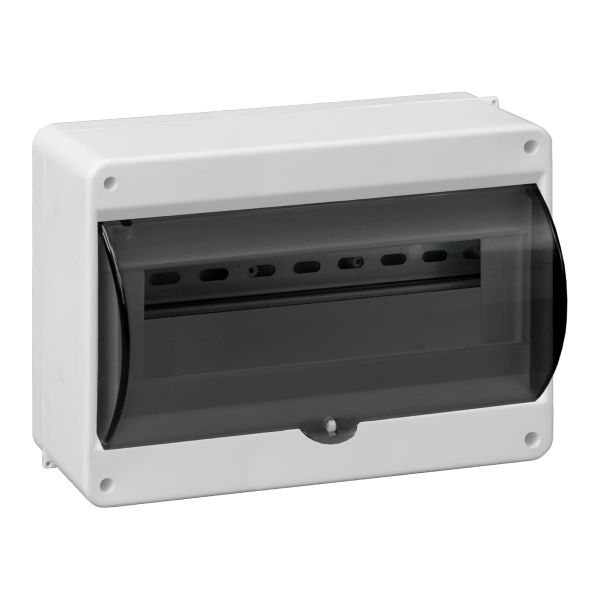

Are you building a house, renovating an office or preparing a workplace? Make sure that your electrical installation is not only functional, but also neat. The S-12 modular enclosure will help you organize all your modular equipment from the first day of use.

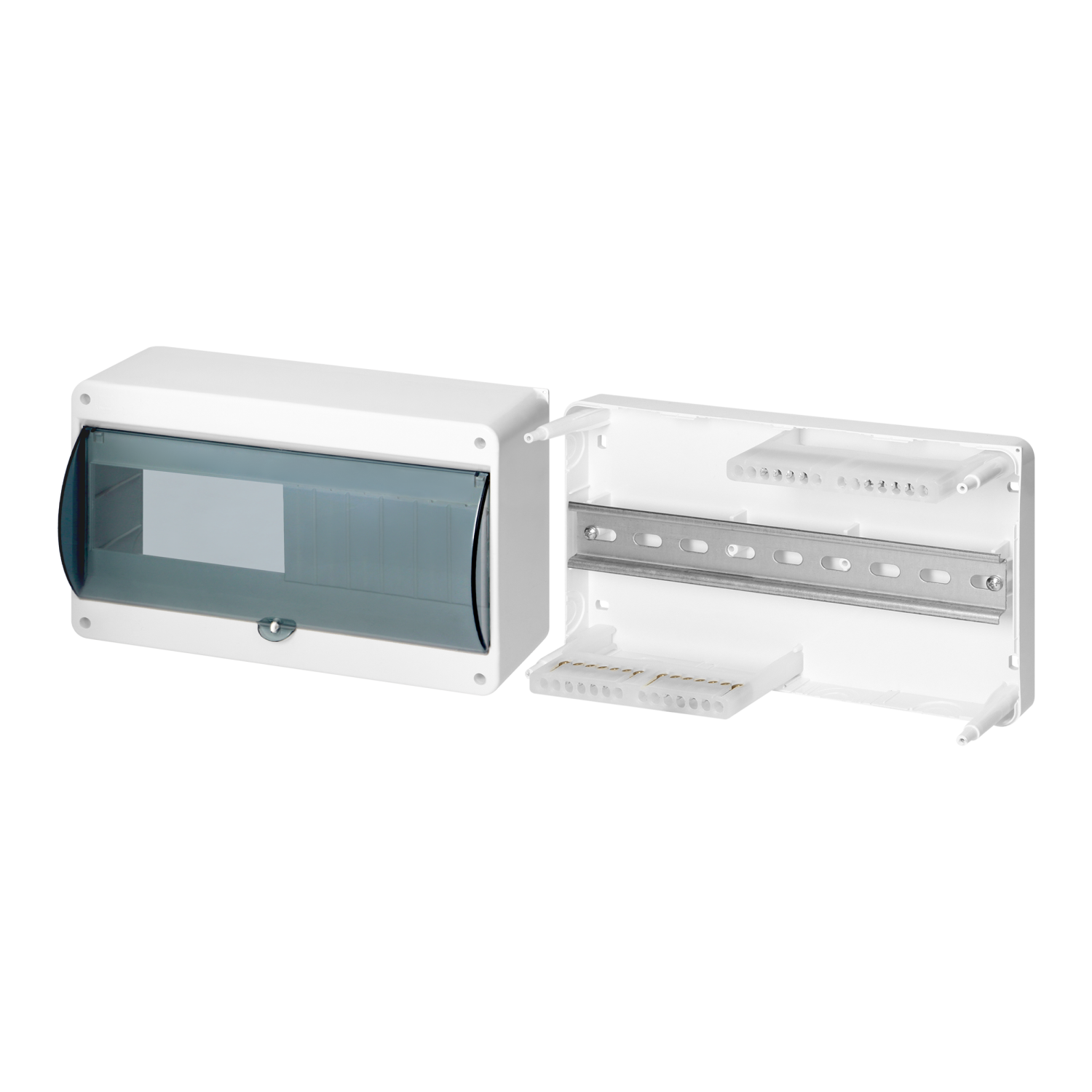

Thanks to the N+PE connectors, you can easily organize your cables, and the side pressings make routing them much easier. The set also includes descriptive labels to help you mark each circuit.
The durable construction made of resistant plastic and the IP40 protection rating ensure safety during everyday use. The white, aesthetic housing fits any interior – from a home boiler room to an office back room.
You can surface-mount it without chiselling or making a mess.

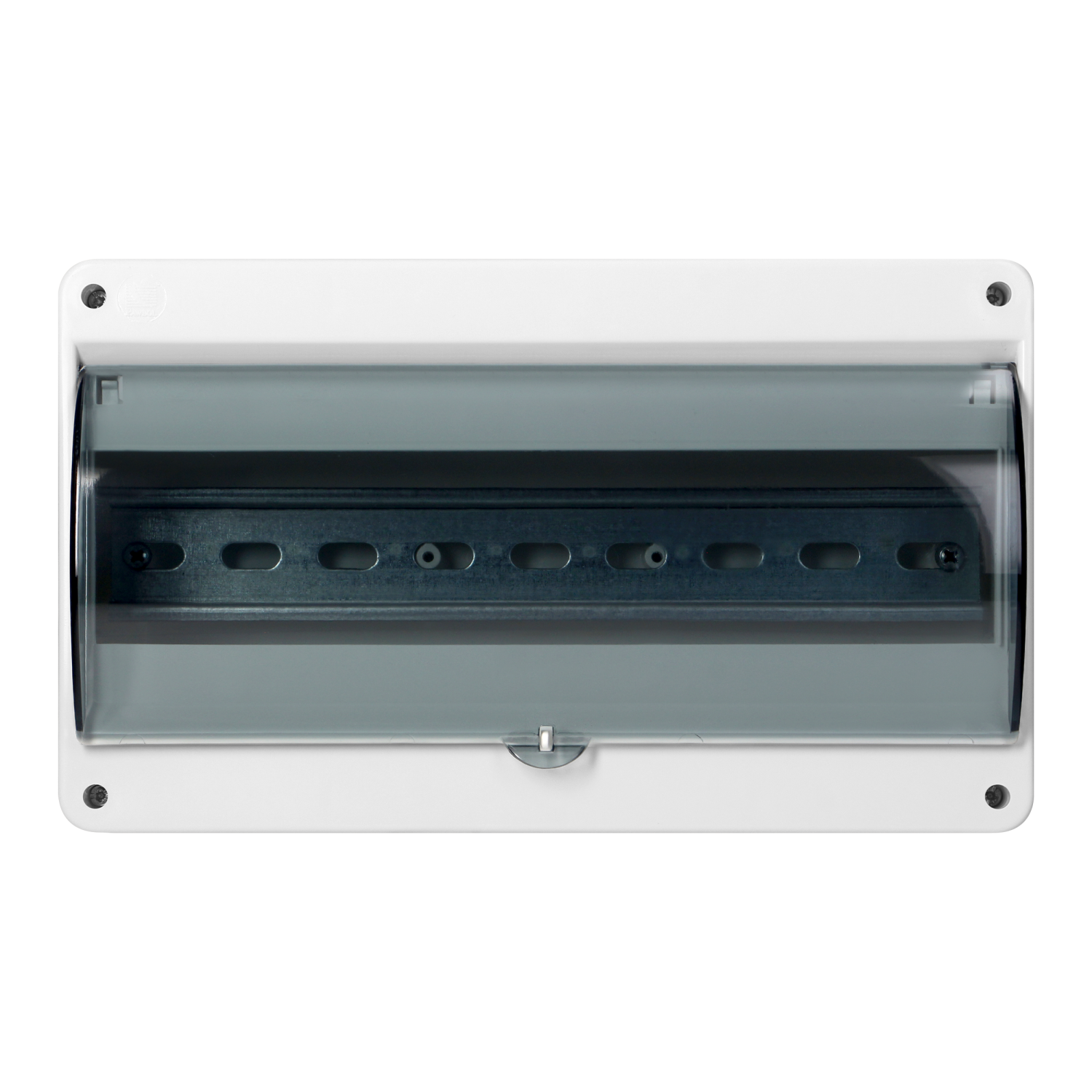

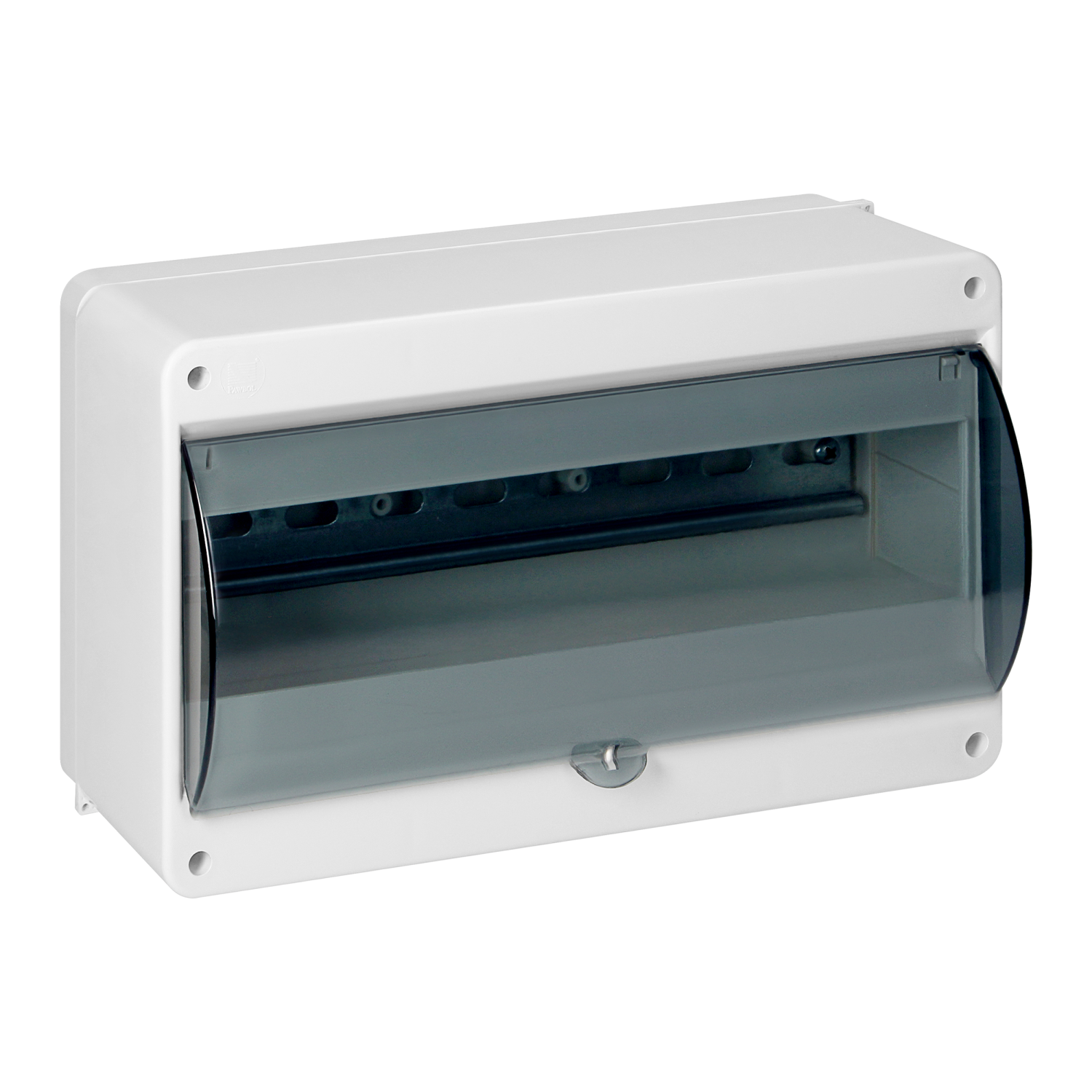

The smoked glass window allows you to check the status of the protections at a glance.
With the S-12 modular enclosure, everything is clear and under control. This is exactly what a well-planned installation should look like.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 240 |
| Depth [mm]: | 96 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 75 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 12 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 12 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 4 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
