Electrical modular enclosures
New

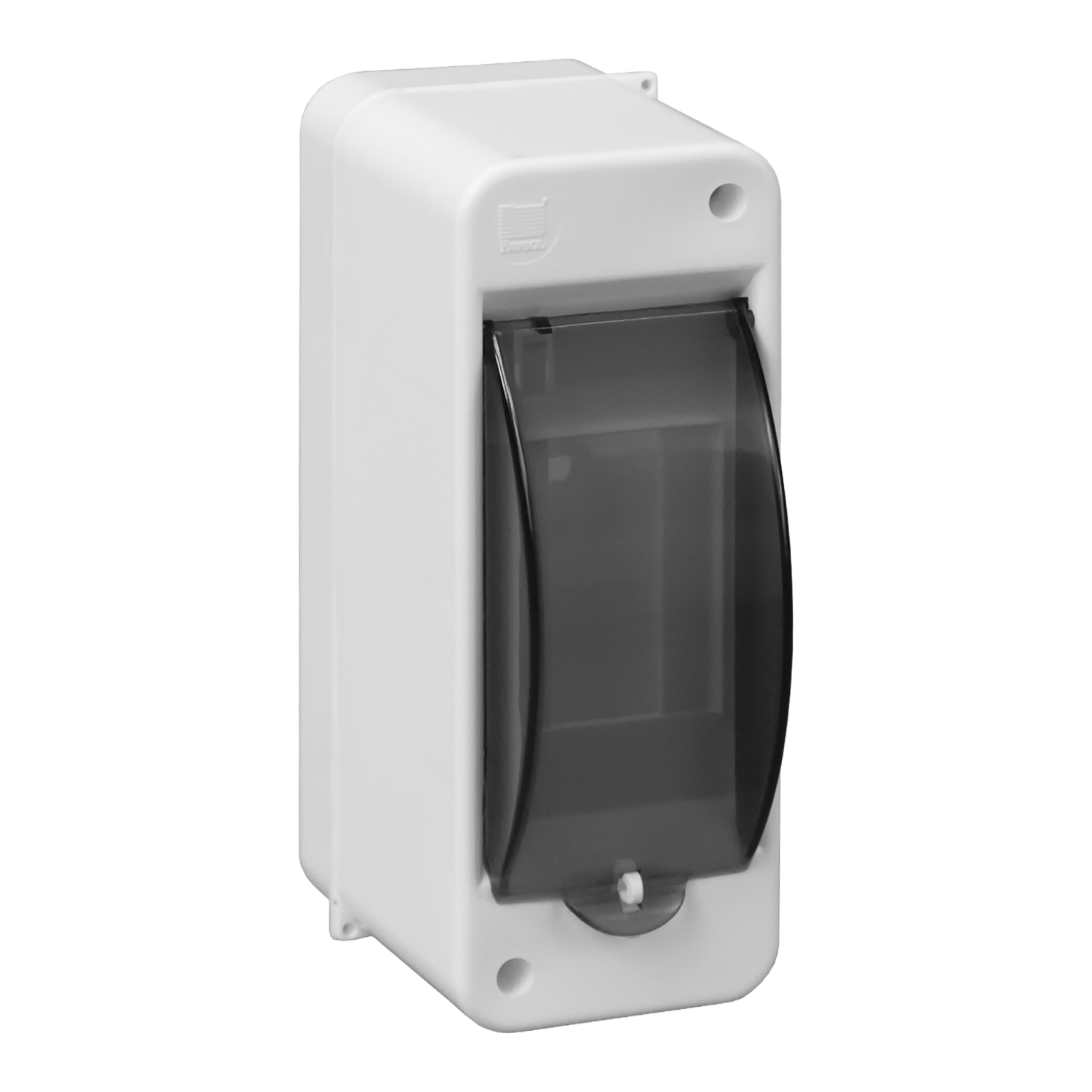

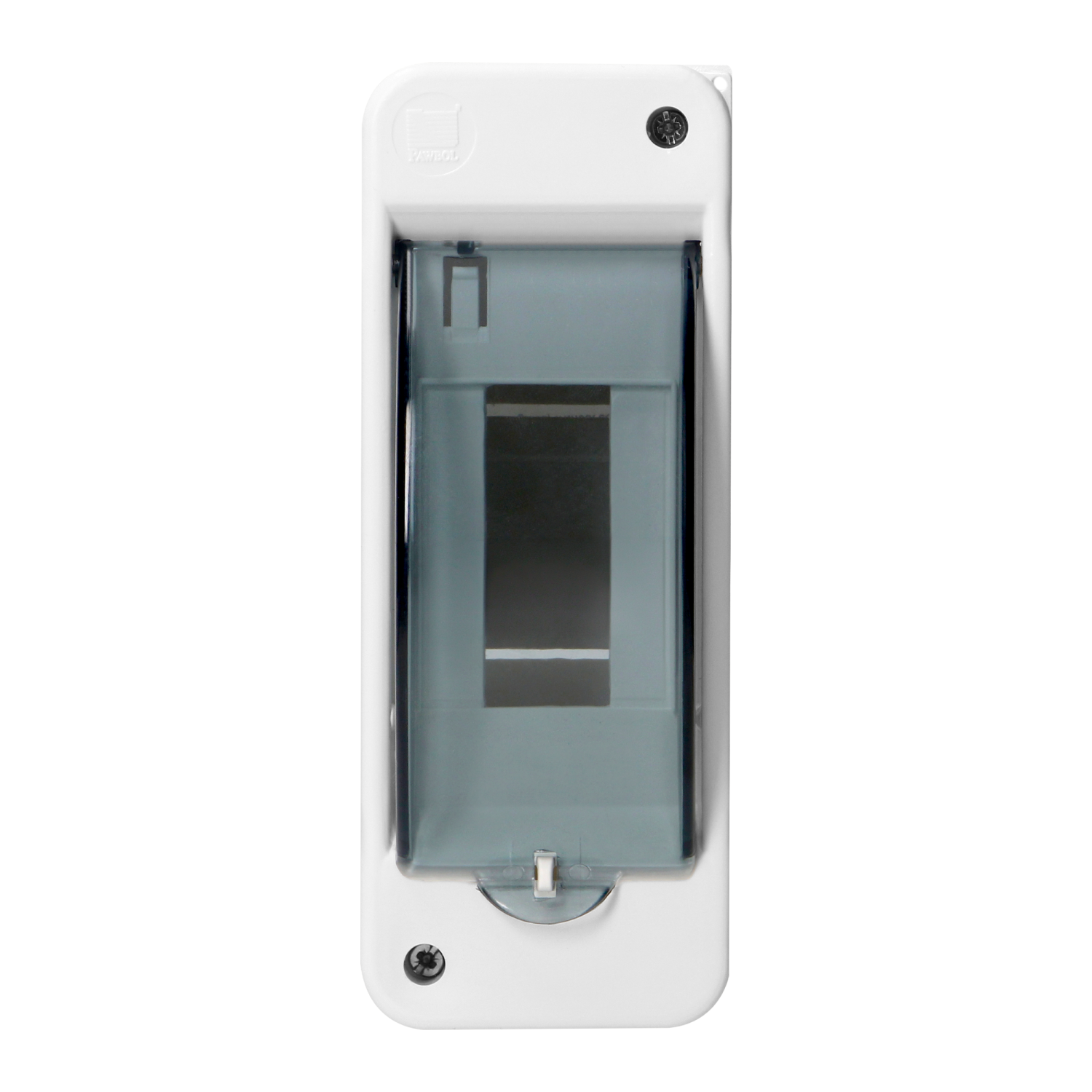

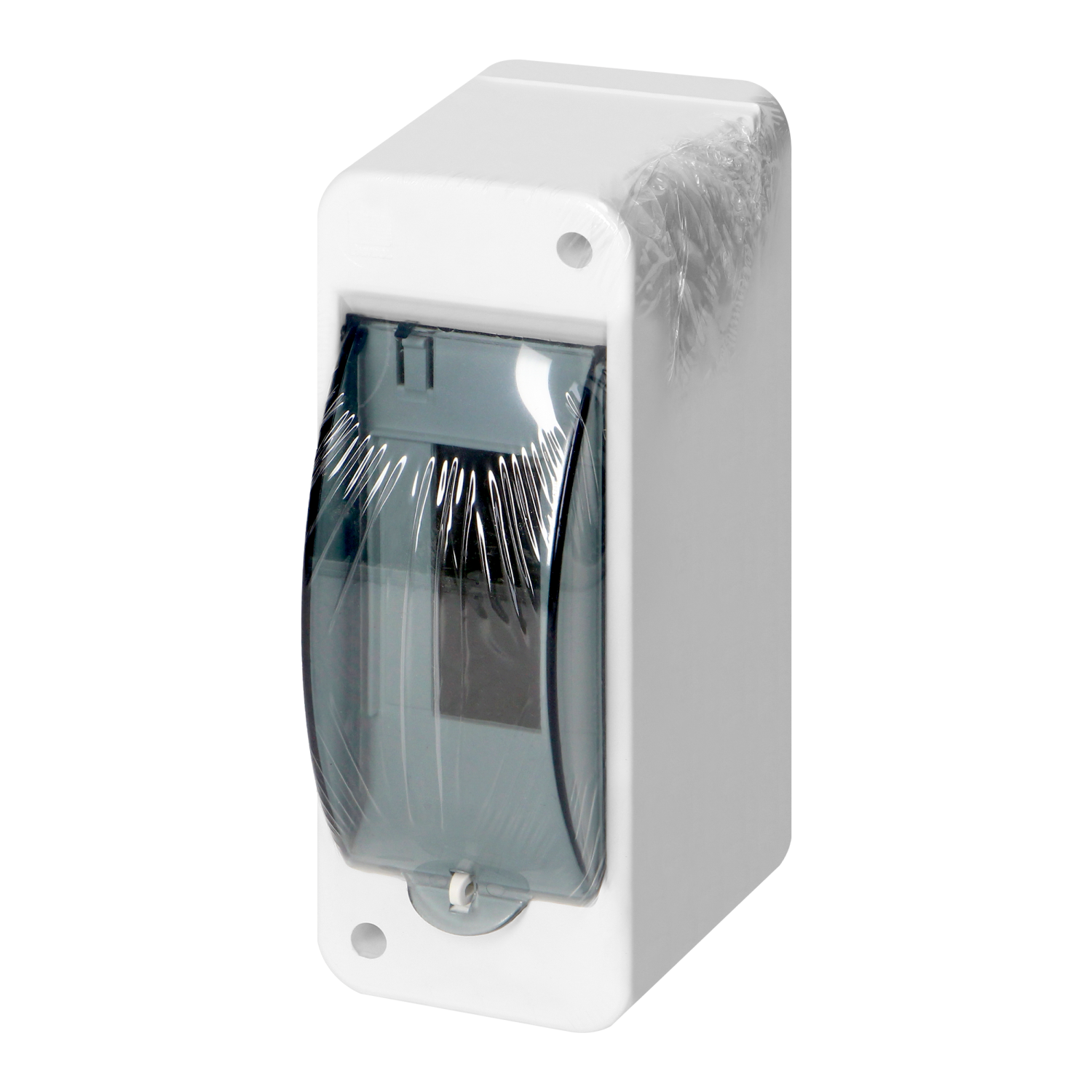

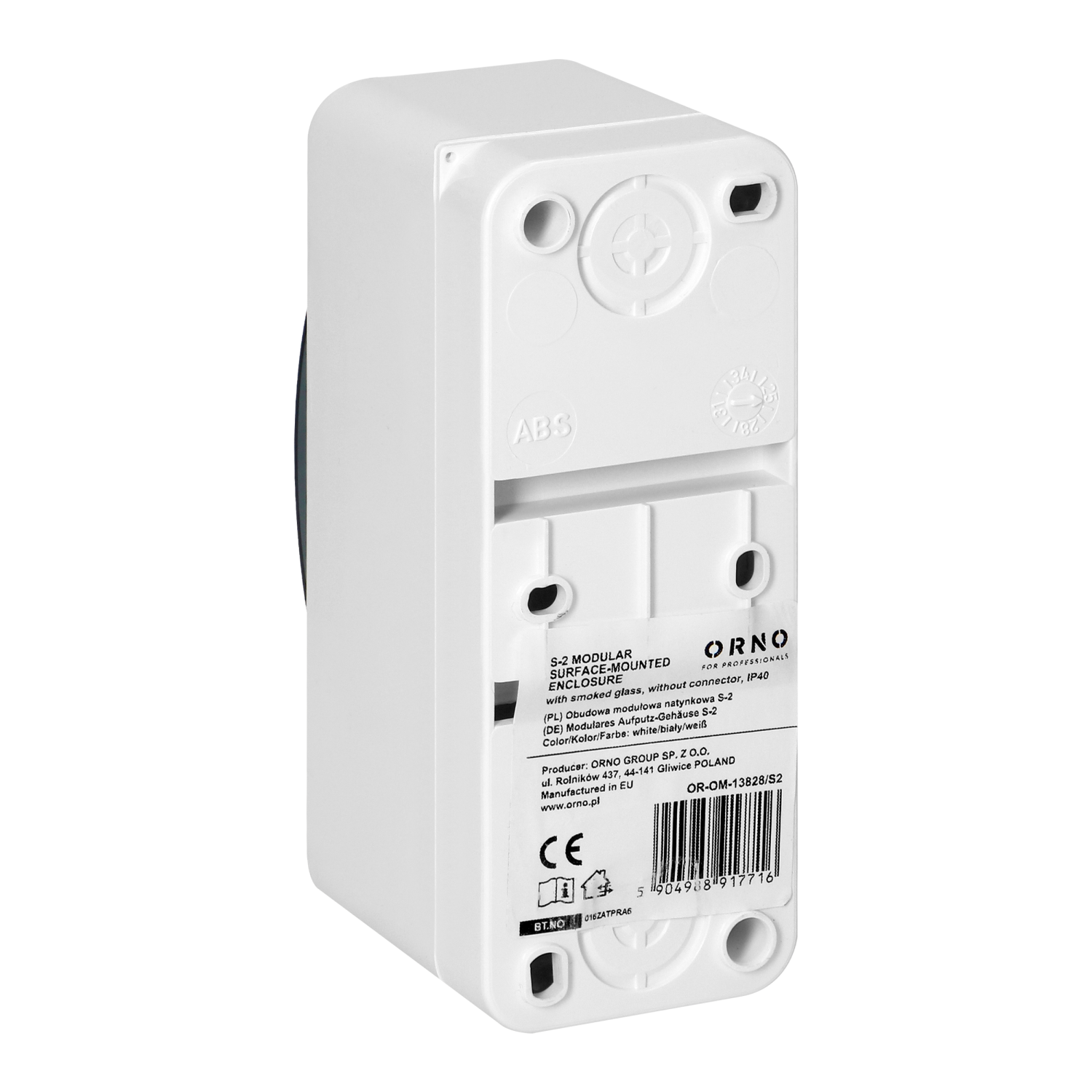

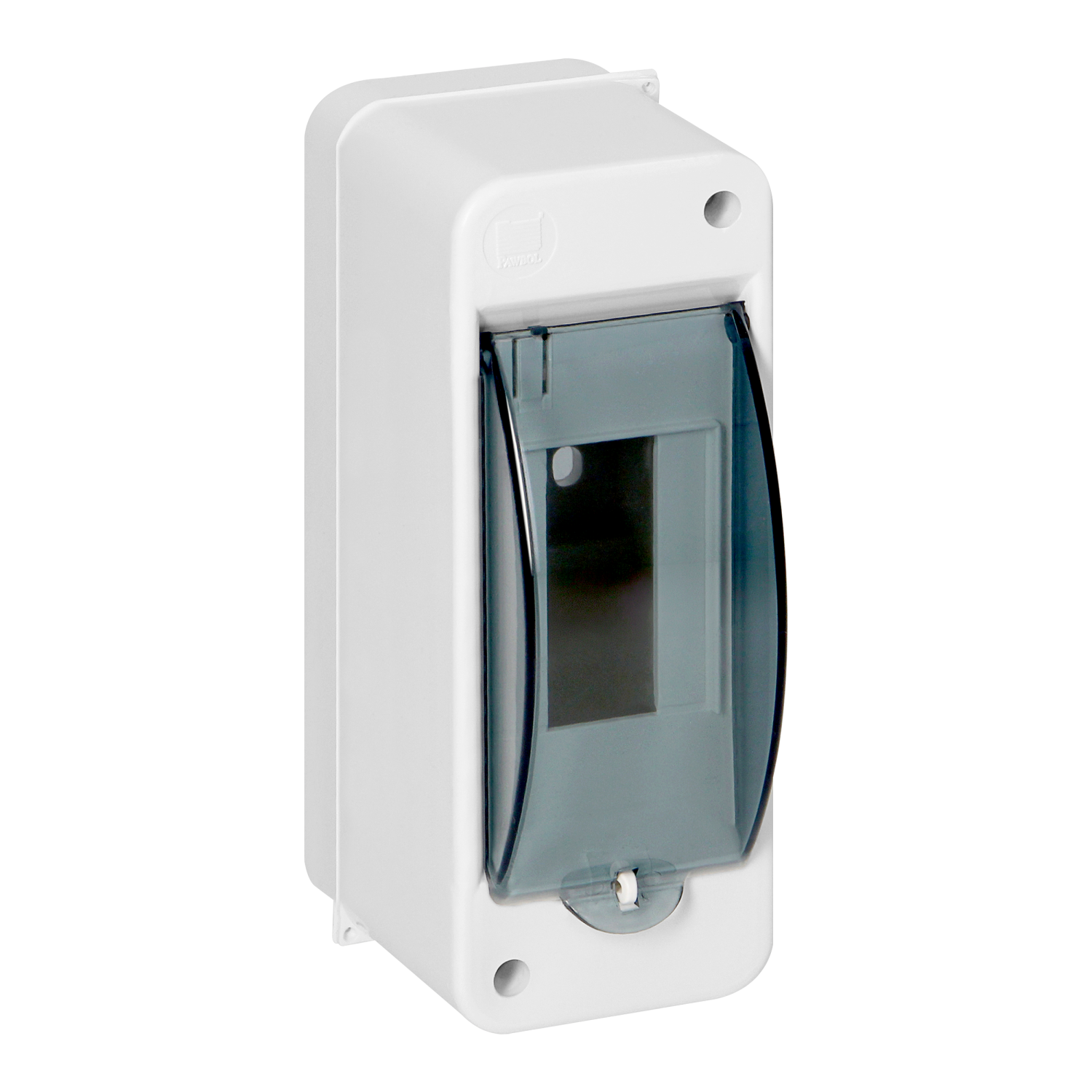

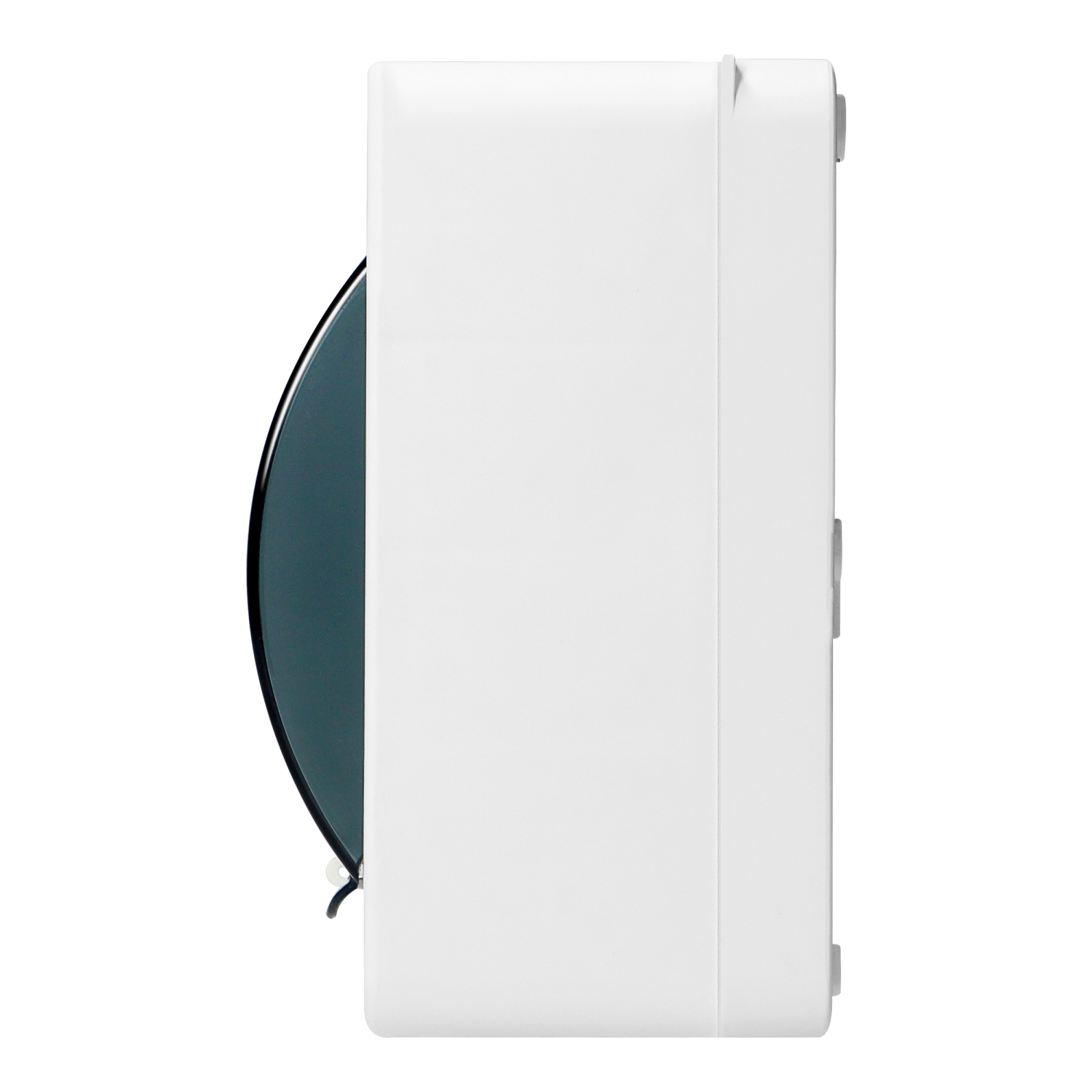

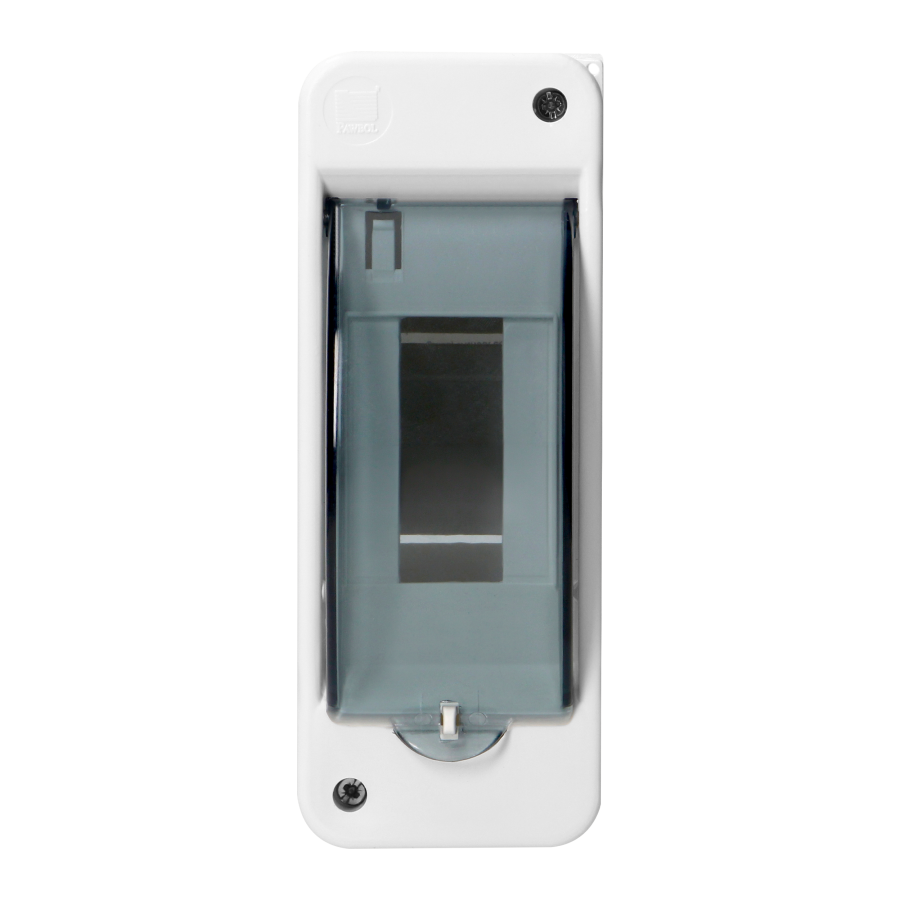

The S-2 model is the smallest enclosure in the series – it houses 2 overcurrent protection devices/circuit breakers in one row and is equipped with a TH 35/7.5 rail (euro rail). It will work well at home and in the office.
The housing is designed for surface mounting, so you won't have to break the plaster.

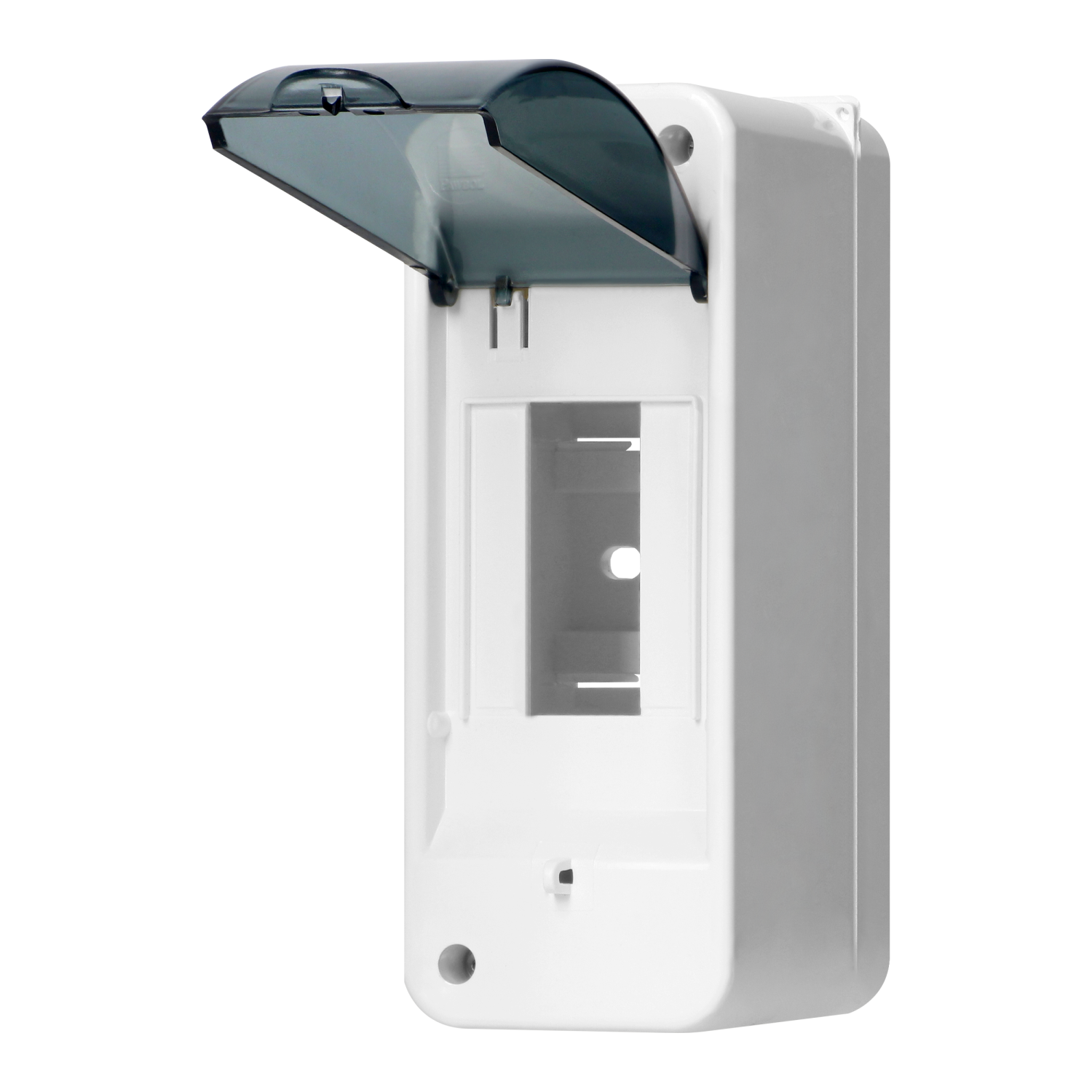

The smoked glass allows you to check the status of the protections without opening the unit. It also protects the interior from dust and accidental touch.
The enclosure is made of durable plastic with high mechanical resistance (IK08) and has an IP40 protection rating. This ensures proper protection of the equipment.
The universal white colour fits almost any interior.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 55 |
| Depth [mm]: | 85 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 2 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 2 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 2 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
