Electrical modular enclosures
New

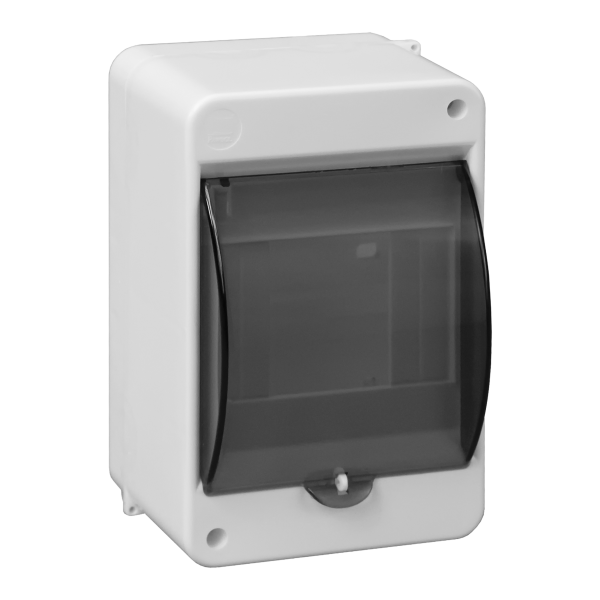

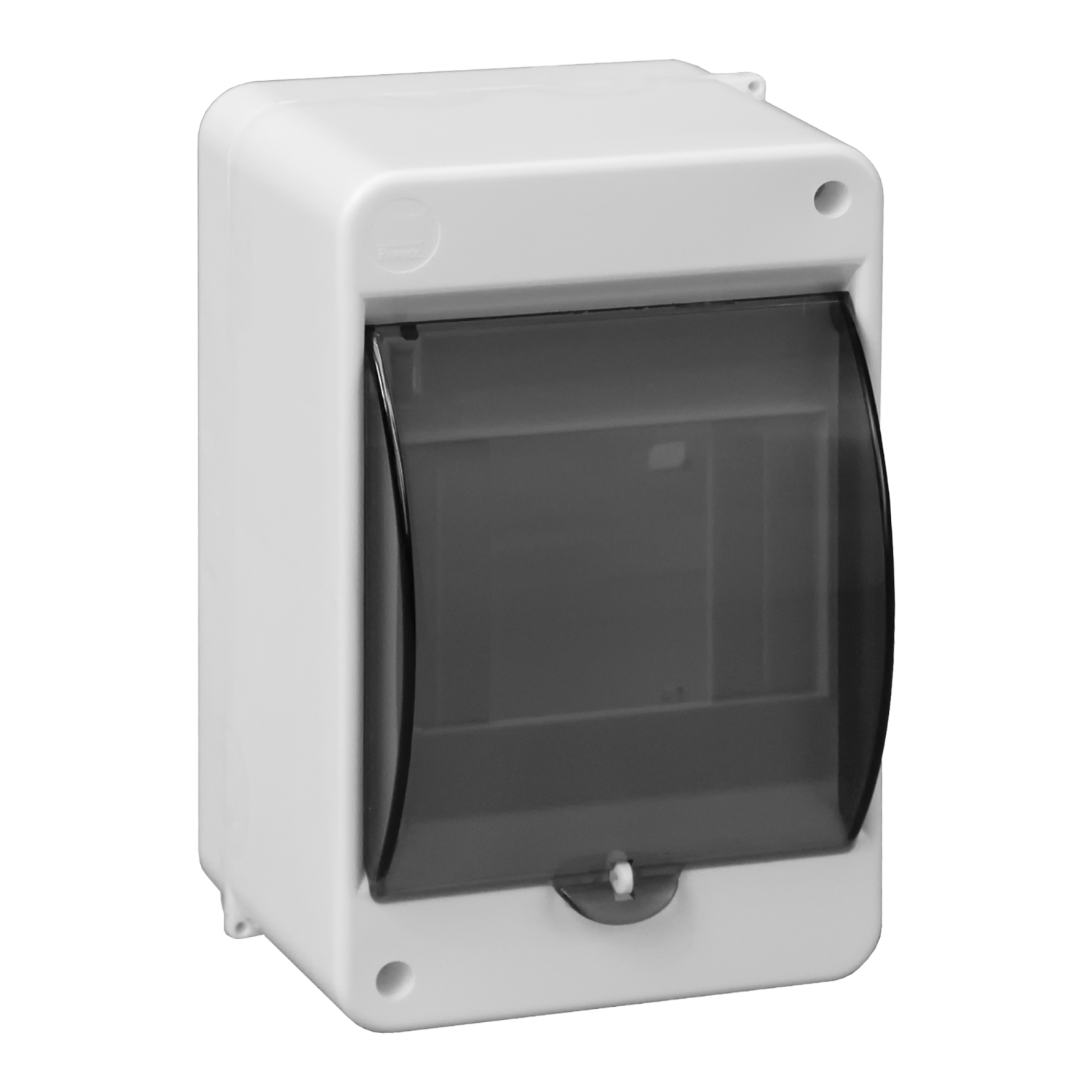

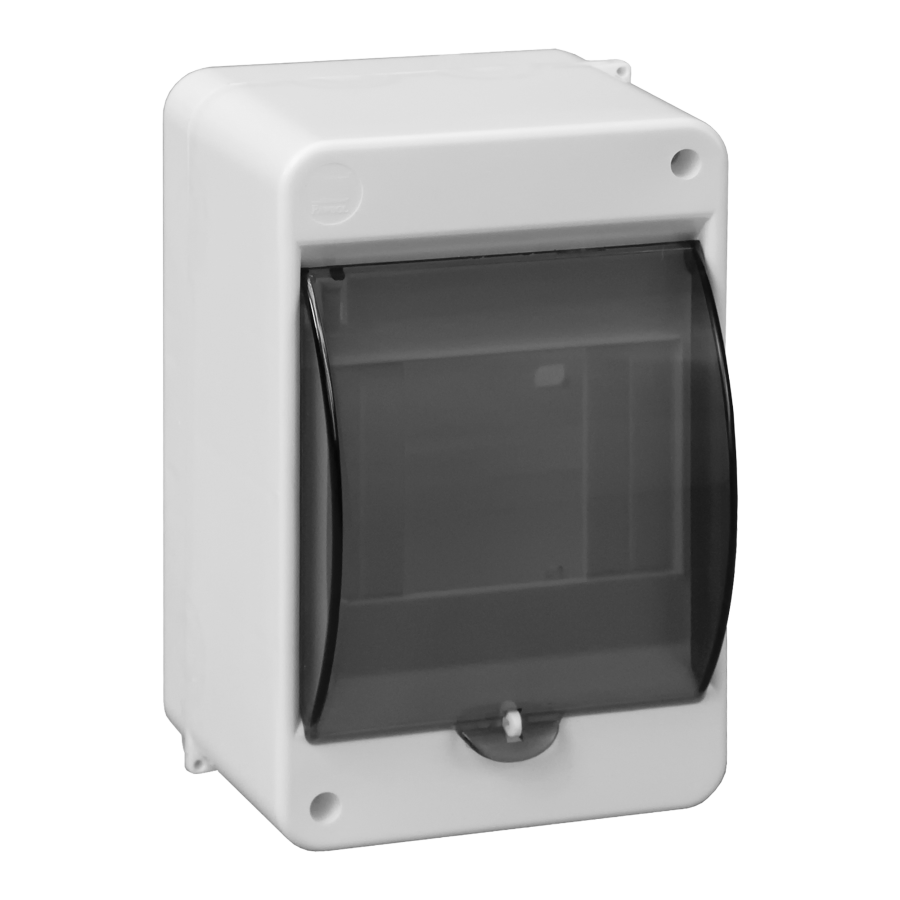

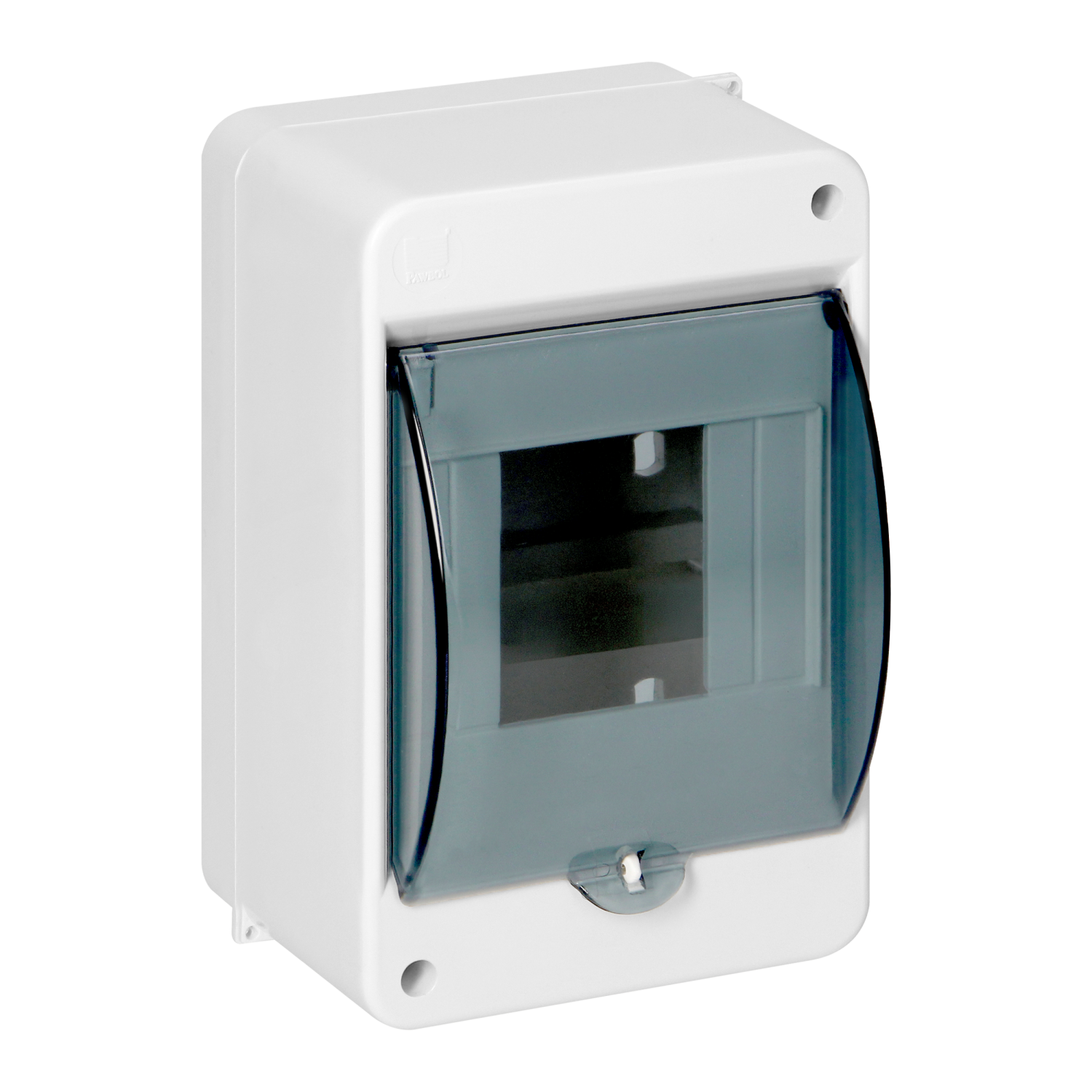

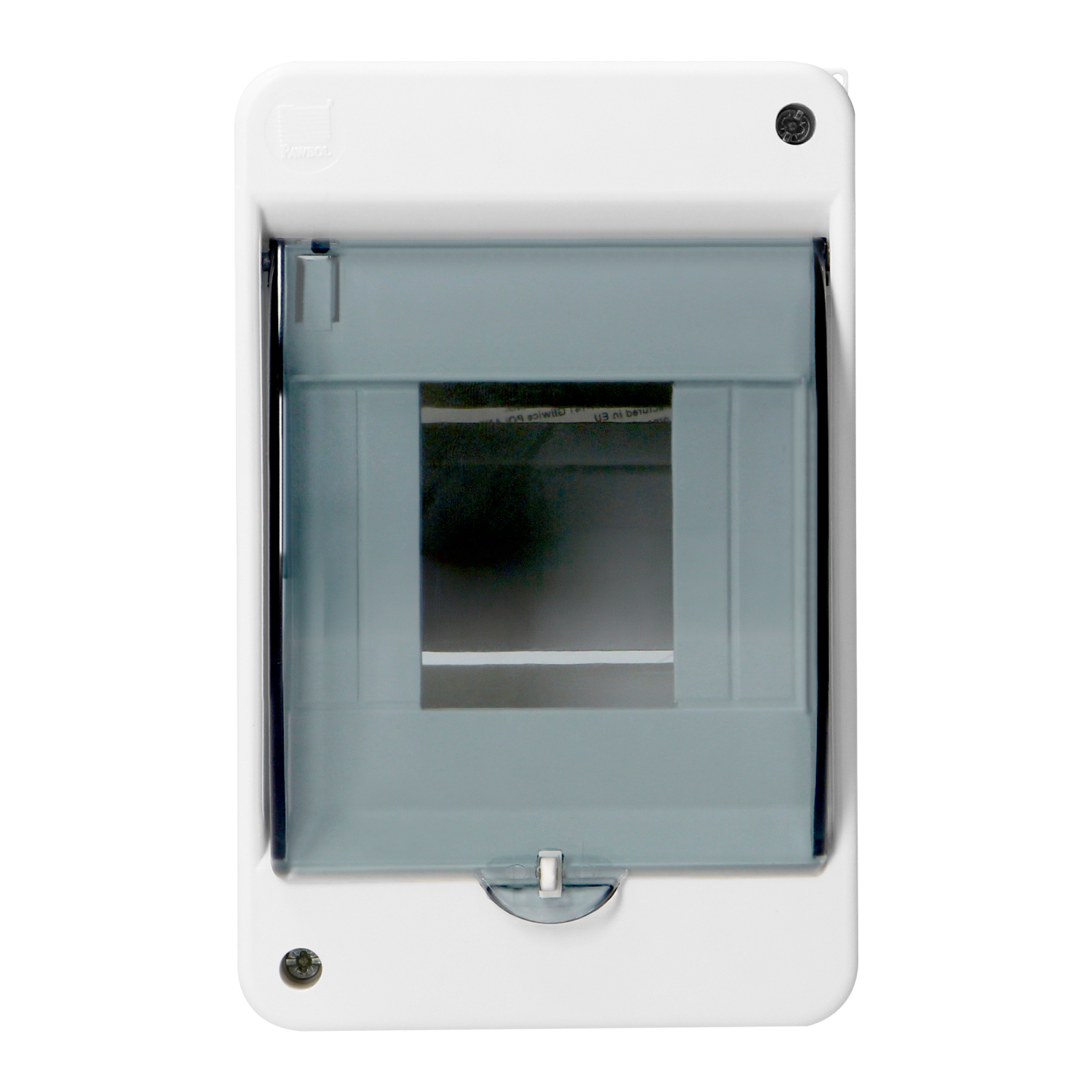

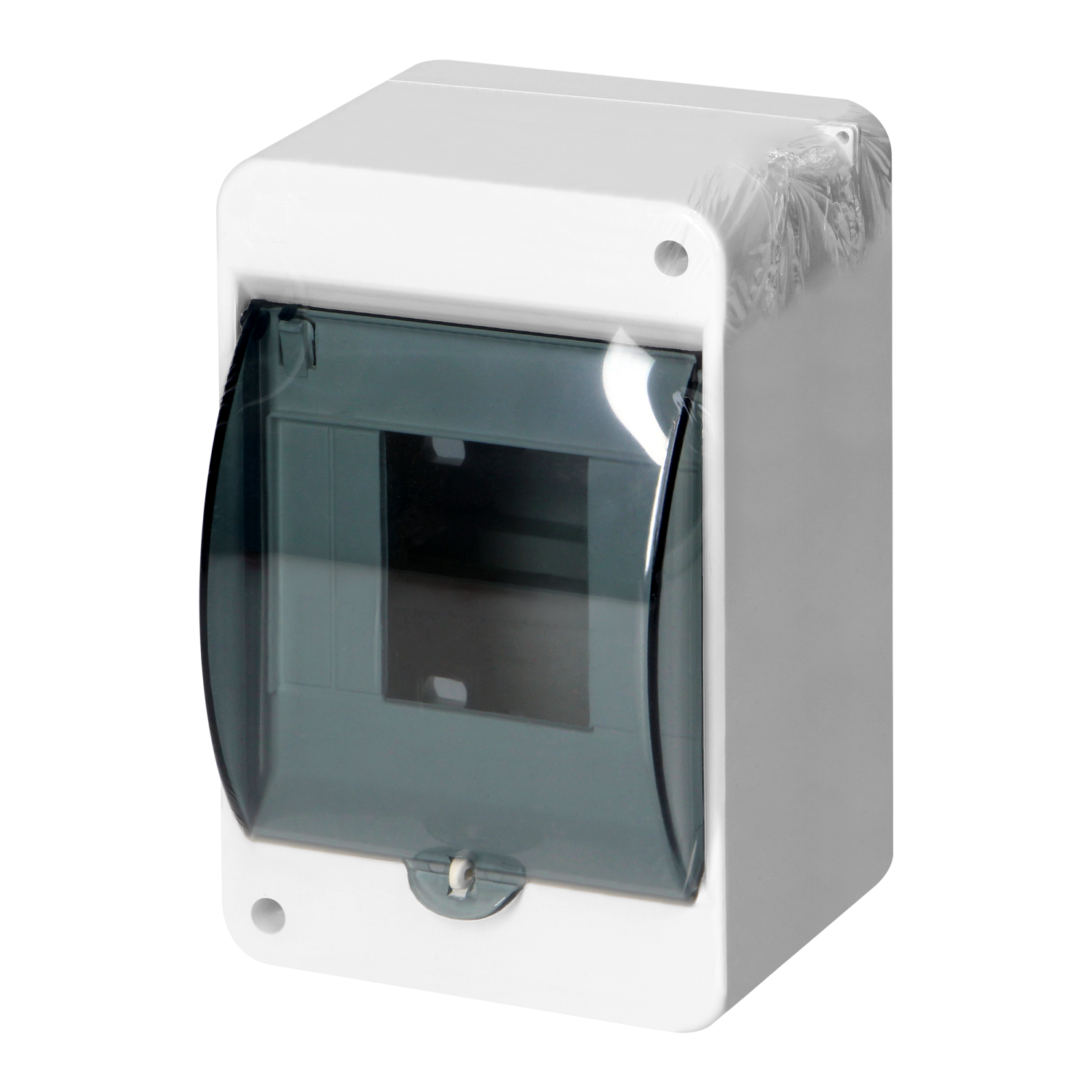

Need a small enclosure that will help you organize your installation? Choose the S-4 model! Durable construction and IP40 rate ensure safe indoor use.

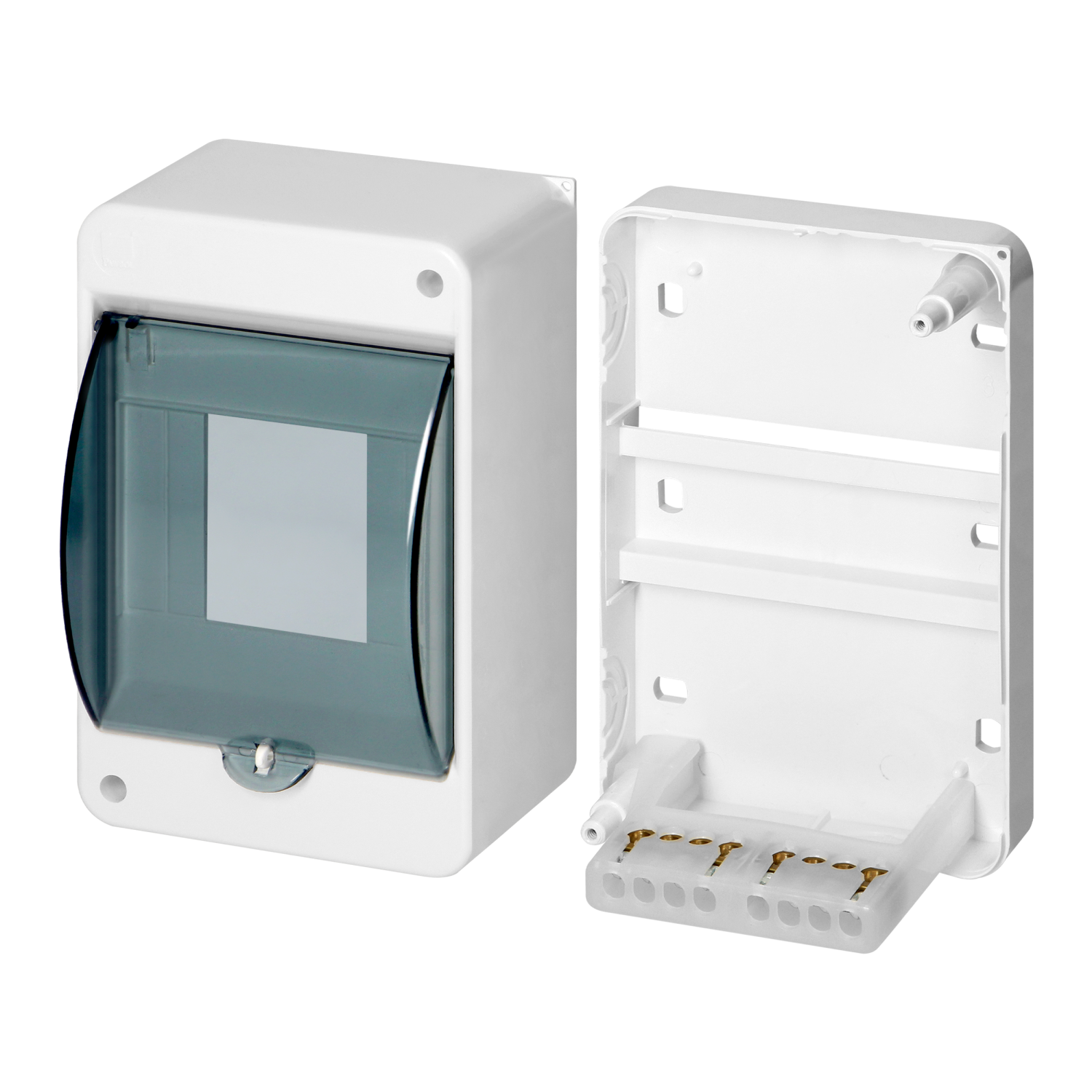

With the help of N+PE connectors you can organize your cables and maintain the aesthetics inside it. The pressed sides make it easier to insert cables, and the descriptive labels allow you to quickly mark each circuit.

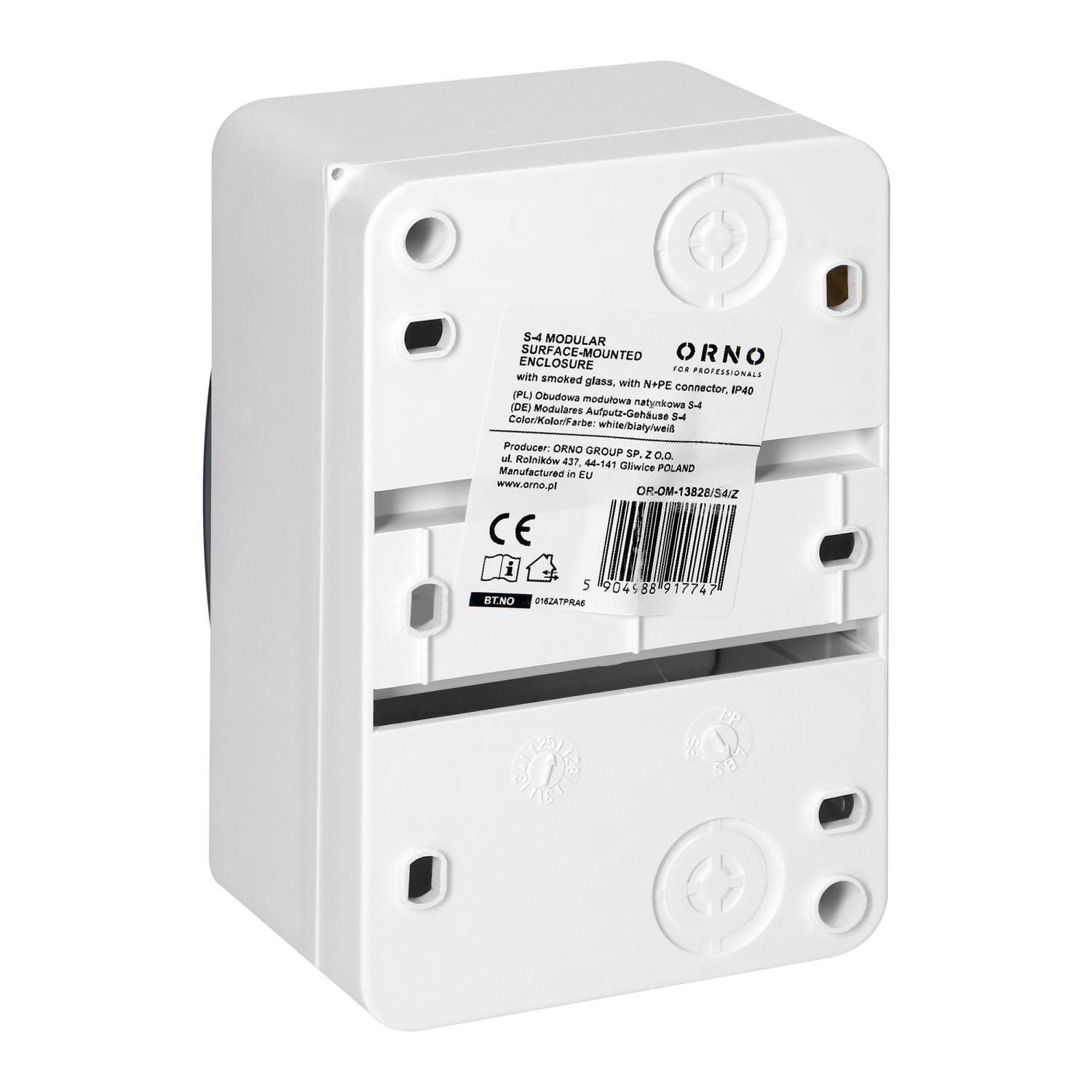

The enclosure is surface-mounted, no need to break the wall.

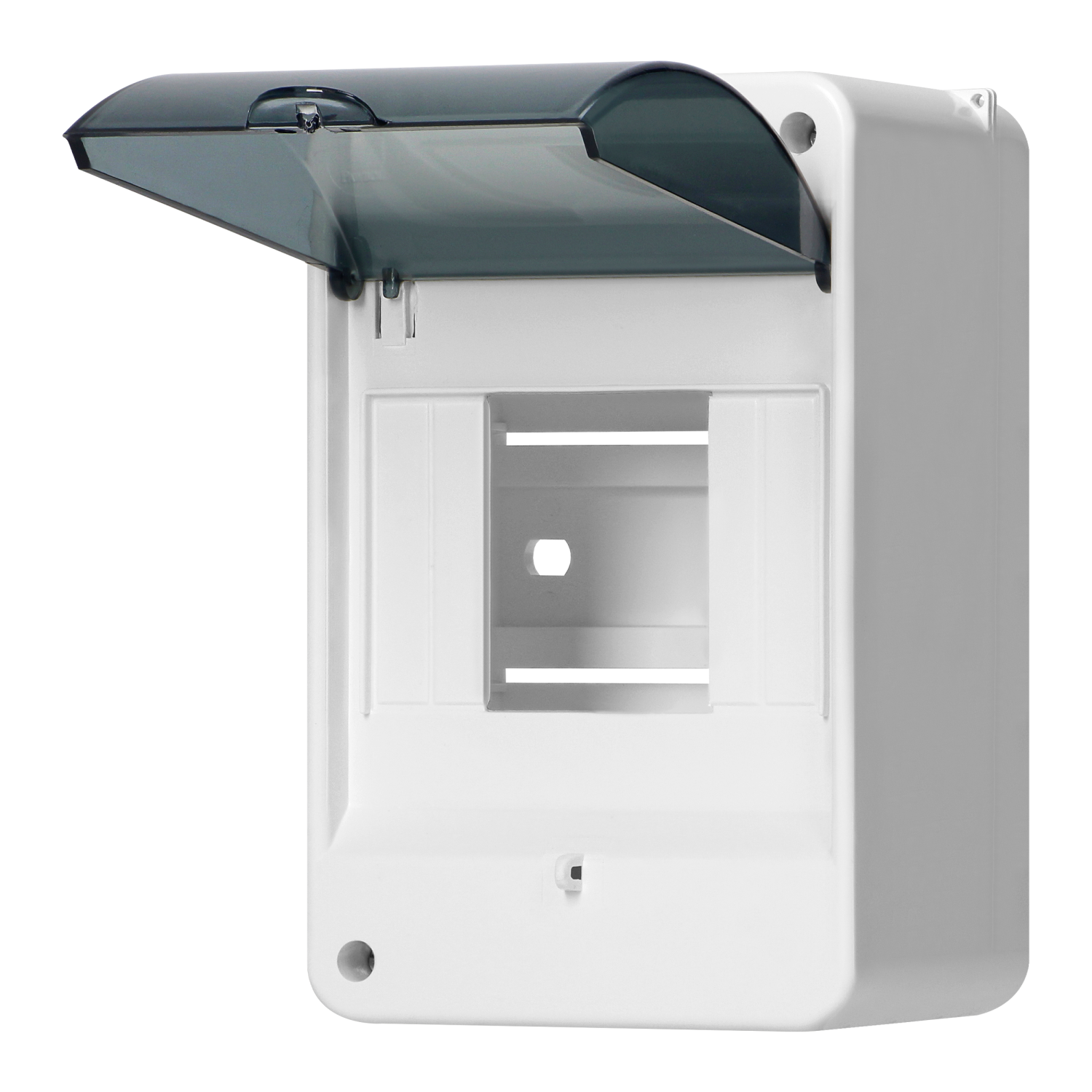

Thanks to the smoked glass, you can immediately see whether everything is working properly.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 92 |
| Depth [mm]: | 85 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 4 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 4 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 2 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
