Electrical modular enclosures
New

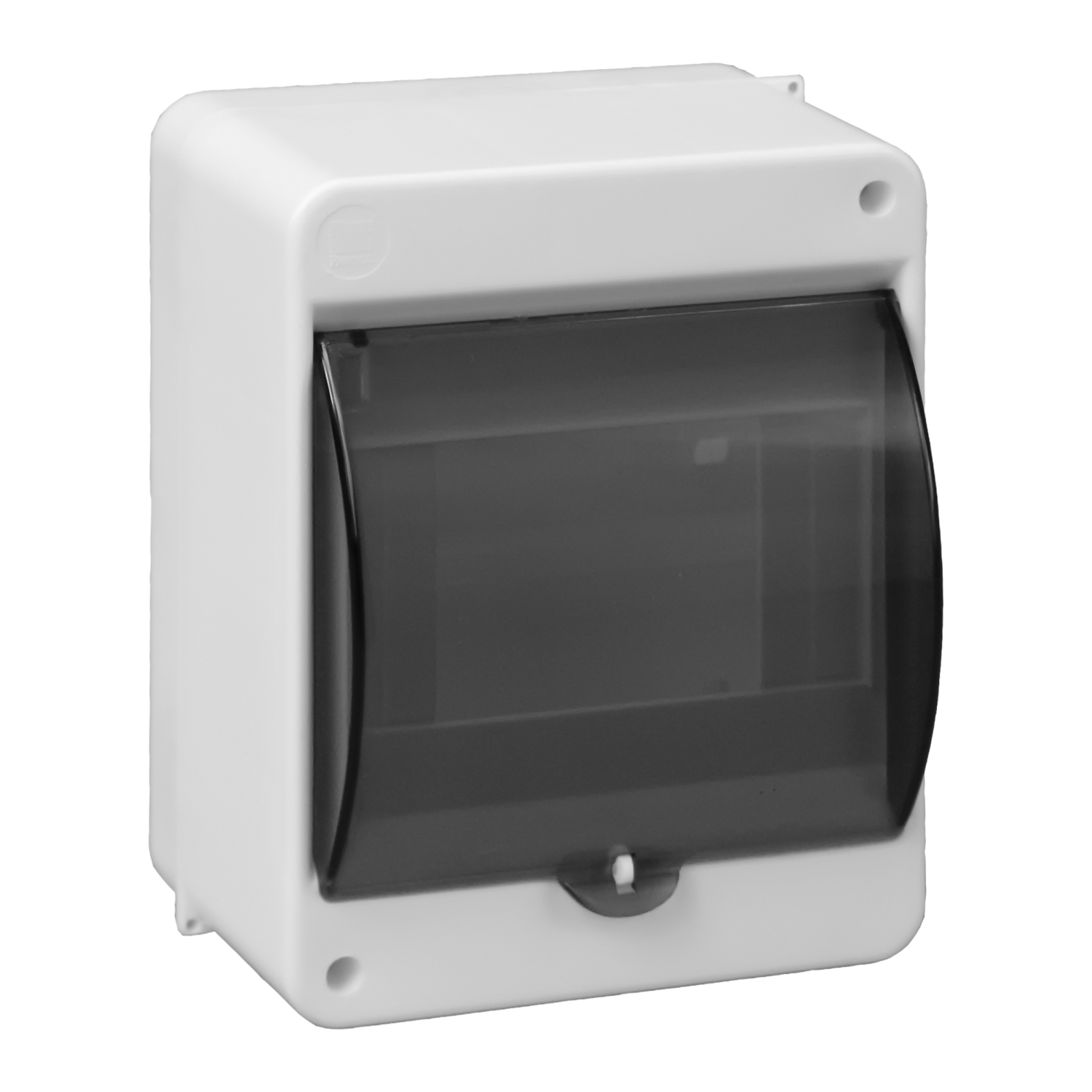

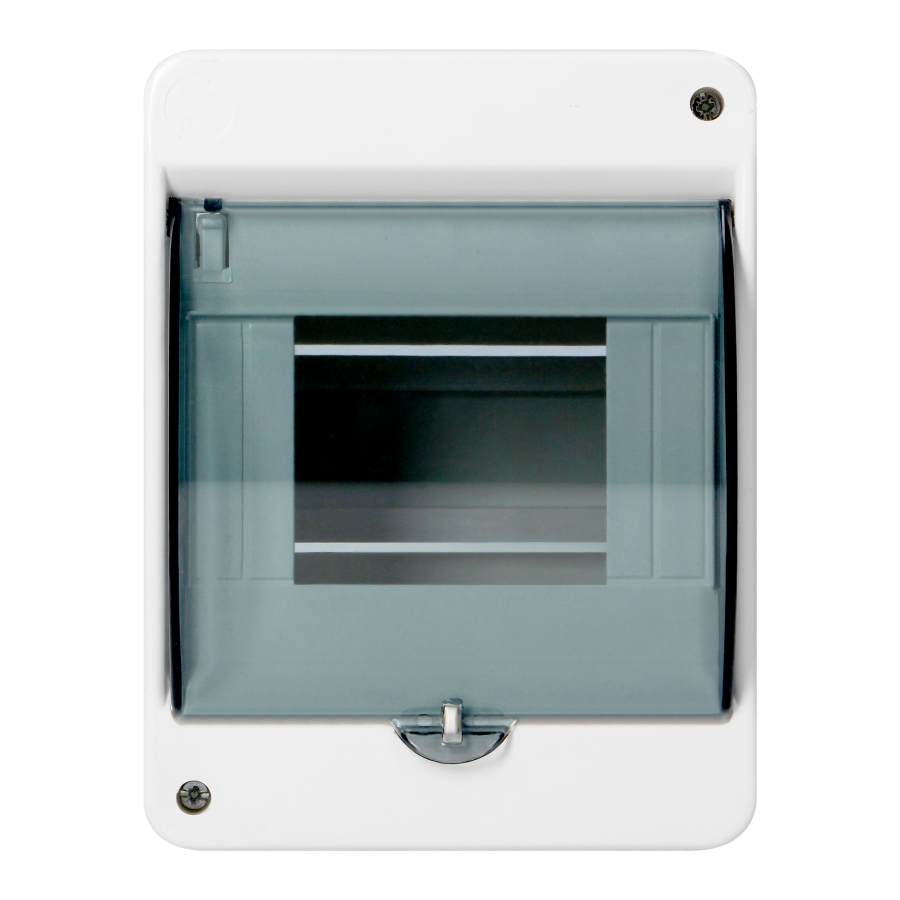

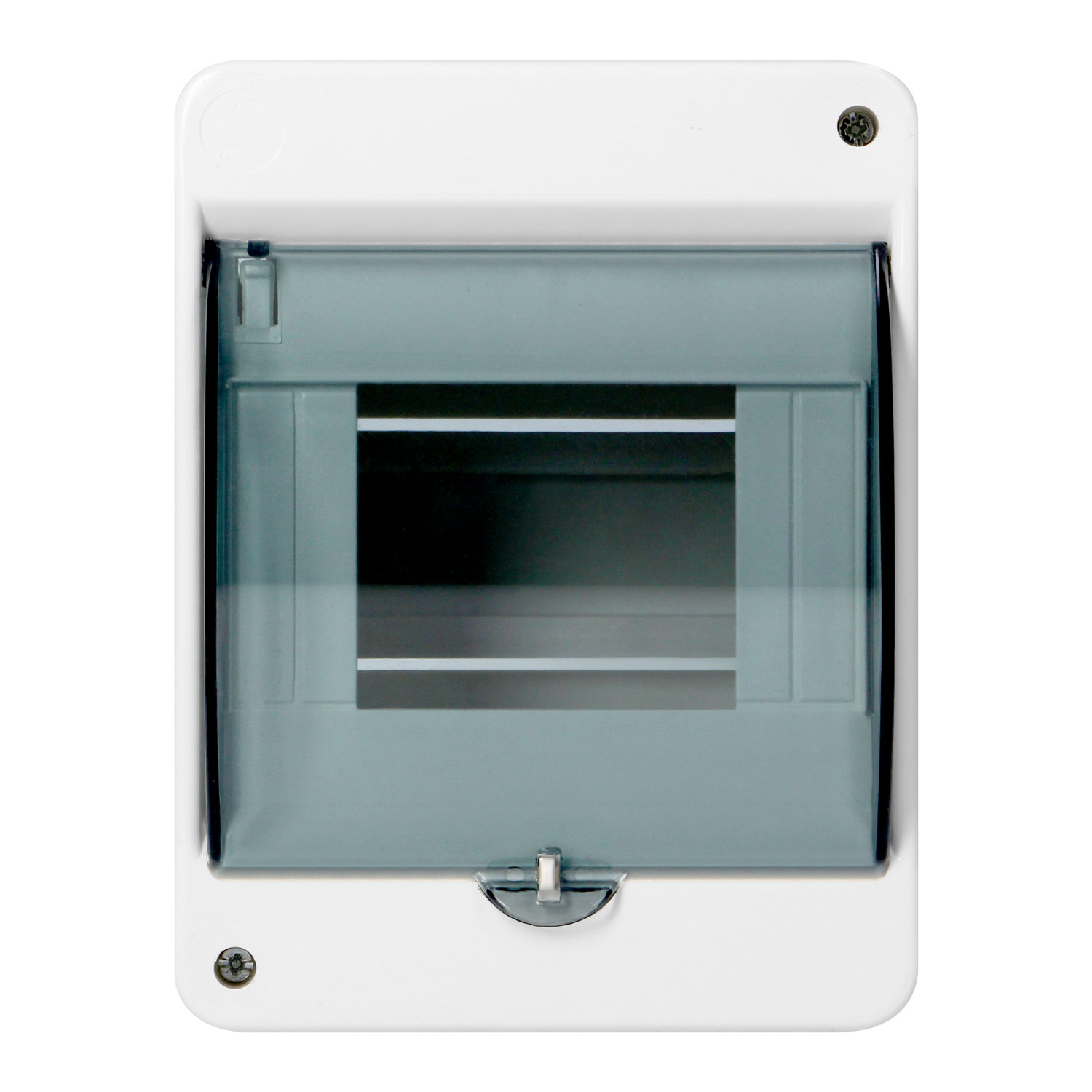

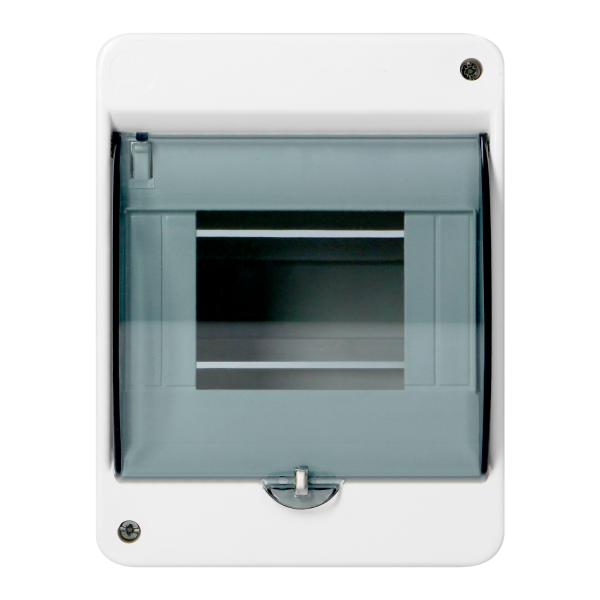

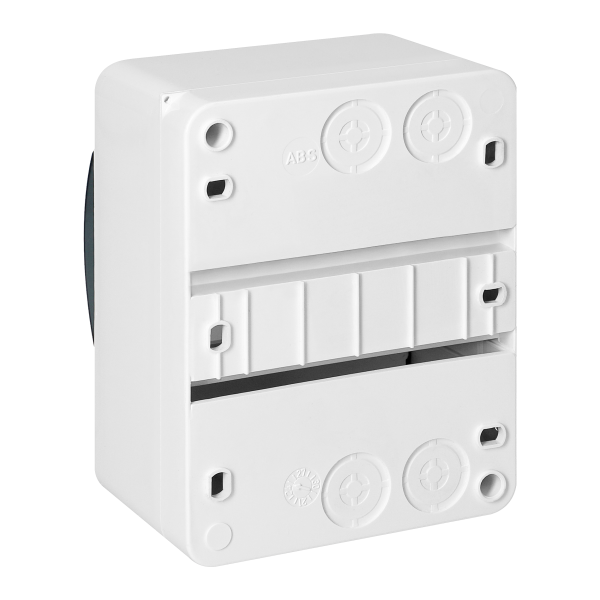

Are you looking for an enclosure for mounting modular systems? The S-5 model is a robust surface-mounted cabinet designed for indoor use – perfect for homes, offices, workshops and technical rooms.
The unit is designed for surface mounting, which allows for quick wall installation without the need to remove plaster.

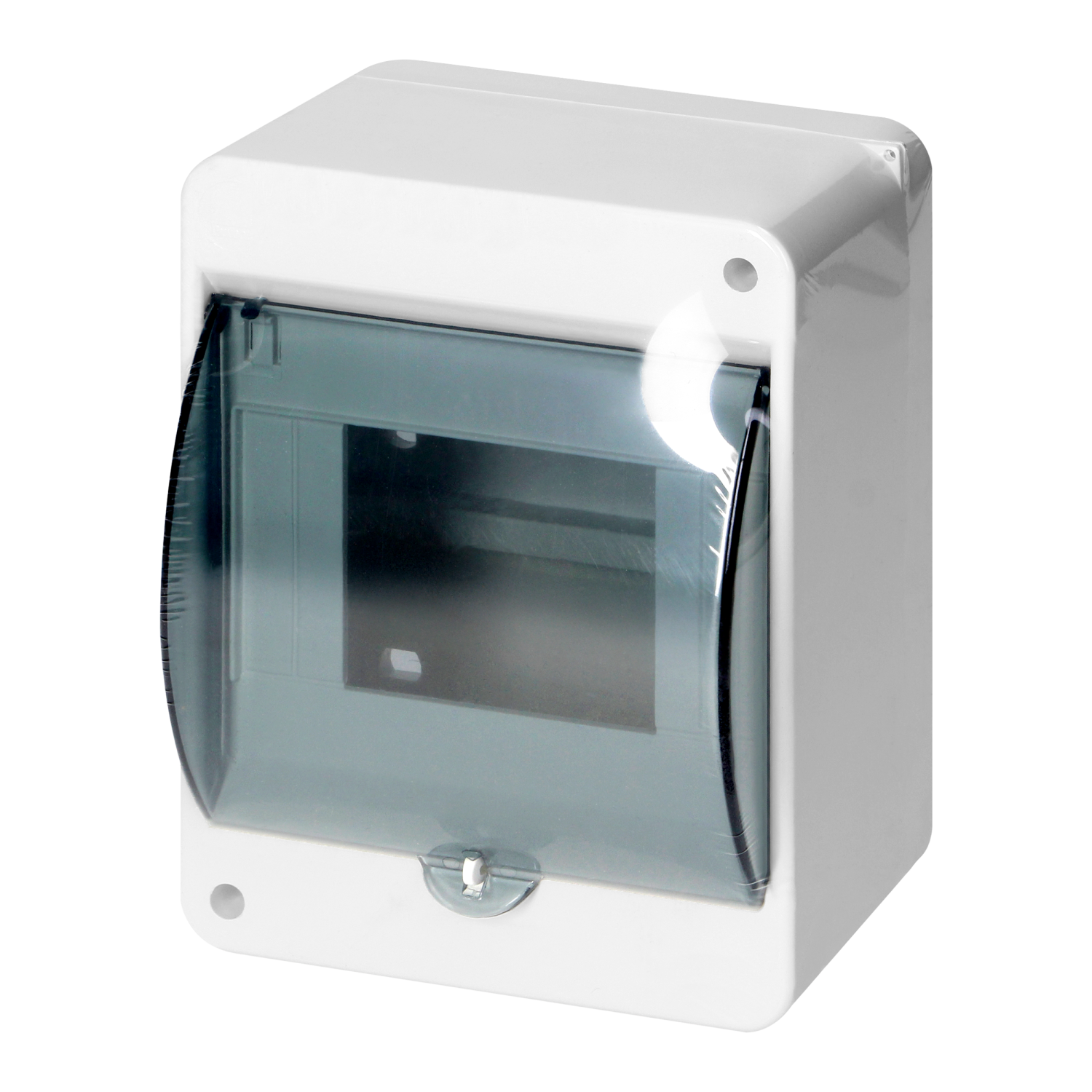

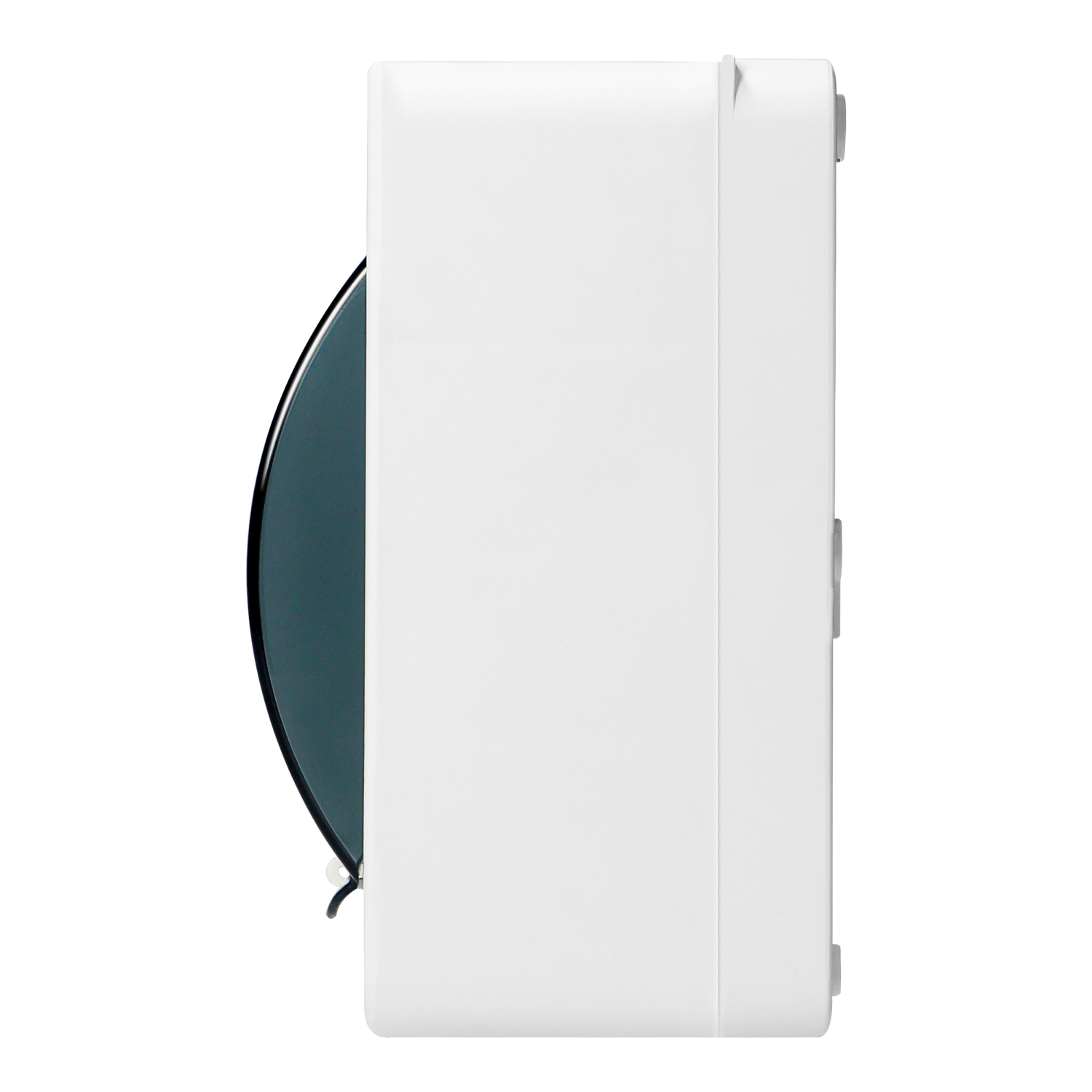

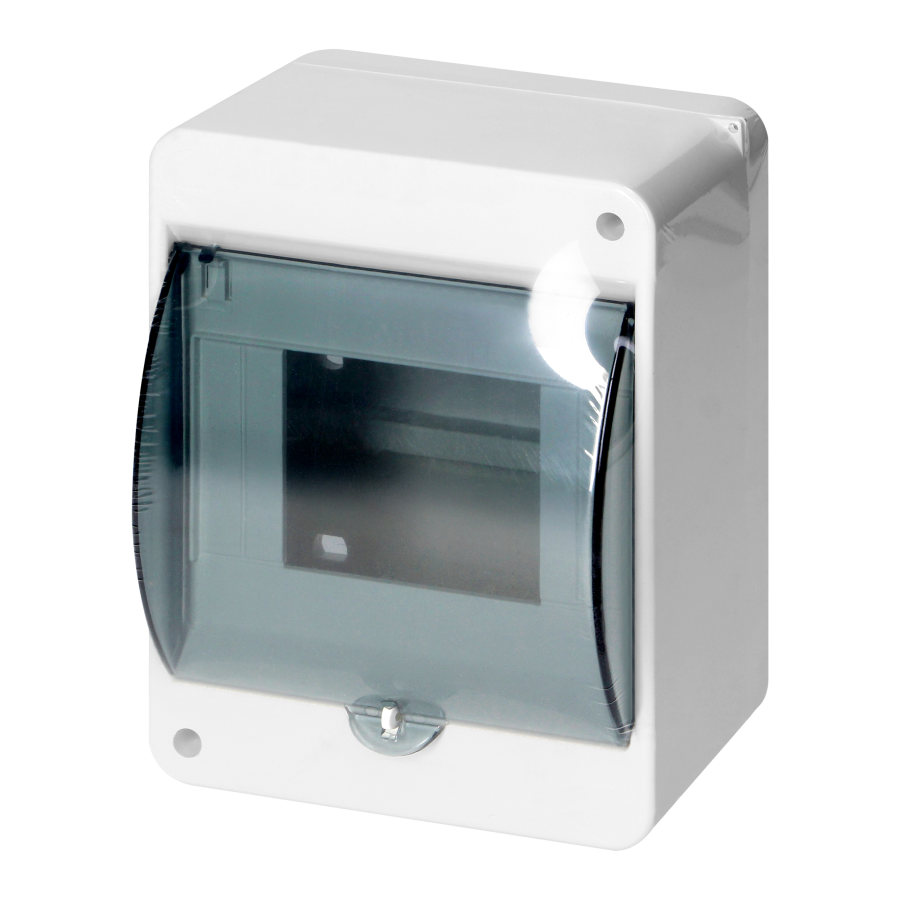

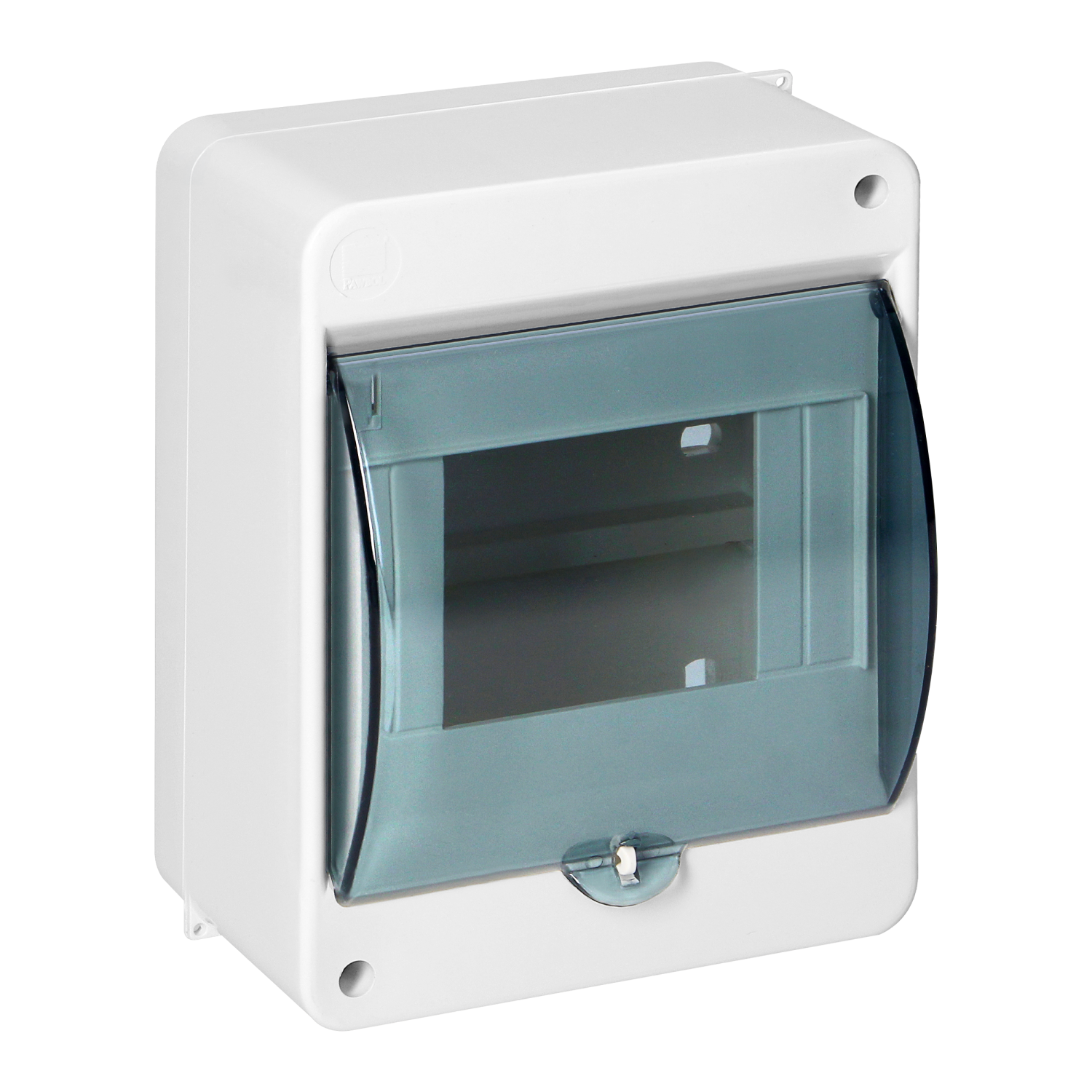

The smoked, transparent glass allows you to check the status of the equipment without opening the enclosure. Additionally, it protects the interior of the cabinet against dust and accidental touch.
The unit is made of durable plastic with high mechanical resistance (IK08). The IP40 rate protects against the ingress of foreign objects, providing effective protection for the equipment.

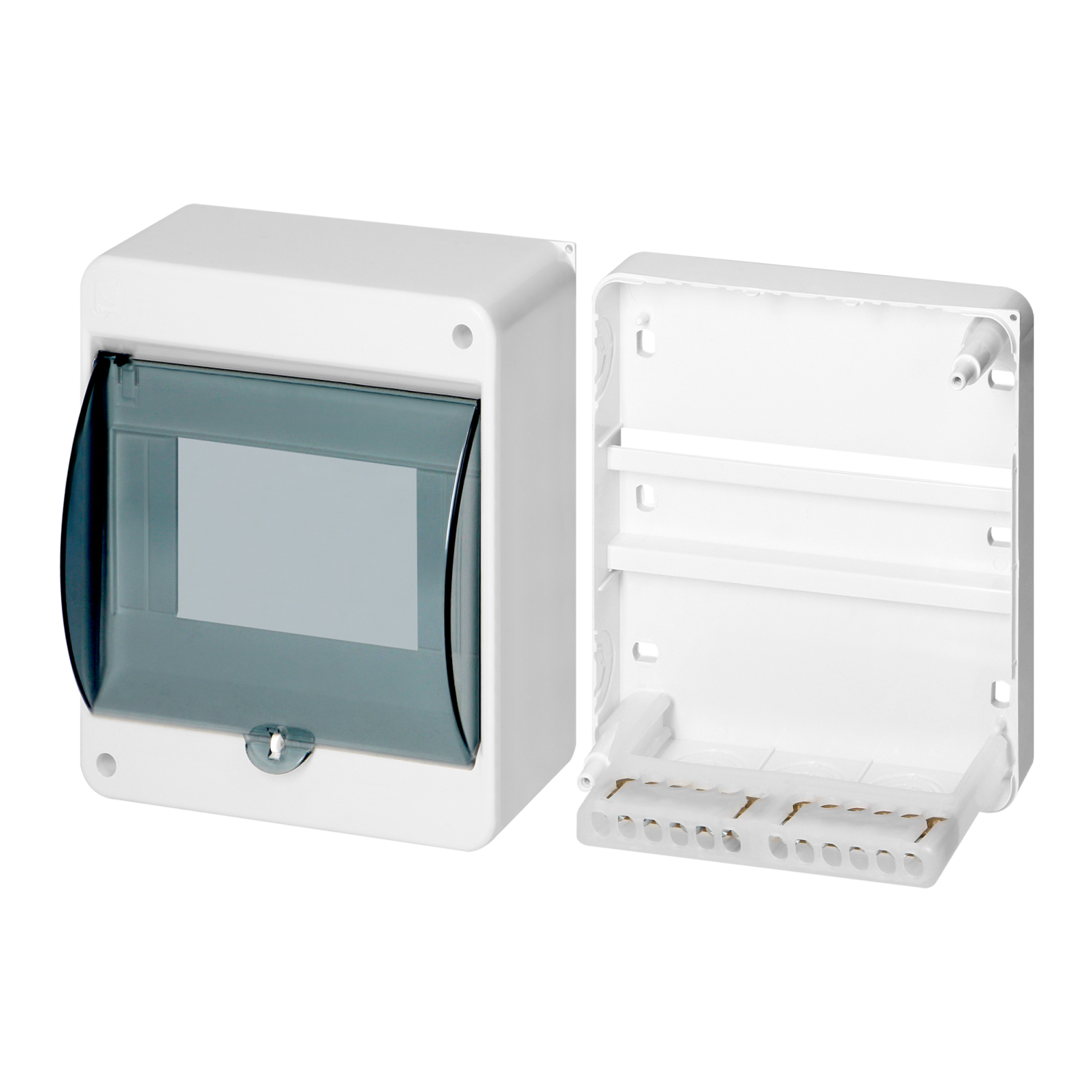

The housing accommodates 5 overcurrent protection/circuit breakers in one row and is equipped with N+PE terminal blocks that facilitate wire connection and maintain order inside the switchboard.

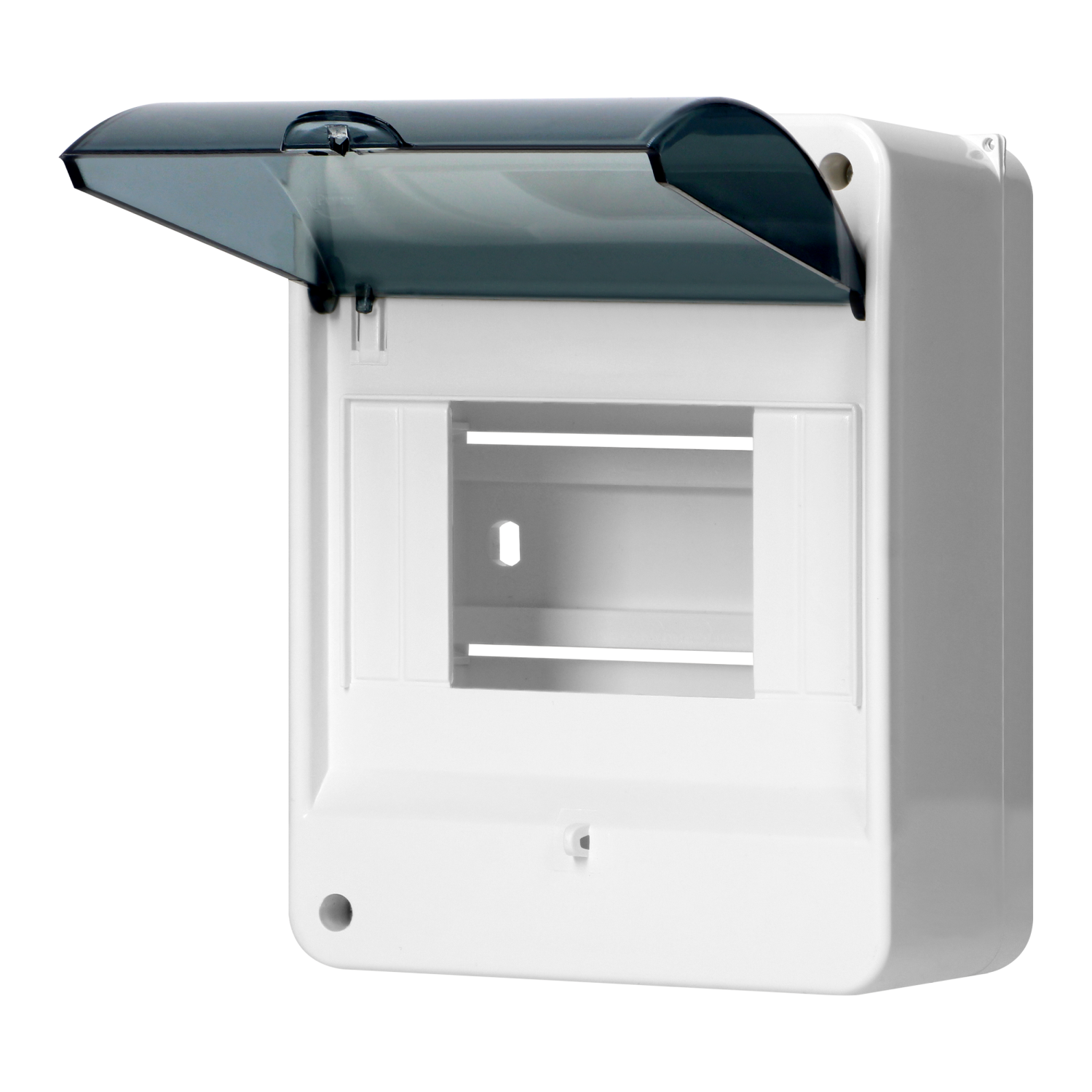

The TH 35/7.5 rail (euro rail) enables the installation of overcurrent circuit breakers, differential circuit breakers and other electrical devices.

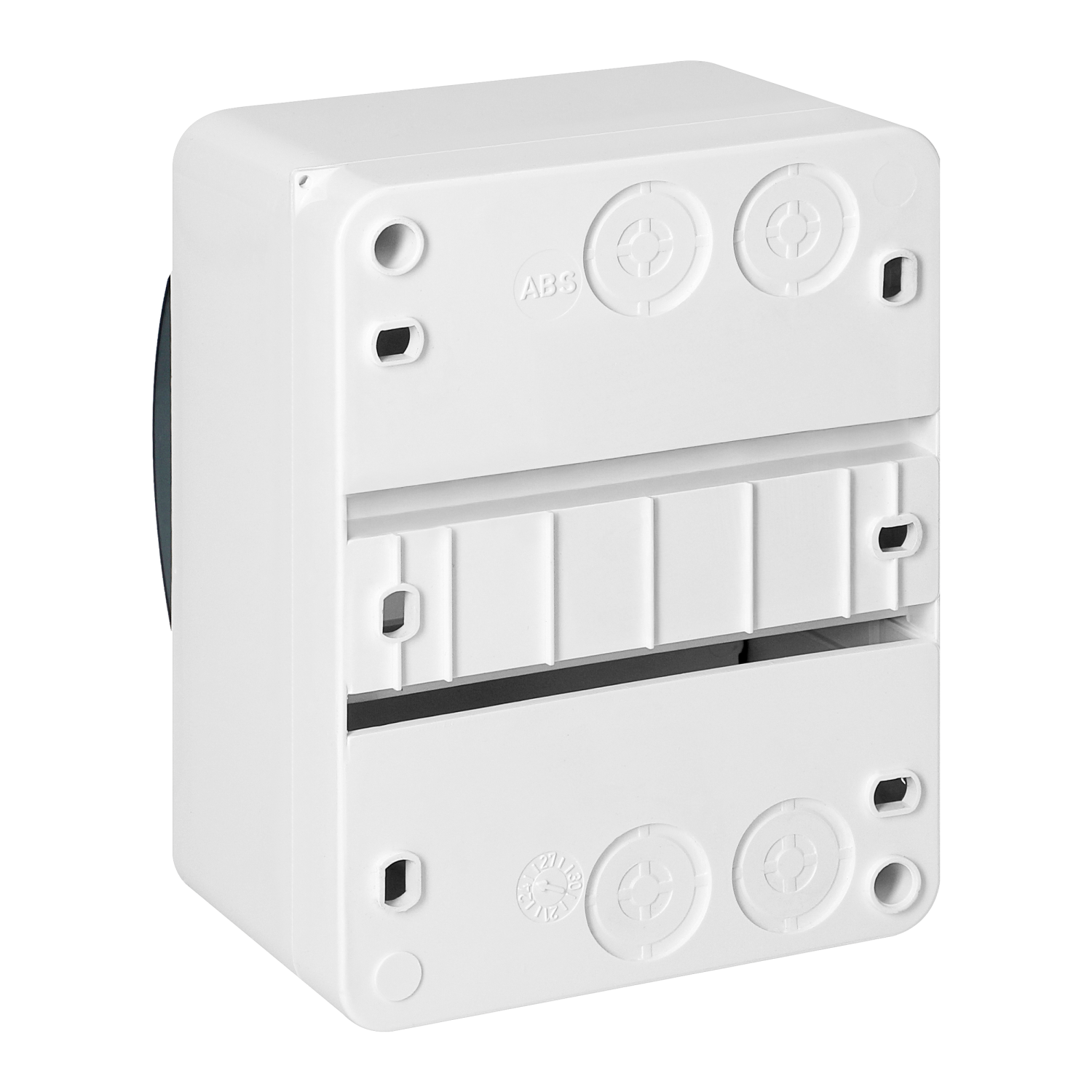

The sides of the enclosure have pressed sections for easy insertion of cables or installation tubes, and the whole is complemented by descriptive labels that allow for marking individual circuits.
The aesthetic, white housing fits well into any interior and ensures a neat appearance of the installation.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 110 |
| Depth [mm]: | 87 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 5 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 5 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 4 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
