Electrical modular enclosures
New

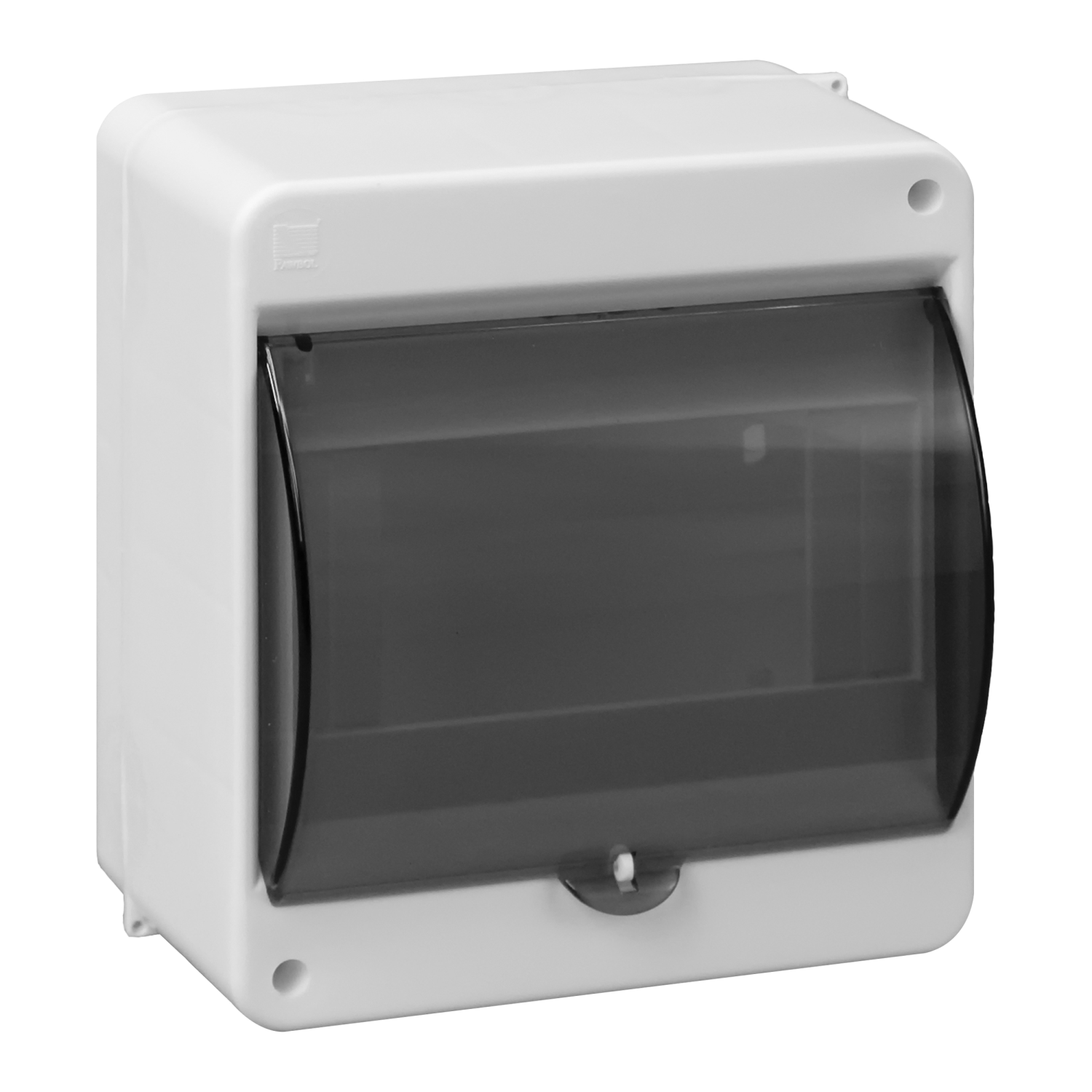

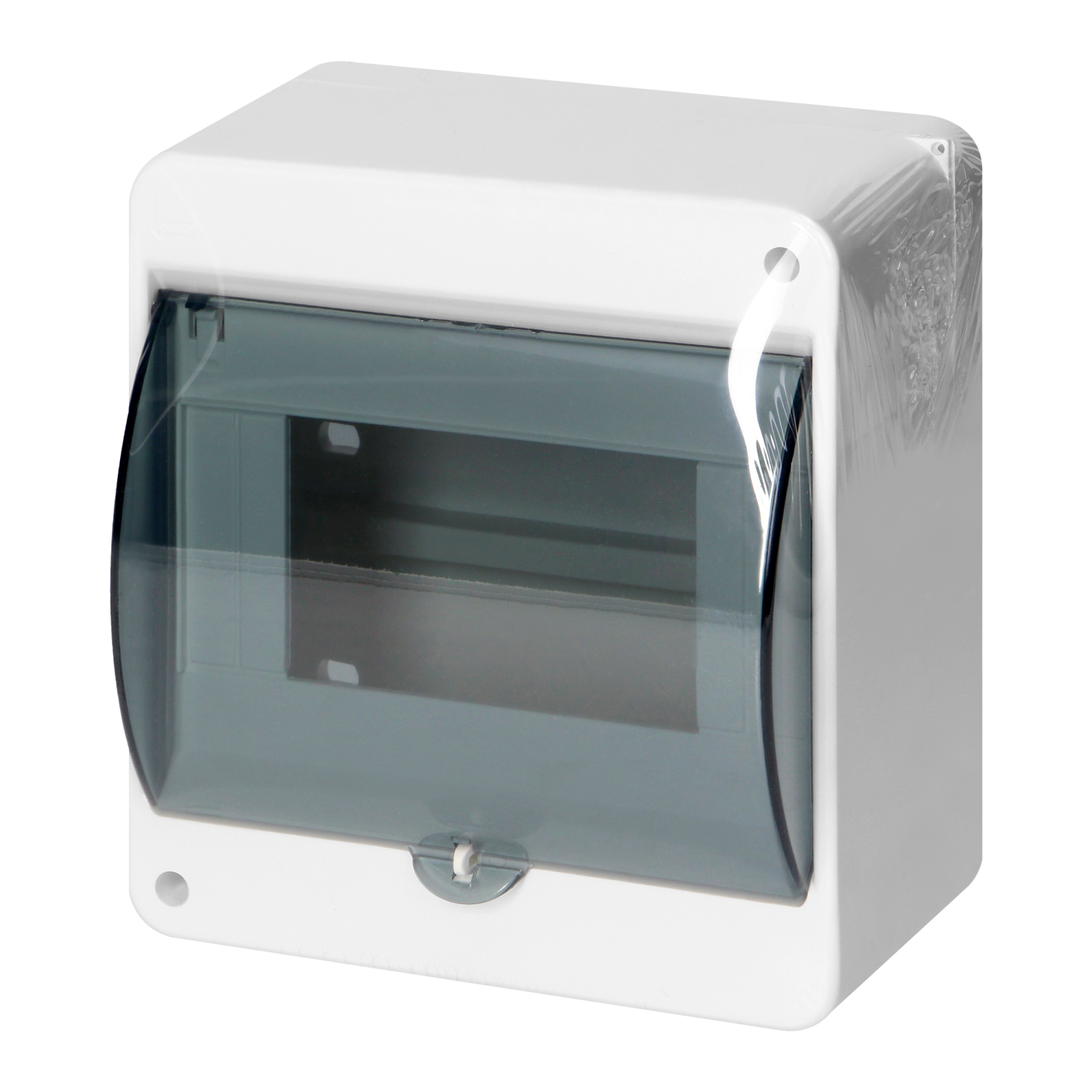

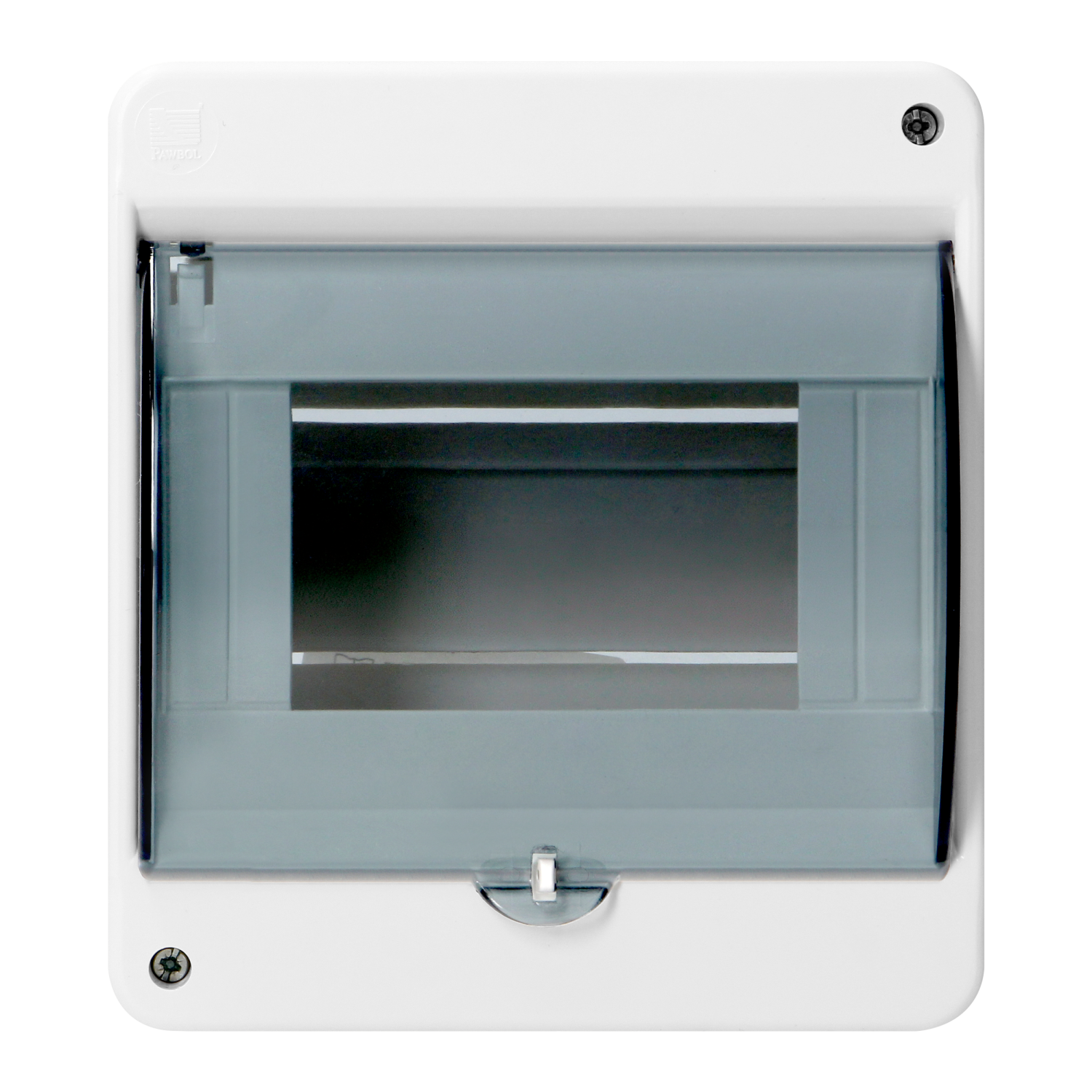

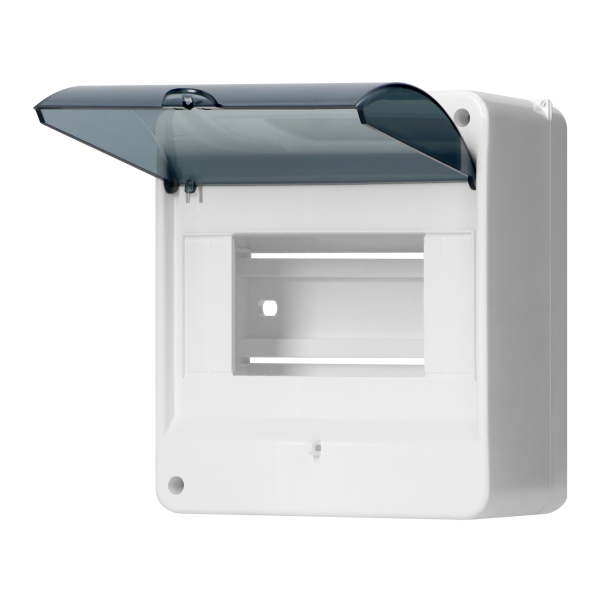

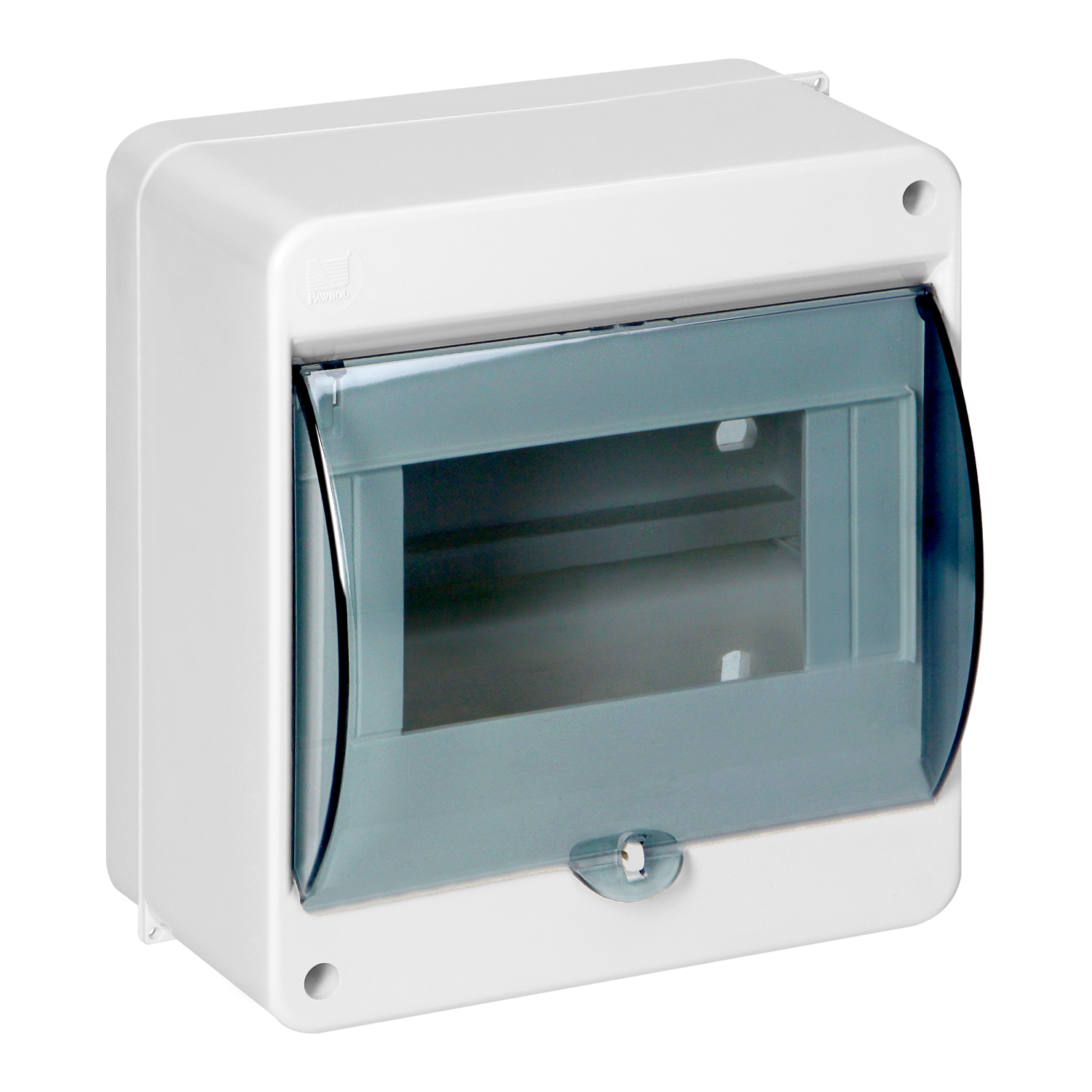

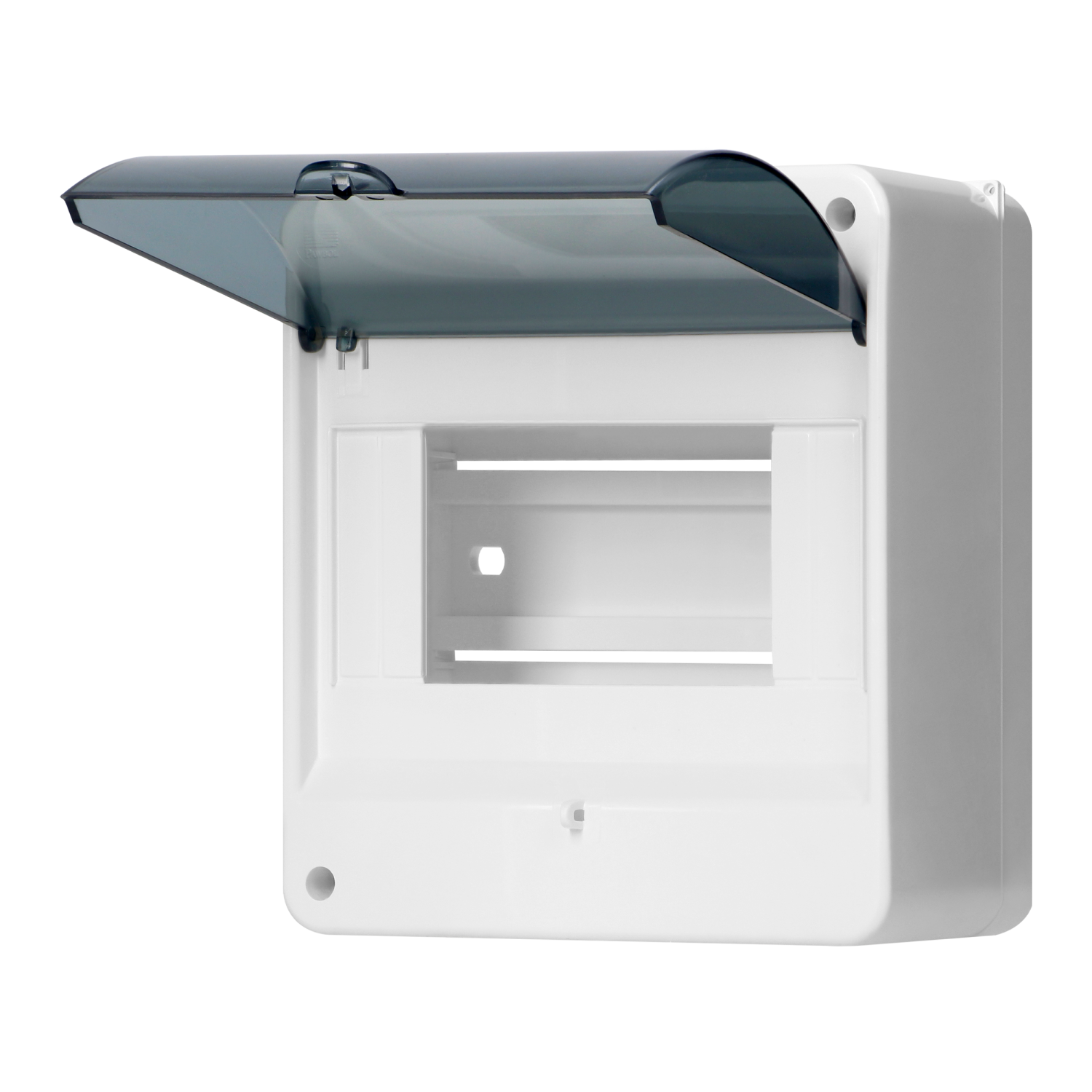

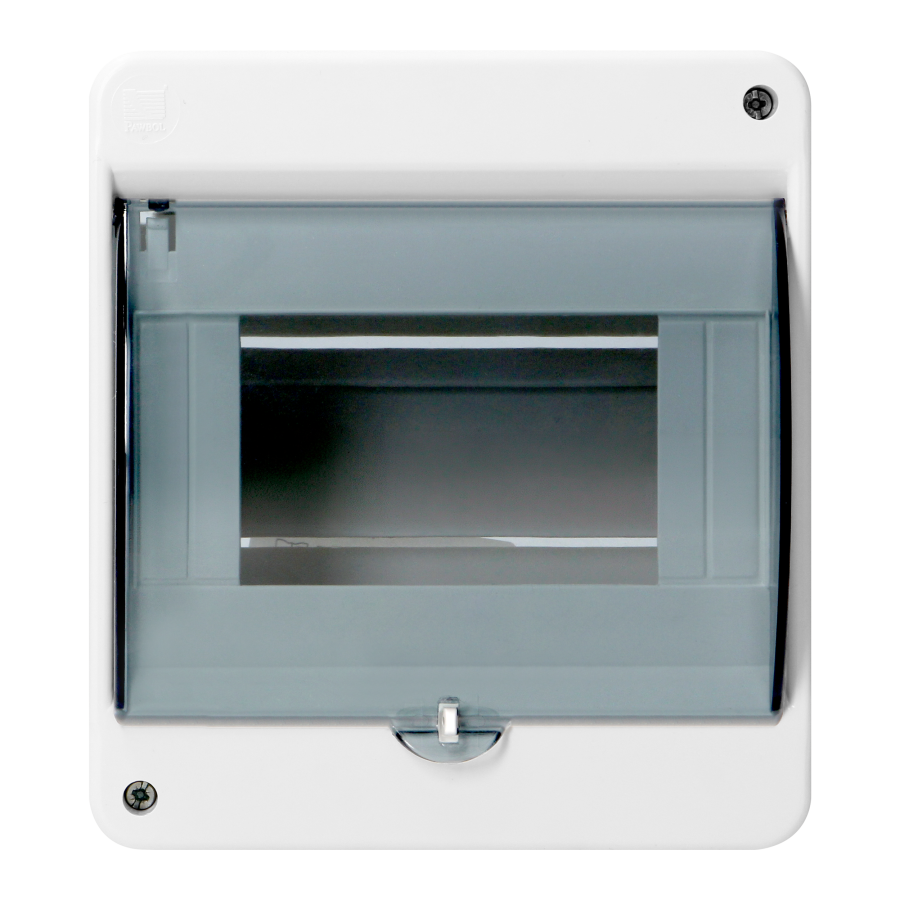

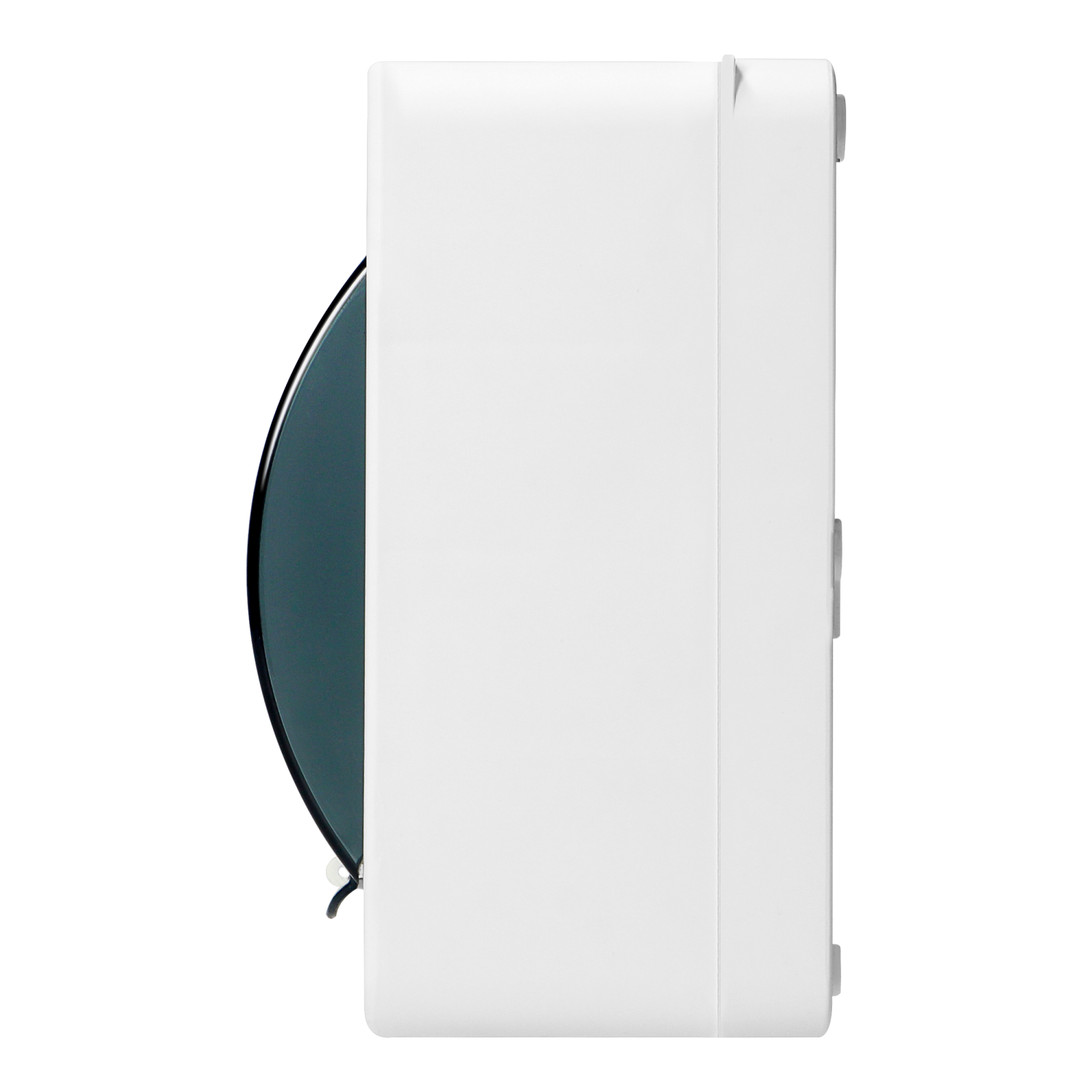

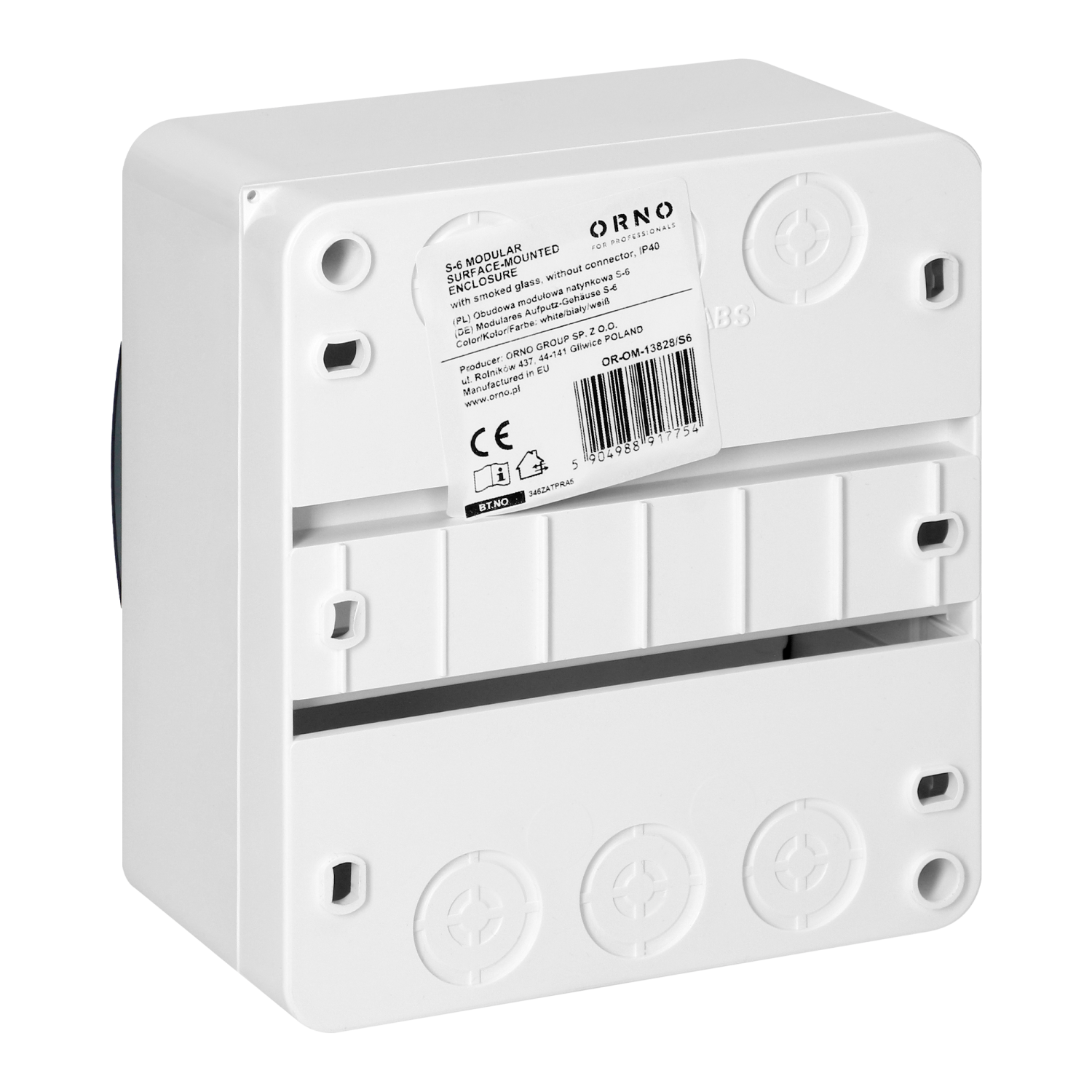

If you want to easily organize modular equipment and secure your installation, choose the S-6 enclosure. This model works well in the home, garage, or technical room.
You can connect it without breaking the wall – surface-mounted.
Inside you will find space for 6 overcurrent protection/circuit breakers and a TH 35/7.5 bracket (euro rail). The presses on the sides make it easier to insert cables, and the descriptive labels will help you mark circuits and keep things tidy.
Thanks to the smoked glass, you can quickly check whether everything is working properly.
The solid construction and IP40 rate ensure safe everyday use of the electrical installation.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 130 |
| Depth [mm]: | 83 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 62 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 6 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 6 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 6 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
