Electrical modular enclosures
New

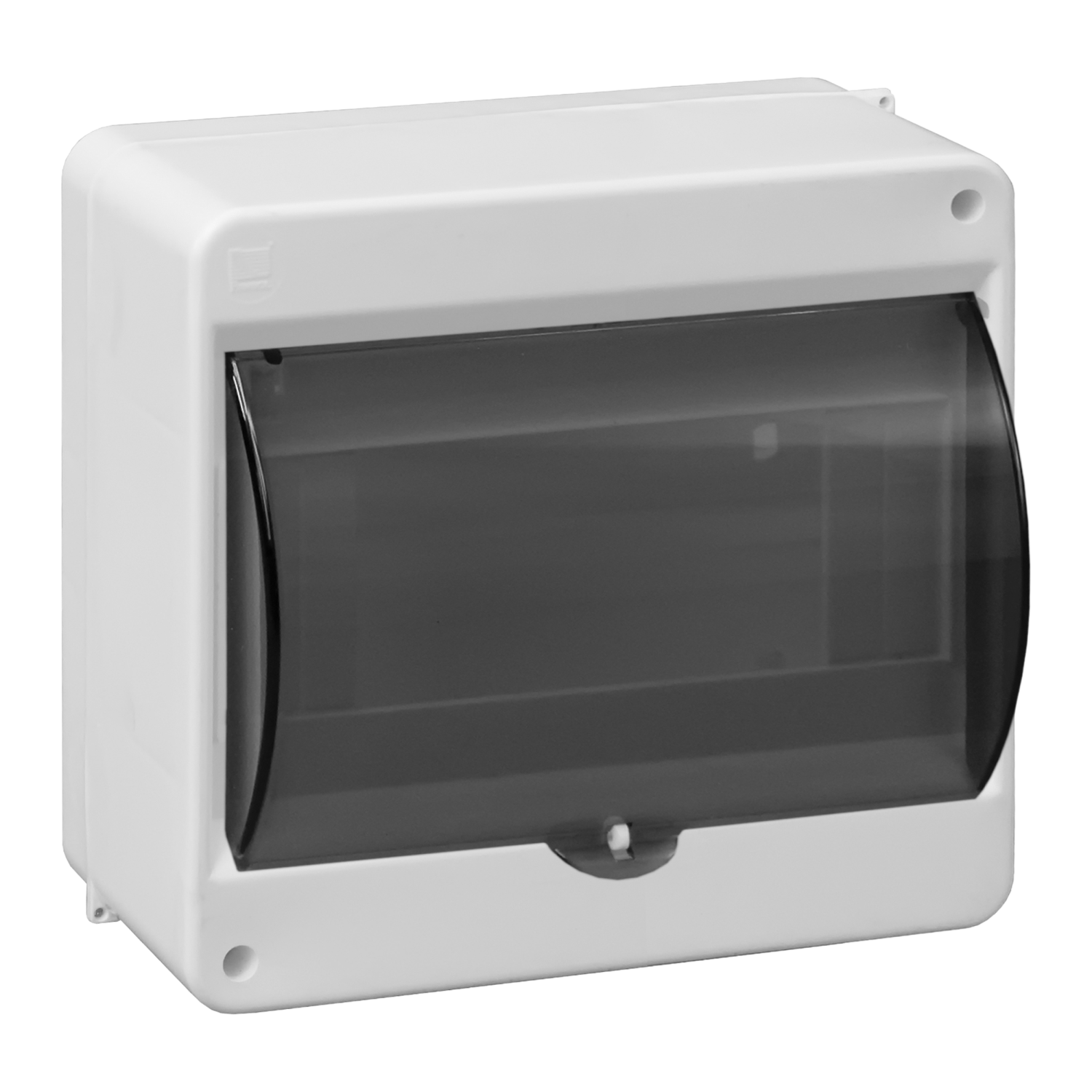

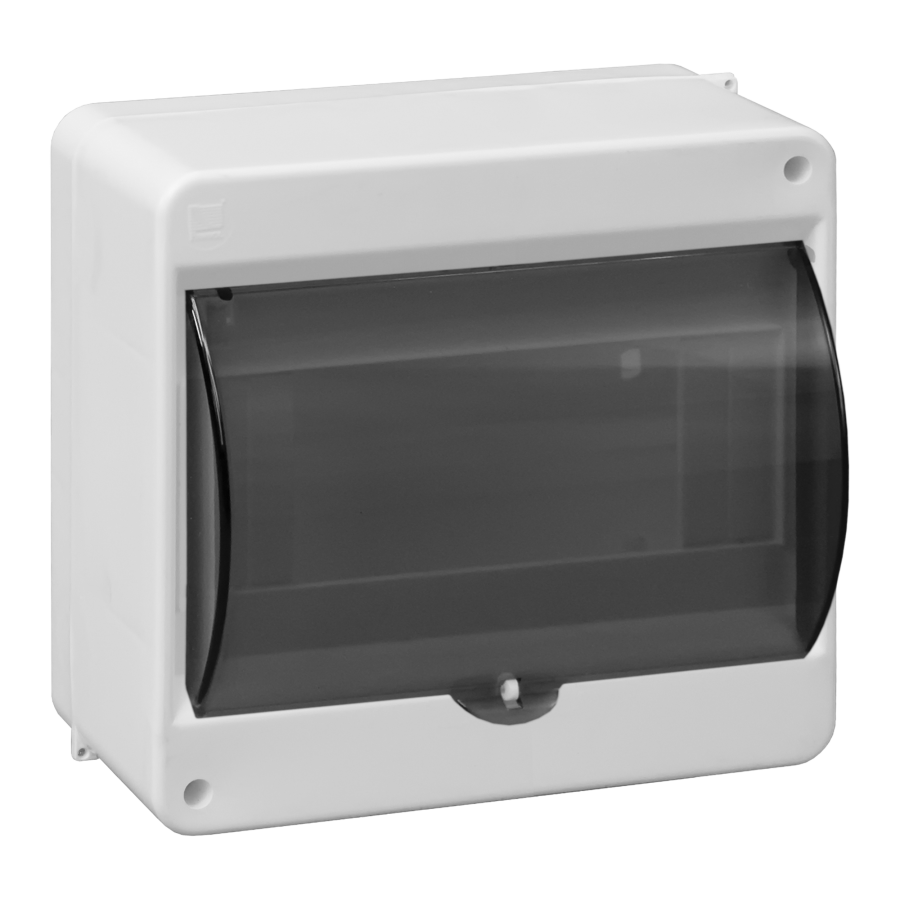

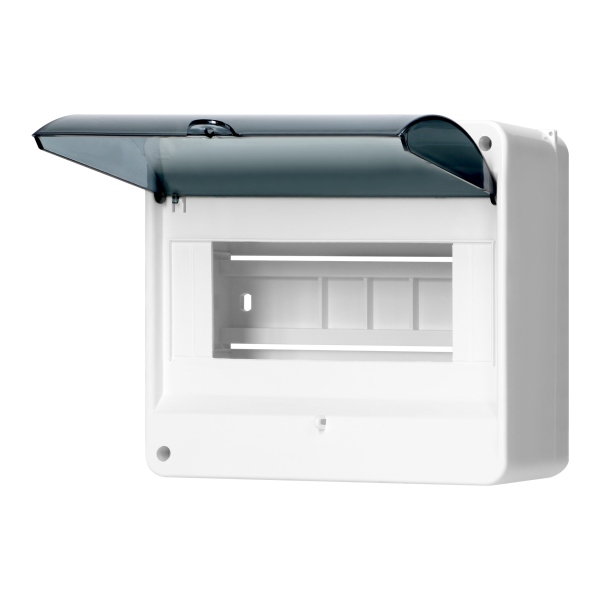

Want to make sure your installation is well secured? Choose the S-8 enclosure, which makes it easier to keep your modular equipment organized.
The solid construction made of resistant plastic protects the interior of the switchboard against damage, and the IP40 class guarantees safe use indoors.
The white enclosure fits home, office and workshop arrangement.
The presses on the side make it easier to insert cables, and the descriptive labels will help you mark each circuit, so you know which fuse is responsible for what.
The modular enclosure is surface-mounted, without any unnecessary work.

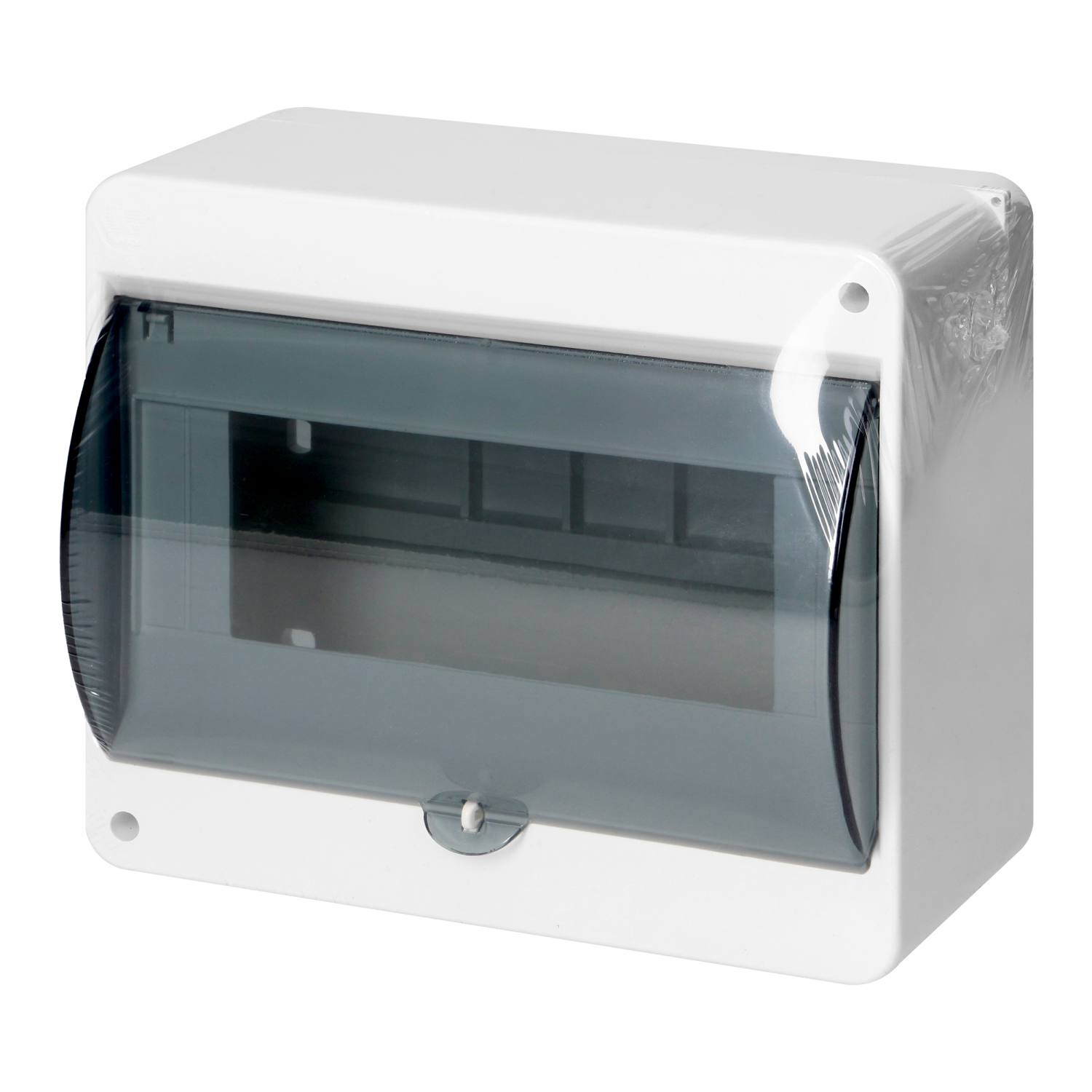

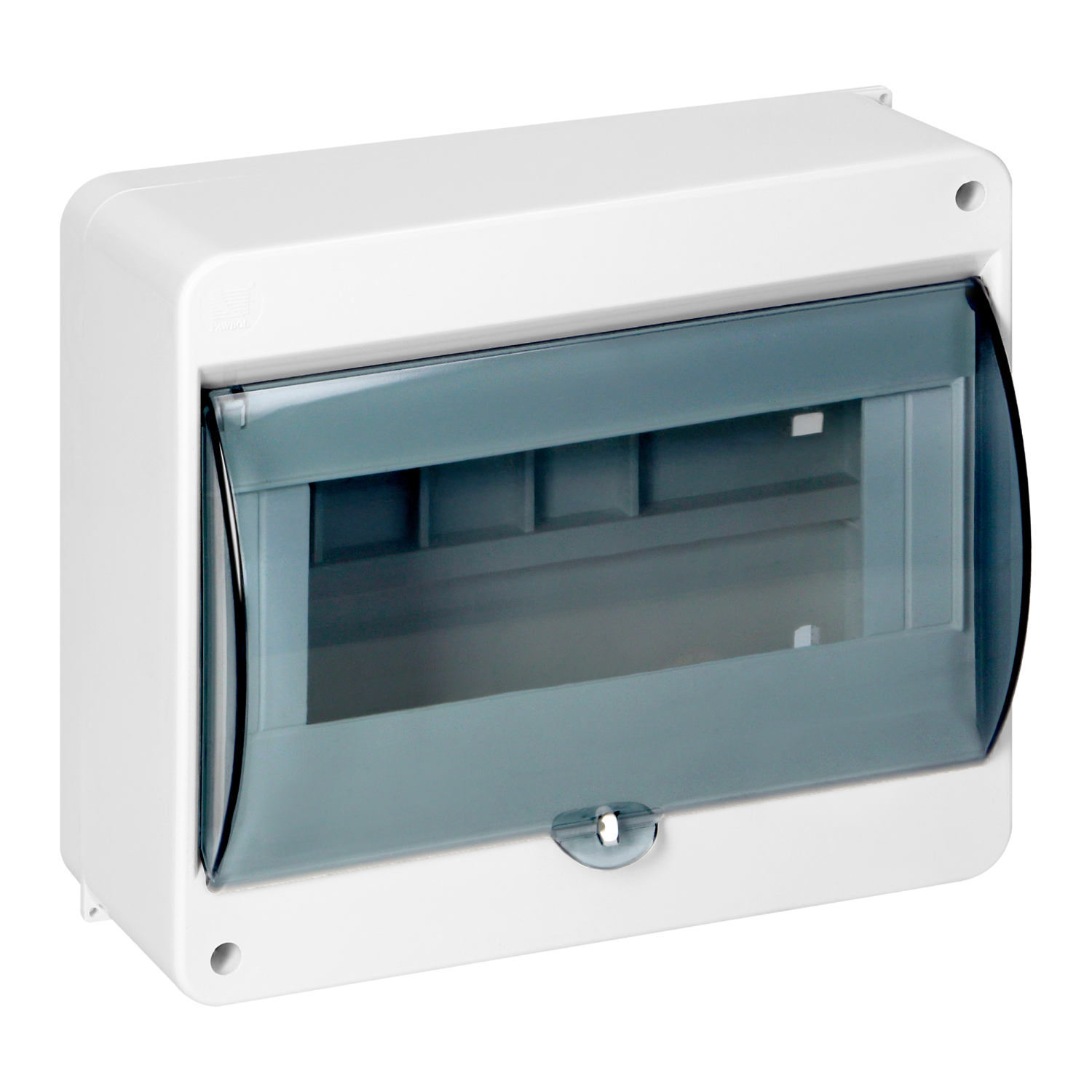

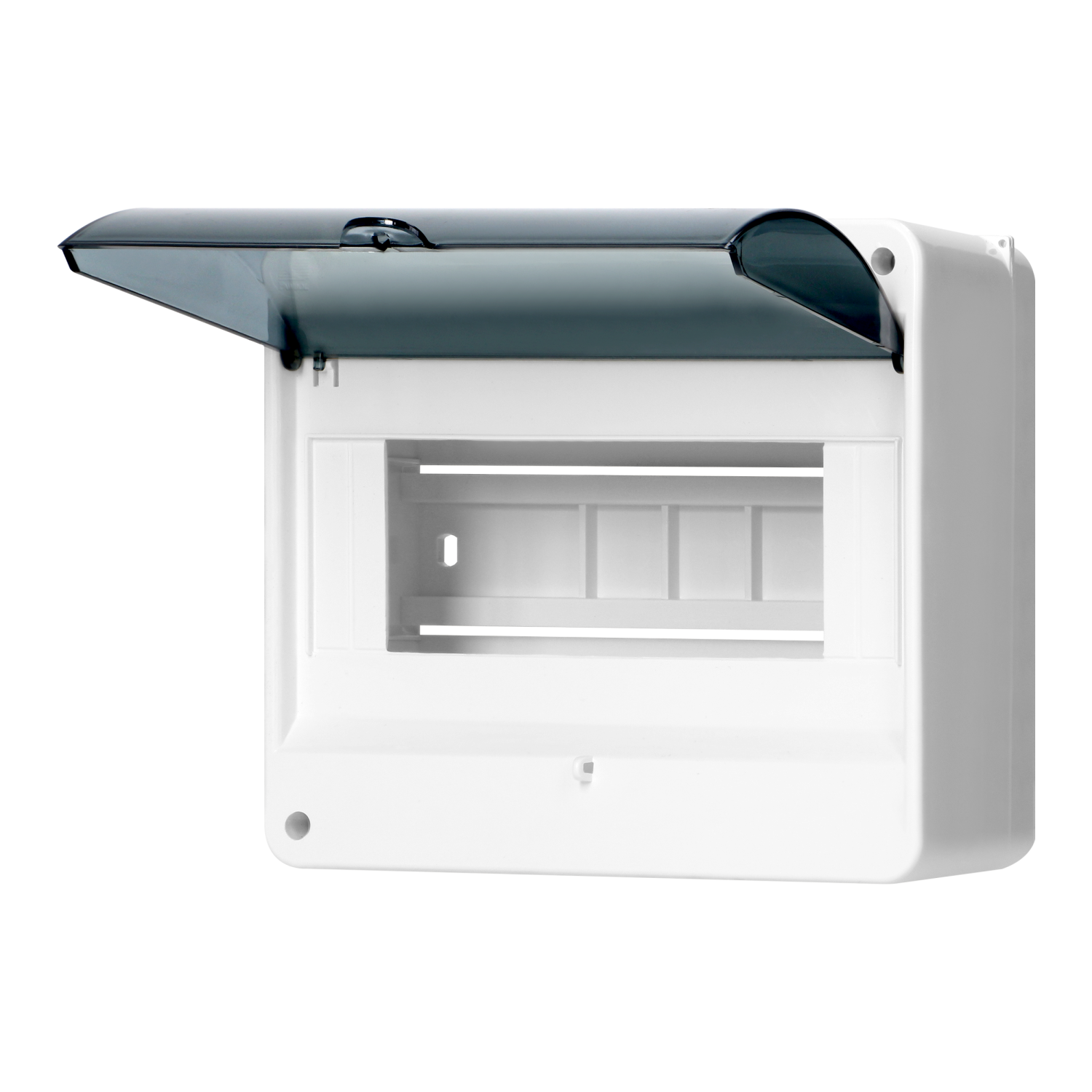

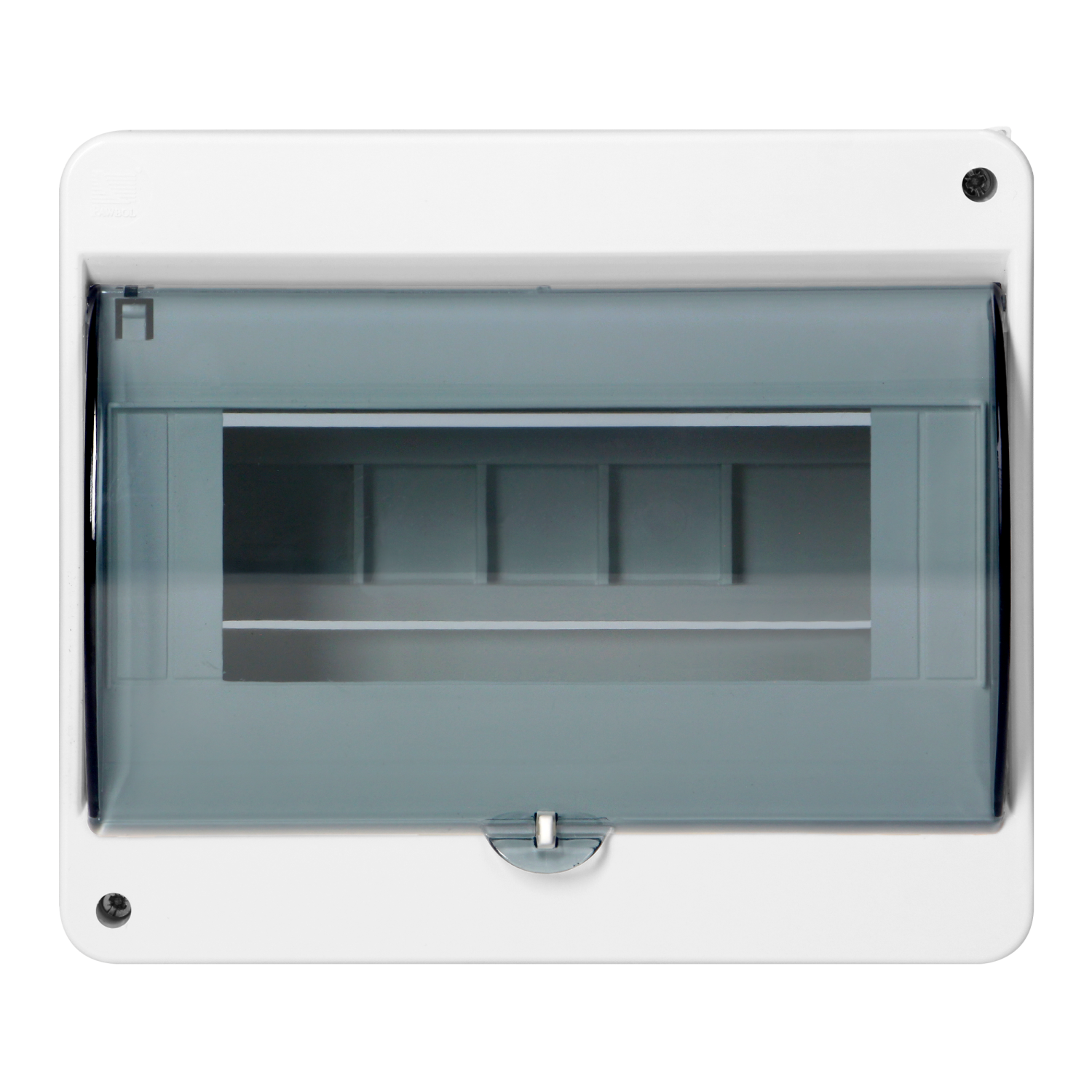

The smoked glass will allow you to quickly check the security status without opening the door and risking accidental contact.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 165 |
| Depth [mm]: | 83 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 62 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 8 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 8 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 6 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
