Electrical modular enclosures
New

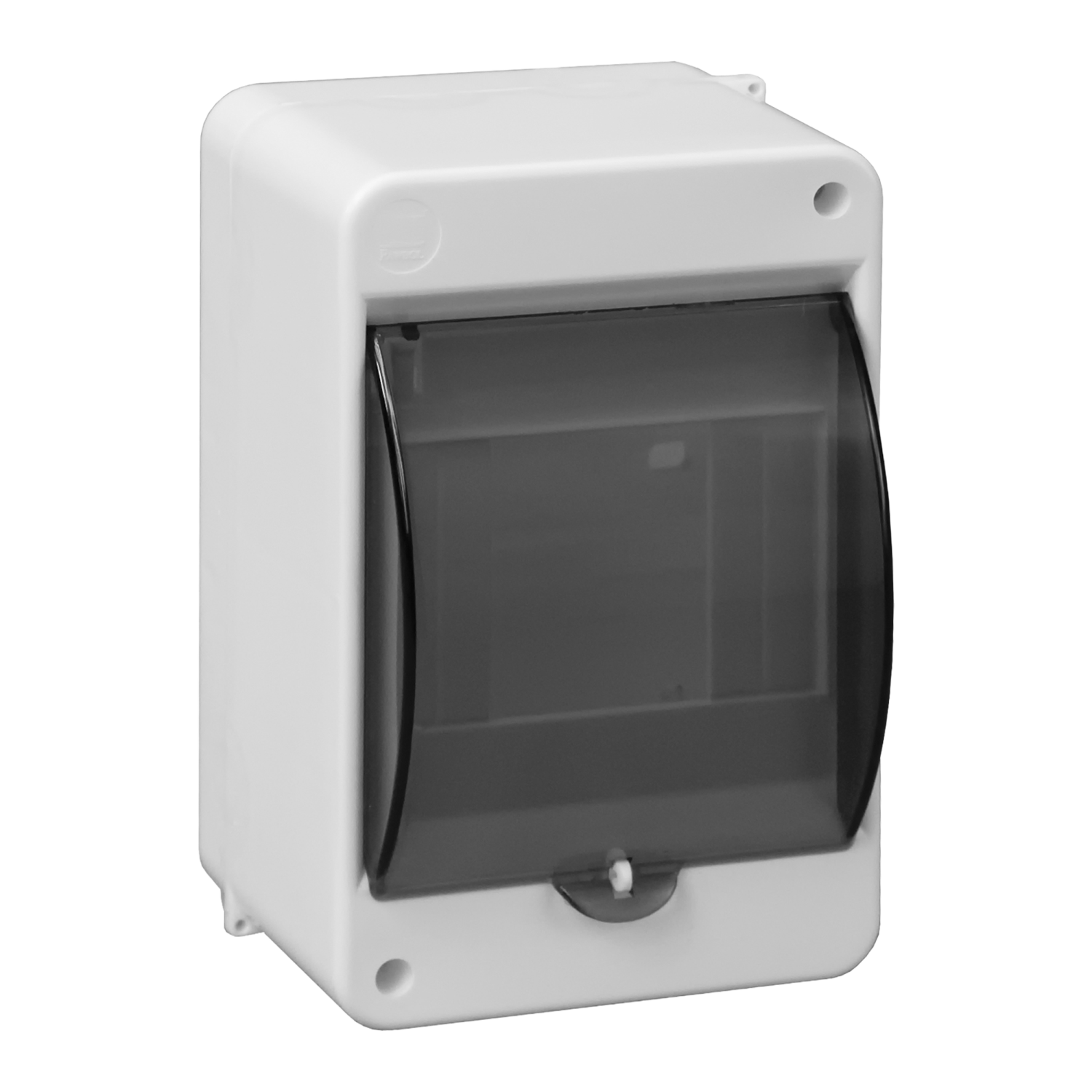

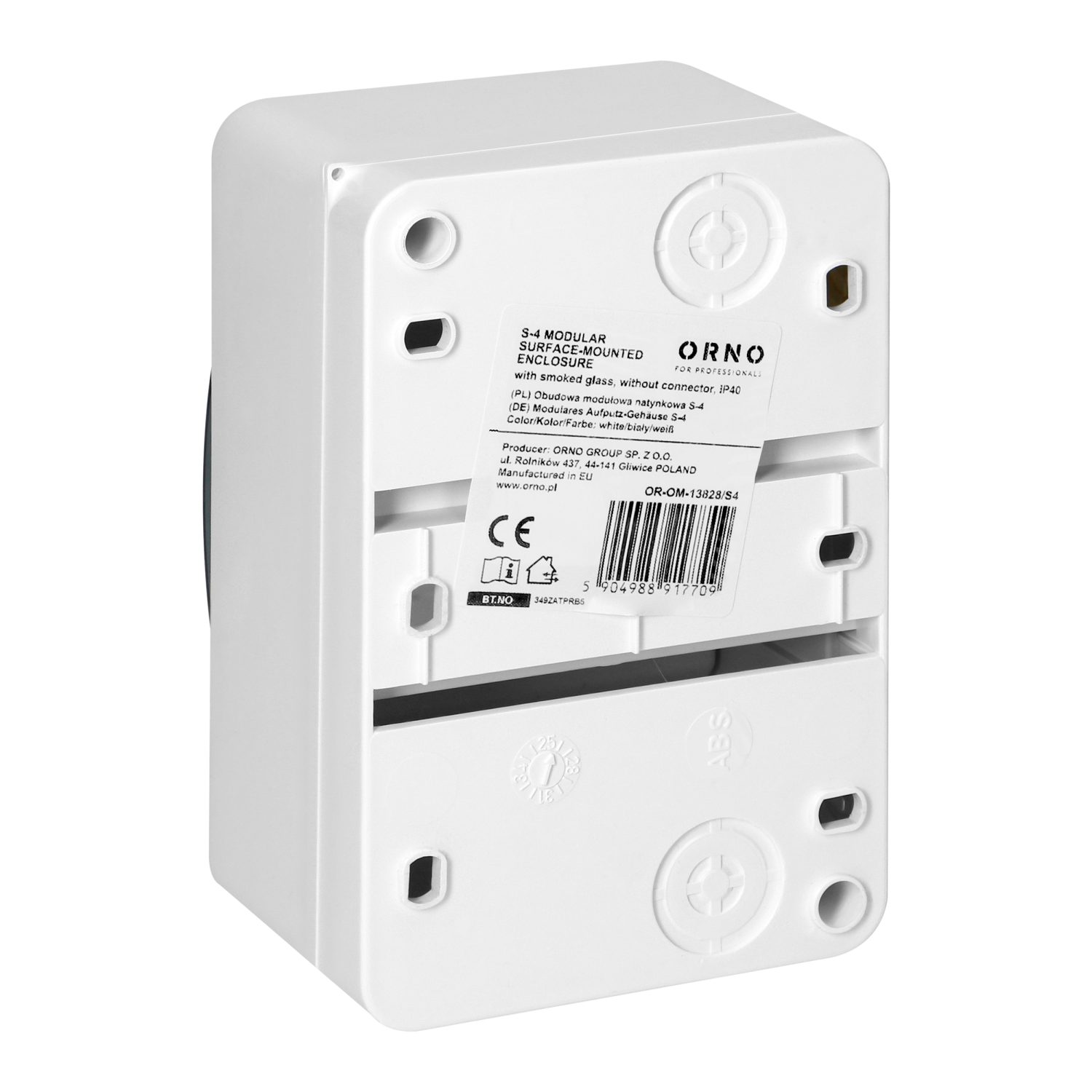

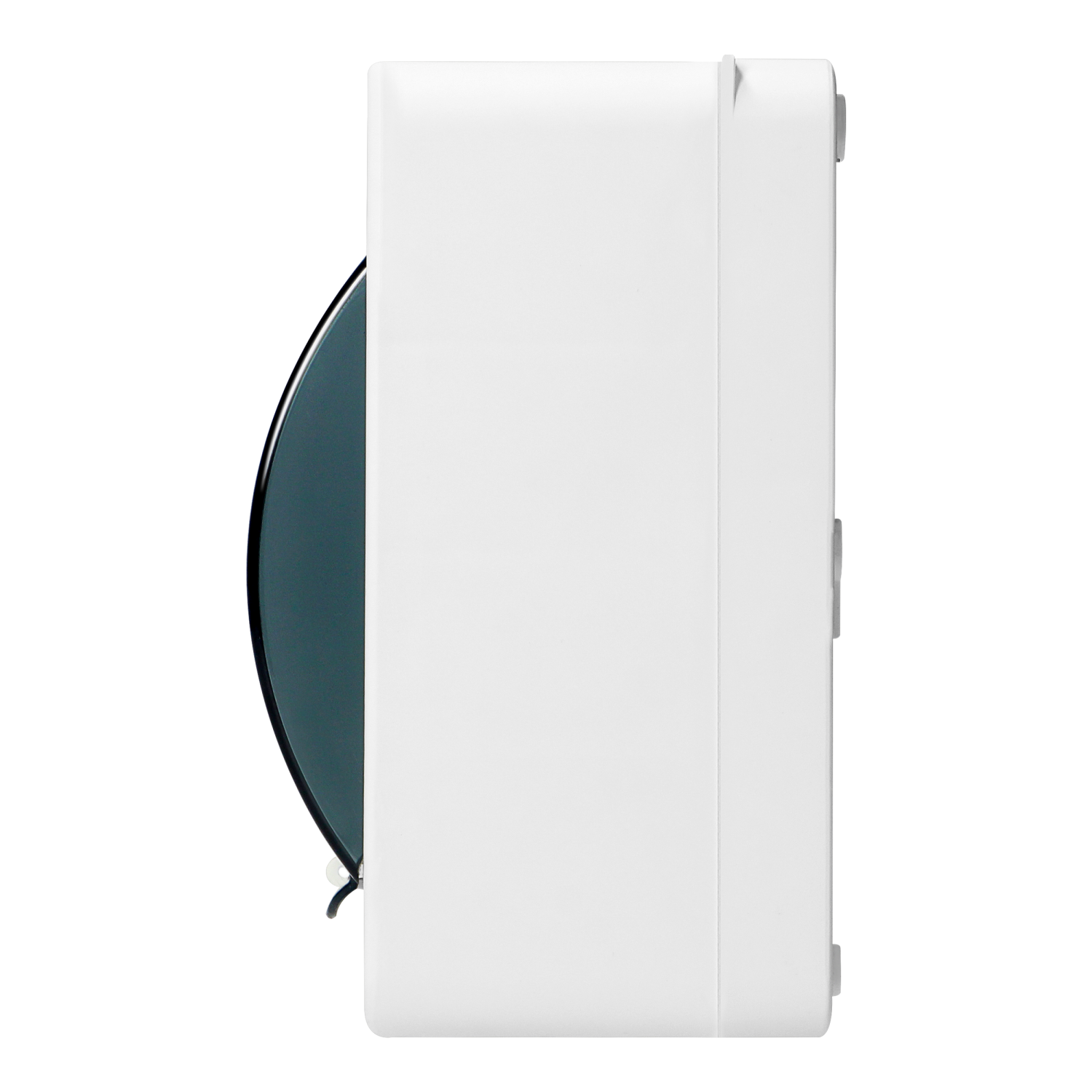

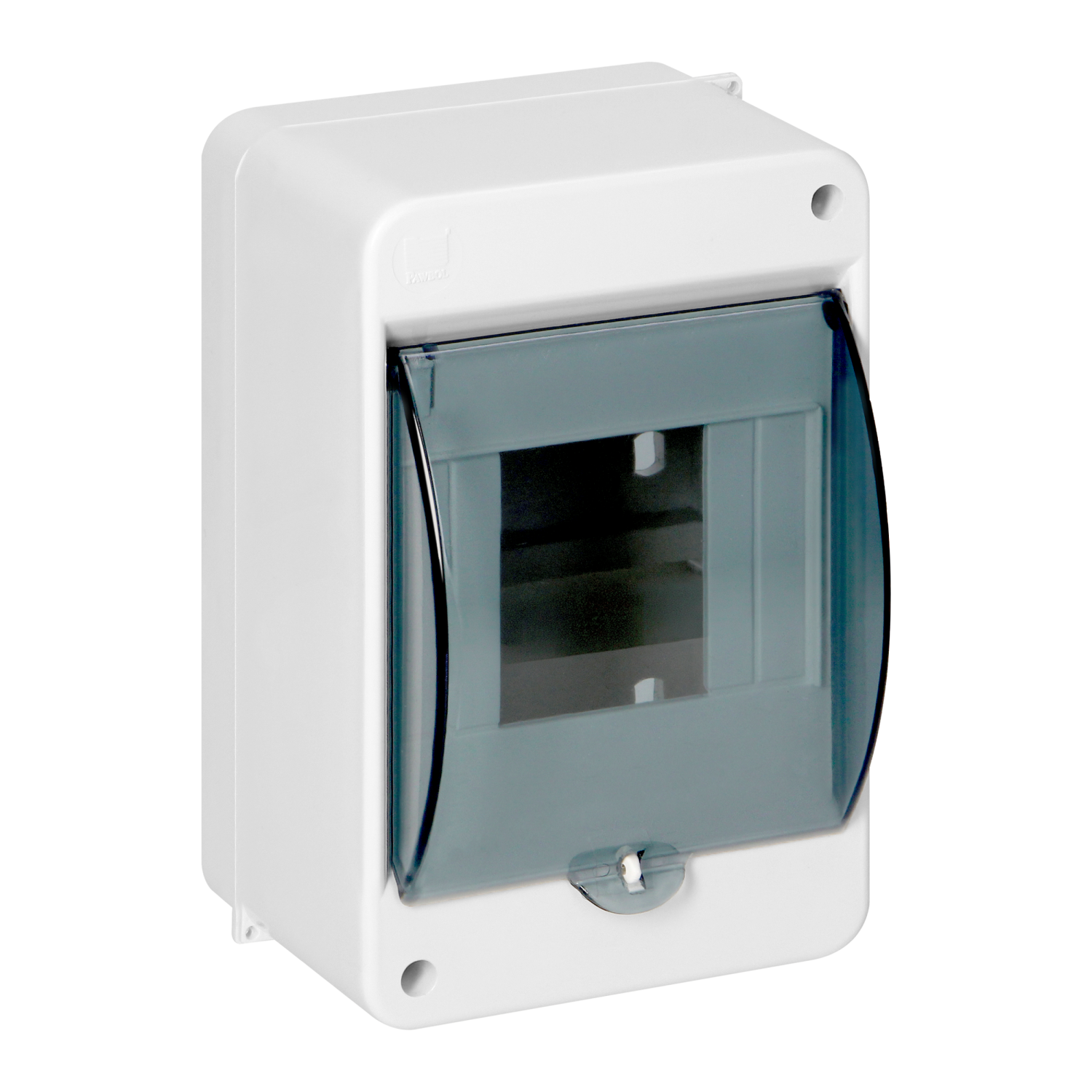

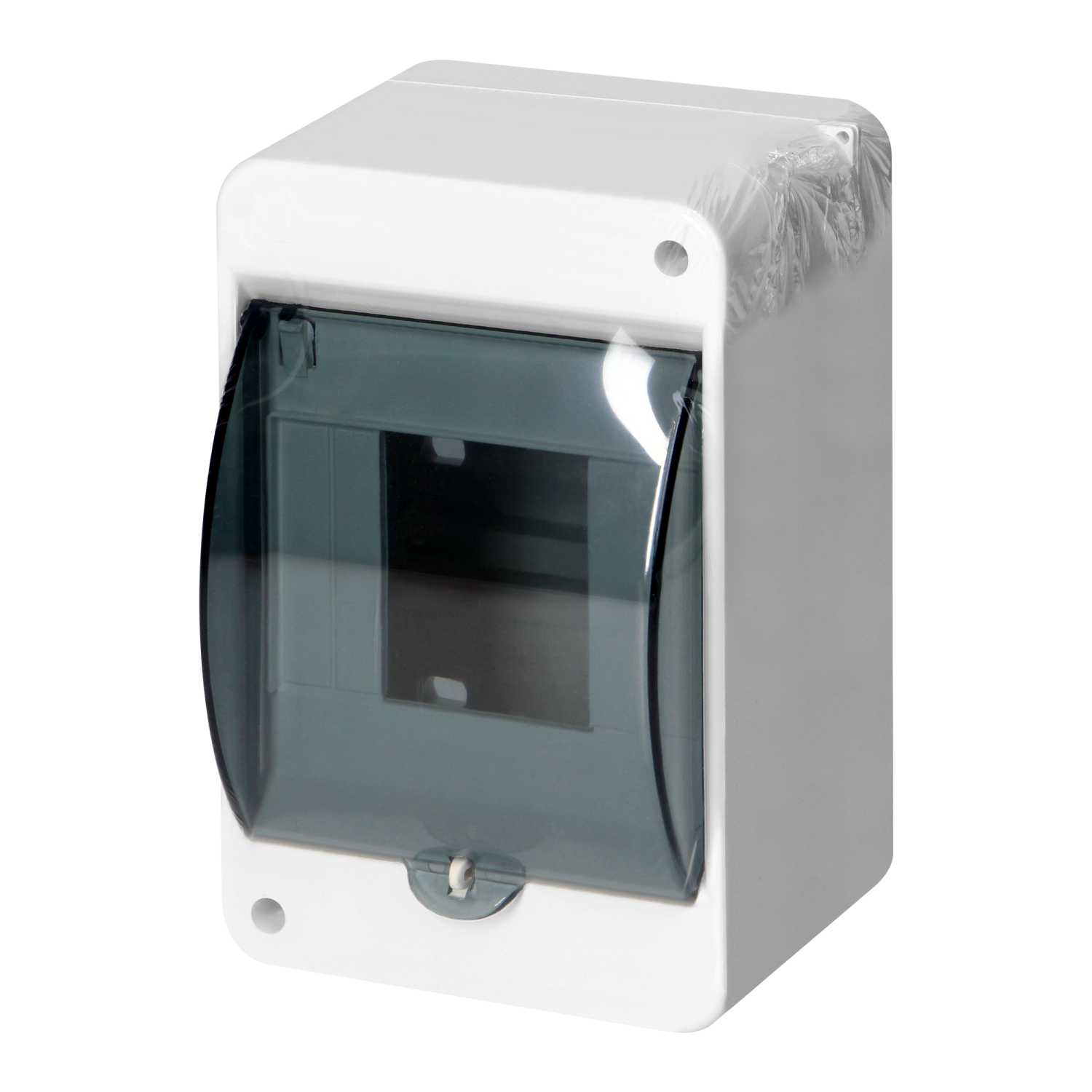

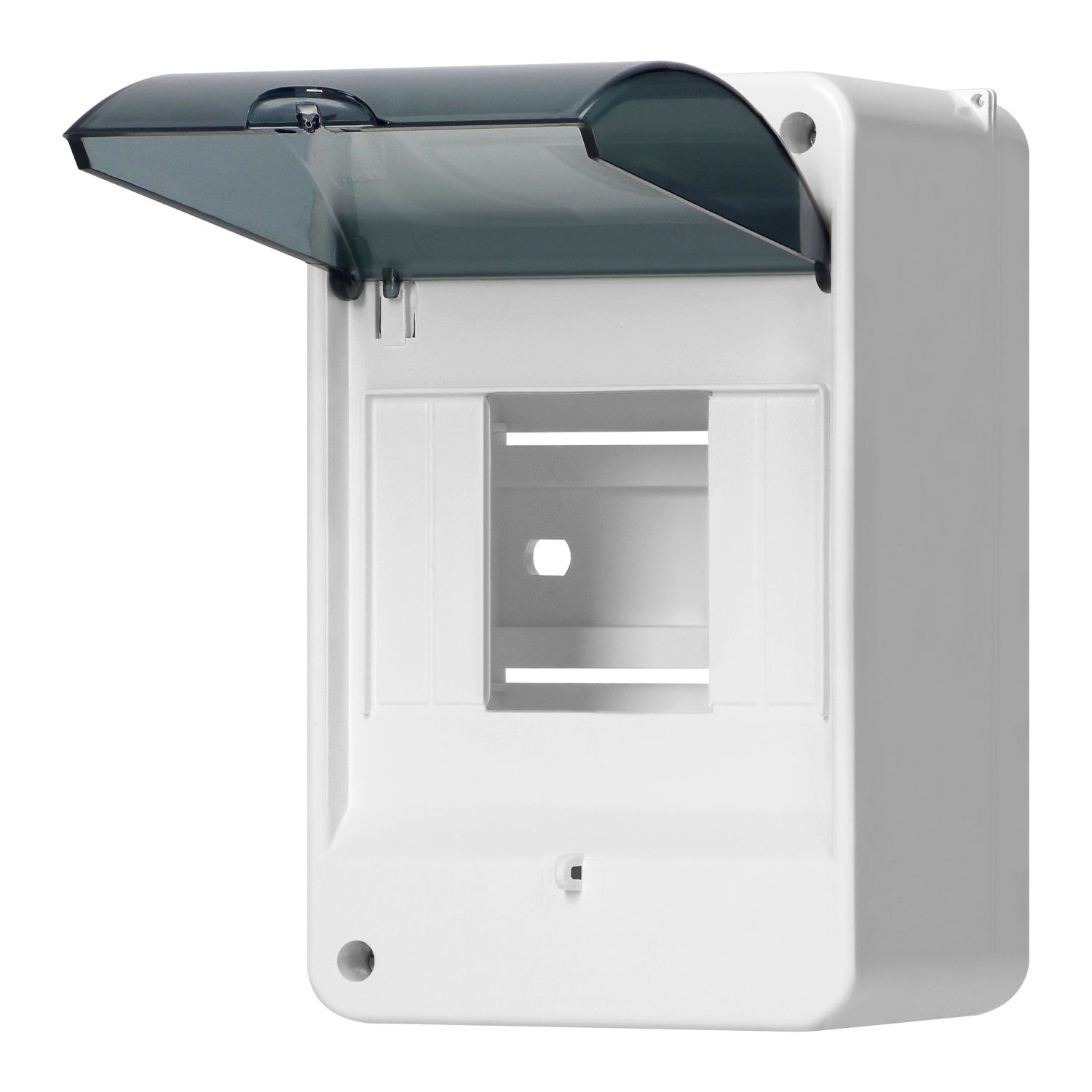

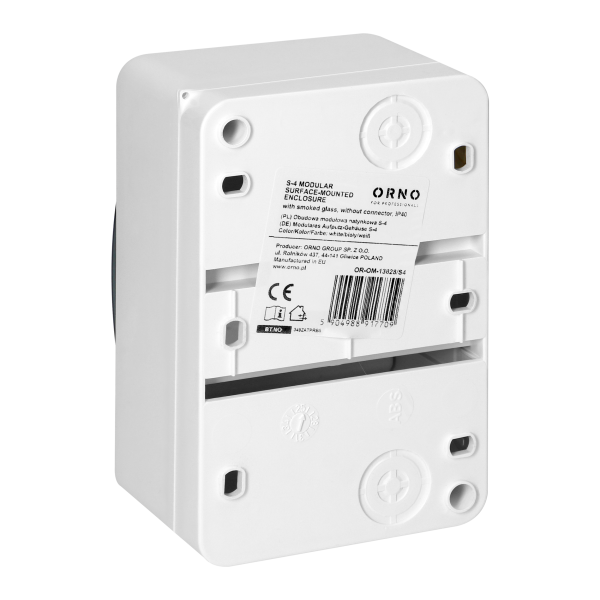

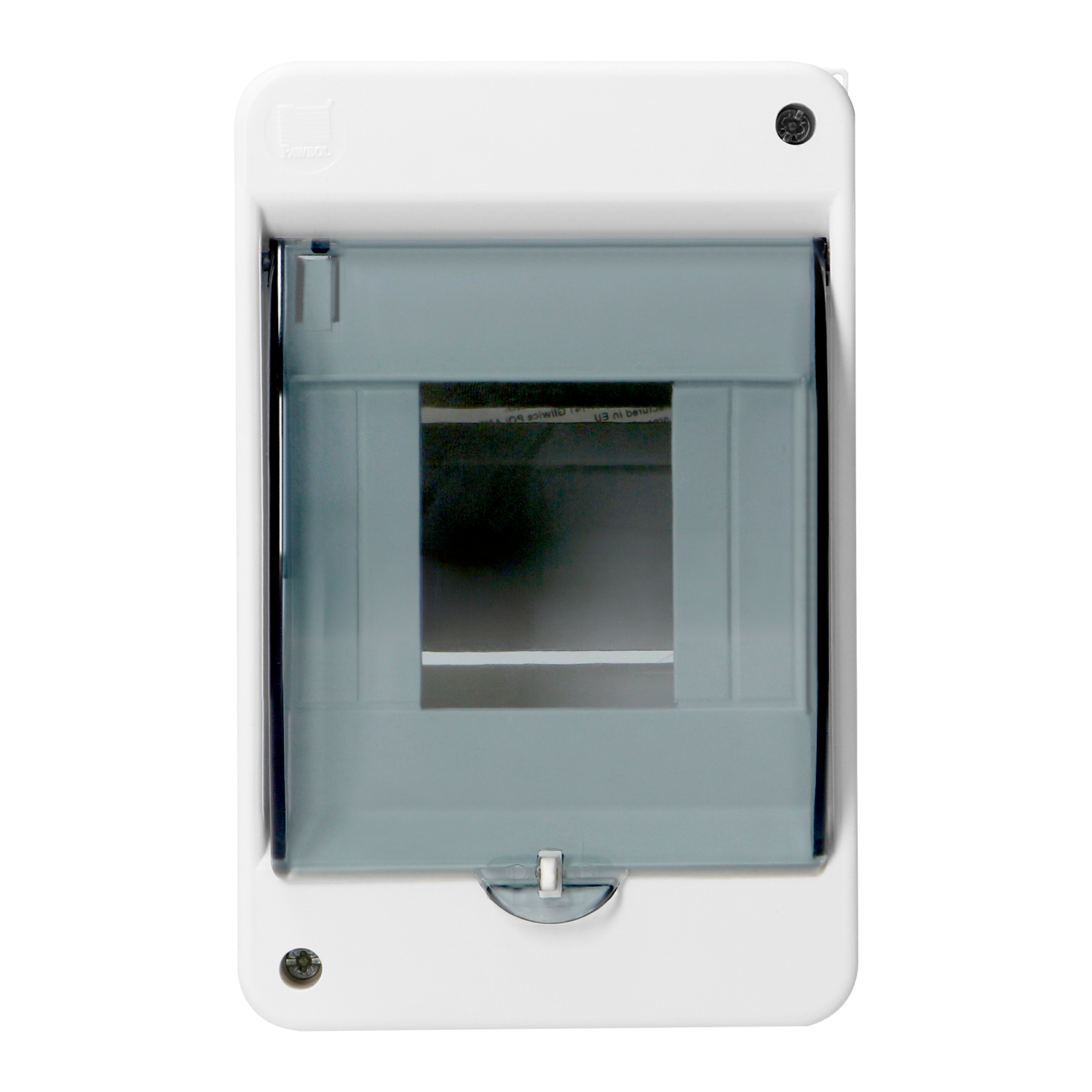

The S-4 model is a compact surface-mounted enclosure designed for mounting modular equipment in dry rooms. It is perfect for home, office, and workshop use. Also, it is surface-mounted, so you can install it without breaking the wall.
The unit is equipped with a TH 35/7.5 rail (euro rail), which enables quick installation of overcurrent protection, differential protection and other electrical devices.
The presses on the sides facilitate insertion of cables or installation tubes, and for greater user convenience, the switchboard has descriptive labels that facilitate the marking of individual circuits.
The smoked, transparent glass protects the interior from accidental touch and dust, and above all, allows you to check the status of the equipment without opening it.
The enclosure is made of durable plastic with high IK08 rate and guarantees reliable operation for a long time. The IP40 rate protects the interior against the ingress of foreign bodies.
The white RAL 9010 colour blends in well with the surroundings and ensures a neat appearance of the installation.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 92 |
| Depth [mm]: | 85 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 4 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 4 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 2 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
