Electrical modular enclosures
New

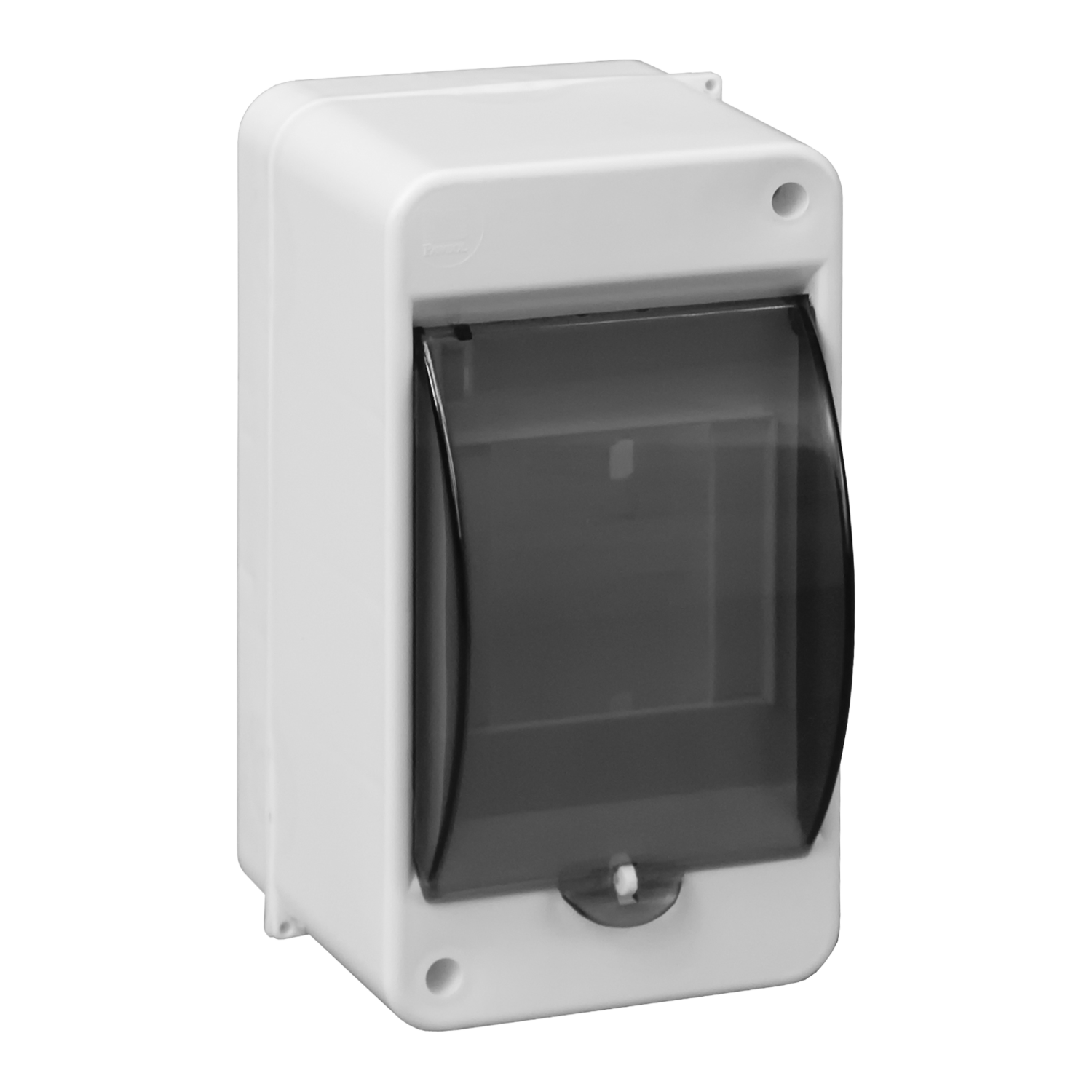

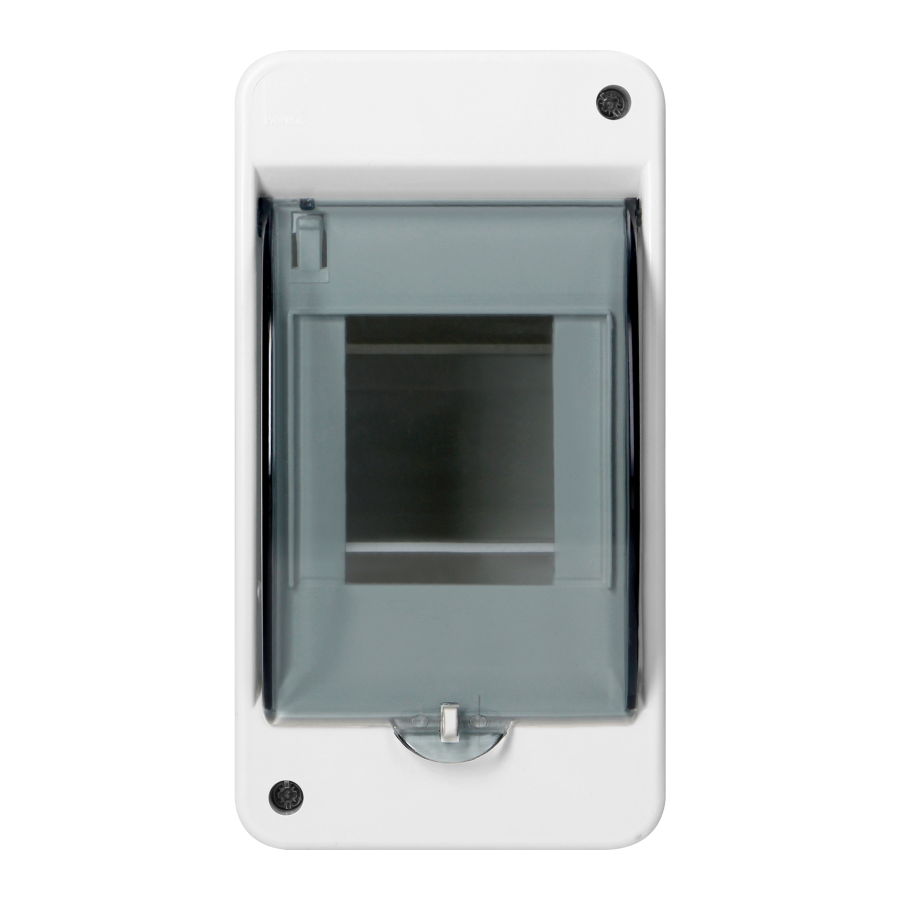

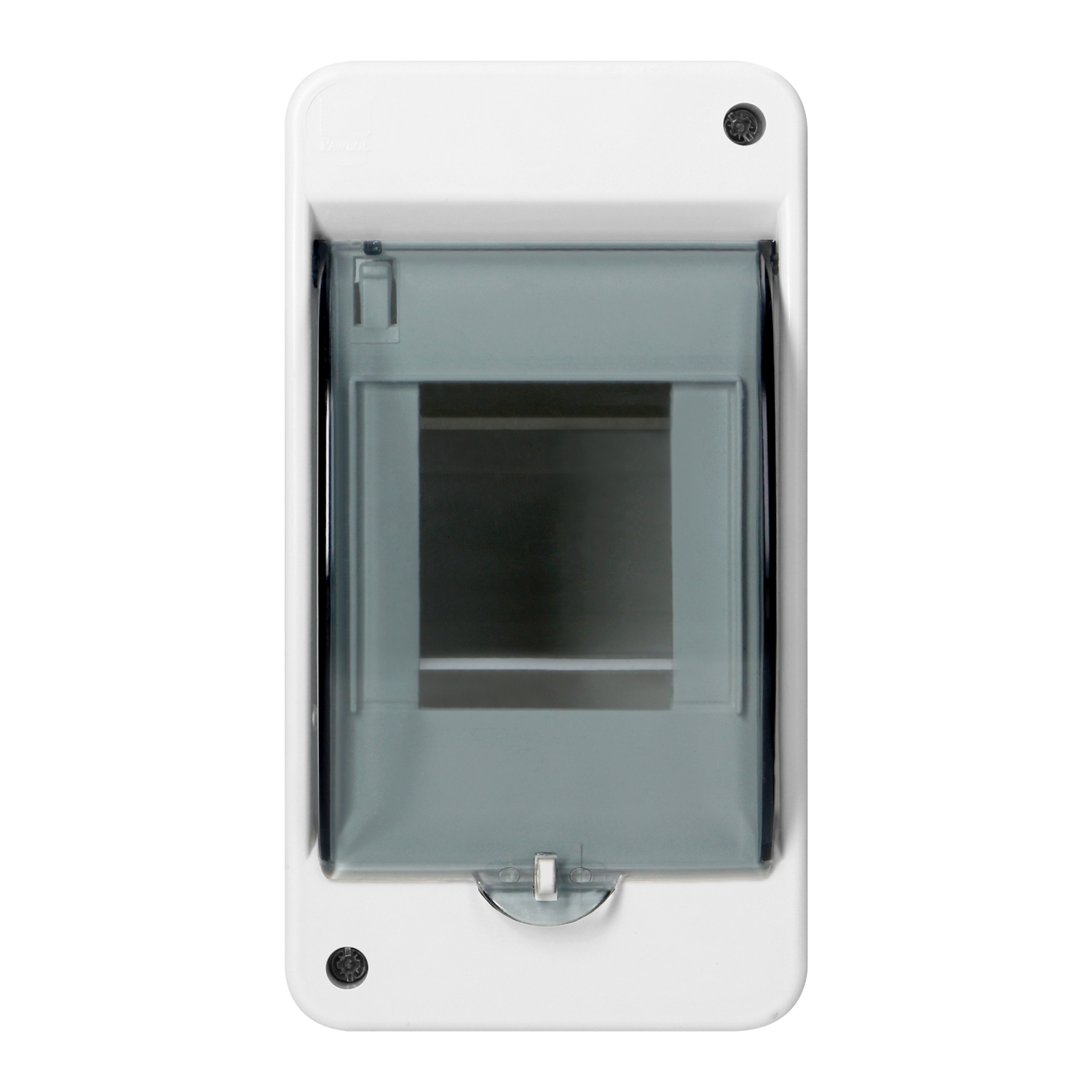

Need a small yet robust enclosure for mounting electrical equipment? Choose the S-3 modular enclosure.

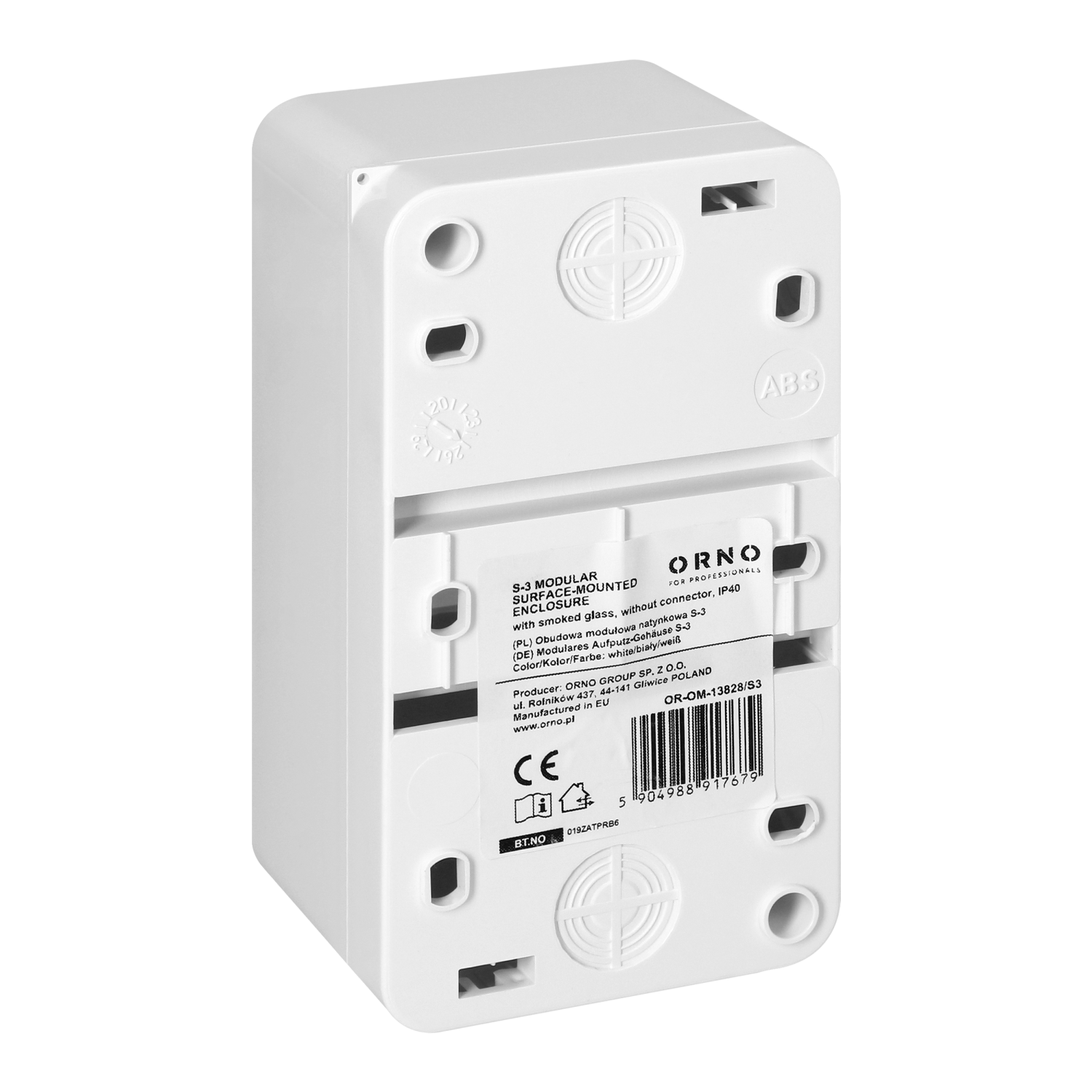

This model is designed for quick surface mounting, without damaging the wall.

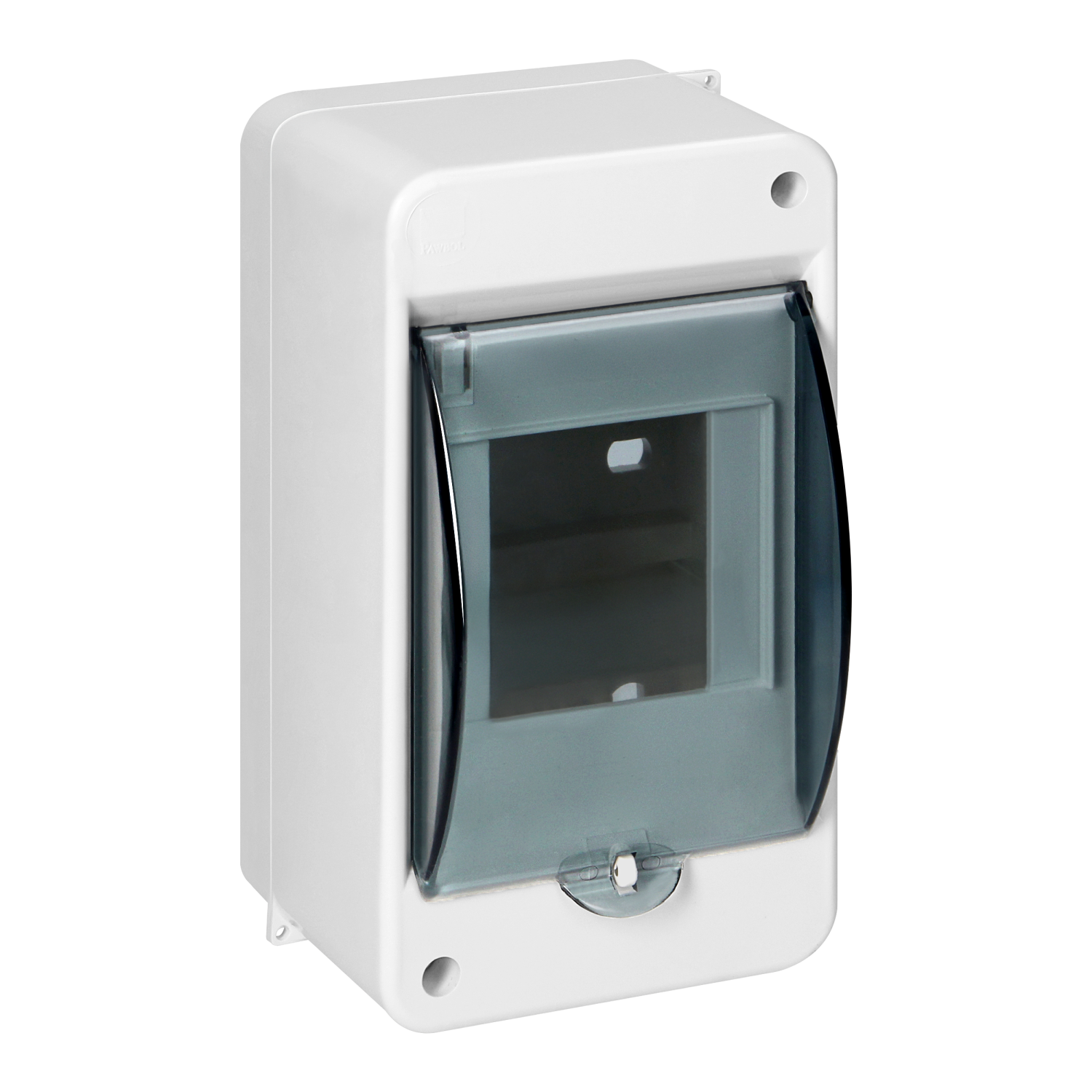

The smoked glass allows you to check the status of the equipment without opening the unit and protects the interior from dust.
The enclosure is made of durable plastic with high mechanical resistance (IK08), ensuring effective protection of installation components. The IP40 rating guarantees safe indoor use.

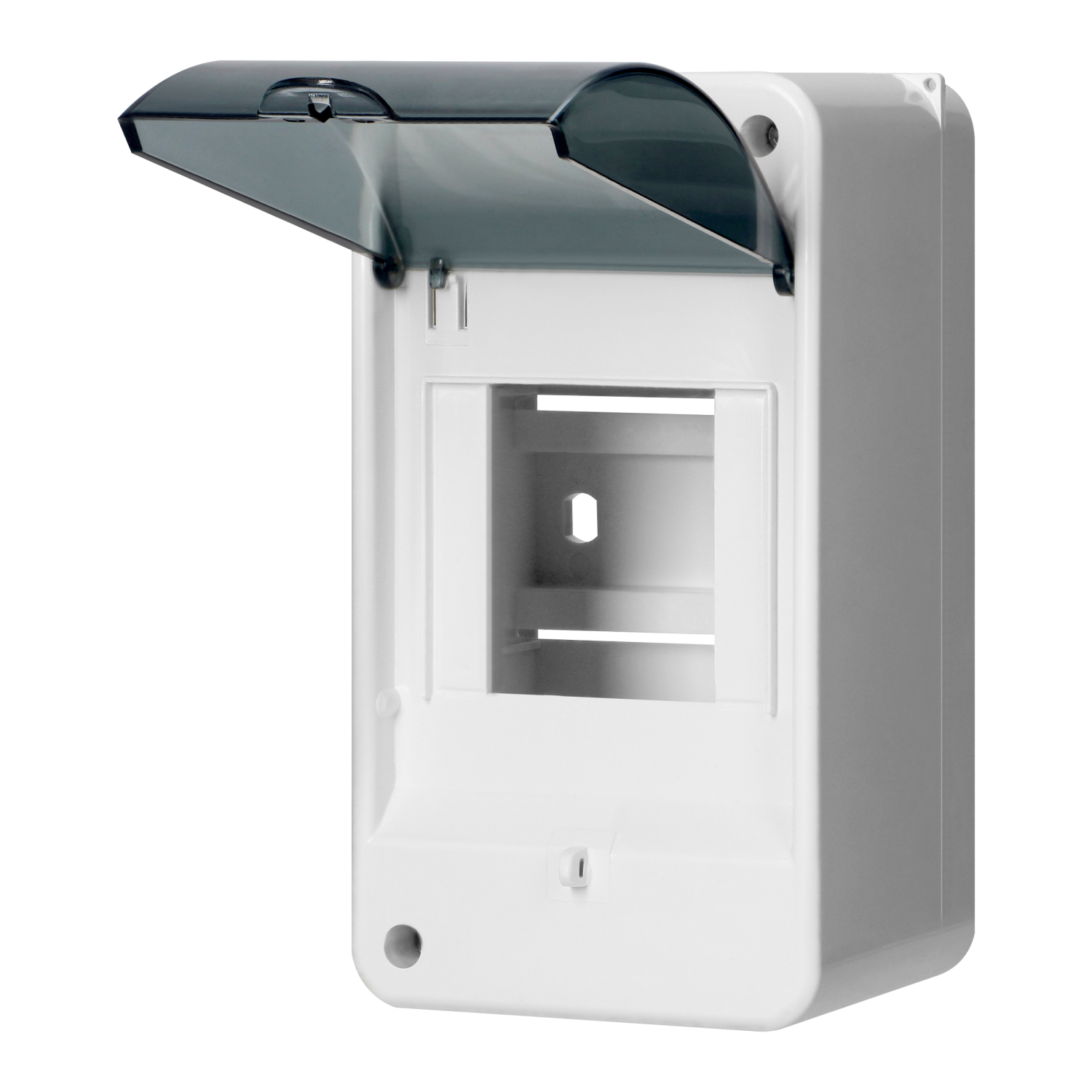

The housing is equipped with a TH 35/7.5 rail (euro rail) for mounting overcurrent protection/circuit breakers, as well as N and PE busbars.
The presses on the sides facilitate the insertion of cables or installation tubes, and descriptive labels help mark individual circuits.
The aesthetic white colour fits well into apartments, offices and technical rooms.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 77 |
| Depth [mm]: | 85 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 3 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 3 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 2 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
