Electrical modular enclosures
New
Are you looking for a small but safe enclosure for modular equipment?

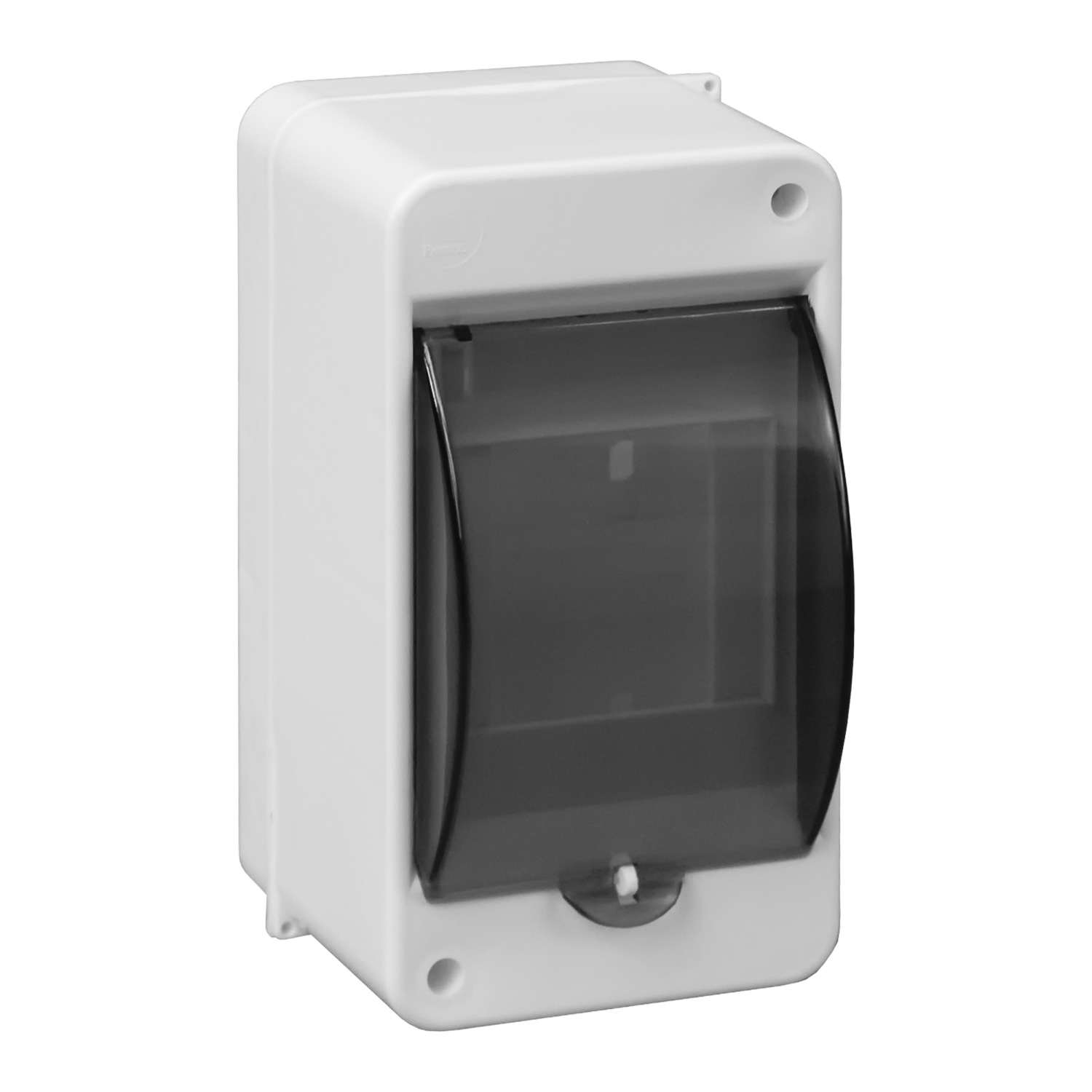

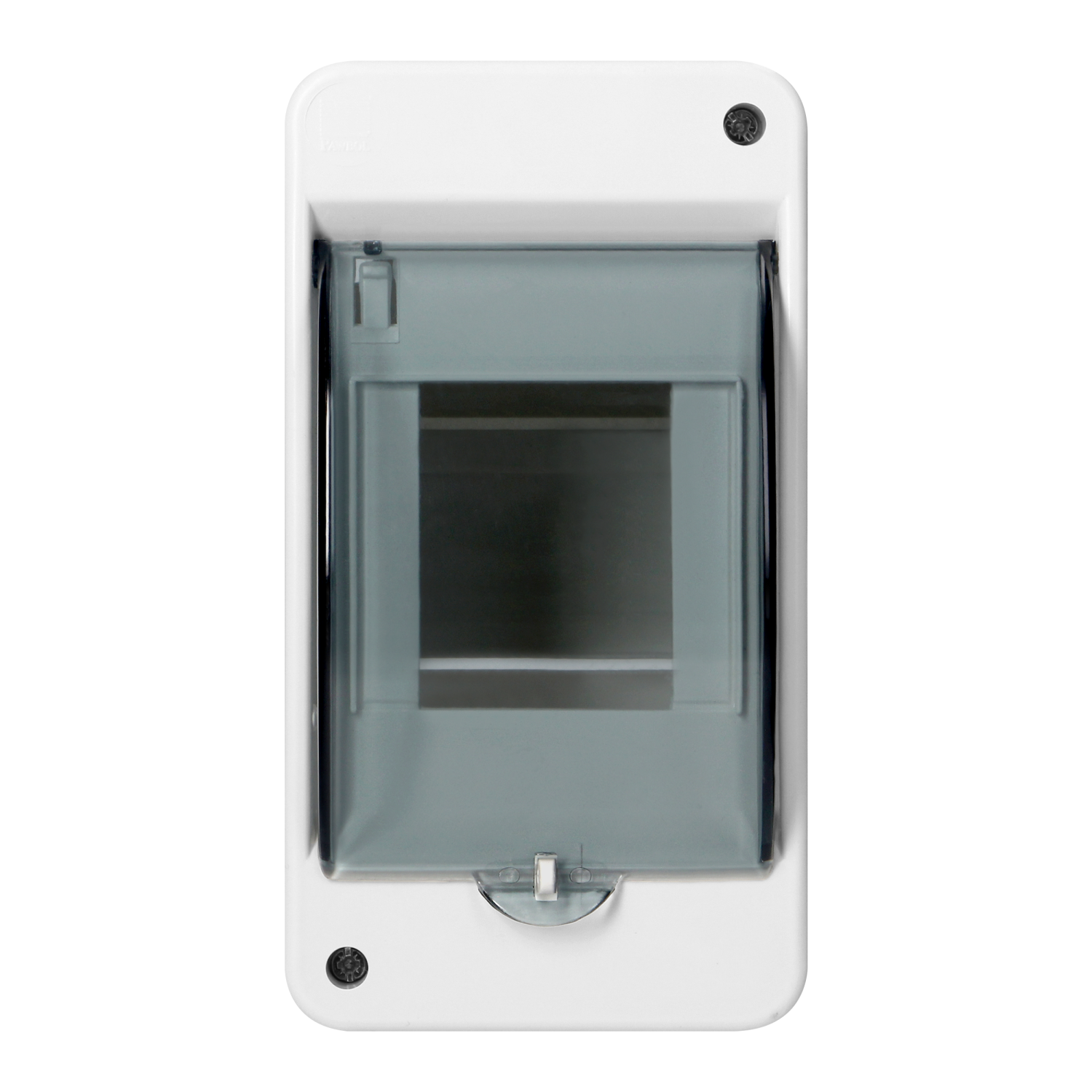

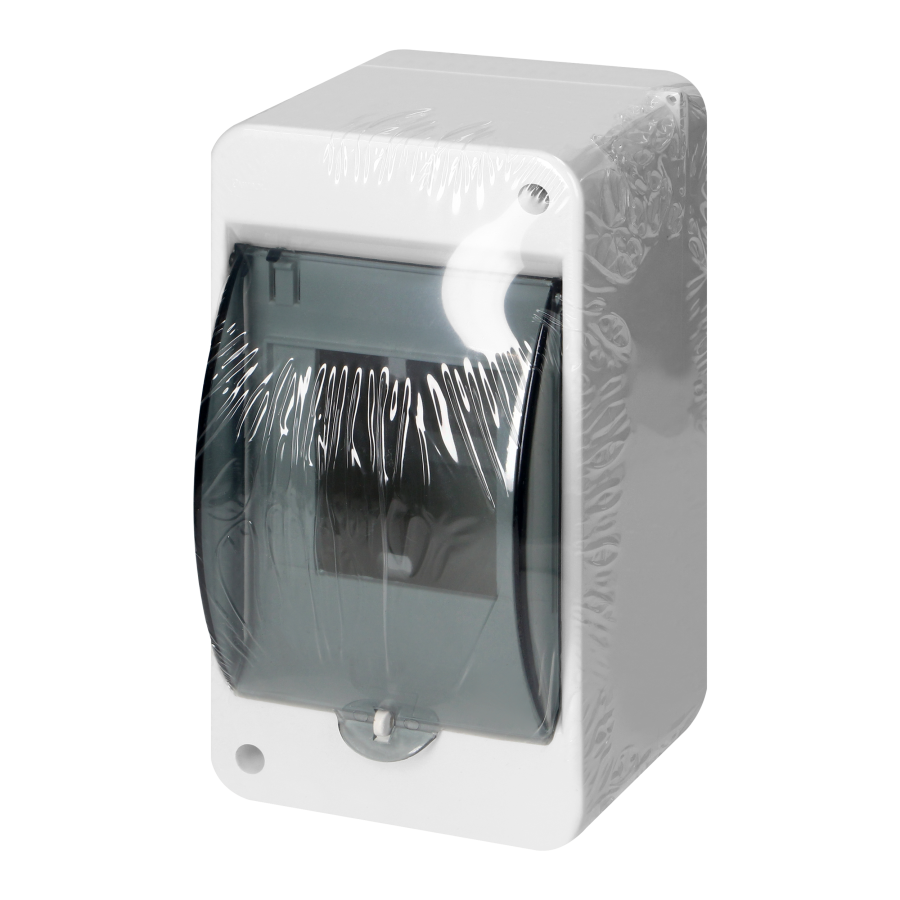

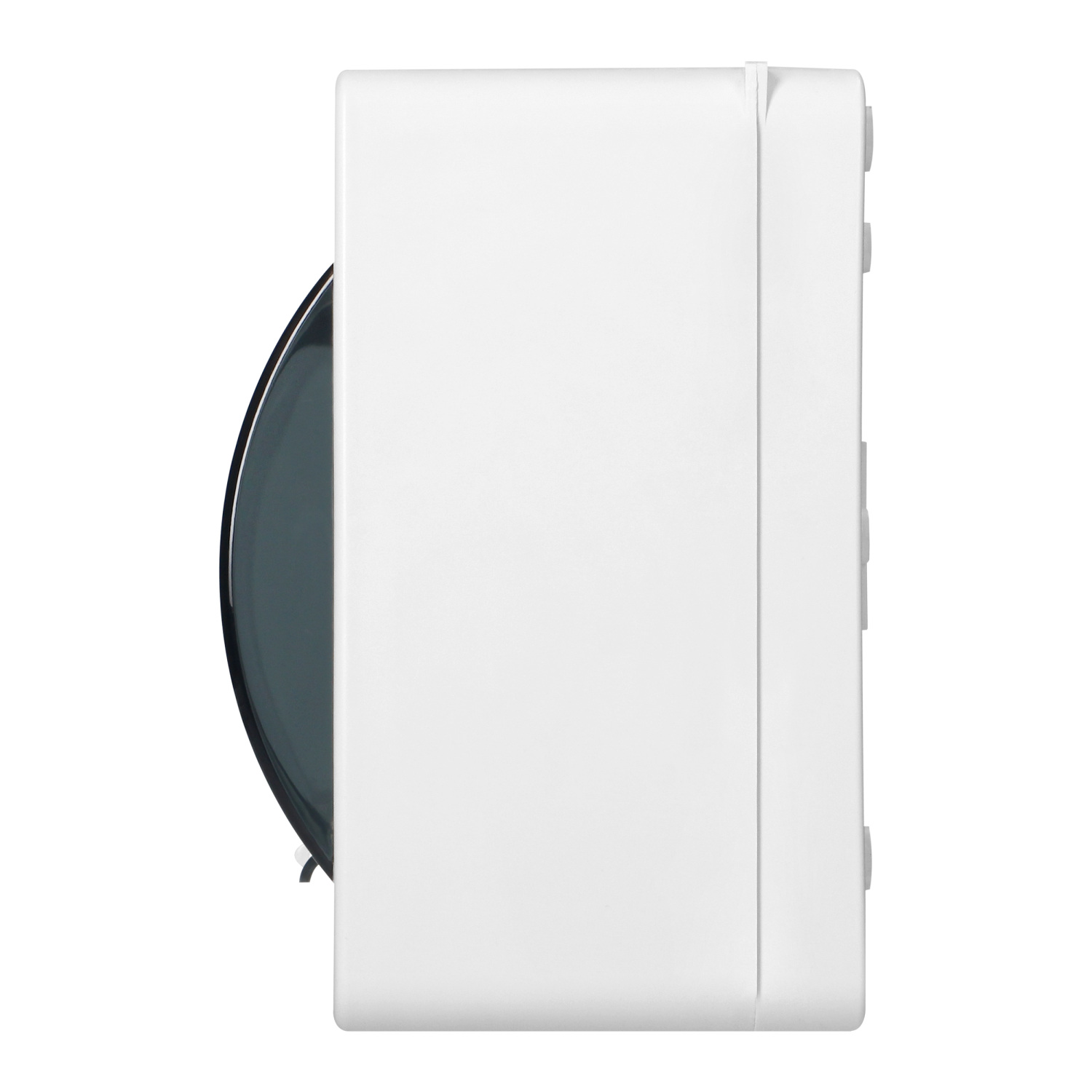

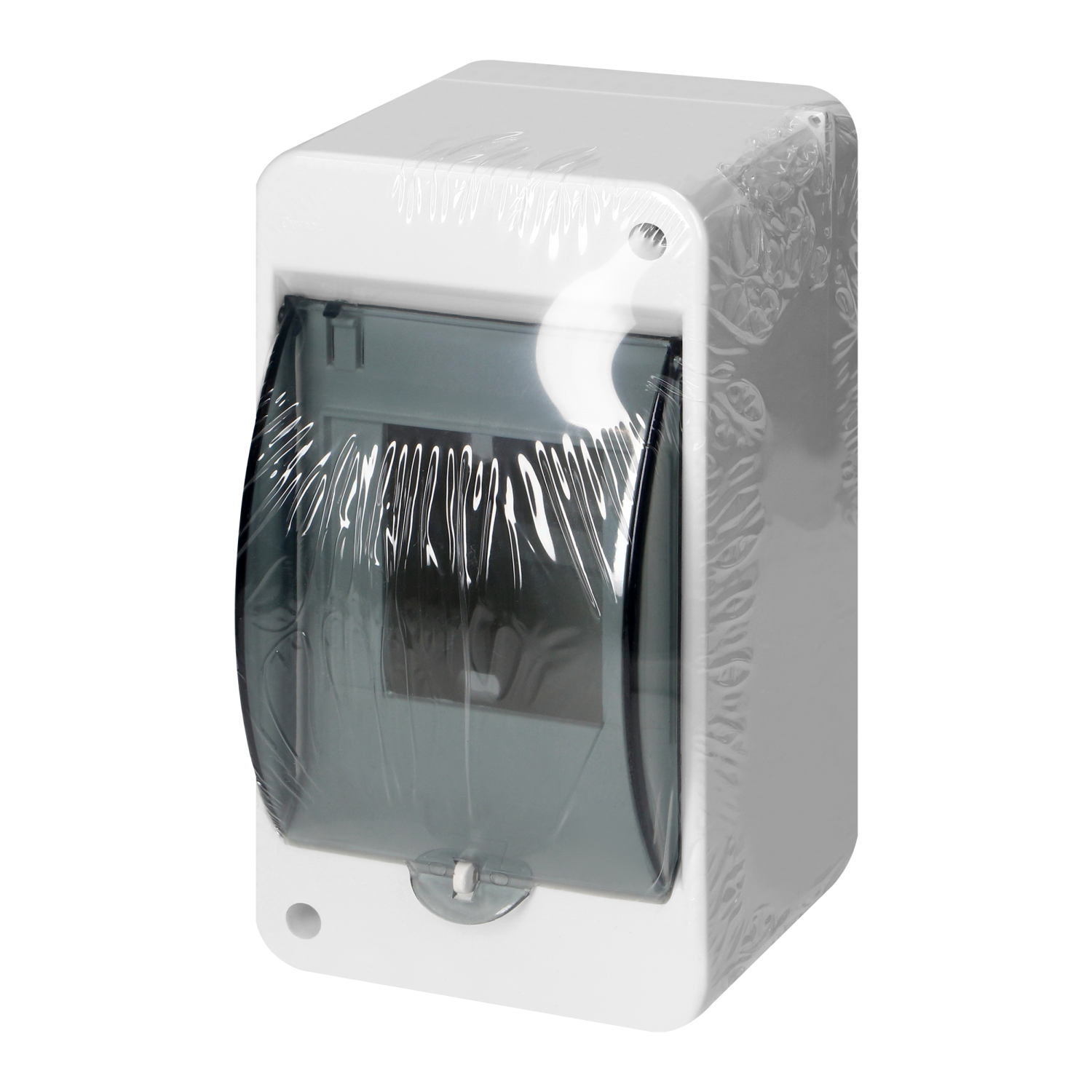

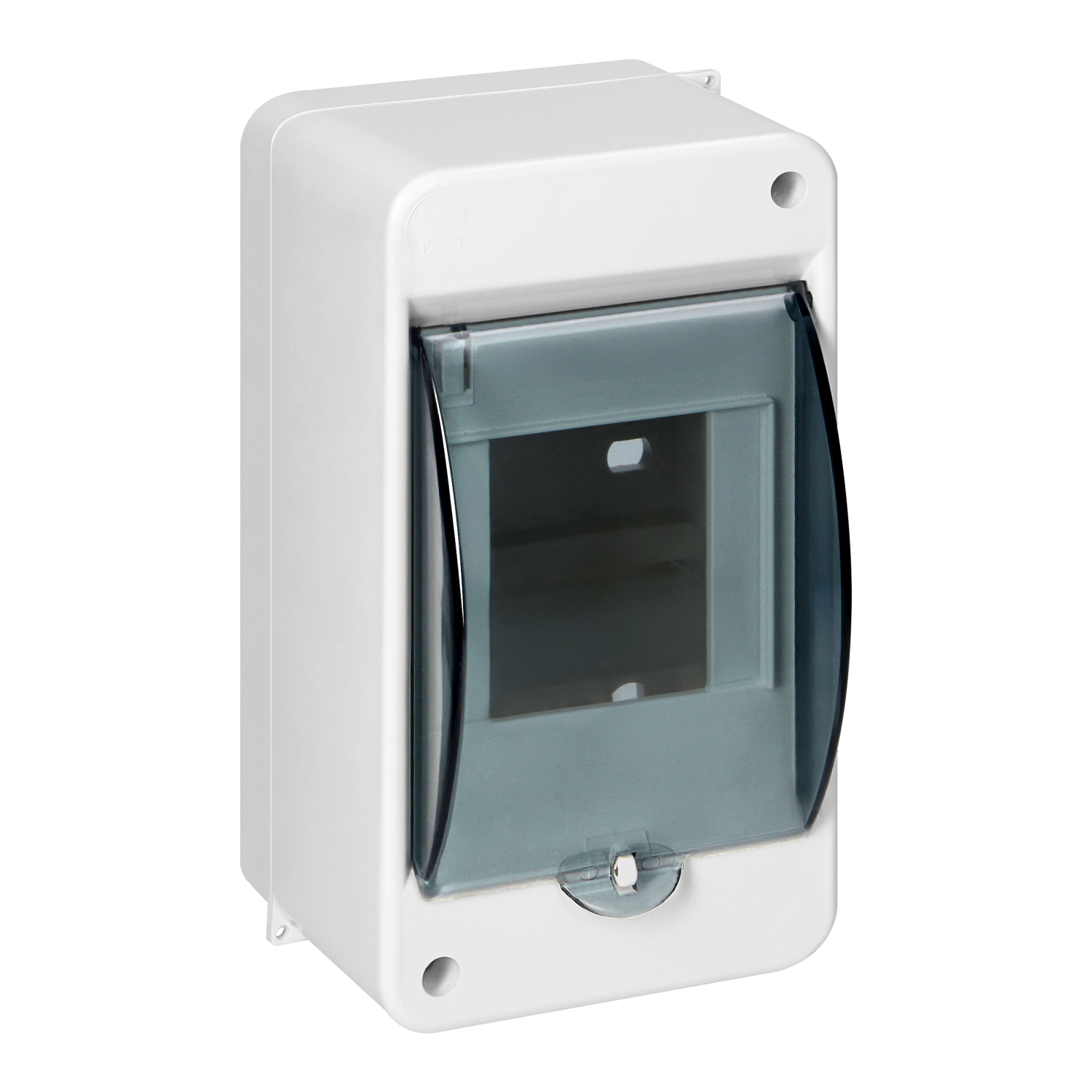

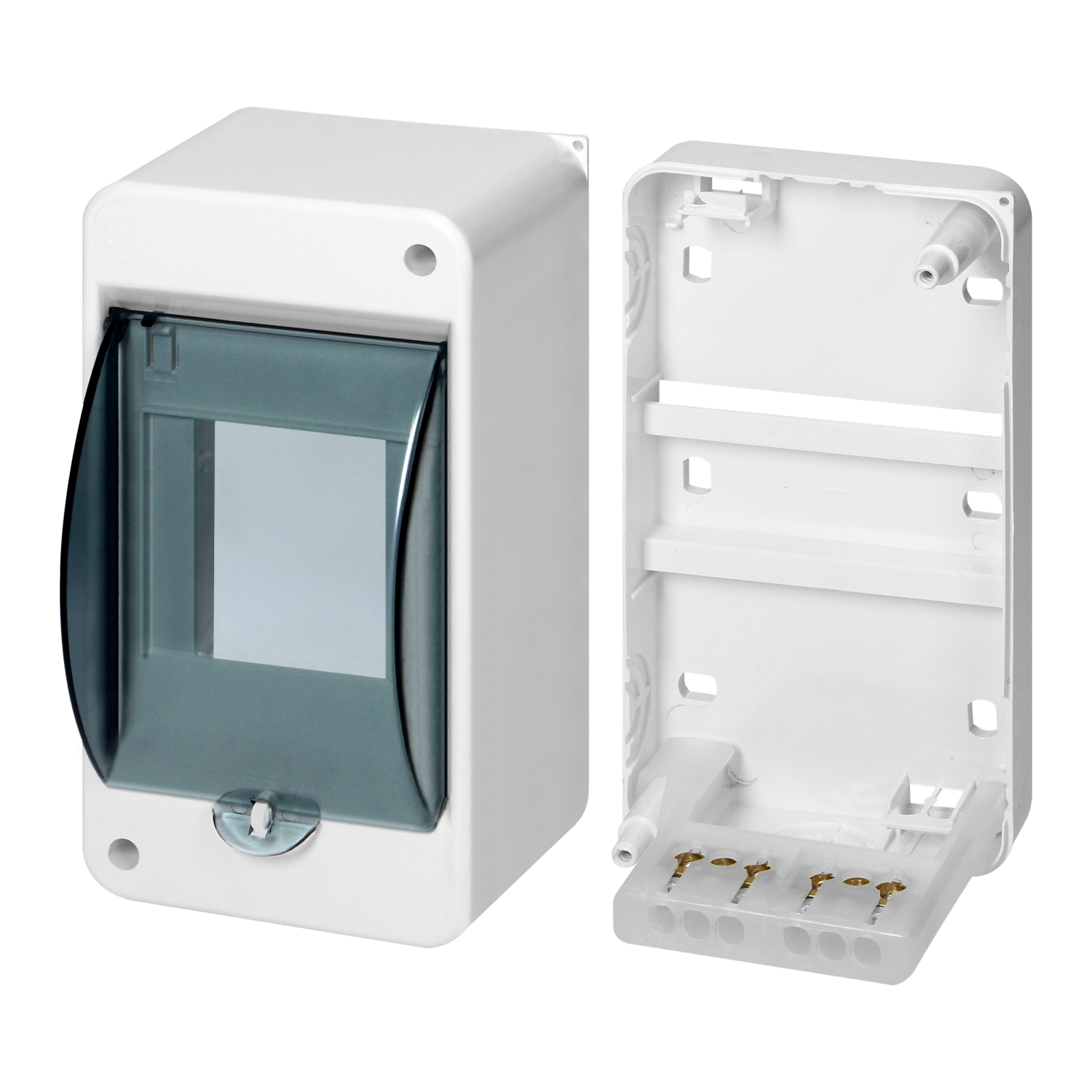

Choose the S-3 model designed for small installations in the home, office or workshop.

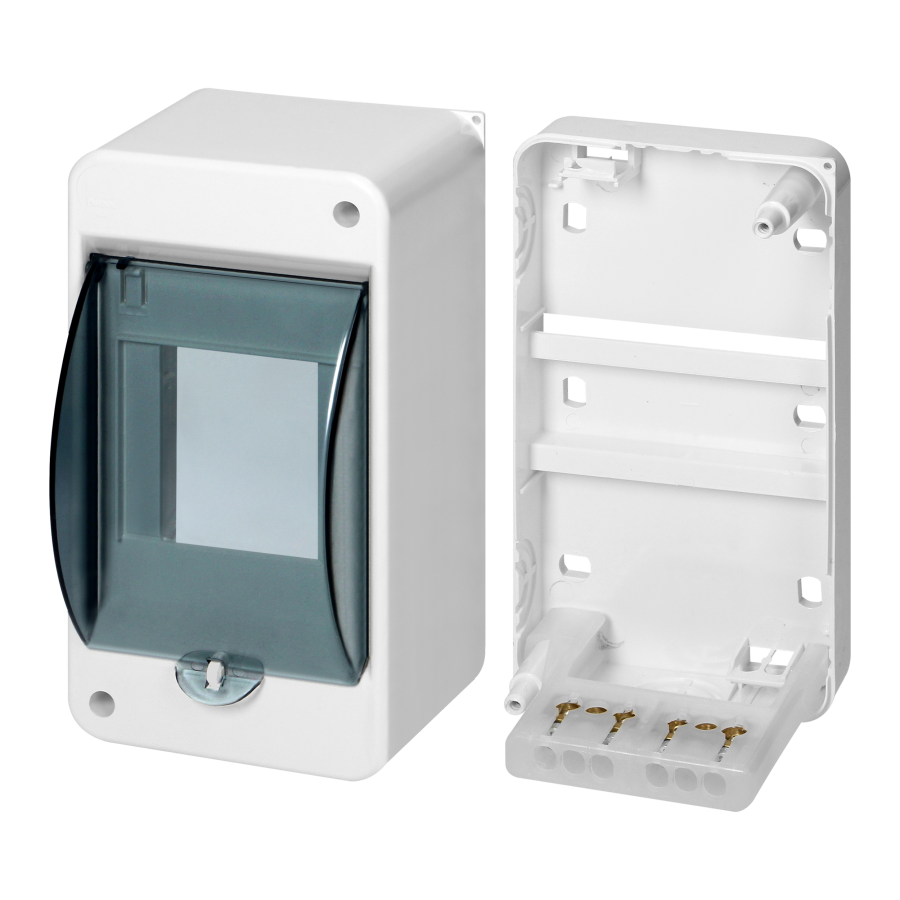

Thanks to N+PE connectors, you can organize your cables and be sure that the entire installation is carried out in accordance with safety regulations. The presses on the sides facilitate cable routing, and descriptive labels allow you to mark individual circuits.
You may mount it on a surface, without chiselling or dust.

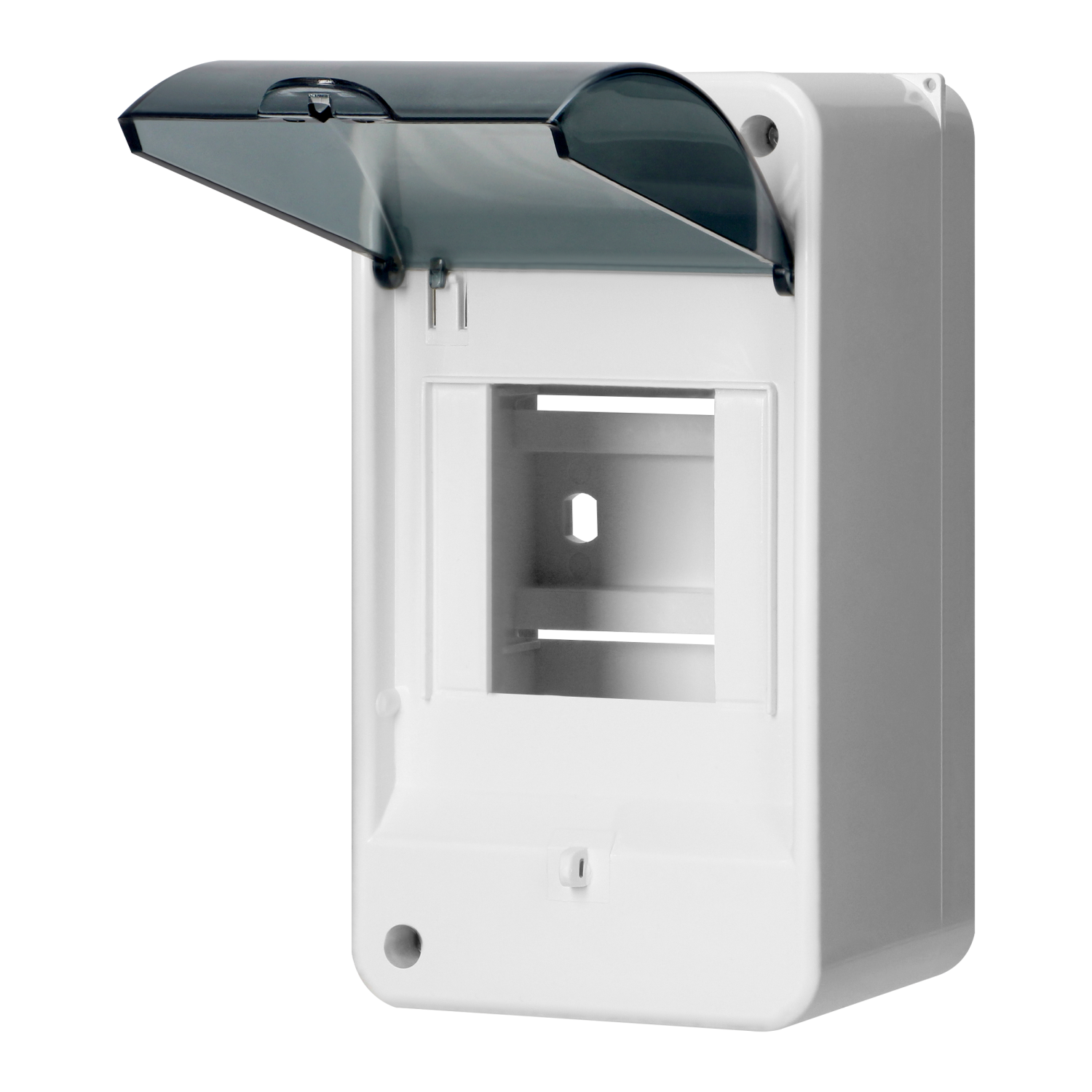

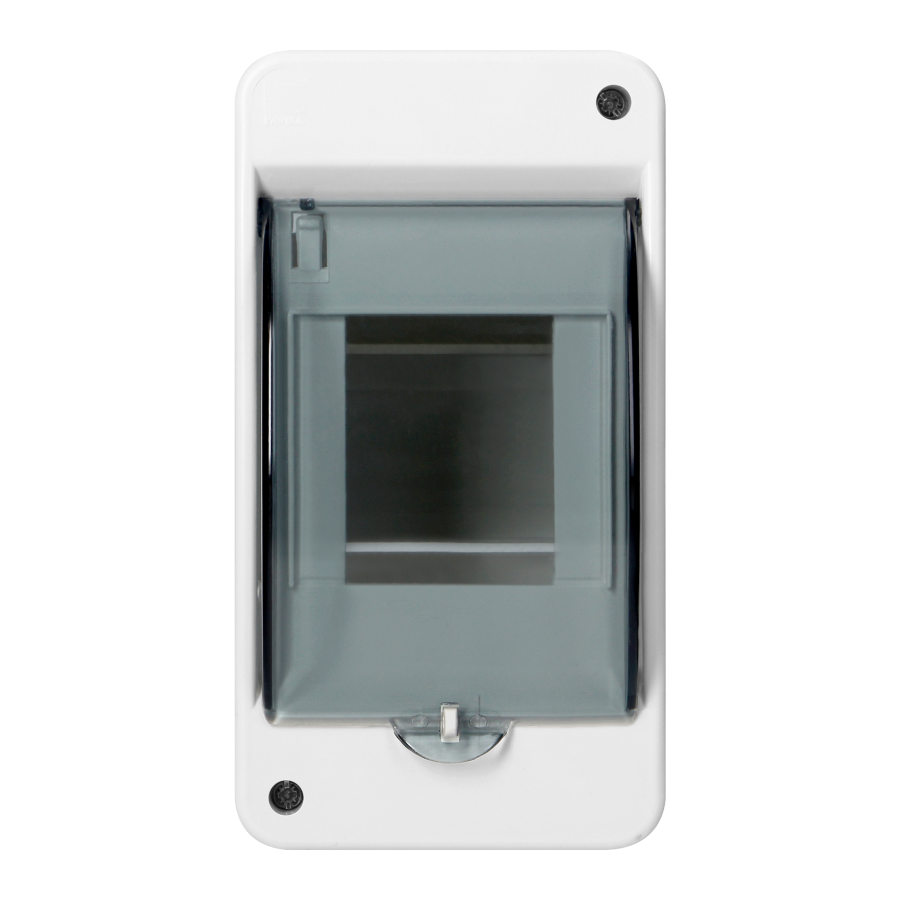

The smoked glass will allow you to check at any time whether everything is working.
The solid construction and IP40 protection rate ensure safe indoor use, and the white housing (RAL 9010) makes the whole thing look neat.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 77 |
| Depth [mm]: | 85 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 3 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 3 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 2 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
