Electrical modular enclosures
New

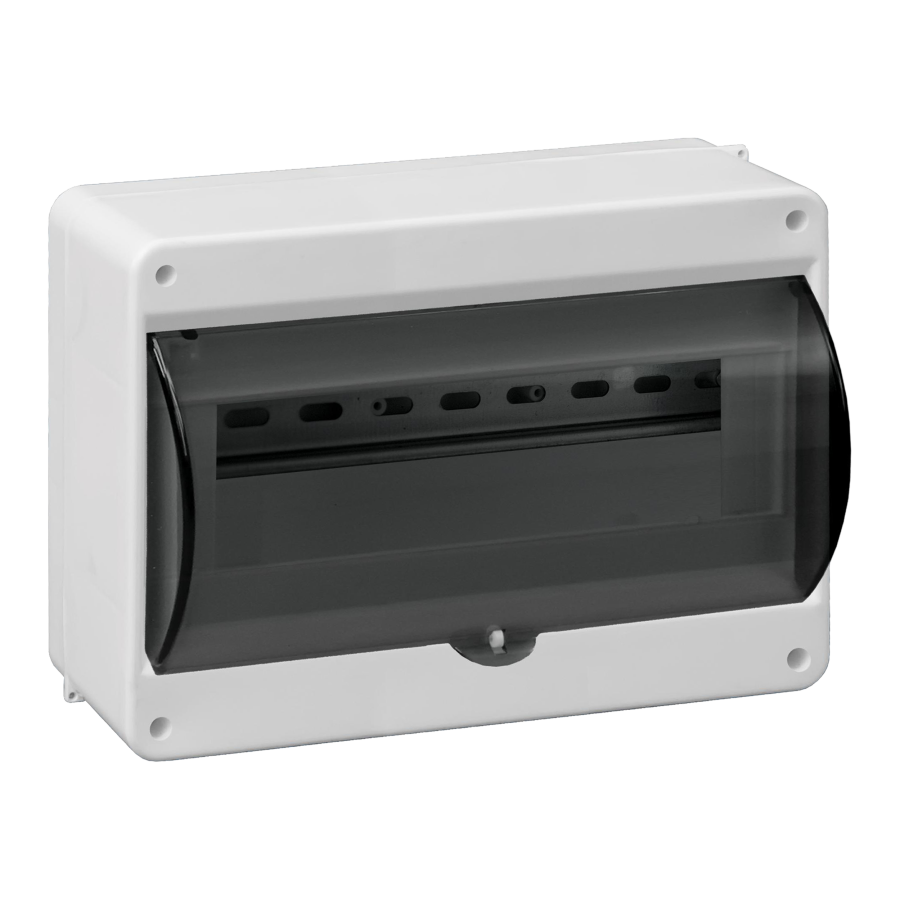

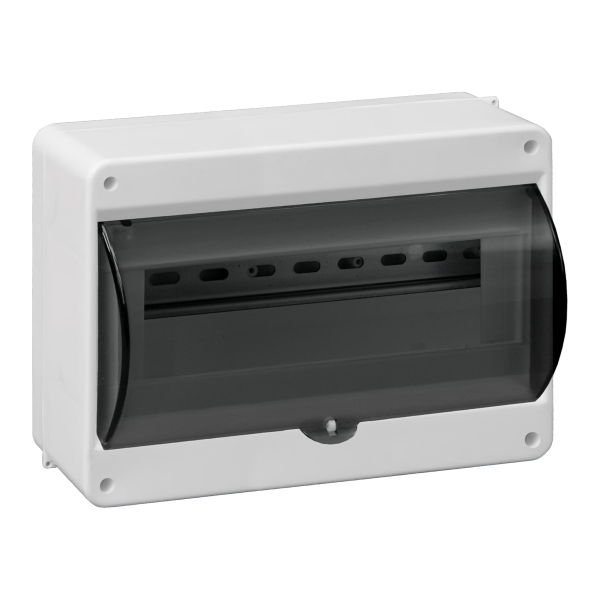

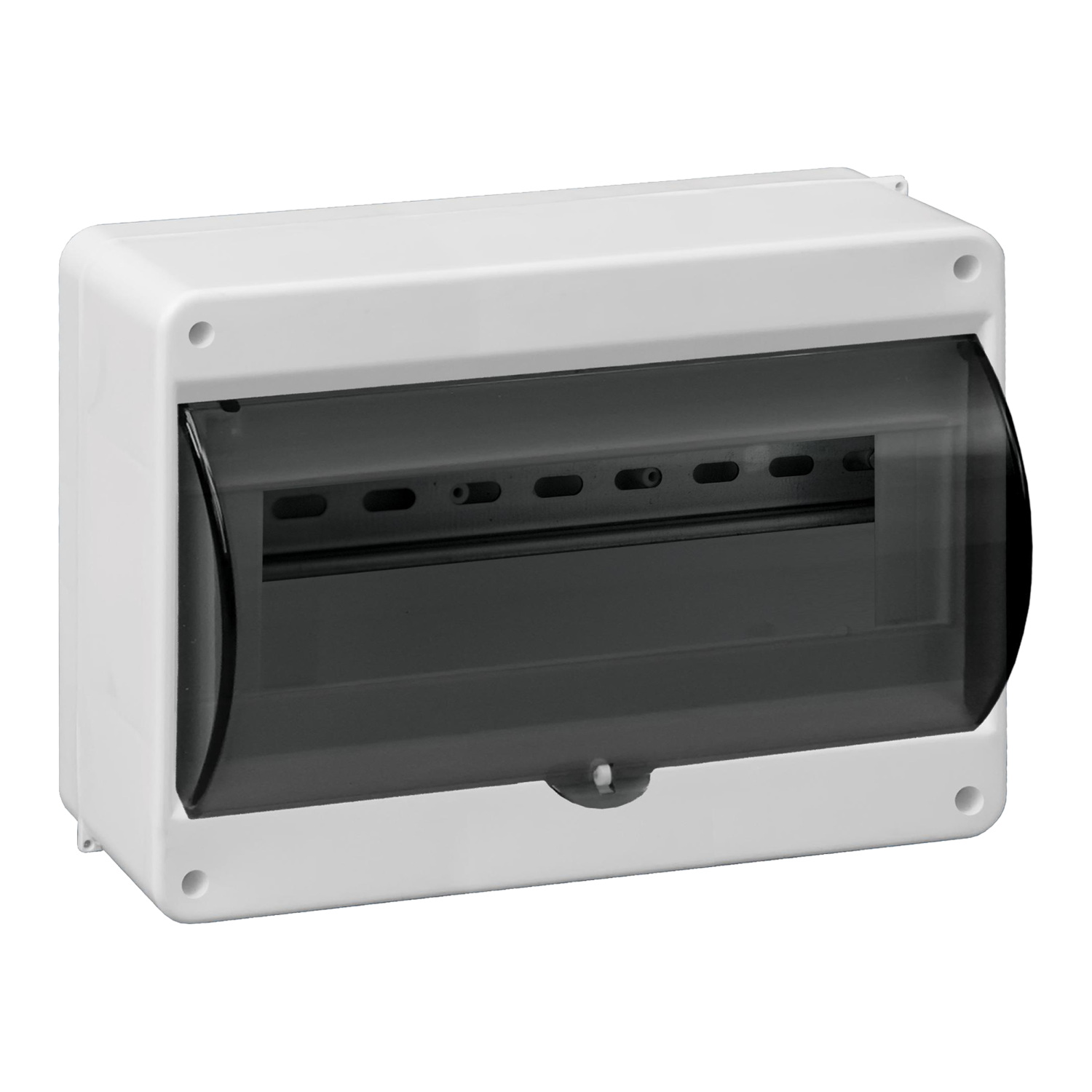

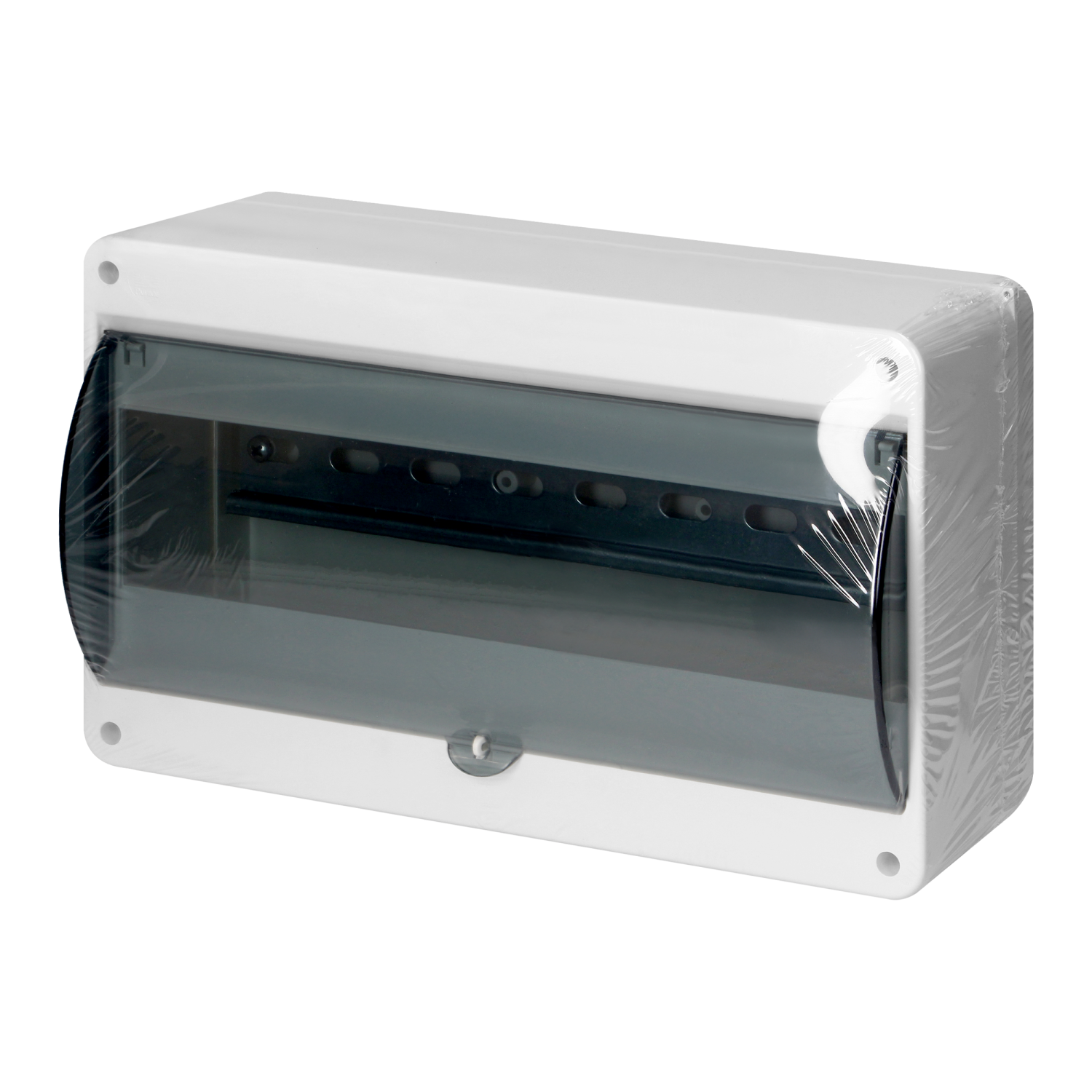

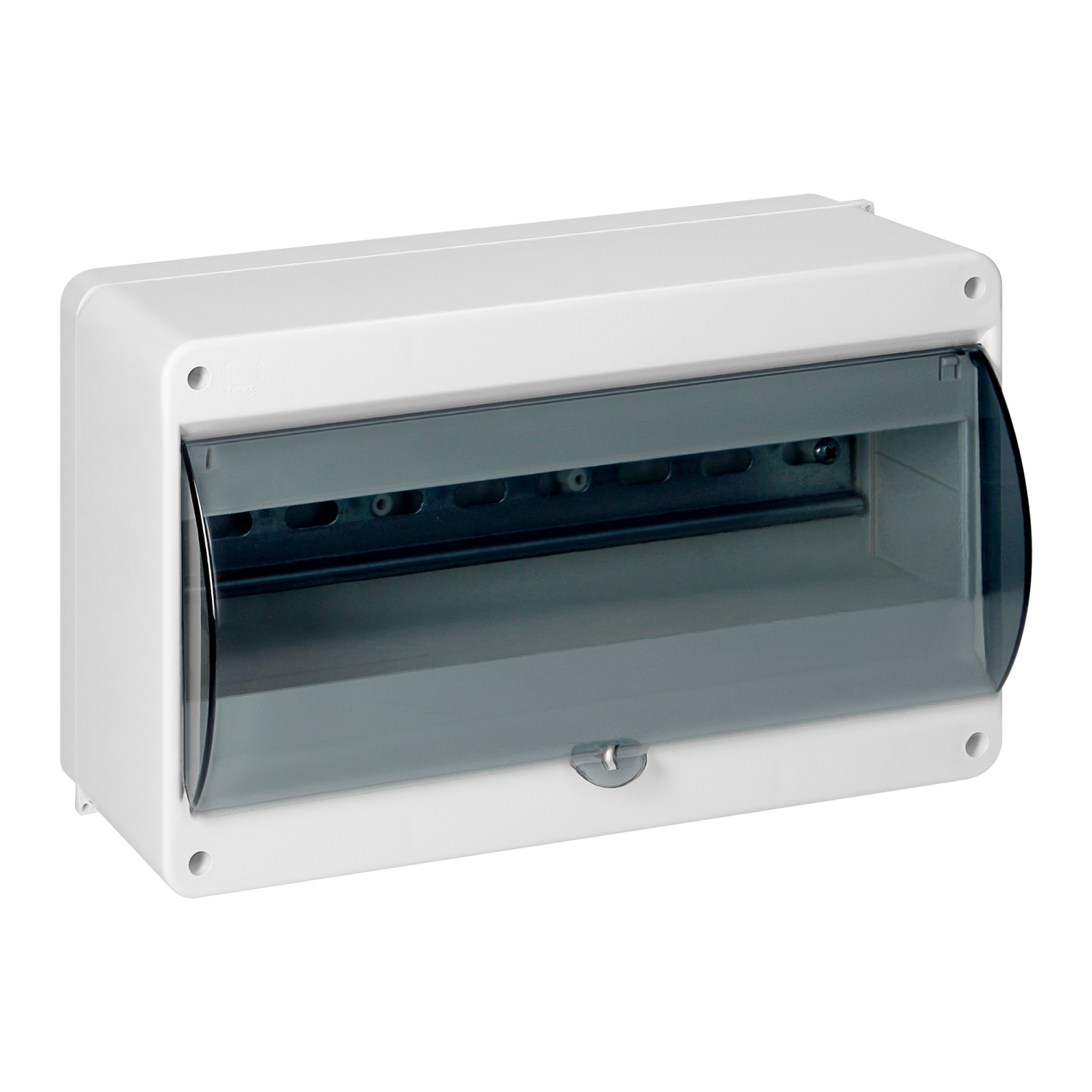

Do you have a larger installation and want it to be safe and tidy? Choose the S-12 enclosure, which will accommodate up to 12 overcurrent protection devices/circuit breakers with a standard width of 18 mm and will allow you to manage the entire distribution board.

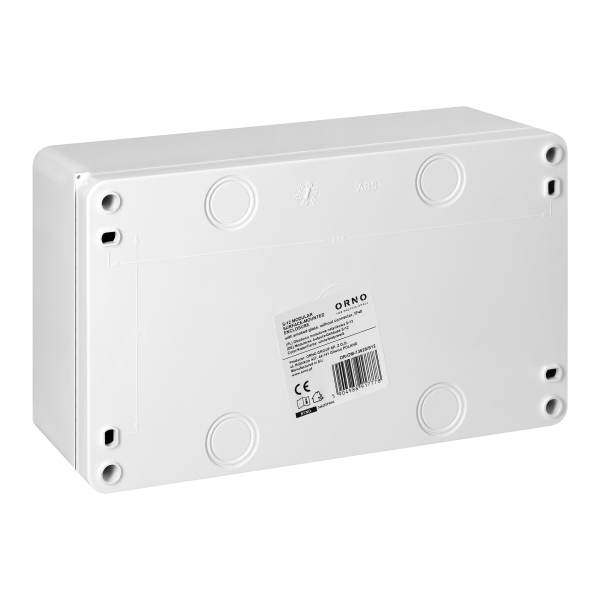

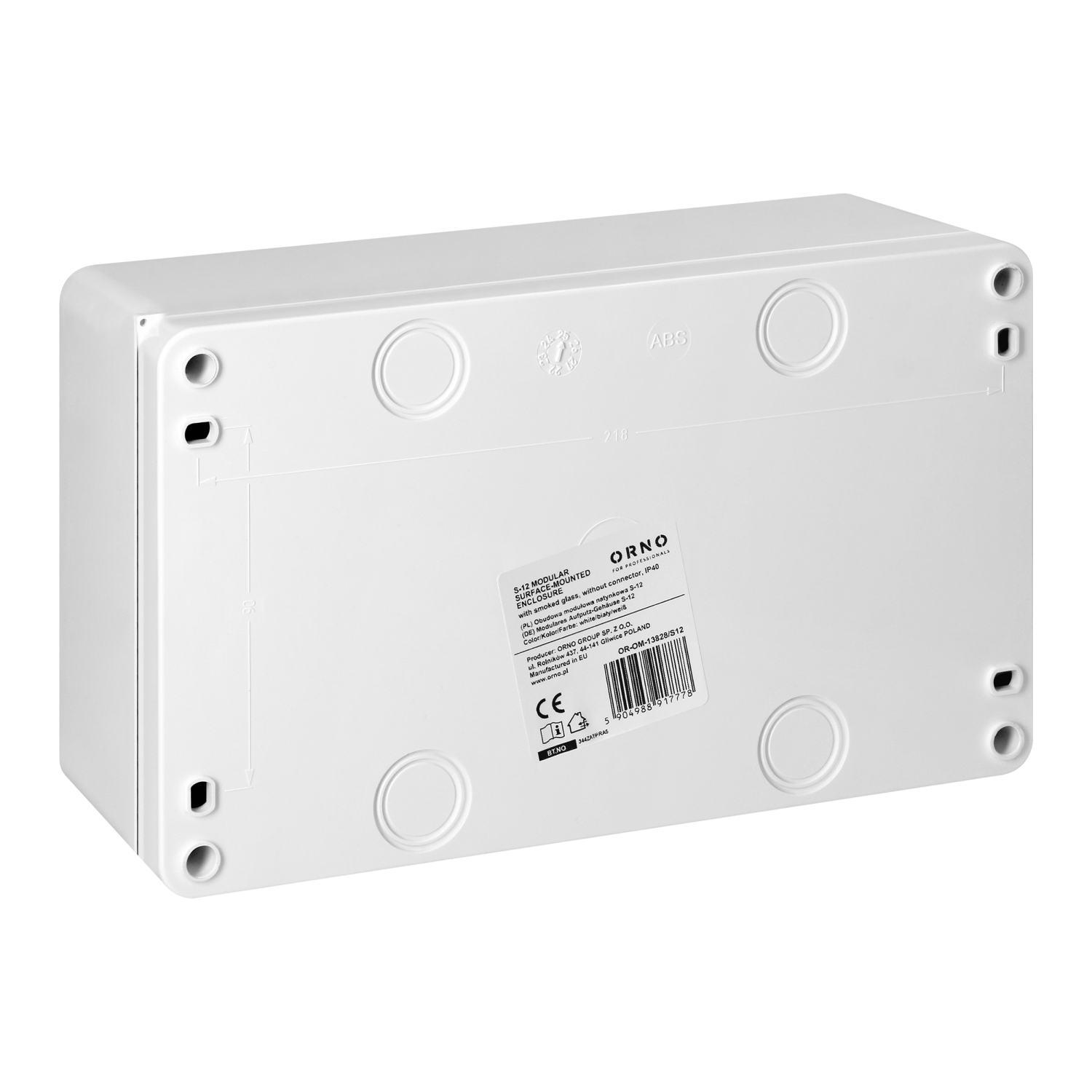

You can surface-mount it without breaking the wall. Just a few screws are enough to make the whole structure stable and ready for use.

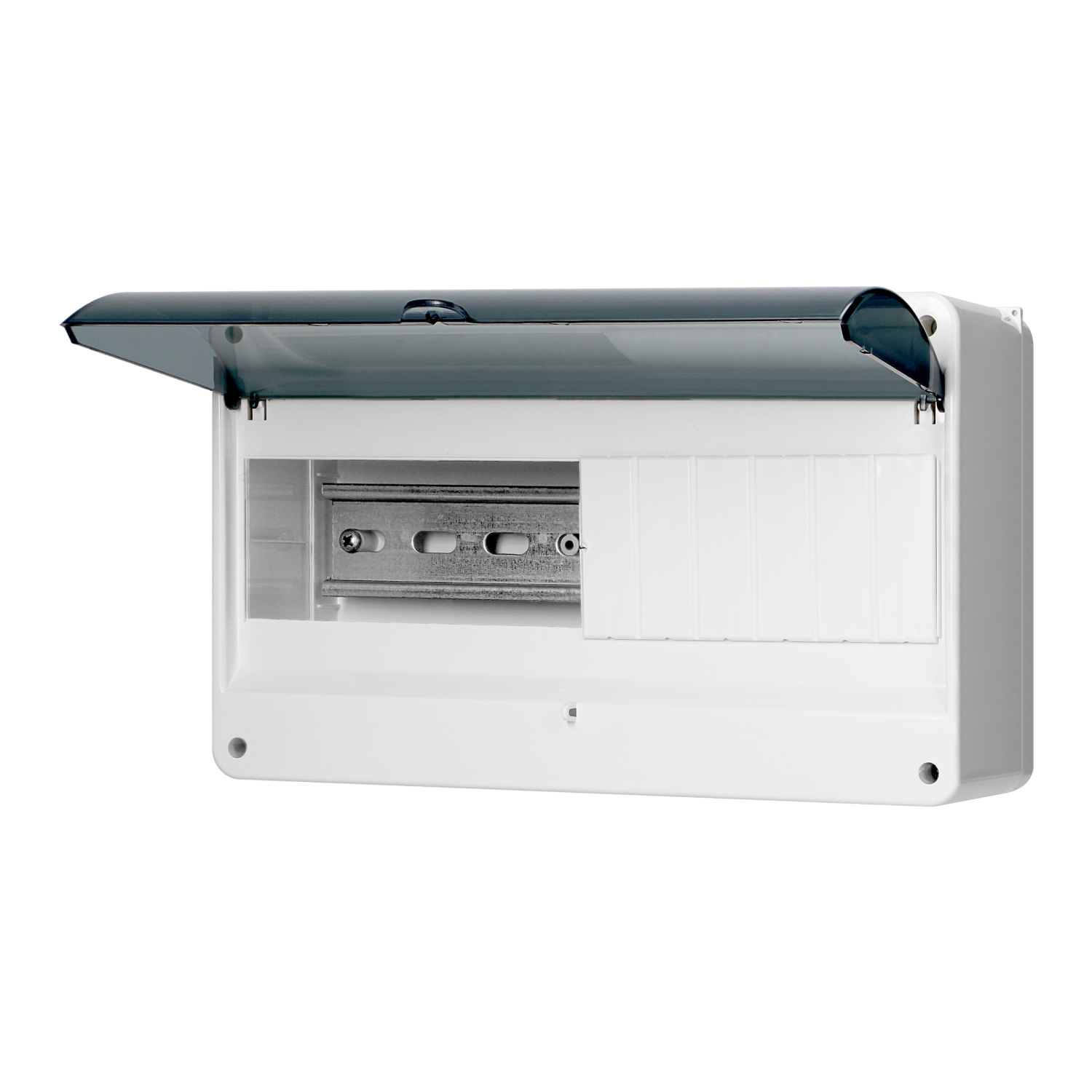

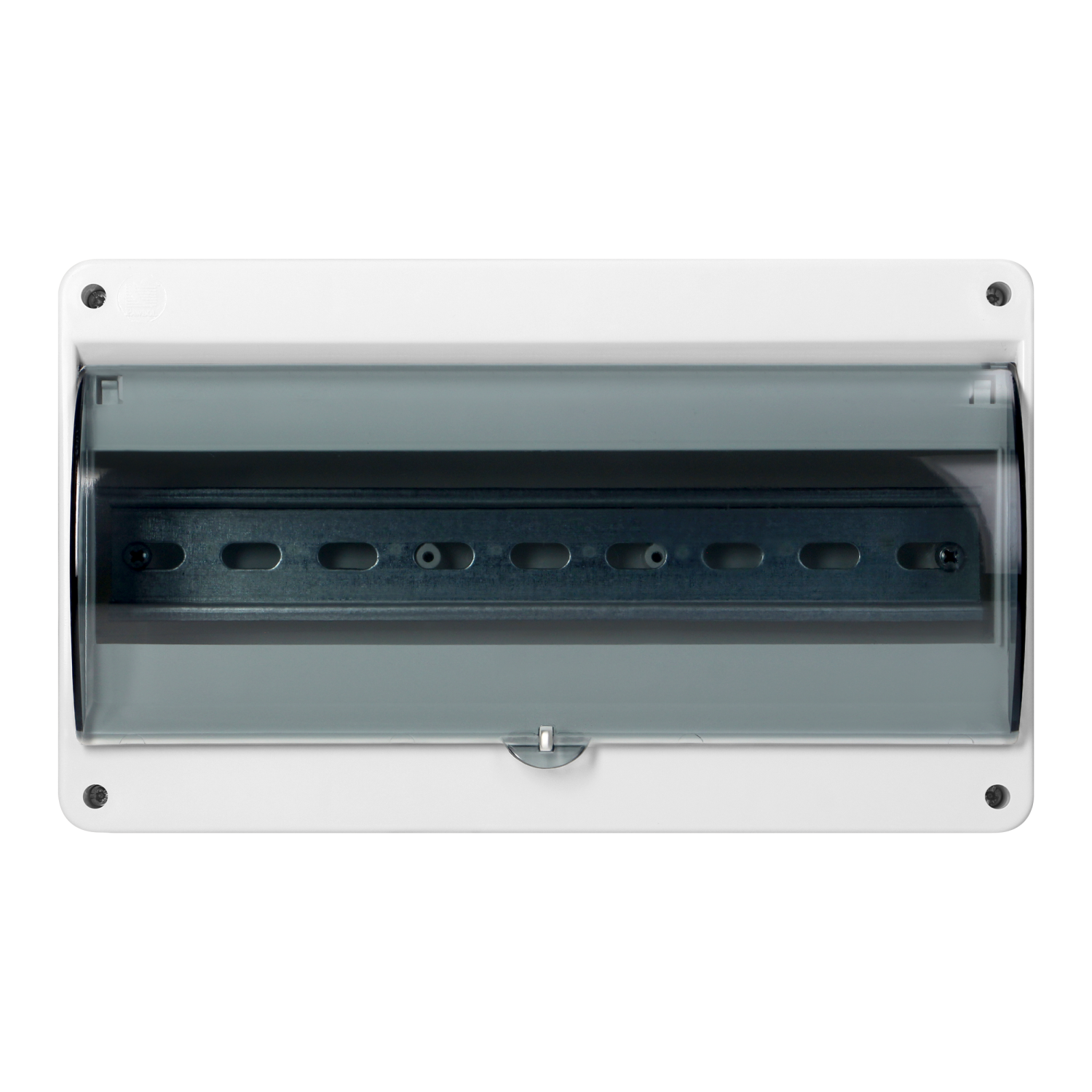

You don't have to open it to check the status of the protections – thanks to the smoked glass window, you have everything under control.

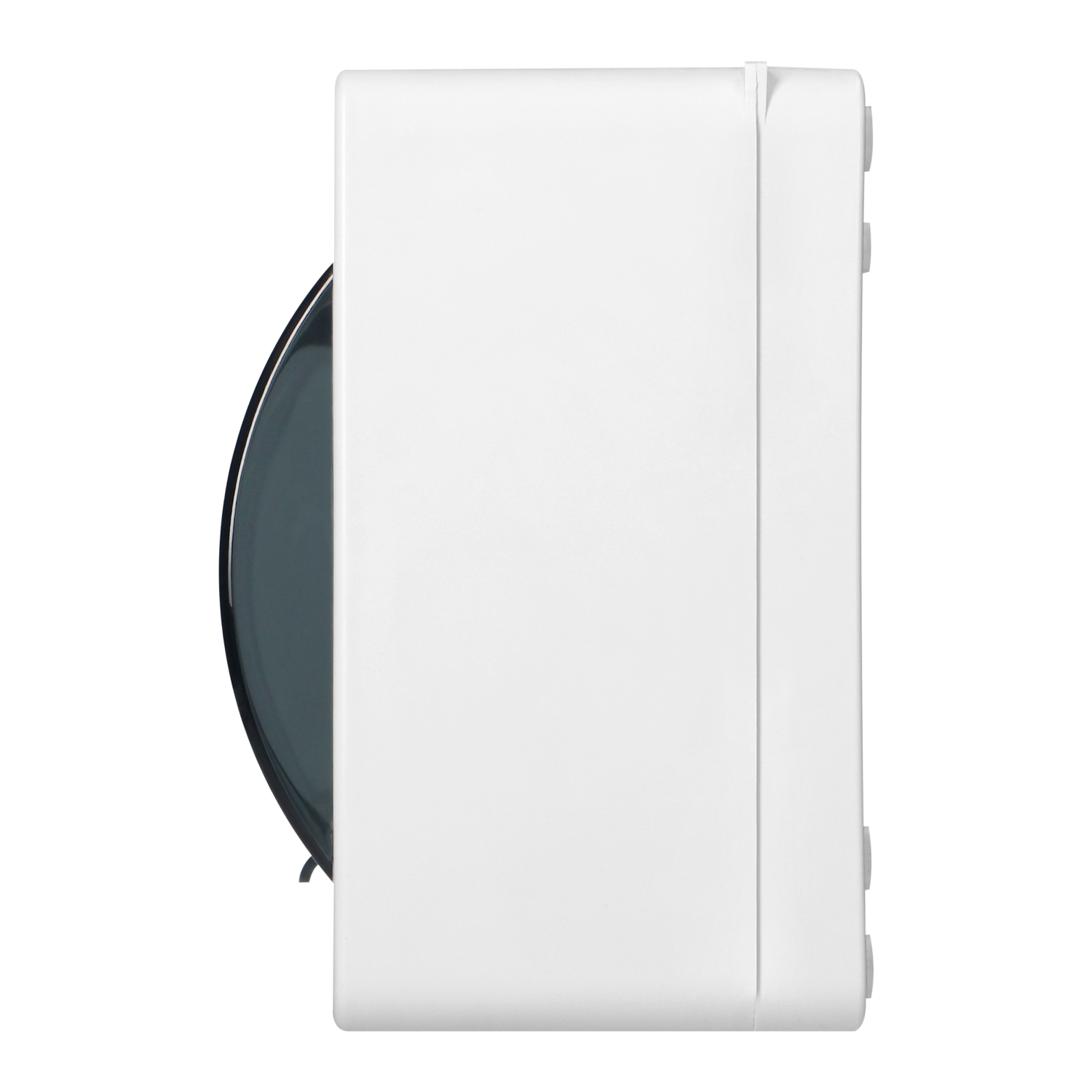

The side pressings make it easier to insert cables, and the descriptive labels help you keep things organised.
Made of durable, impact-resistant plastic (IK08), the enclosure protects the equipment from damage, and the IP40 protection rating ensures safe indoor use.
Thanks to the white, aesthetic surface, the enclosure looks neat and professional – whether you install it at home, in a workshop or in an office.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Nie |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 240 |
| Depth [mm]: | 96 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 75 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 12 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 12 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 4 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
