Electrical modular enclosures
New

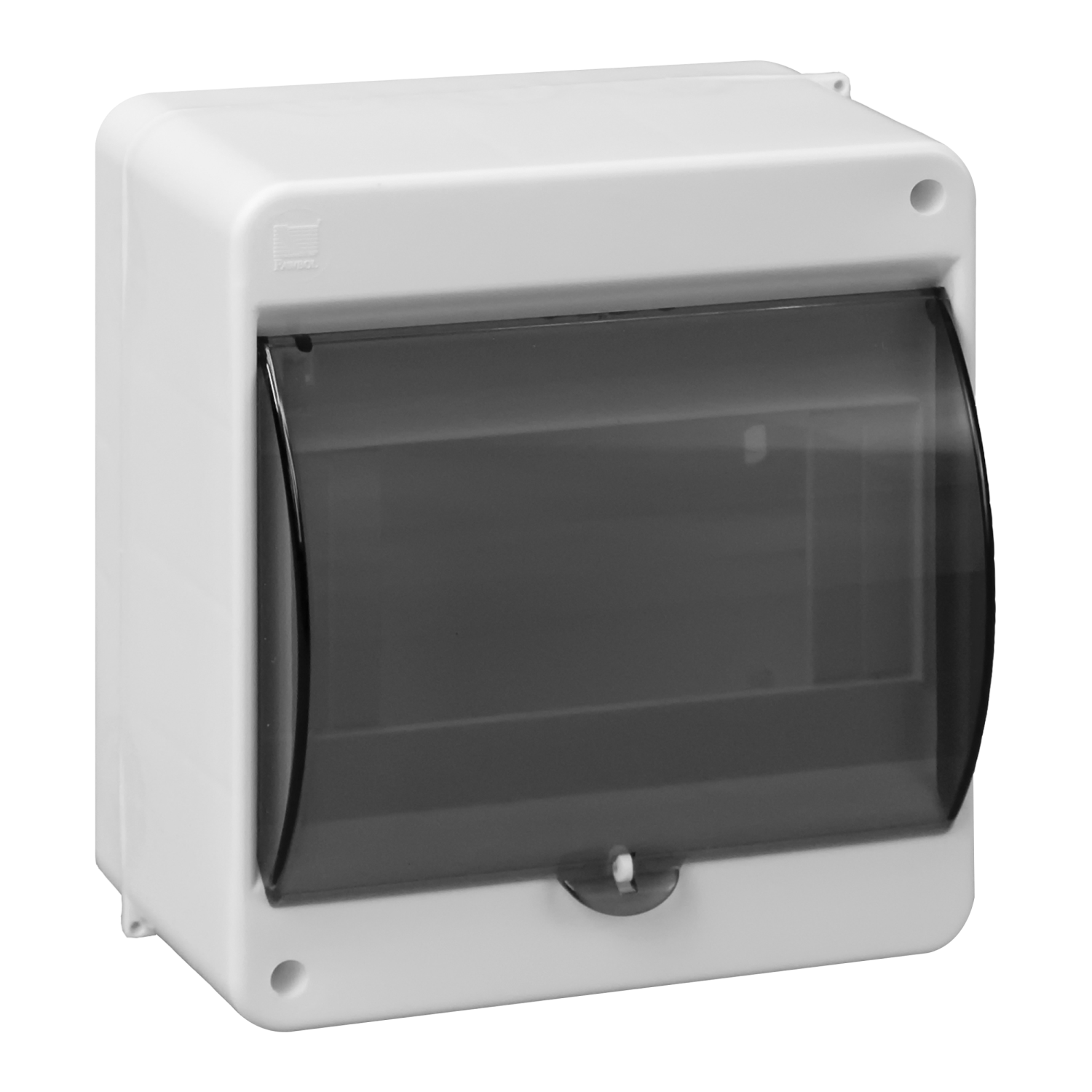

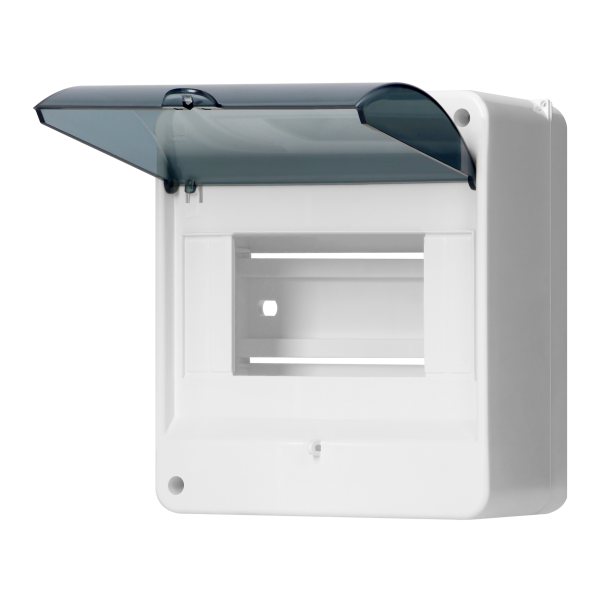

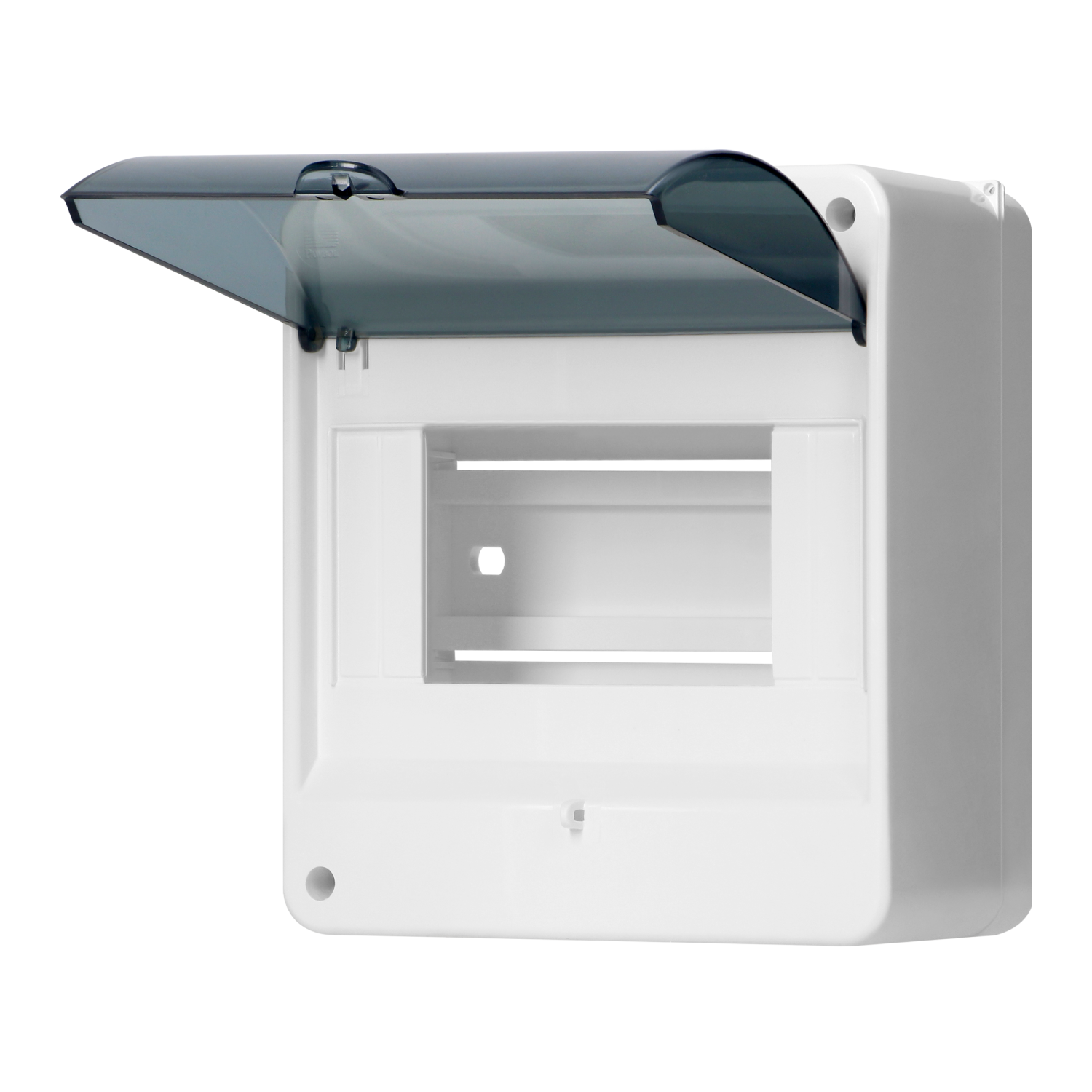

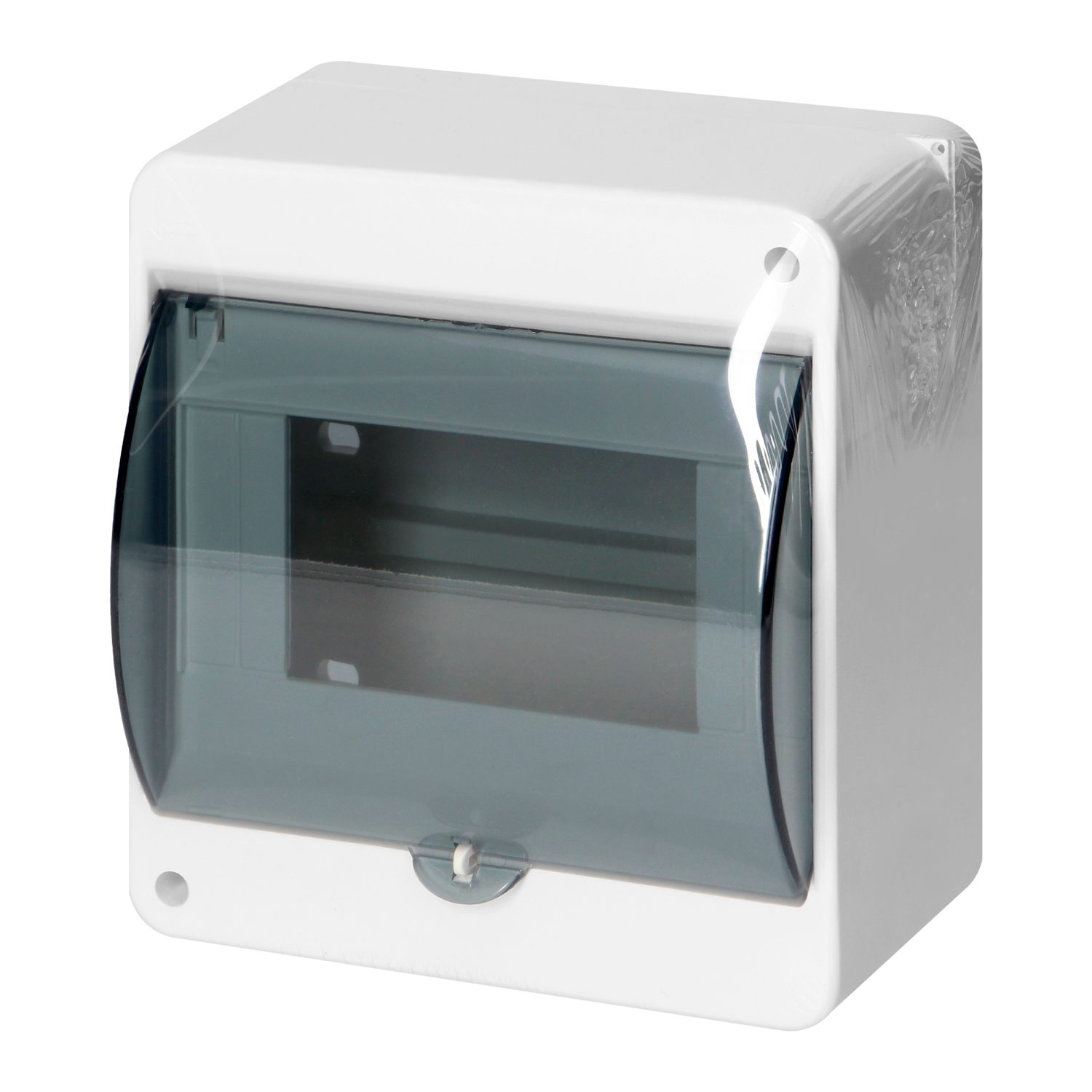

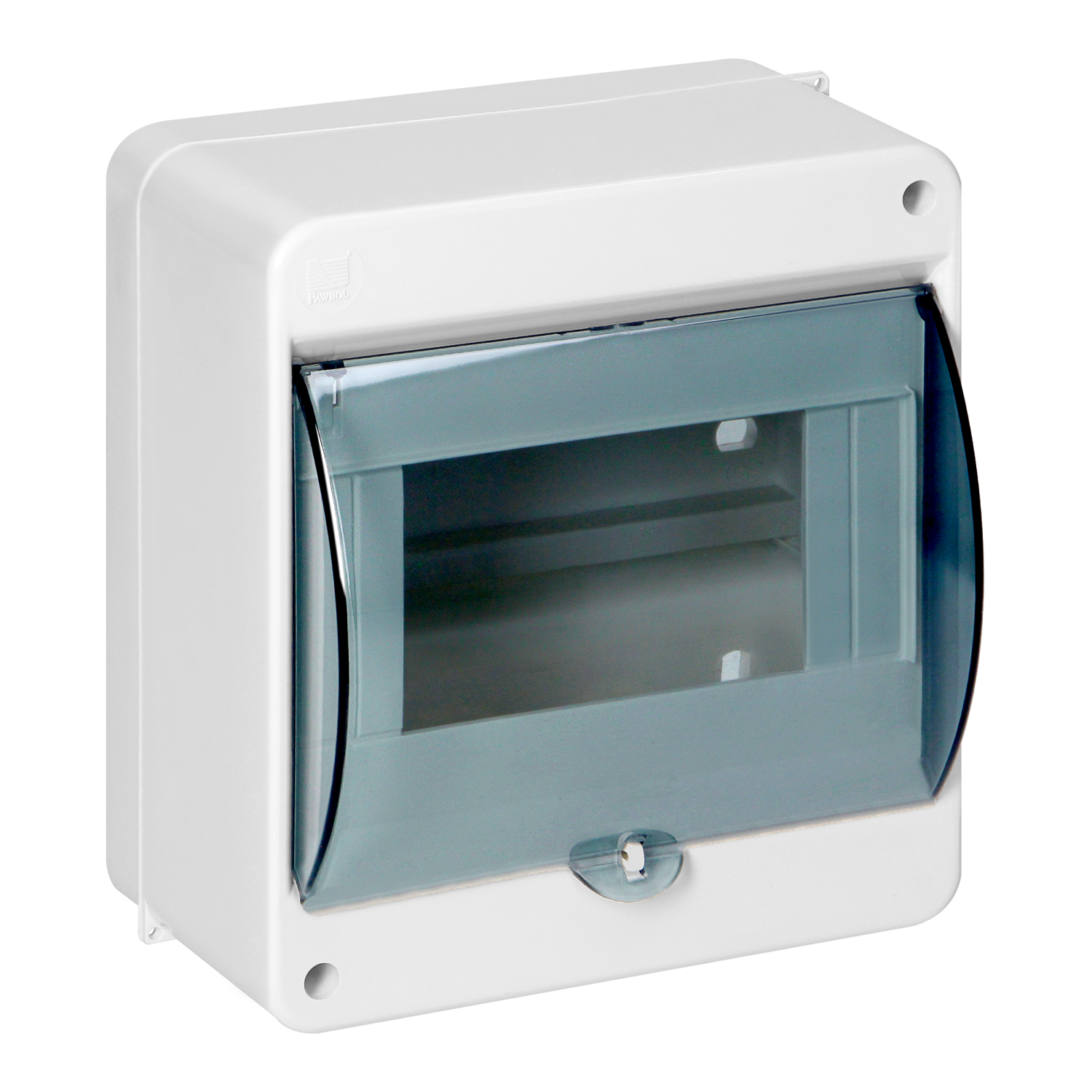

Do you want your installation to be tidy and safe? Choose the S-6 enclosure designed for installation at home, in a workshop or in the office.

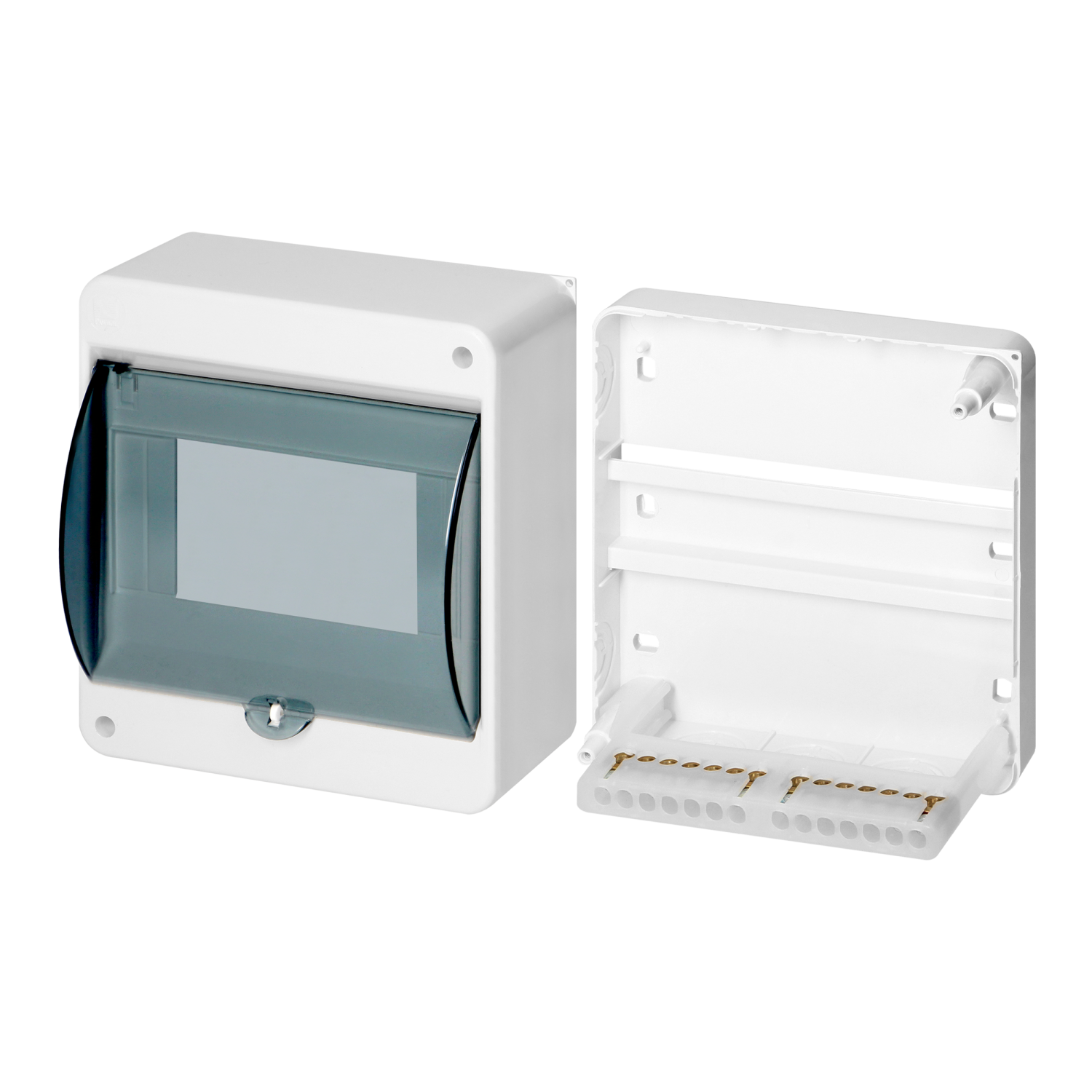

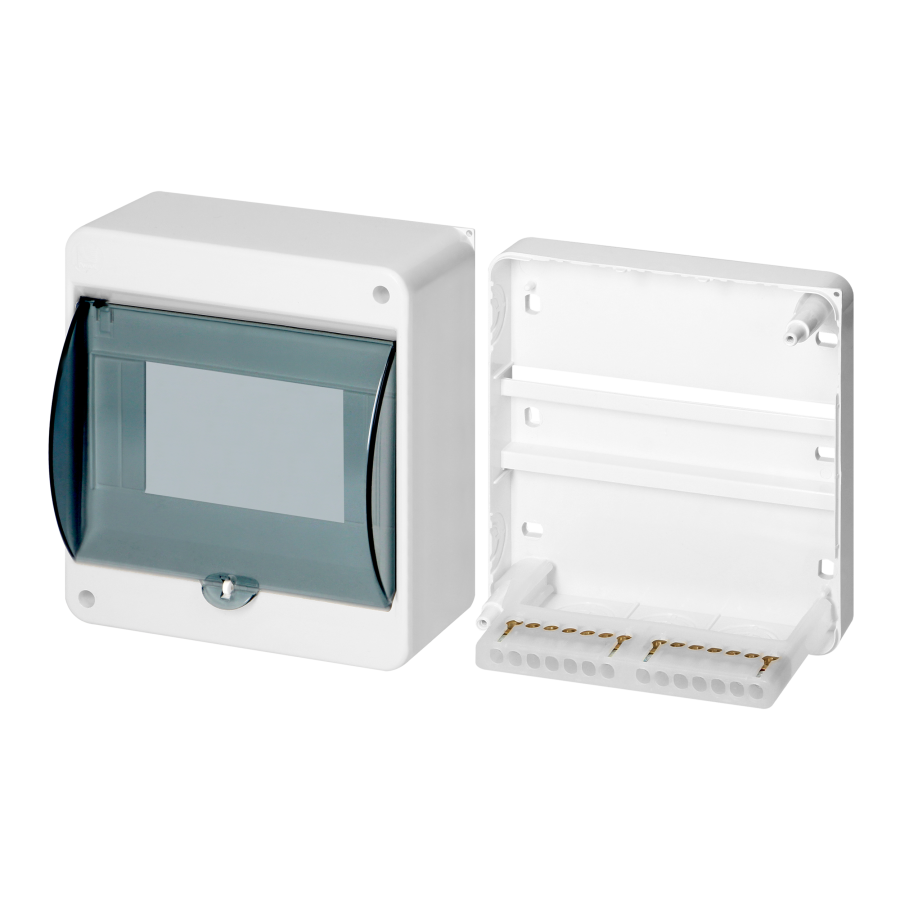

You don't have to worry about cables: N+PE strips will help you keep order inside the switchboard, and the presses on the sides will make it easier to insert cables. Use the included descriptive labels to mark individual circuits.

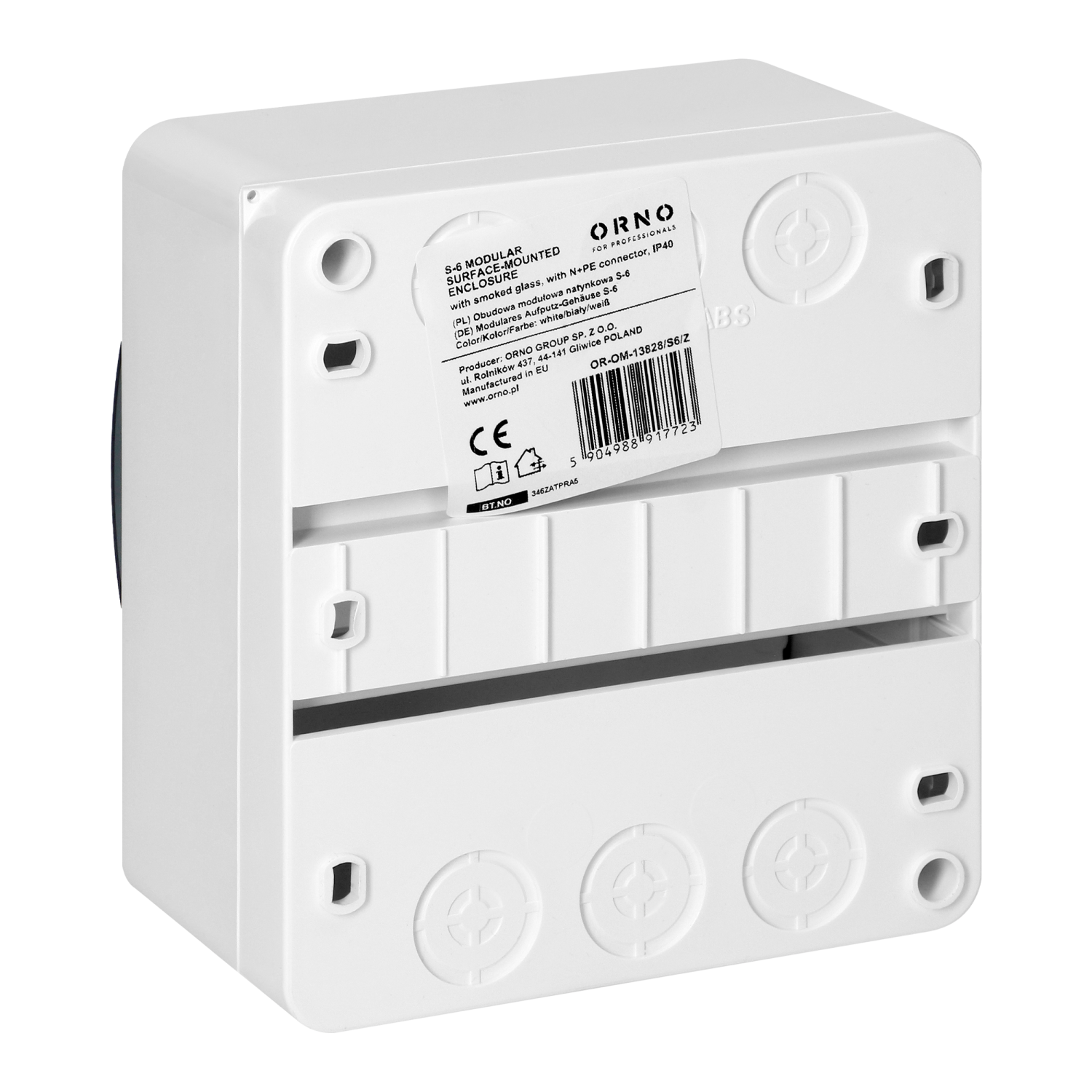

You can surface-mount the enclosure without breaking the wall.

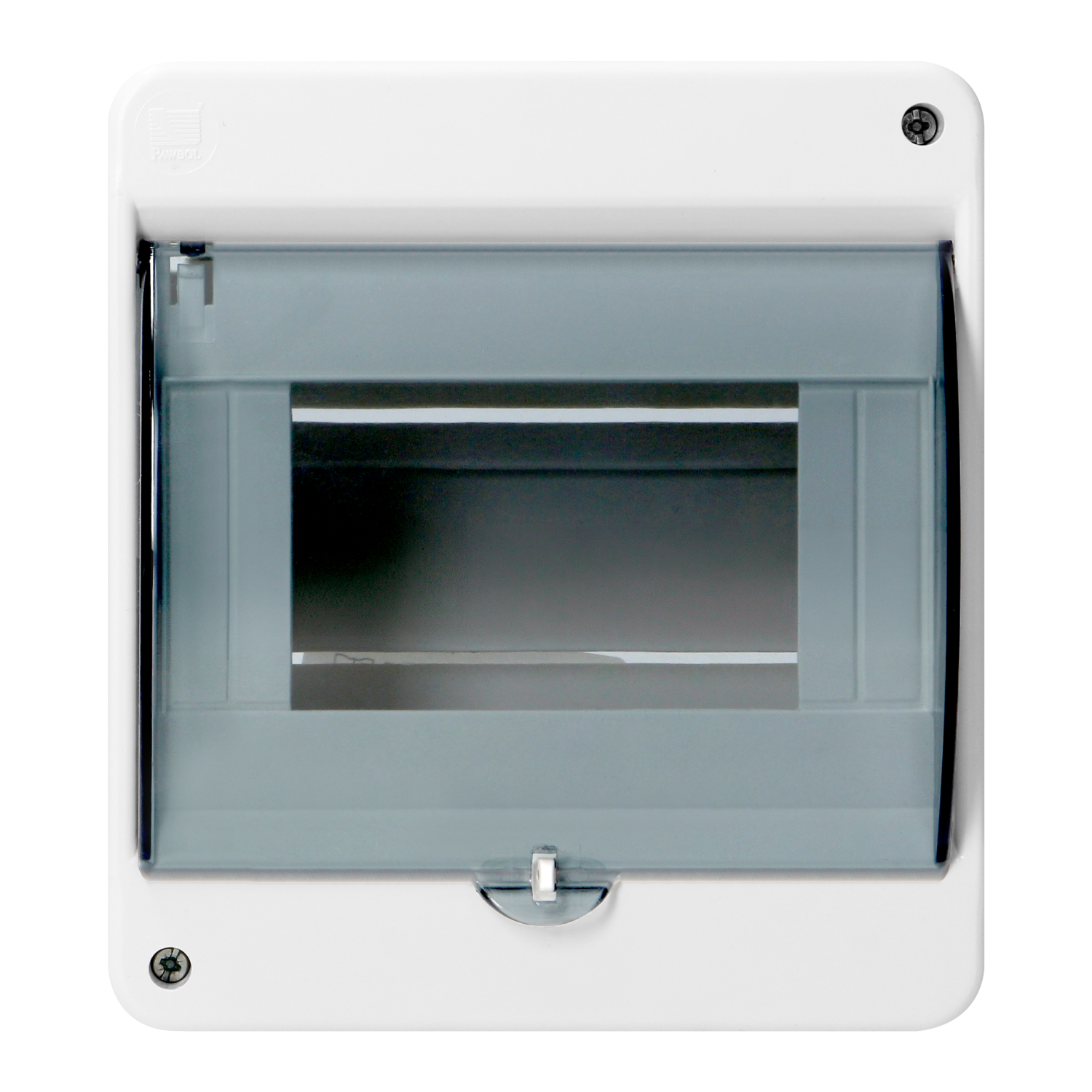

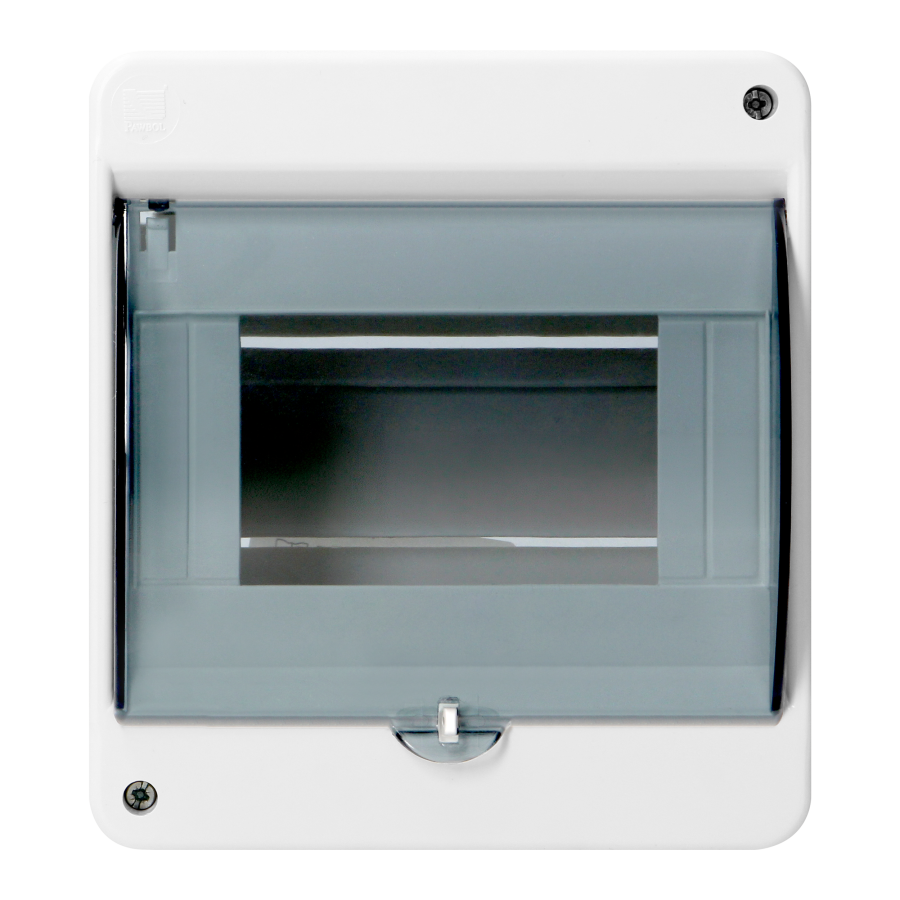

Thanks to the smoked glass, you can always see the status of the protection/circuit breakers. A glance is enough to make sure everything is working.
The enclosure is made of resistant plastic and has an IP40 class, which ensures safe use.
The white colour fits into any interior.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 130 |
| Depth [mm]: | 83 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 6 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 6 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 6 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
