Electrical modular enclosures
New

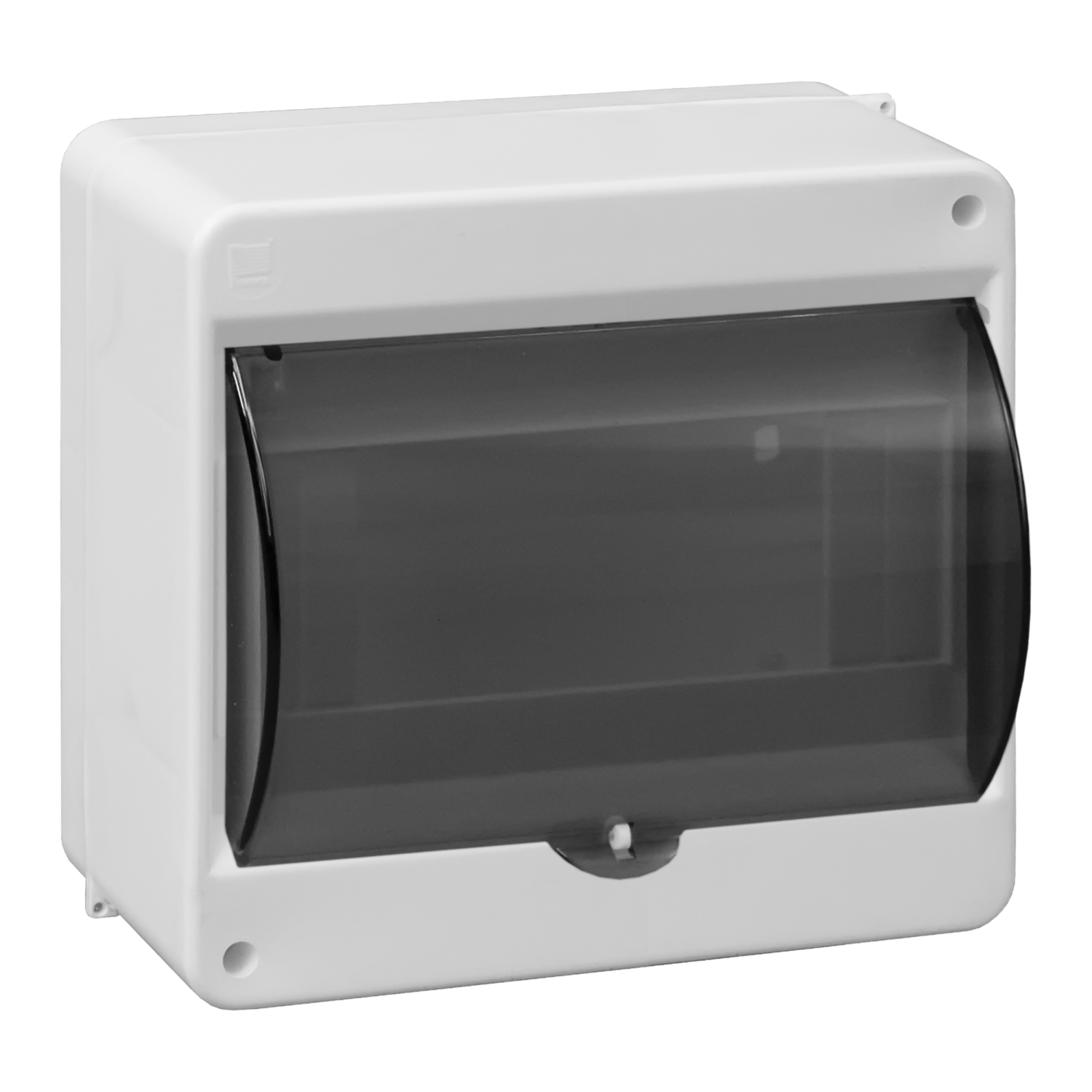

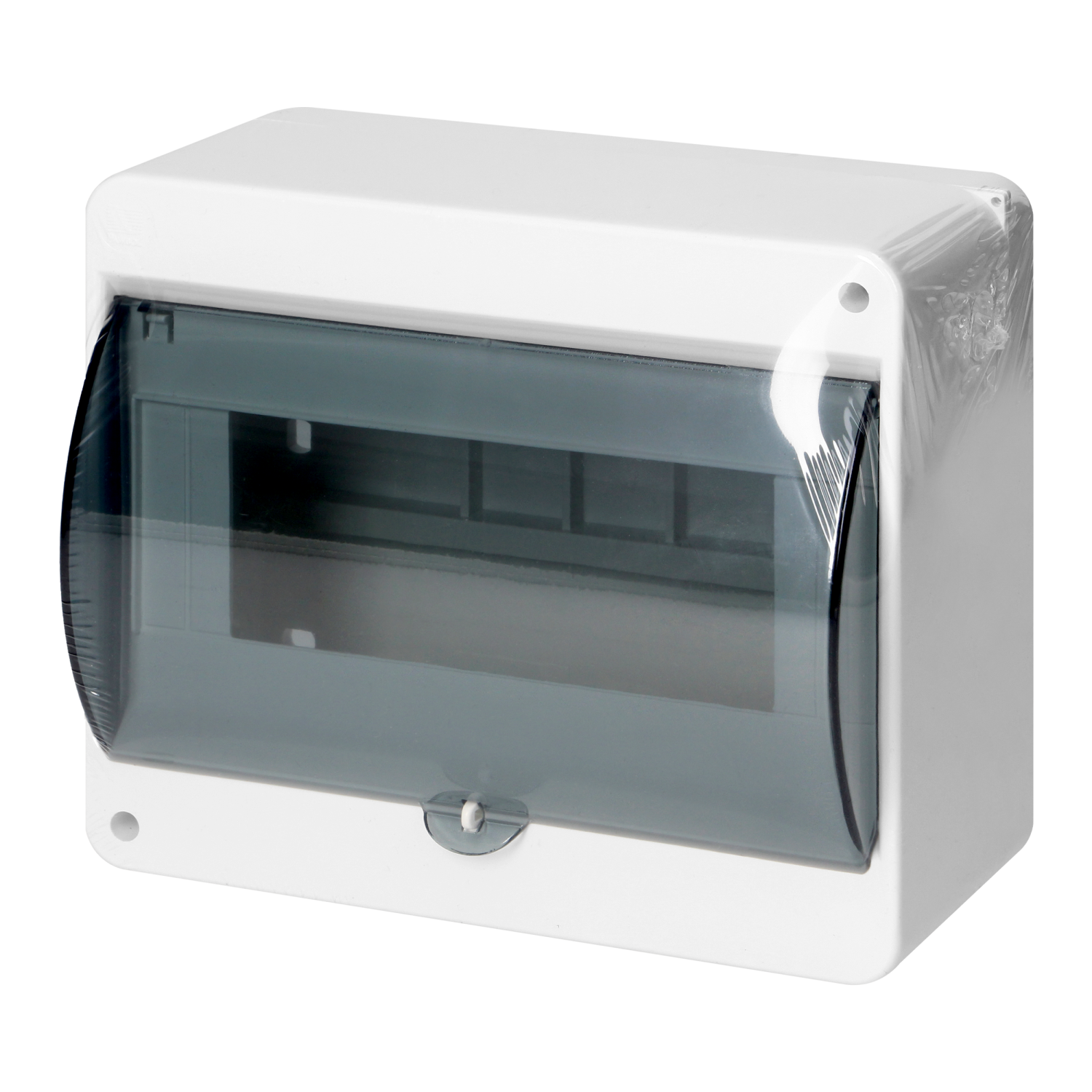

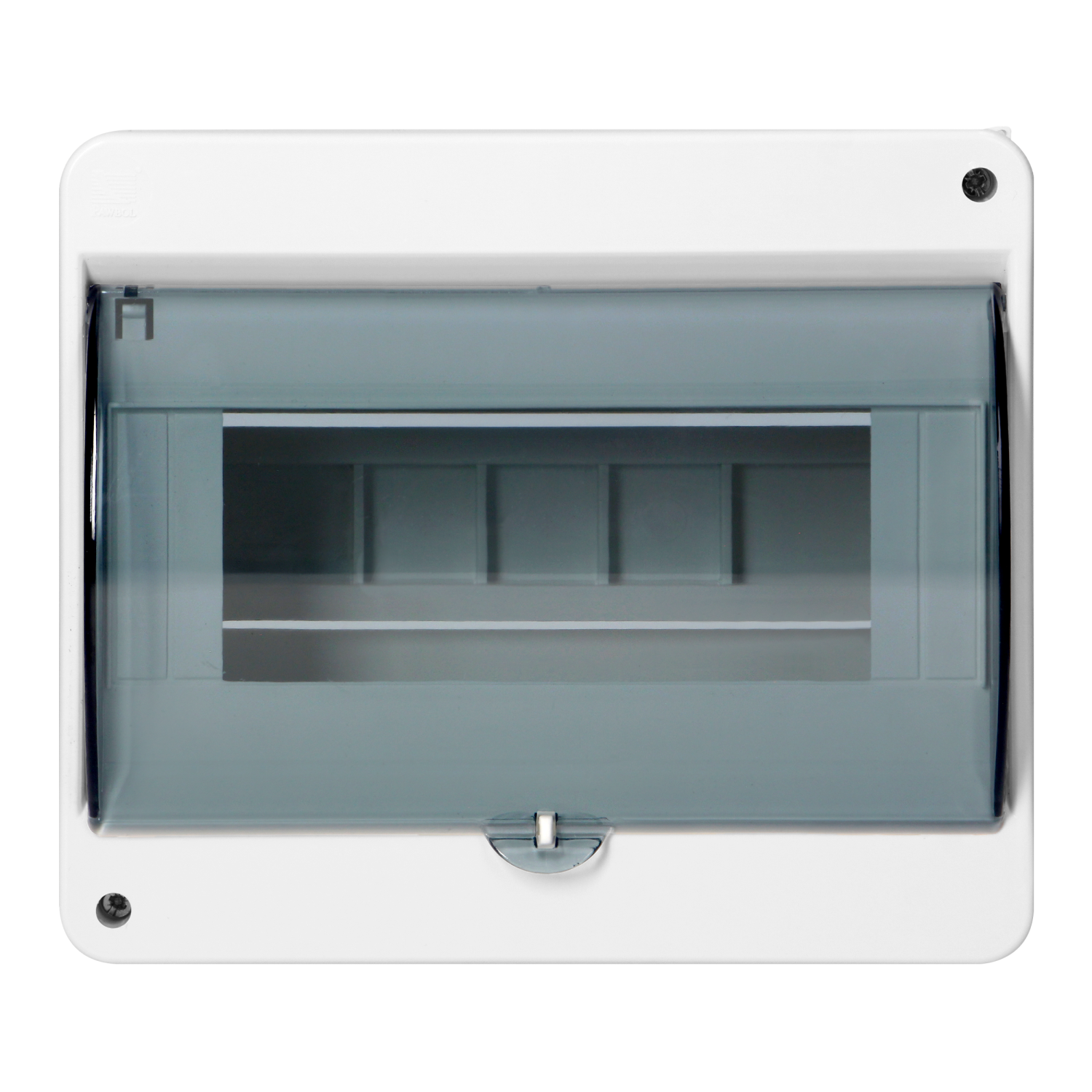

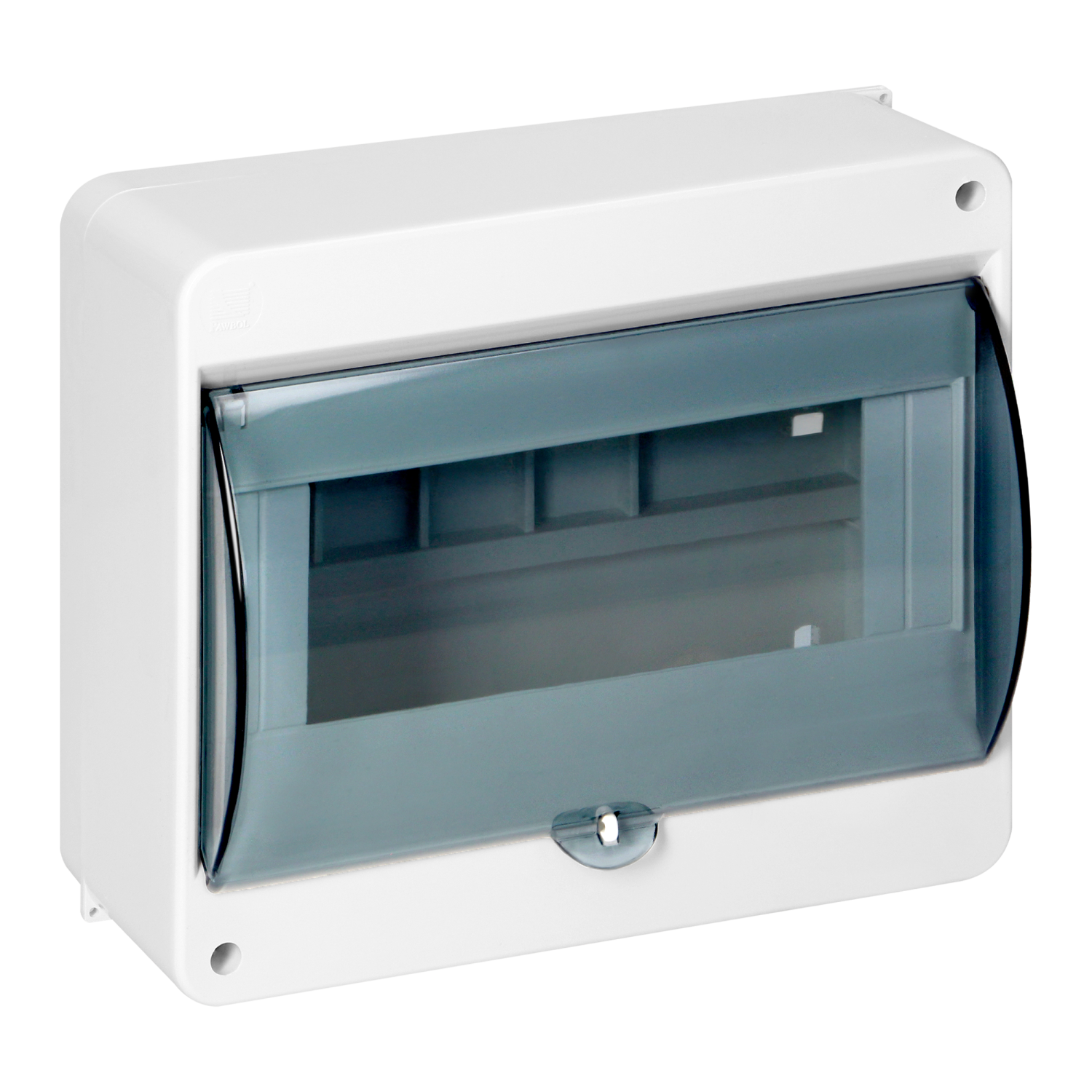

The S-8 model is a functional surface-mounted enclosure designed for indoor installation of modular equipment. It will work well in a detached house, office or workshop.

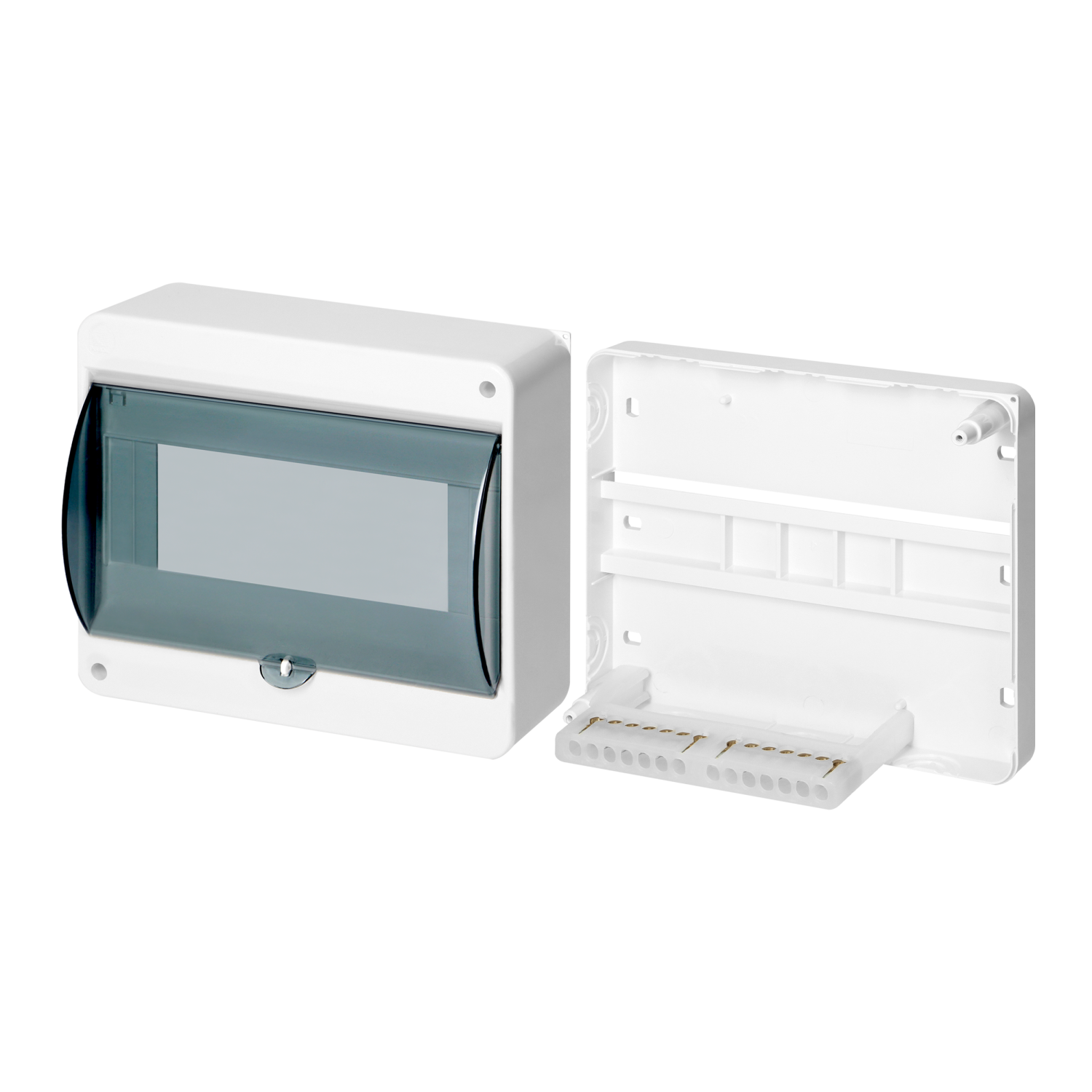

The unit accommodates 8 fuses/circuit breakers in a single row and is equipped with N+PE busbars, which allow for orderly cable management. Inside, there is also a TH 35/7.5 rail (euro rail), compatible with overcurrent/differential circuit breakers and other electrical appliances.
Surface mounting facilitates quick installation on the wall without interfering with the plaster structure.

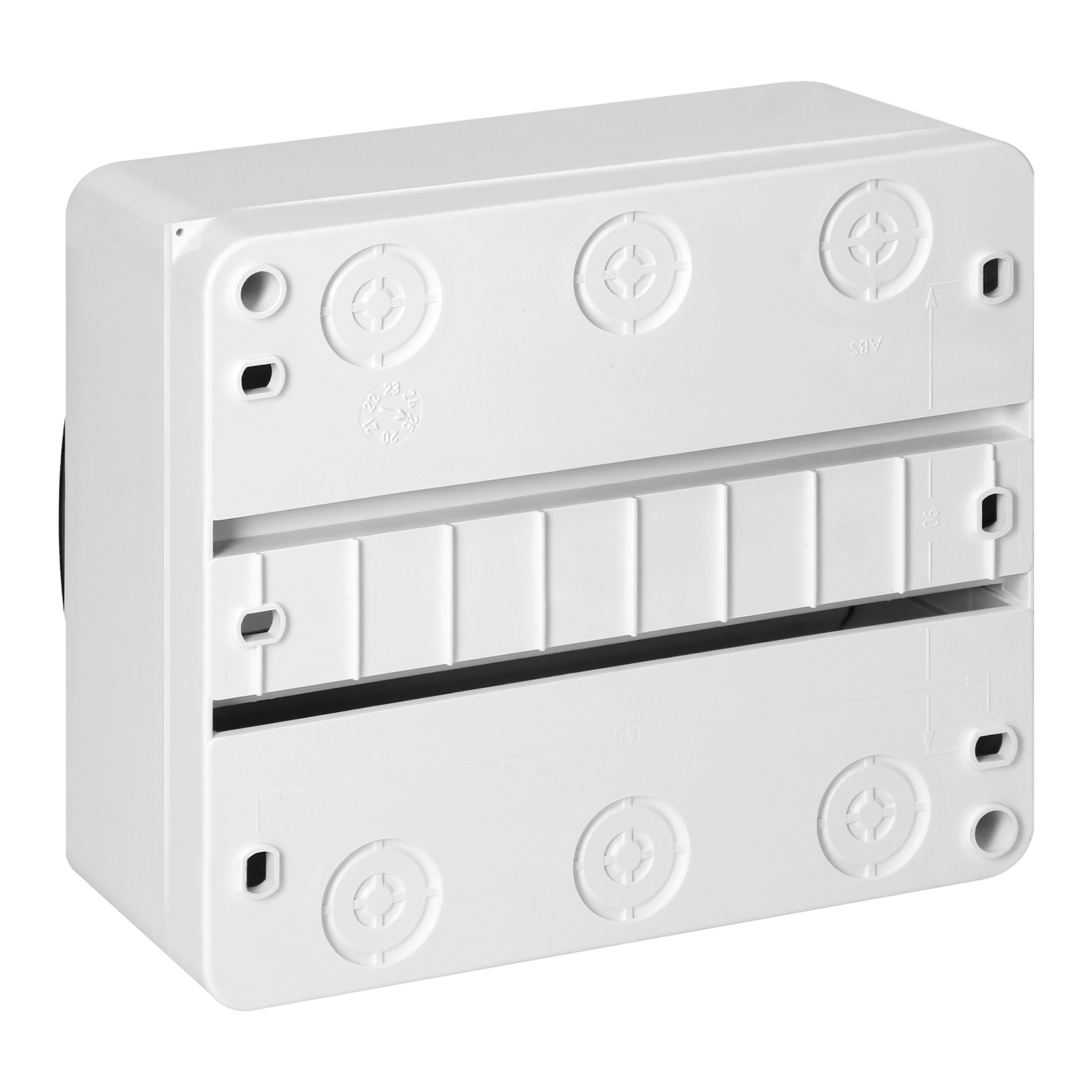

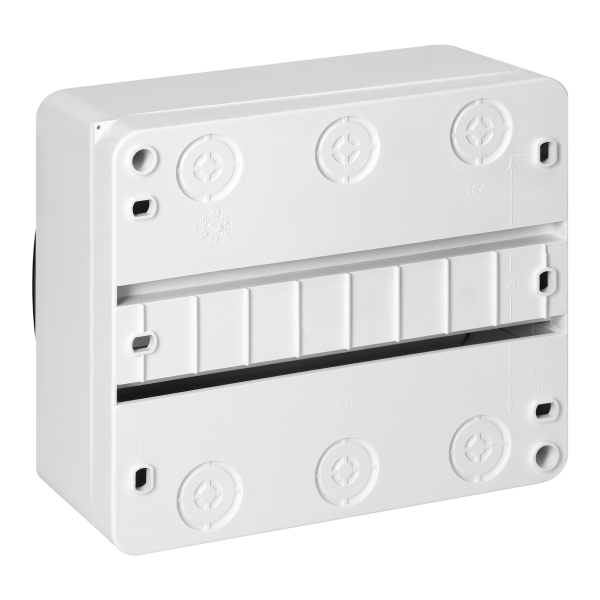

There are pressed areas on the sides which facilitate the insertion of cables or installation tubes. The set is complemented by descriptive labels, which allow you to easily mark individual circuits.

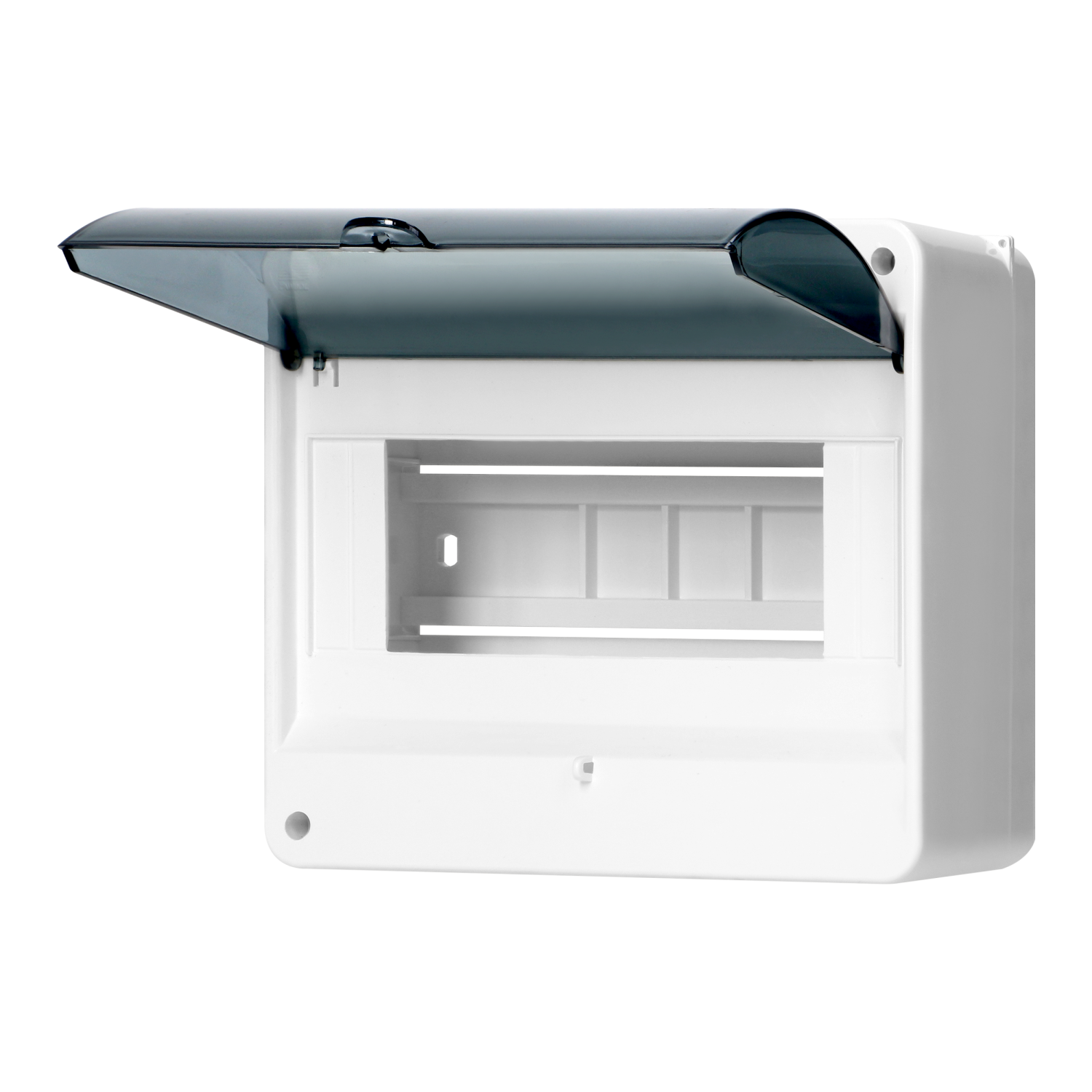

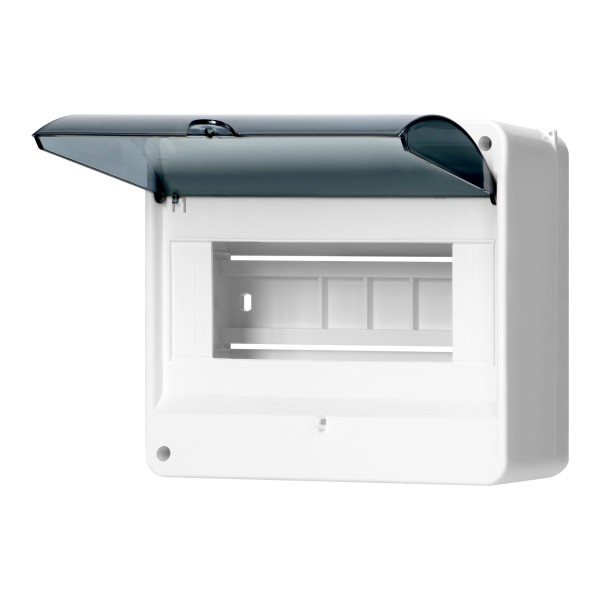

The movable cover allows for convenient inspection of the internal devices/circuit breakers, while protecting them from dust and accidental contact.
Made of durable plastic (IK08), the enclosure ensures high mechanical resistance, and the IP40 protection rating guarantees safe indoor use.
The unit has a universal white colour, making it suitable for most interiors.
| General information: | |
|---|---|
| Mounting method: | Montaż natynkowy |
| Type of covering: | Drzwi |
| Cover model: | Zamknięty |
| Type of door: | Pojedynczy |
| Transparent cover/door: | Tak |
| With lock: | Nie |
| Nominal current (In) [A]: | 63 |
| Height [mm]: | 140 |
| Width [mm]: | 165 |
| Depth [mm]: | 83 |
| Built-in depth [mm]: | 0 |
| Inner depth [mm]: | 65 |
| Material plate thickness cabinet [mm]: | 2,2 |
| Material plate thickness door/cover [mm]: | 2,2 |
| Colour: | Biały |
| RAL-number: | 9010 |
| Number of modules: | 8 |
| Number of rows: | 1 |
| Width in number of modular spacings: | 8 |
| Number of openings for flange plates: | 0 |
| Extension possible: | Nie |
| Number of conduit inlets: | 6 |
| Housing material: | Tworzywo sztuczne |
| Surface protection: | Inne |
| With mounting plate: | Nie |
| Suitable for outdoor use: | Nie |
| Suitable for lightning protection: | Nie |
| Degree of protection (IP): | IP40 |
| Protection class: | II |
| Impact strength: | IK08 |
| Cover with overpressure release: | Nie |
