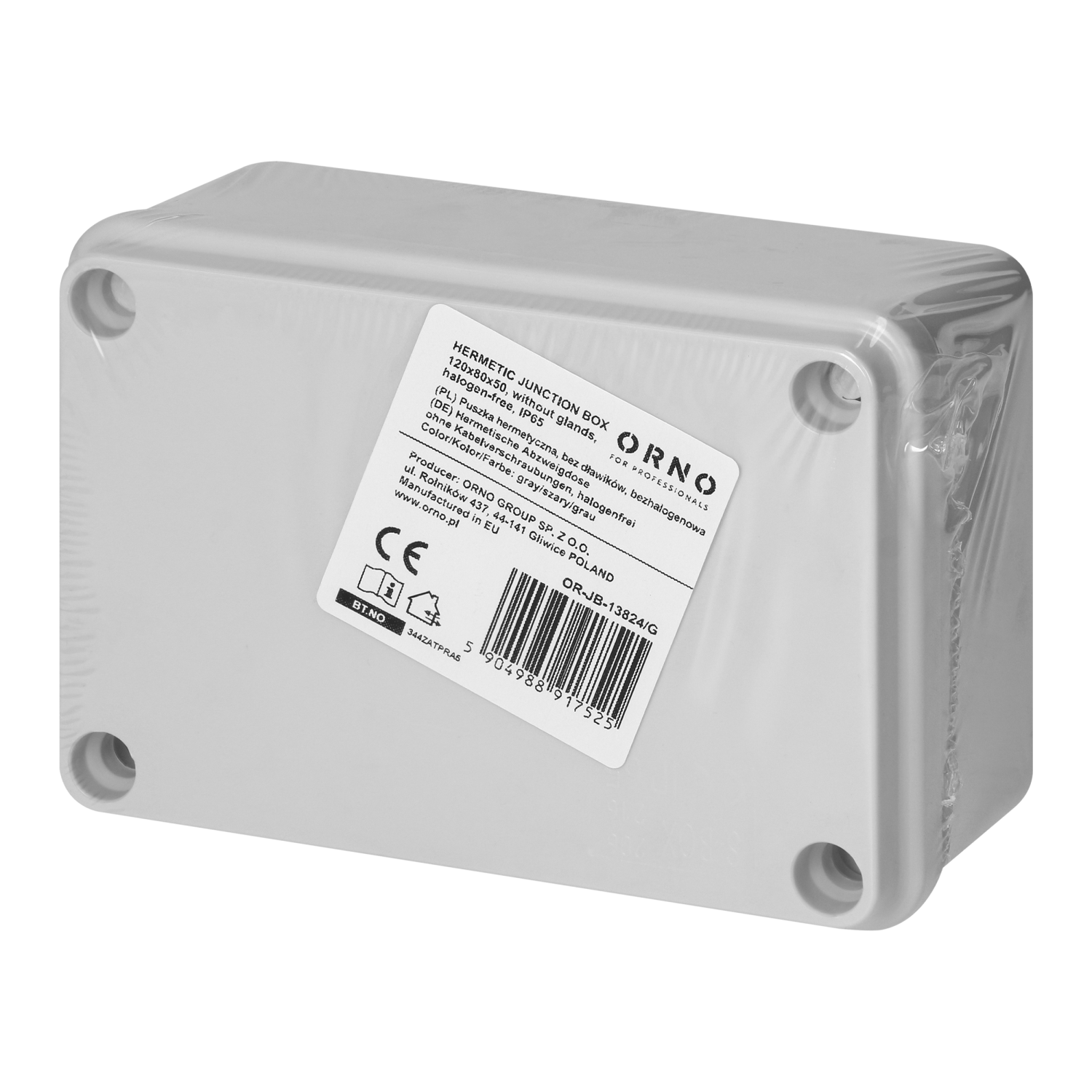

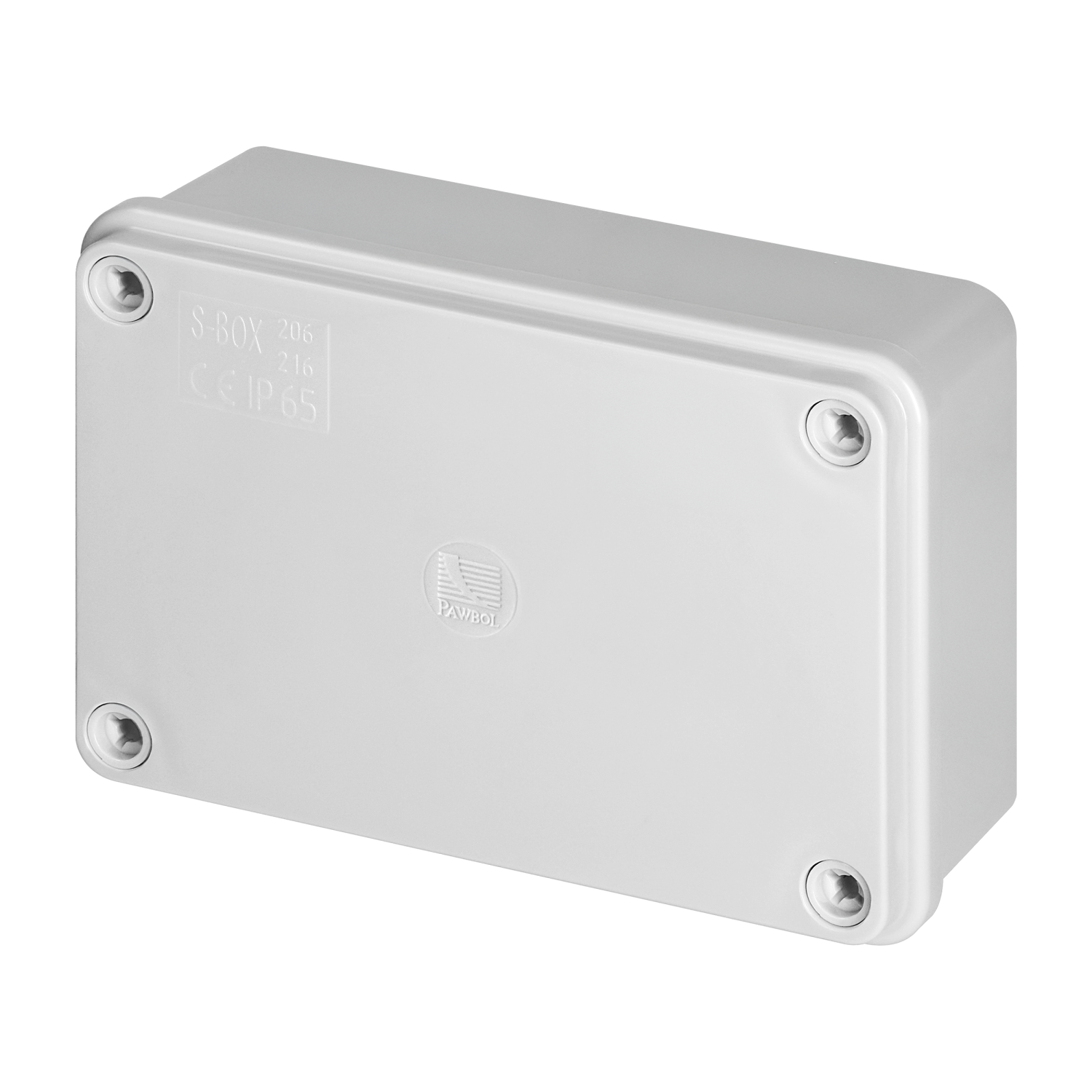

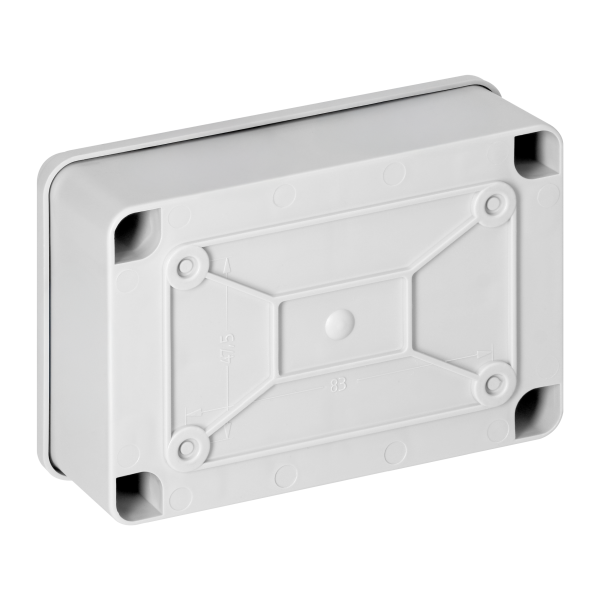

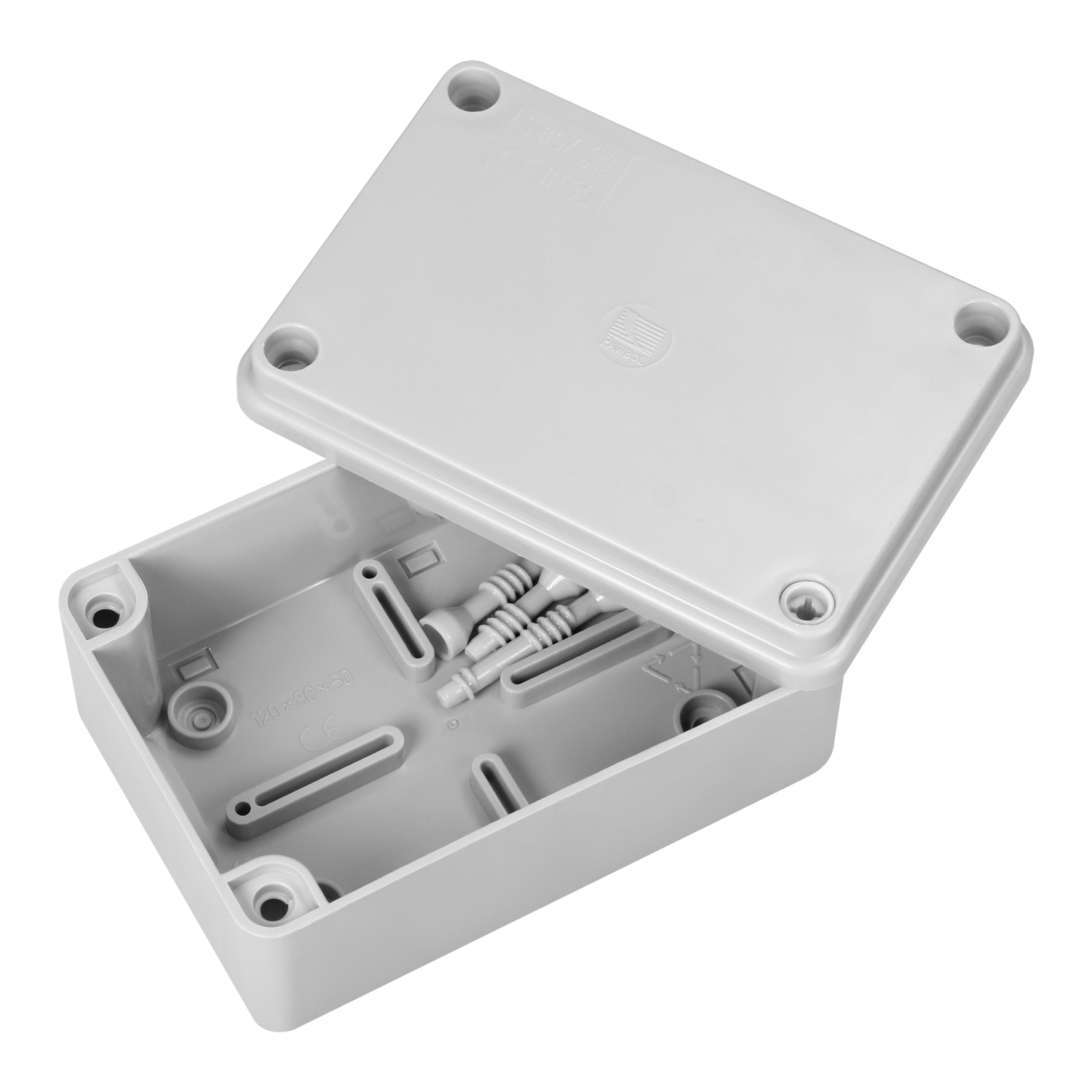

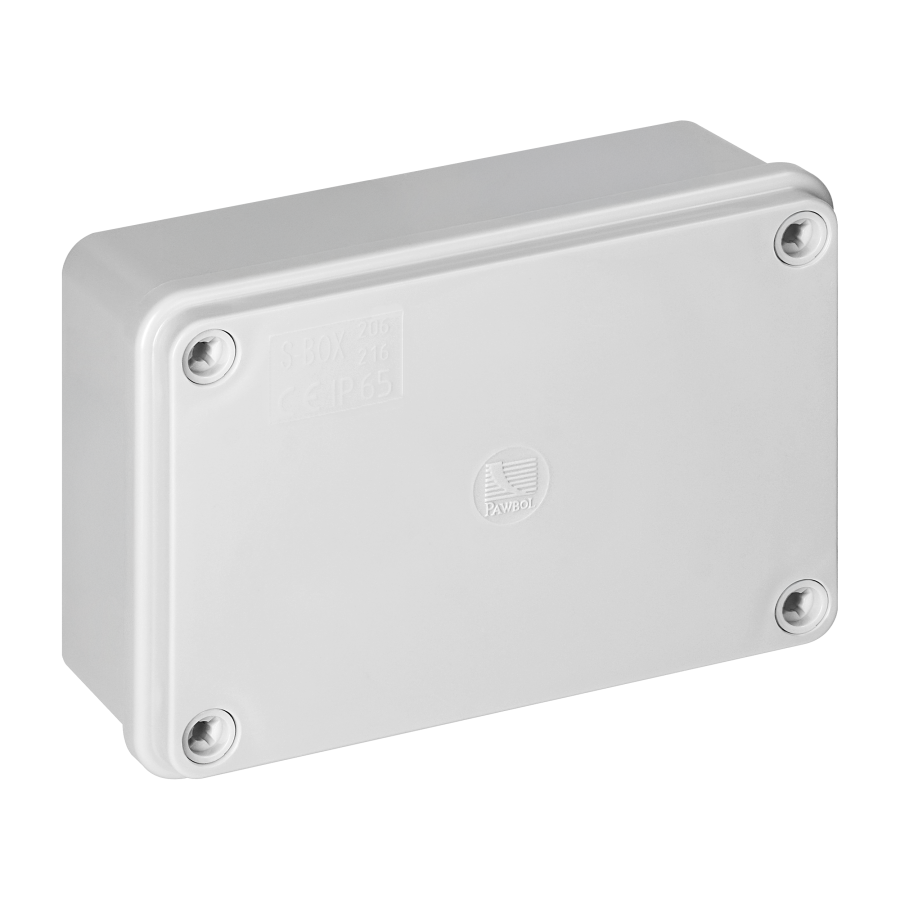

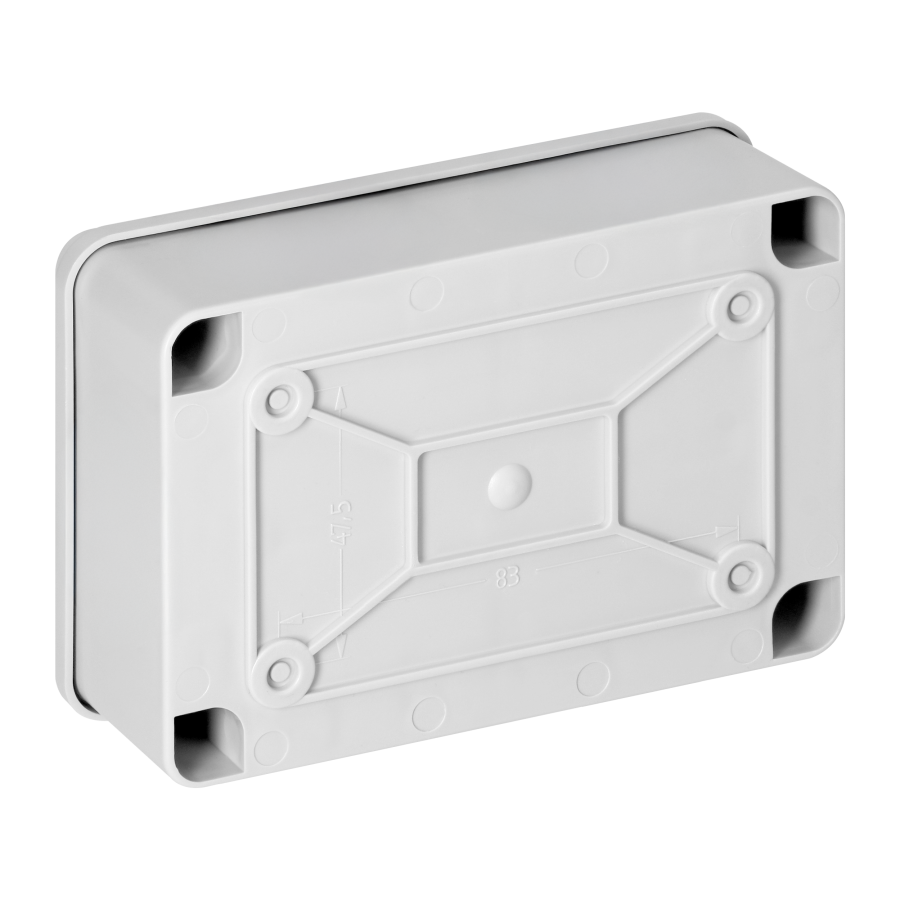

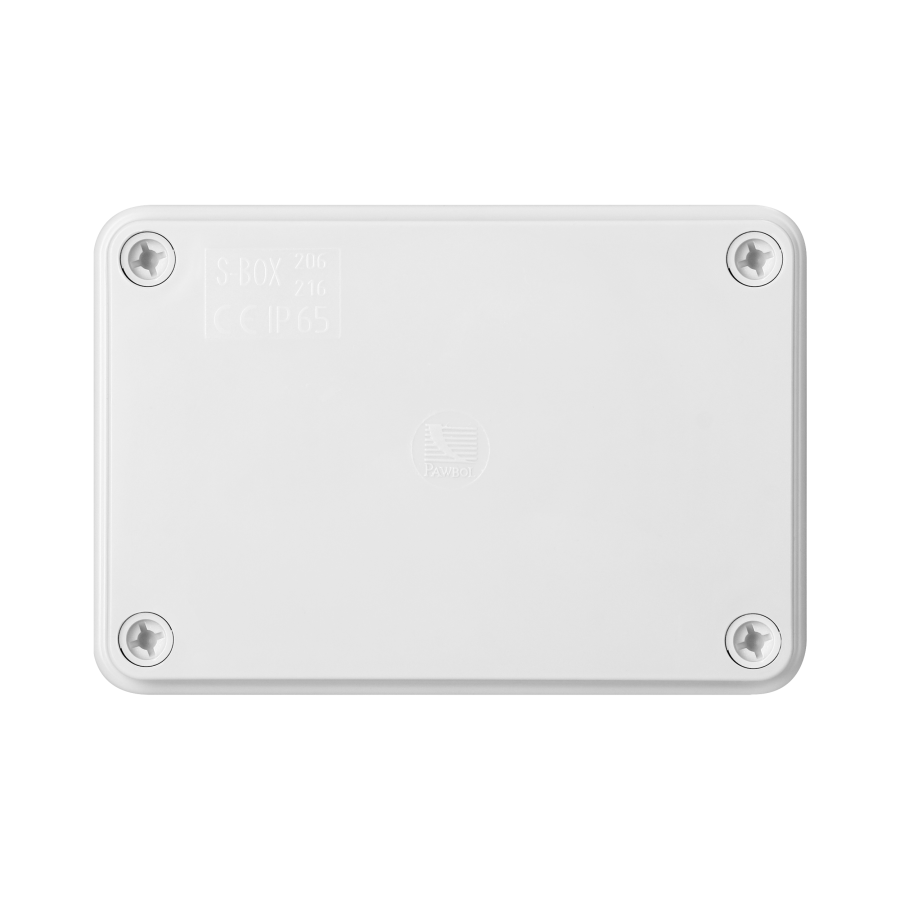

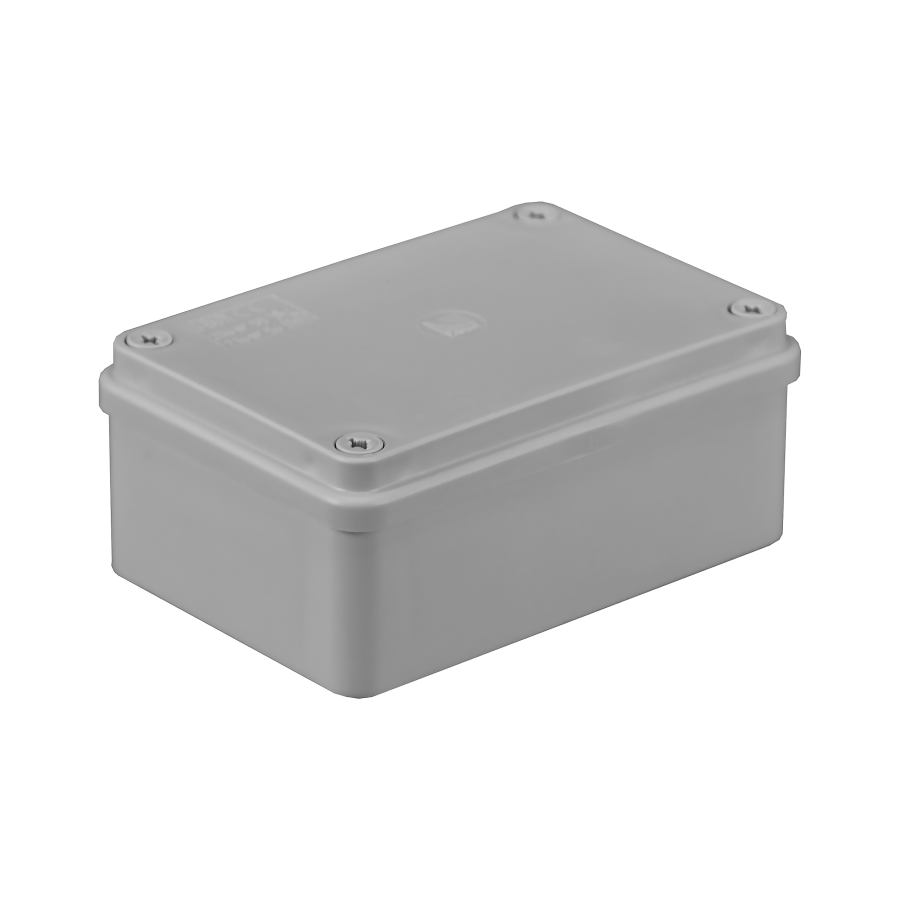

Surface-mounted junction boxes
Secure the cables so that they are protected regardless of the conditions. This IP65 hermetic box provides complete protection against dust and water, making it perfect for outdoor, industrial and technical installations.
The box is made of halogen-free plastic, which increases the safety of electrical installations. In the event of a fire, it does not emit toxic gases or thick smoke.
Thanks to its impact resistance, the box can withstand installation in demanding environments: in halls, workshops or switchboards.
The shiny grey surface gives it an aesthetic appearance and makes it easy to keep clean, while its compact dimensions of 120 × 80 × 50 mm allow it to be used where space is limited.
| General information: | |
|---|---|
| Assembly arrangement: | Puszka do montażu natynkowego |
| Suitable for mounting over existing flush-mounted box: | Nie |
| Suitable for modular domestic switching devices: | Tak |
| Number of modules (module system): | 0 |
| Number of units: | 0 |
| Mounting direction: | Poziomy i pionowy |
| Shape: | Prostokątny |
| Desktop device: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Halogen free: | Tak |
| Surface protection: | Inne |
| Surface finishing: | Błyszczący |
| Colour: | Szary |
| RAL-number (similar): | 7035 |
| Transparent: | Nie |
| With cover frame: | Nie |
| Cross-trunking mounting: | Nie |
| With duct entry: | Nie |
| With cable entry: | Nie |
| With screw gland entry: | Nie |
| With installation tube entry: | Nie |
| Shock resistant: | Tak |
| Number of inlets: | 0 |
| Degree of protection (IP): | IP65 |
| Inlet from the rear: | Nie |
| Width [mm]: | 120 |
| Number of earthing terminals: | 0 |
| Height [mm]: | 50 |
| Depth [mm]: | 50 |
