Surface-mounted junction boxes
New

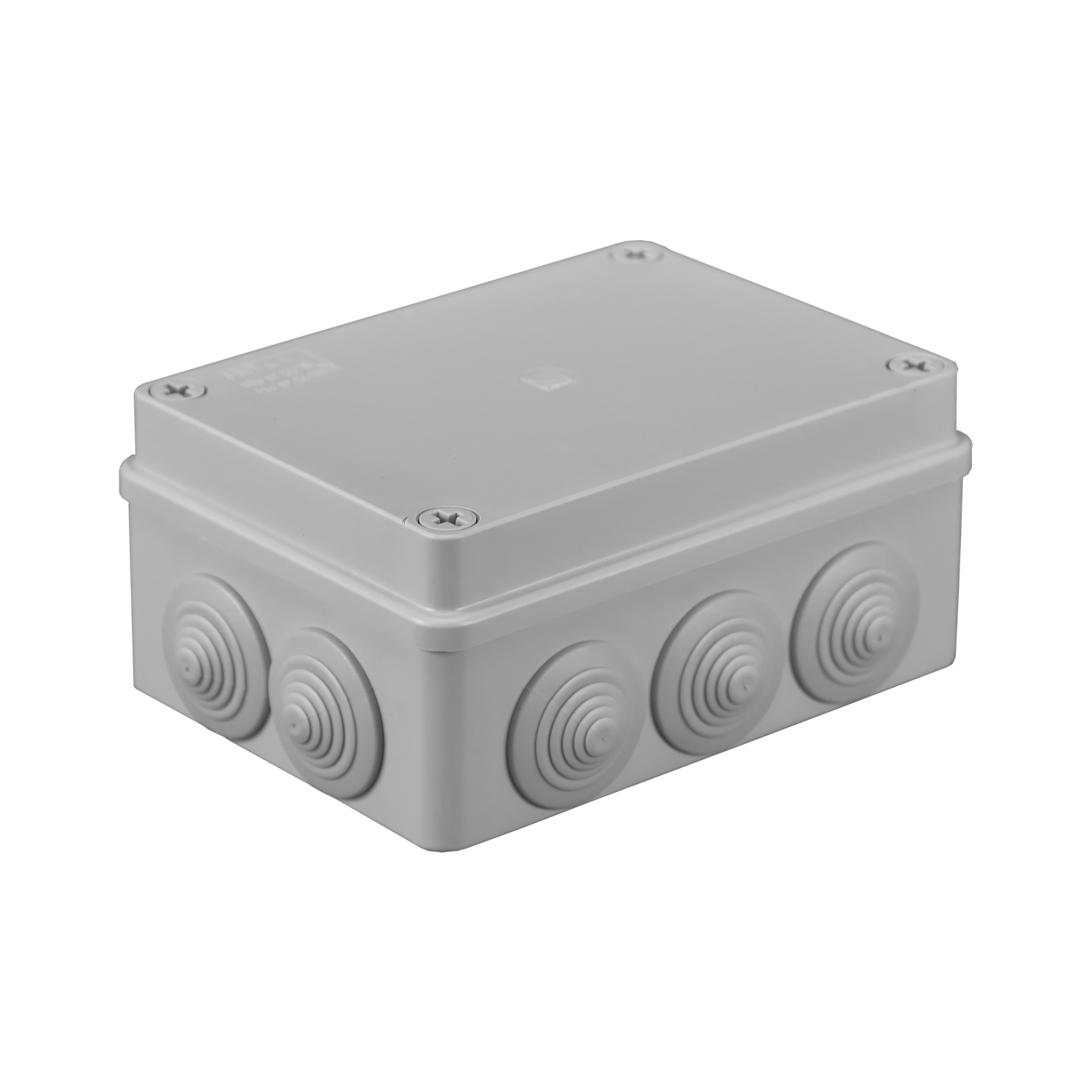

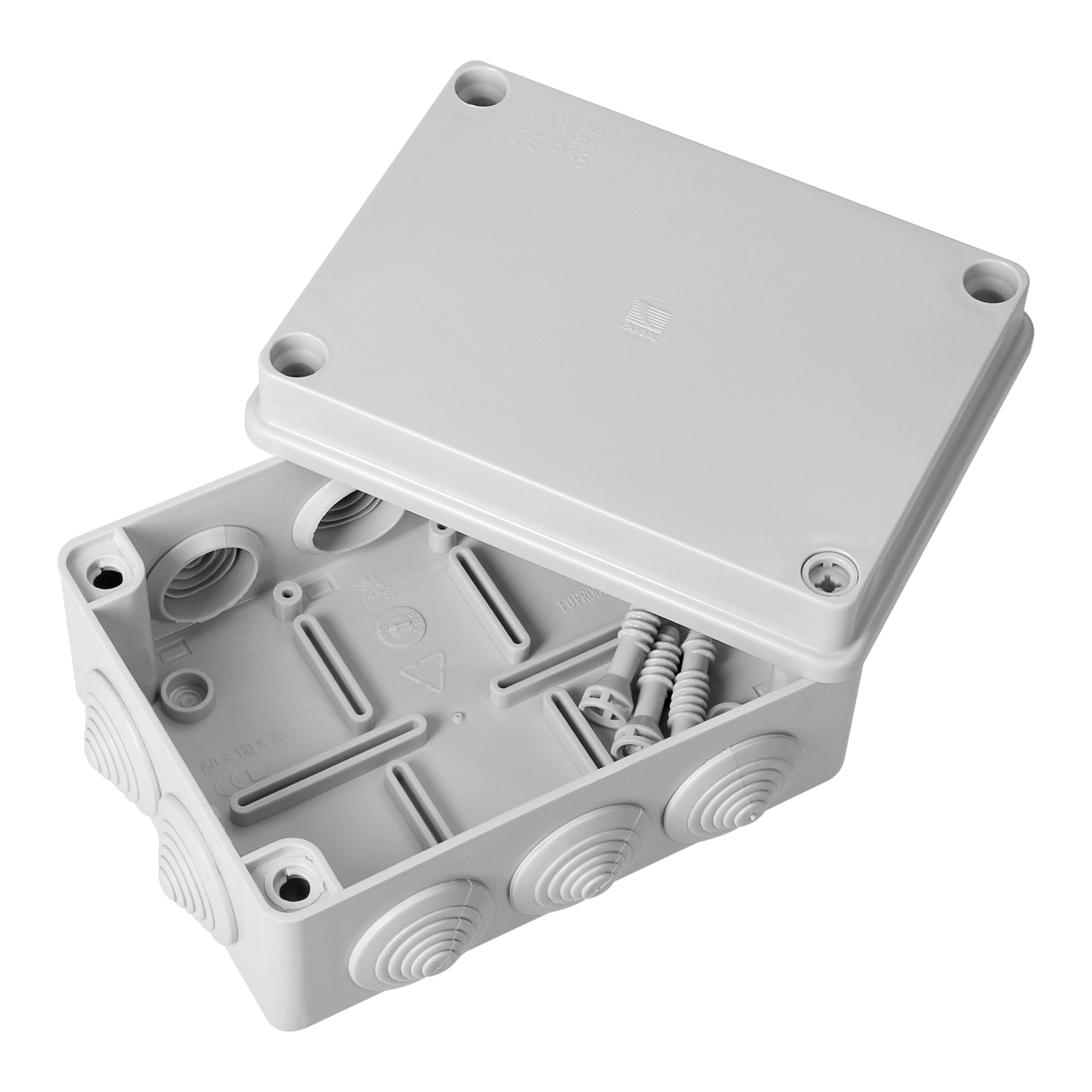

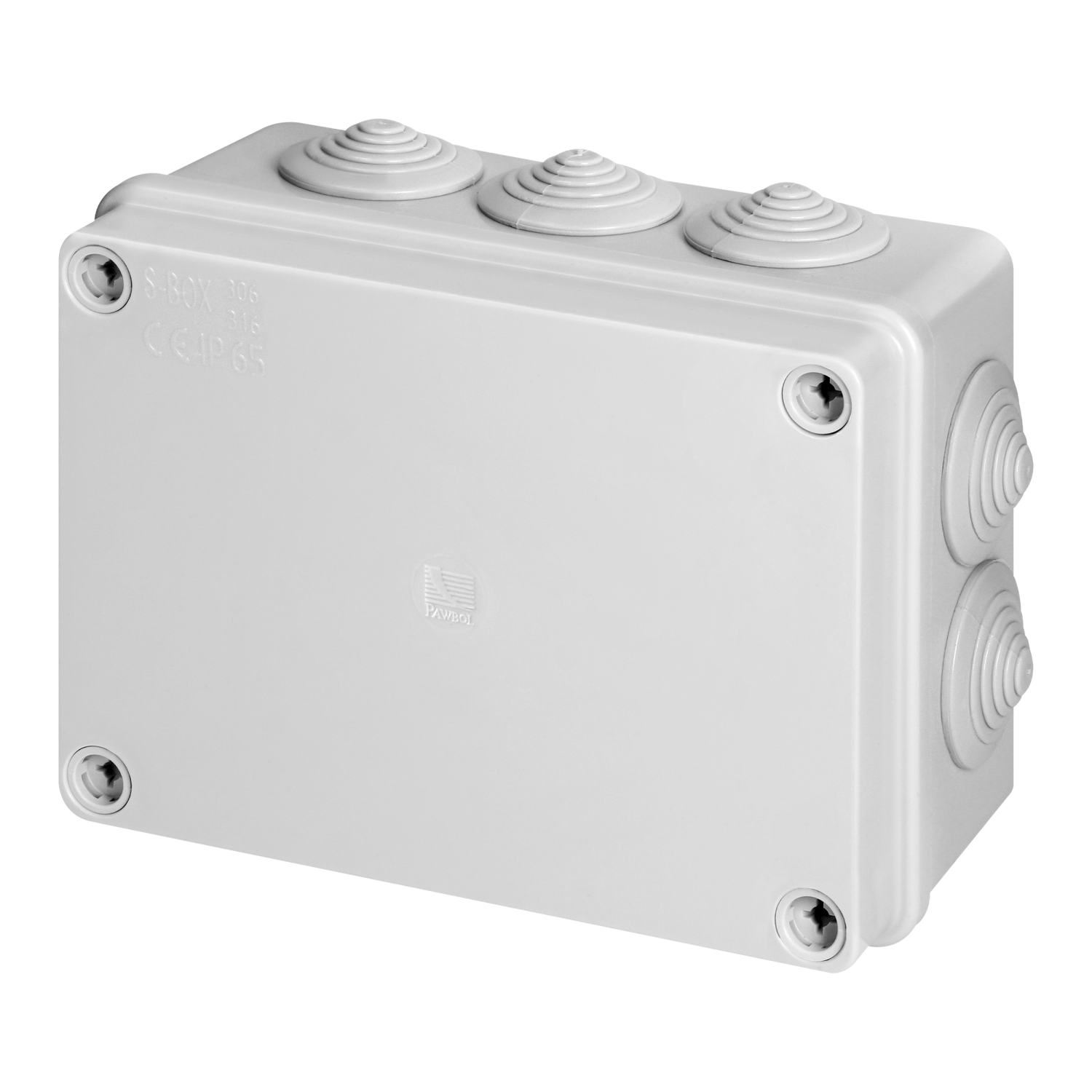

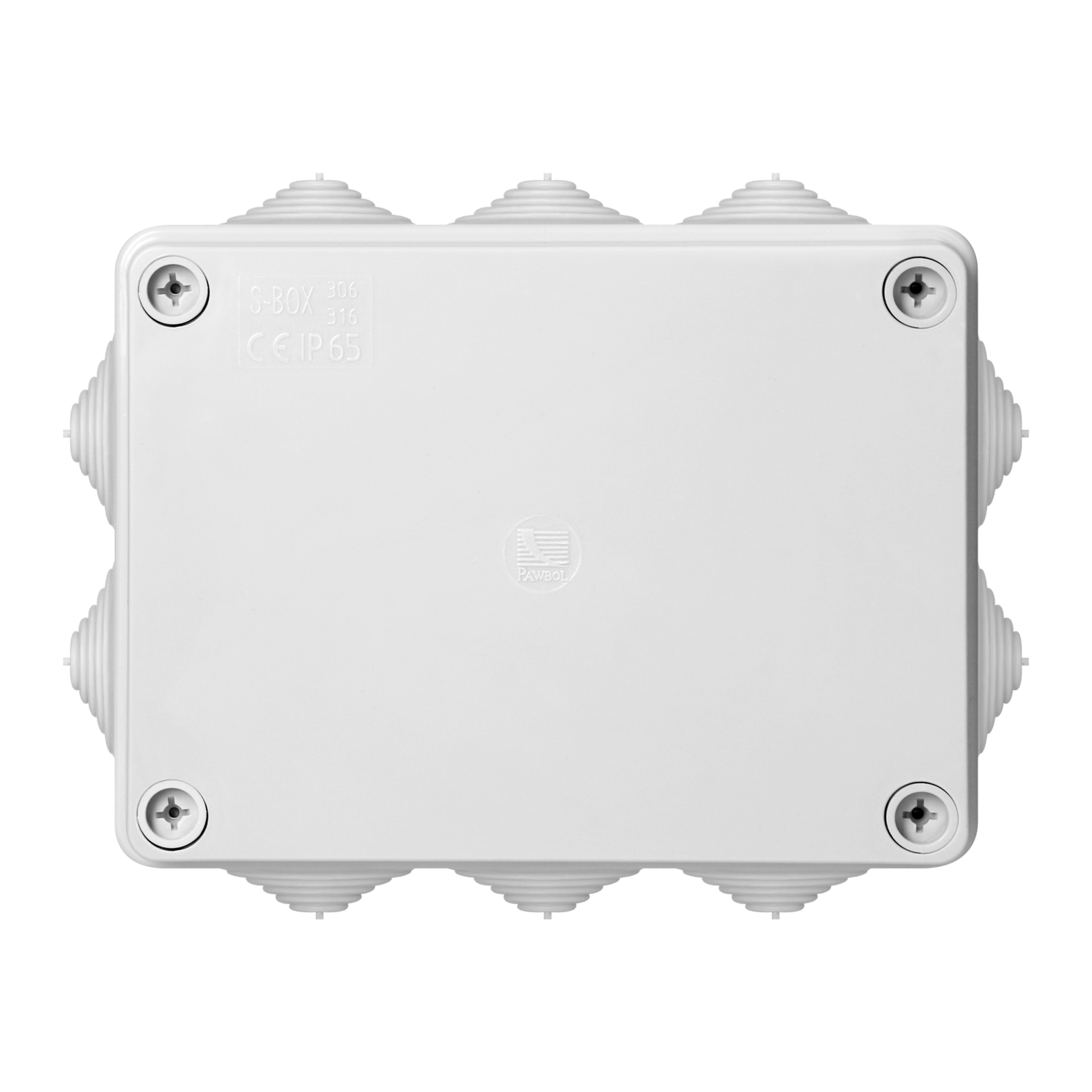

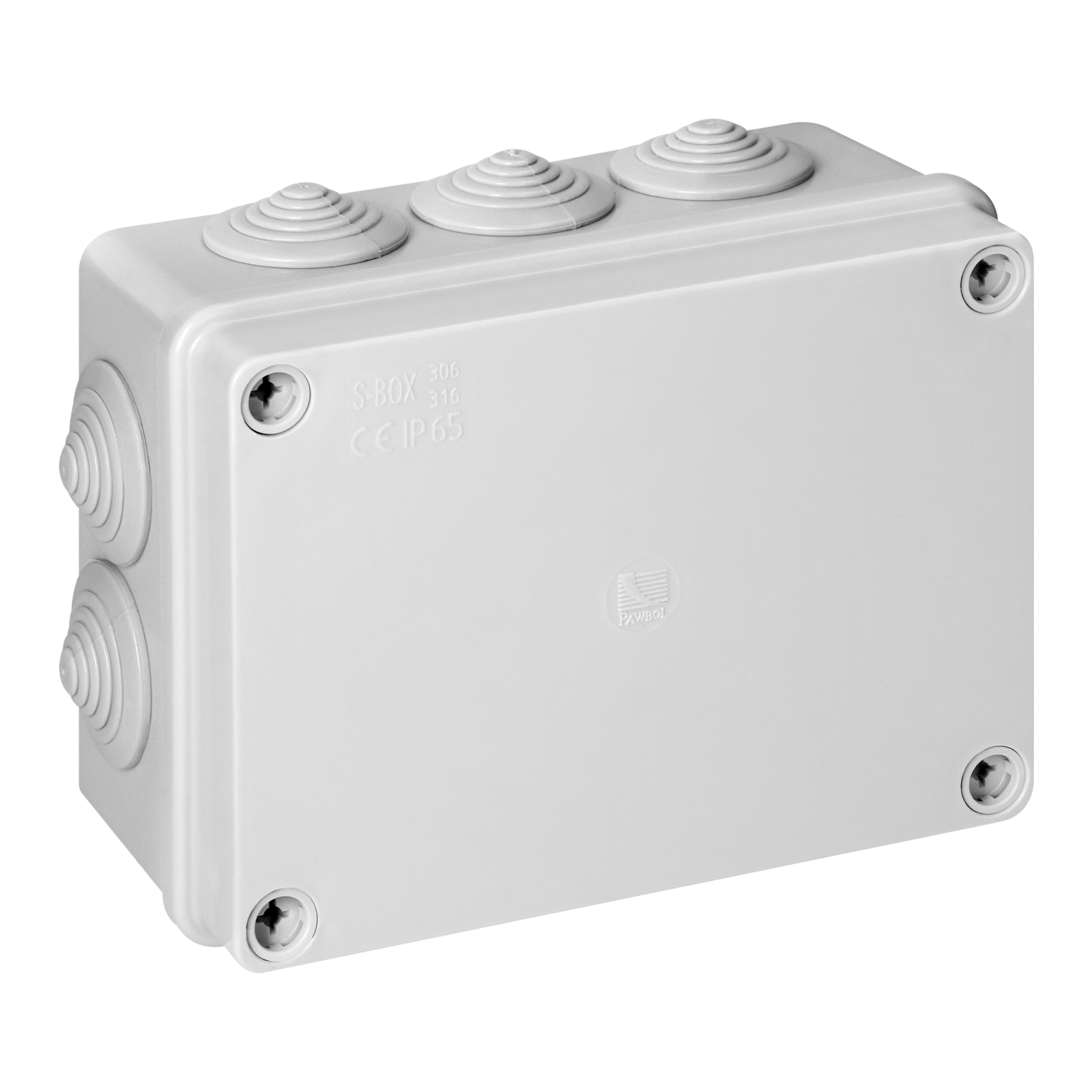

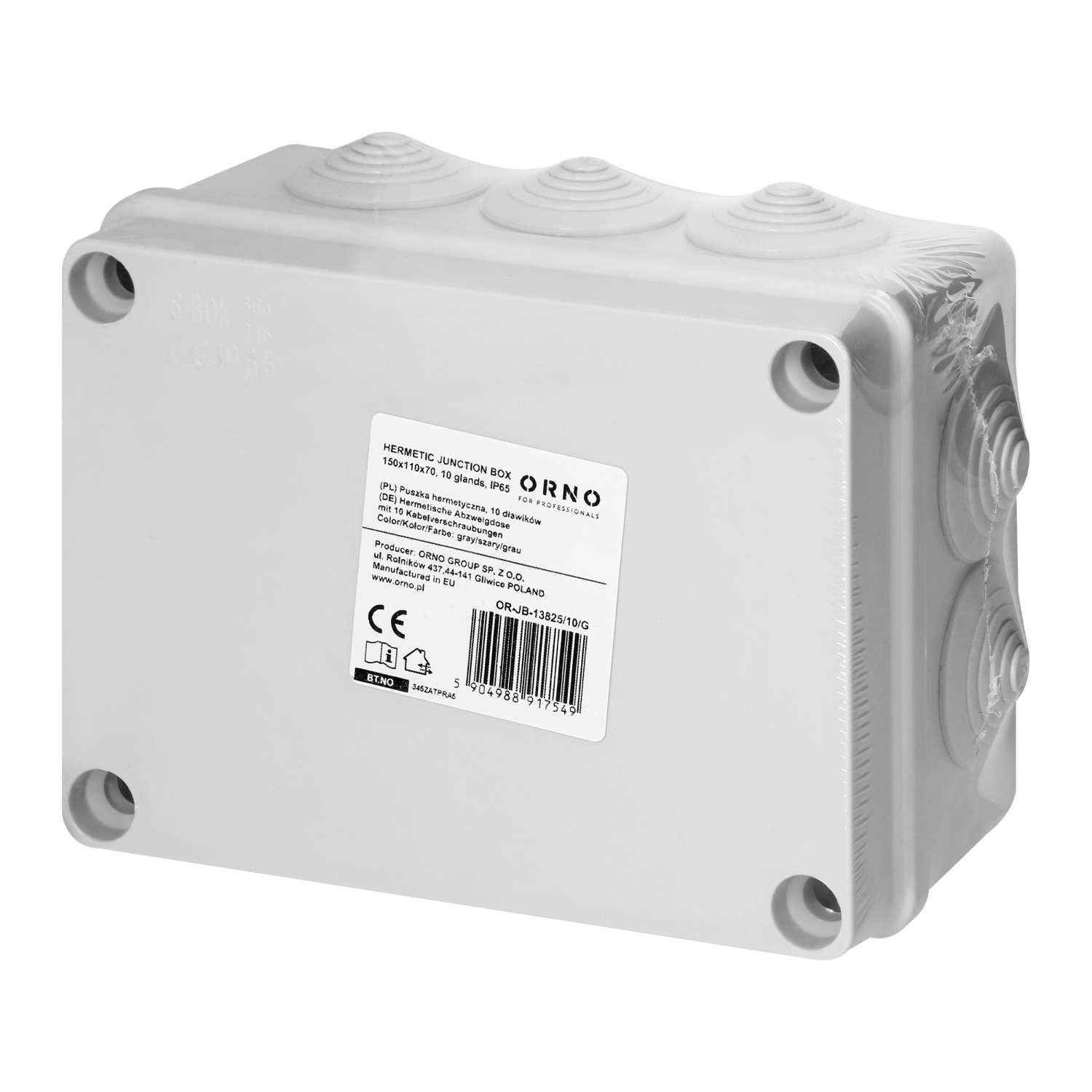

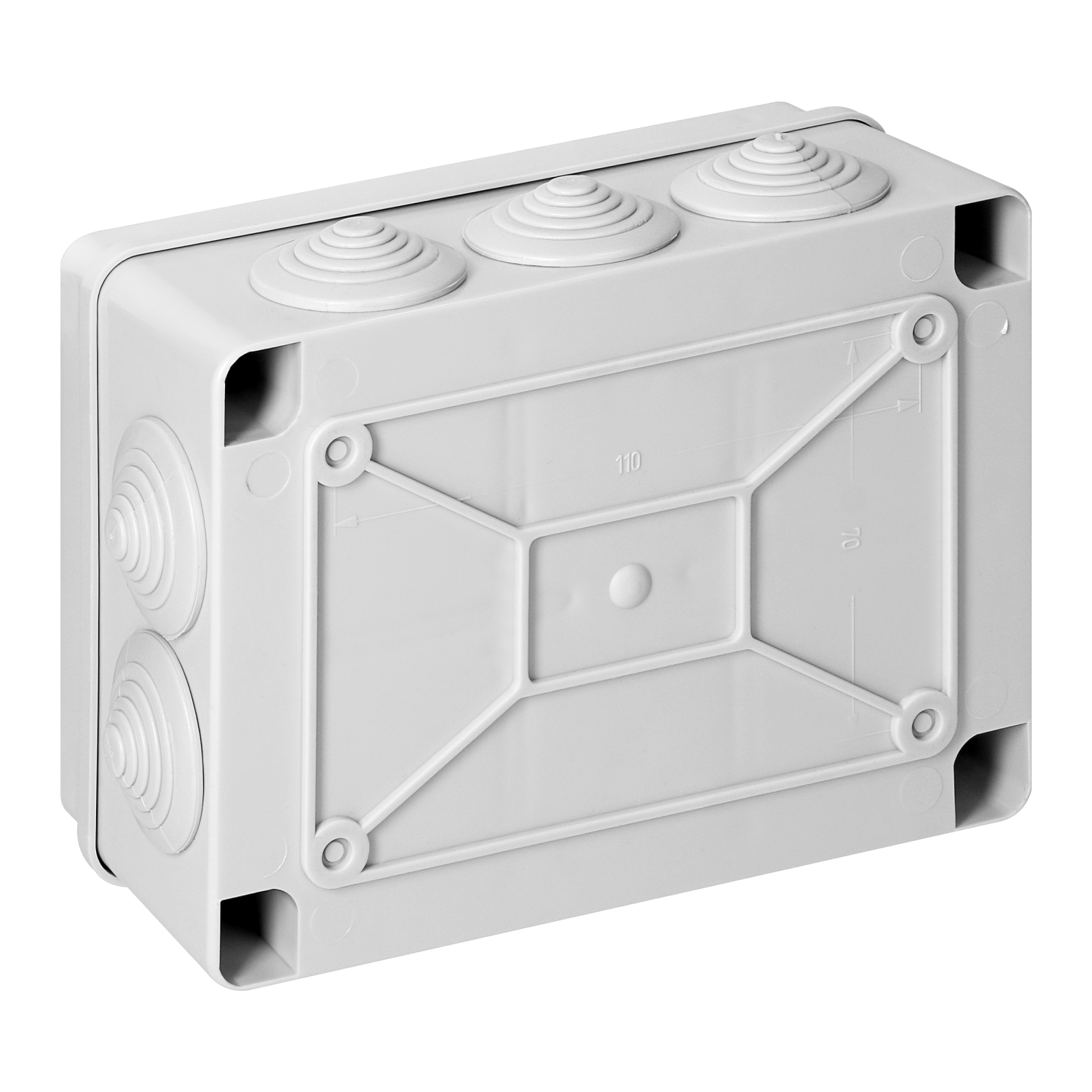

Are you looking for a way to keep your electrical installation in order not only on the project? The 150 x 110 x 70 mm hermetic box will help you achieve this. Thanks to its robust construction and IP65 rating, it protects cables from dust, moisture and accidental damage. You can install it both indoors and outdoors without worrying about weather conditions.
The model is equipped with 10 cable glands, which facilitate cable routing and sealing. You no longer need to worry about unsightly cable glands or loose cables – everything has its place, and the installation looks neat.
The grey casing made of durable plastic stands the test of time well, retaining its appearance even after years of use.
| General information: | |
|---|---|
| Assembly arrangement: | Puszka do montażu natynkowego |
| Suitable for mounting over existing flush-mounted box: | Nie |
| Suitable for modular domestic switching devices: | Tak |
| Number of modules (module system): | 0 |
| Number of units: | 10 |
| Mounting direction: | Poziomy i pionowy |
| Shape: | Prostokątny |
| Desktop device: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Halogen free: | Nie |
| Surface protection: | Inne |
| Surface finishing: | Błyszczący |
| Colour: | Szary |
| RAL-number (similar): | 7035 |
| Transparent: | Nie |
| With cover frame: | Nie |
| Cross-trunking mounting: | Nie |
| With duct entry: | Nie |
| With cable entry: | Tak |
| With screw gland entry: | Nie |
| With installation tube entry: | Tak |
| Shock resistant: | Tak |
| Number of inlets: | 10 |
| Degree of protection (IP): | IP65 |
| Inlet from the rear: | Tak |
| Width [mm]: | 150 |
| Number of earthing terminals: | 0 |
| Height [mm]: | 70 |
| Depth [mm]: | 70 |
