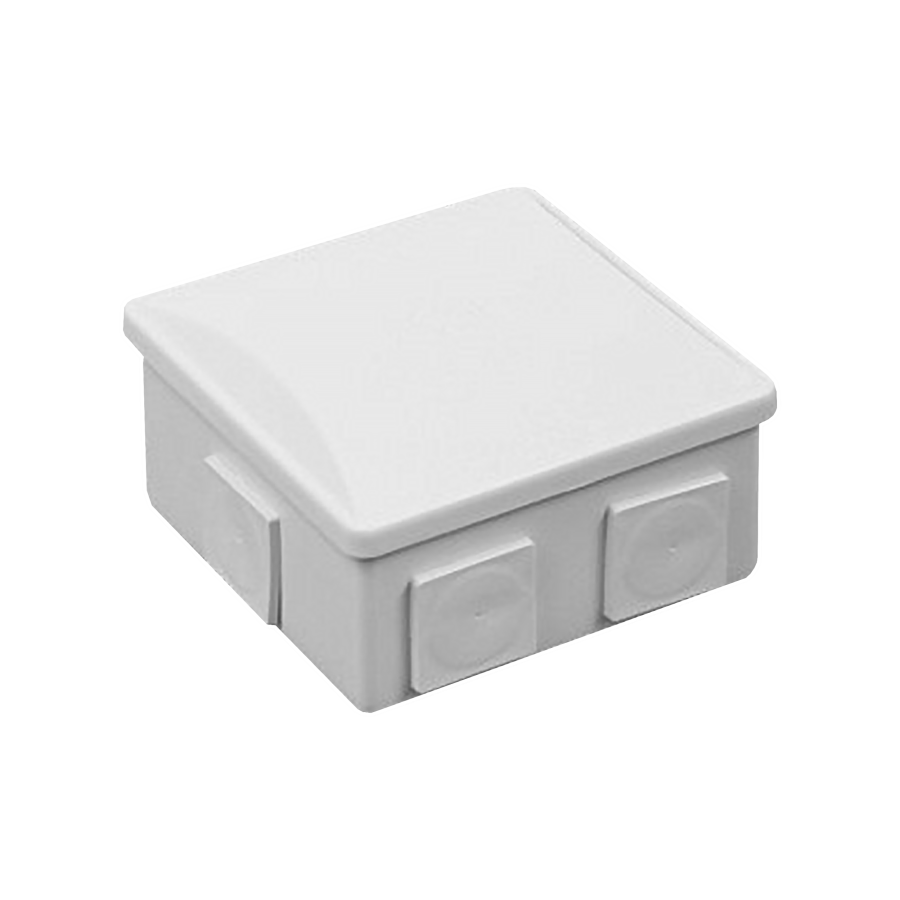

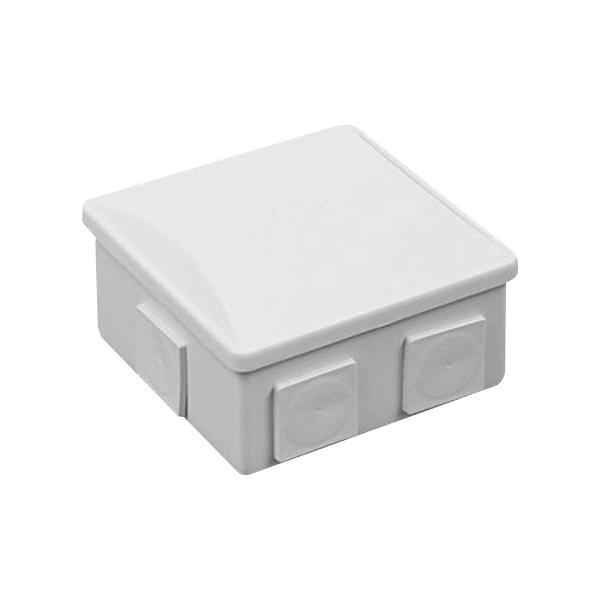

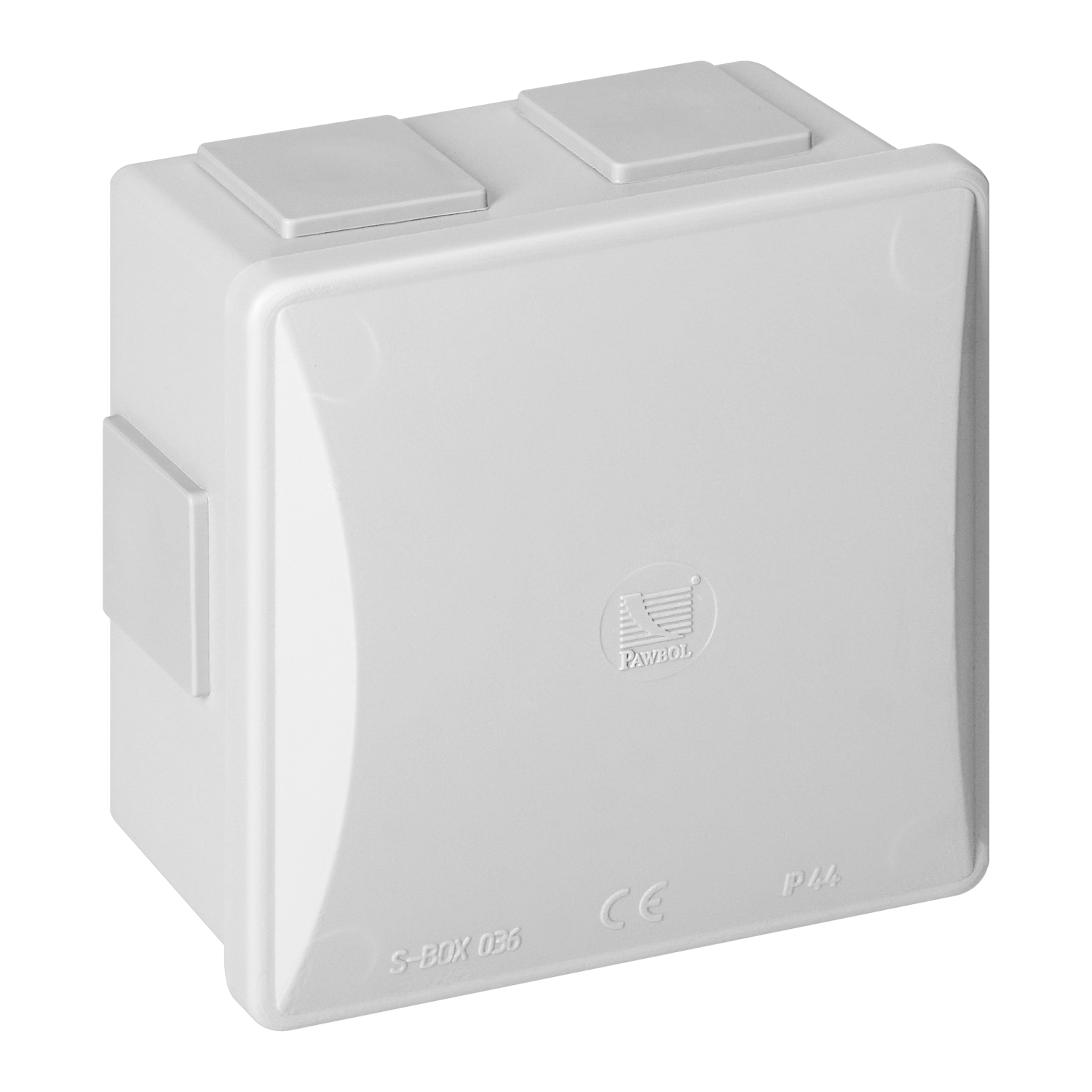

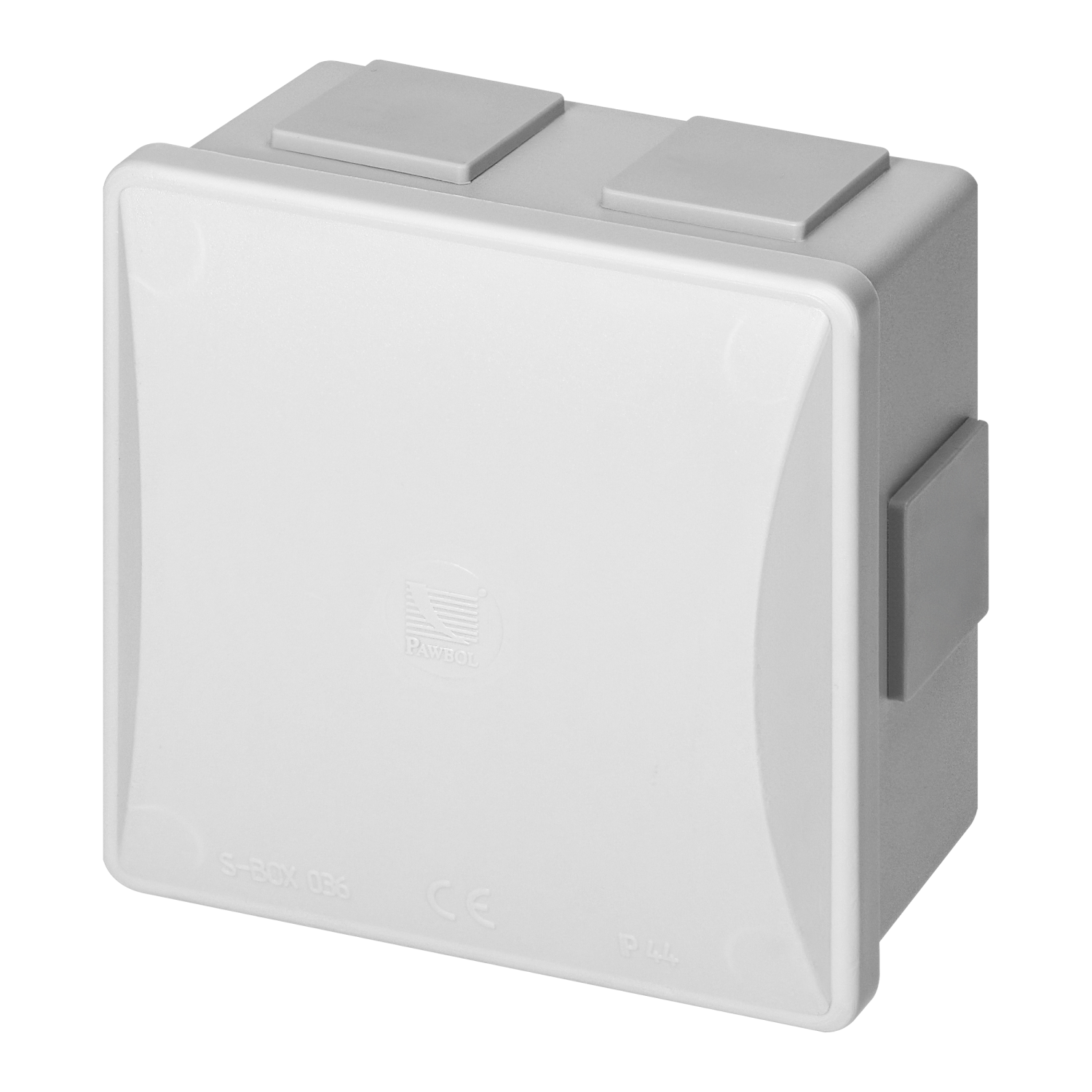

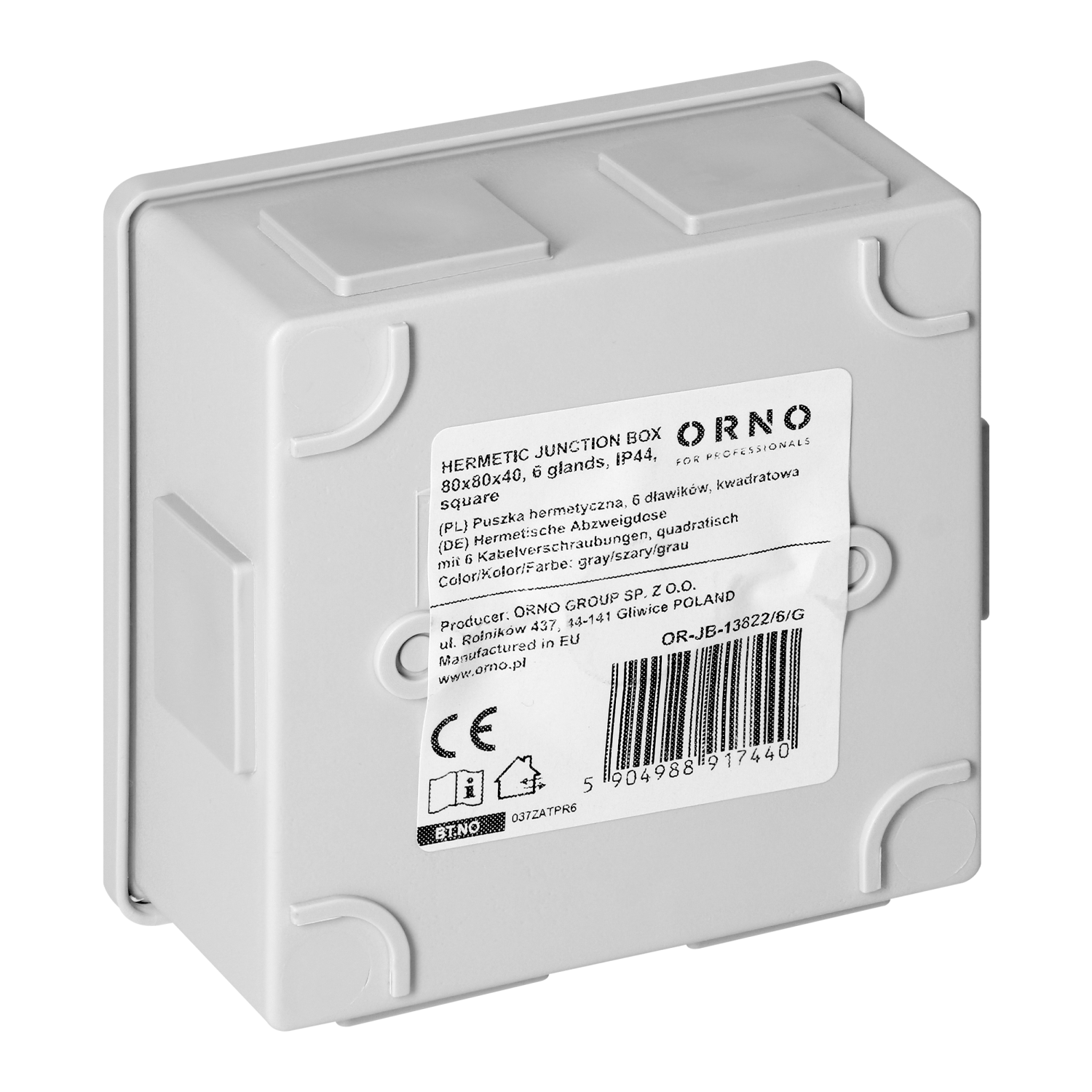

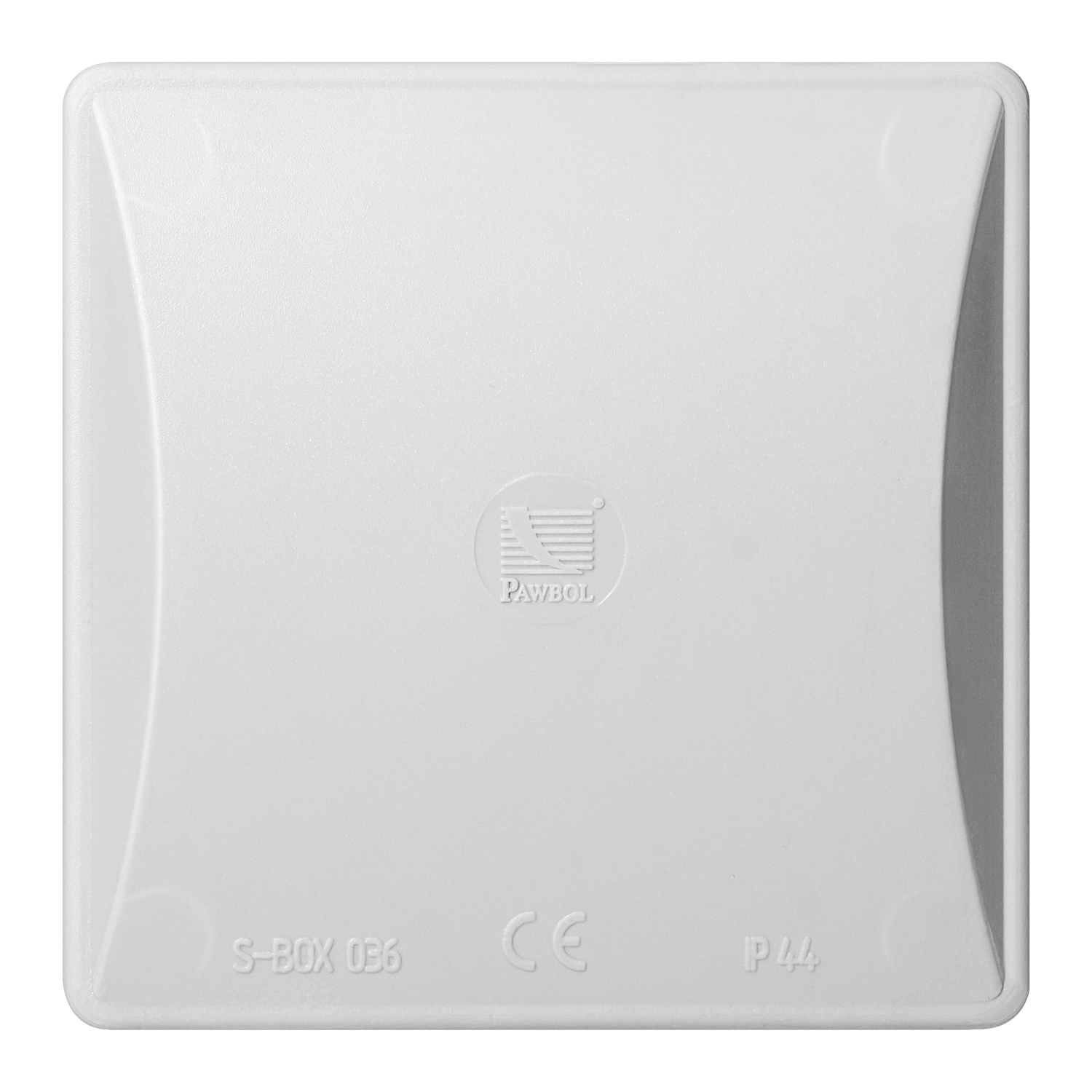

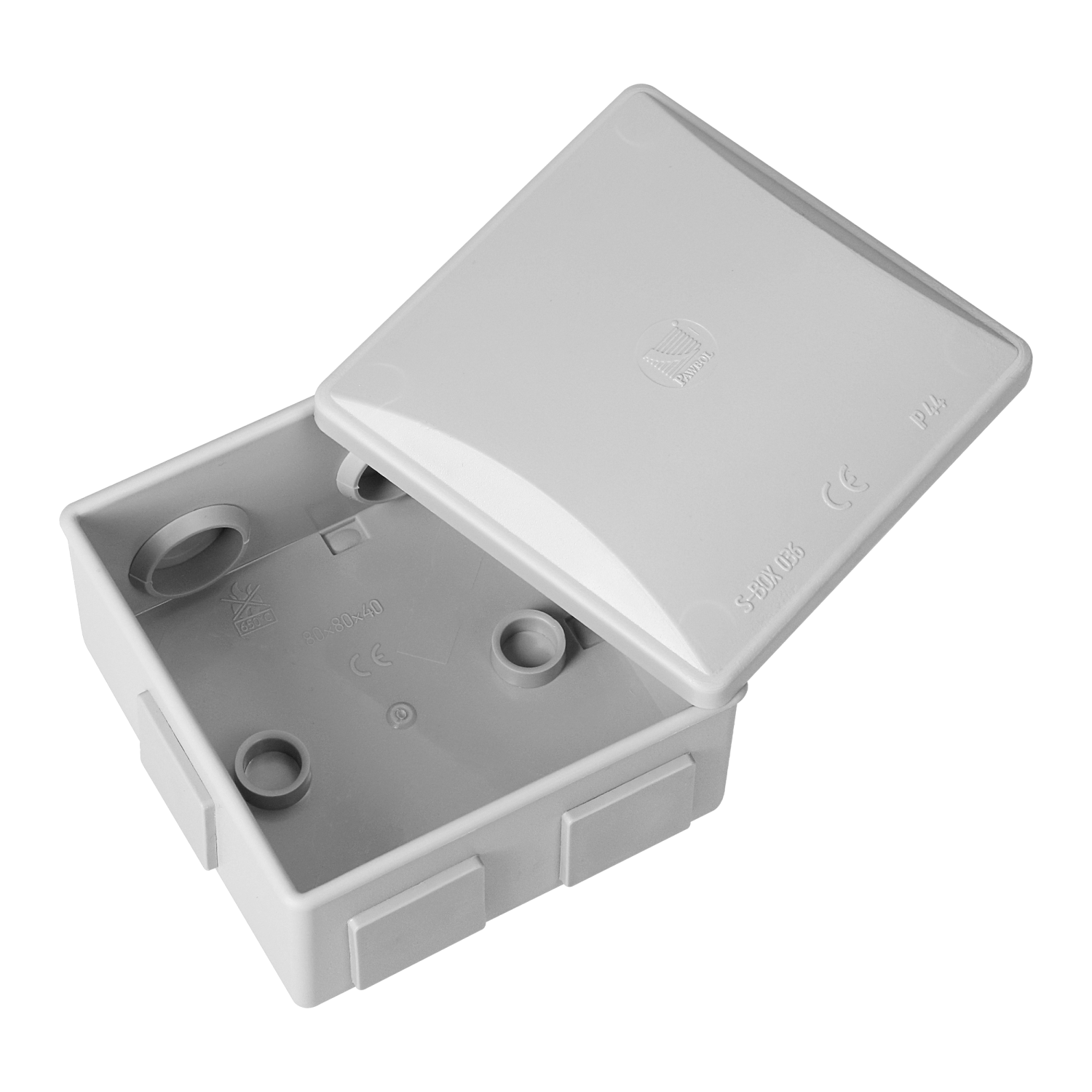

Surface-mounted junction boxes
If you want a tight and secure connection for your cables, this airtight junction box will do the job in all conditions. Thanks to its IP44 rating, it effectively protects the installation against dust, moisture and water splashes, so you can use it both indoors and outdoors.
Six cable entries make it easier to route and organize cables. They protect cables from moisture and mechanical damage, helping to ensure the safety of electrical installations.
The square shape of the box allows it to fit easily into the cable layout, and its compact dimensions (80 × 80 × 40 mm) mean that it will fit even in a cramped basement.
Made of shiny grey plastic, the box is impact-resistant and retains its design for a long time.
It is suitable for electrical installations, automation, workshops, industrial halls and outdoors – wherever reliable cable protection is required.
| General information: | |
|---|---|
| Assembly arrangement: | Puszka do montażu natynkowego |
| Suitable for mounting over existing flush-mounted box: | Nie |
| Suitable for modular domestic switching devices: | Tak |
| Number of modules (module system): | 0 |
| Number of units: | 6 |
| Mounting direction: | Poziomy i pionowy |
| Shape: | Kwadratowy |
| Desktop device: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Halogen free: | Nie |
| Surface protection: | Inne |
| Surface finishing: | Błyszczący |
| Colour: | Szary |
| RAL-number (similar): | 7035 |
| Transparent: | Nie |
| With cover frame: | Nie |
| Cross-trunking mounting: | Nie |
| With duct entry: | Nie |
| With cable entry: | Tak |
| With screw gland entry: | Nie |
| With installation tube entry: | Tak |
| Shock resistant: | Tak |
| Number of inlets: | 6 |
| Degree of protection (IP): | IP44 |
| Inlet from the rear: | Tak |
| Width [mm]: | 80 |
| Number of earthing terminals: | 0 |
| Height [mm]: | 40 |
| Depth [mm]: | 40 |
