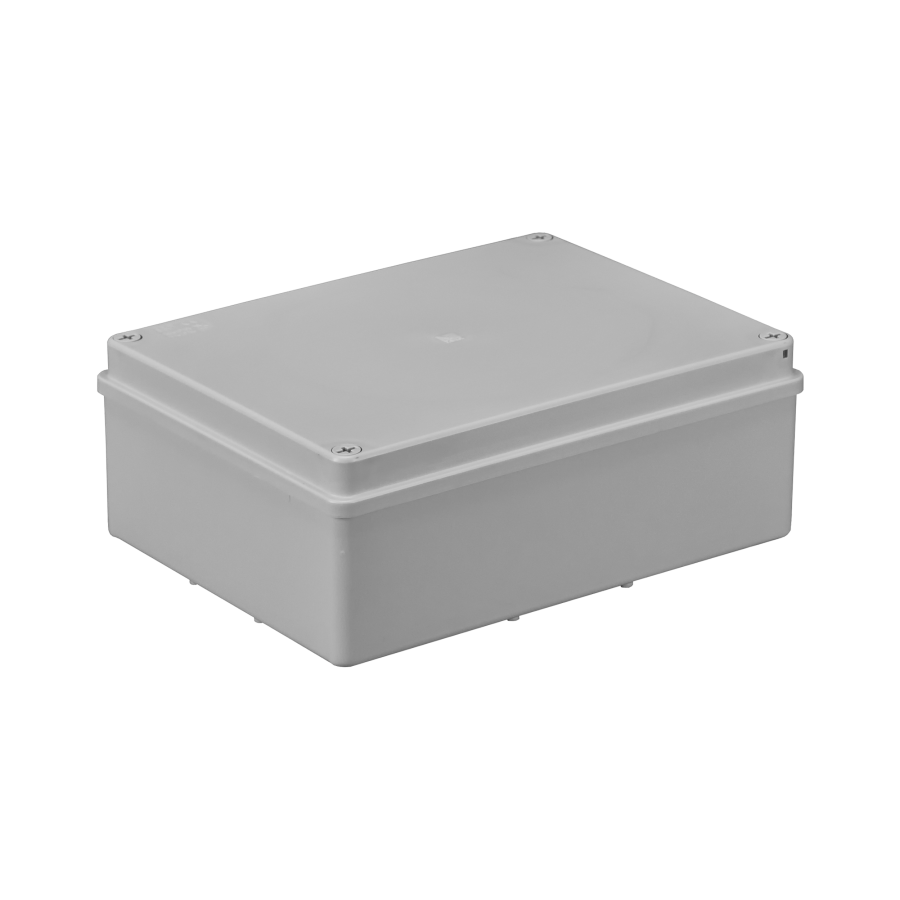

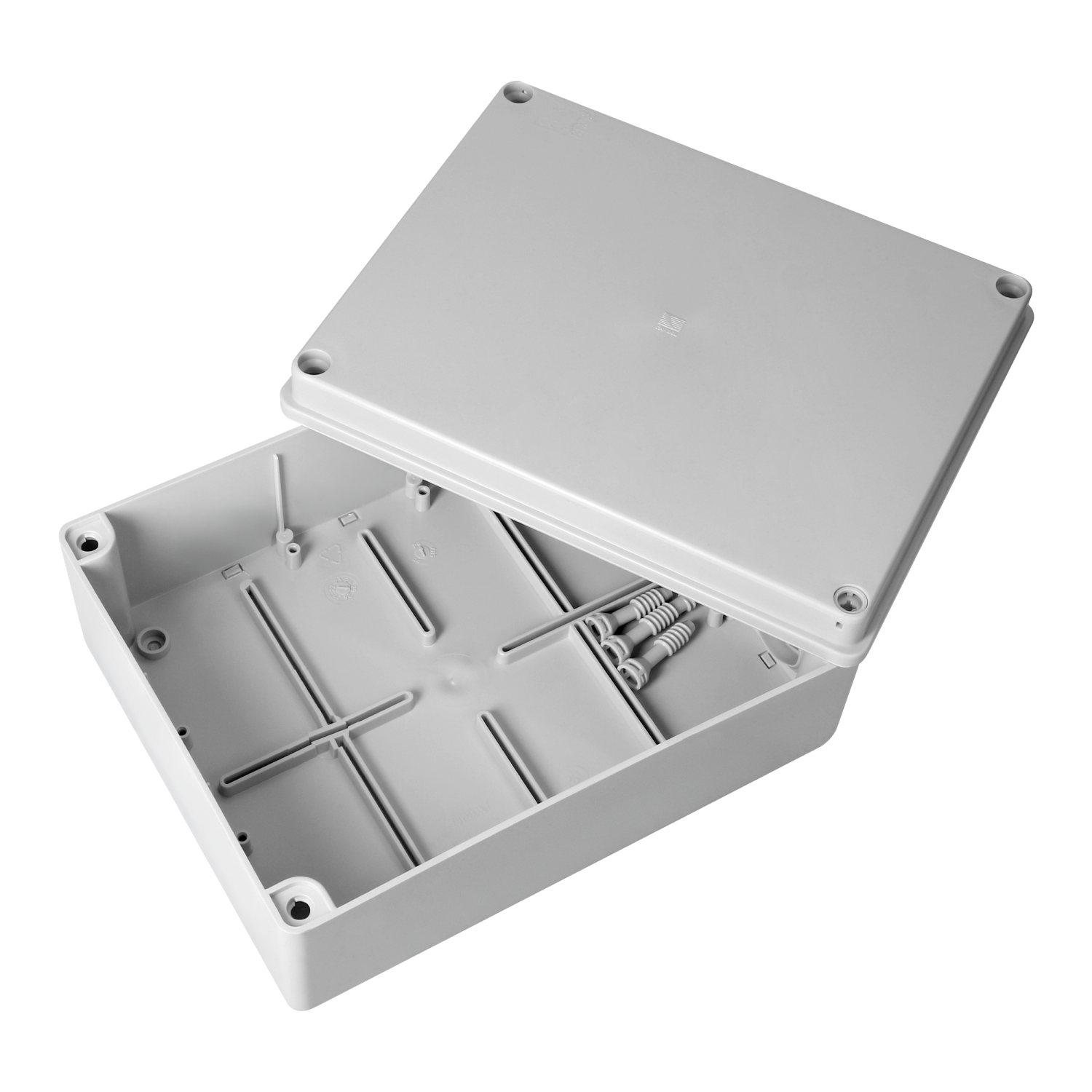

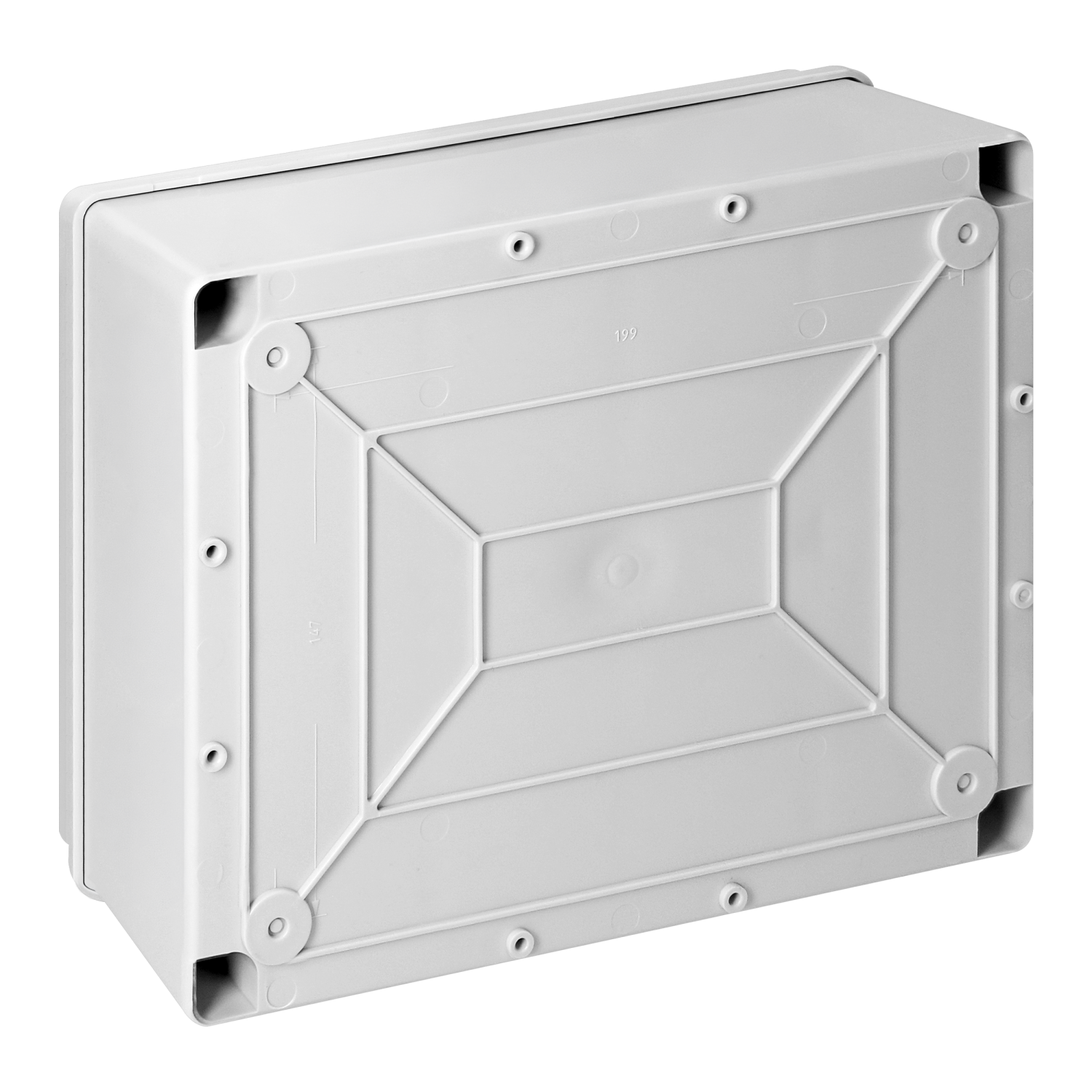

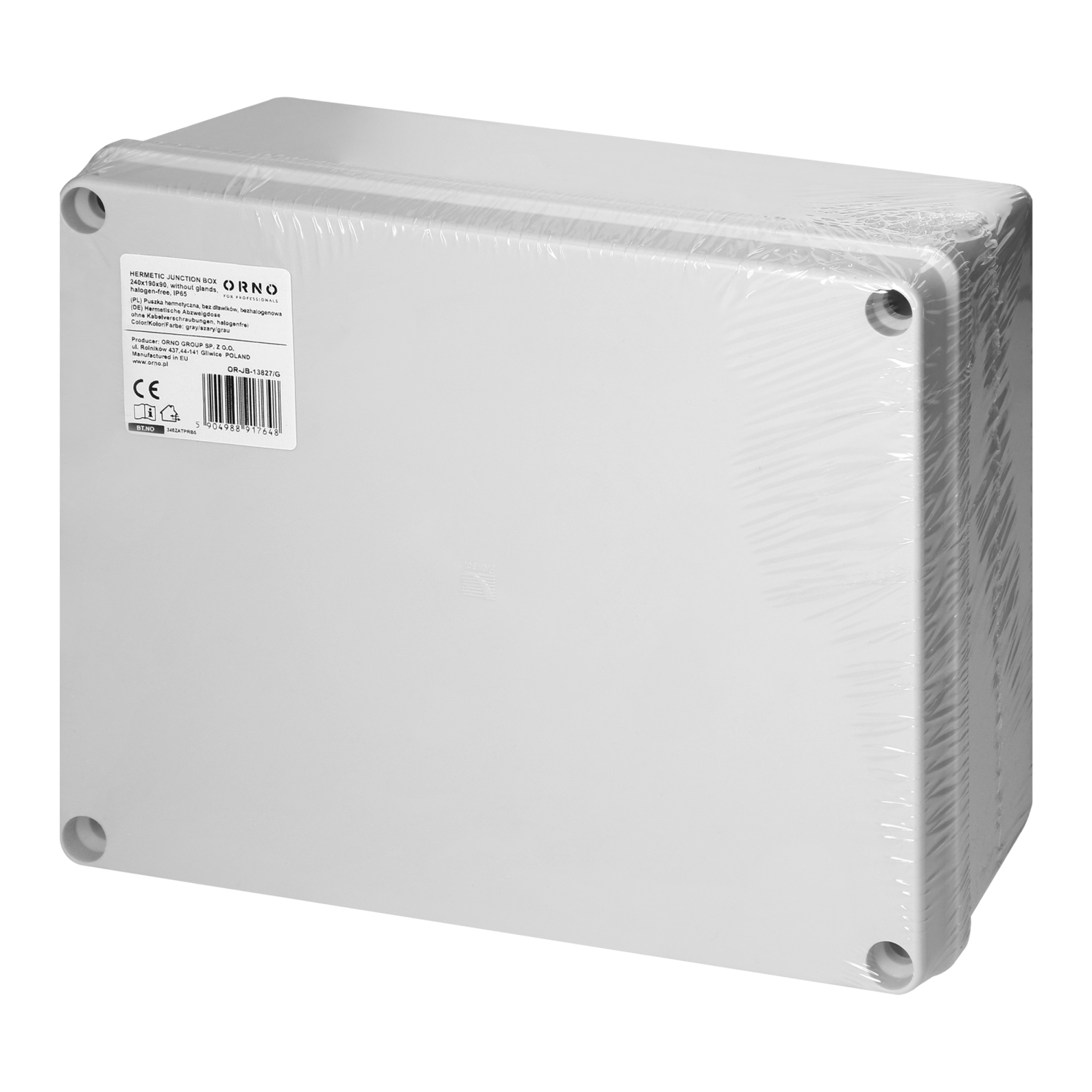

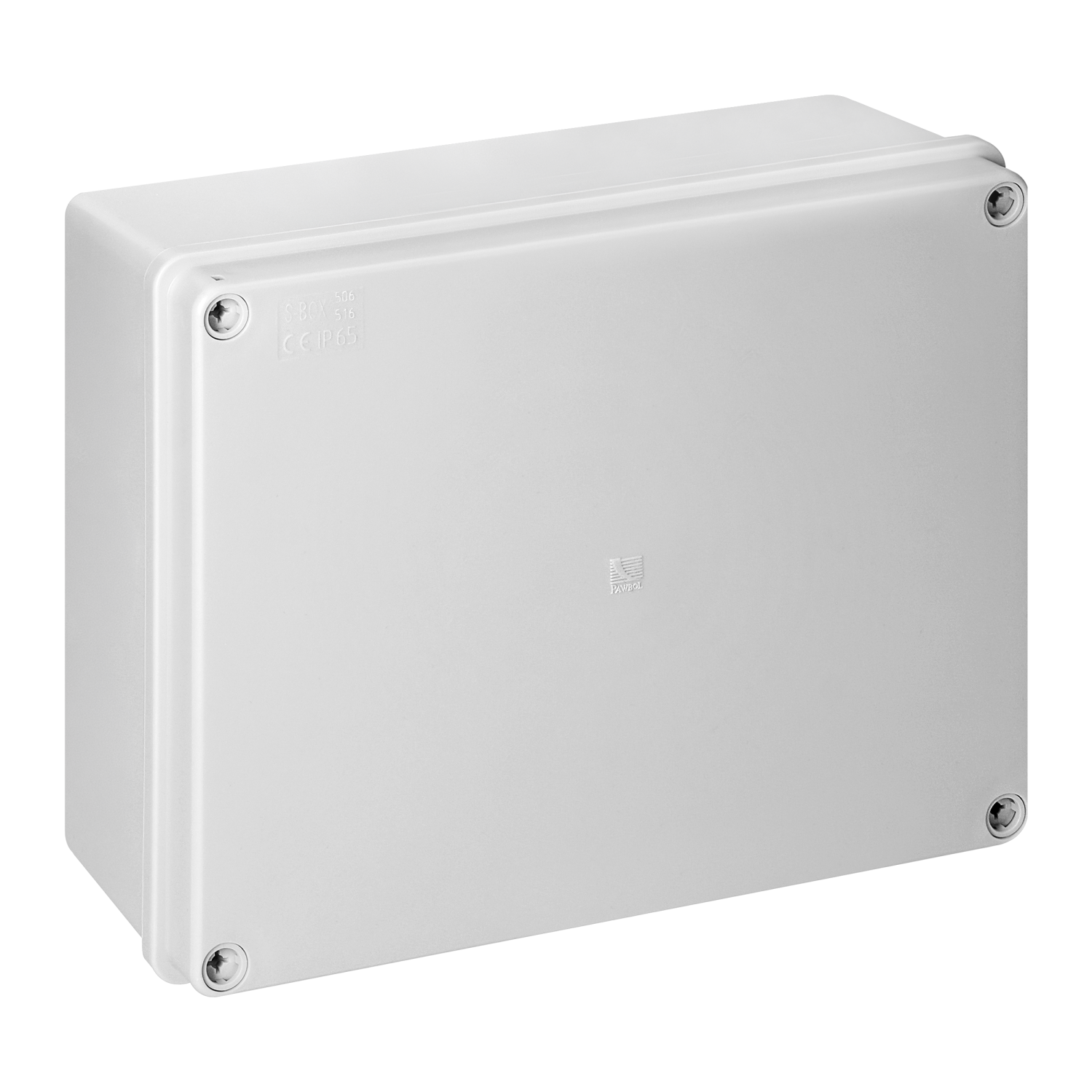

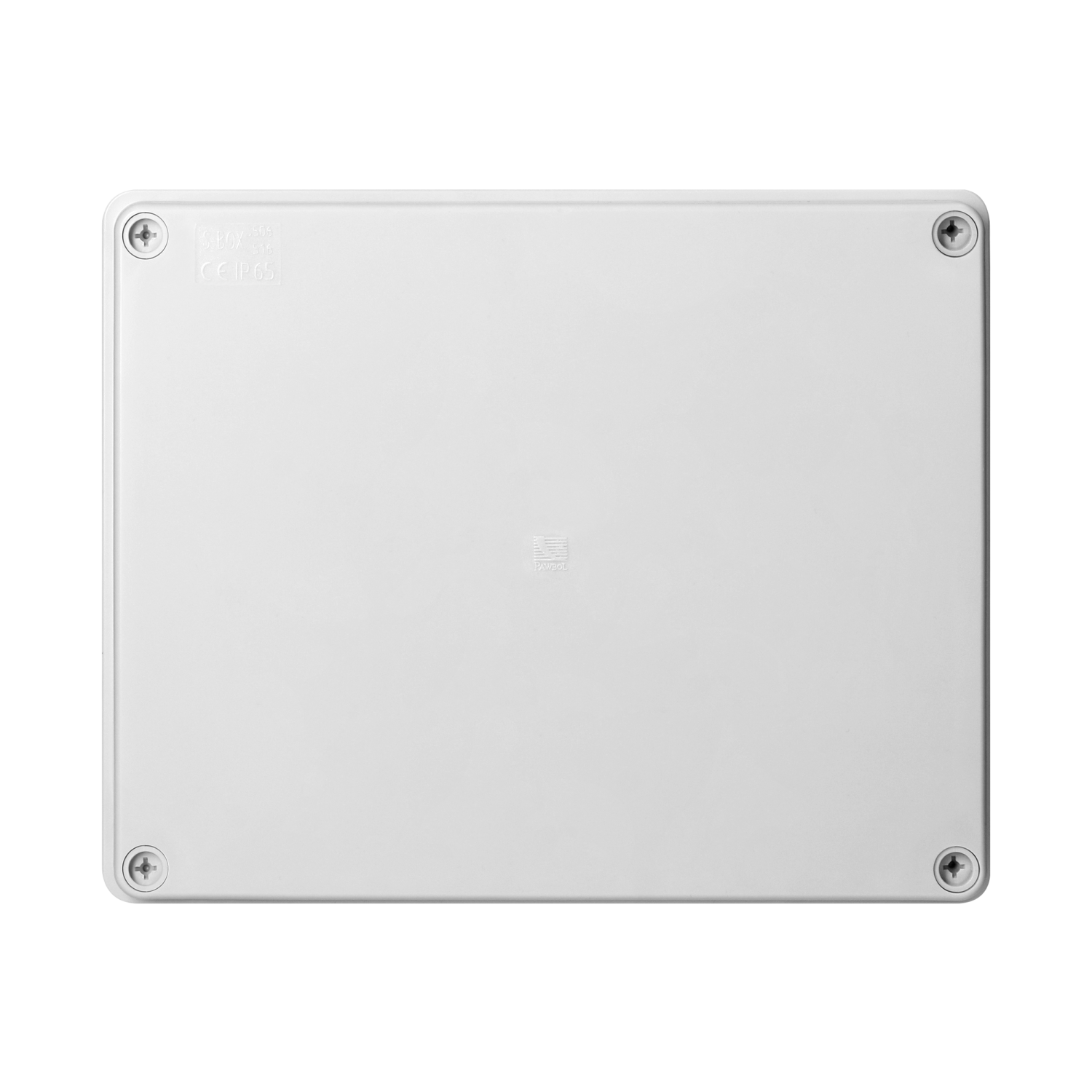

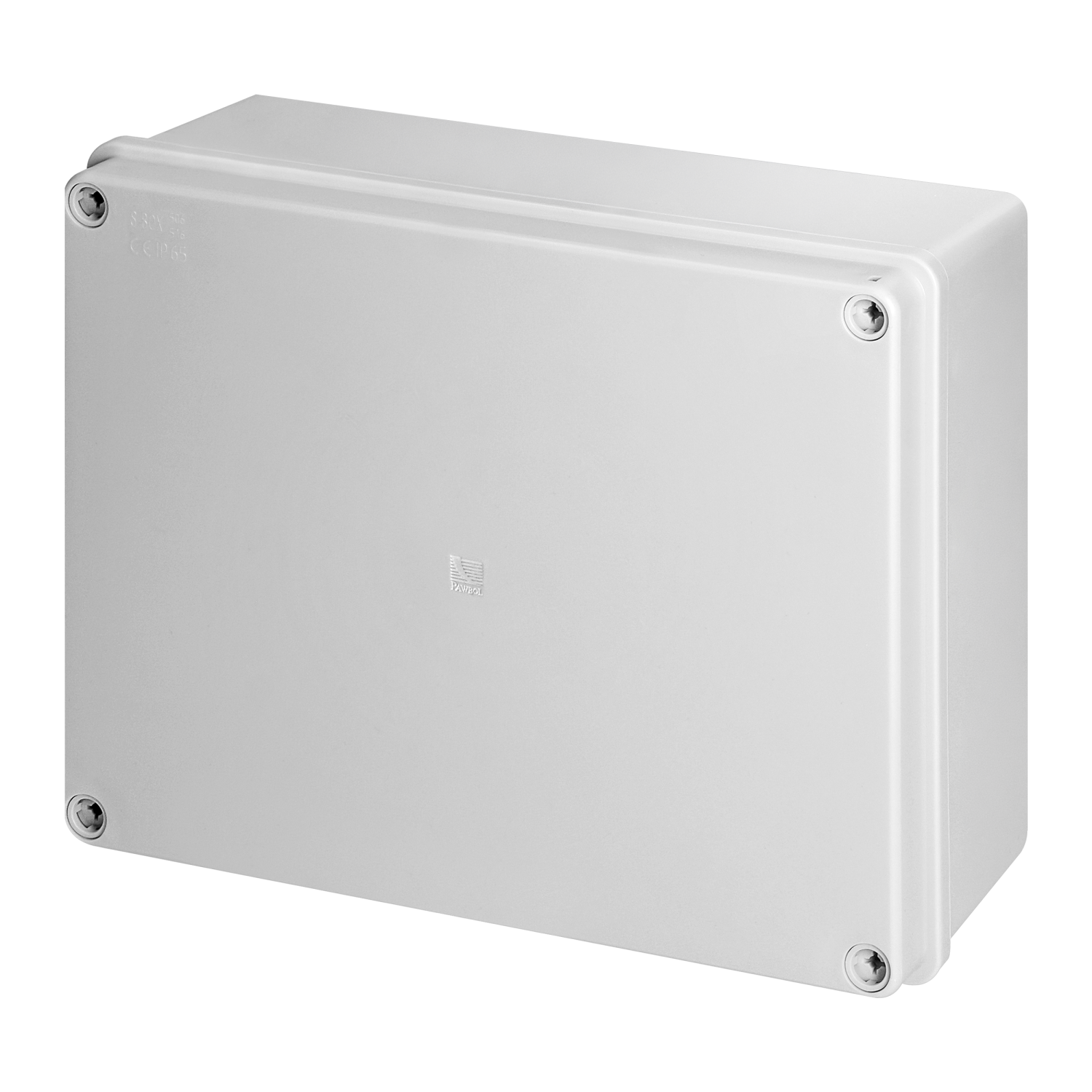

Surface-mounted junction boxes
New
If you want to decide how to route the cables, choose a 240 x 190 x 90 mm hermetic box. It does not have cable glands, so you will drill the holes yourself and adjust their size to the specific electrical installation.
Thanks to its IP65 rating, the box effectively protects the interior from moisture and dirt, so you can also use it outdoors. Made of halogen-free plastic, it guarantees safety – even in the event of a fire, no harmful fumes are emitted.
This is a reliable box for installers who value reliability and like to have everything under control.
| General information: | |
|---|---|
| Assembly arrangement: | Puszka do montażu natynkowego |
| Suitable for mounting over existing flush-mounted box: | Nie |
| Suitable for modular domestic switching devices: | Tak |
| Number of modules (module system): | 0 |
| Number of units: | 0 |
| Mounting direction: | Poziomy i pionowy |
| Shape: | Prostokątny |
| Desktop device: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Halogen free: | Tak |
| Surface protection: | Inne |
| Surface finishing: | Błyszczący |
| Colour: | Szary |
| RAL-number (similar): | 7035 |
| Transparent: | Nie |
| With cover frame: | Nie |
| Cross-trunking mounting: | Nie |
| With duct entry: | Nie |
| With cable entry: | Nie |
| With screw gland entry: | Nie |
| With installation tube entry: | Nie |
| Shock resistant: | Tak |
| Number of inlets: | 0 |
| Degree of protection (IP): | IP65 |
| Inlet from the rear: | Nie |
| Width [mm]: | 240 |
| Number of earthing terminals: | 0 |
| Height [mm]: | 90 |
| Depth [mm]: | 90 |
