Flat power supplies for lighting
New

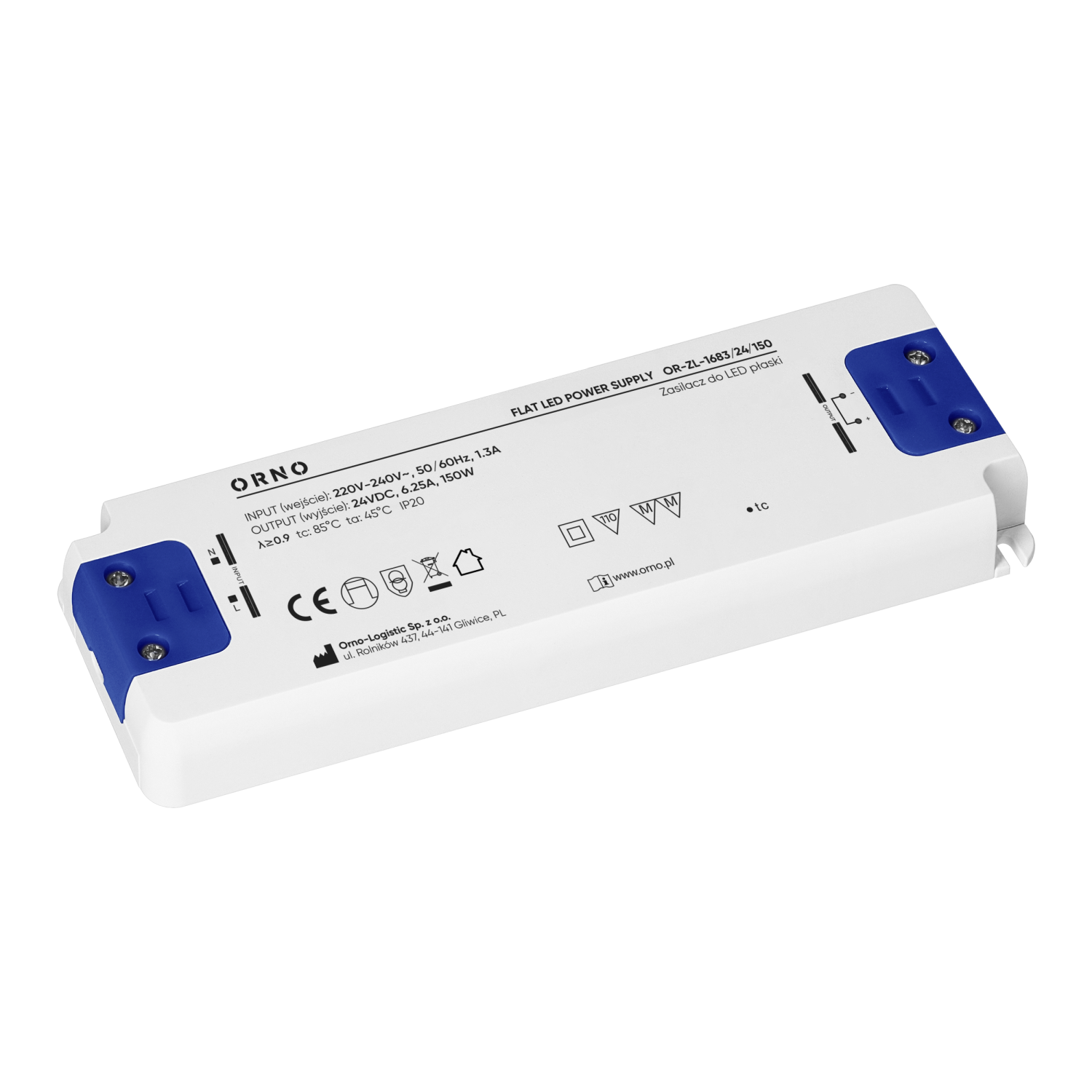

Ensure sufficient power for your LED lighting. This 24 V / 150 W LED driver is designed to meet the demands of large LED installations. It maintains a constant 24 V DC output, ensuring that LEDs shine brightly, evenly, and without flicker, even under high load.
With an efficiency of 92%, energy is delivered where it matters most – to the light itself – while heat is effectively dissipated to protect the device from overheating.
Protections against short-circuit, overload, overvoltage, and overheating safeguard the LED driver, and the auto-restart function ensures automatic recovery once normal operating conditions are restored.
The device complies with stringent standards EN 61347-1, EN 61347-2-13, EN 55015, and EN 61547, confirming its high quality and reliability.
The flat design allows the LED driver to be easily concealed within built-in furniture, under cabinets, or behind furniture panels. It remains out of sight, while providing excellent illumination throughout the interior.
| General information: | |
|---|---|
| Housing: | Obudowa z tworzywa sztucznego |
| Input voltage [V AC]: | 220-240 |
| Input current [A]: | 1.3 |
| Frequency [Hz]: | 50/60 |
| Output voltage [V DC]: | 24 |
| Output current [A]: | 6.25 |
| Output power [W]: | 150 |
| Power consumption: | ＜0,5W |
| Degree of protection (IP): | IP20 |
| Mounting: | Natynkowy |
| Efficiency [%]: | 92 |
| Width [mm]: | 180 |
| Height [mm]: | 20 |
| Depth [mm]: | 58 |
| Weight [g]: | 308 |
| Short Circuit protection: | Tak |
| Overload protection: | Tak |
| Over Voltage protection: | Tak |
| Over Temperature protection: | Tak |
| Autorestart: | Tak |
| Compliance with the standard: | Standard bezpieczeństwa: EN 61347-1, EN 61347-2-13; EMI standard: EN 55015; EMS standard: EN 61547; |
