Flat power supplies for lighting
New

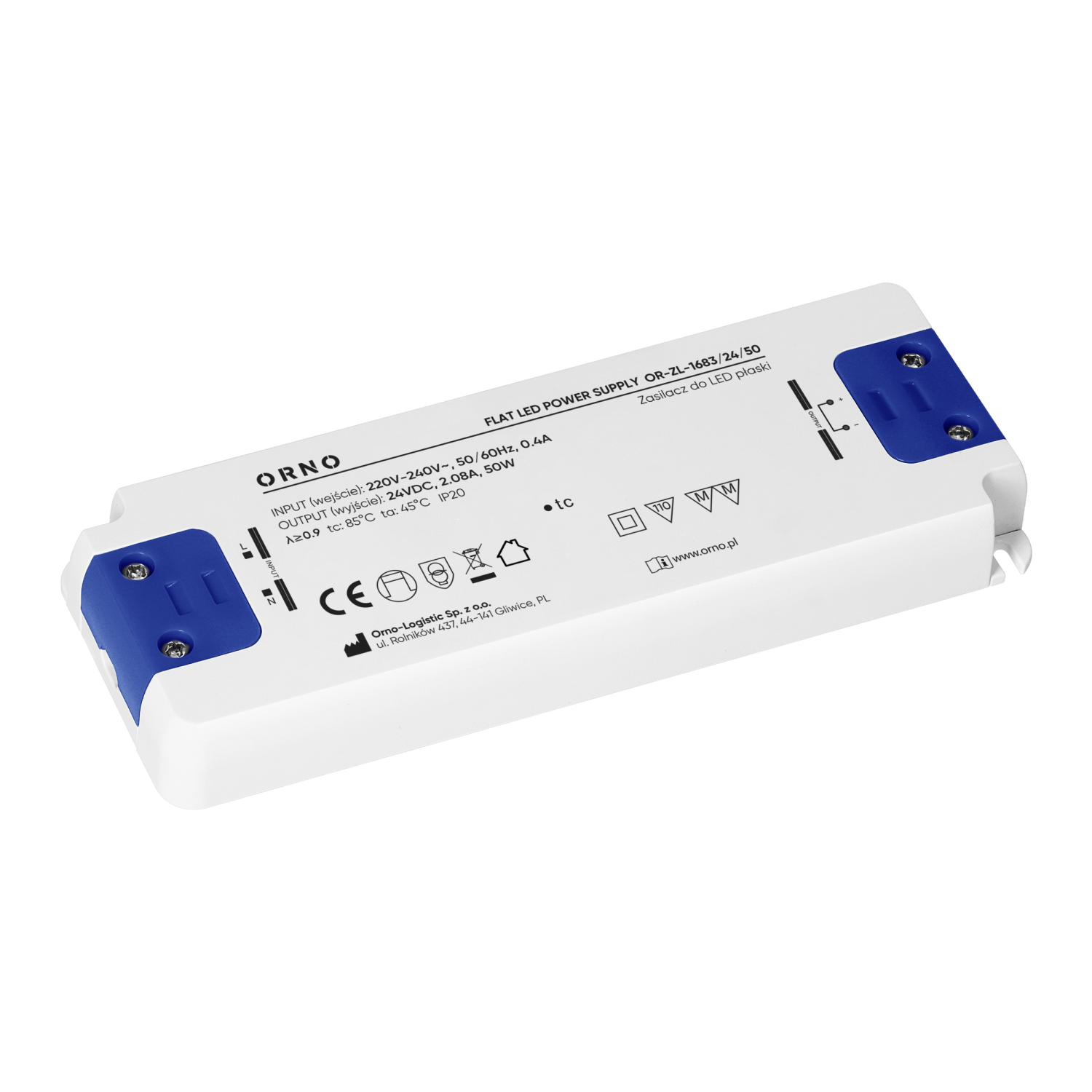

Choose an LED driver that can easily handle LED lighting throughout your home. The 24 V / 50 W LED driver is designed to power LED strips and profiles and is suitable for use in kitchen installations, display cabinets, cupboards, and suspended ceilings.
The flat design, with a height of only 19 mm, allows the LED driver to be easily concealed inside kitchen cabinets or behind masking panels, keeping the installation neatly hidden.
A constant 24 V DC output ensures even illumination, even when powering multiple LED strip runs. With an efficiency of 88%, heat generation is reduced, contributing to stable and reliable operation of the LED lighting system.
The device is equipped with short-circuit, overload, overvoltage, and thermal protection, and the auto-restart function automatically restores operation once the fault condition has been cleared.
The LED driver complies with standards EN 61347-1, EN 61347-2-13, EN 55015, and EN 61547, confirming the safe operation of the device.
| General information: | |
|---|---|
| Housing: | Obudowa z tworzywa sztucznego |
| Input voltage [V AC]: | 220-240 |
| Input current [A]: | 0.4 |
| Frequency [Hz]: | 50/60 |
| Output voltage [V DC]: | 24 |
| Output current [A]: | 2.08 |
| Output power [W]: | 50 |
| Power consumption: | ＜0,5W |
| Degree of protection (IP): | IP20 |
| Mounting: | Natynkowy |
| Efficiency [%]: | 88 |
| Width [mm]: | 160 |
| Height [mm]: | 19 |
| Depth [mm]: | 59 |
| Weight [g]: | 240 |
| Short Circuit protection: | Tak |
| Overload protection: | Tak |
| Over Voltage protection: | Tak |
| Over Temperature protection: | Tak |
| Autorestart: | Tak |
| Compliance with the standard: | Standard bezpieczeństwa: EN 61347-1, EN 61347-2-13; EMI standard: EN 55015; EMS standard: EN 61547; |
