Flat power supplies for lighting
New

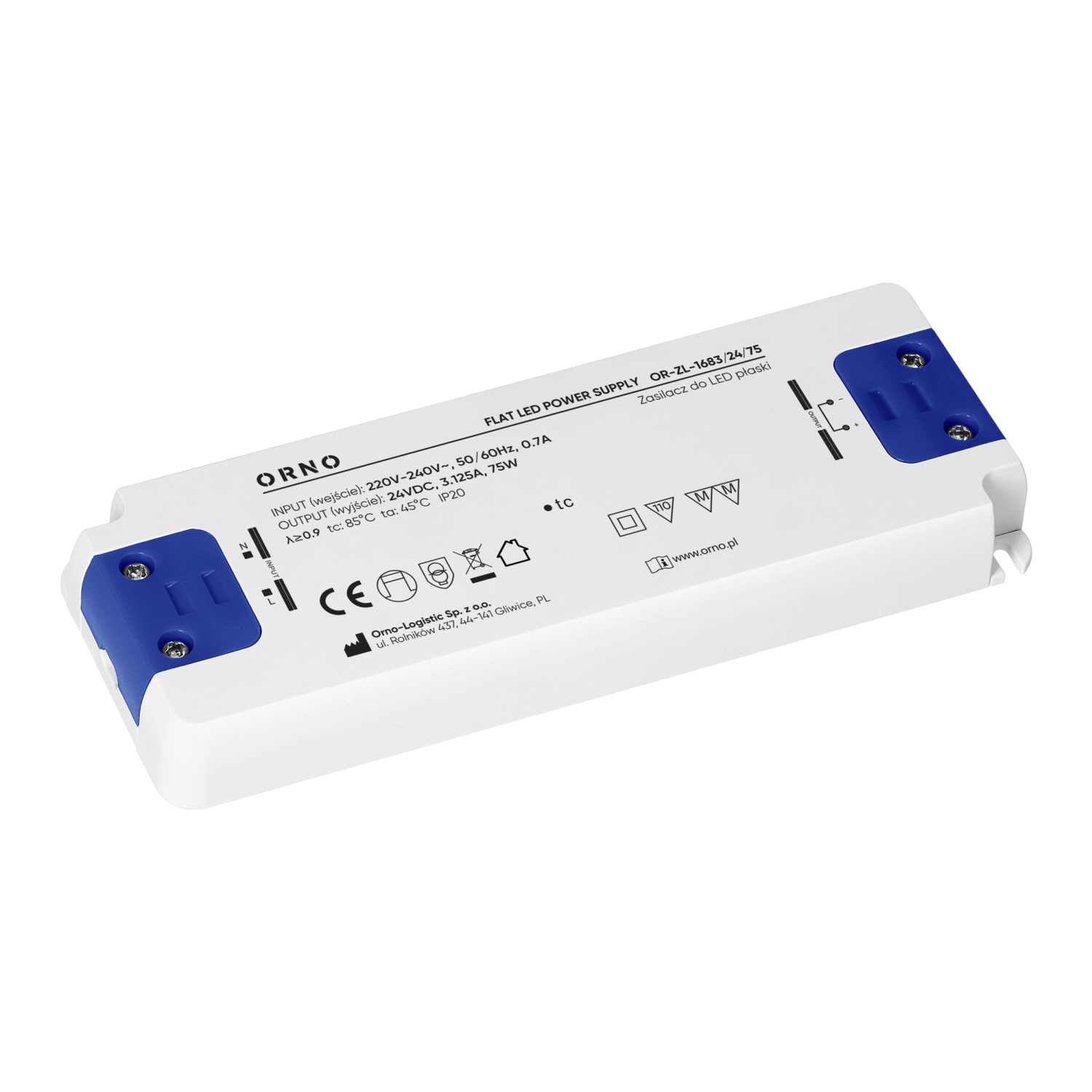

Choose an LED driver that ensures stable operation and even illumination of your LED lighting. The 24 V / 75 W LED driver is a reliable power source for longer LED strips, profiles, and LED systems installed in kitchen furniture, display cabinets, suspended ceilings, or recesses.
Thanks to its flat design, with a height of only 19 mm, the LED driver can be easily concealed within furniture installations or behind a furniture panel.
A constant 24 V DC output guarantees uniform light output, without power drops, even when using longer cable runs.
With a high efficiency of 90%, the device uses energy effectively and does not overheat excessively. Protections against short-circuit, overload, overvoltage, and overheating safeguard the LED driver against damage.
The LED driver complies with standards EN 61347-1, EN 61347-2-13, EN 55015, and EN 61547, confirming the quality and safe operation of the product.
| General information: | |
|---|---|
| Housing: | Obudowa z tworzywa sztucznego |
| Input voltage [V AC]: | 220-240 |
| Input current [A]: | 0.7 |
| Frequency [Hz]: | 50/60 |
| Output voltage [V DC]: | 24 |
| Output current [A]: | 3.125 |
| Output power [W]: | 75 |
| Power consumption: | ＜0,5W |
| Degree of protection (IP): | IP20 |
| Mounting: | Natynkowy |
| Efficiency [%]: | 90 |
| Width [mm]: | 160 |
| Height [mm]: | 19 |
| Depth [mm]: | 59 |
| Weight [g]: | 237 |
| Short Circuit protection: | Tak |
| Overload protection: | Tak |
| Over Voltage protection: | Tak |
| Over Temperature protection: | Tak |
| Autorestart: | Tak |
| Compliance with the standard: | Standard bezpieczeństwa: EN 61347-1, EN 61347-2-13; EMI standard: EN 55015; EMS standard: EN 61547; |
