Flat power supplies for lighting
New

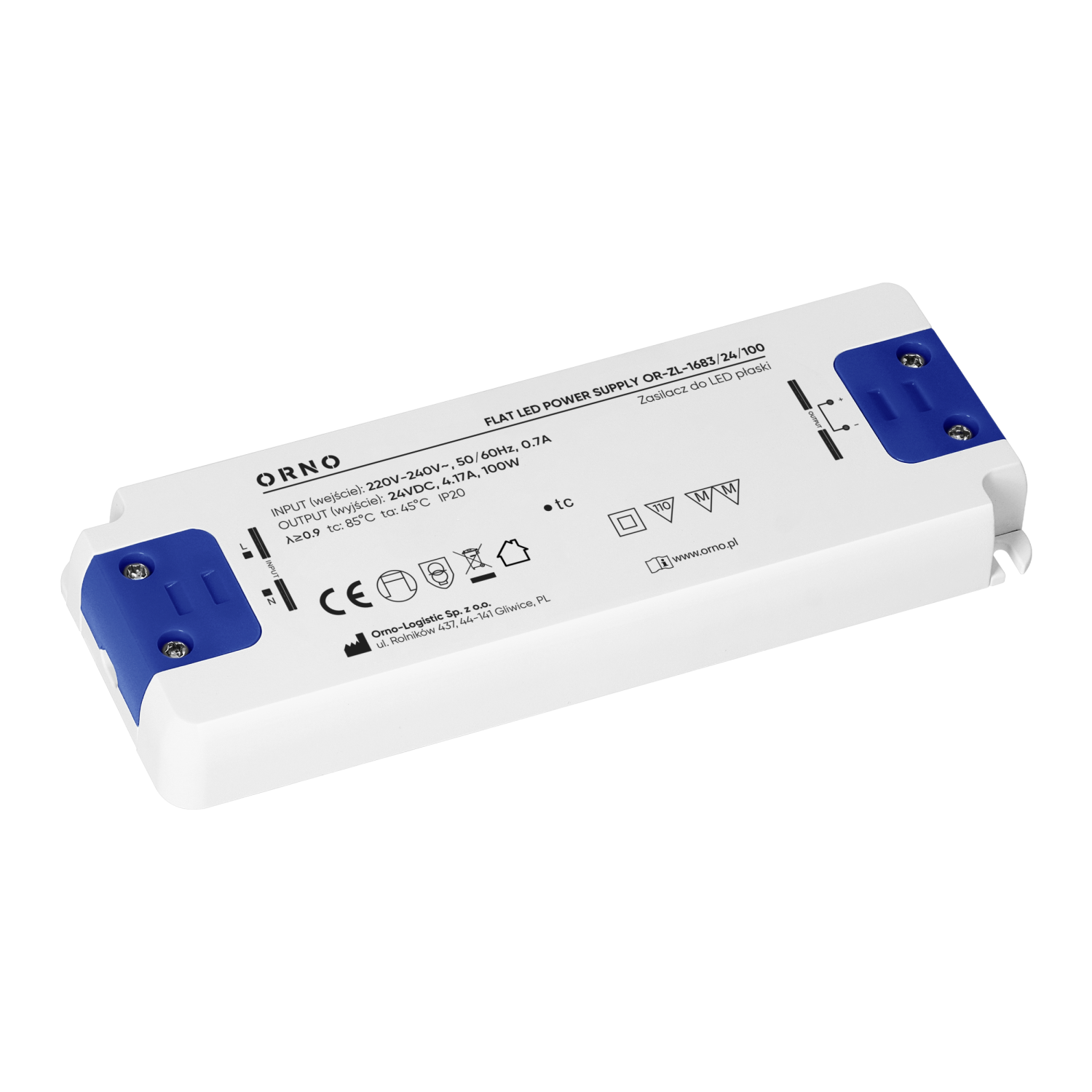

Ensure stable operation of your LED lighting, even under higher load. The 24 V / 100 W LED driver provides reliable power supply for longer LED strips, profiles, or multiple LED lighting sections within a single circuit. It is ideal for use in living rooms, kitchens, offices, or display areas.
The flat design, with a height of only 19 mm, allows the LED driver to be easily concealed within built-in furniture, under cabinets, or behind panels, keeping the installation neat and well organised.
The LED driver protects the installation against short-circuit, overload, overvoltage, and overheating, and automatically resumes operation once a fault condition has been cleared. A constant 24 V DC output ensures that LEDs do not flicker or dim, while an efficiency of 92% reduces energy losses and heat generation, contributing to a longer service life of the LED driver.
The model complies with EU standards EN 61347-1, EN 61347-2-13, EN 55015, and EN 61547, ensuring full output and reliable daily operation of the LED lighting system.
The LED driver is designed for surface mounting, in a location that provides easy access to wiring and unrestricted air circulation.
| General information: | |
|---|---|
| Housing: | Obudowa z tworzywa sztucznego |
| Input voltage [V AC]: | 220-240 |
| Input current [A]: | 0.7 |
| Frequency [Hz]: | 50/60 |
| Output voltage [V DC]: | 24 |
| Output current [A]: | 4.17 |
| Output power [W]: | 100 |
| Power consumption: | ＜0,5W |
| Degree of protection (IP): | IP20 |
| Mounting: | Natynkowy |
| Efficiency [%]: | 92 |
| Width [mm]: | 160 |
| Height [mm]: | 19 |
| Depth [mm]: | 59 |
| Weight [g]: | 230 |
| Short Circuit protection: | Tak |
| Overload protection: | Tak |
| Over Voltage protection: | Tak |
| Over Temperature protection: | Tak |
| Autorestart: | Tak |
| Compliance with the standard: | Standard bezpieczeństwa: EN 61347-1, EN 61347-2-13; EMI standard: EN 55015; EMS standard: EN 61547; |
