Flat power supplies for lighting
New

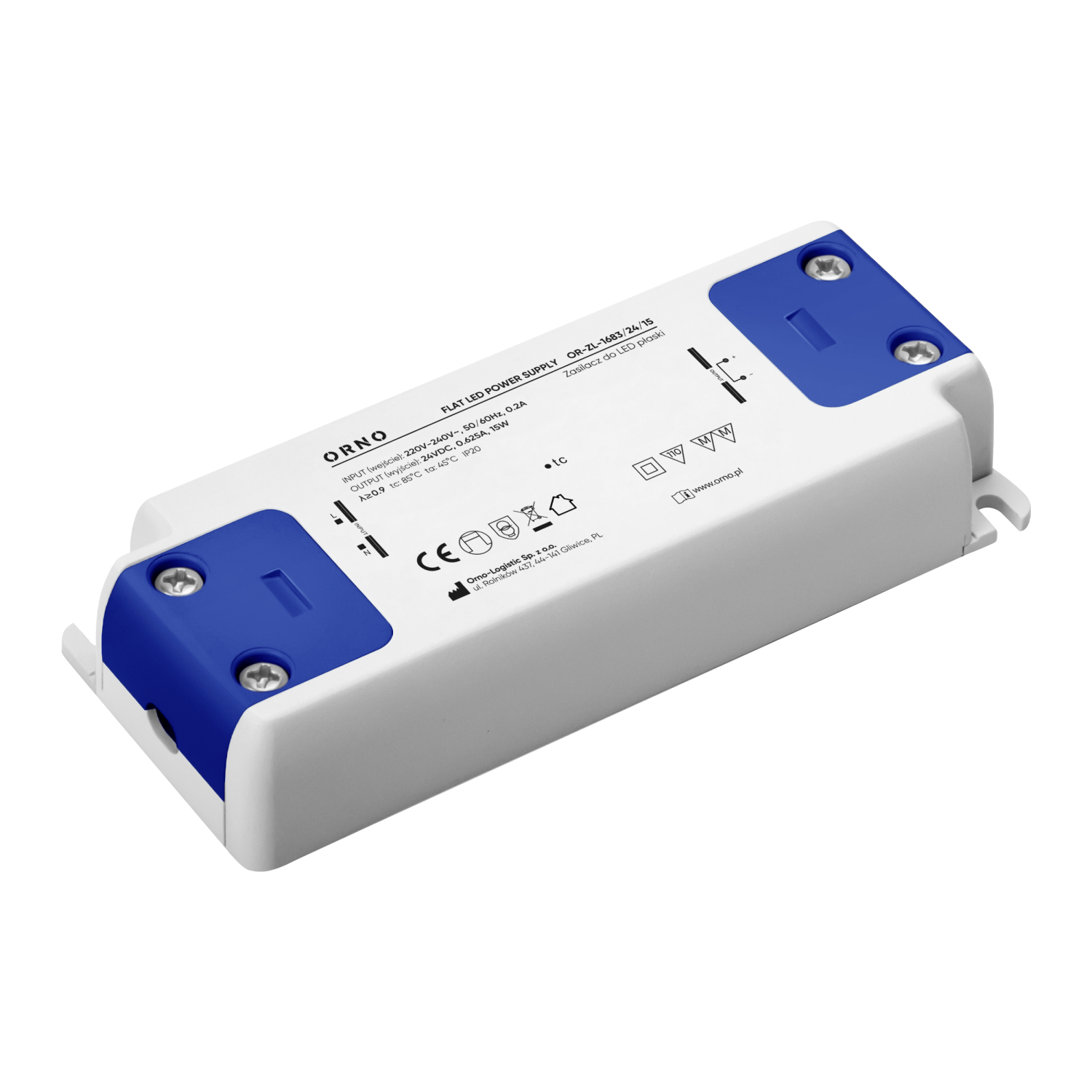

Power your LED lighting with confidence. This flat 24 V / 15 W LED driver provides a stable output for low-power LED strips and profiles. It is ideal for illuminating shelves, display cabinets, recesses, or mirrors.
The LED driver complies with standards EN 61347-1, EN 61347-2-13, EN 55015, and EN 61547, confirming its quality and safe operation.
The device is equipped with built-in protections against short-circuit, overload, overvoltage, and overheating. It operates with an input voltage of 220–240 V AC and delivers a 24 V DC output, ensuring even, flicker-free illumination.
Once a fault condition has been cleared, the system automatically resumes operation thanks to the auto-restart function.
The compact, low-profile design allows the LED driver to be easily concealed behind furniture, in suspended ceilings, or near LED profiles, without compromising the aesthetics of the interior.
| General information: | |
|---|---|
| Housing: | Obudowa z tworzywa sztucznego |
| Input voltage [V AC]: | 220-240 |
| Input current [A]: | 0.2 |
| Frequency [Hz]: | 50/60 |
| Output voltage [V DC]: | 24 |
| Output current [A]: | 0.625 |
| Output power [W]: | 15 |
| Power consumption: | ＜0,5W |
| Degree of protection (IP): | IP20 |
| Mounting: | Natynkowy |
| Efficiency [%]: | 85 |
| Width [mm]: | 103 |
| Height [mm]: | 35 |
| Depth [mm]: | 16 |
| Weight [g]: | 85 |
| Short Circuit protection: | Tak |
| Overload protection: | Tak |
| Over Voltage protection: | Tak |
| Over Temperature protection: | Tak |
| Autorestart: | Tak |
| Compliance with the standard: | Standard bezpieczeństwa: EN 61347-1, EN 61347-2-13; EMI standard: EN 55015; EMS standard: EN 61547; |
