Energy meters with MID

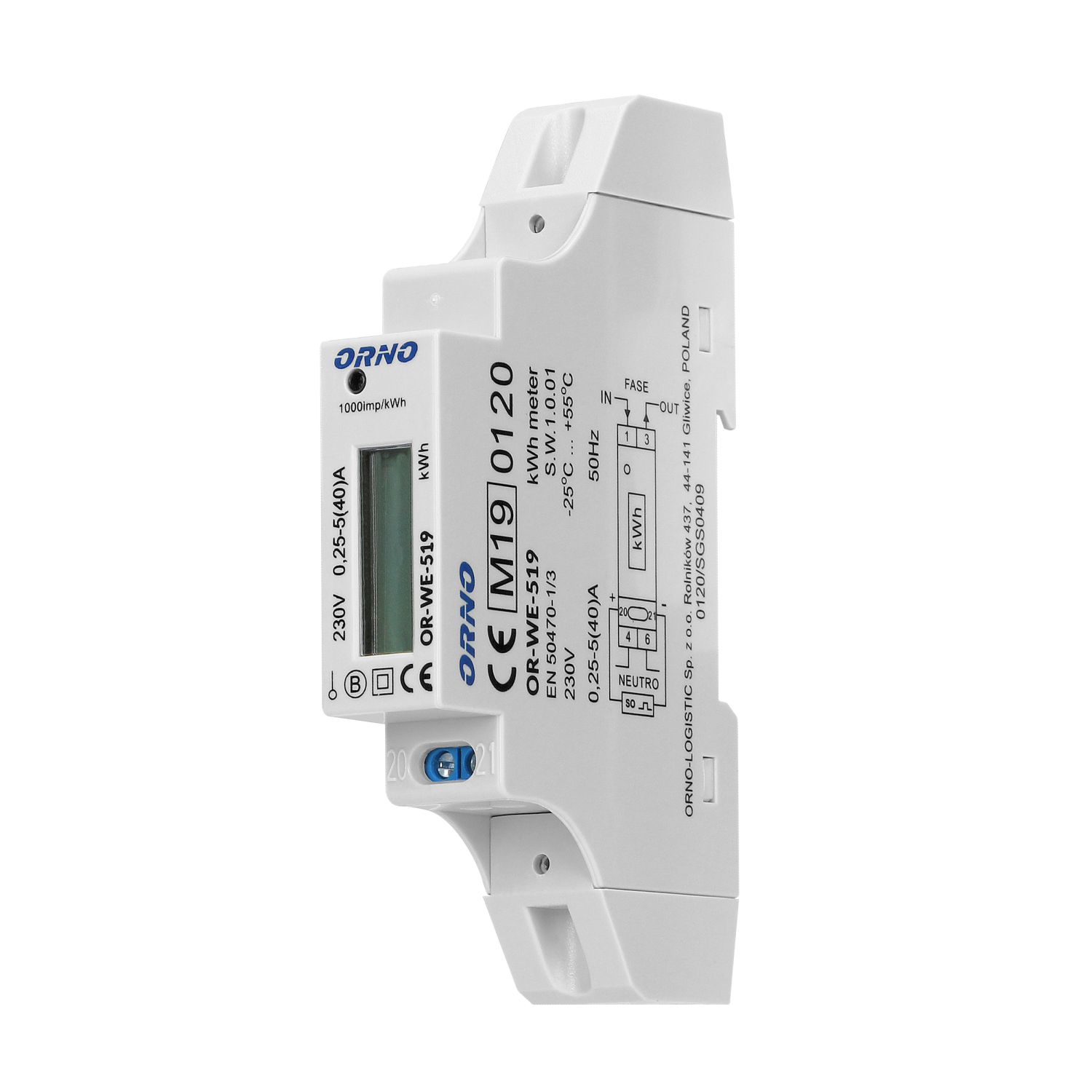

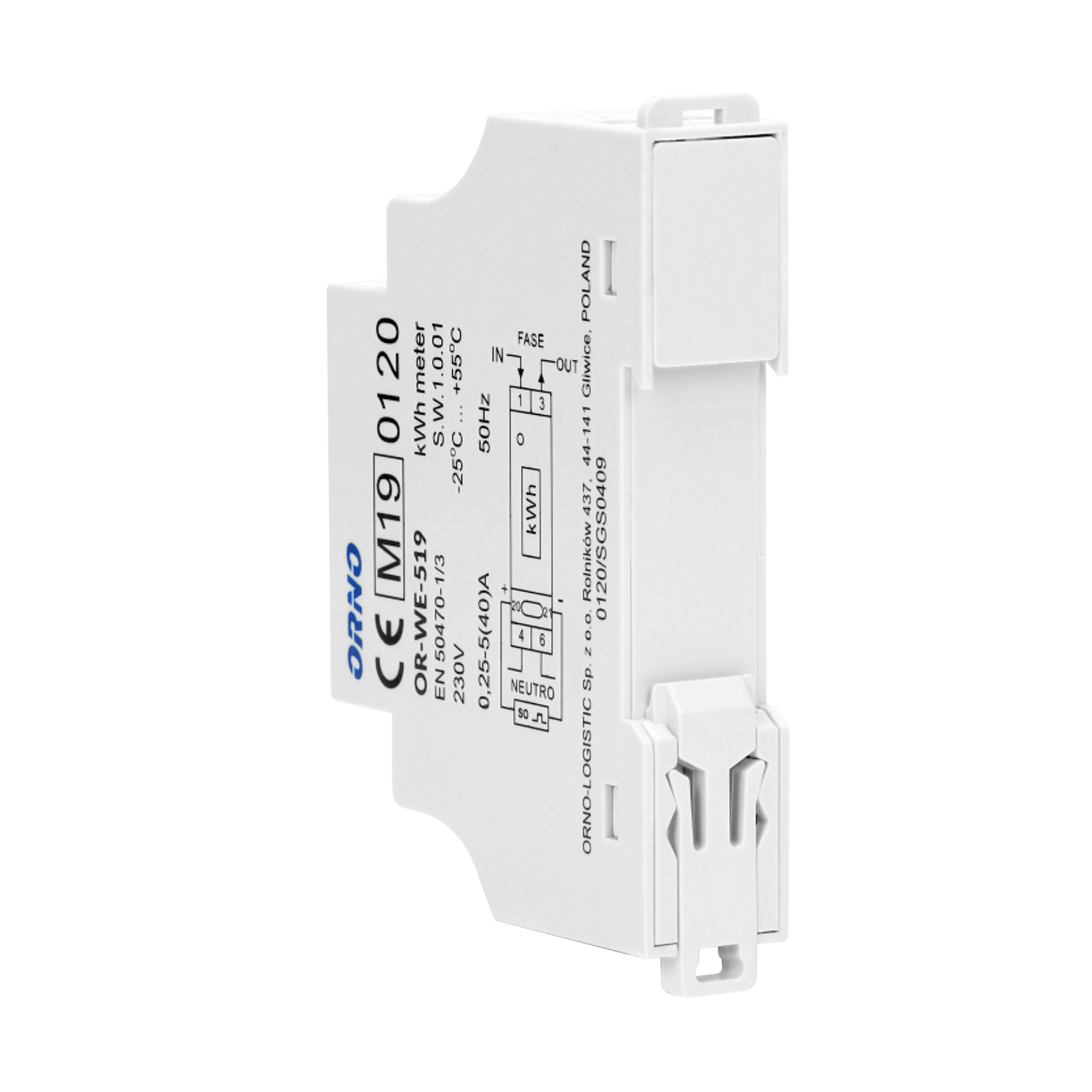

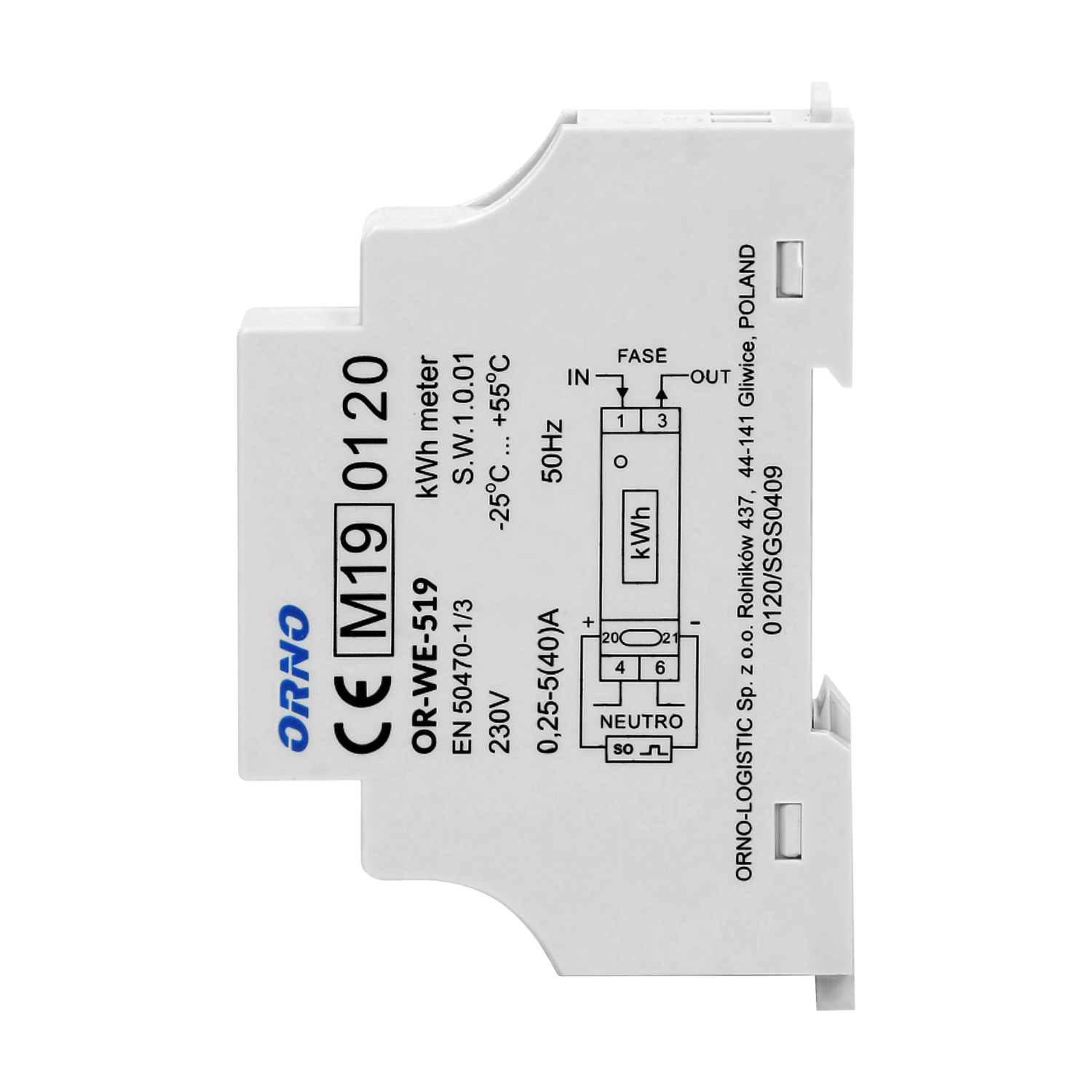

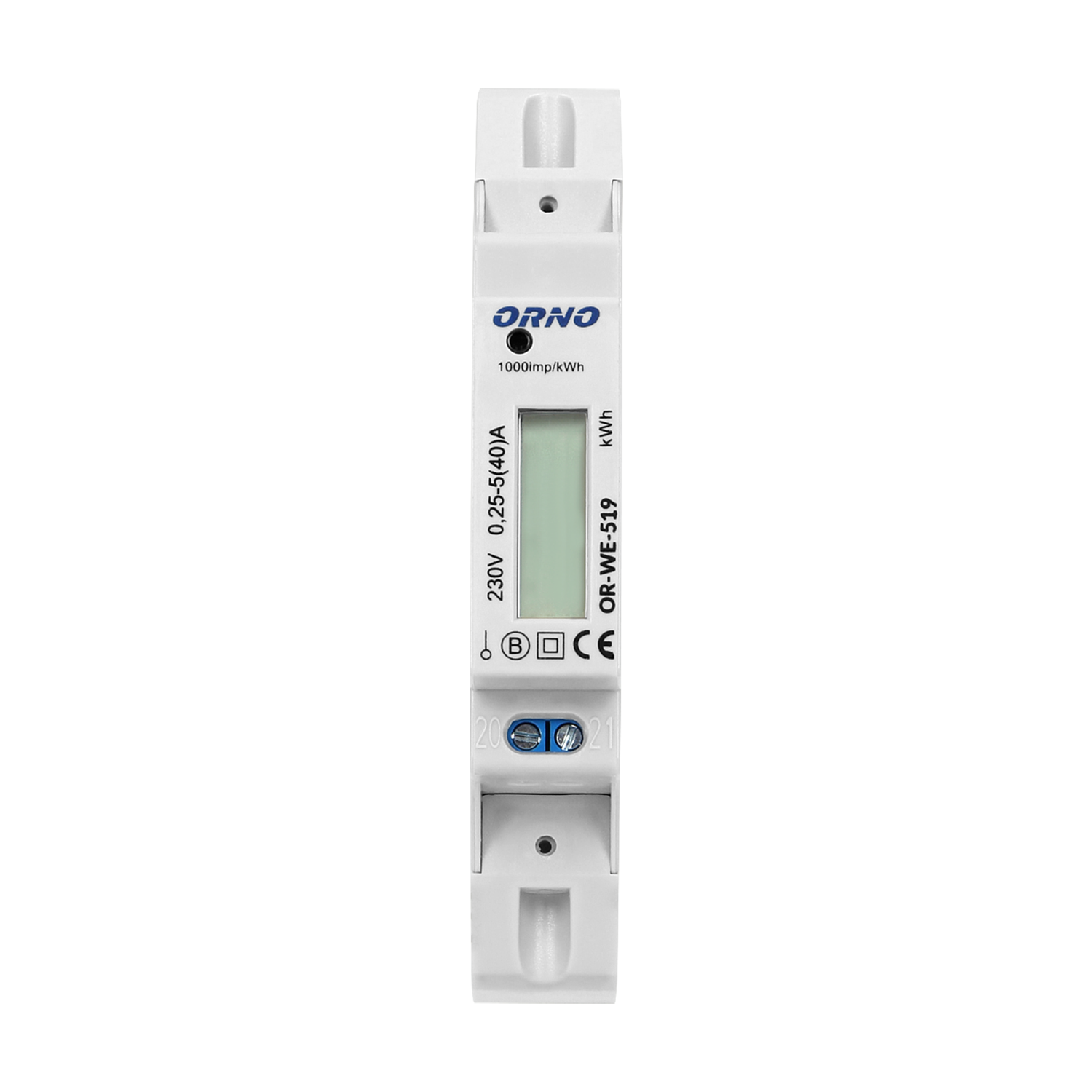

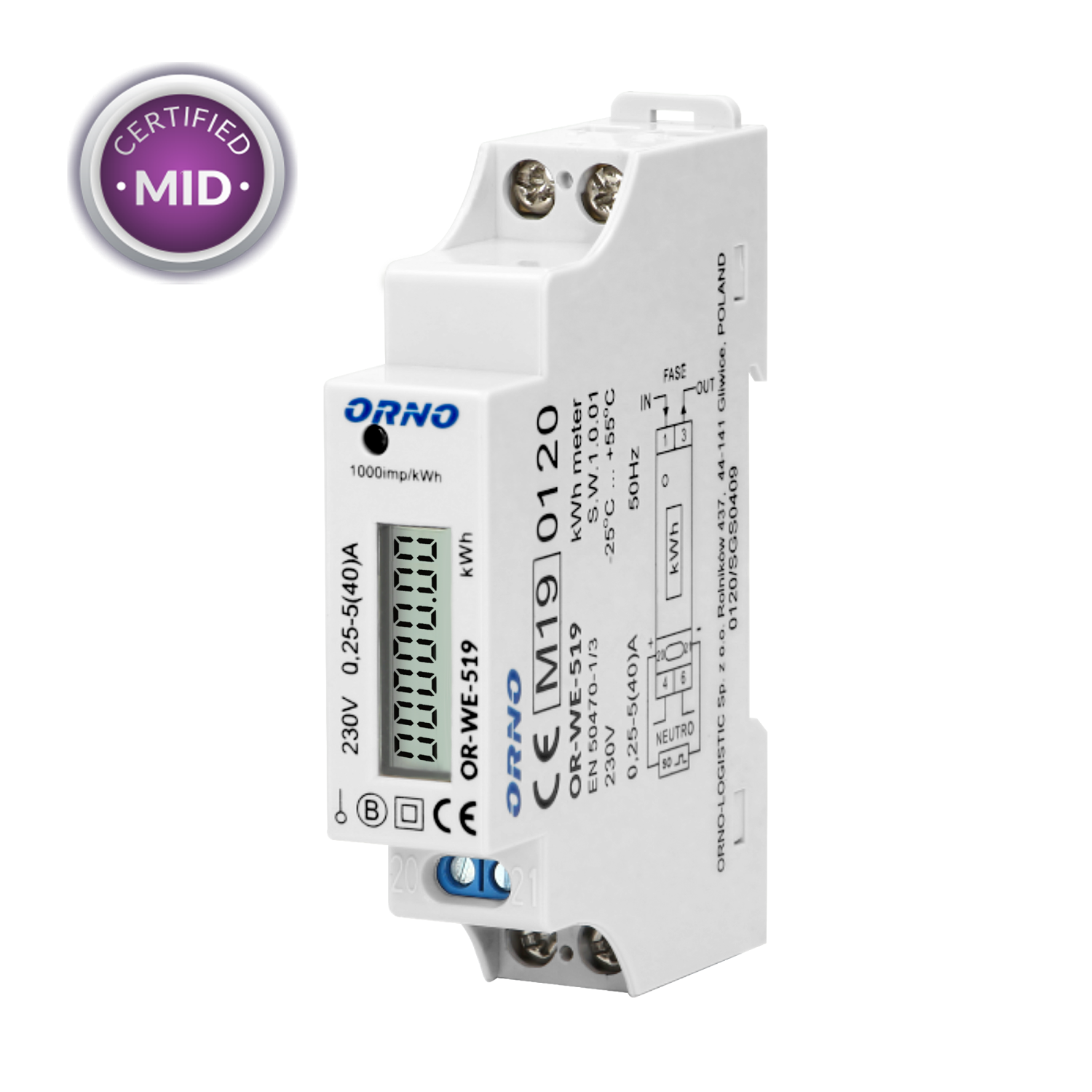

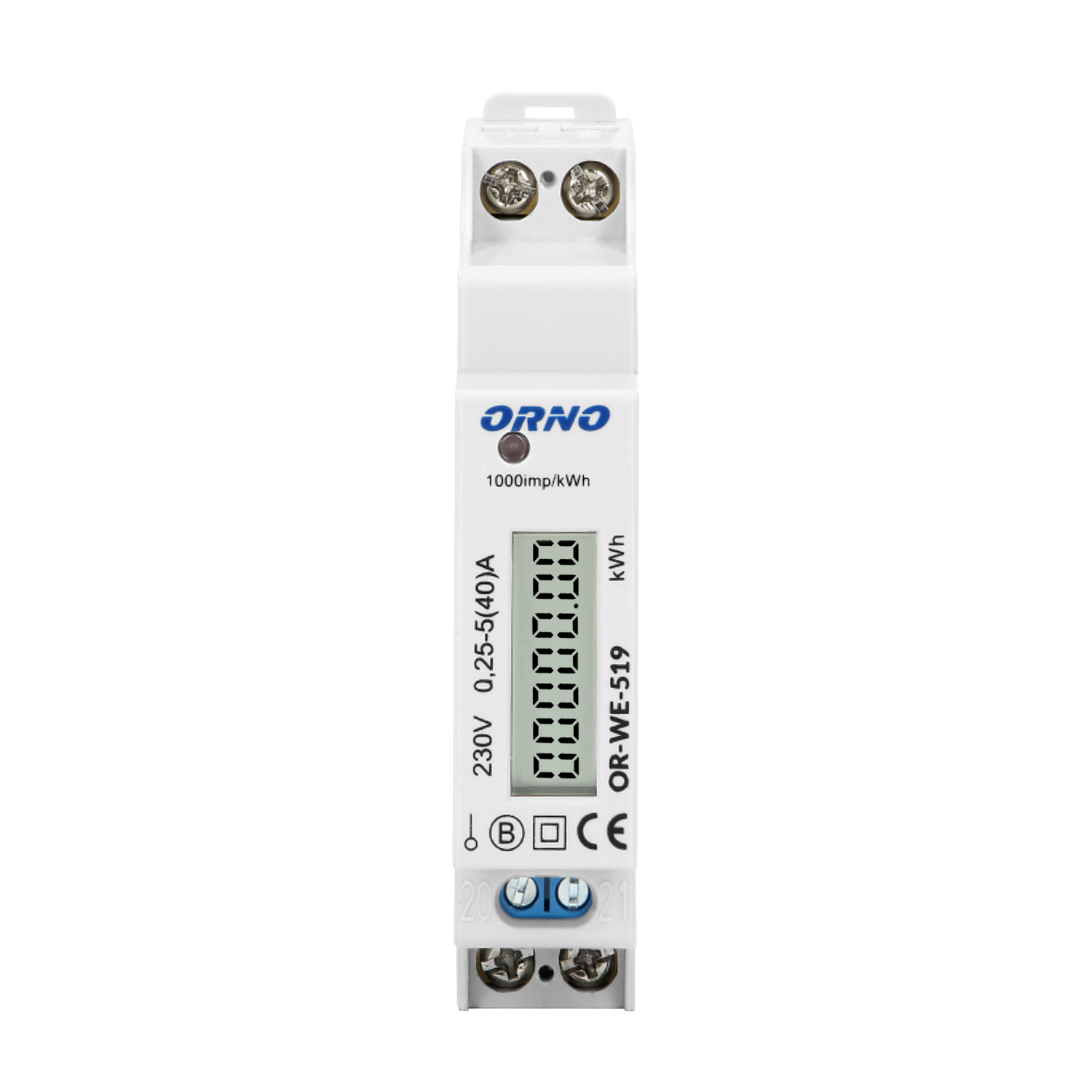

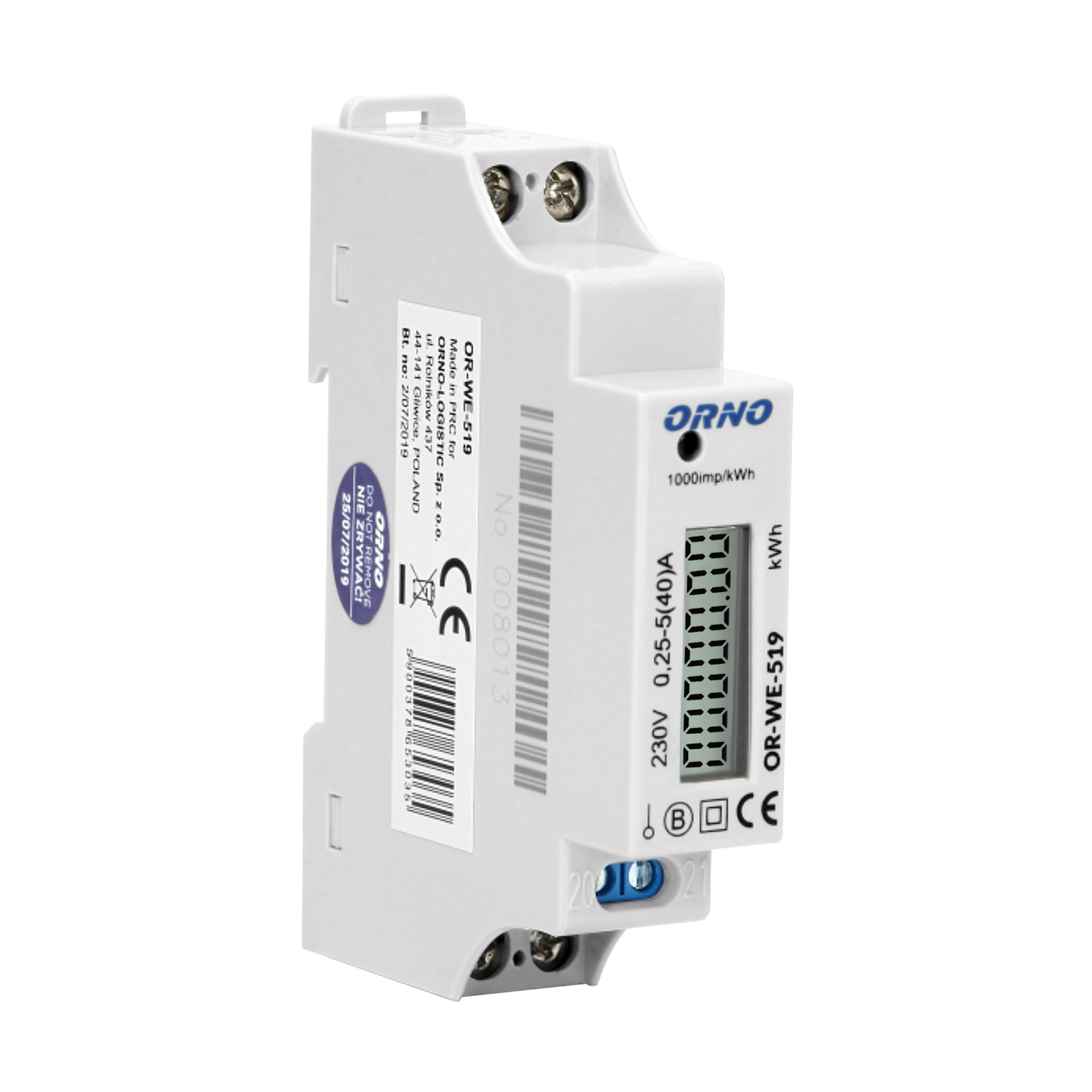

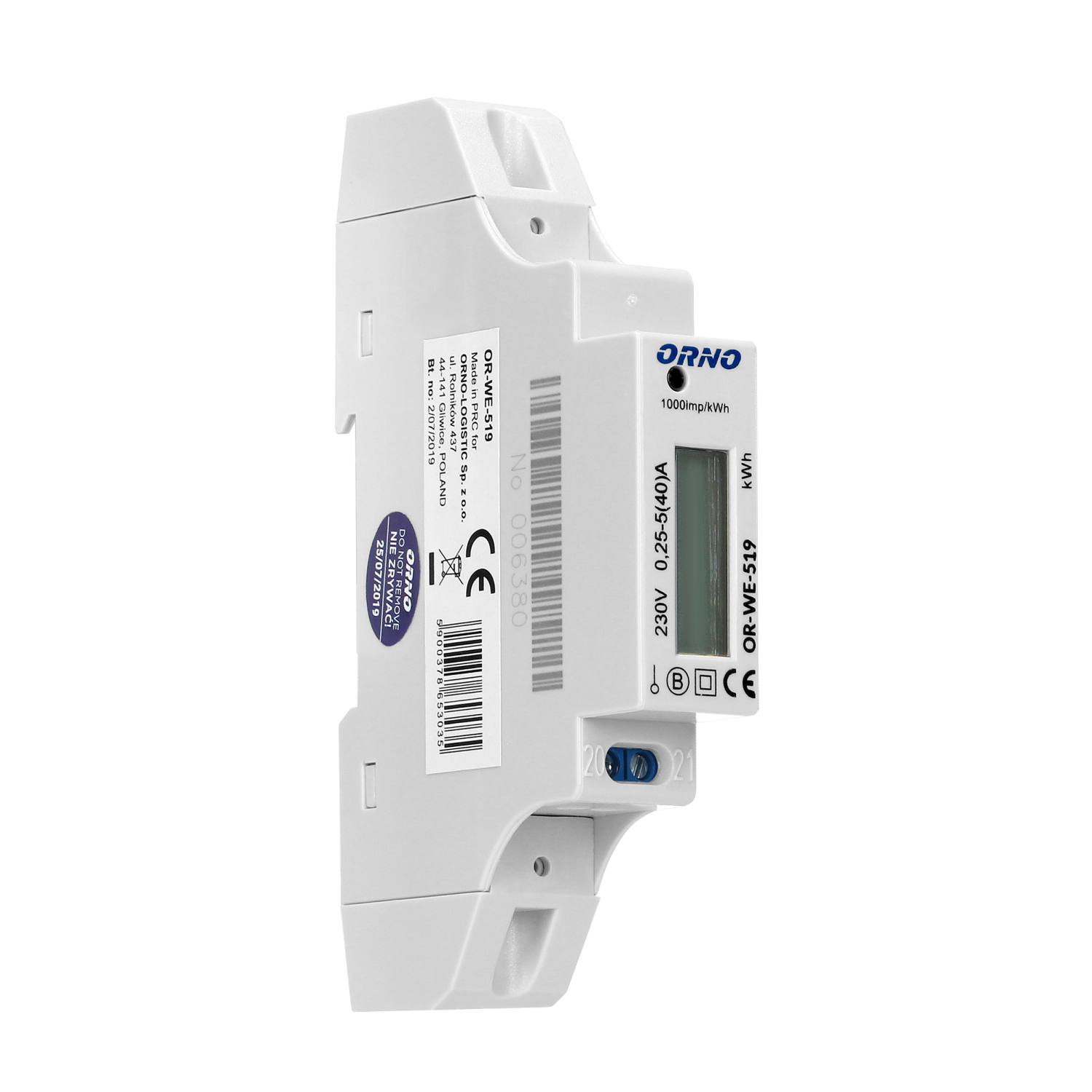

1-phase energy meter, 40A, Power supply: 230V ~, 50Hz, base current: 5A, max. electricity: 40A, min. current: 0.25A, pulse frequency: 1000 imp / kWh
| General information: | |
|---|---|
| Backlight: | No |
| Type: | 1-phase |
| Base current (lb): | 5 A |
| Maximum current (lmax): | 40 A |
| Degree of protection (IP): | 51 |
| Min. current: | 0.25 A |
| Pulse frequency: | 1000 imp/kWh imp/kWh |
| Class of measurement accuracy: | B |
| Pulse output: | Yes |
| Multi-tariff: | No |
| Dimensions - depth: | 60 mm |
| Number of modules: | 1 |
| Dimensions - width: | 18 mm |
| Number of digits on a display: | 5 + 2 |
| Dimensions - height: | 110 mm |
| Compliance with mid certificate (2014/32/eu): | Yes |
| Communication protocol: | none |
| Display: | 5+2 " |
| Ports: | none |
A, pulse frequency: 1000 imp/kWh, signaling read: flashing LCD, installation rail: DIN TH-35mm.jpg)
