Energy meters with MID

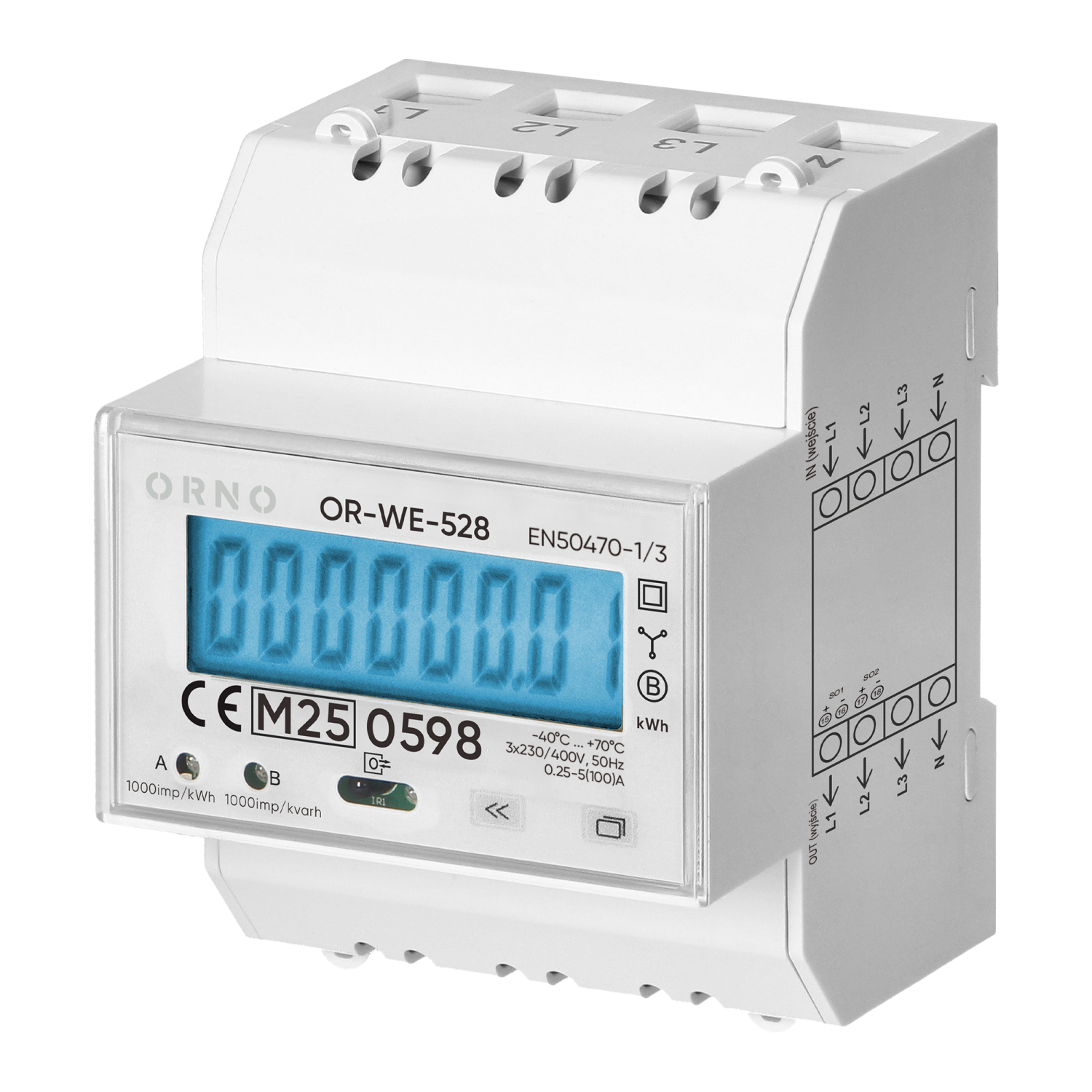

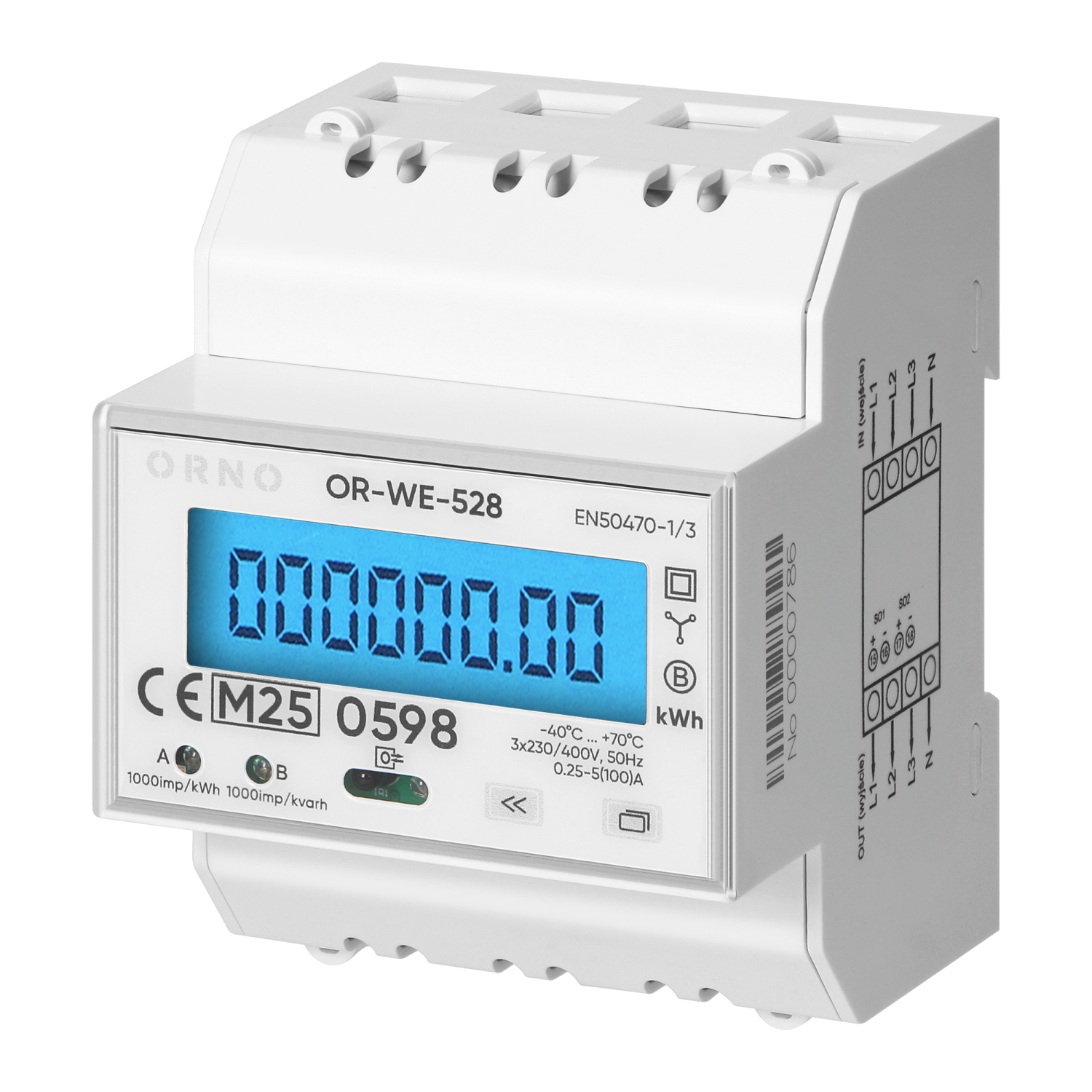

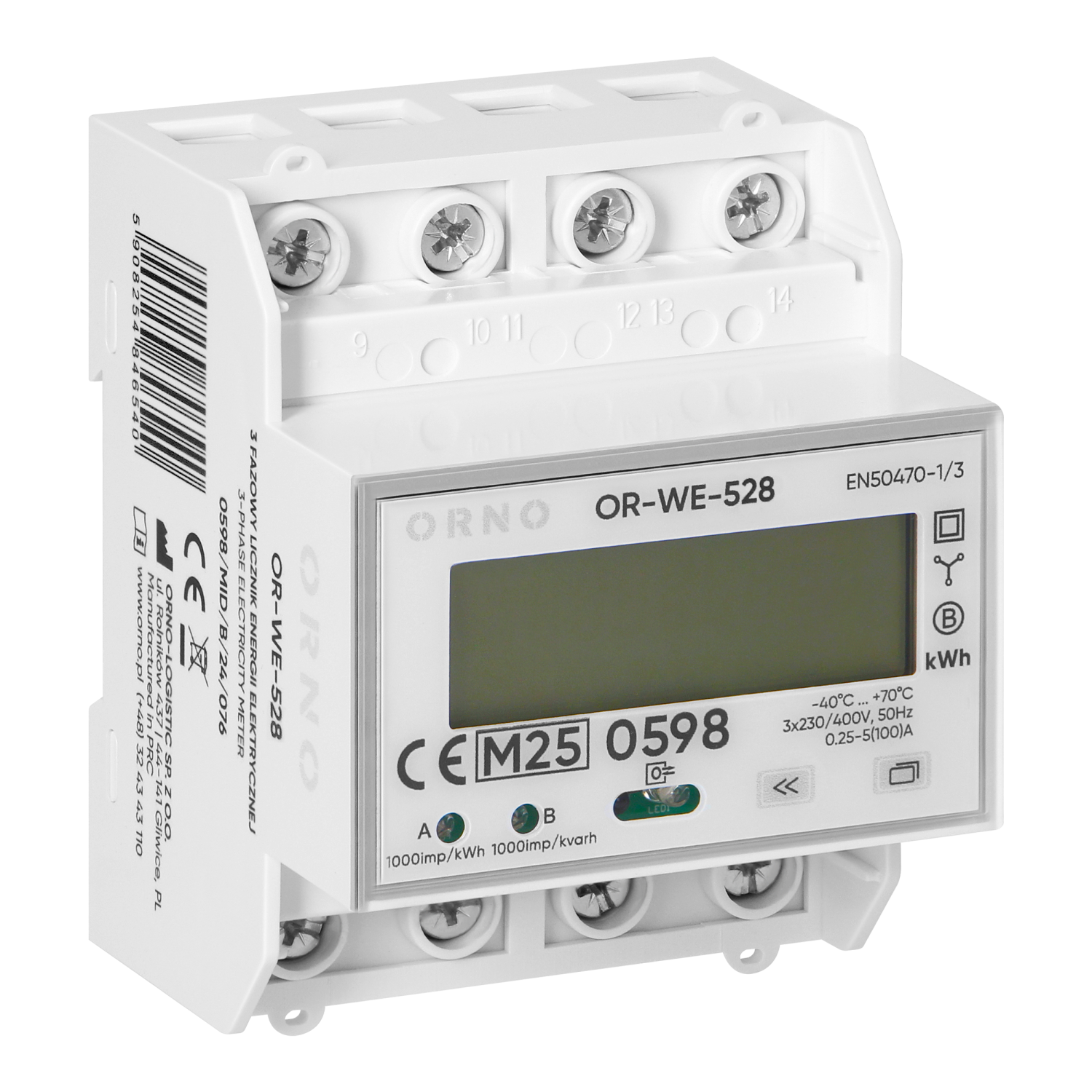

The three-phase energy meter with a maximum current of 100A is a modern measuring device designed for precise monitoring of electricity consumption in three-phase installations. The meter may be used for commercial, industrial and domestic applications where accurate and reliable readings are required.

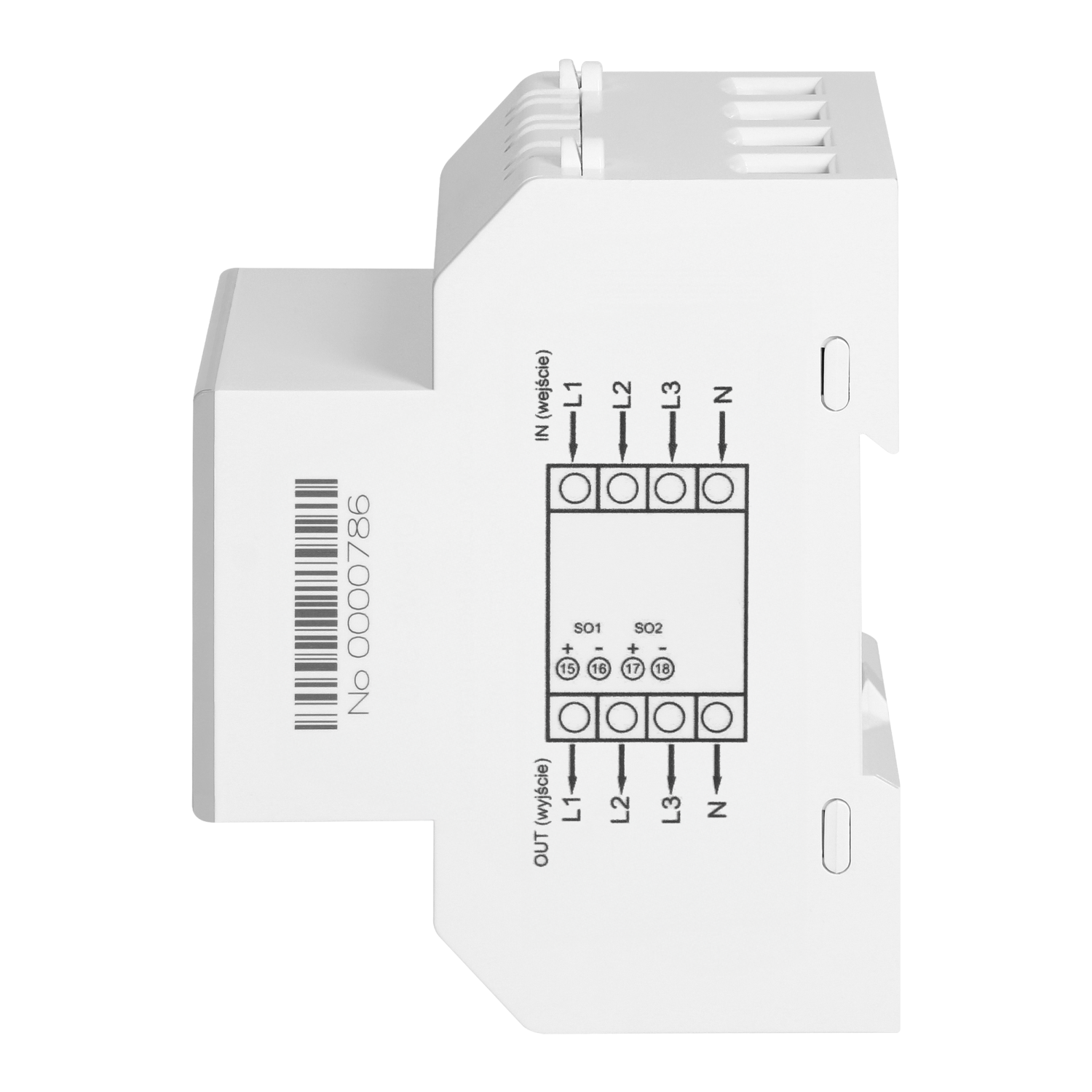

The unit operates with a rated voltage of 3x230/400V~ and a frequency of 50/60Hz, enabling direct energy measurement without the need to use current transformers. The device records active, reactive, consumed and released energy. This allows comprehensive monitoring of energy flows in both directions. A minimum measurement current of 0.25A ensures high sensitivity of the device even at low load.

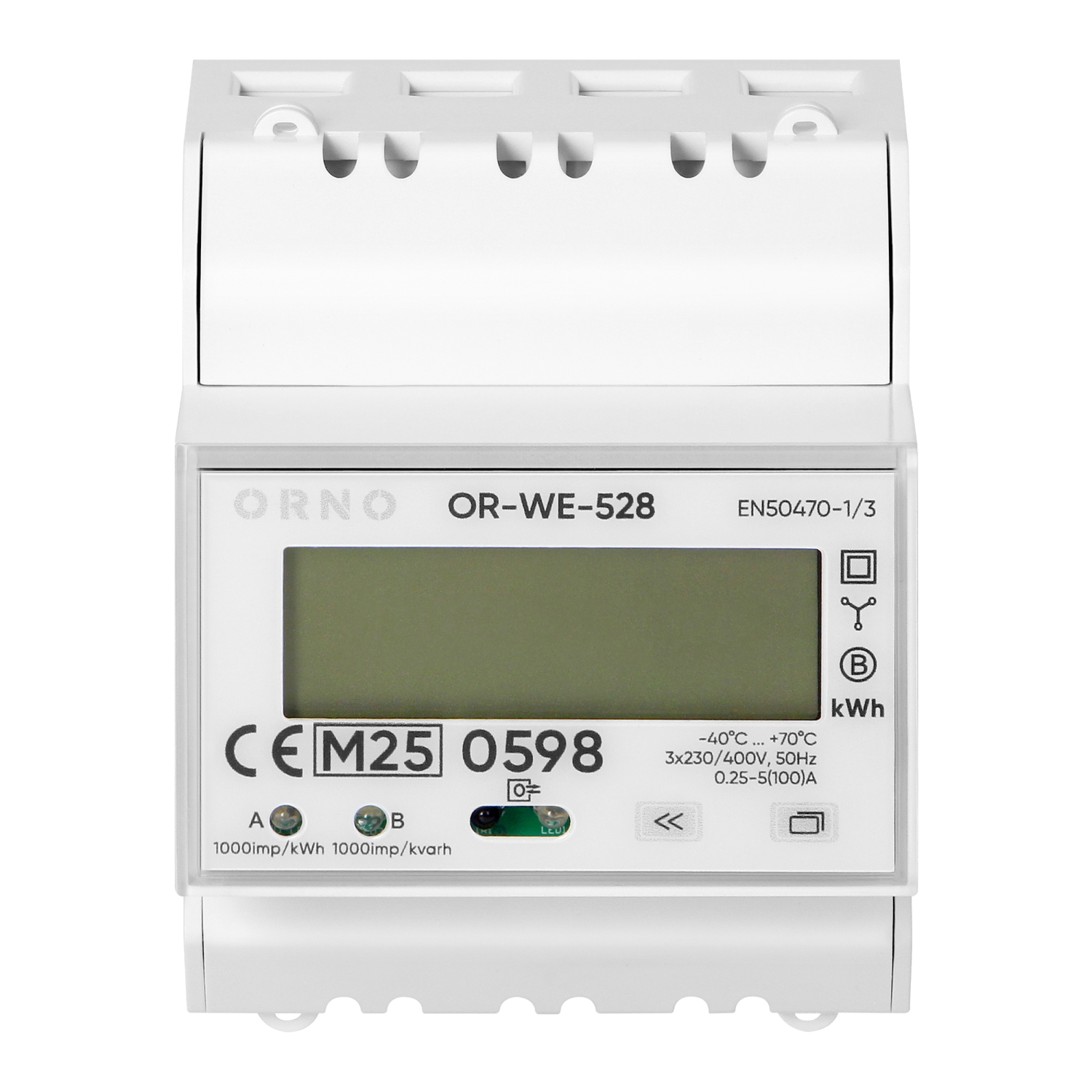

The digital LCD display (6+2 digits) with backlighting allows comfortable readings even in low light. The unit also has a sub-meter reset function, particularly useful in situations requiring periodic resetting of readings.

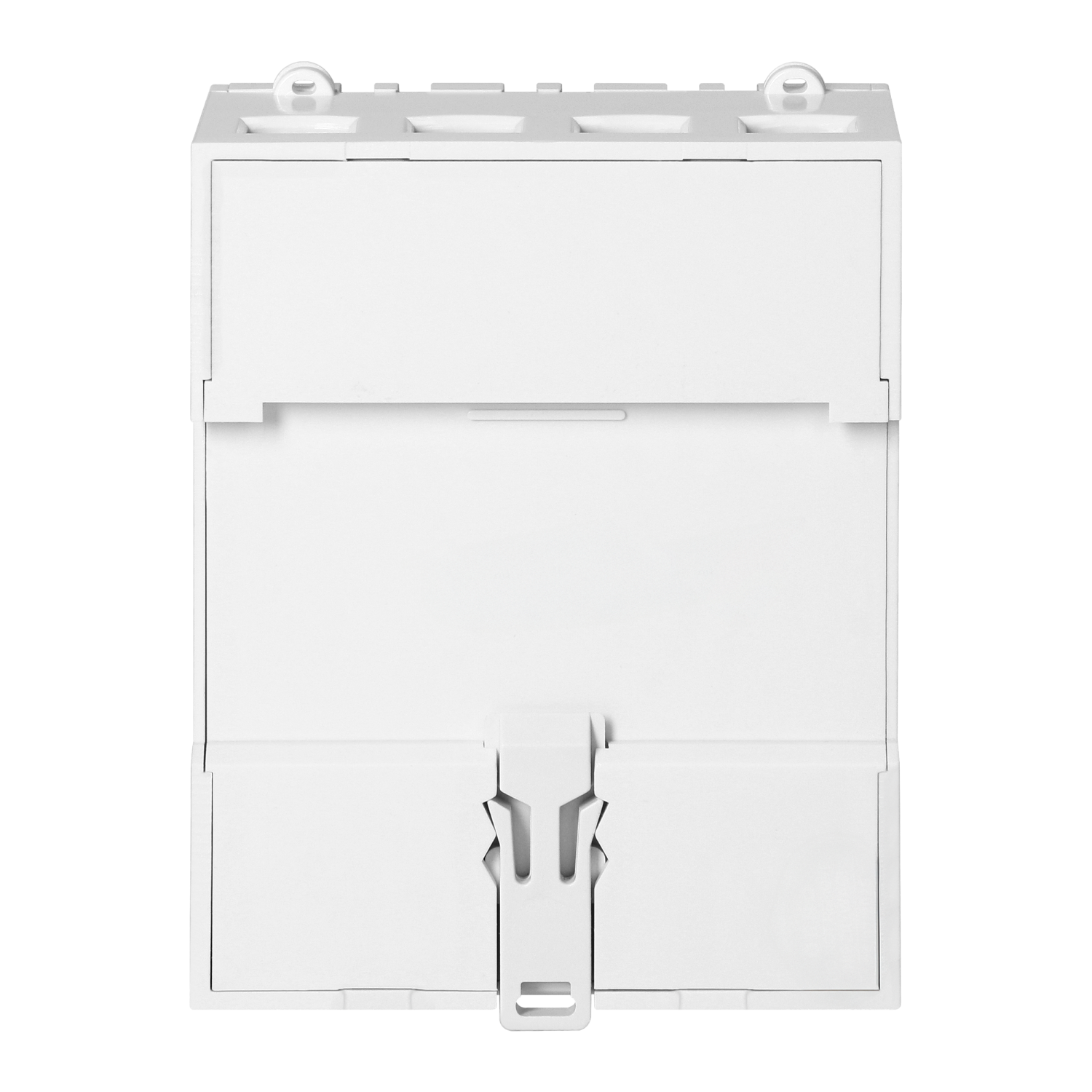

Designed for mounting on a TH-35mm DIN rail, it ensures easy installation in standard switchgears. The housing measures 72x72x90 mm and fits into a standard 3 DIN modules. The maximum cross-section of the connection wires is 35 mm². The IP51 rate allows installation in any environment - dry and exposed to water.

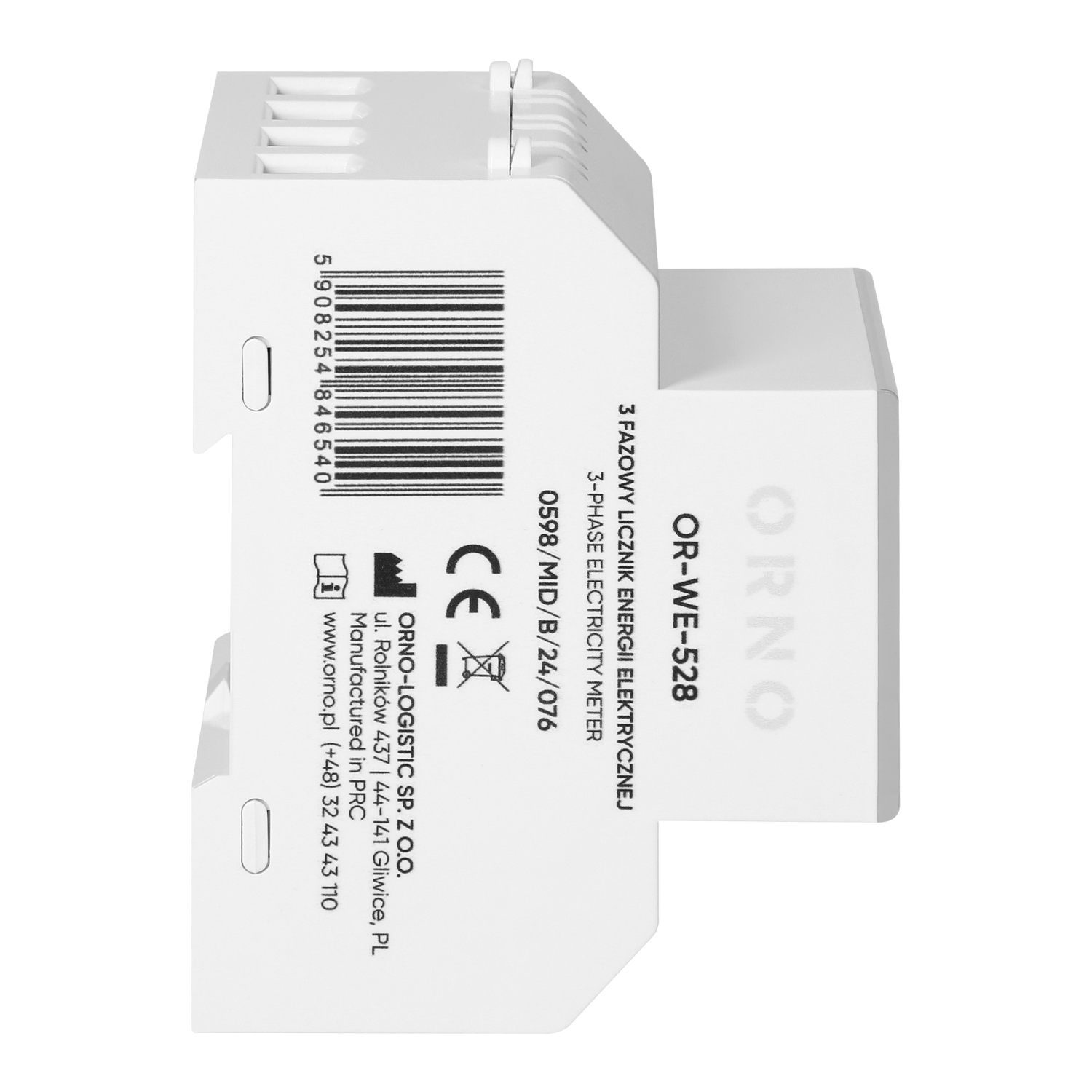

The meter has been designed in accordance with standards: IEC 62052-11:2020, IEC 62053-21:2020, IEC 62053-23:2020, EN 50470-1:2006 and EN 50470-3:2007. Compliance with MID 2014/32/EU allows the meter to be used in commercial spaces where certified equipment is required.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 10 |
| Max. current (Imax) [A]: | 100 |
| Min. Current [A]: | 0.25 |
| Start current (Ist) [A]: | 0.004 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Nominal voltage (Un) L-L [V]: | 400 |
| Frequency [Hz]: | 50 |
| Pulse frequency [imp/kWh]: | 1000 |
| Accuracy class [W]: | <12VA <1W |
| Pole type: | Trójfazowy |
| Model: | Pomiar bezpośredni |
| Measurement accuracy class: | 1 |
| Energy type: | Moc czynna i bierna |
| Active power: | Tak |
| Reactive power: | Tak |
| Forwarded power: | Tak |
| Reversed power: | Tak |
| Suitable for: | Pobór/zwrot |
| Resetting sub-meter possibility: | Tak |
| Memory support: | EEPROM |
| Calibrated: | Tak |
| Approval: | MID (Measuring Instruments Directive) |
| Pulse output: | Optyczny |
| Pulse type: | S0 |
| Pulse rate [lmp/kWh]: | 1000 |
| Pulse output voltage [V DC]: | 12-27 |
| Pulse output current [mA]: | ≤27 |
| Multi-tariff: | Nie |
| Type of indication: | Cyfrowy |
| Backlight: | Tak |
| IR port: | Tak |
| Mounting method: | Adapter szyny DIN |
| Width in number of modular spacings: | 4,3 |
| Max. Cross-section of cables [mm²]: | 35 |
| Width [mm]: | 72 |
| Depth [mm]: | 72 |
| Height [mm]: | 90 |
| Temperature Range [°C]: | -40 - +70 |
| Max. Humidity: | ≤95% |
| Type of protocol: | IR |
| Type of interface: | EN 62056-21 |
| Degree of protection (IP): | IP51 |
| Compliance with: | MID 2014/32/EU |
| Compliance with standards: | IEC 62052-11:2020 IEC 62053-21:2020 IEC 62053-23:2020 EN 50470-1:2006 EN 50470-3:2006 |
| Display [kWh]: | LCD 6+2 = 123456,12 |
| Display - number of digits: | 6+2 |
| Moment dokręcenia złącza siłowego [Nm]: | 2.5 |
| Moment dokręcenia złącza komunikacyjnego [Nm]: | 0.4 |
A, pulse frequency: 1000 imp/kWh, signaling read: flashing LCD, installation rail: DIN TH-35mm.jpg)
