Energy meters with MID

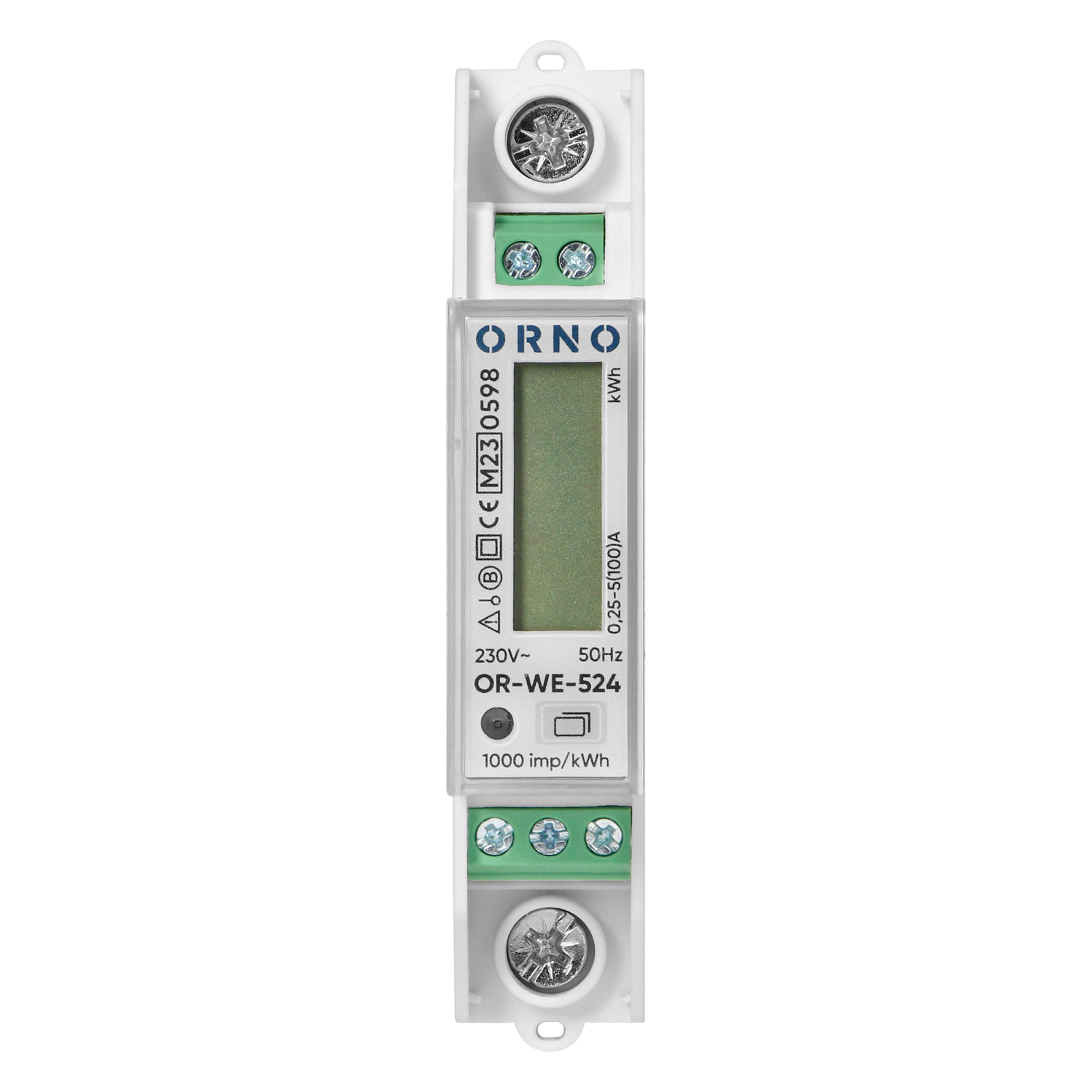

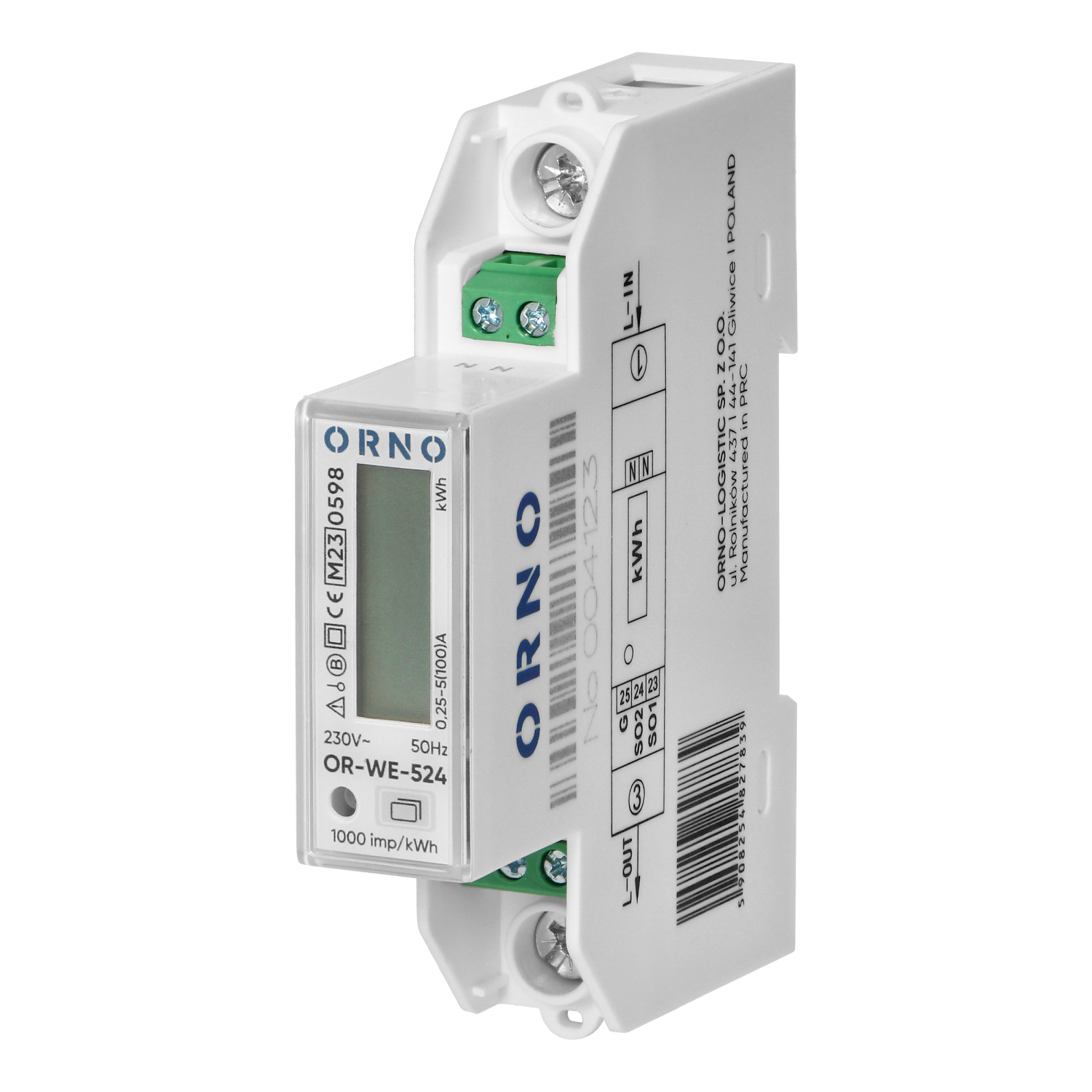

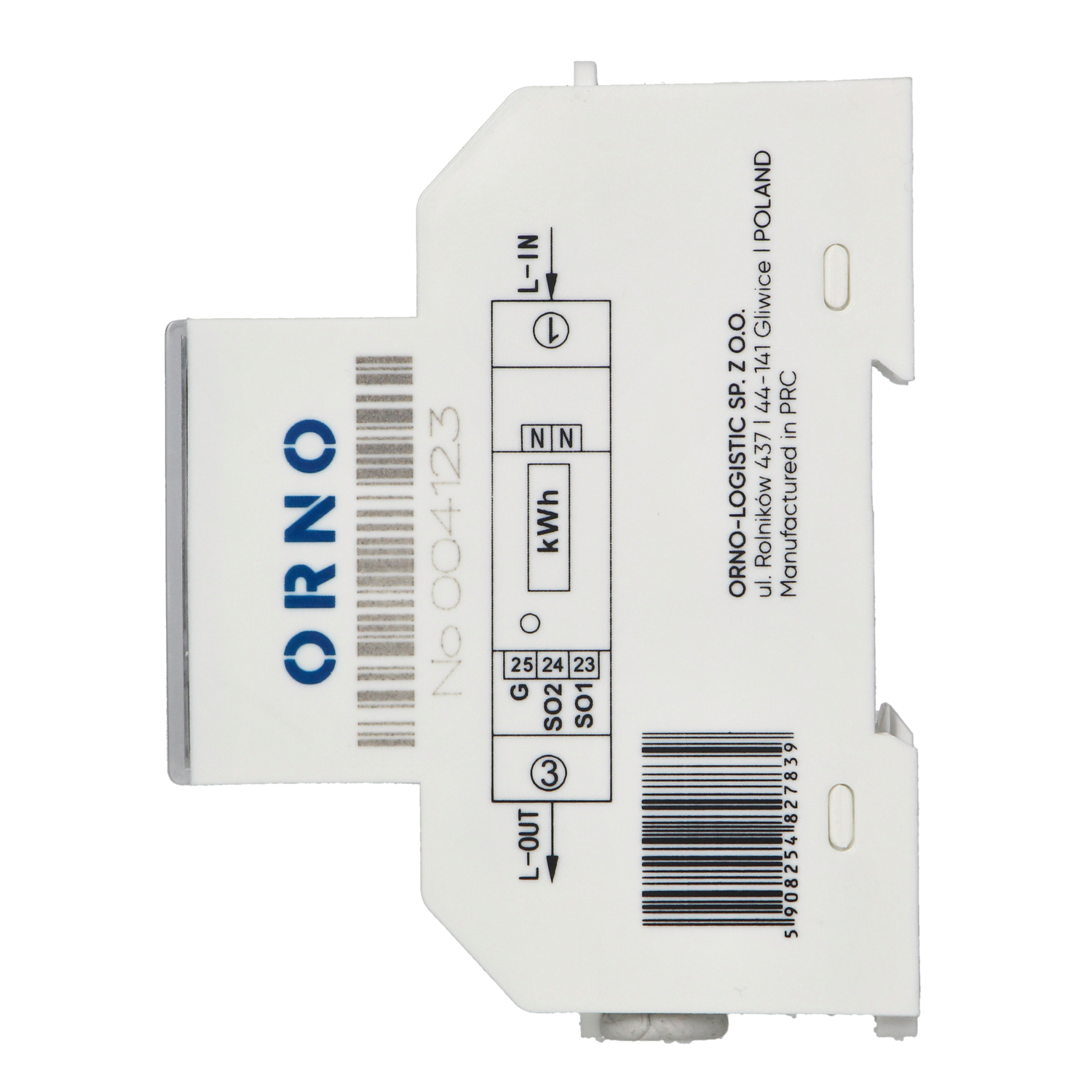

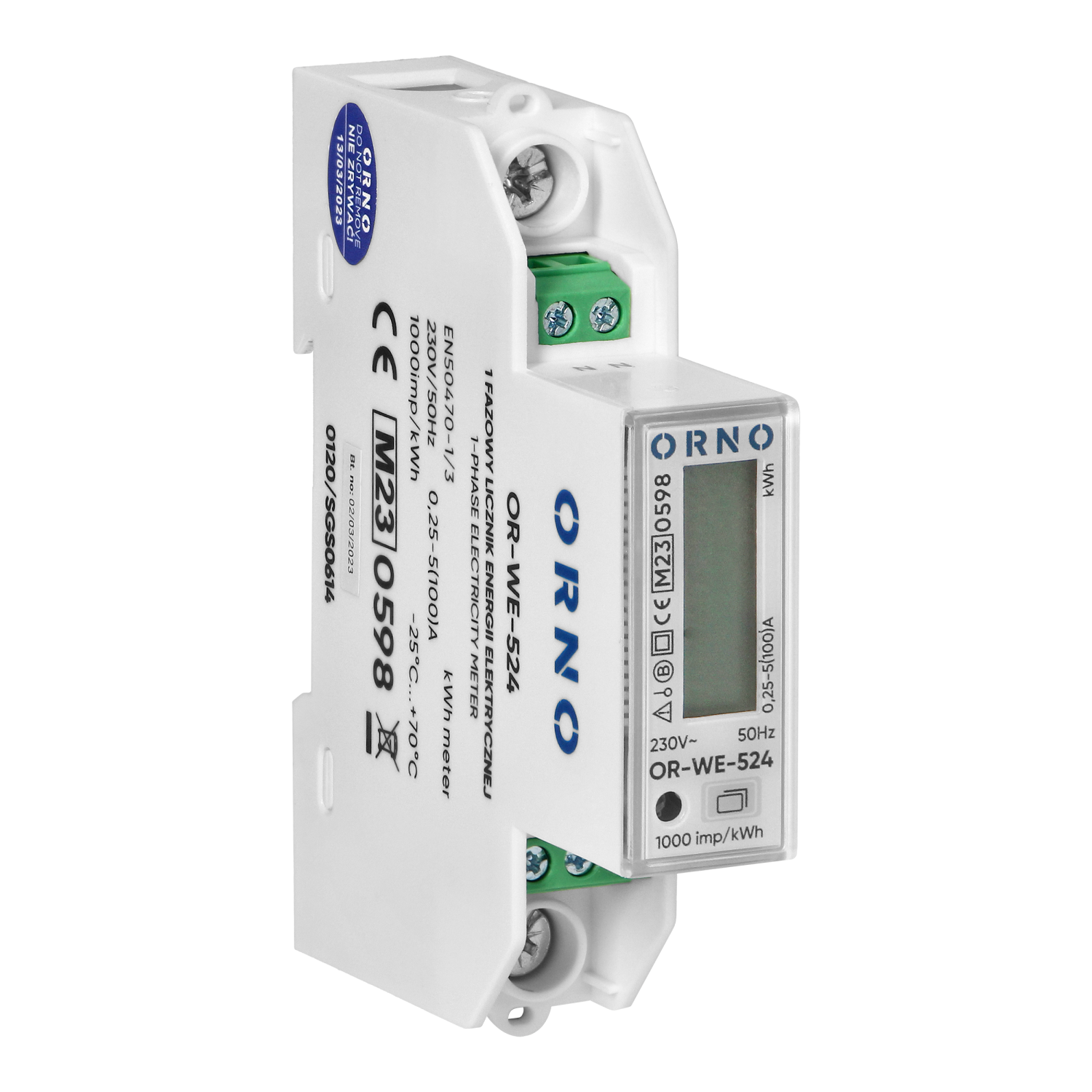

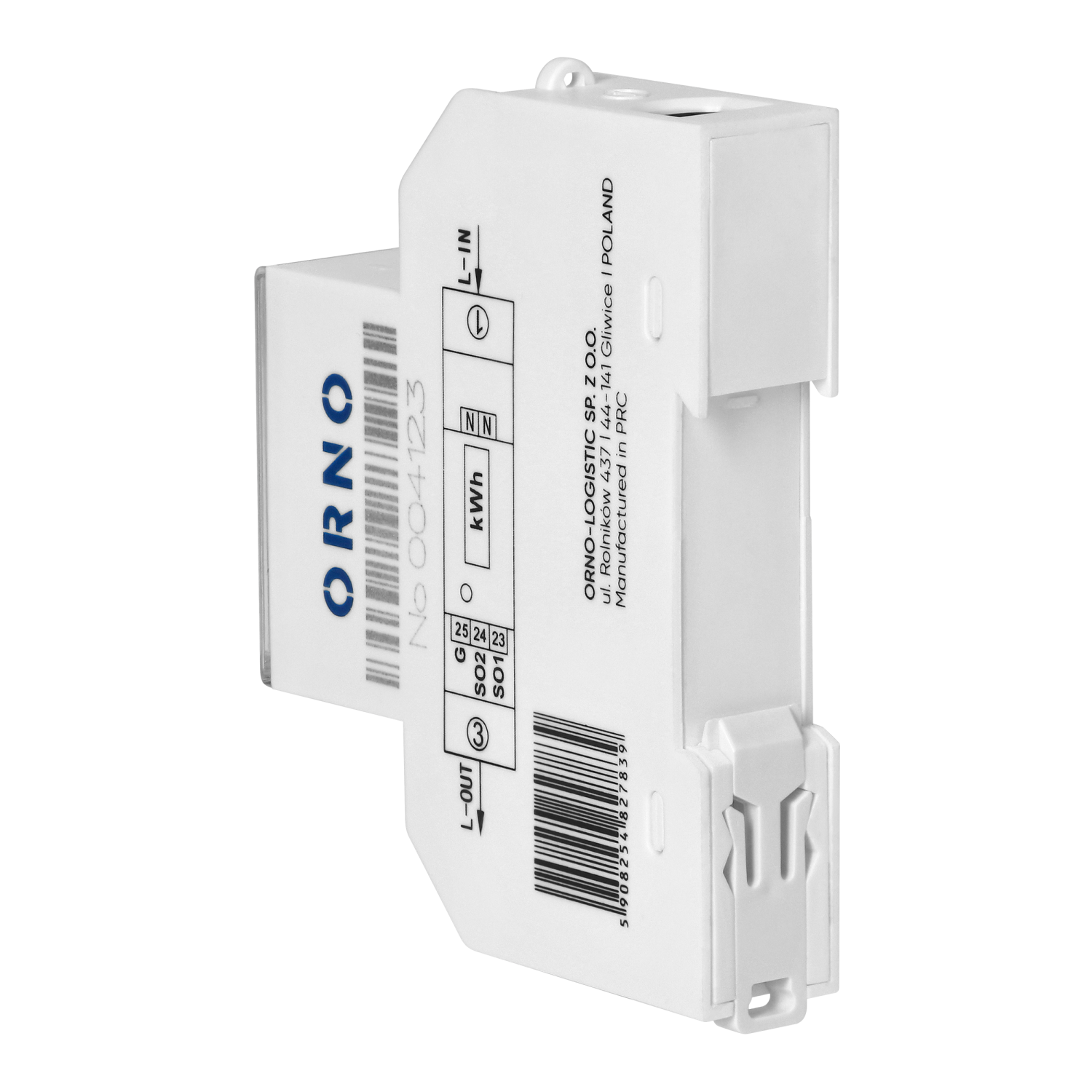

The device for making indications in metric units (kWh), is used for direct measurement of active power in a single-phase system. A special electronic circuit under the influence of the flowing current and applied voltage generates pulses in an amount proportional to the consumed electricity. Energy consumption in a phase is indicated by a flashing LED. The number of pulses is converted into consumed energy, and its value is indicated by the LCD display (5+2). Power supply: 230V~, 50Hz, base current: 5A, max. current: 100A, min. current: 0.25A, pulse frequency: 1000 imp/kWh, accuracy class B, housing with a width of one module, mounting on DIN rail TH-35 mm. Energy measurement is performed in accordance with EN50470-1:2006, EN50470-3:2006 MID Directive 2014/32/EU. The meter is bi-directional that is, it also counts the energy produced by the consumer.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 10 |
| Max. current (Imax) [A]: | 100 |
| Min. Current [A]: | 0.25 |
| Start current (Ist) [A]: | 0.004 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Frequency [Hz]: | 50 |
| Pole type: | Jednofazowy |
| Model: | Pomiar bezpośredni |
| Measurement accuracy class: | 1 |
| Energy type: | Moc czynna i bierna |
| Active power: | Tak |
| Reactive power: | Tak |
| Forwarded power: | Tak |
| Reversed power: | Tak |
| Suitable for: | Pobór/zwrot |
| Resetting sub-meter possibility: | Tak |
| Memory support: | EEPROM |
| Calibrated: | Tak |
| Approval: | MID (Measuring Instruments Directive) |
| Pulse output: | Optyczny |
| Pulse type: | S0 |
| Pulse rate [lmp/kWh]: | 1000 |
| Pulse output voltage [V DC]: | 12-27 |
| Pulse output current [mA]: | ≤27 |
| Multi-tariff: | Nie |
| Type of indication: | Cyfrowy |
| Backlight: | Tak |
| IR port: | Nie |
| Mounting method: | Adapter szyny DIN |
| Width in number of modular spacings: | 1 |
| Max. Cross-section of cables: | 25 |
| Width [mm]: | 18 |
| Depth [mm]: | 72 |
| Height [mm]: | 90 |
| Temperature Range: | -25 - +70 |
| Max. Humidity: | ≤95% |
| Degree of protection (IP): | IP51 |
| Compliance with: | MID 2014/32/EU |
| Compliance with standards: | EN 50470-1:2006 EN 50470-3:2006 |
| Display [kWh]: | LCD 5+2 = 12345,13 |
| Display - number of digits: | 5+2 |
| Auxiliary wire terminals [Nm]: | 2.5 |
| Auxiliary wire terminals [Nm]: | 0.4 |
