Energy meters with MID
New

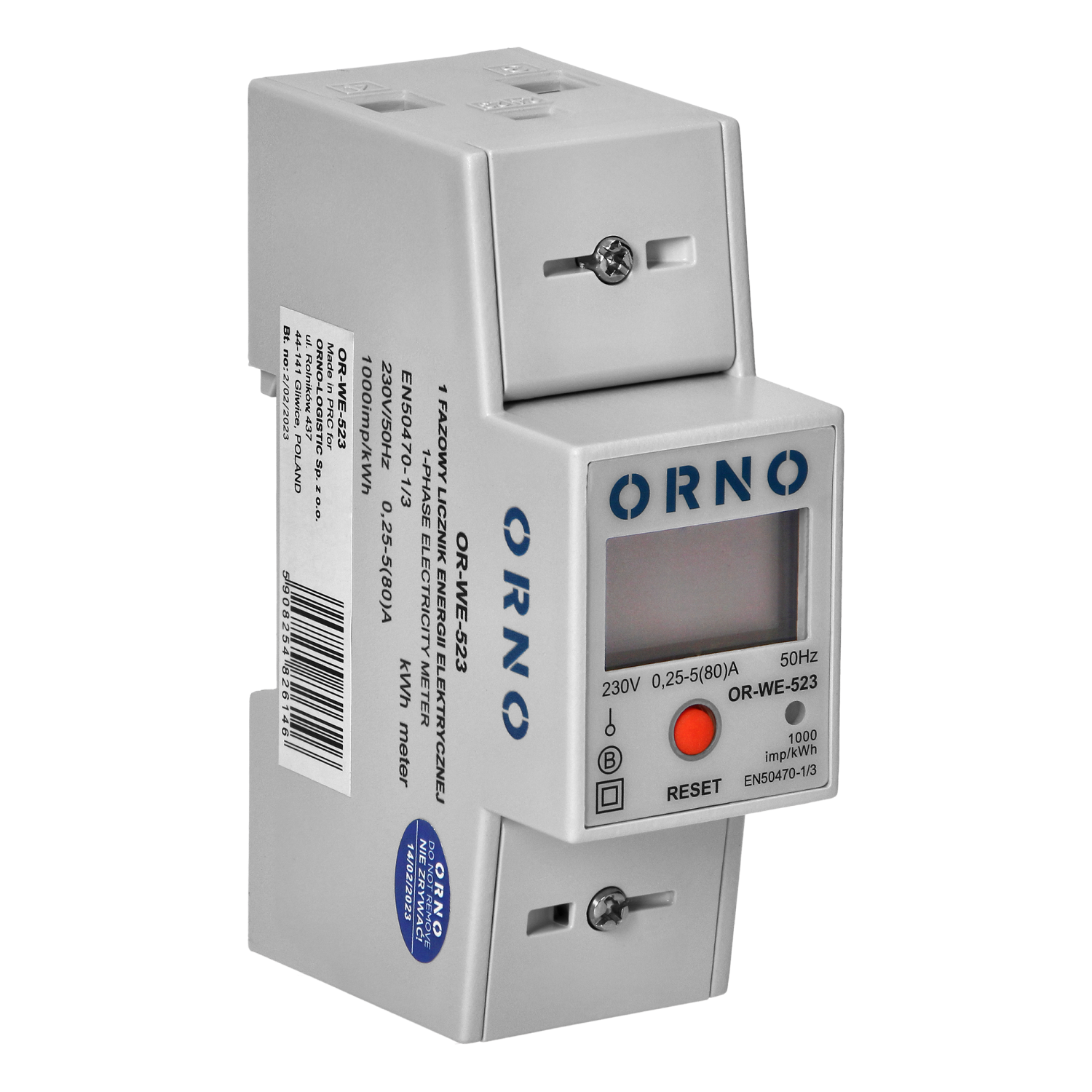

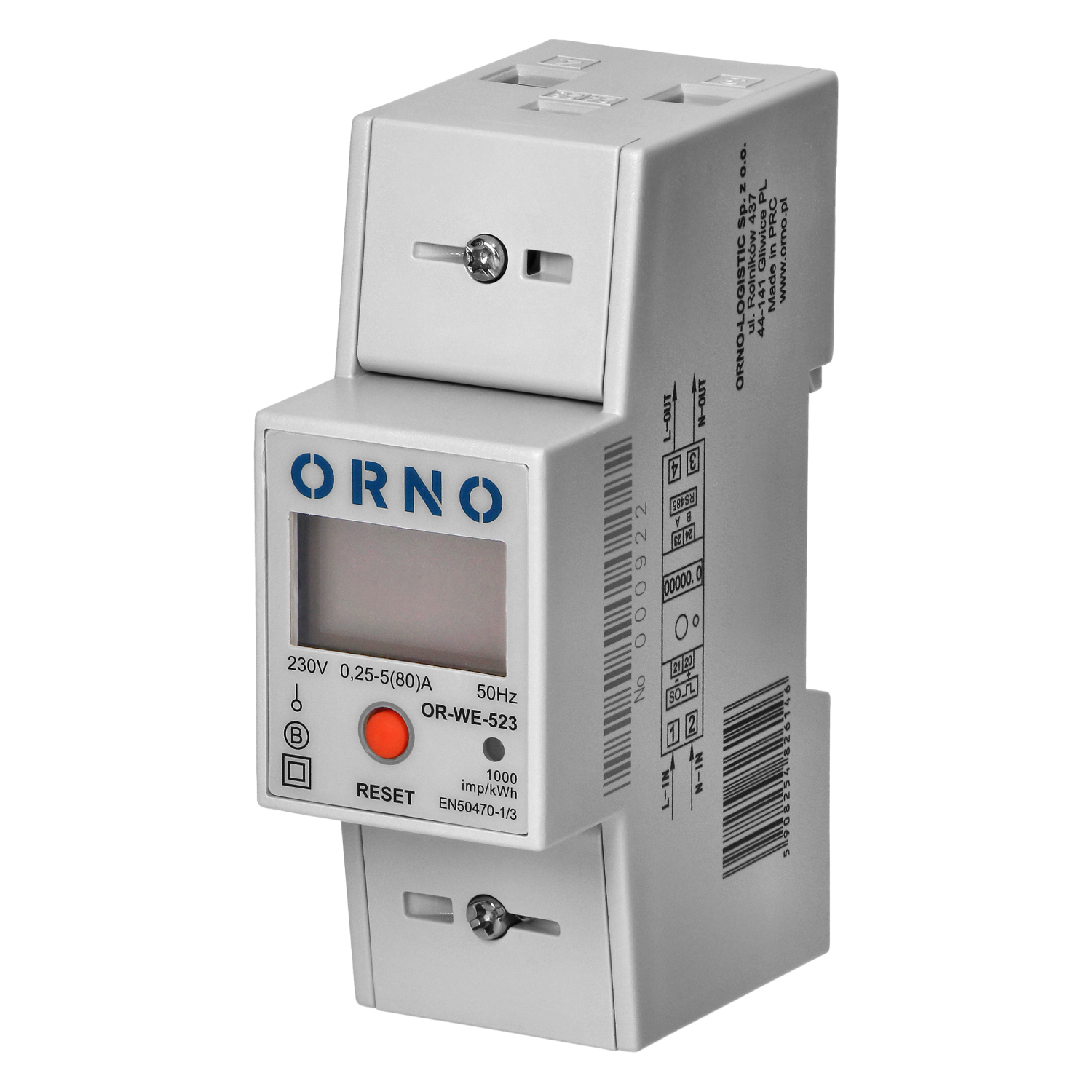

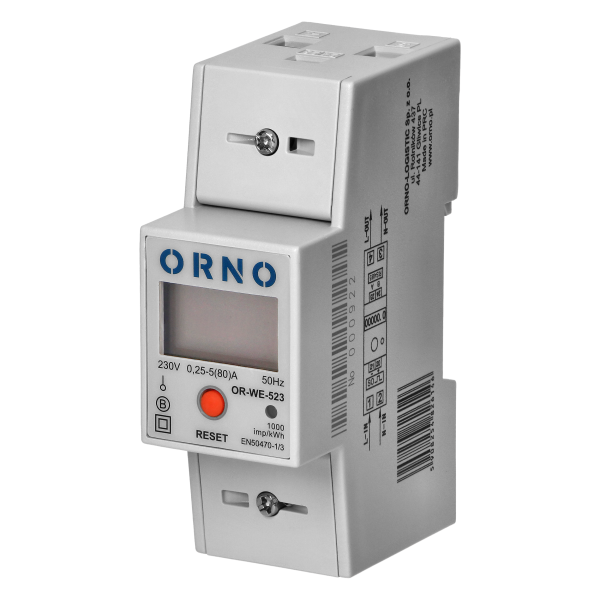

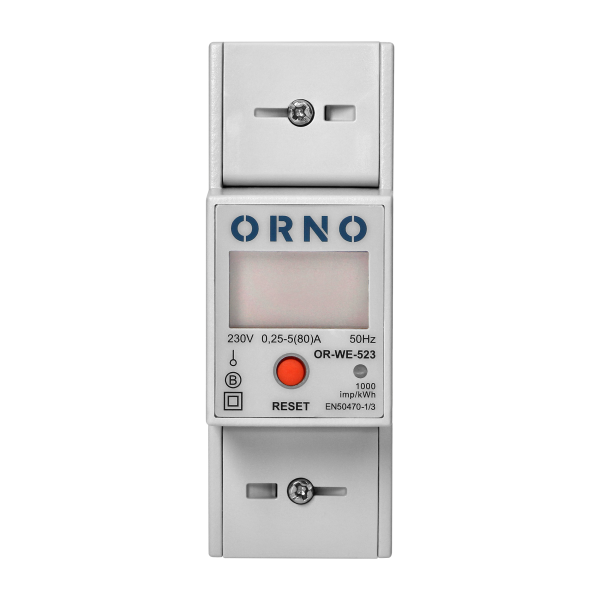

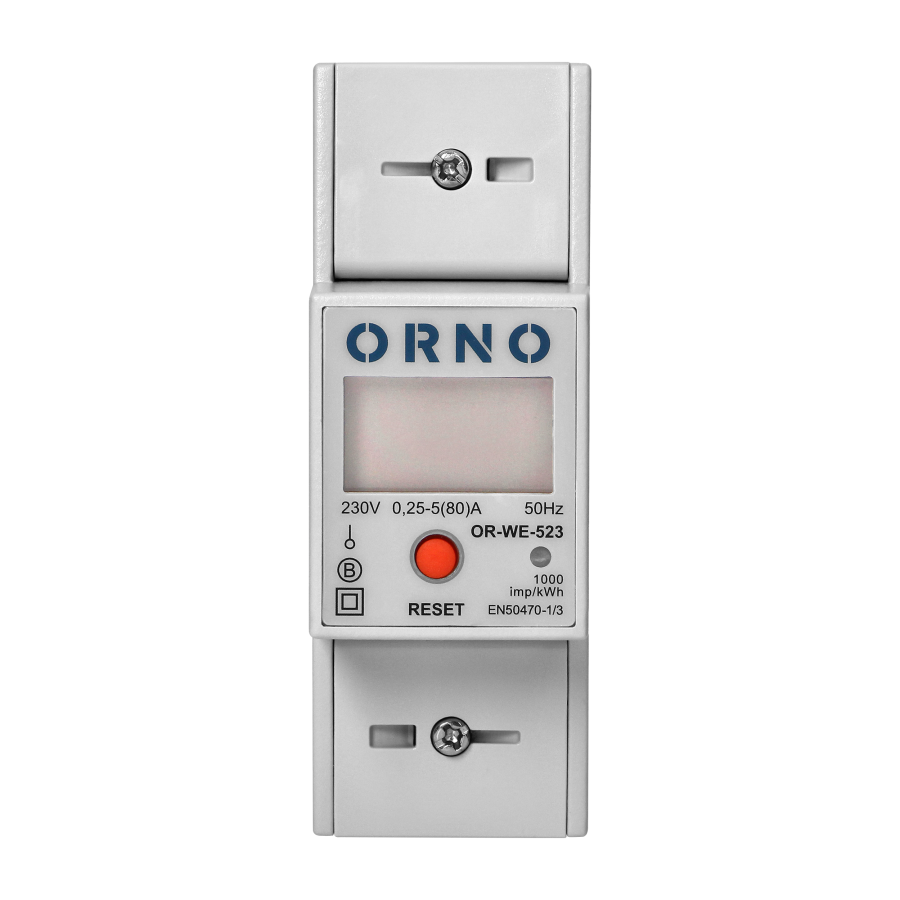

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (5 + 1). Equipped with an additional indicator with the possibility of erasing. Pulse output: voltage: 27V; current: 27mA; current pulse: 90ms; maximum cable length: 20 m; connection terminals 20 and 21; maximum value: max voltage 60VDC; maximum current of 50mA.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 5 |
| Max. current (Imax) [A]: | 80 |
| Min. Current [A]: | 0.25 |
| Start current (Ist) [A]: | 0.001 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Frequency [Hz]: | 50 |
| Accuracy class [W]: | <0.4Wh |
| Pole type: | Jednofazowy |
| Measurement accuracy class: | 1 |
| Energy type: | Moc czynna i bierna |
| Active power: | Tak |
| Reactive power: | Tak |
| Forwarded power: | Tak |
| Reversed power: | Tak |
| Resetting sub-meter possibility: | Tak |
| Memory support: | EEPROM |
| Measurement type load profile: | Tak |
| Escapement mechanism: | Tak |
| Calibrated: | Tak |
| Approval: | MID 2014/32/EU |
| Pulse output: | Tak |
| Pulse type: | S0 |
| Pulse rate [lmp/kWh]: | 1000 |
| Pulse output voltage [V DC]: | 12-27VDC |
| Pulse output current [mA]: | ≤ 27mA |
| Multi-tariff: | Nie |
| Type of indication: | Cyfrowy |
| Backlight: | Nie |
| Mounting method: | Adapter szyny DIN |
| Width in number of modular spacings: | 2 |
| Max. Cross-section of cables: | 35 |
| Width [mm]: | 36.5 |
| Depth [mm]: | 65 |
| Height [mm]: | 129 |
| Temperature Range: | -25°C +55°C |
| Max. Humidity: | ≤8 VA, ≤0,4 W |
| Type of protocol: | RS-485 |
| Type of interface: | MODBUS |
| Number of positions total (counter): | LCD 5+3 = 12345,123 |
| Degree of protection (IP): | IP20 |
| Compliance with: | MID 2014/32/EU |
| Compliance with standards: | EN50470-1:2006, EN50470-3:2006 |
| Auxiliary wire terminals [Nm]: | 2.5 |
| Auxiliary wire terminals [Nm]: | 0.4 |
