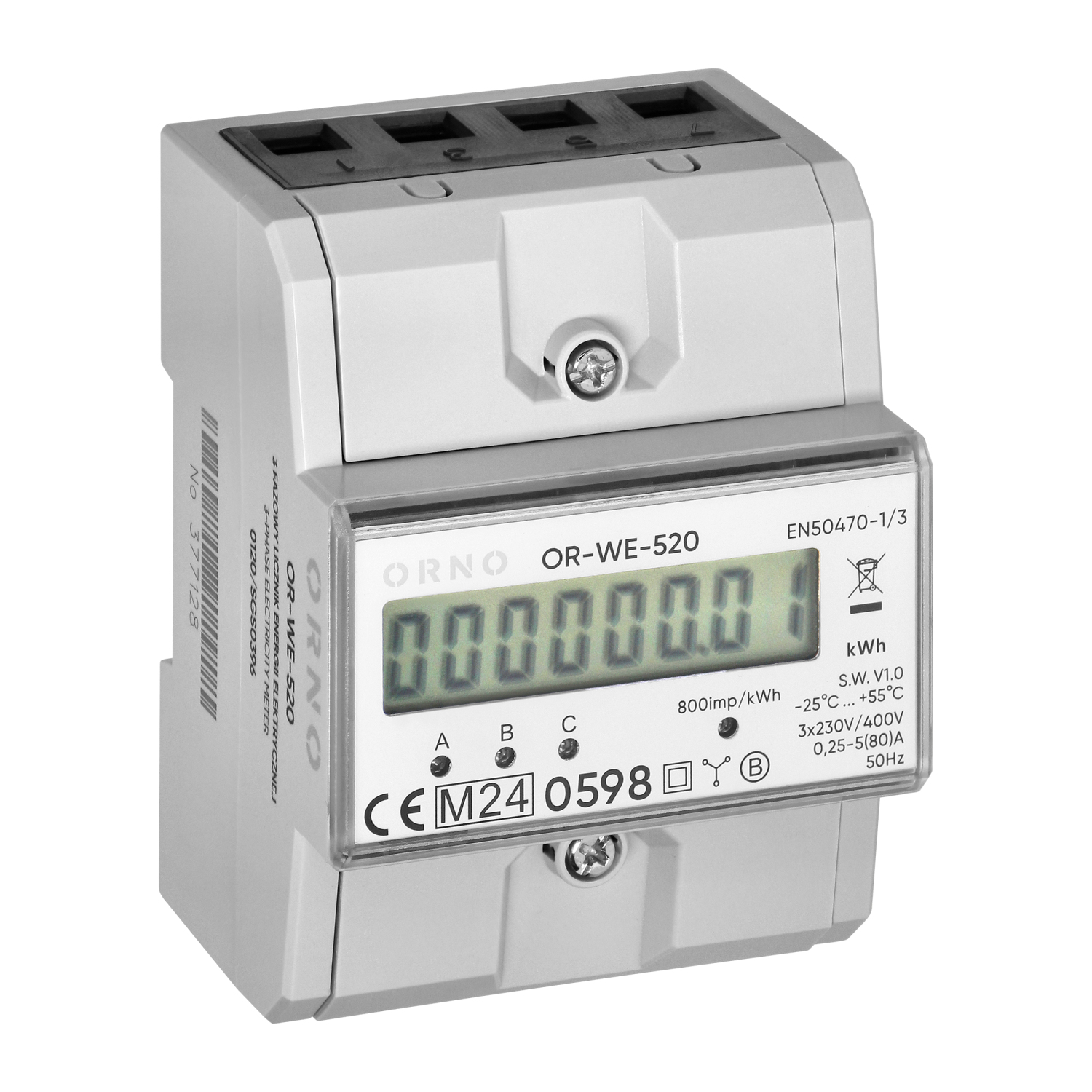

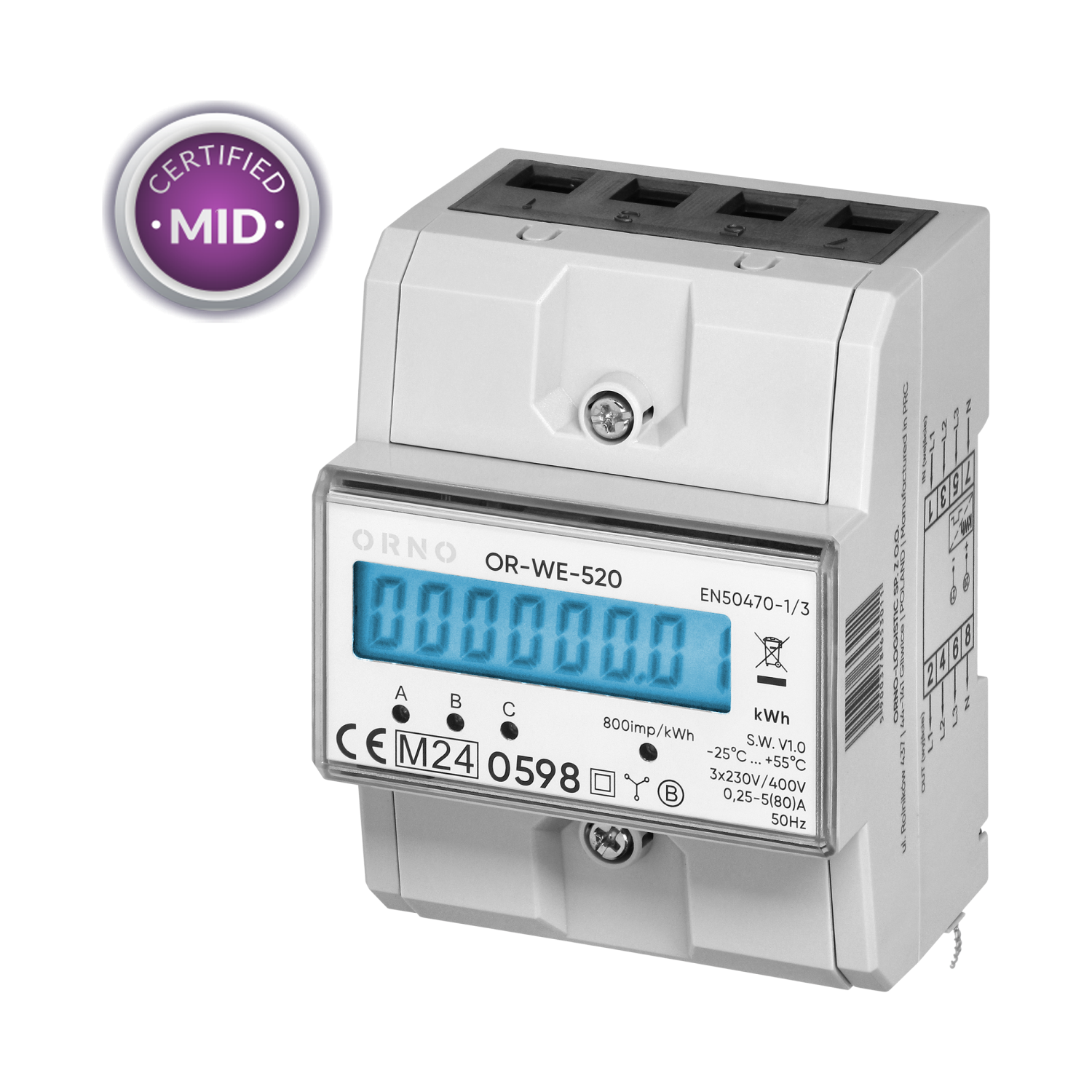

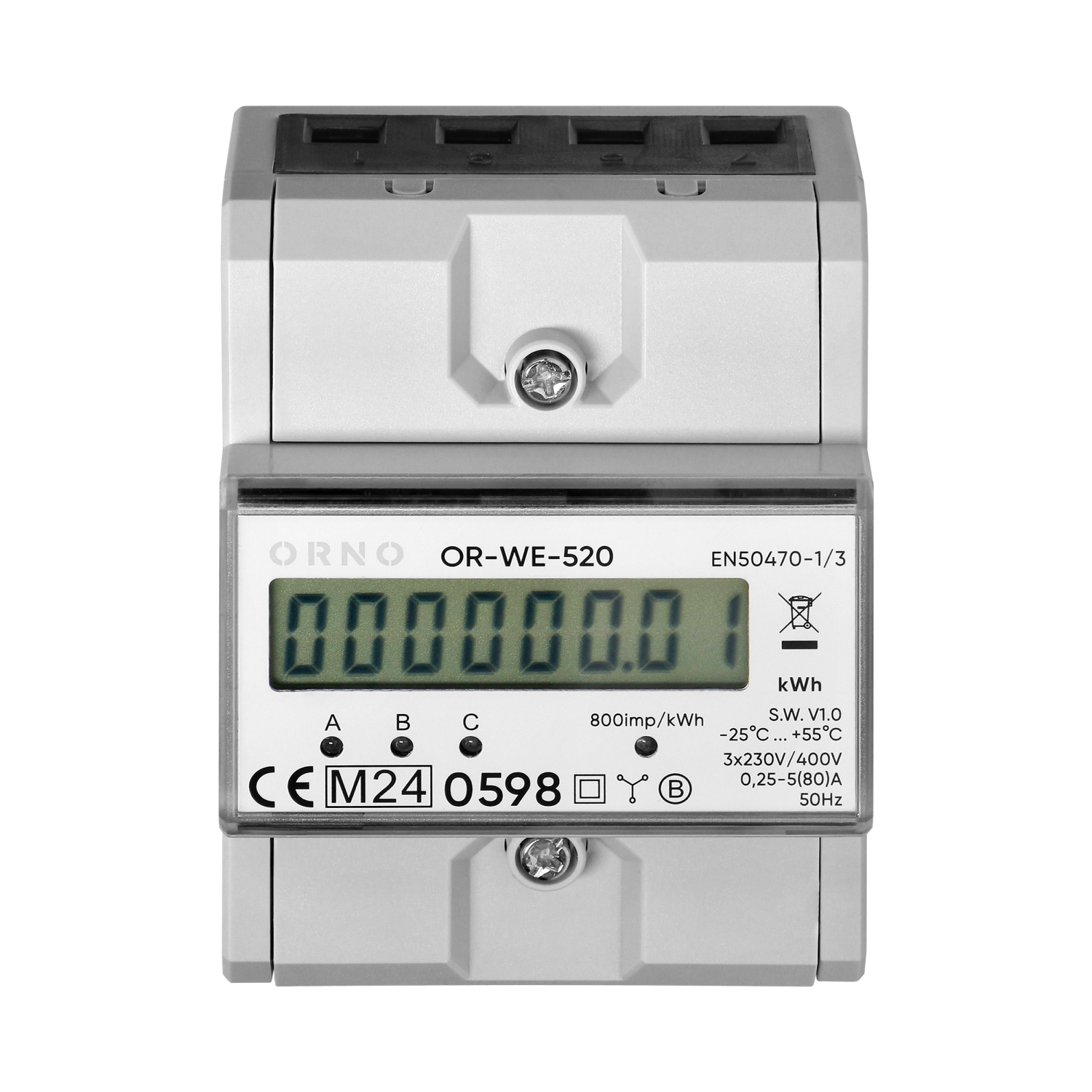

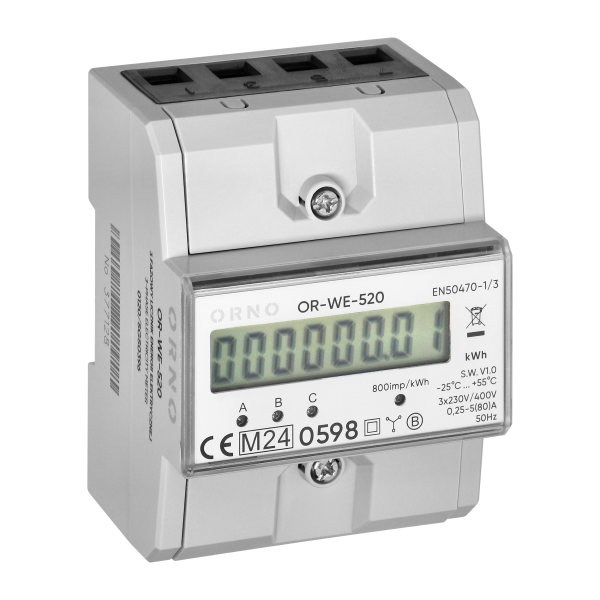

OR-WE-520
Until on stock

Description

3-phase energy meter, 80A, Power supply: 230V ~, 50Hz, base current: 5A, max. electricity: 80A, min. current: 0.25A, pulse frequency: 800 imp / kW

General information:
Backlight: Yes
Type: 3-phase
Base current (lb): 5 A
Maximum current (lmax): 80 A
Degree of protection (IP): 51
Min. current: 0.25 A
Pulse frequency: 800 imp/kWh
Class of measurement accuracy: B
Pulse output: Yes
Multi-tariff: No
Dimensions - depth: 65 mm
Number of modules: 4.5
Dimensions - width: 76 mm
Number of digits on a display: 6 + 2
Dimensions - height: 100 mm
Compliance with mid certificate (2014/32/eu): Yes
Communication protocol: none
Display: 6+2 "
Ports: none

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:48:14Download
Product data sheetENpdf2025-05-07 13:01:14Download
User manualPL, EN, DEpdf2025-06-25 15:28:55Download
User manualSLpdf2025-06-25 15:28:55Download
User manualROpdf2025-06-25 15:28:55Download
User manualMEpdf2025-06-25 15:28:55Download
User manualSKpdf2025-06-25 15:28:55Download
CertificateENpdf2025-06-25 15:28:55Download
CertificateENpdf2025-06-25 15:28:55Download
