Ceiling sensors

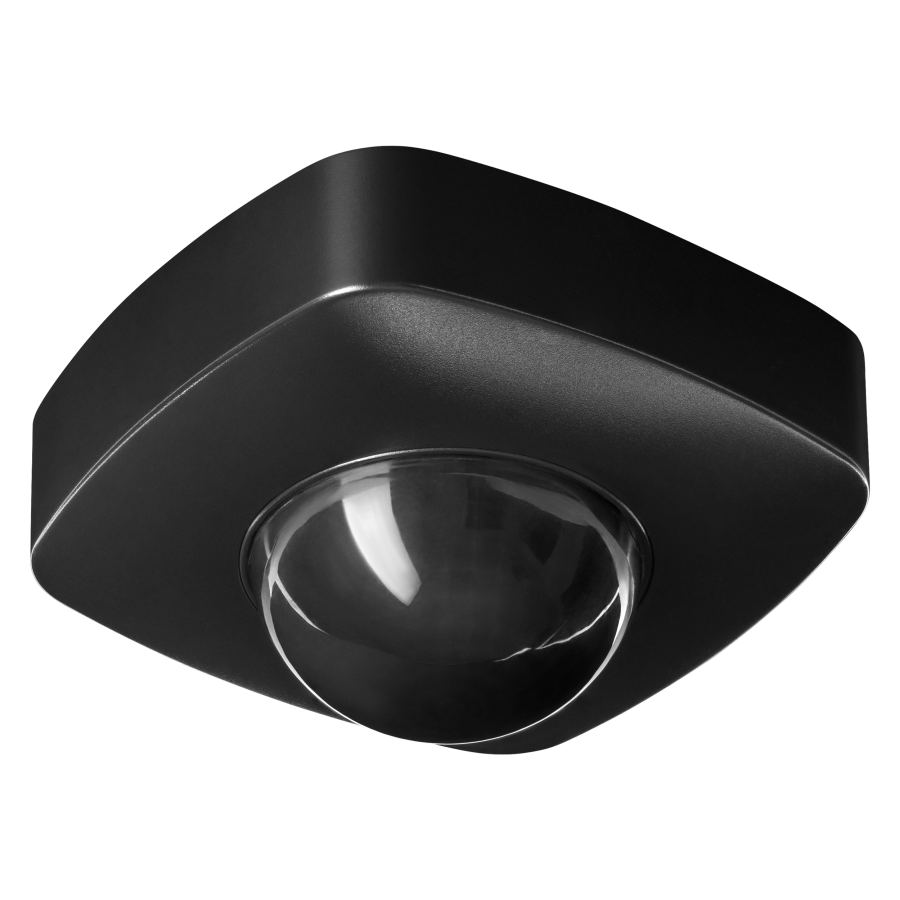

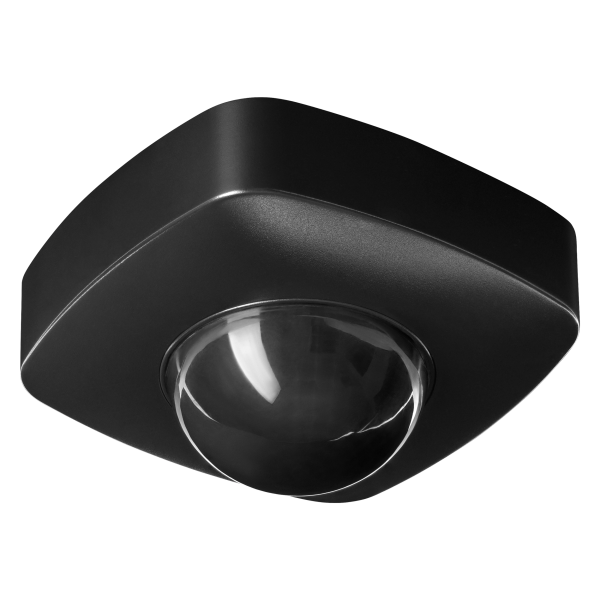

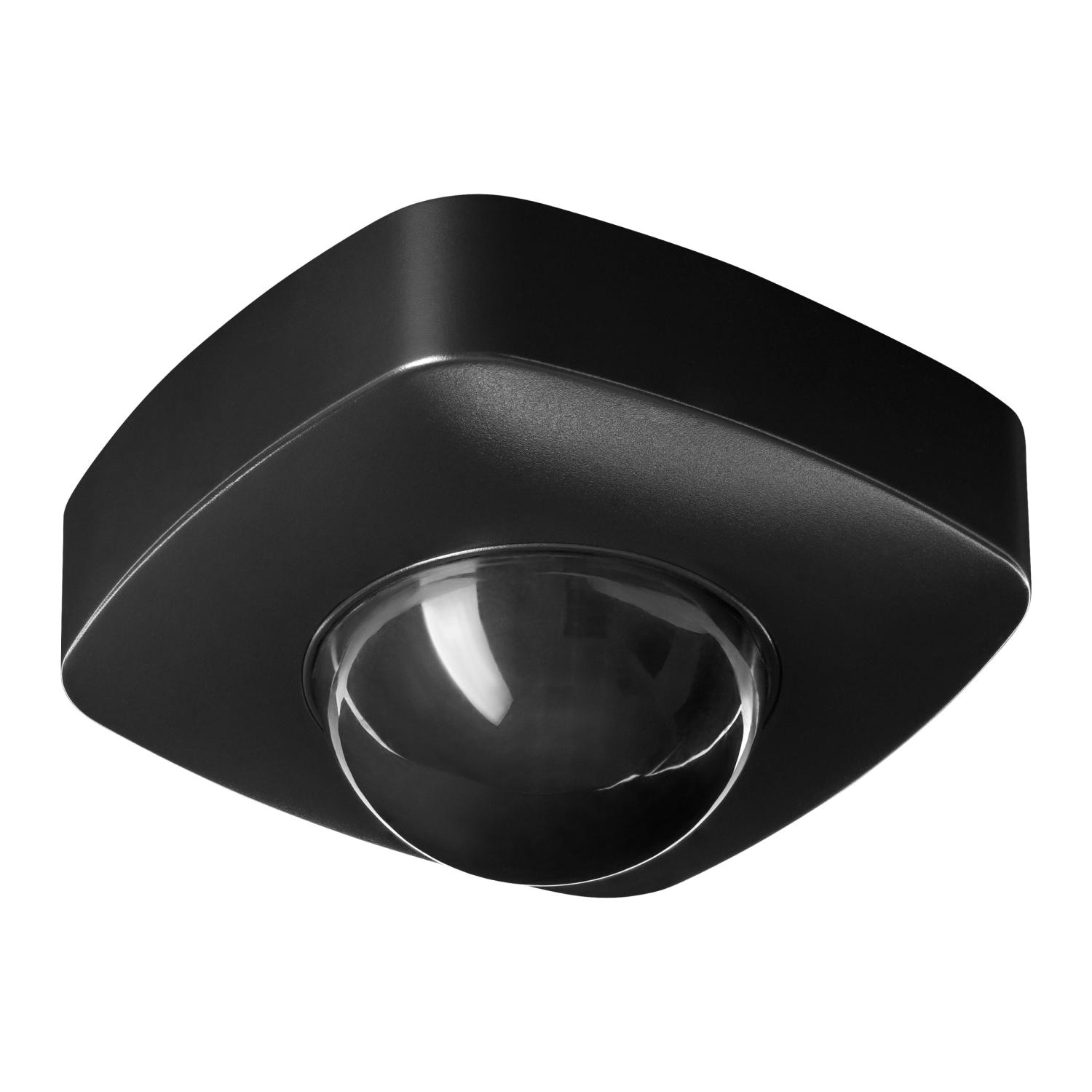

The motion and presence sensor with a detection angle of 360° is an advanced device for movement monitoring, perfect for outdoor and indoor use. The three built-in sensors increase the precision of motion detection offering a maximum reach of up to 10 m frontally. The device uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a wide 360° scanning angle, fully covering the monitored area. It allows light intensity to be adjusted in the range of <3-2000 lux, therefore facilitating to adjust the sensor’s operation to the prevailing lighting conditions.
The maximum switching power is 2000W and the LED power is up to 500W. The sensor operates at a nominal voltage of 230V AC and a frequency of 50Hz. Its low energy consumption of just 0.5W makes it an energy-efficient solution
The sensor is suitable for surface mounting on the ceiling. The body, made of durable polycarbonate, ensures durability in everyday use. The high IP65 rate means that the device is resistant to dust and moisture, as well as splashes and harsh weather conditions.
The device features a relay output and an adjustable switching time between 10s-30min. The sensor operates in a wide temperature range from -20°C to +40°C.

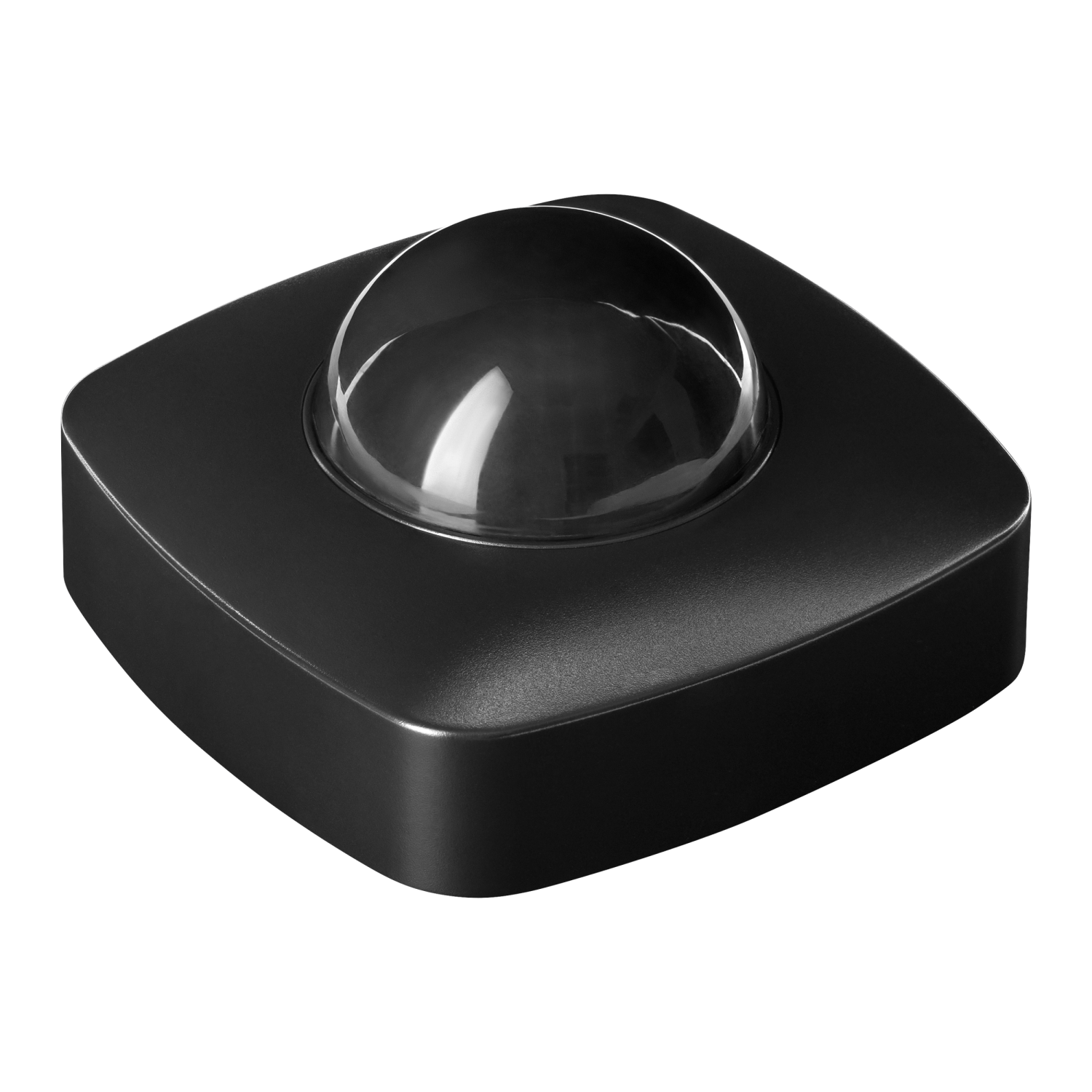

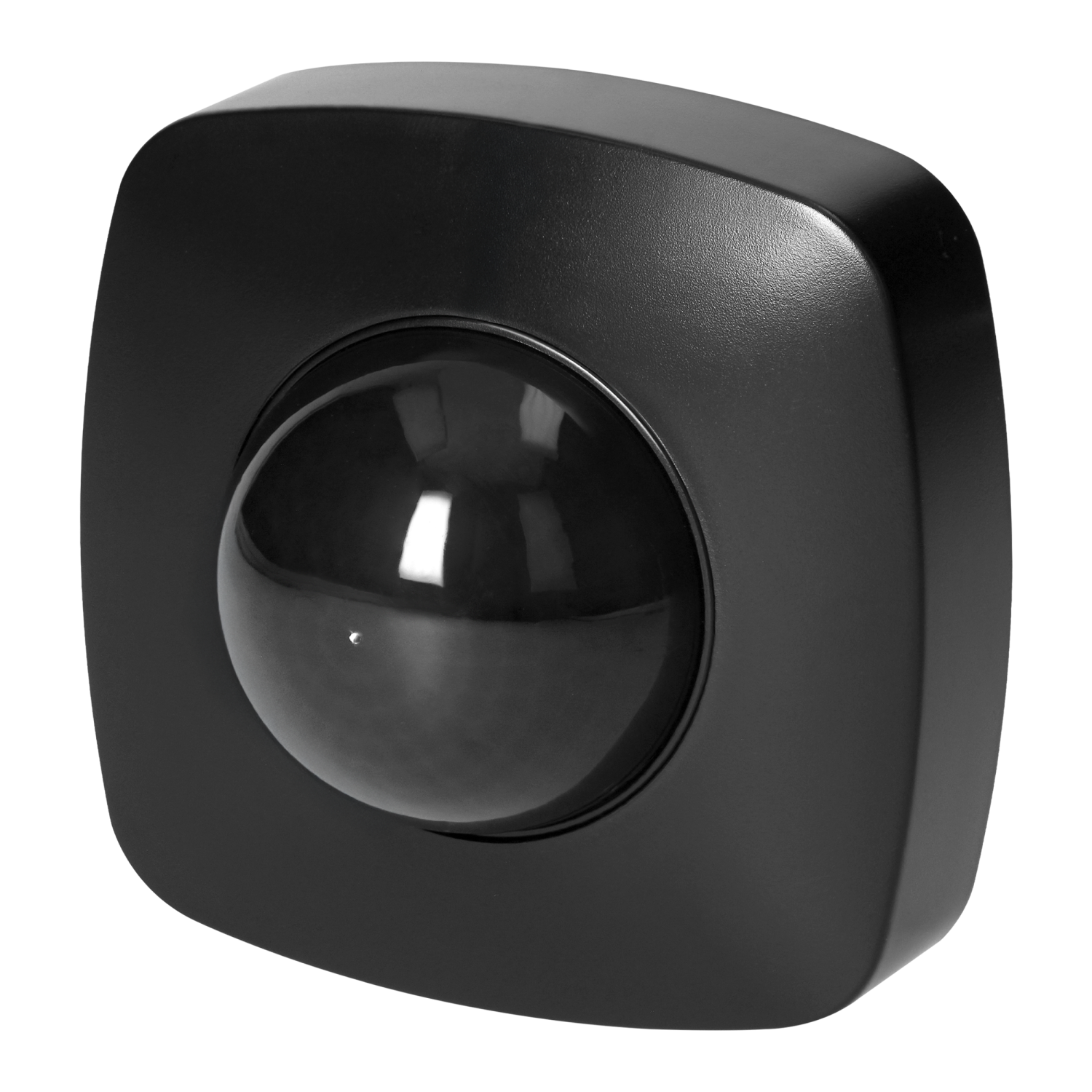

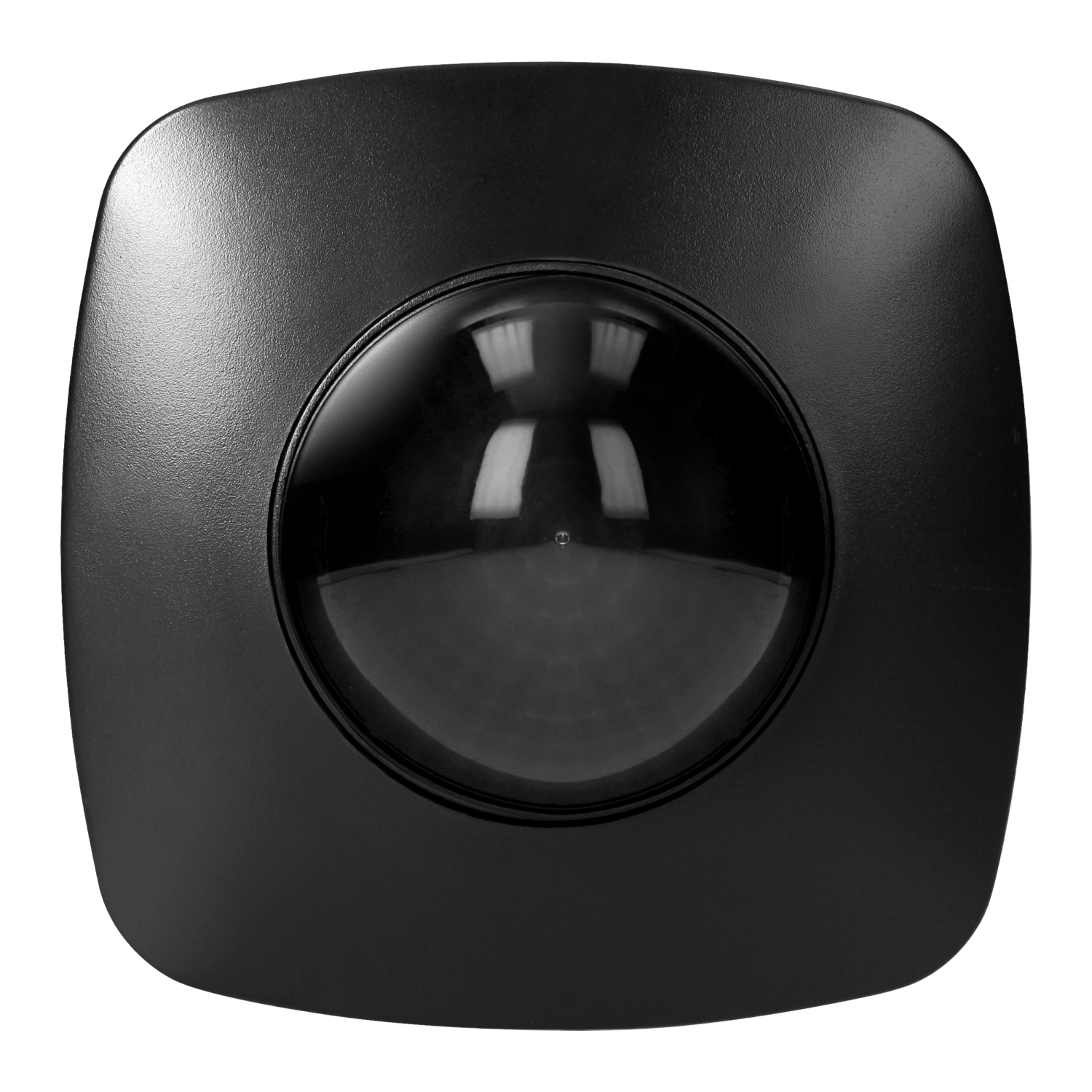

The black lens of the device emphasises its elegant and minimalistic design. It perfectly blends with the black housing, thanks to which the sensor is not only functional but aesthetic as well. It has been designed to successfully resemble a CCTV camera. Its dimensions measure 102.5x102.5x59 mm.
The device covers a 3-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik obecności |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2 - 2,6 |
| Max. reach of presence sensor frontally [m]: | 3 |
| Max. reach frontally [m]: | 10 |
| Diameter reach of presence sensor on floor [m]: | 6 |
| Diameter reach on floor [m]: | 20 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lux]: | <3-2000 |
| Mounting method: | Montaż natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |

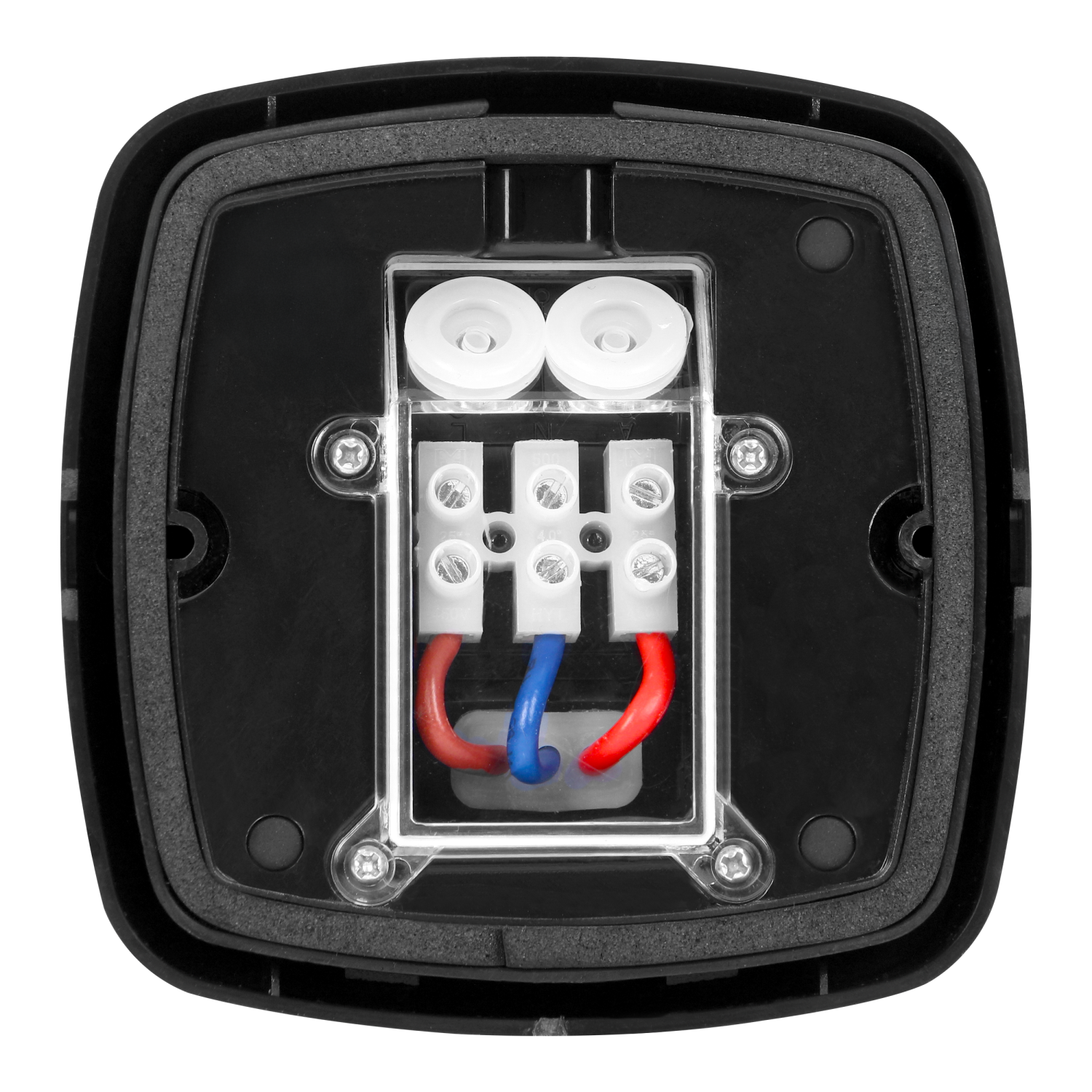

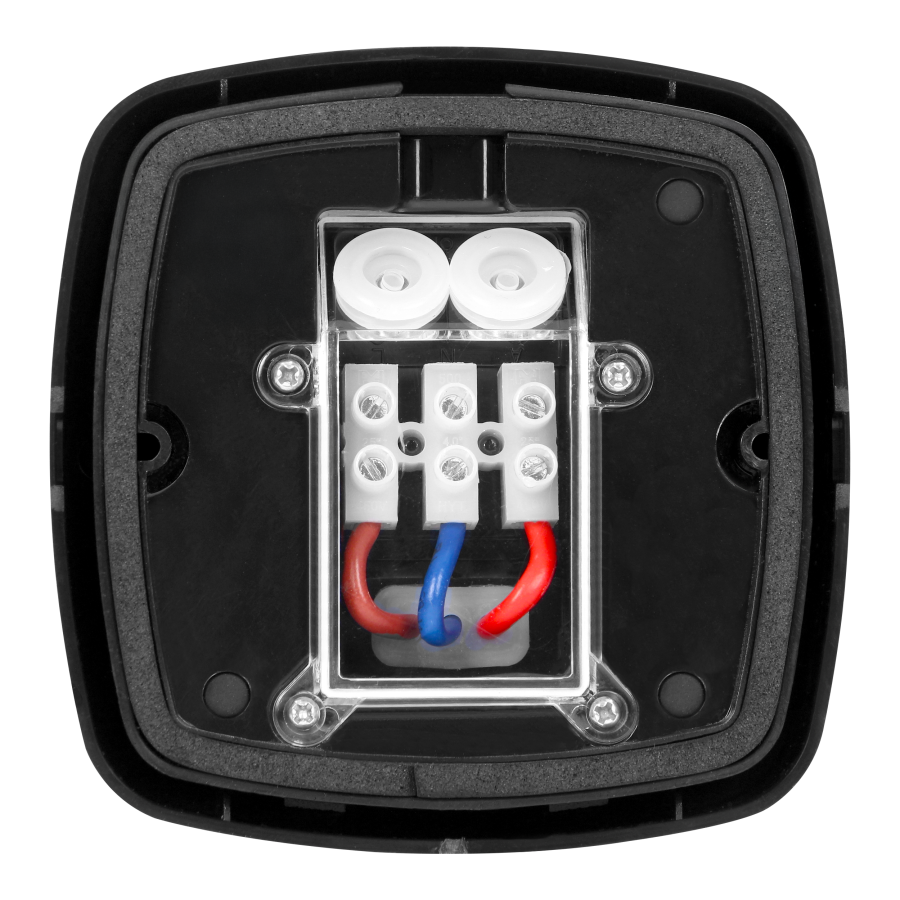

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Czarny |
| Degree of protection: | IP65 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 30 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 500 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 102.5 |
| Height [mm]: | 102.5 |
| Depth [mm]: | 59 |
| Weight [g]: | 166 |
