Ceiling sensors

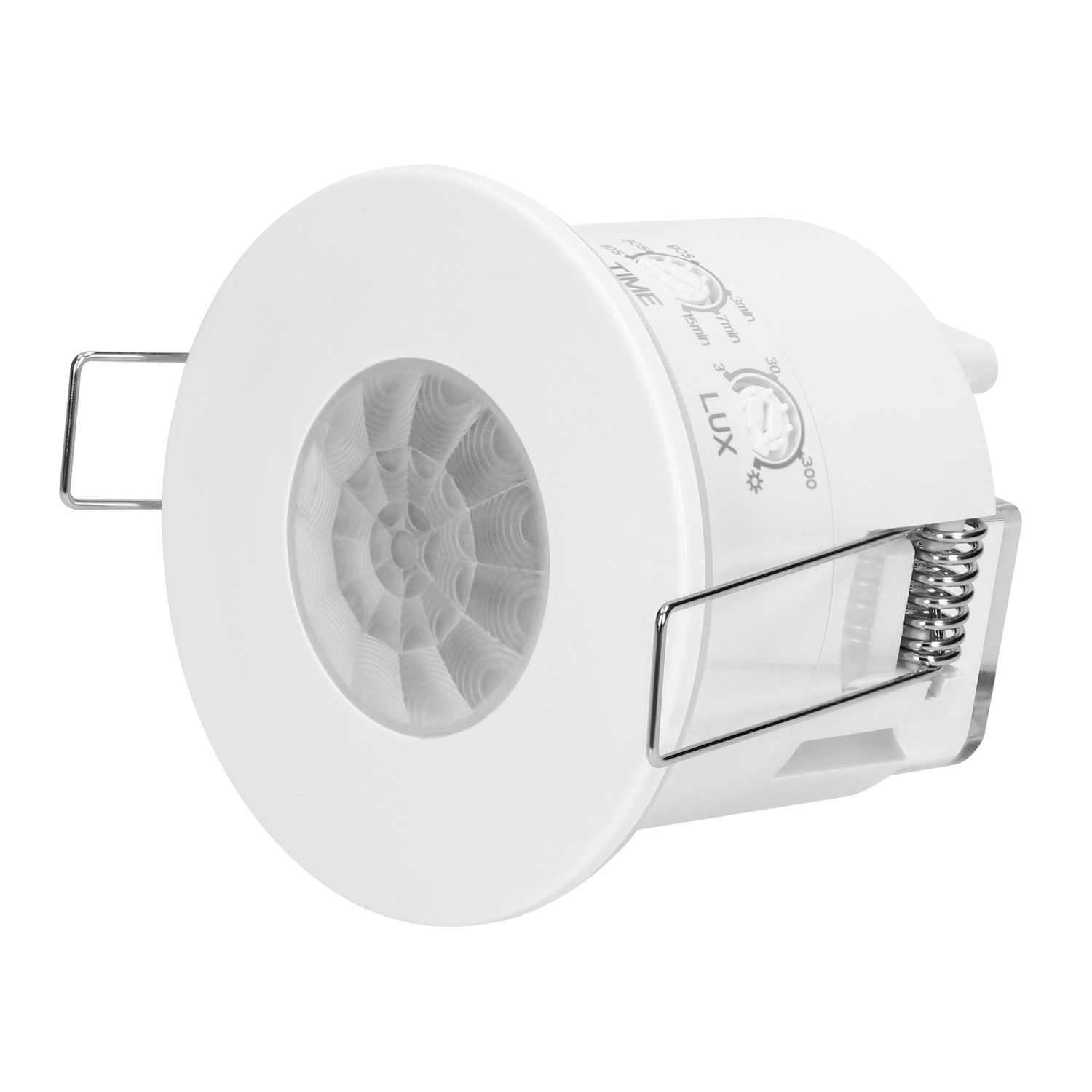

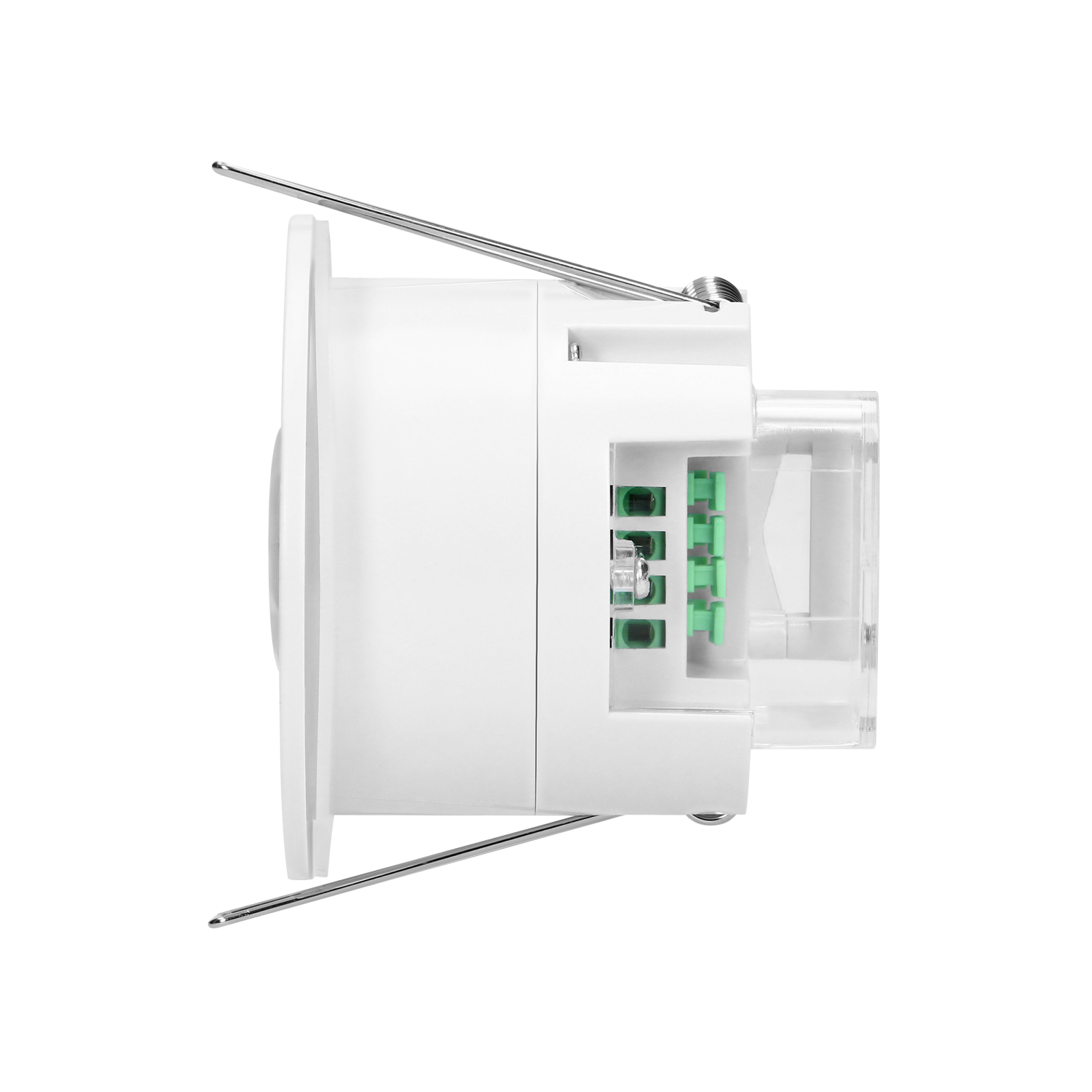

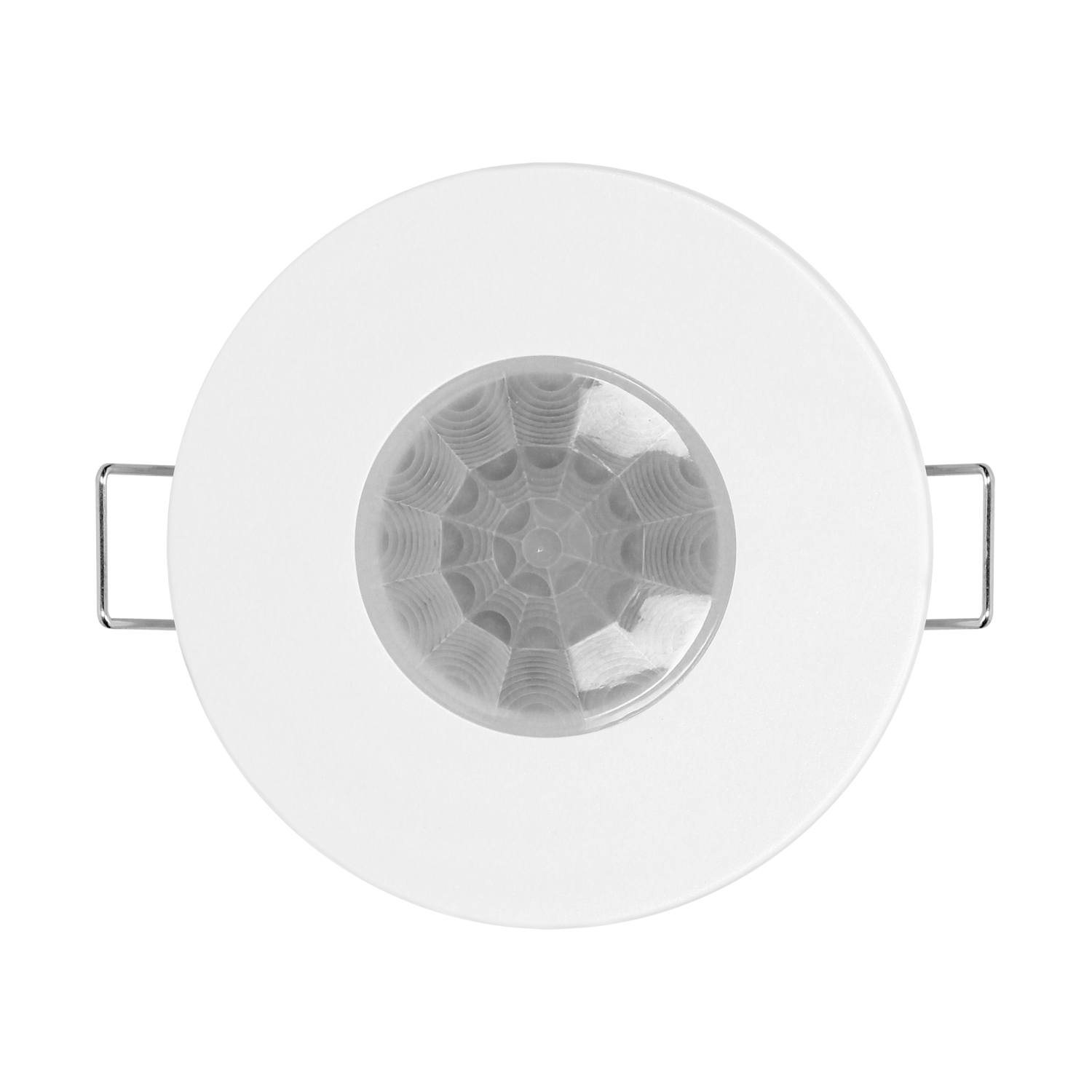

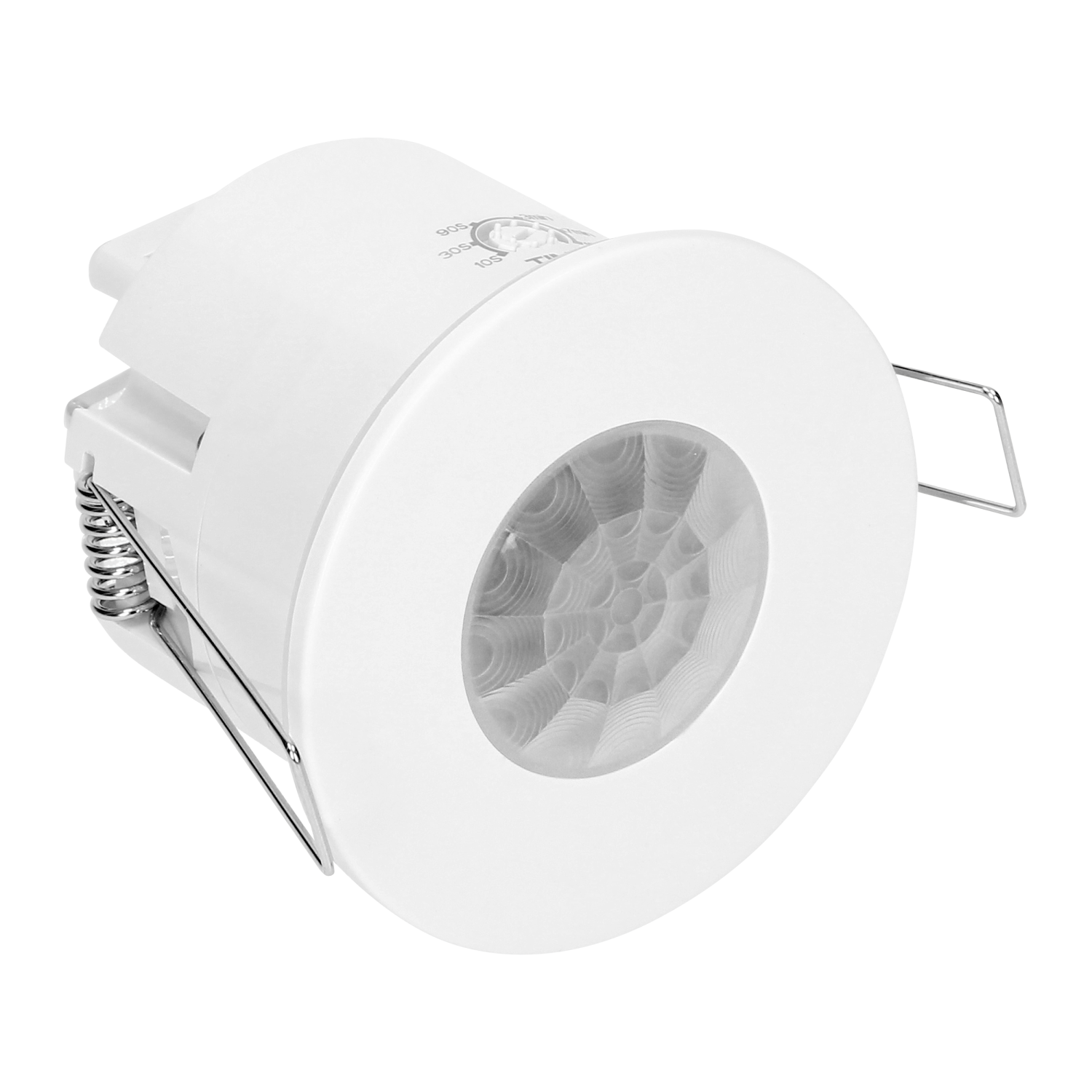

This motion sensor is suitable for flush-mounting in suspended ceilings. It can control lighting or other electric appliances. Additional features of the product: mechanical adjustment of the sensors position, potentiometers to adjust activation time and light intensity. This sensor is LED-compatible. High ingress protection level (IP65) of the sensor makes it suitable for outdoor installation.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2,2-4 |
| Max. reach sideways [m]: | 4 |
| Diameter reach on floor [m]: | 8 |
| Detection moving speed [m/s]: | 0,6-1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż podtynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |

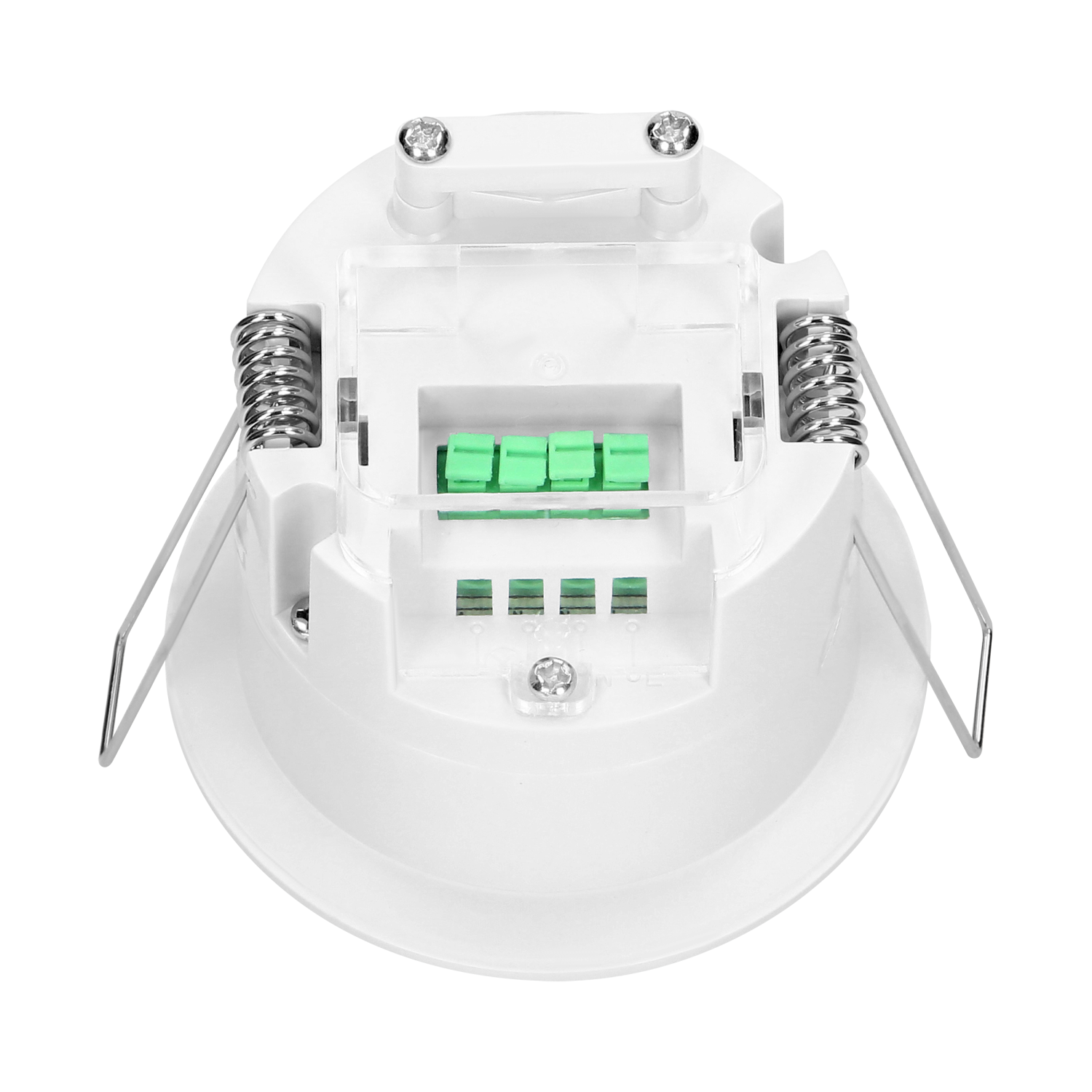

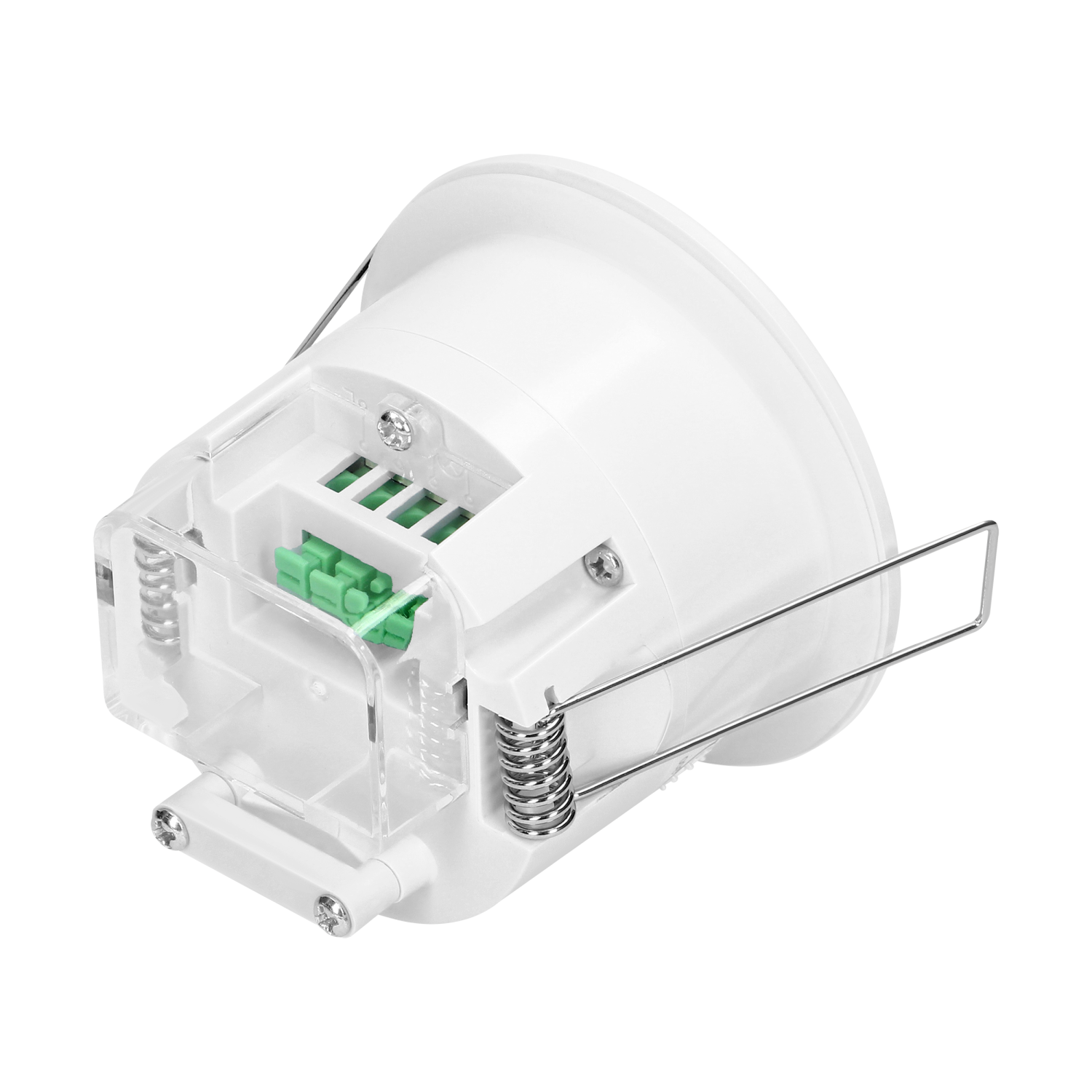

| Connection type: | Wtyk samozaciskowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP65 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 15 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 1200 |
| Max. switching power LED [W]: | 300 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Depth [mm]: | 68 |
| Diameter [mm]: | 76 |
| Weight [g]: | 100 |
| Built-in depth [mm]: | 65 |
| Built-in diameter [mm]: | 62 |
| Min. depth of built-in installation box [mm]: | 70 |
