Ceiling sensors

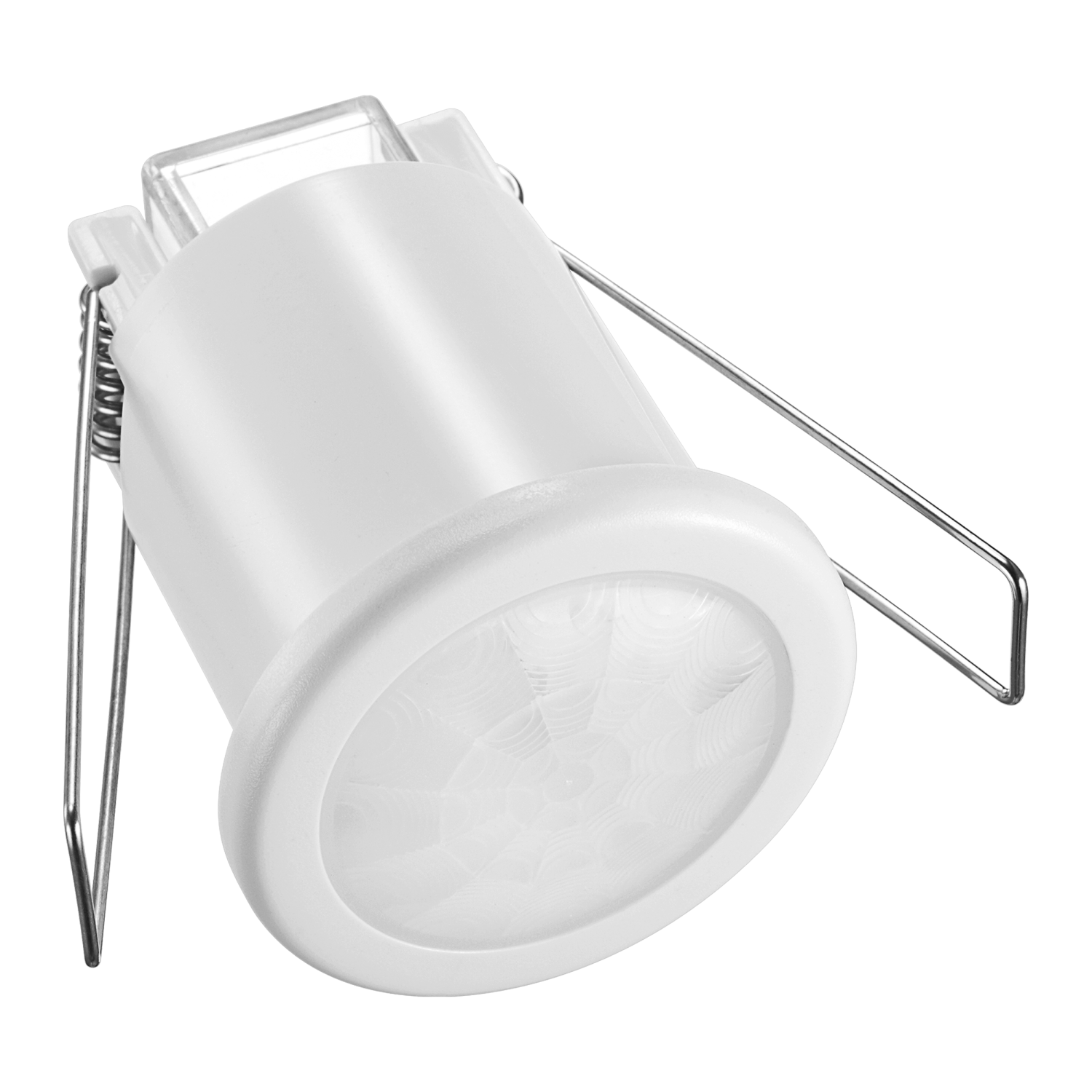

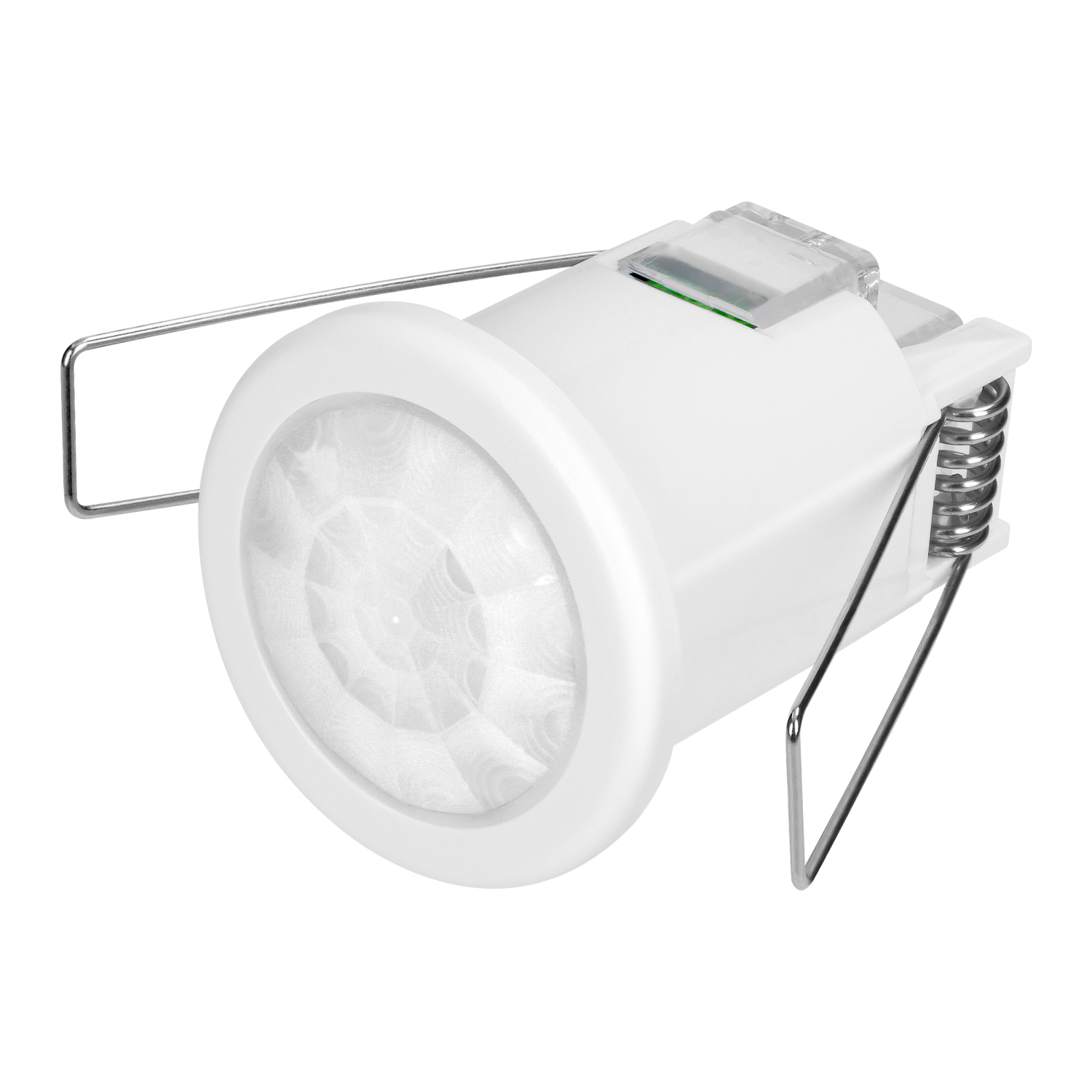

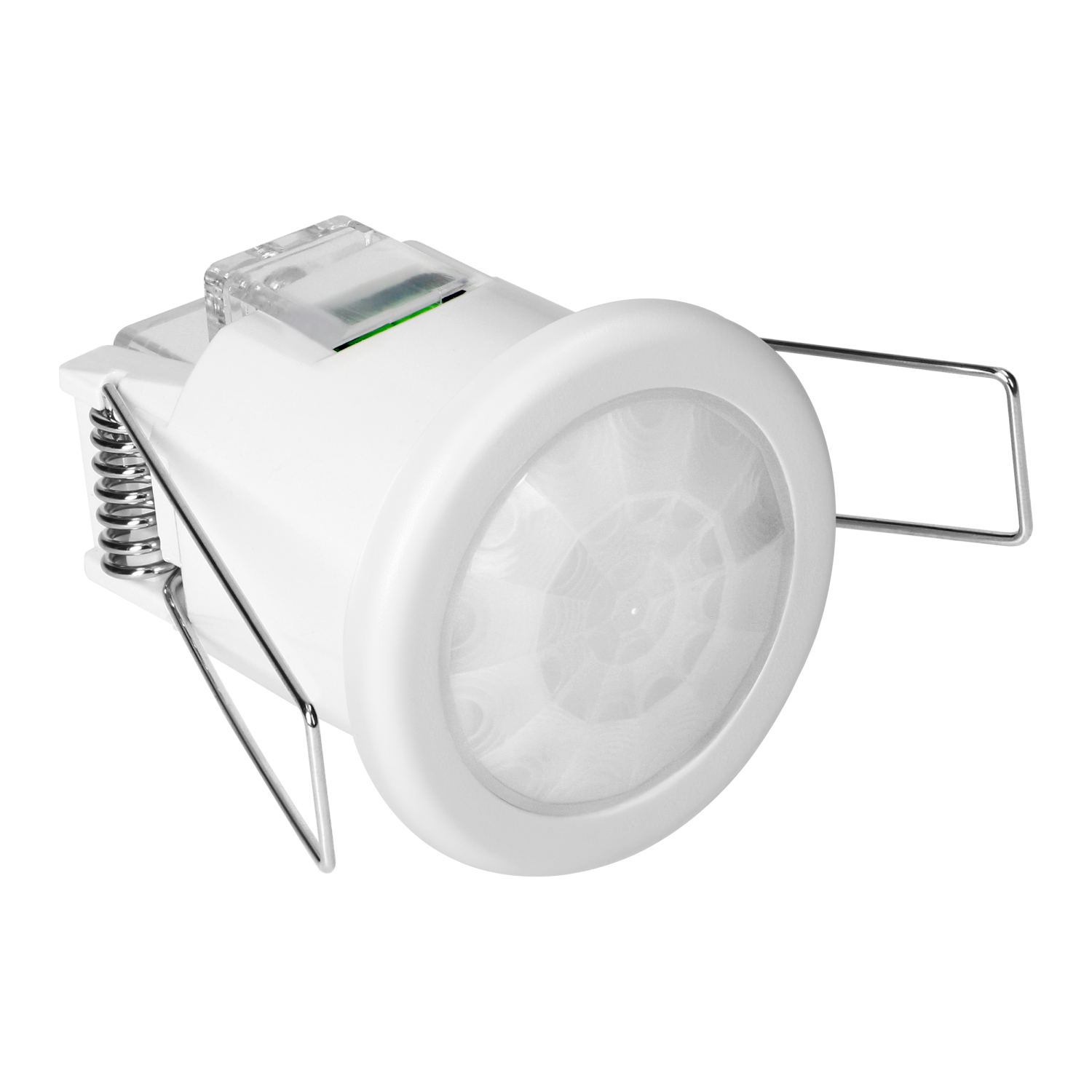

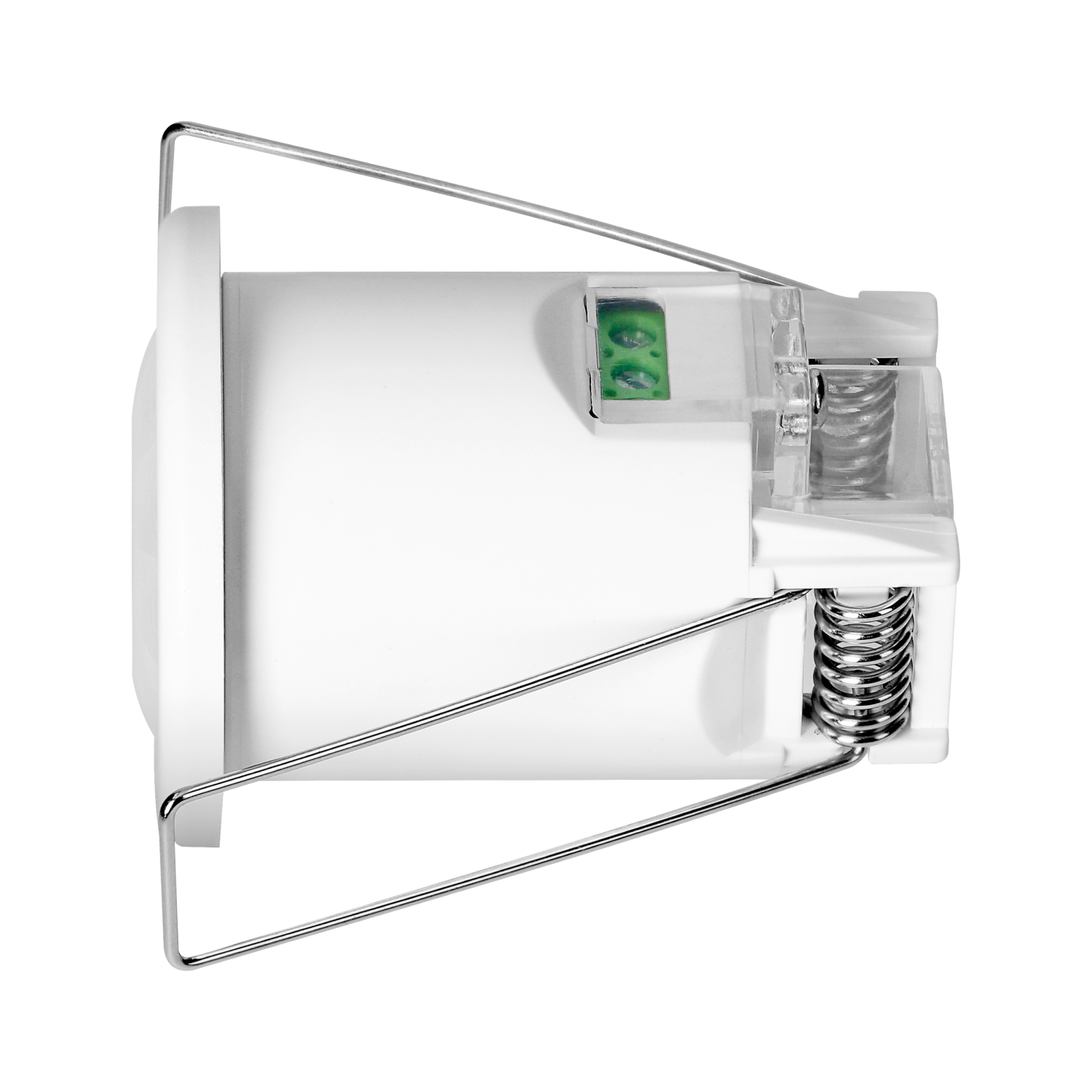

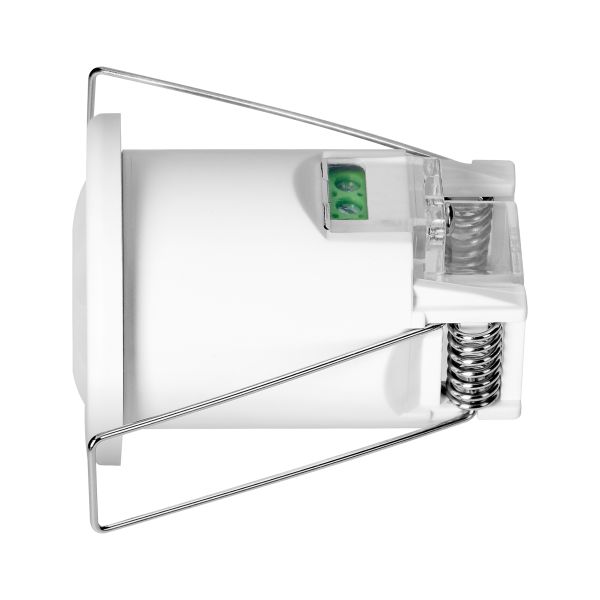

The PIR motion sensor for suspended ceilings with a detection angle of 360° is a functional device for indoor use. The two built-in sensors increase the precision of motion detection, offering a maximum range of up to 8m. The unit uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a 360° scanning angle, fully covering the monitored area. The device detects movement at a speed of 0.6 to 1.5 m/s and allows the light intensity to be adjusted in the range within <3-2000 lux, therefore it adapts to the prevailing lighting conditions.
The maximum switching power is 800W and allows to connect various lighting units, including LEDs of 400W.The sensor operates at a rated voltage of 230V AC and a frequency of 50Hz. Its low power consumption of just 0.5W makes it an energy-efficient solution.
The sensor is designed for suspended ceilings with an optimal installation height of 2.2-4 m. The high-quality plastic housing guarantees durability in everyday use. Intended for use in dry rooms (IP20).
The device is equipped with adjustable switching time between 10s-15min. The sensor operates in a wide temperature range within -20°C to +40°C.

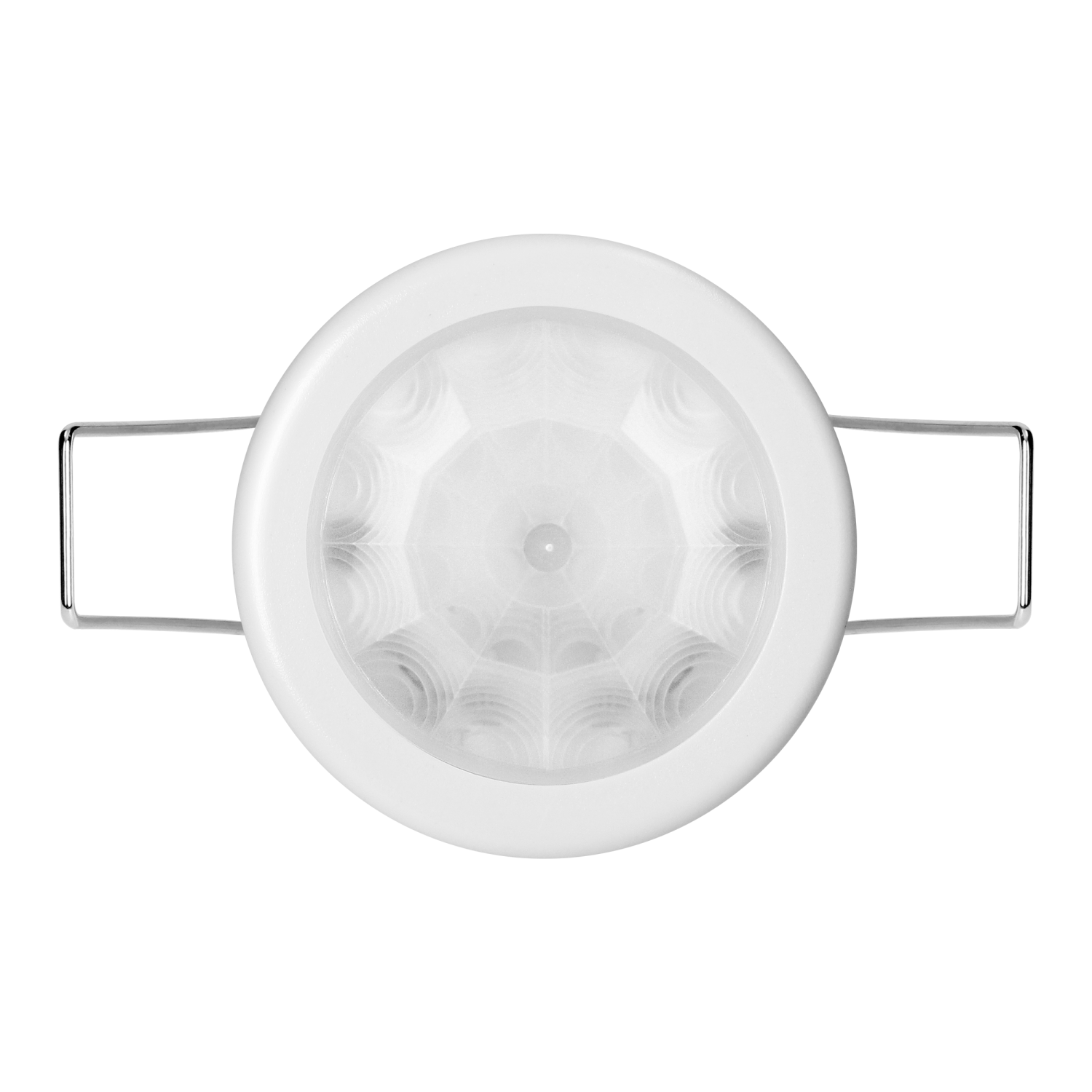

The sensor's white housing is not only aesthetic and modern, but it also blends in perfectly with almost any environment. Its compact dimensions (⌀ 50 mm and an installation depth of 55 mm) make the sensor easy to install.
The device covers a 5-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2,2-4 |
| Max. reach sideways [m]: | 4 |
| Max. reach frontally [m]: | 4 |
| Diameter reach on floor [m]: | 8 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż podtynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |

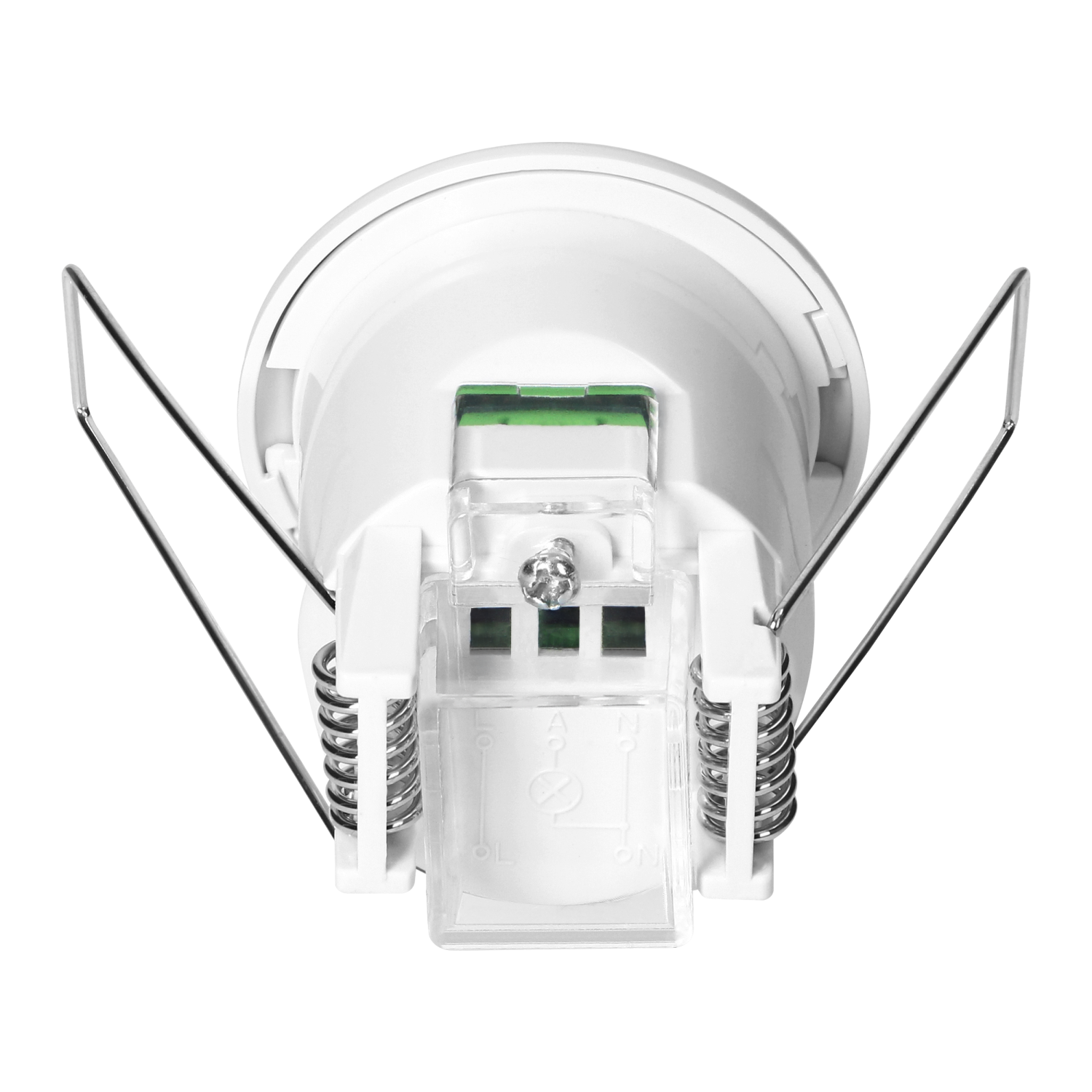

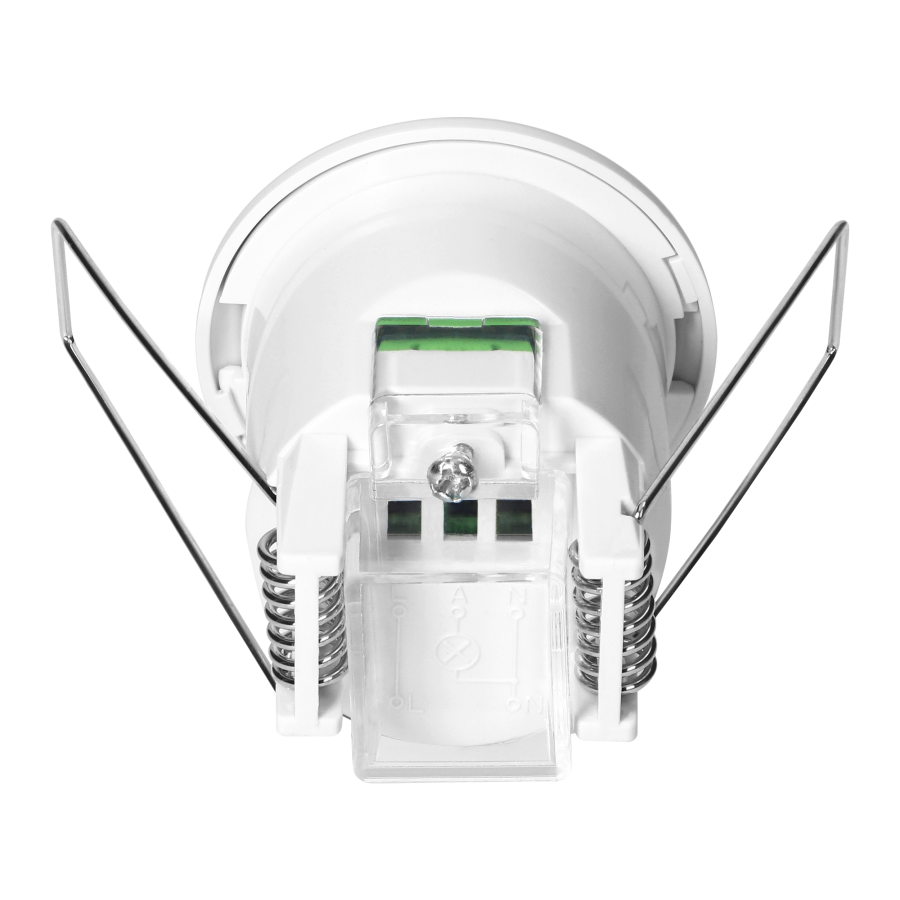

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 15 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 800 |
| Max. switching power LED [W]: | 400 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Height [mm]: | 7 |
| Diameter [mm]: | 50 |
| Built-in depth [mm]: | 55 |
| Built-in diameter [mm]: | 40 |
| Min. depth of built-in installation box [mm]: | 65 |
