Ceiling sensors

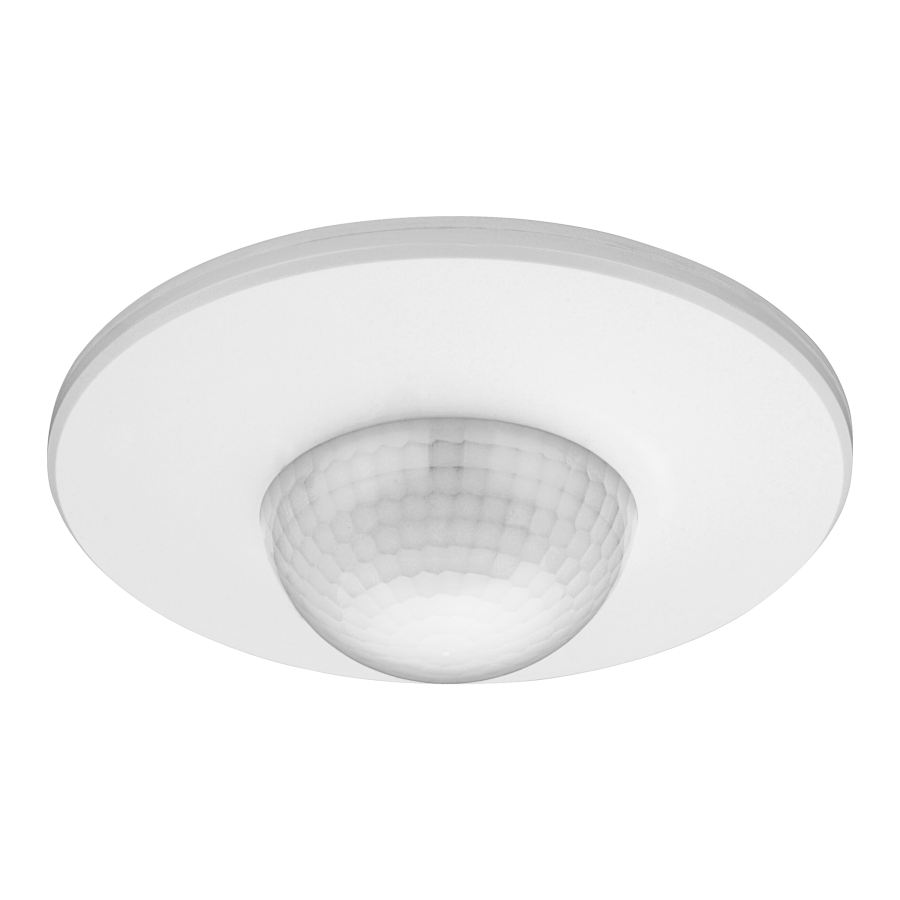

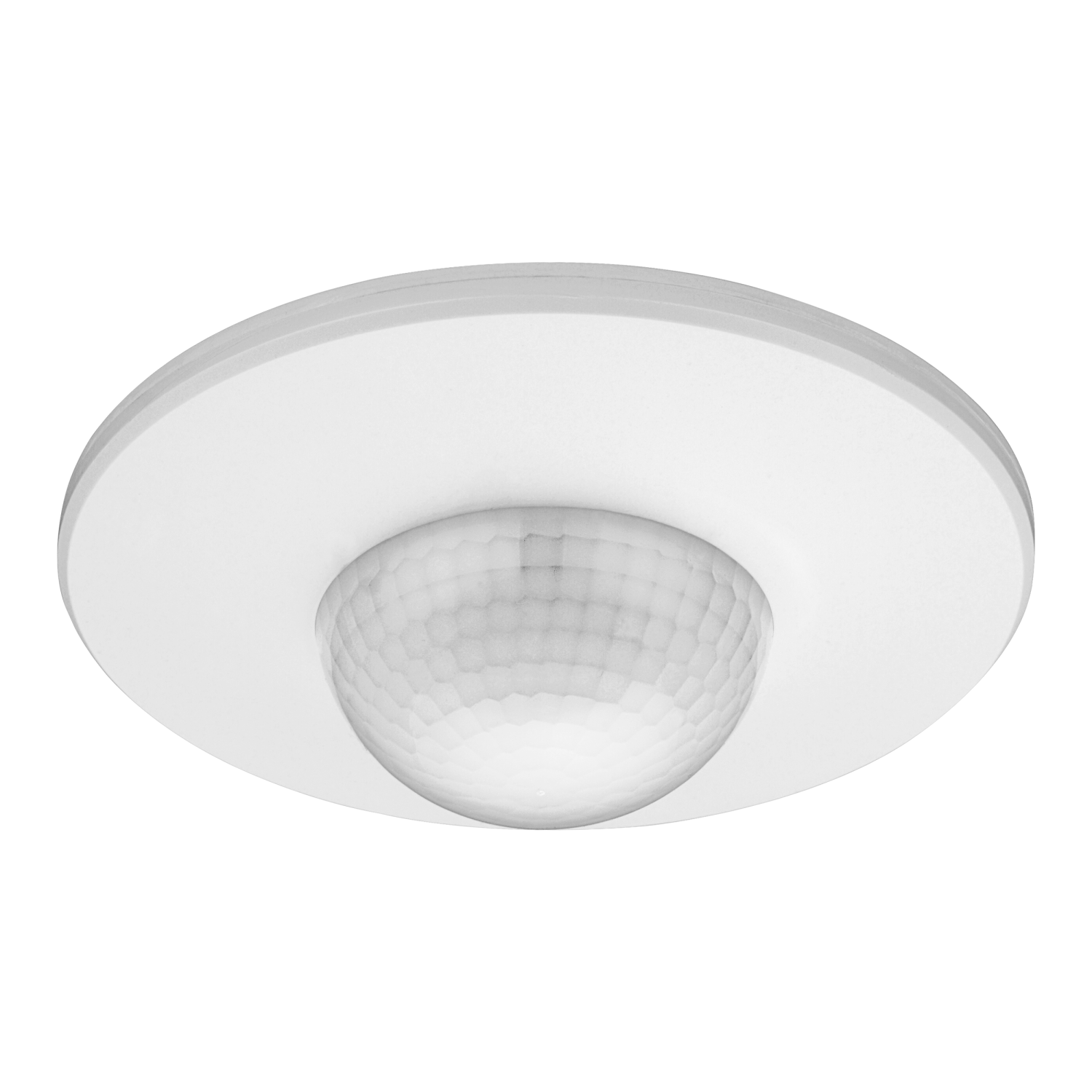

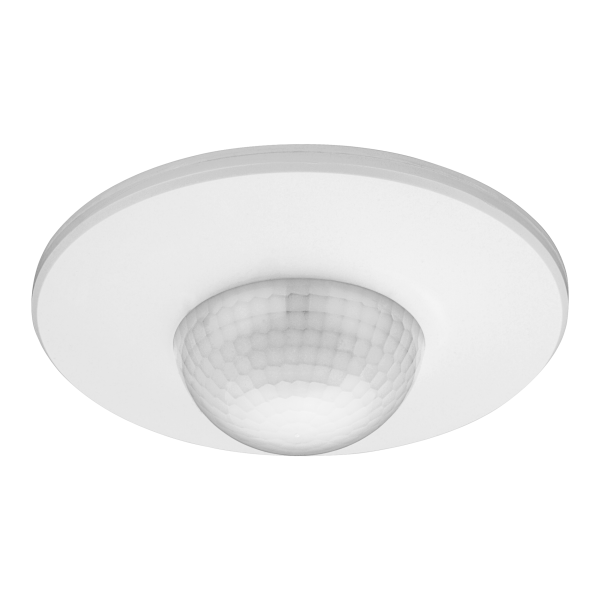

The motion and presence sensor with a detection angle of 360° is a functional device for indoor monitoring of movement and presence. The three built-in sensors increase the precision of motion detection, offering a maximum reach frontally of up to 20 m. The device uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a wide 360° scanning angle, fully covering the monitored area. The device allows the light intensity to be adjusted in the range within <3-2000 lux, therefore it adapts to the prevailing lighting conditions.
The maximum switching power is 2000W and the maximum LED is 1000W LED. The sensor operates at a rated voltage of 230V AC and a frequency of 50Hz, and its low power consumption of just 0.5W makes it an energy-efficient solution.
The sensor is surface mounted on a wall. The body, made of durable polycarbonate, ensures durability in everyday use. The unit is designed for indoor use (IP20).
The device features a relay output and an adjustable switching time between 10s-30min. The sensor operates in a wide temperature range from -20°C to +40°C.
The white lens of the device highlights its elegant, minimalist design, blending perfectly with the white housing. This makes the sensor not only functional, but also discreet. The round housing has a diameter of 120 mm and the height of 50 mm.
The device covers a 3-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik obecności |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2,2-6 |
| Max. reach sideways [m]: | 10 |
| Presence diameter [m]: | 6 |
| Max. reach frontally [m]: | 10 |
| Diameter reach on floor [m]: | 20 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 30 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 1000 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Height [mm]: | 50 |
| Diameter [mm]: | 120 |
| Weight [g]: | 130 |
