Ceiling sensors

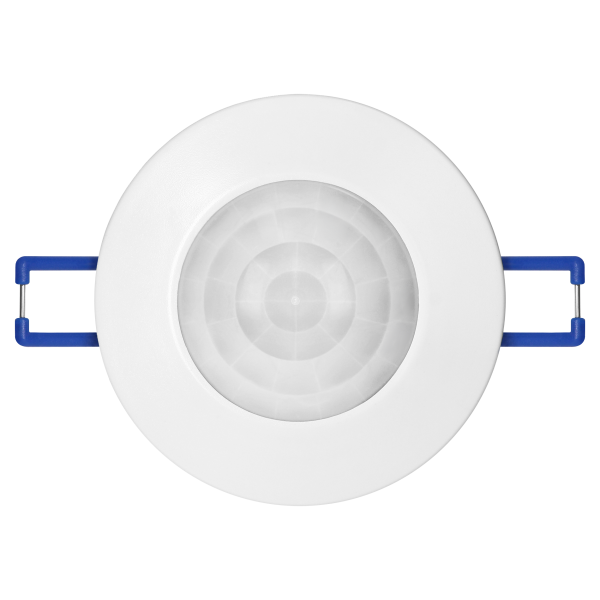

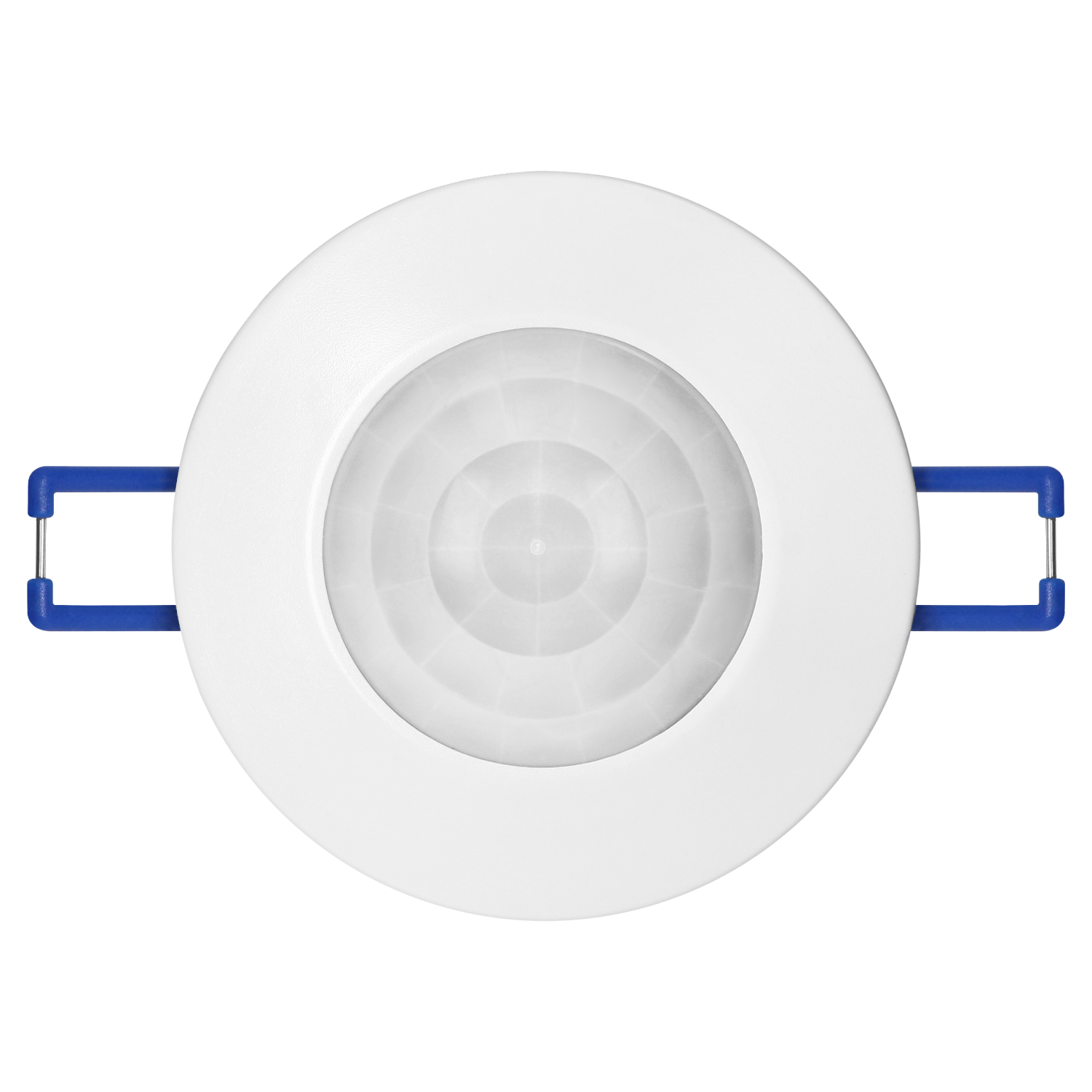

The PIR motion sensor with a detection angle of 360° is functional device for indoor movement monitoring. The two built-in sensors increase the precision of motion detection offering a maximum reach of up to 8 m straight ahead. The device uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a wide 360° scanning angle, fully covering the monitored area. The device detects movement at a speed of 0.6 to 1.5 m/s and allows light intensity to be adjusted in the range of <3-2000 lux, therefore facilitating to adjust the sensor’s operation to the prevailing lighting conditions.
The maximum switching power is 1200W allowing to connect various lighting devices, including LEDs with a total power of up to 600W. The sensor operates at a nominal voltage of 230V AC and a frequency of 50Hz. Its low energy consumption of just 0.5W makes it an energy-efficient solution.

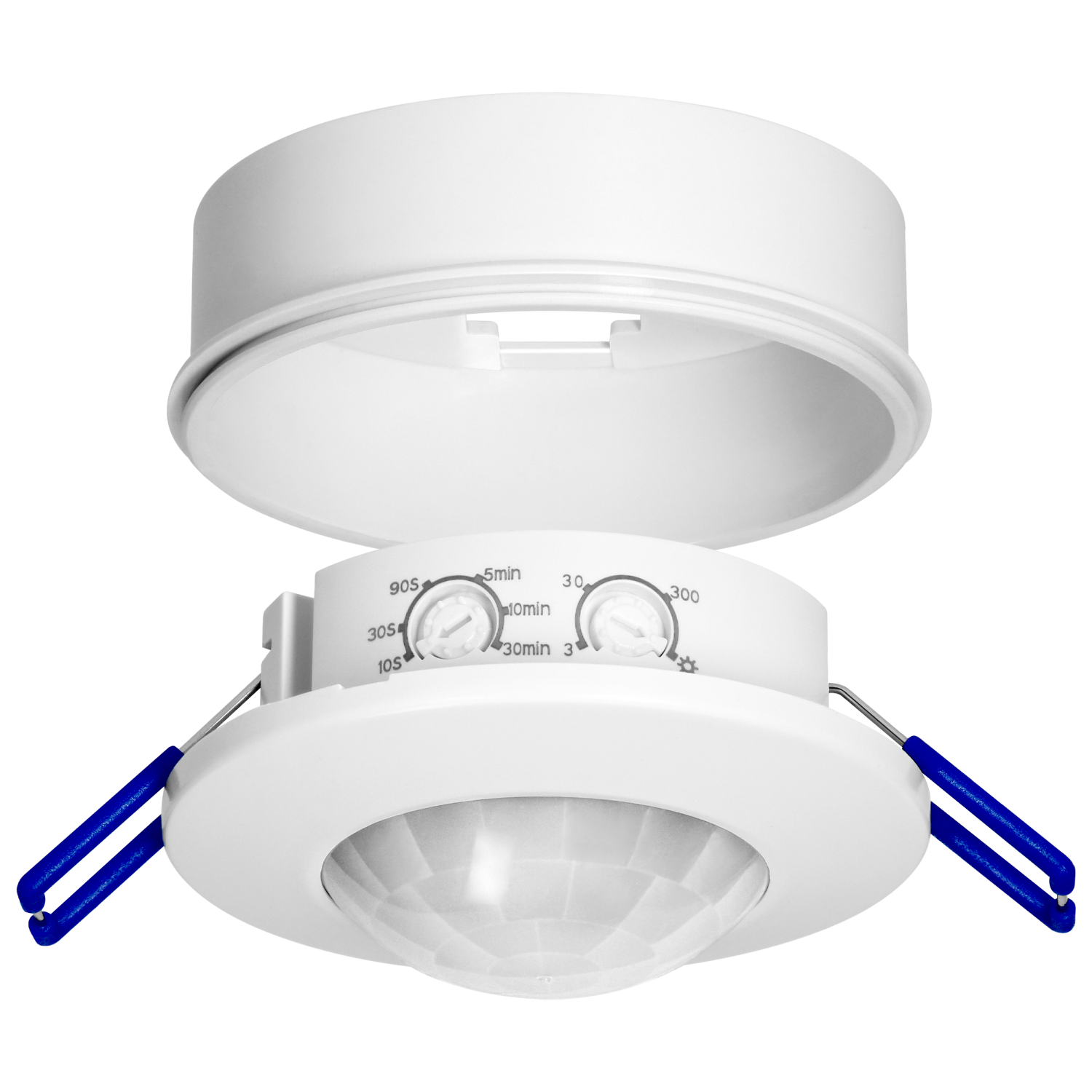

The sensor is suitable for flush or surface-mounted ceiling installation with an optimum installation height of 2.2-4 m. The body, made of durable plastic, ensures durability in everyday use. Designed for use in dry, enclosed areas (IP20).

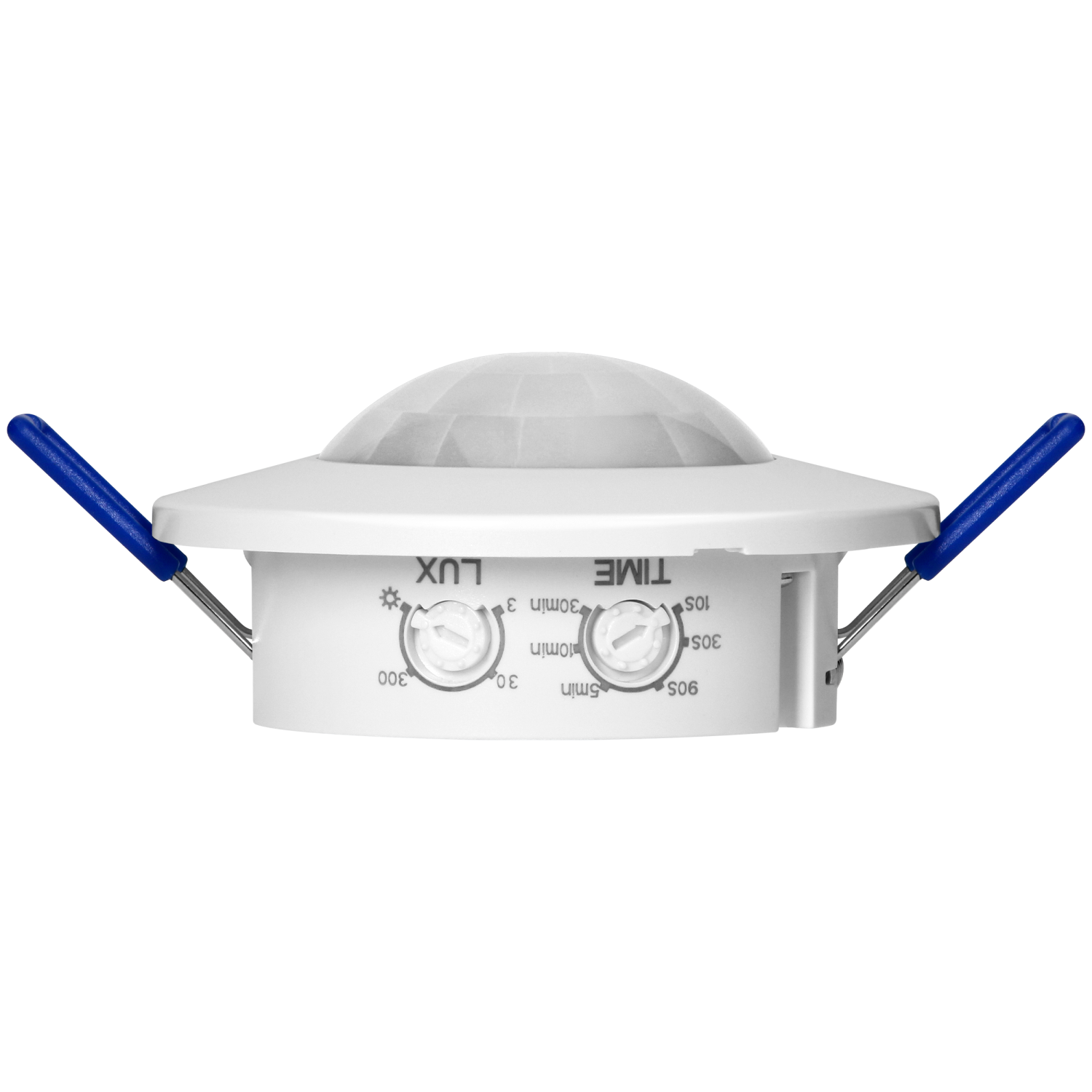

The device features a relay output and an adjustable switching time between 10s-30min. The sensor operates in a wide temperature range from -20°C to +40°C.

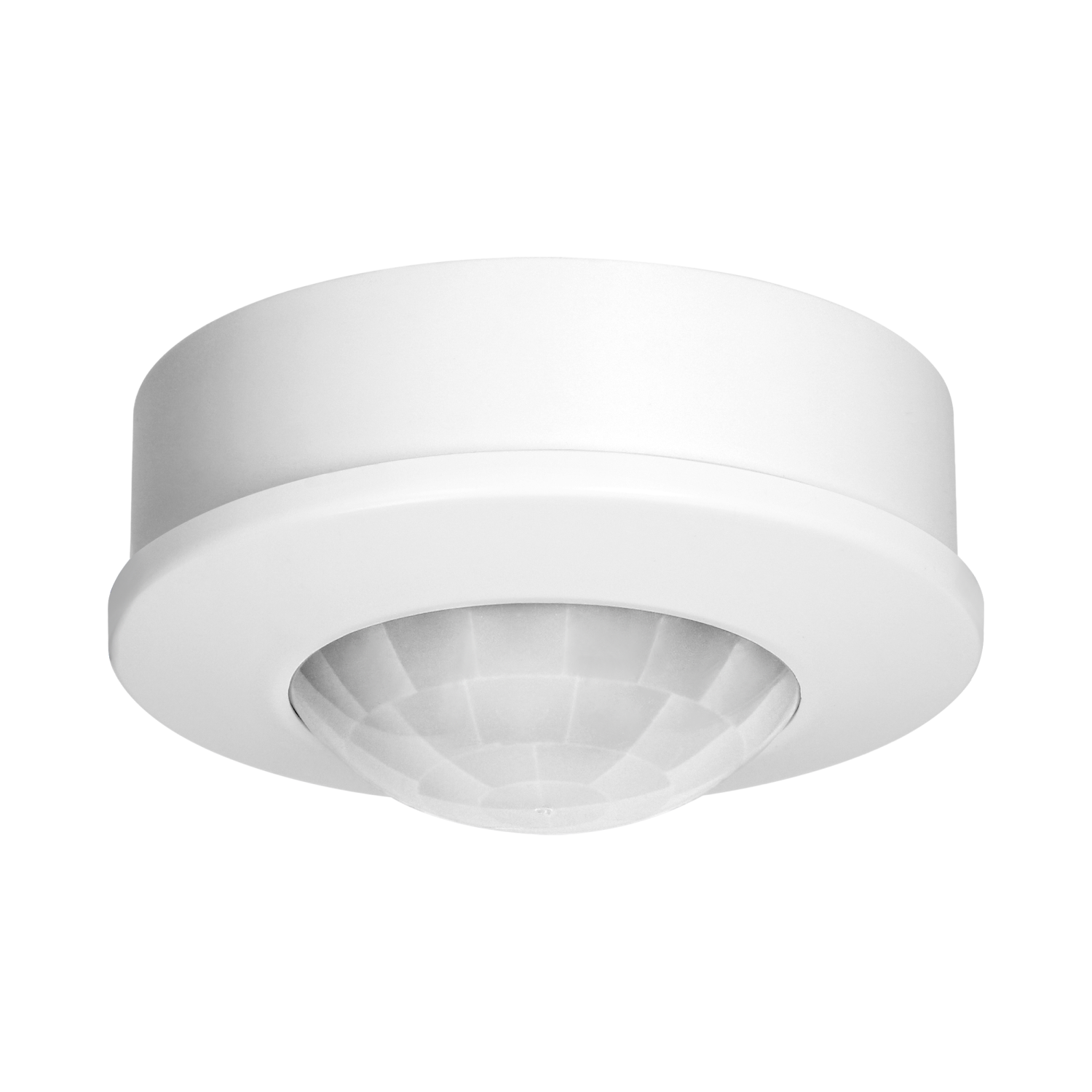

Thanks to white housing the device not only looks aesthetic and modern but also perfectly blends in almost every surroundings. Its compact dimensions (Ø80mm) make it unobtrusive and possible to install in many places.
The device is covered by a 3-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2,2-4 |
| Diameter reach on floor [m]: | 8 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lux]: | <3-2000 |
| Mounting method: | Montaż podtynkowy/natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |

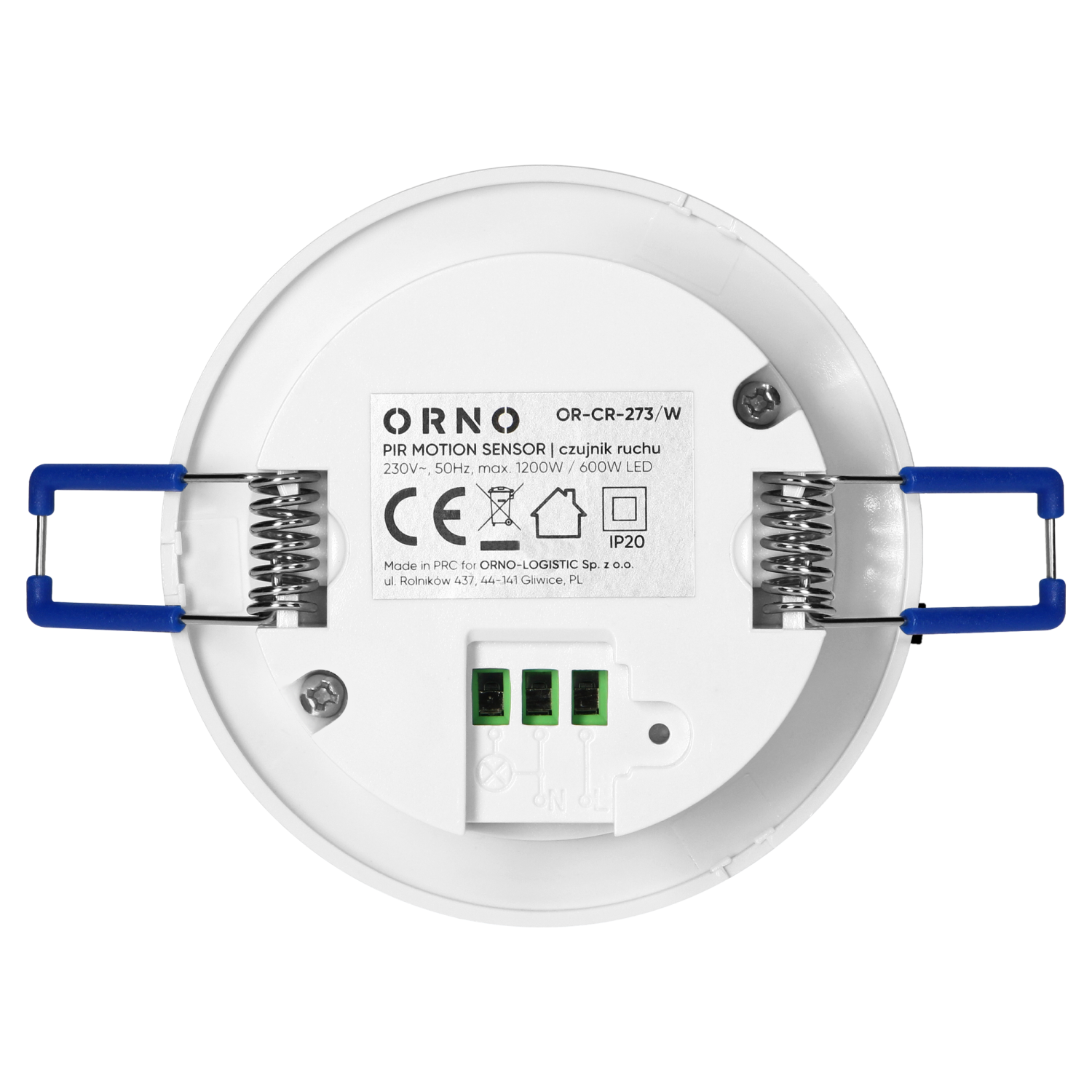

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 30 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 1200 |
| Max. switching power LED [W]: | 600 |
| Power consumption [W]: | 0,5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Depth [mm]: | 39 |
| Diameter [mm]: | 80 |
| Weight [g]: | 86 |
| Built-in depth [mm]: | 21 |
| Built-in diameter [mm]: | 61 |
