Ceiling sensors

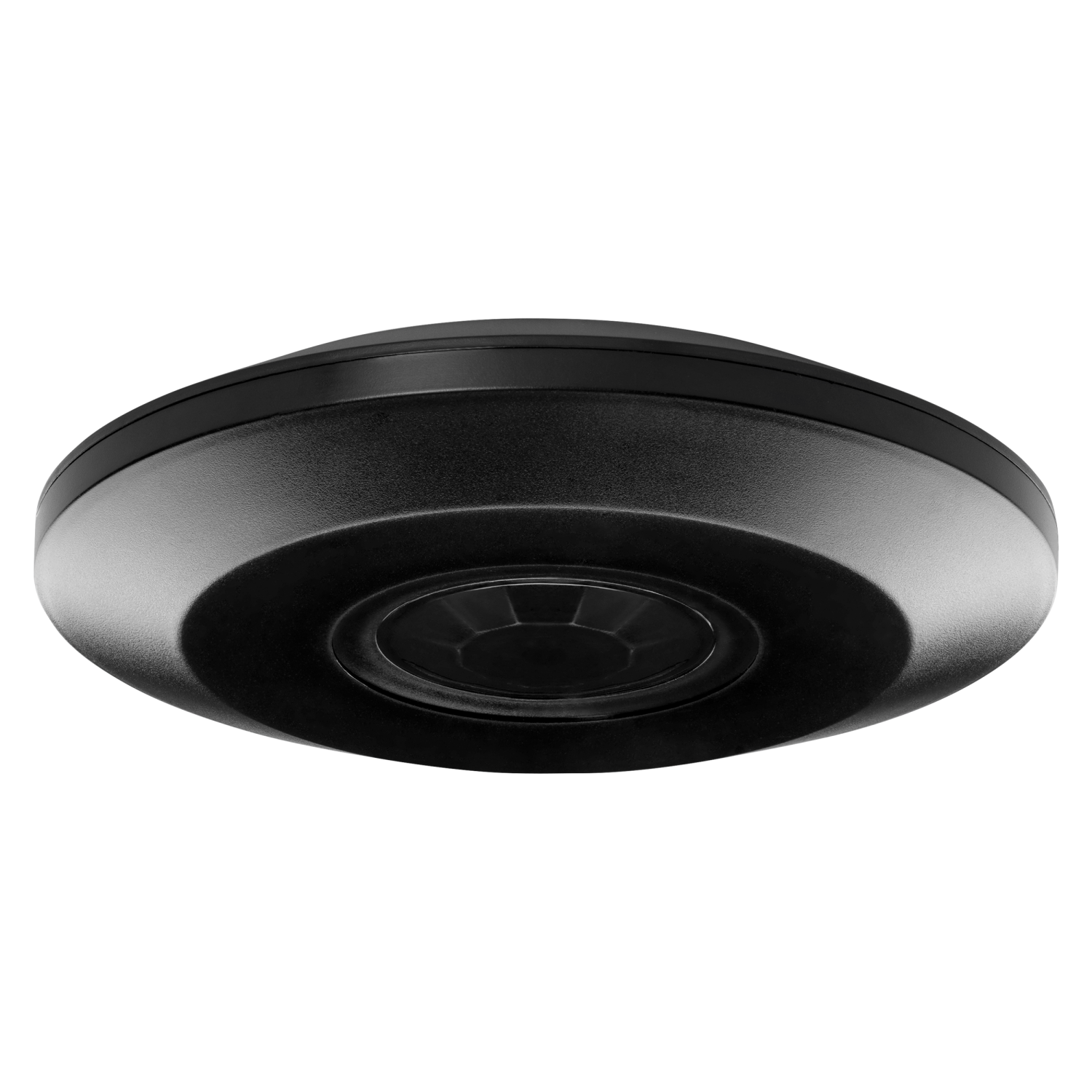

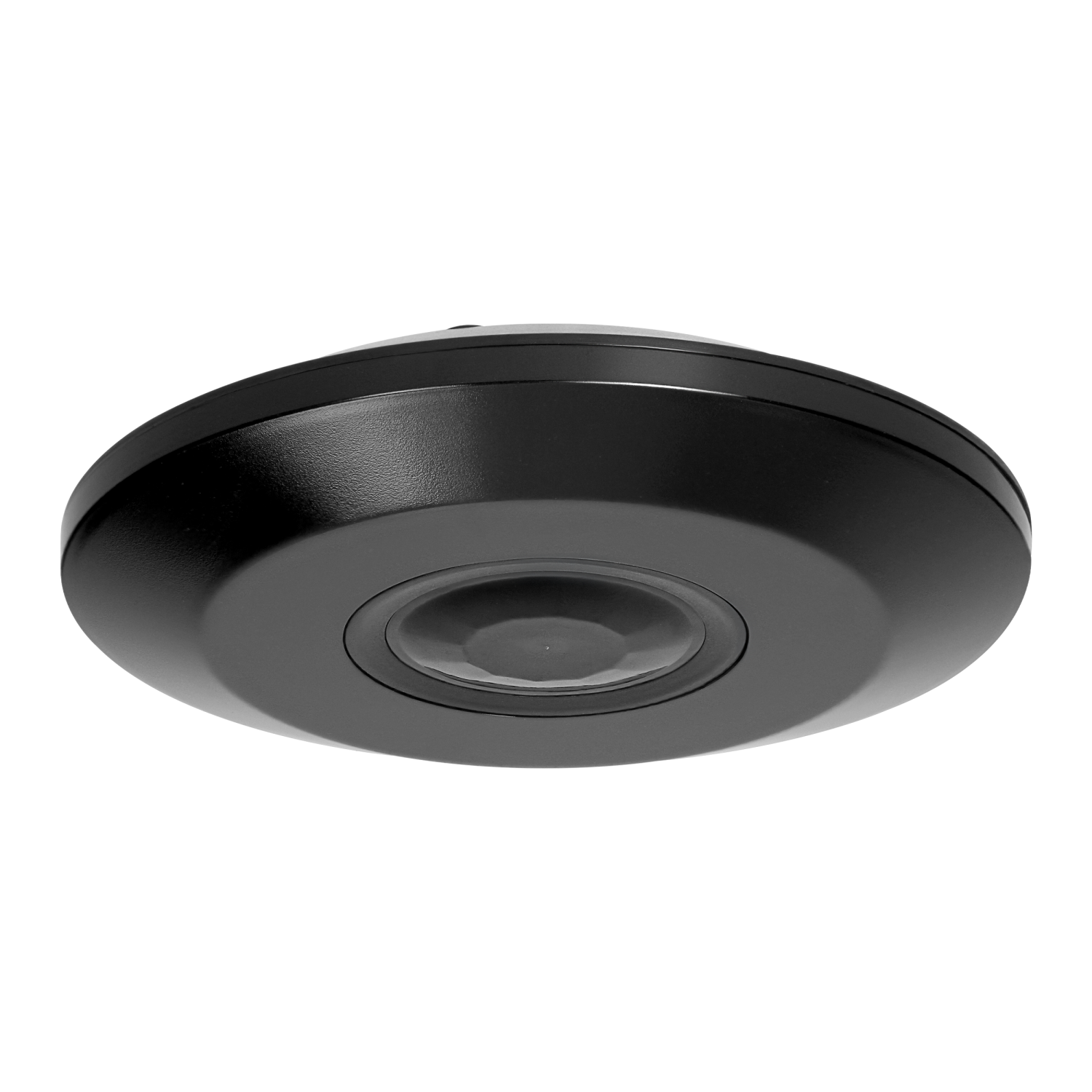

The ultra flat motion sensor with a detection angle of 360° is an advanced device for monitoring presence, perfect for both outdoor and indoor use. The device uses passive infrared technology (PIR), responding to movement in its field of view.
The sensor features a wide 360° scanning angle, fully covering the monitored area. The built-in sensor increases the precision of motion detection, thanks to which the device achieves the maximum reach of up to 3 m frontally. It allows light intensity to be regulated in the range of <3-2000 lux, therefore facilitating to adjust the sensor’s operation to the prevailing lighting conditions.
The maximum switching power is 2000W and the LED power is up to 500W. The sensor operates at a nominal voltage of 230V AC and a frequency of 50Hz. Its low energy consumption of just 0.5W makes it an energy-efficient solution

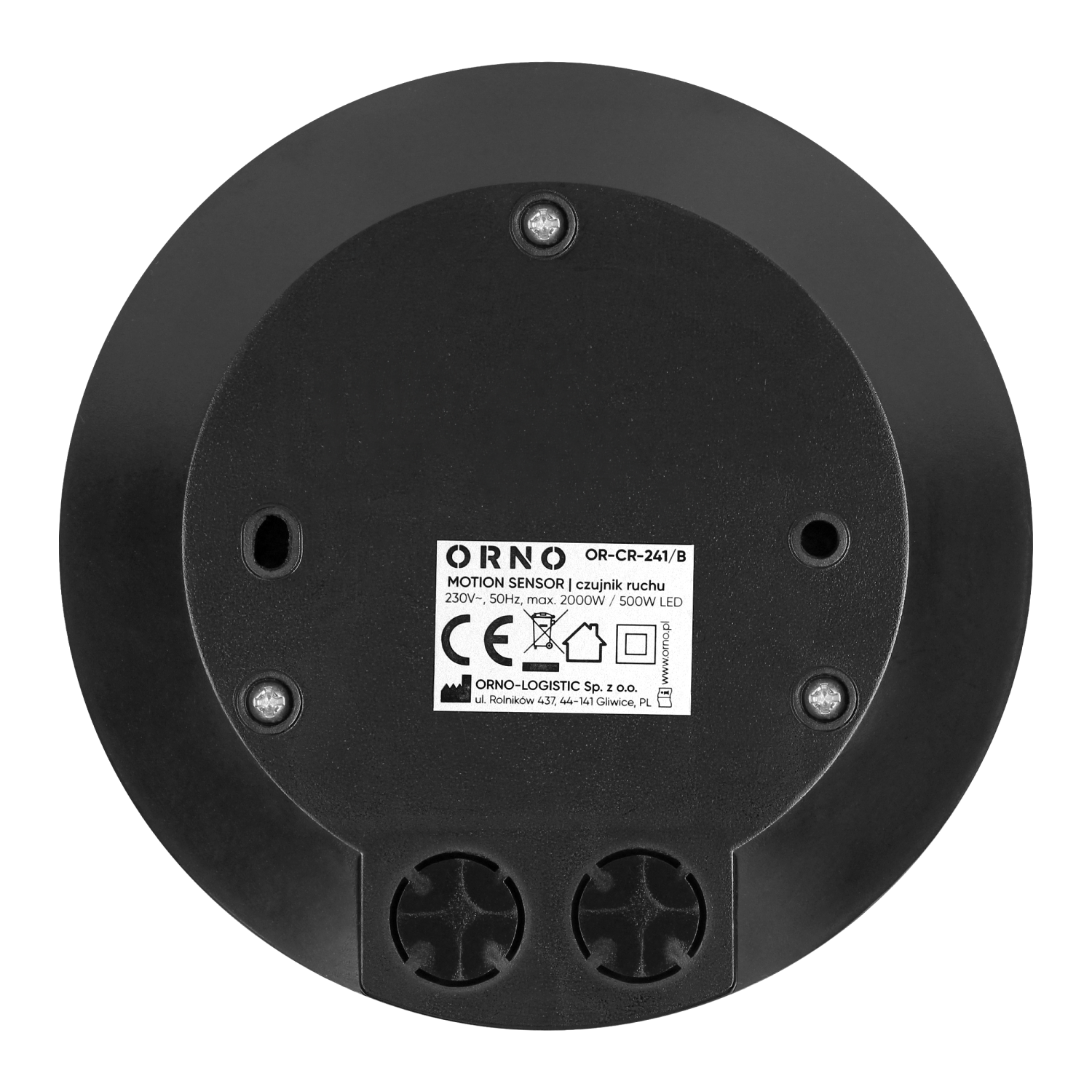

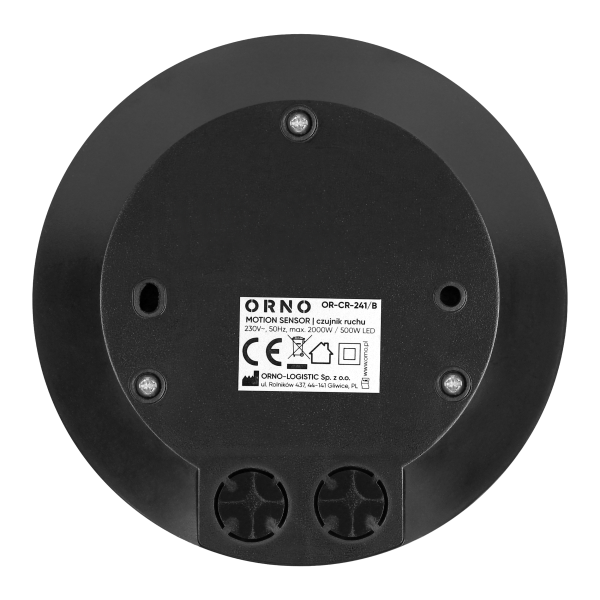

The sensor is suitable for surface mounting on the ceiling with optimal installation height of 2-2,4 m. The body, made of durable polycarbonate, provides resistance to external factors, and the IP20 protection rate allows installation in dry rooms not exposed to moisture.

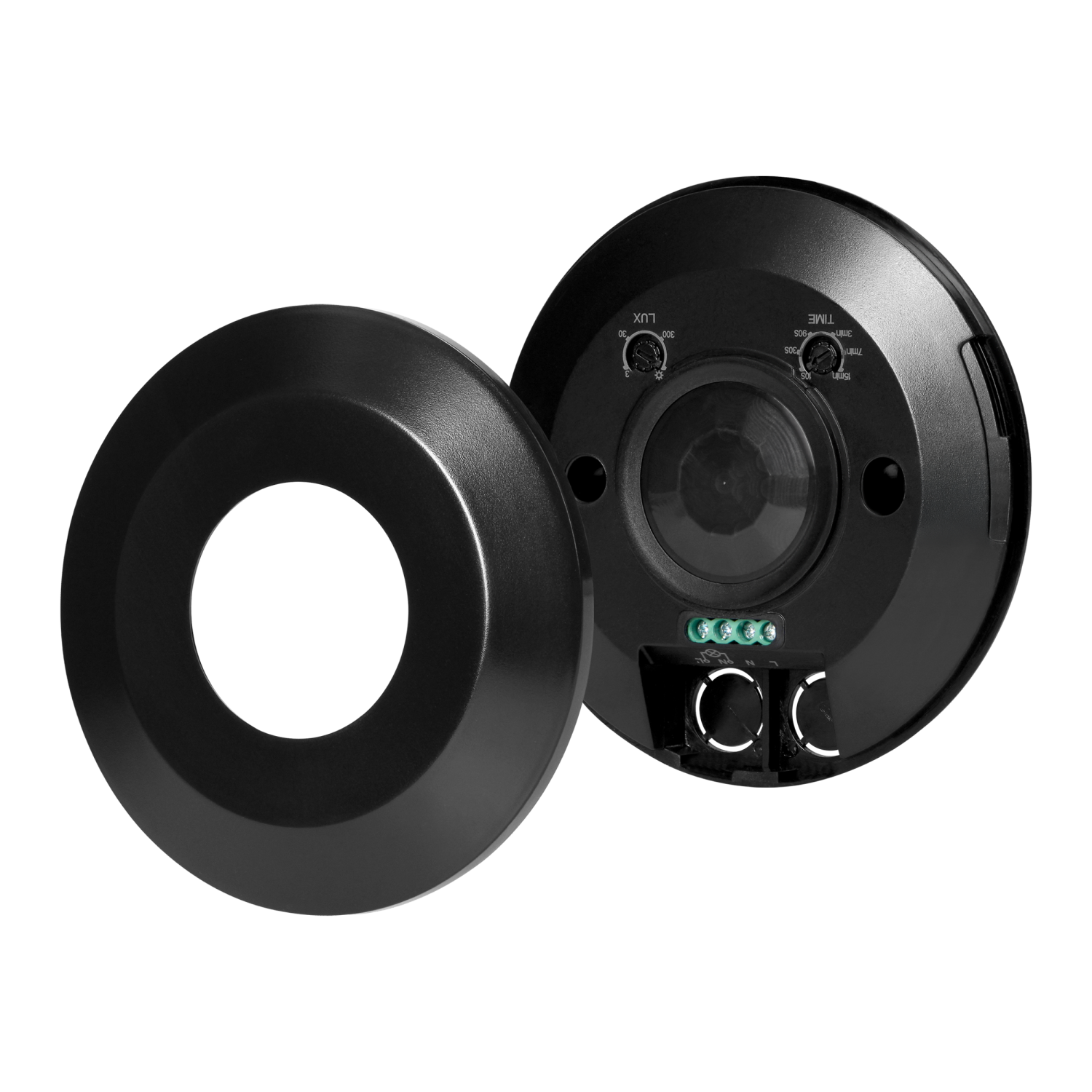

The device features a relay output and an adjustable switching time between 10s-15min. The sensor operates in a wide temperature range from -20°C to +40°C.

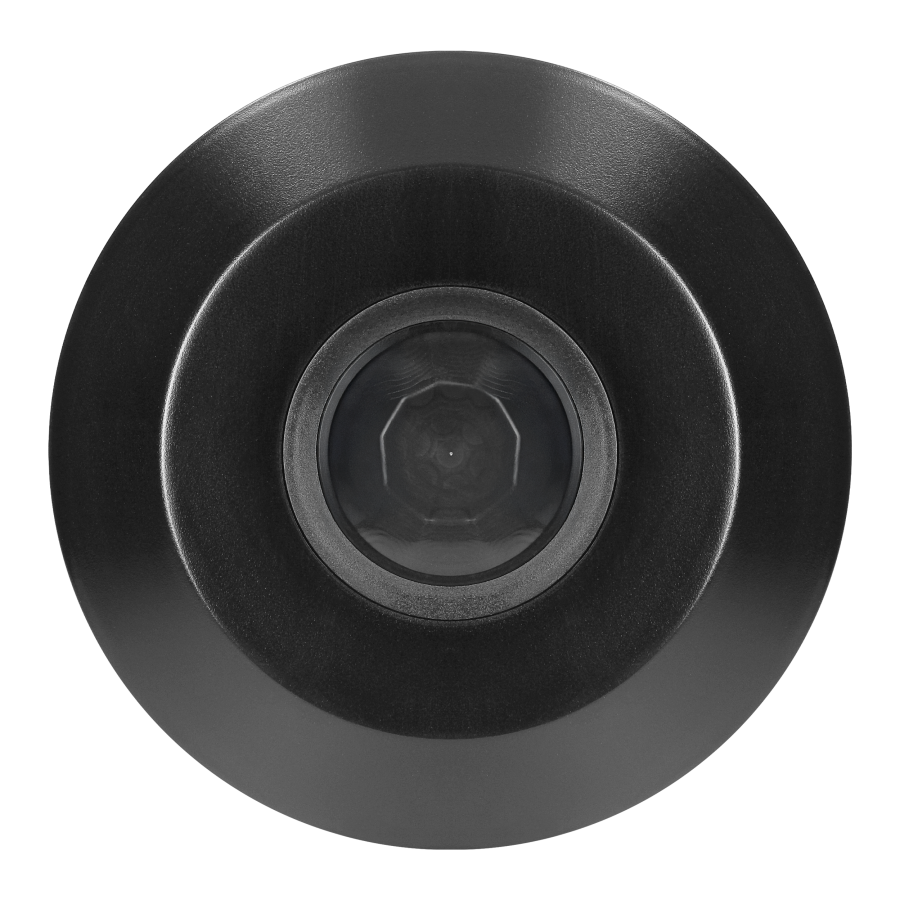

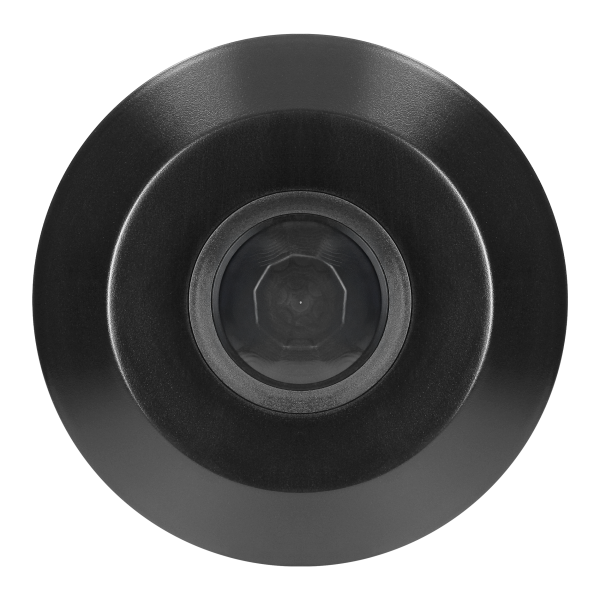

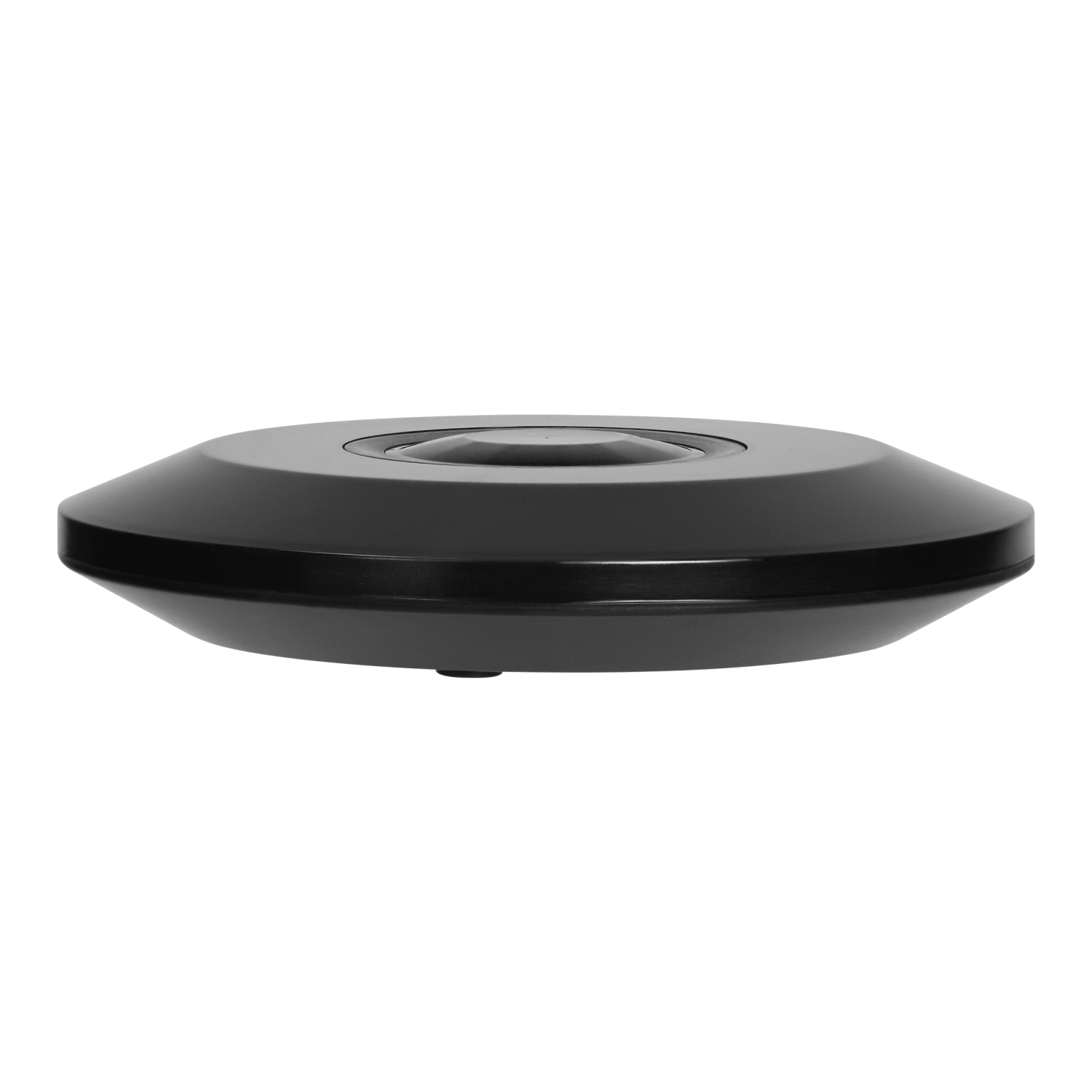

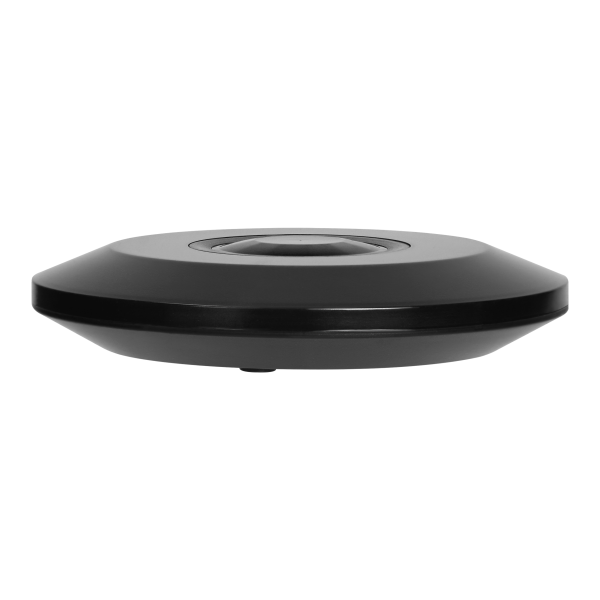

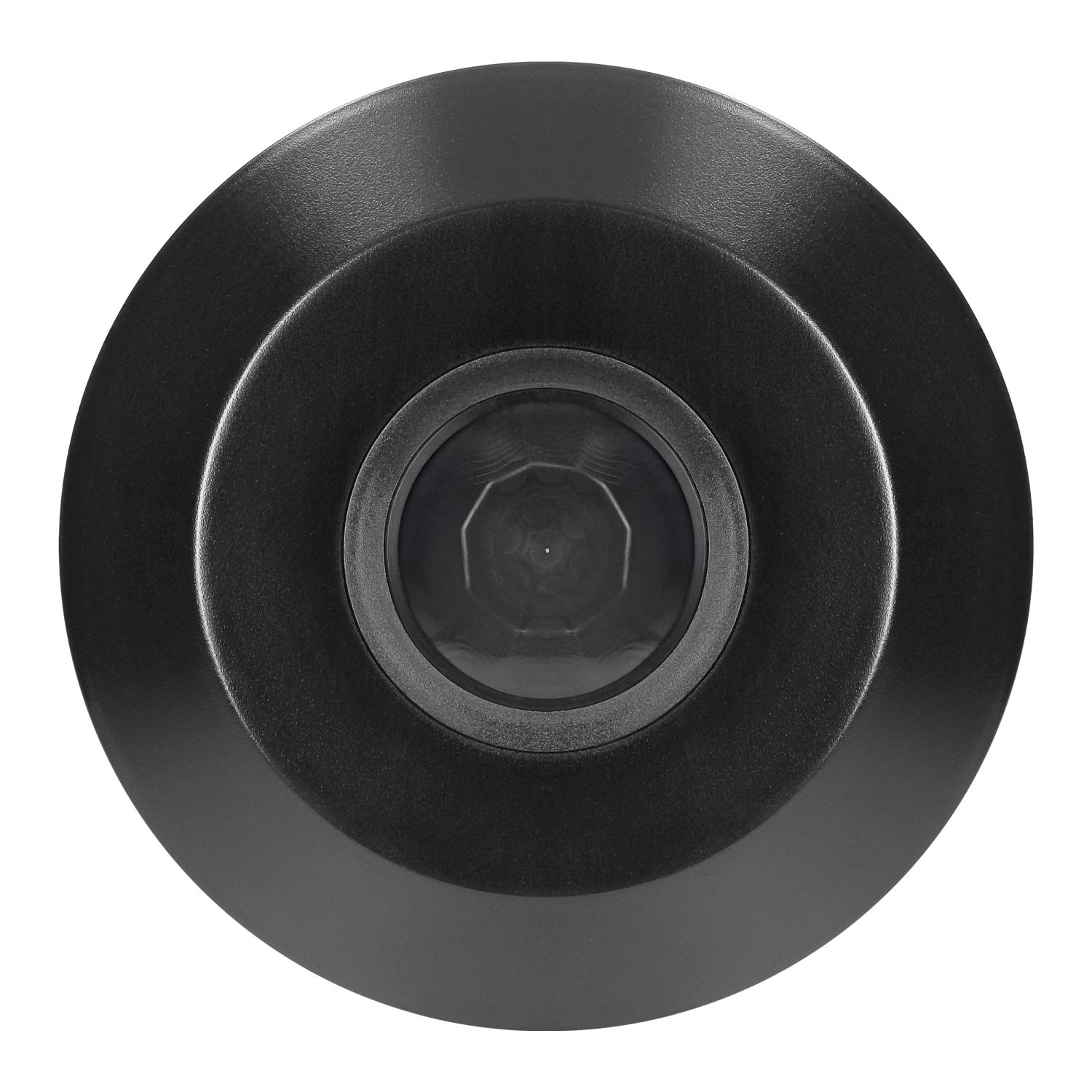

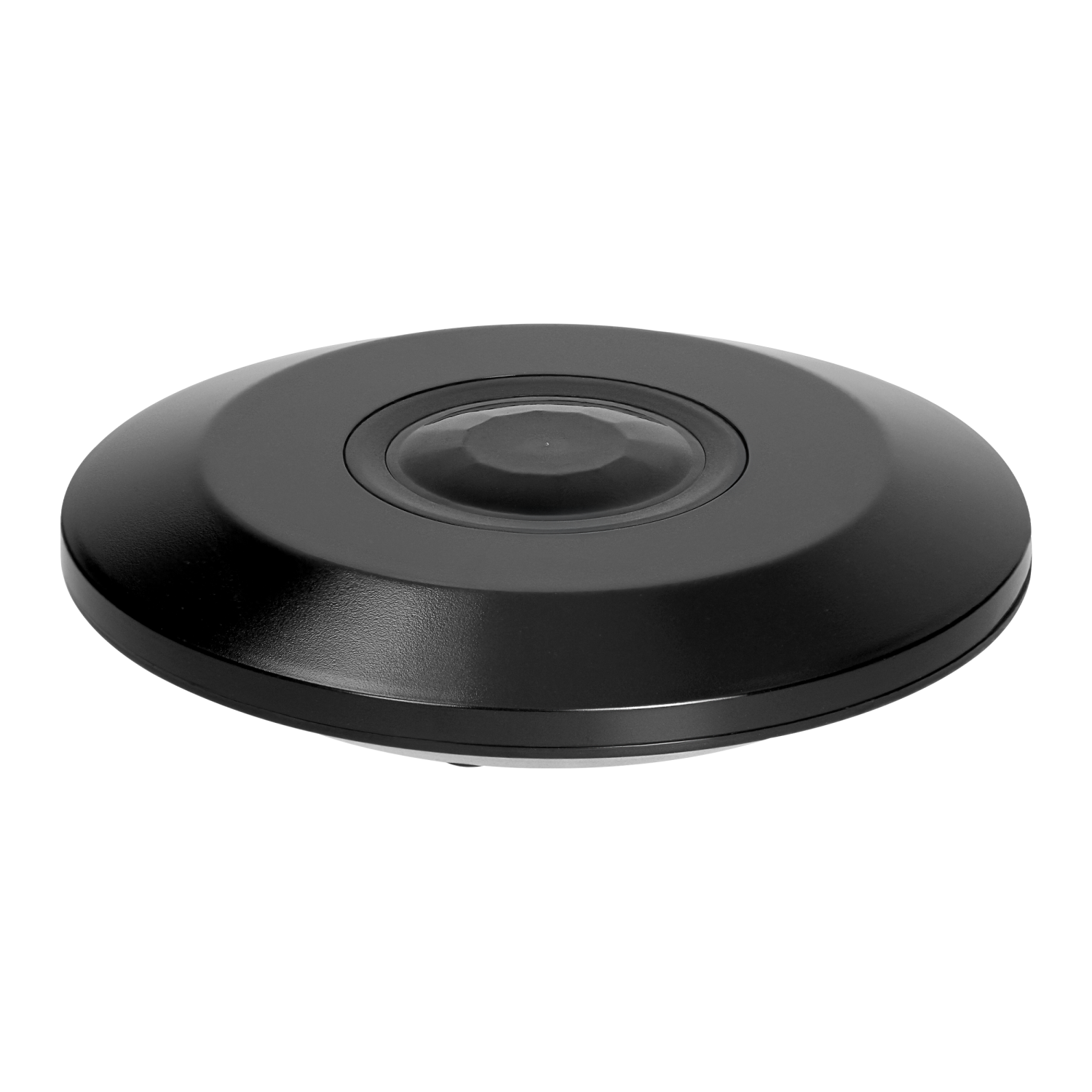

The black lens of the device emphasises its elegant and minimalistic design. It perfectly blends with the black housing, thanks to which the sensor is not only functional but aesthetic as well. It has been designed to successfully resemble a CCTV camera. The depth at the wall is only 22m, therefore the sensor is unobtrusive and may be installed in many locations. The diameter is 115mm.
The device covers a 3-year warranty.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2 - 2,4 |
| Max. reach frontally [m]: | 3 |
| Diameter reach on floor [m]: | 6 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lux]: | <3-2000 |
| Mounting method: | Montaż natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Czarny |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 15 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 500 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Depth [mm]: | 22 |
| Diameter [mm]: | 115 |
| Weight [g]: | 105 |
