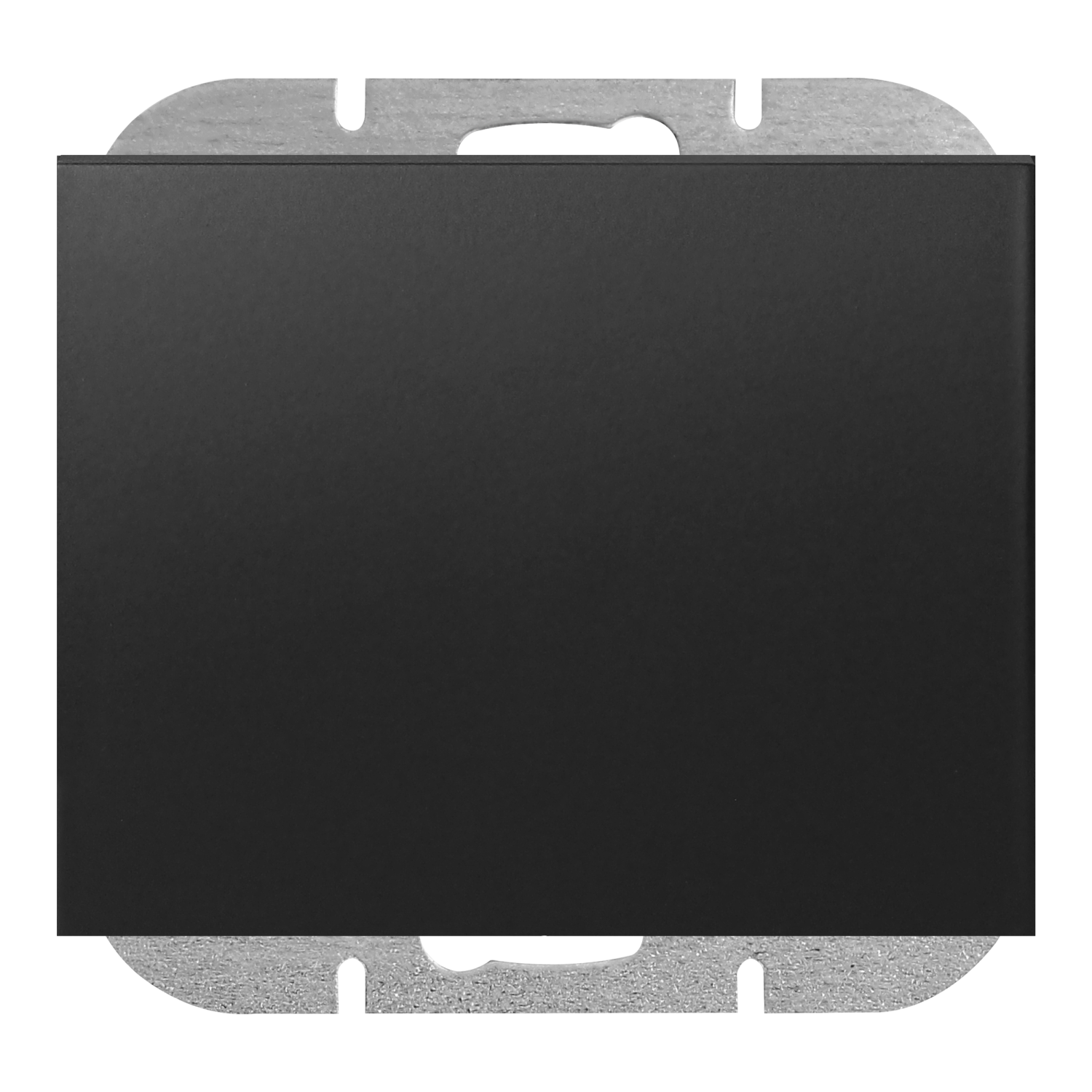

Flush-mounted doorbell button with illumination Onyx, 10A, 250V,  WP-6/7O/S, black
Flush-mounted doorbell button with illumination Onyx, 10A, 250V,  WP-6/7O/S, black

Flush-mounted doorbell button with illumination Onyx, 10A, 250V, WP-6/7O/S, black

OR-OE-7504/P/B
New

Description


The corridor is dimly lit, and a soft light leads straight to the button? Your guest doesn't have to guess where the bell button is. One press and the sound of the bell echoes throughout the flat.

The momentary (NO) mechanism only reacts when pressed, giving you full control over the signal. You don't have to worry about jams or accidental activations.

Thanks to the orientation lighting, you always know where to press the bell, regardless of the time of day. The light gently guides you to the button, so you don't have to search for it blindly.

The button can be easily mounted flush in a standard box, and installation with screws or claws takes just a few minutes.

The painted, matte surface looks elegantly, and fingerprints are less visible than on glossy buttons. The black colour perfectly matches the modern frames of the Onyx system.

orientation lighting also works in the dark

General information:
Wiring system: Styk zwierny (NO)
Method of operation: Przycisk wahadłowy
Assembly arrangement: Element systemu modułowego do osprzętu elektroinstalacyjnego
Number of rockers: 1
Mounting method: Montaż podtynkowy
Type of fastening: Montaż pazurkowy /-śrubowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Surface protection: Malowanie
Surface finishing: Matowy
Colour: Czarny
Label space/information surface: Nie
Illumination: Tak
Function lighting: Orientacyjne
Suitable for degree of protection (IP): IP20
Nominal voltage [V]: 250
Frequency [Hz]: 50
Rated current [A]: 10
Connection type: Zacisk śrubowy
Device width [mm]: 98
Device height [mm]: 82
Device depth [mm]: 13
Built-in depth [mm]: 27
Min. depth of built-in installation box [mm]: 27

Files to download

File category File language File type File update date
Product data sheetPLpdf2026-03-04 08:38:23Download
Product data sheetENpdf2026-03-04 08:50:21Download
