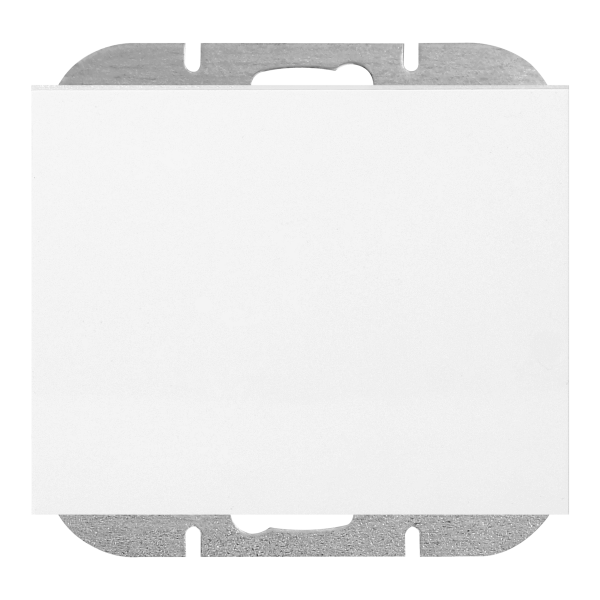

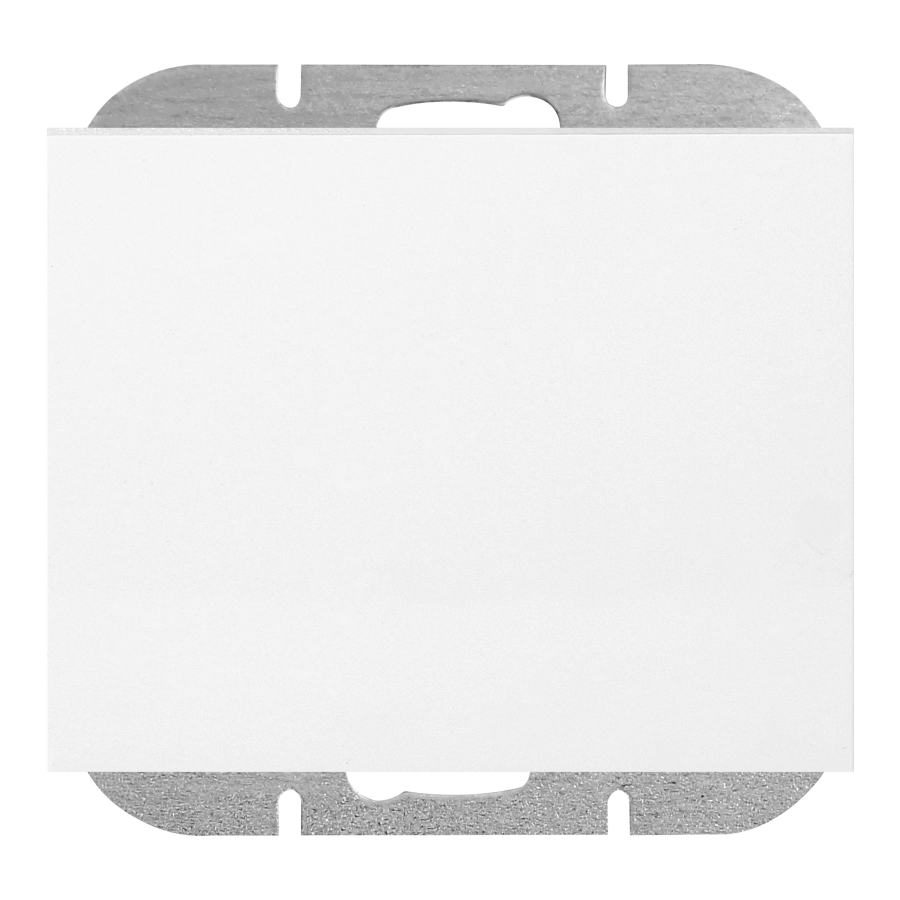

Flush-mounted doorbell button with illumination Onyx, 10A, 250V,  WP-6/7O/S, white
Flush-mounted doorbell button with illumination Onyx, 10A, 250V,  WP-6/7O/S, white

Flush-mounted doorbell button with illumination Onyx, 10A, 250V, WP-6/7O/S, white

OR-OE-7504/P/W
New

Description


Tired of wandering around in the dark at the entrance? This button glows softly, so you, your family and guests can easily find the bell after dark: no searching on the wall, no extra lights in the hallway.

Press and it rings. A momentary contact (NO) means that the sound only rings when you want it to, without any “suspended” ringing.

Install it once and forget about it. Onyx flush-mounted buttons can be inserted into a standard 60 mm box (min. depth 27 mm), and claw/screw fastenings and screw clamps make installation quick, even when modernising older installations.

Got your own style? The Onyx modular system allows you to choose the frame and other accessories so that the entire wall looks consistent.

The shiny white Onyx button is easy to clean and fits well in both homes and offices.

The Onyx backlit doorbell is visible at night, easy to install and resistant to everyday use.

Key features of the Onyx doorbell:

You will always find the button: the orientation light helps after dark.

No ‘hang-ups’: the momentary contact (NO) activates the bell only when pressed.

Quick installation: standard box, claw/screw mounting, screw clamps.

Consistent appearance: part of the Onyx modular system – choose matching frames.

Easy to keep clean: smooth, glossy finish in white.

General information:
Wiring system: Styk zwierny (NO)
Method of operation: Przycisk wahadłowy
Assembly arrangement: Element systemu modułowego do osprzętu elektroinstalacyjnego
Number of rockers: 1
Mounting method: Montaż podtynkowy
Type of fastening: Montaż pazurkowy /-śrubowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Surface protection: Stan surowy
Surface finishing: Błyszczący
Colour: Biały
Label space/information surface: Nie
Illumination: Tak
Function lighting: Orientacyjne
Suitable for degree of protection (IP): IP20
Nominal voltage [V]: 250
Frequency [Hz]: 50
Rated current [A]: 10
Connection type: Zacisk śrubowy
Device width [mm]: 98
Device height [mm]: 82
Device depth [mm]: 13
Built-in depth [mm]: 27
Min. depth of built-in installation box [mm]: 27

Files to download

File category File language File type File update date
Product data sheetPLpdf2026-03-04 08:38:24Download
Product data sheetENpdf2026-03-04 08:50:21Download
