Flush-mounted switches
New
Modular series with a frame plate system. A series of modern switches and sockets harmoniously blending with original designer interiors. The switches' modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and special mounting elements enable stable and secure installation in the box.

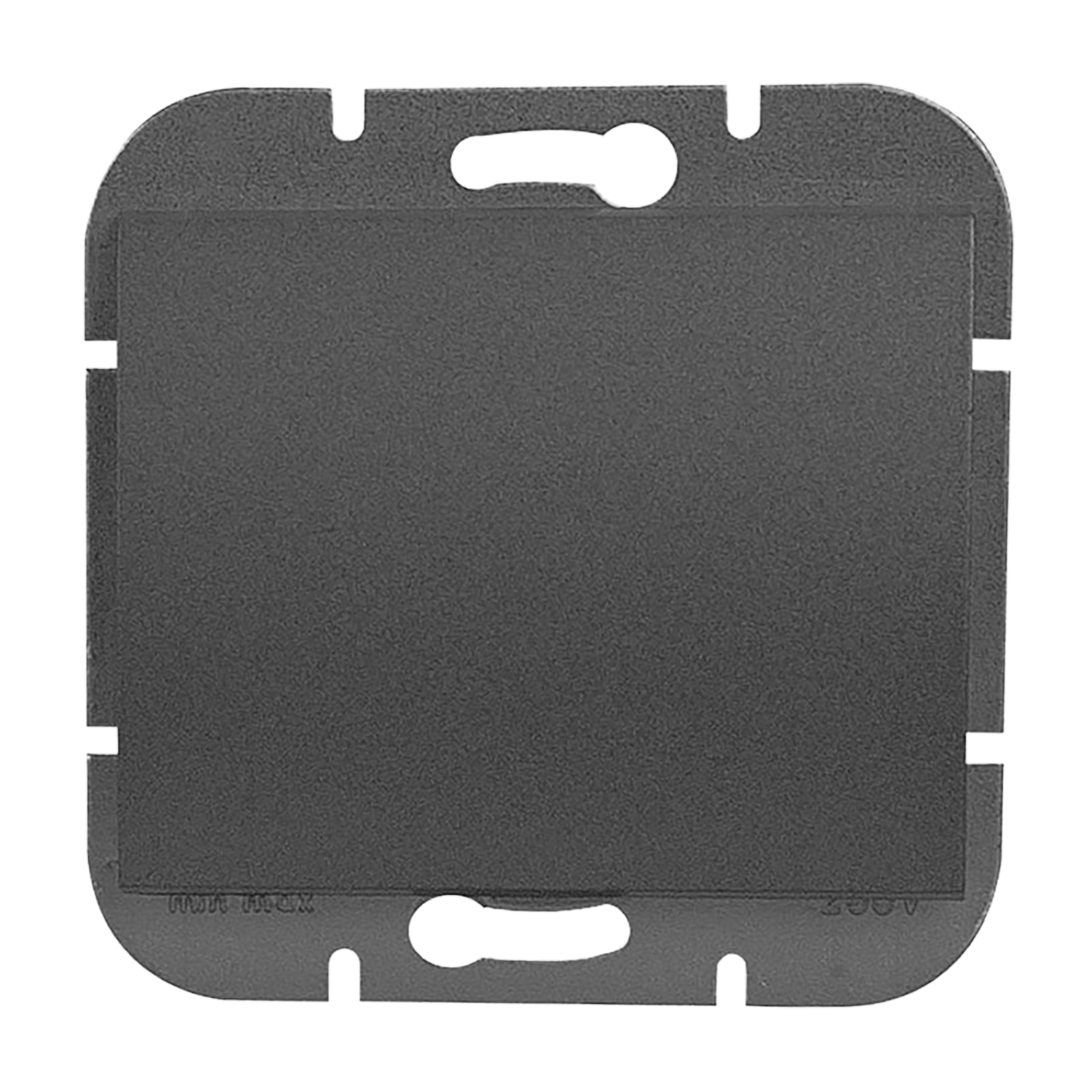

The single-pole switch with illumination is adapted to flush mounting. It is the simplest basic switch which operates on a single circuit and to which, for example, a single lamp can be connected. However, the product can also control other devices in the environment. In addition, this model is equipped with backlighting - so it will be perfect wherever the visibility of the button is important. It should be used indoors (IP20).
The product is available in two colors: white and black. Dimensions 82x98x41mm.
| General information: | |
|---|---|
| Wiring system: | Łącznik 1-biegunowy |
| Method of operation: | Przycisk wahadłowy |
| Assembly arrangement: | Element systemu modułowego do osprzętu elektroinstalacyjnego |
| Number of rockers: | 1 |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Colour: | Czarny |
| Label space/information surface: | Nie |
| Illumination: | Tak |
| Function lighting: | Orientacyjne |
| Suitable for degree of protection (IP): | IP20 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Rated current [A]: | 10 |
| Connection type: | Wtyk samozaciskowy |
| Device width [mm]: | 98 |
| Device height [mm]: | 82 |
| Device depth [mm]: | 13 |
| Built-in depth [mm]: | 27 |
| Min. depth of built-in installation box [mm]: | 27 |
