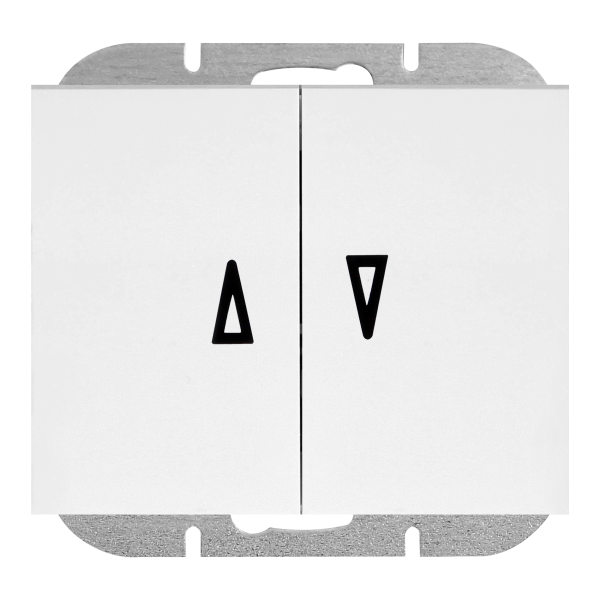

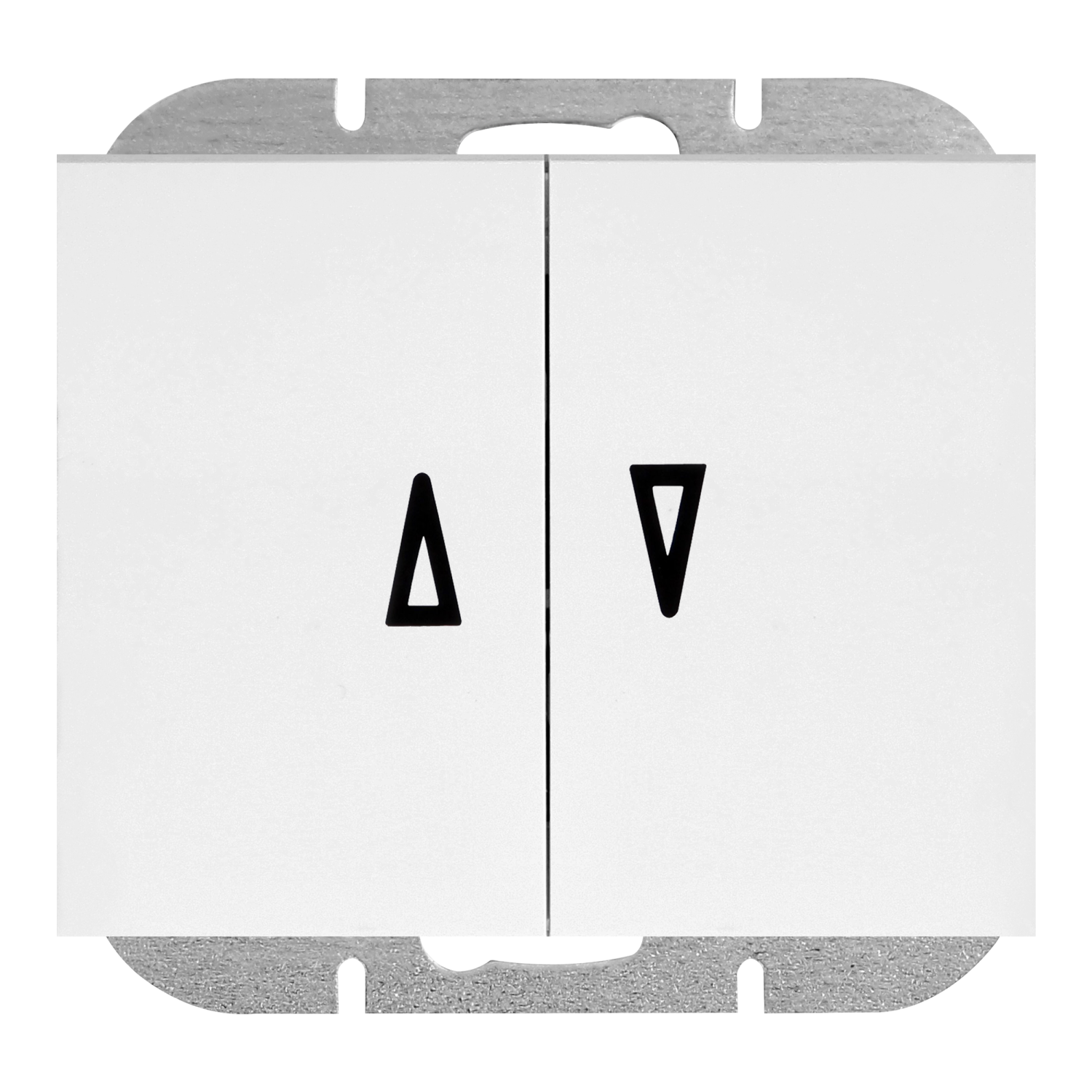

Flush-mounted shutter switch Onyx, 10A, 250V, WP-10O, white
Flush-mounted shutter switch Onyx, 10A, 250V, WP-10O, white

Flush-mounted shutter switch Onyx, 10A, 250V, WP-10O, white

OR-OE-7508/W
New

Description


The shutter switch will provide you with convenient and trouble-free operation of roller blinds, shutters or other window coverings in your home. Thanks to it, you can easily raise or lower your window coverings and quickly let in exactly the amount of light you need.

The Onyx switch is an element that allows you to control roller blinds with one simple movement. Equipped with two easy-to-read buttons – up and down – it works intuitively. Each press gives you control over the position of the roller blind or shutter, and the built-in safety feature prevents both directions from being activated simultaneously, protecting the roller blind mechanism from damage. You can be sure that the operation will not only be convenient, but also safe for the entire system.

The roller blind connector is intended for indoor use. Thanks to its flush-mounted installation, it blends harmoniously with the interior. It takes up little space and looks aesthetically pleasing. It will work well in the living room, bedroom or office.

General information:
For venetian blinds: Tak
For roller blinds: Tak
Assembly arrangement: Element systemu modułowego do osprzętu elektroinstalacyjnego
Model: Łącznik 2-biegunowy
Number of poles: 2
Method of operation: Przycisk wahadłowy
Mounting method: Montaż podtynkowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Surface protection: Malowanie
Surface finishing: Błyszczący
Type of fastening: Montaż pazurkowy /-śrubowy
Connection type: Zacisk śrubowy
Colour: Biały
Label space/information surface: Nie
Suitable for degree of protection (IP): IP20
Rated current [A]: 10
Frequency [Hz]: 50
Nominal voltage [V]: 250
Number of buttons: 2
Number of modules (module system): 1
Device width [mm]: 98
Device height [mm]: 82
Device depth [mm]: 13
Built-in depth [mm]: 27
Min. depth of built-in installation box [mm]: 27

Files to download

File category File language File type File update date
Product data sheetPLpdf2026-03-04 08:38:25Download
Product data sheetENpdf2026-03-04 08:50:24Download
