Workshop cable reels

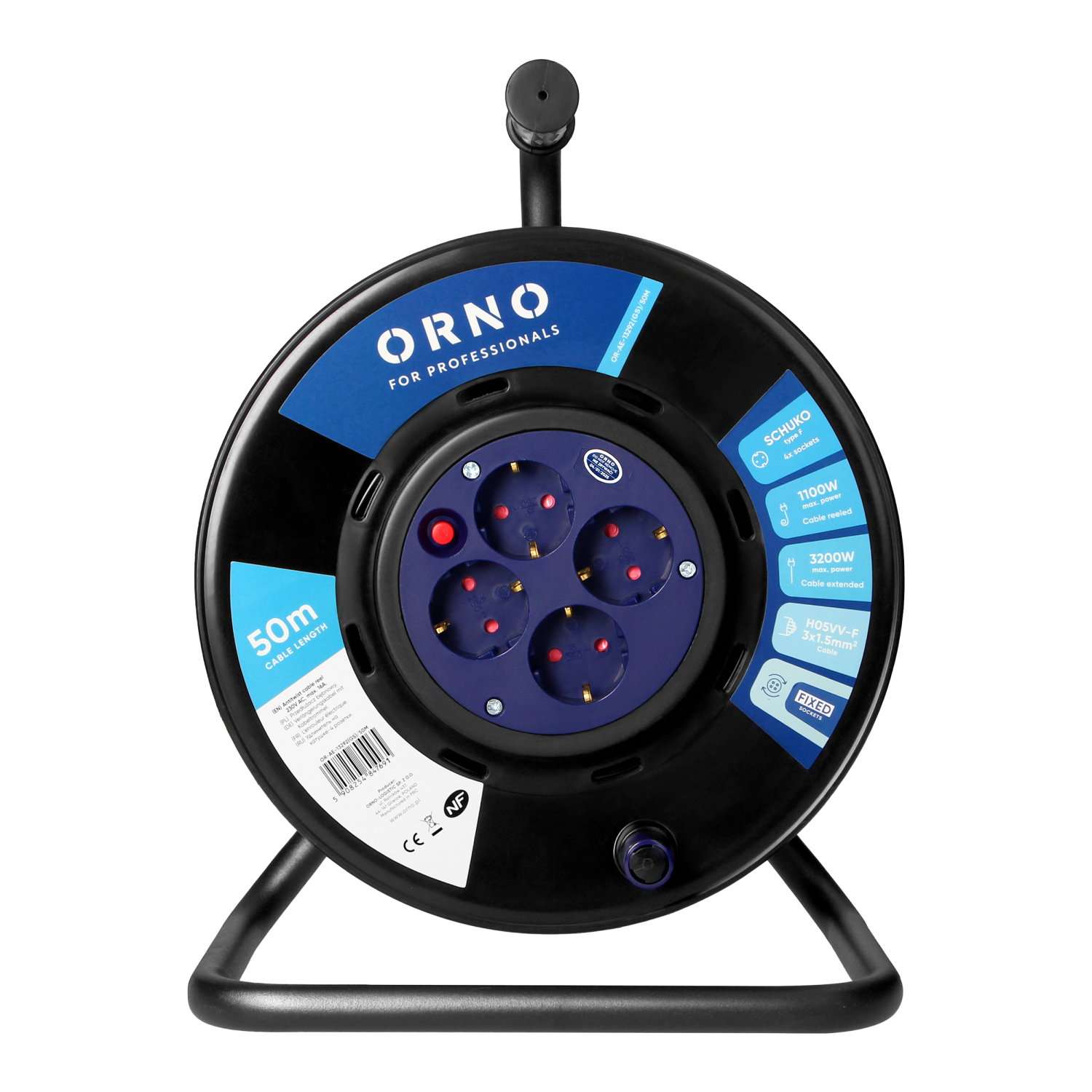

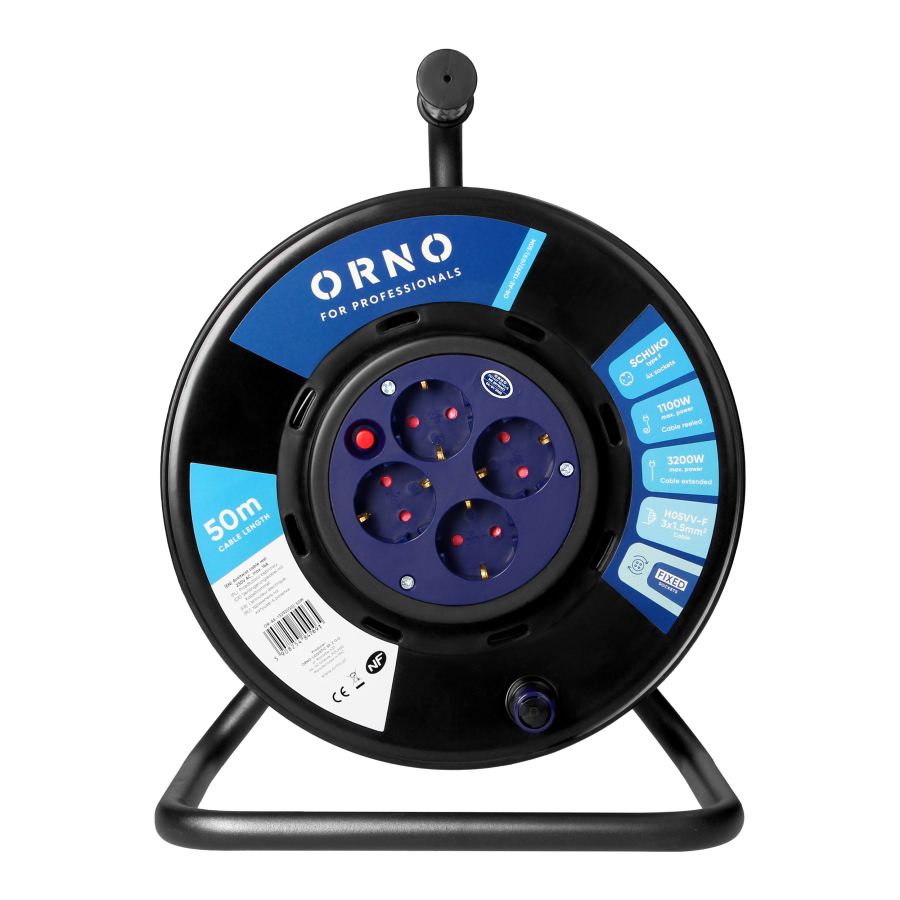

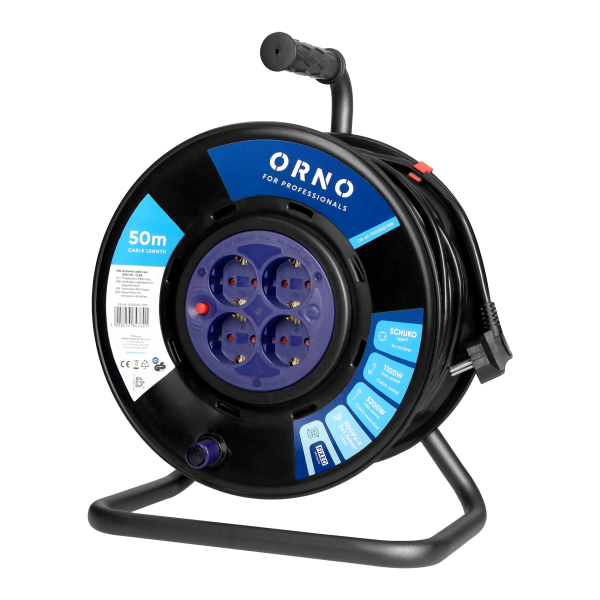

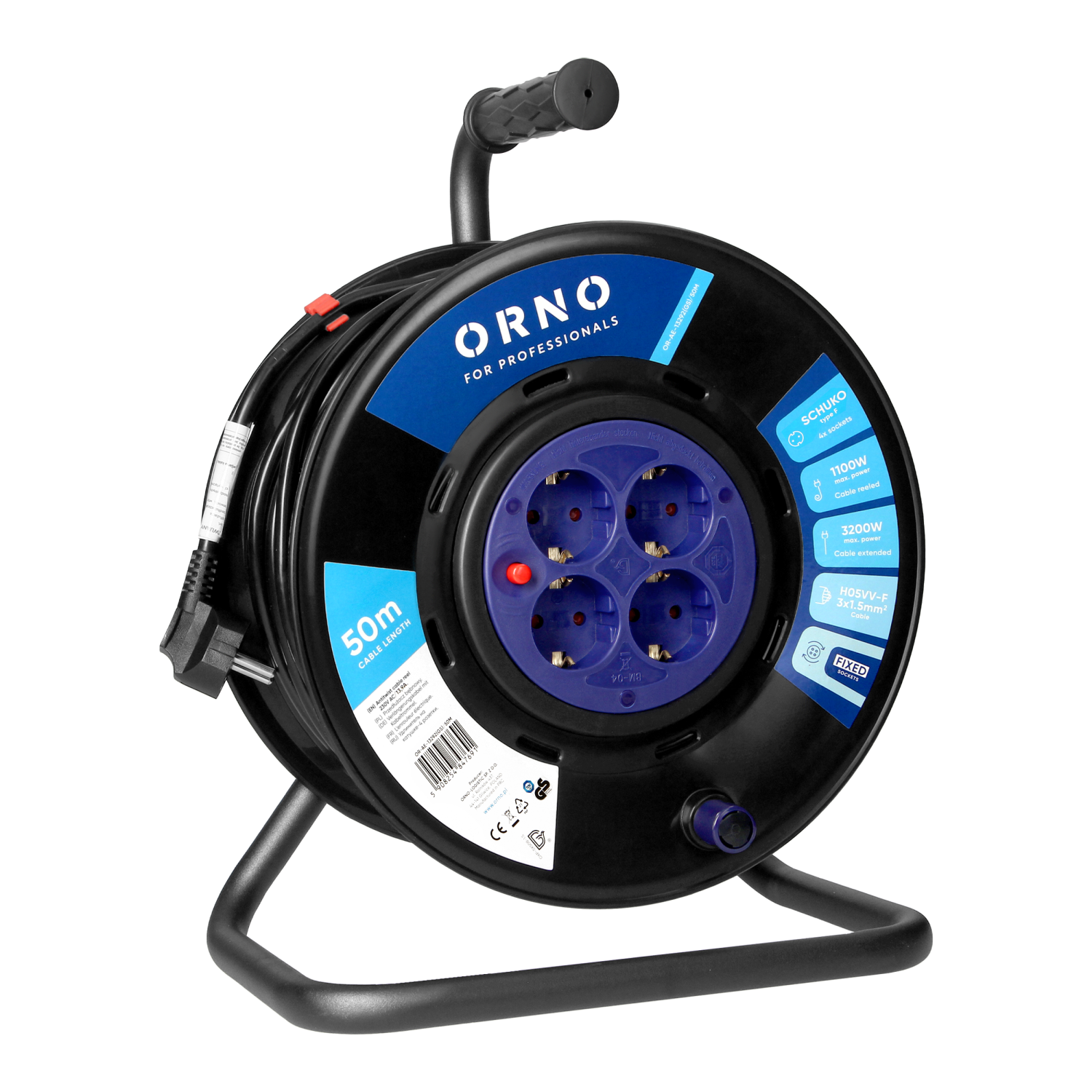

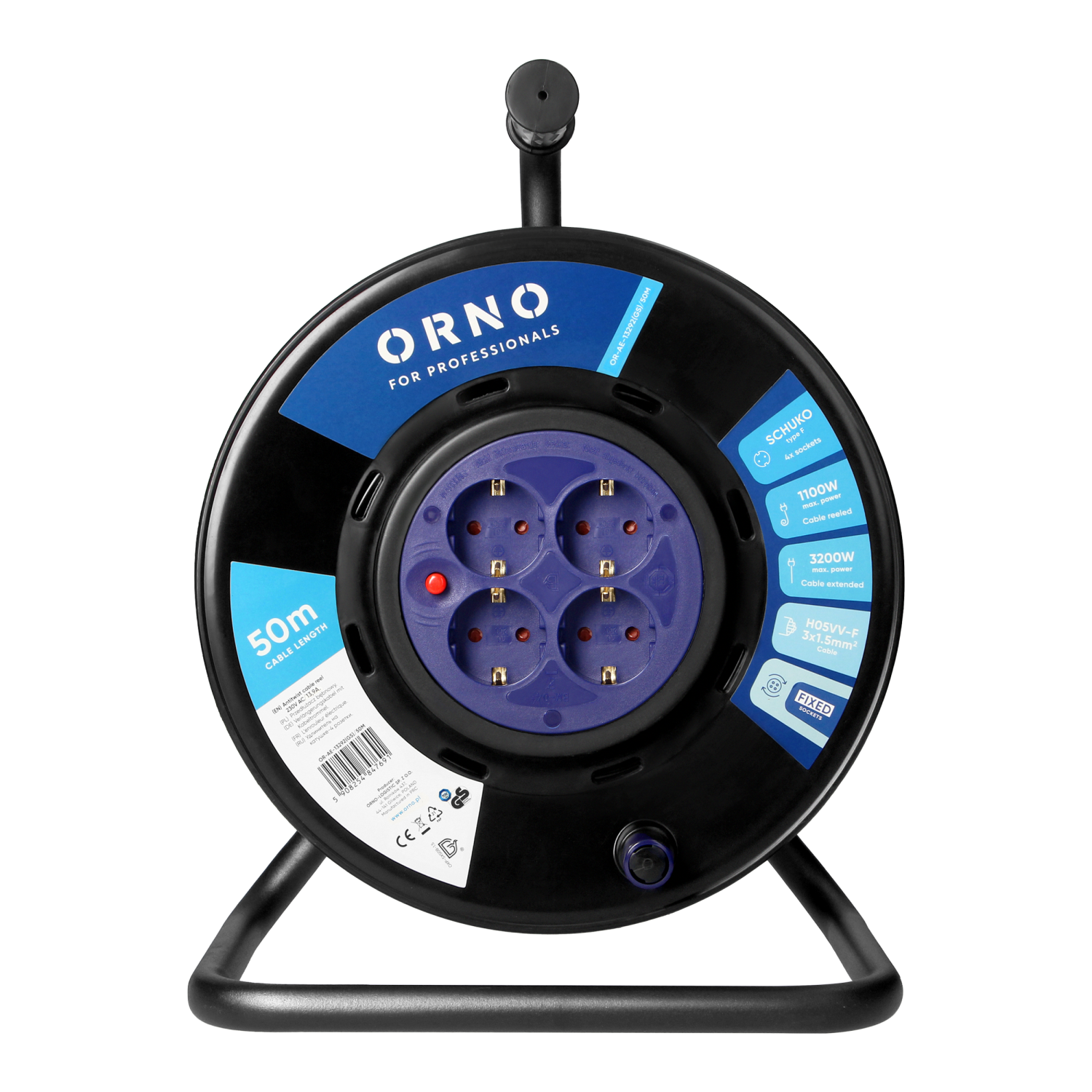

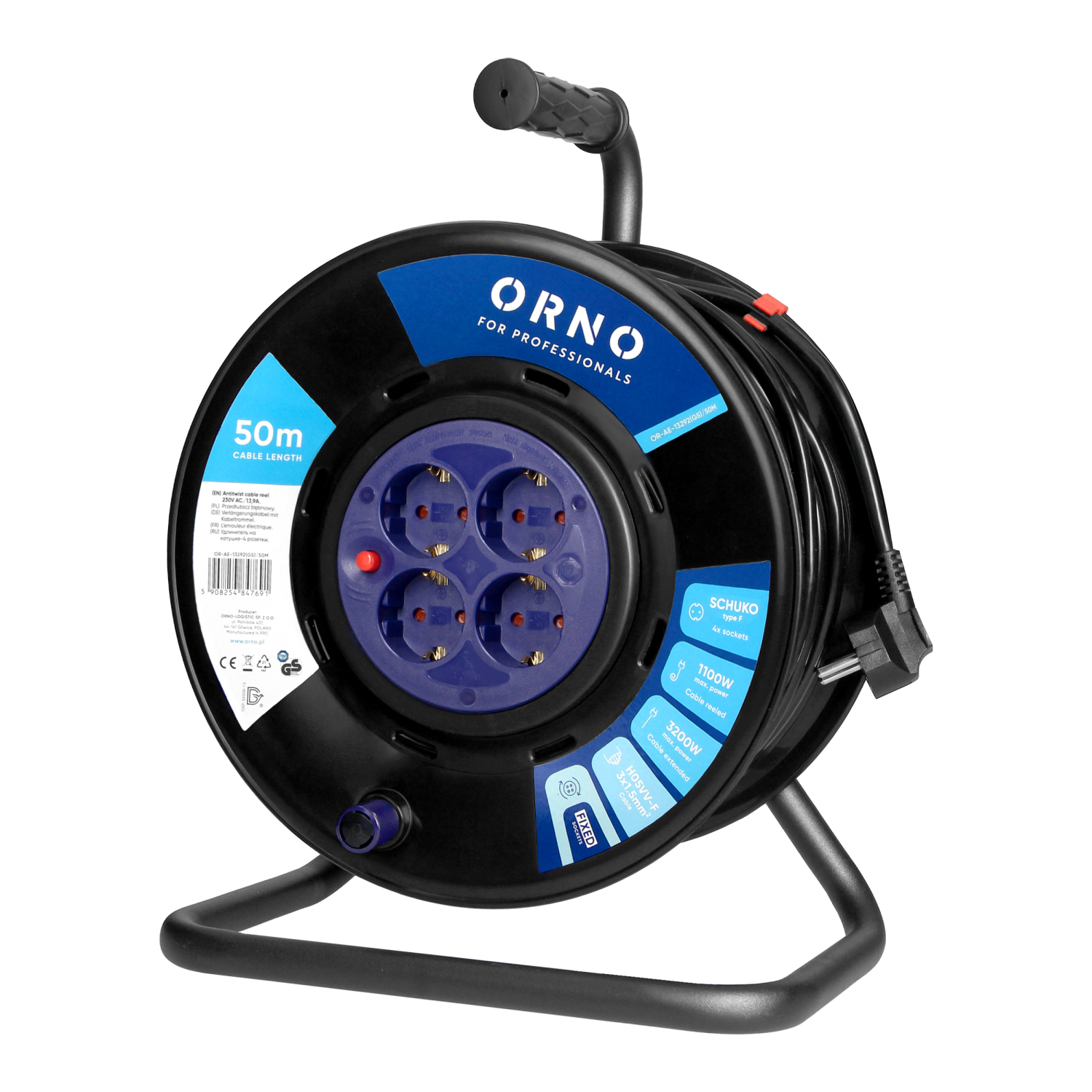

The cable reel enables to safely and reliably connect multiple devices. It is equipped with 4 Schuko-type sockets (2P+E) with safety shutters, which ensure convenience and compatibility with various electrical appliances.
Thanks to its durable construction made from high-quality plastic and a single thermal switch serving as an overload protection, it ensures peace of mind and safety.
The PVC cable 50m long with H05VV-F 3x1,5mm2 specification provides flexibility and freedom of use, even if away from an outlet. The maximum load is 1100W/4,8A when the cable is coiled, and 3200W/13,9A when the cable is uncoiled. Even the most demanding devices can be connected without any worries.

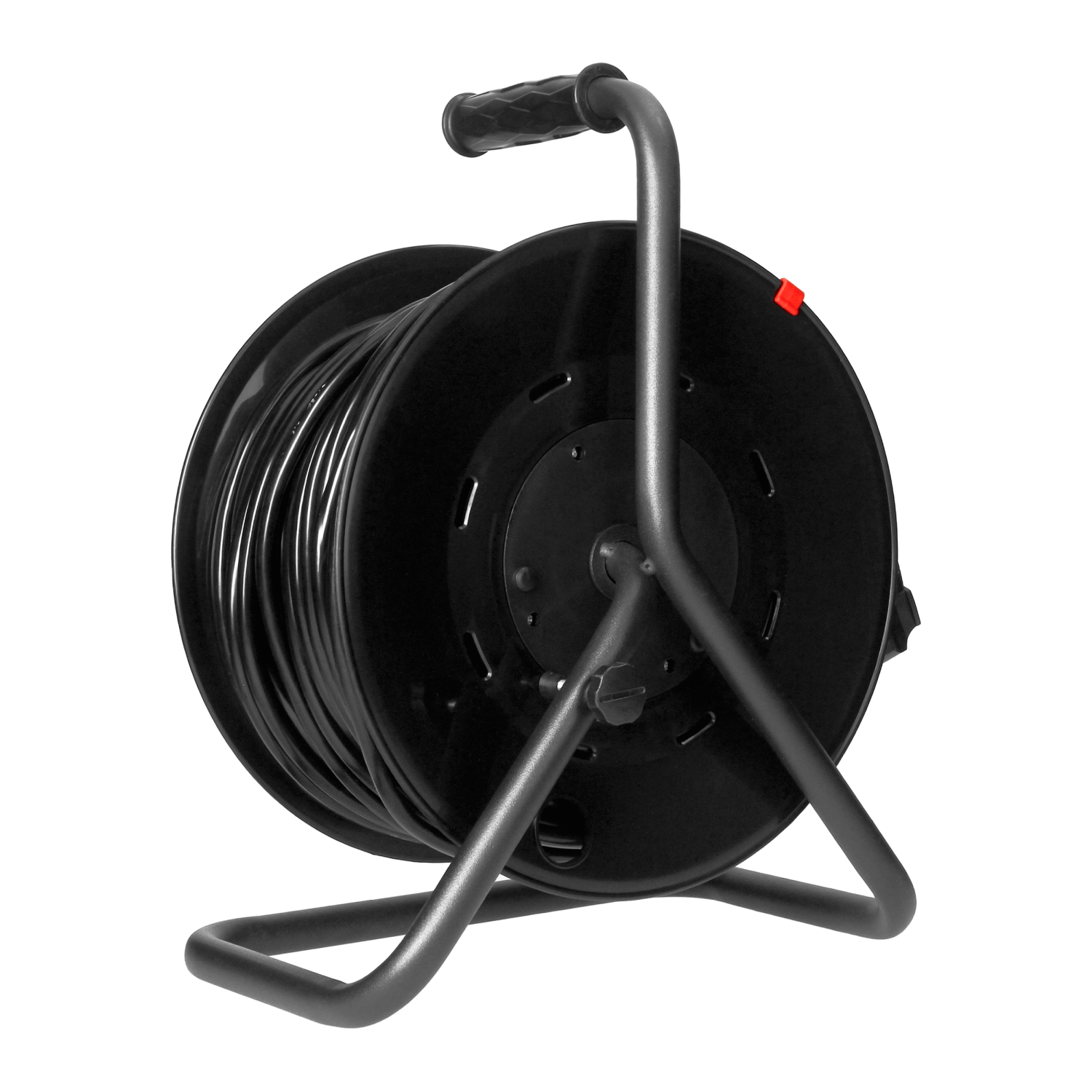

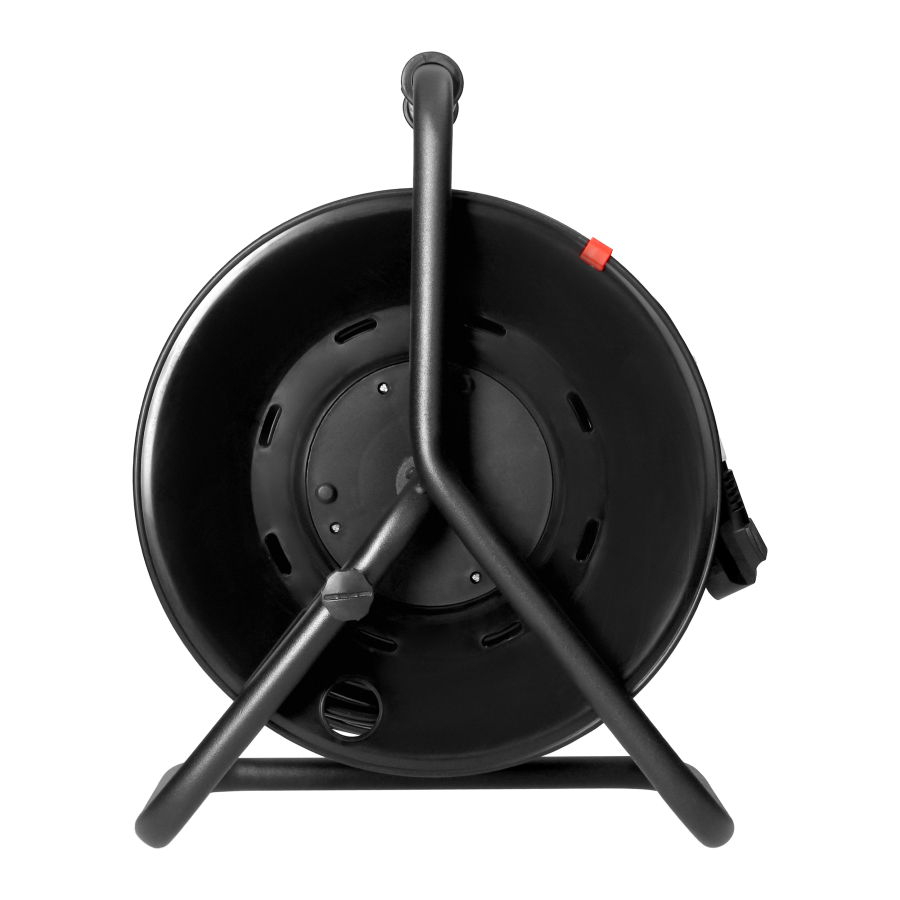

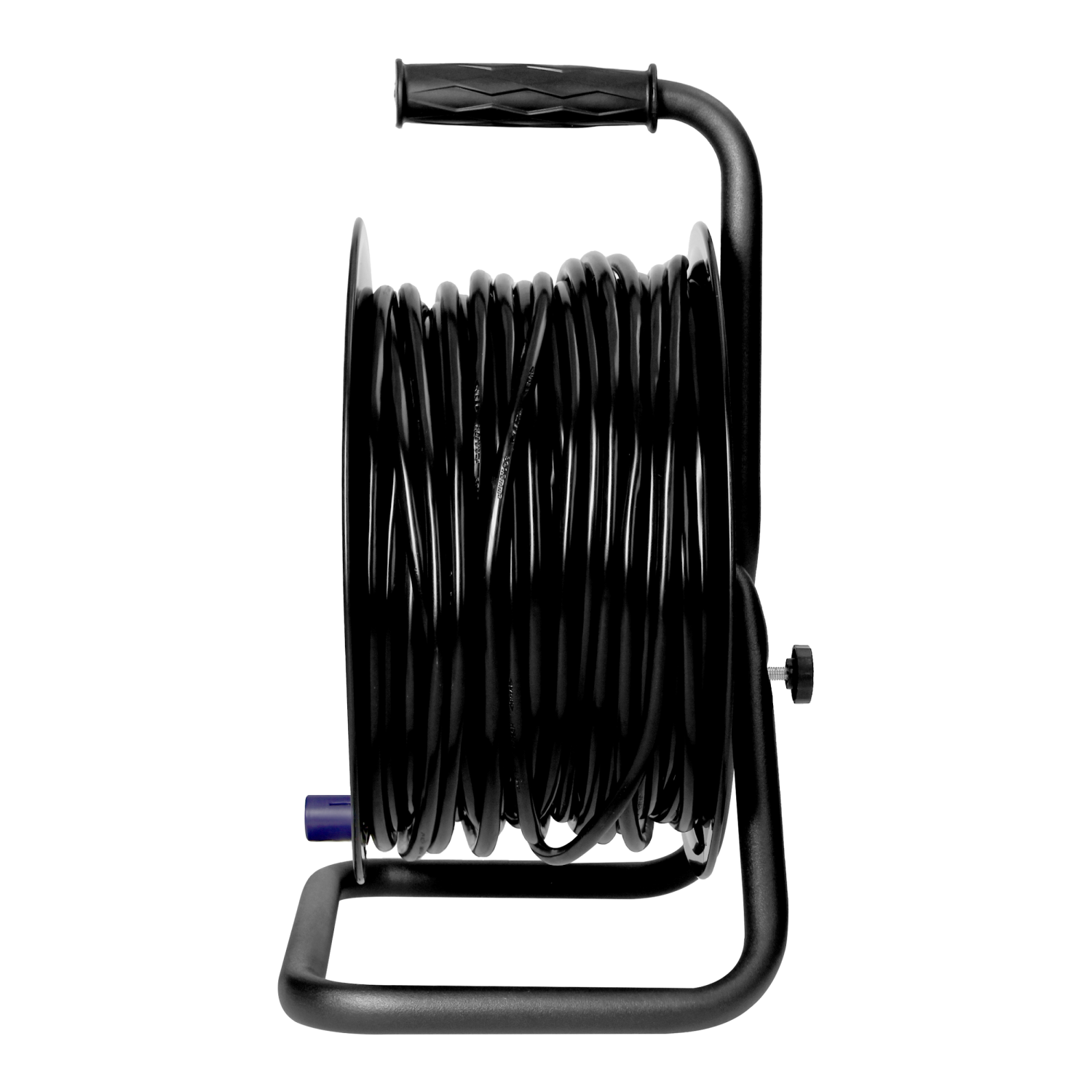

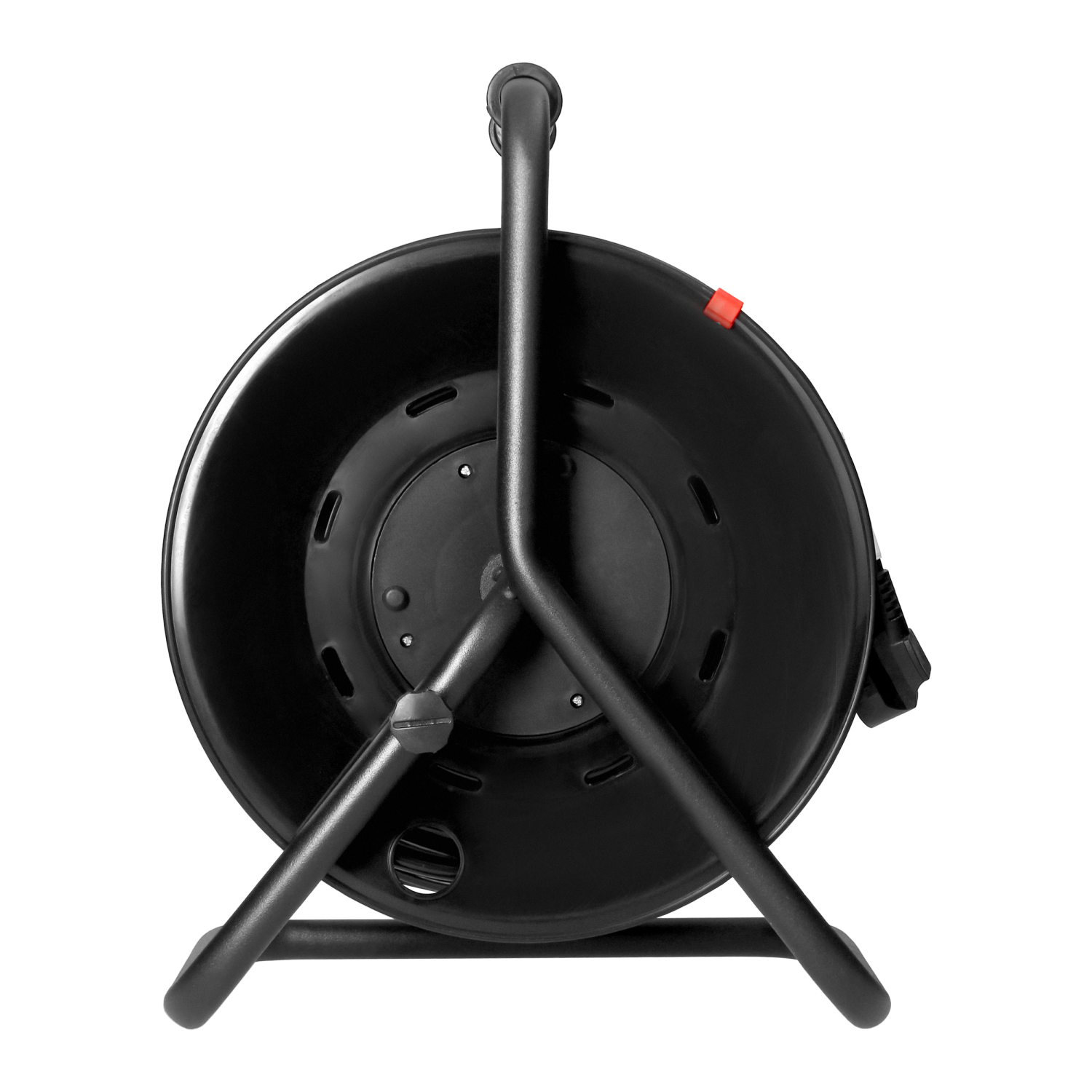

The anti-twist system (fixed sockets) is an innovative feature designed to eliminate cable twisting during use, especially when four devices are connected at the same time. A convenient handle for carrying as well as crank handle for winding the cable provide ergonomics and comfort during transport.
The dimensions measure 247x341mm Black and dark blue colour.
| General information: | |
|---|---|
| Housing material: | Tworzywo sztuczne |
| Cable assembly: | H05VV-F |
| Core cross section [mm]: | 1.5 |
| Number of cores: | 3 |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 4 |
| Cable length [m]: | 50 |
| With mounting frame: | Tak |
| With thermal overload protection: | Tak |
| Fixed sockets: | Tak |
| Protection: | Wyłącznik nadprądowy |
| Degree of protection (IP): | IP20 |
| Colour: | czarno-granatowy |
| Supply voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Current [A]: | 16 |
| Socket type: | 2P+Z |
| Socket standard: | Schuko (type F) |
| Shutters for current paths: | Tak |
| Max. Load/current c cable rolled up: | 1100W/4,8A |
| Max. Load/current cable unrolled: | 3200W / 13,9A |
| Insulation type: | PVC |
