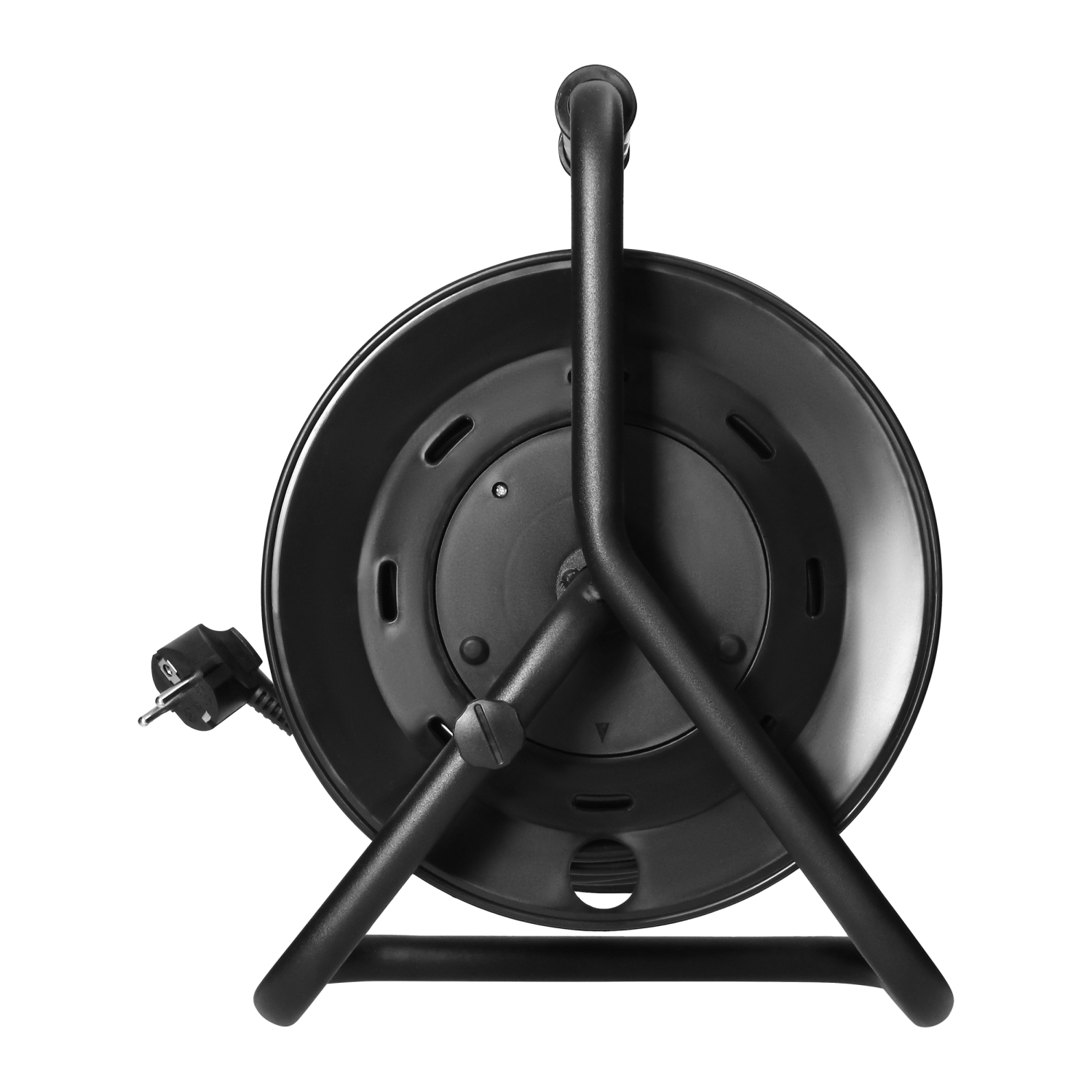

Workshop cable reels

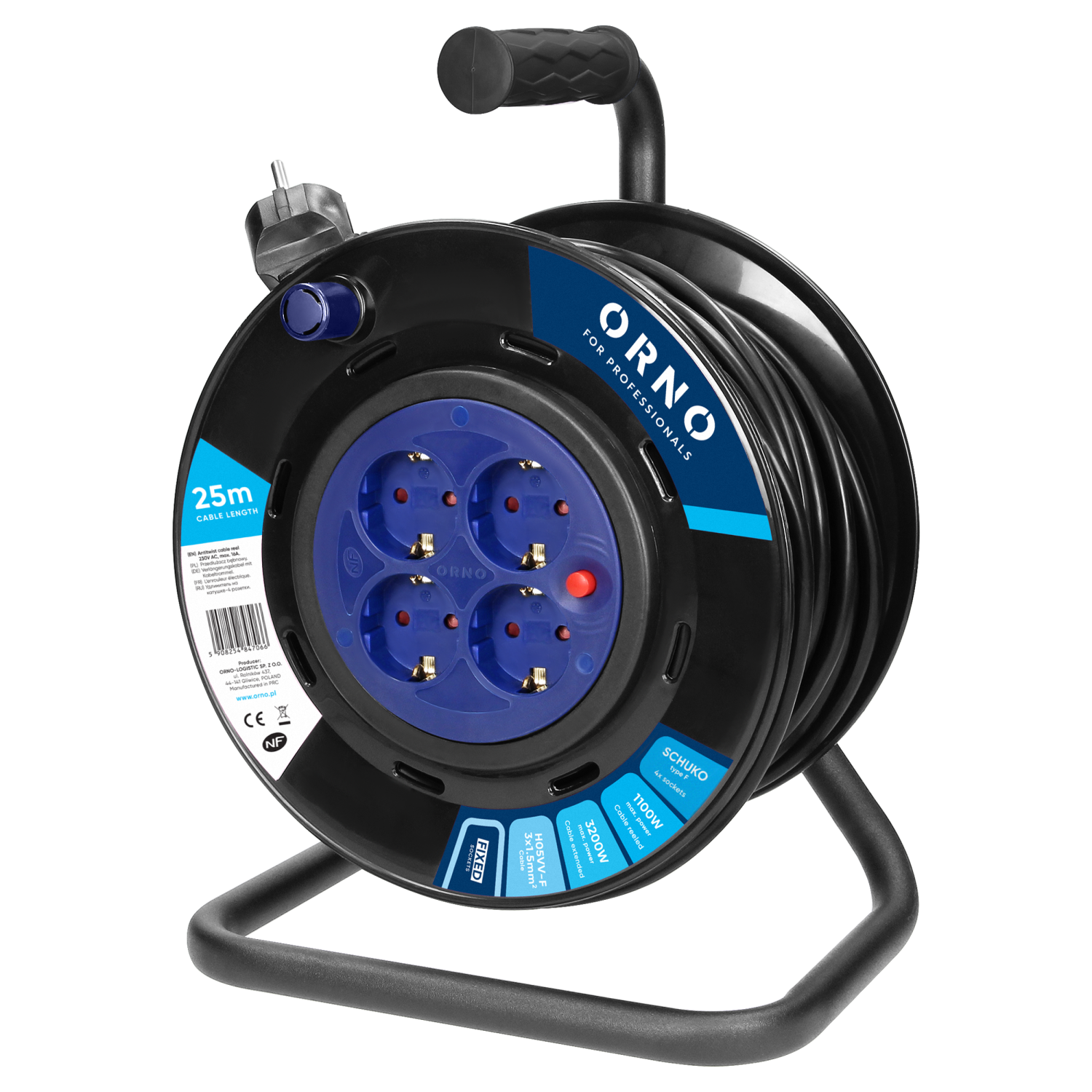

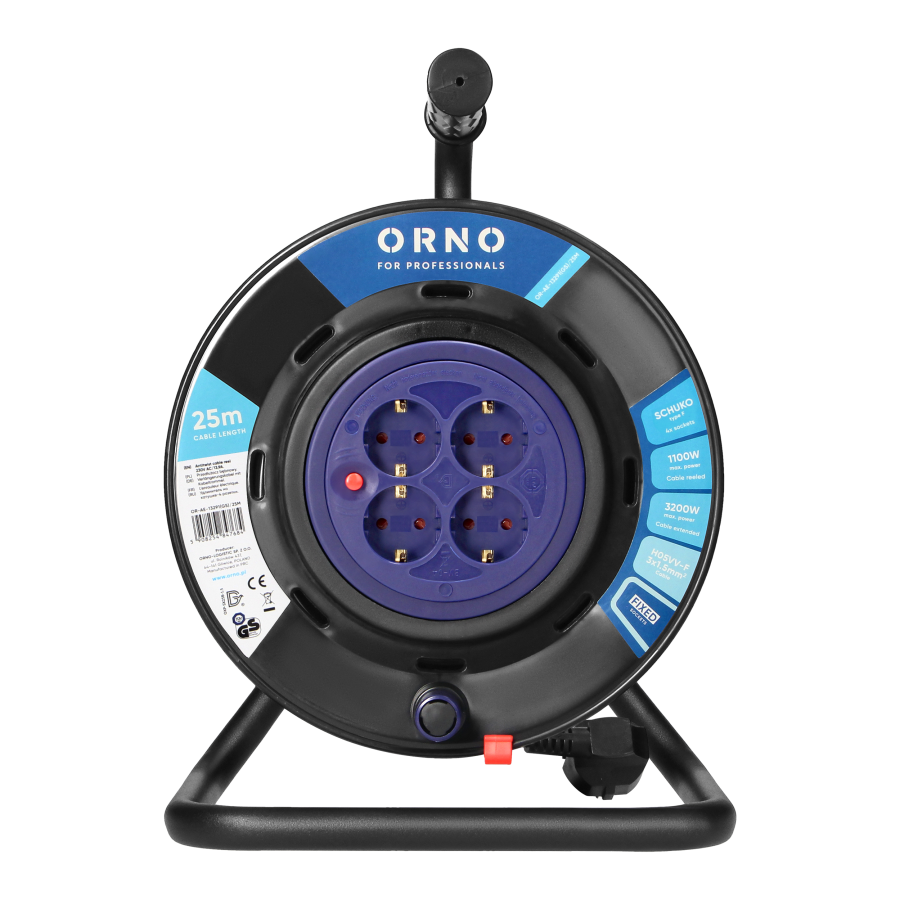

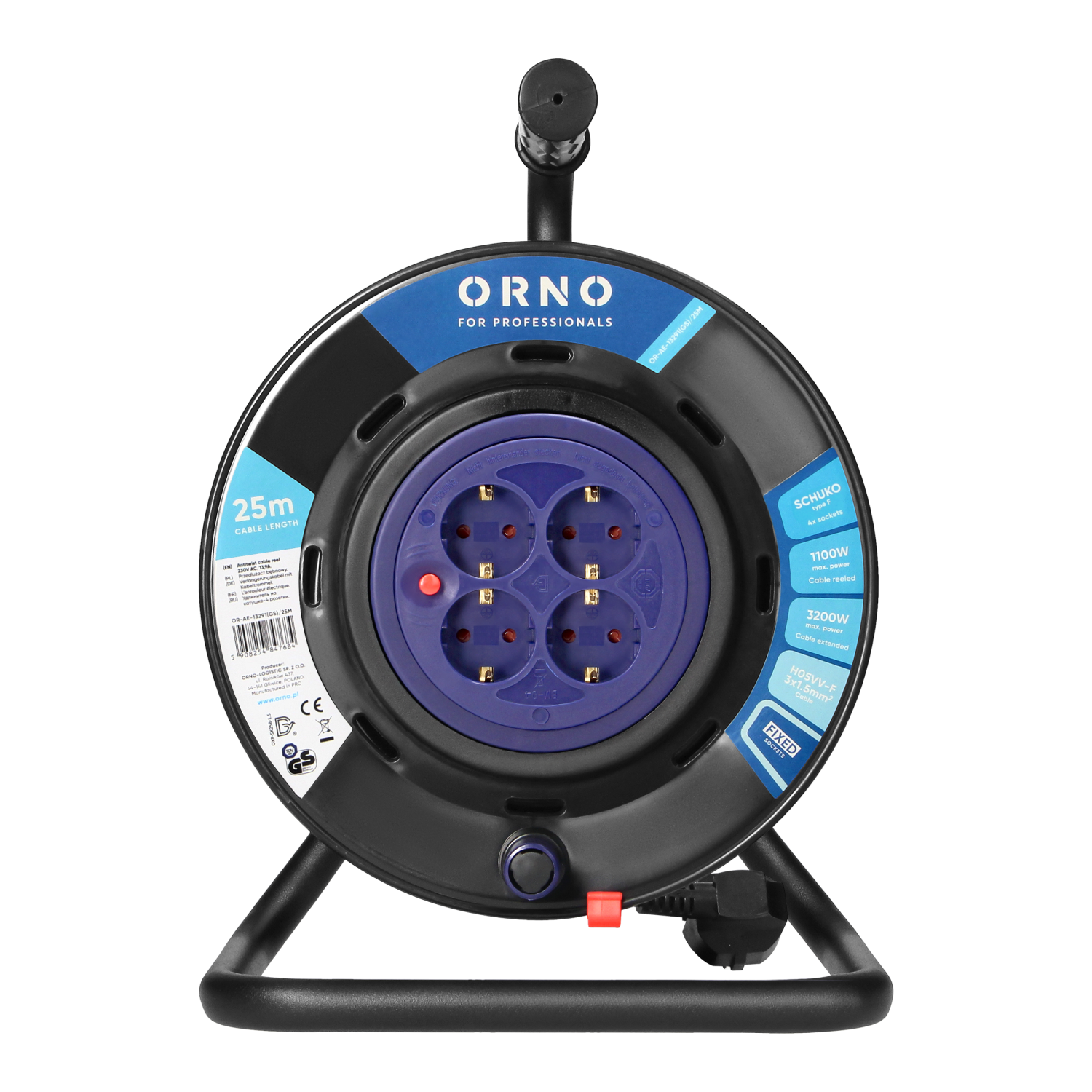

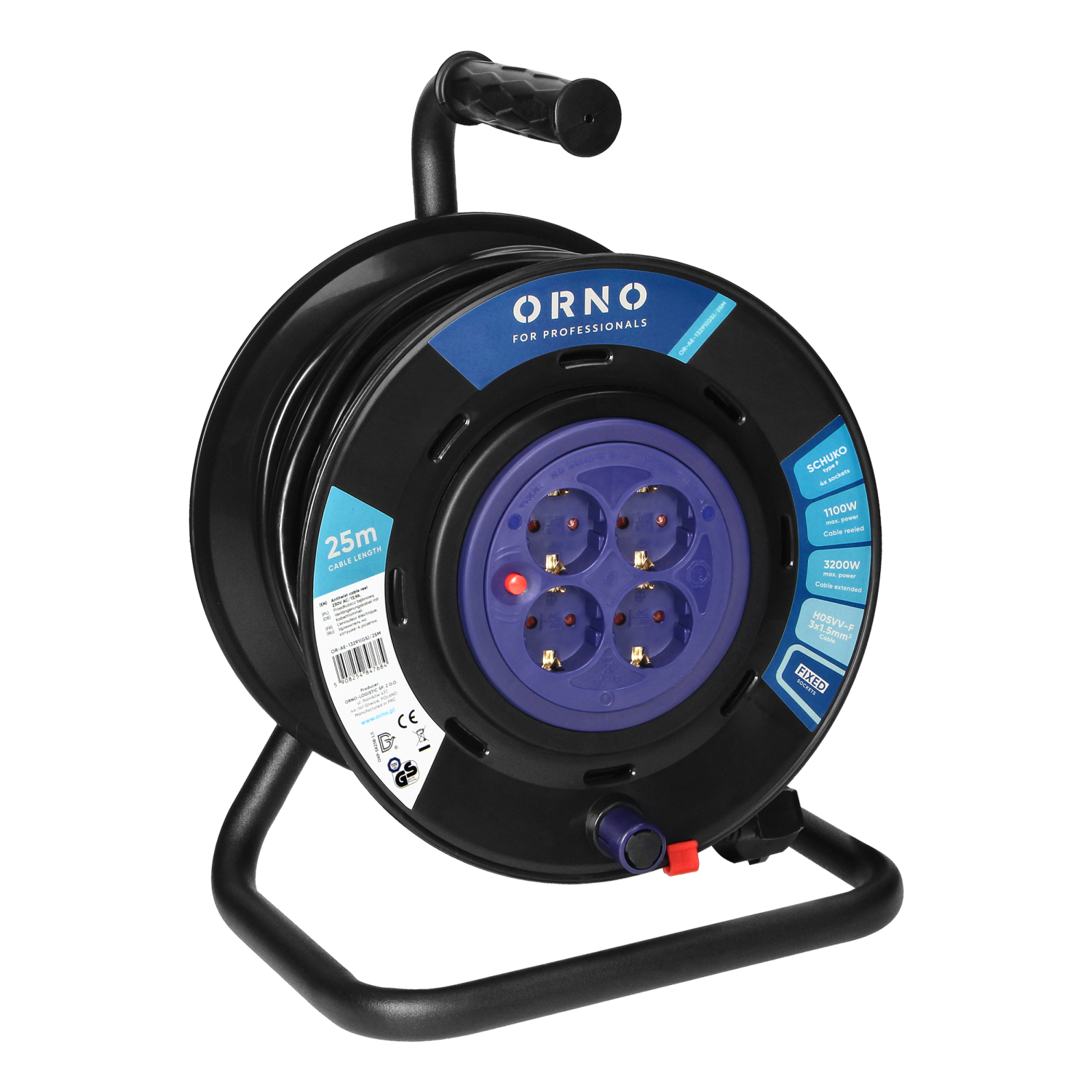

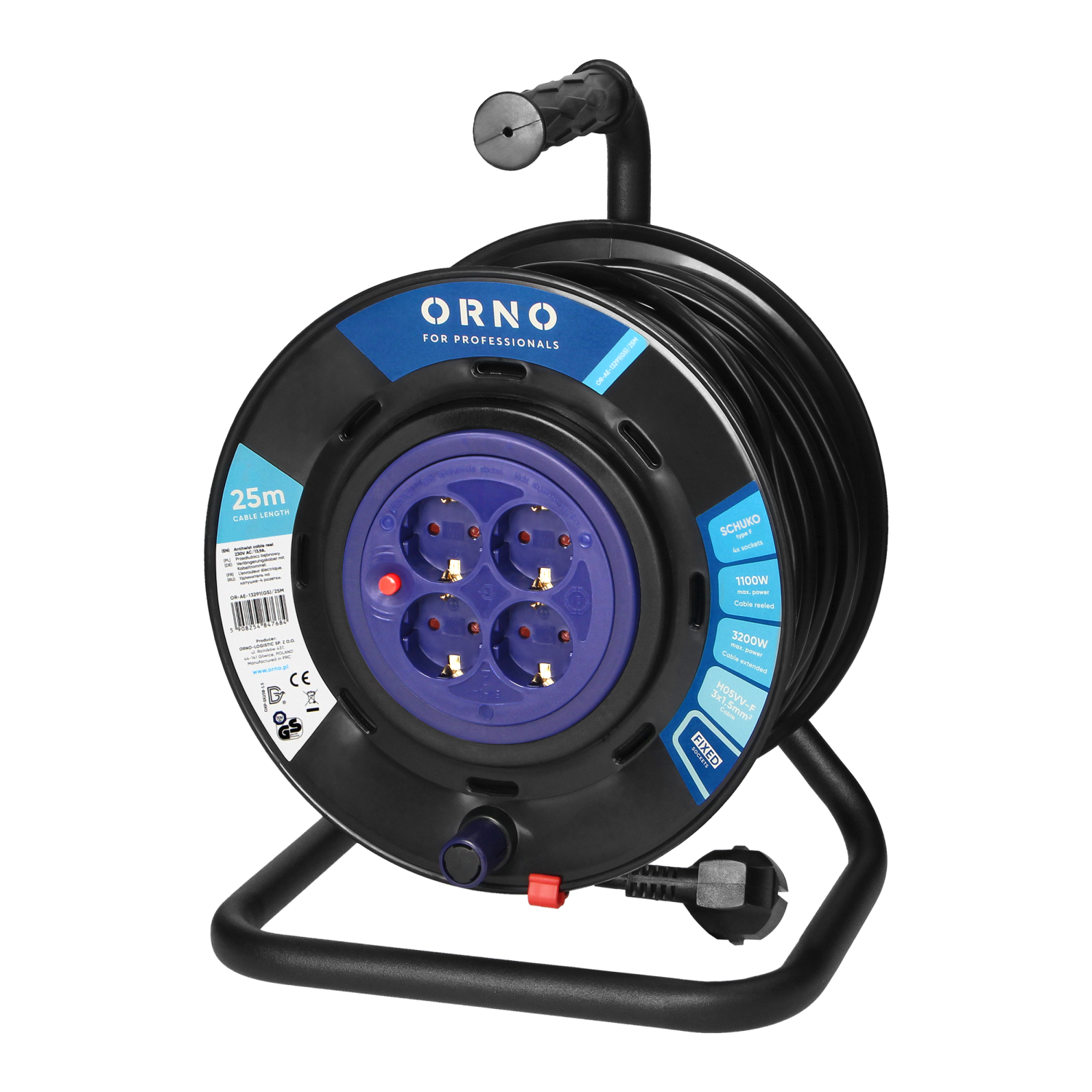

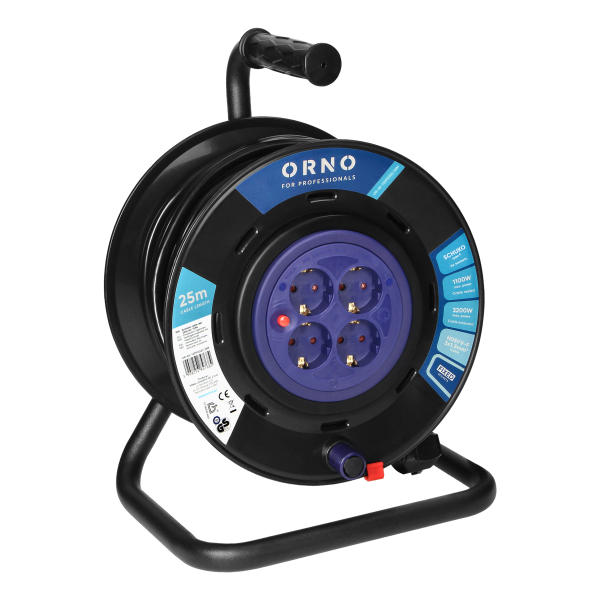

The cable reel allows more devices to be connected safely and reliably. It has 4 Schuko-type (2P+E) mains sockets with safety shutters, providing convenience and compatibility with a variety of electrical appliances.
Thanks to its durable construction made of high-quality plastic, it provides peace of mind and safety when connecting more devices to one extension cord. PVC insulation guarantees durability and reliability of use.
The H05VV-F 3x1.5mm2 cable 25m long is flexible and convenient is use – you do not need to worry about the distance from the socket. The unit is equipped with a current protection - a thermal circuit breaker, which guarantees smooth operation even during intensive use. The maximum load is 1100W/4.8A when the cable is coiled and 3200W/13.9A when the cable is uncoiled. One may freely connect even the most demanding devices.
The anti-twist system (fixed sockets) is an innovative feature designed to eliminate cable twisting during use, especially when four devices are connected at the same time.

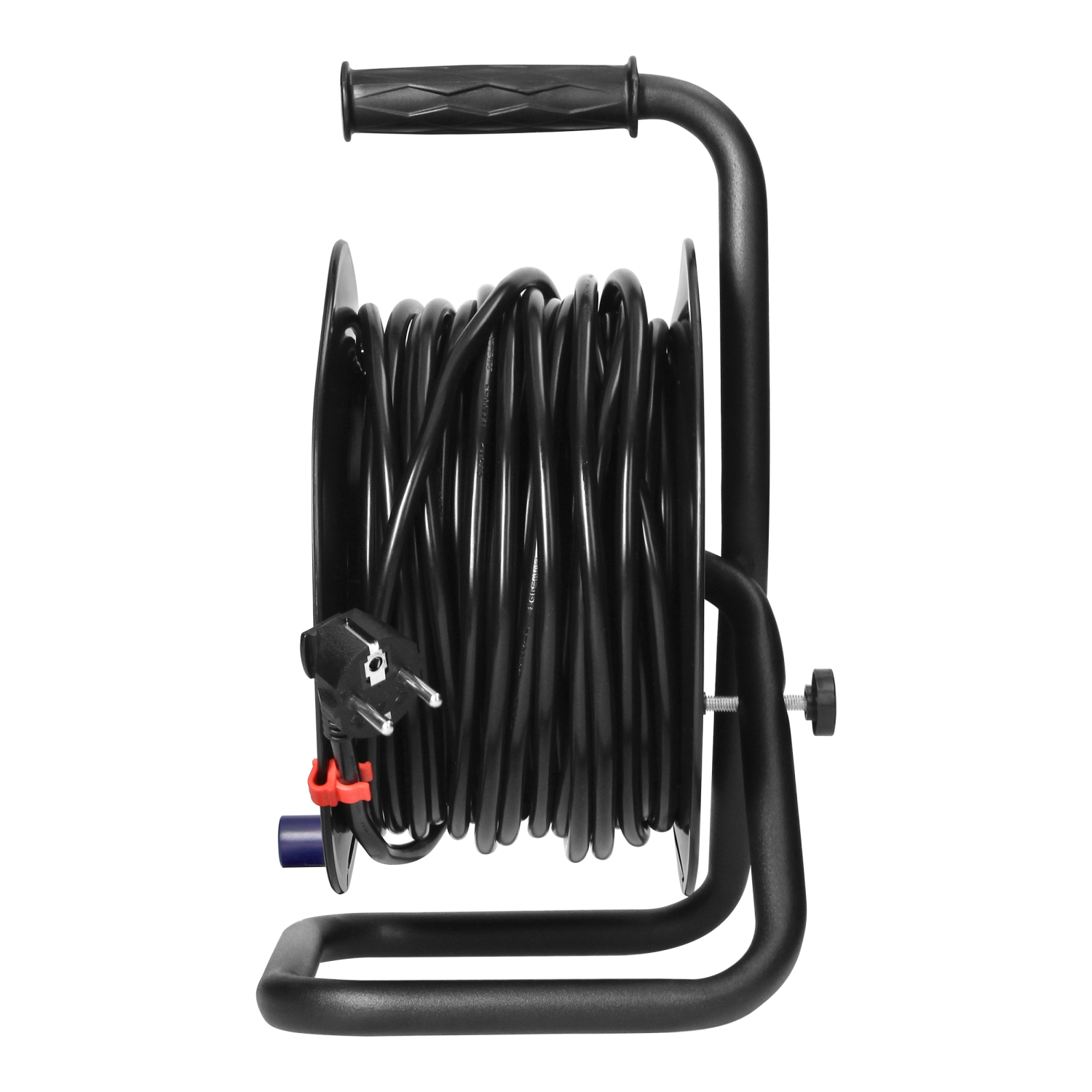

A convenient carry handle and a crank handle for rolling the cable up ensure ergonomics and comfort during transport.
Dimensions: 247x341 mm. Black-dark blue colour.
| General information: | |
|---|---|
| Housing material: | Tworzywo sztuczne |
| Cable assembly: | H05VV-F |
| Core cross section [mm²]: | 1.5 |
| Number of cores: | 3 |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 4 |
| Cable length [m]: | 25 |
| With mounting frame: | Tak |
| Automatic cable winding: | Nie |
| With thermal overload protection: | Tak |
| With locking: | Tak |
| Protection: | Wyłącznik nadprądowy |
| Degree of protection (IP): | IP20 |
| Colour: | czarno-granatowy |
| Fixed sockets: | Tak |
| Supply voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Current [A]: | 16 |
| Socket type: | 2P+Z |
| Socket standard: | schuko (typ F) |
| Number of network sockets: | 4 |
| Shutters for current paths: | Tak |
| Max. Load/current c cable rolled up: | 1100W/4,8A |
| Max. Load/current cable unrolled: | 3200W / 13,9A |
| Dimensions - width [mm]: | 250 |
| Dimensions - height [mm]: | 342 |
| Dimensions - depth [mm]: | 205 |
| Insulation type: | PVC |
