Workshop cable reels
New

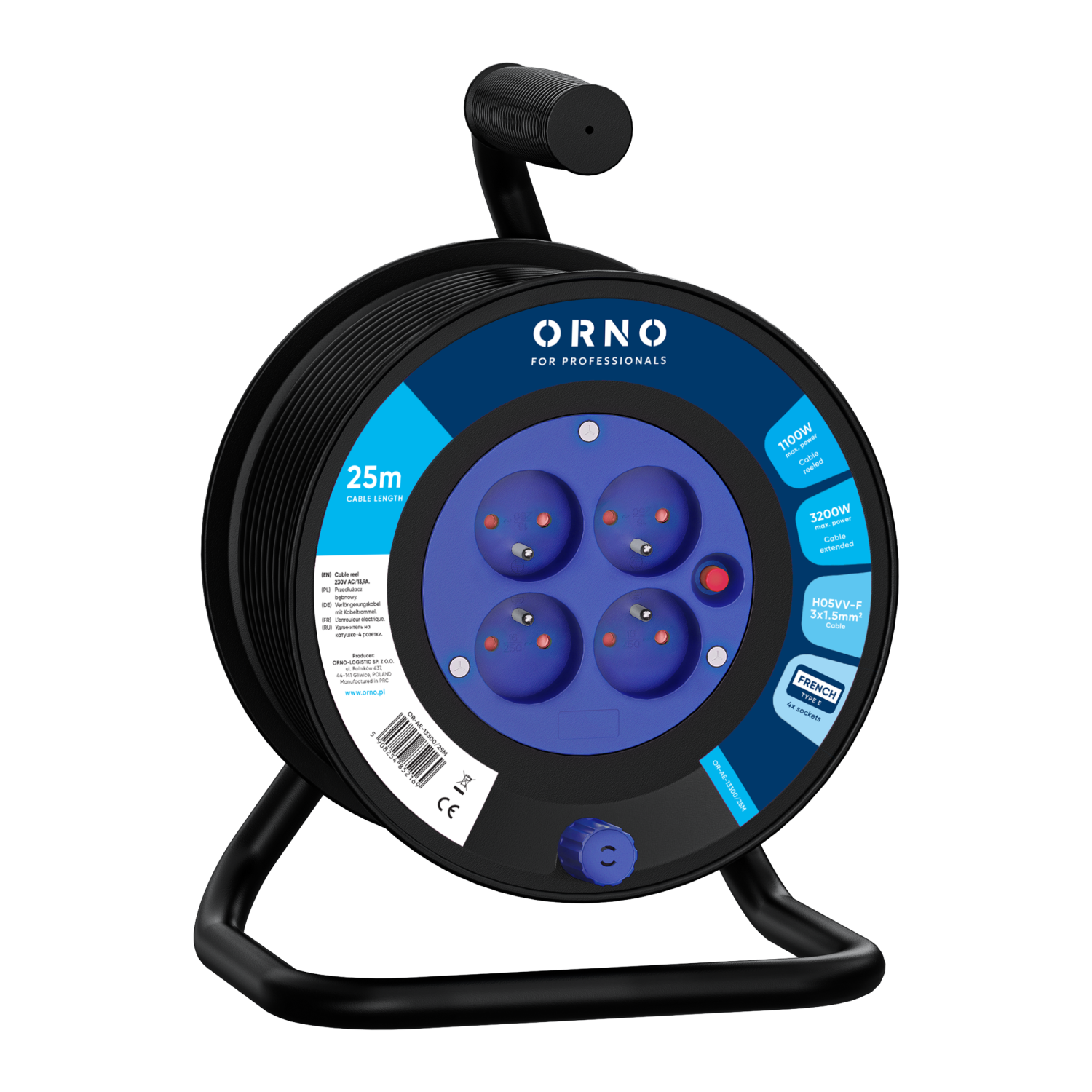

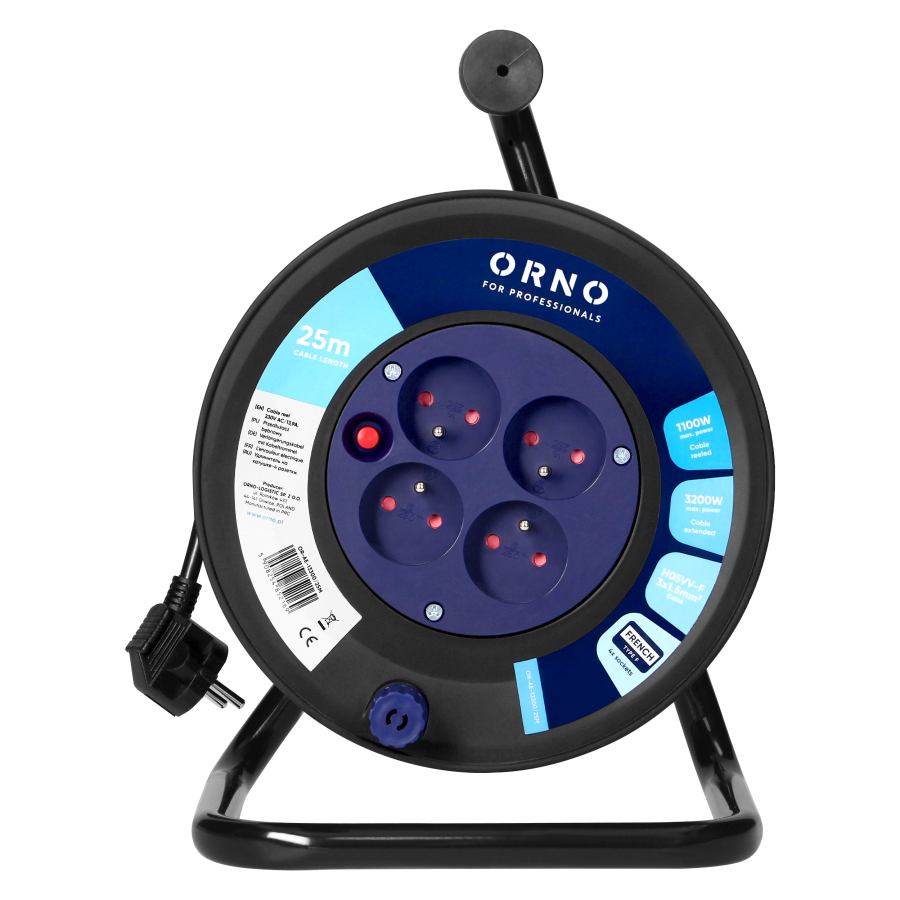

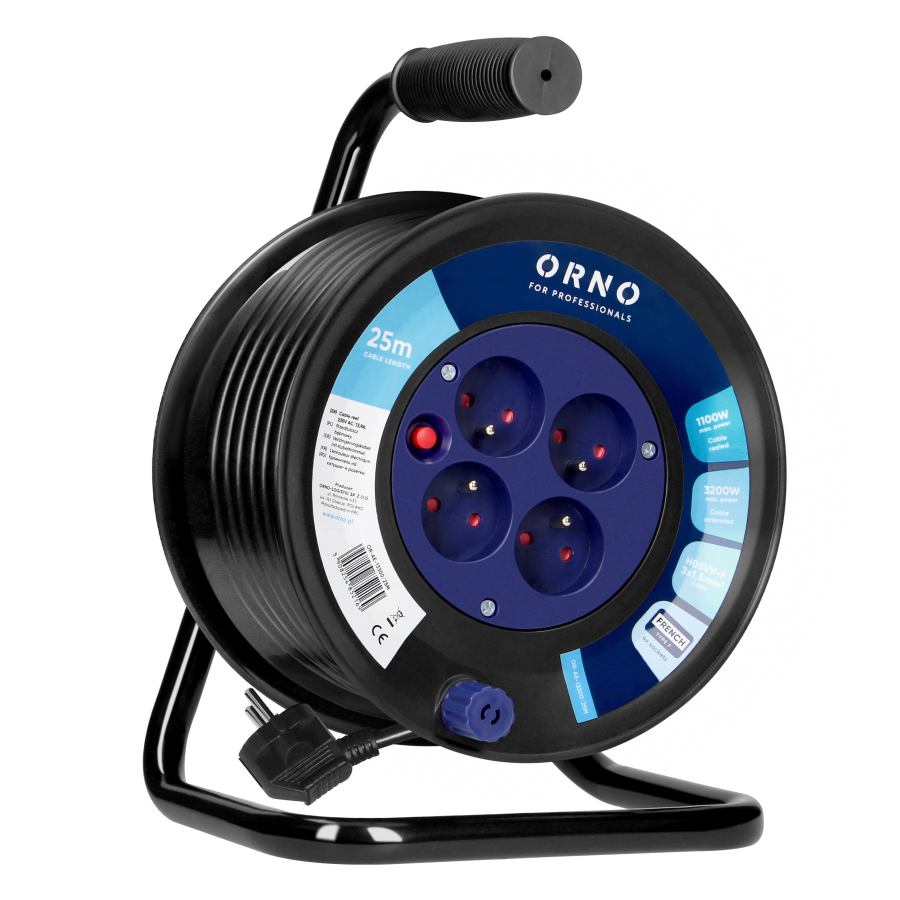

The cable reel allows more devices to be safely and reliably connected to a single extension socket. It has 4 French type (2P+E) mains sockets with safety shutters, providing convenience and compatibility with a variety of electrical equipment.
Thanks to its robust construction in high-quality plastic, it provides peace of mind and safety. The PVC cable with a length of 25m and specification of H05VV-F 3x1.5mm2 gives flexibility and freedom of use, regardless of the distance to the socket. The device has a current protection in the form of a thermal switch, which guarantees smooth operation even under intensive use. The maximum load is 1100W/4.78A when the cable coiled and 3200W/13.9A when the cable is uncoiled. Even the most demanding devices can be connected without hesitation.
Convenient carry and crank handles for rolling up the cable ensure ergonomics and comfort during transport. Dimensions are 247x341mm.
The dimensions measure: 230x327 mm. Black and dark blue colour.
| General information: | |
|---|---|
| Housing material: | Tworzywo sztuczne |
| Cable assembly: | H05VV-F |
| Core cross section [mm²]: | 1.5 |
| Number of cores: | 3 |
| Number of sockets with protective contact - pin (type E): | 4 |
| Cable length: | 25 |
| With mounting frame: | Tak |
| Automatic cable winding: | Nie |
| With thermal overload protection: | Tak |
| With locking: | Tak |
| Protection: | Wyłącznik nadprądowy |
| Degree of protection (IP): | IP20 |
| Colour: | Czarno - granatowy |
| Fixed sockets: | Tak |
| Supply voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Current [A]: | 16 |
| Socket type: | 2P+Z |
| Socket standard: | French (typ E) |
| Number of network sockets: | 4 |
| Shutters for current paths: | Tak |
| Max. Load/current cable rolled up: | 1100W/4,78A |
| Max. Load/current cable unrolled: | 3200W / 13,9A |
| Dimensions - width [mm]: | 230 |
| Dimensions - height [mm]: | 327 |
| Dimensions - depth [mm]: | 190 |
| Insulation type: | PVC |
