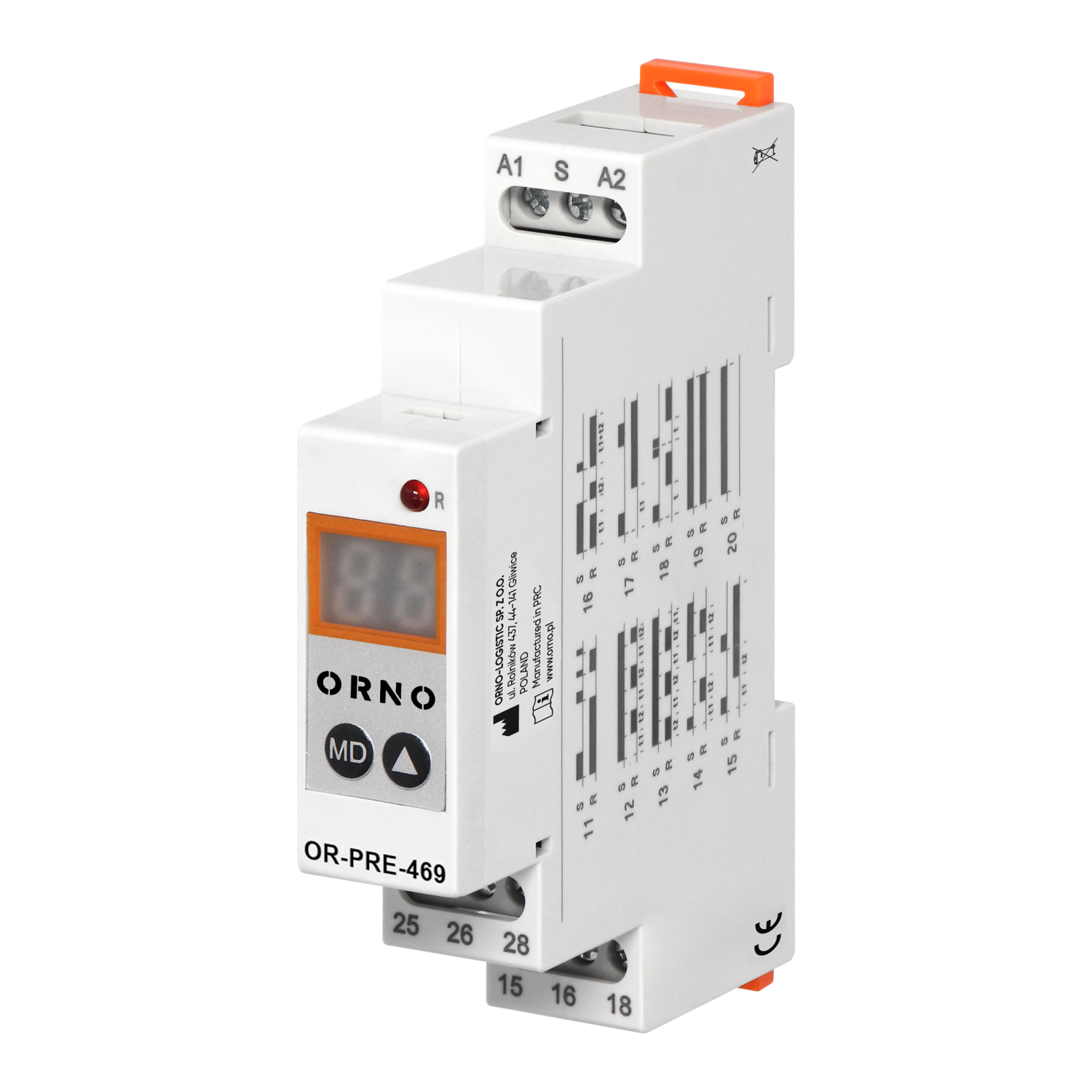

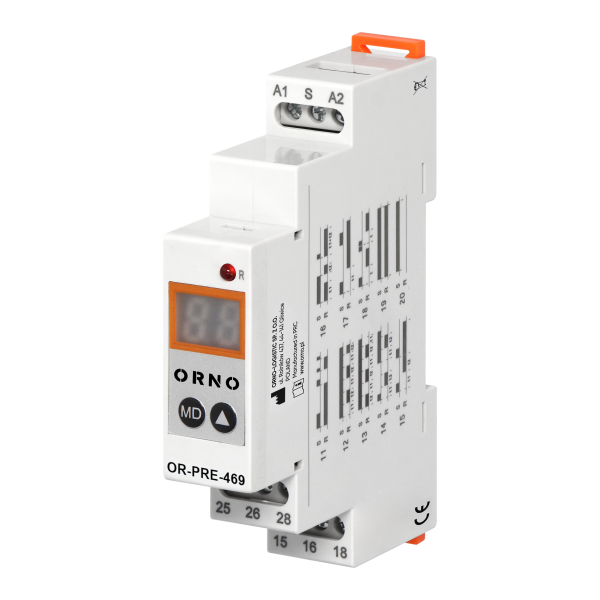

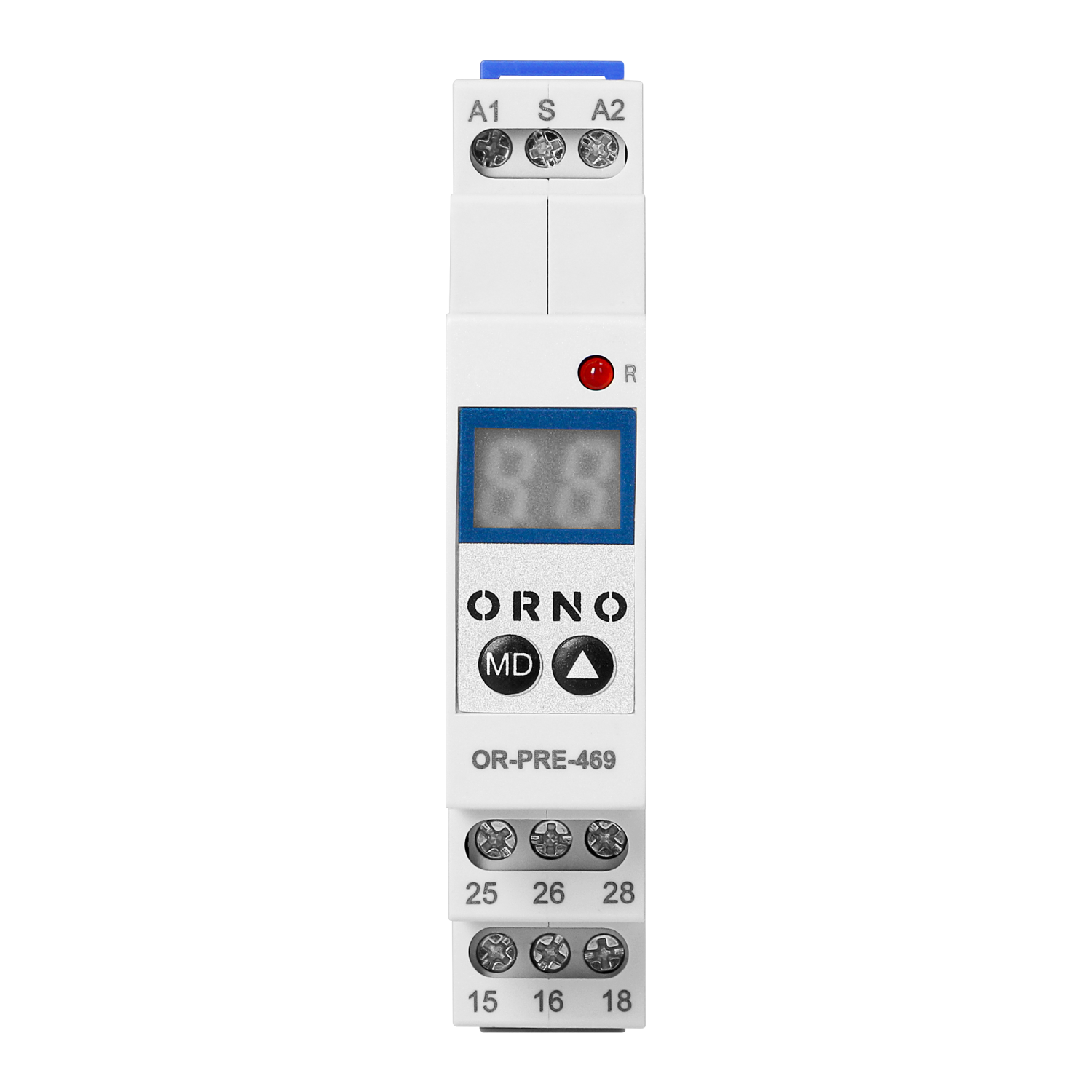

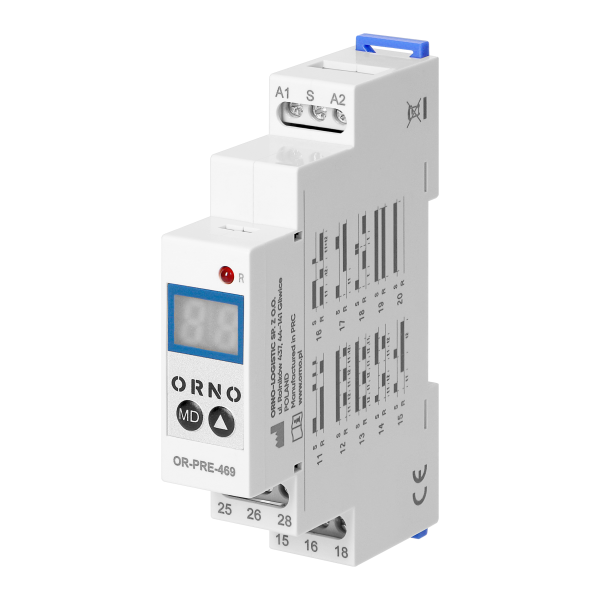

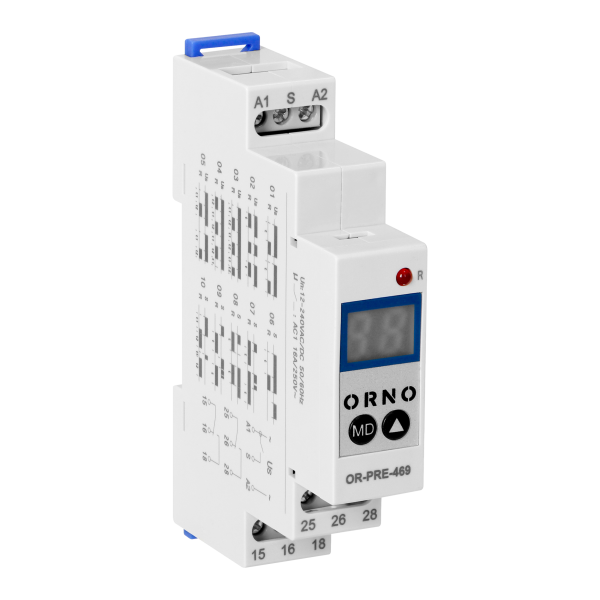

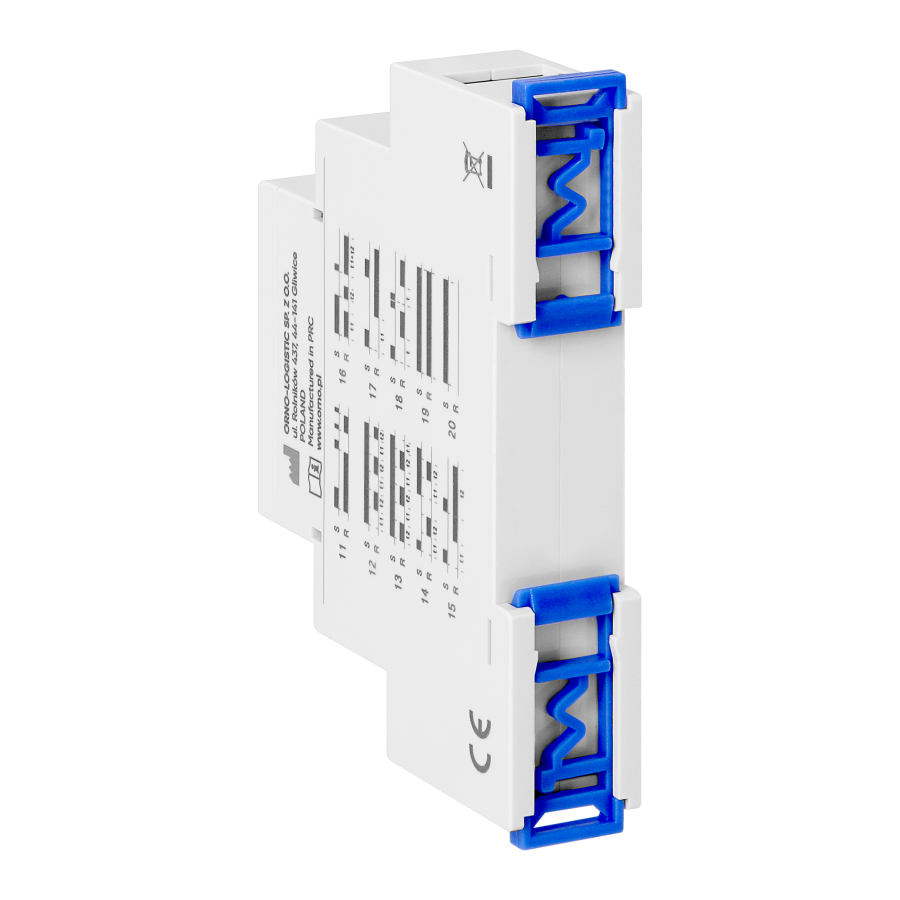

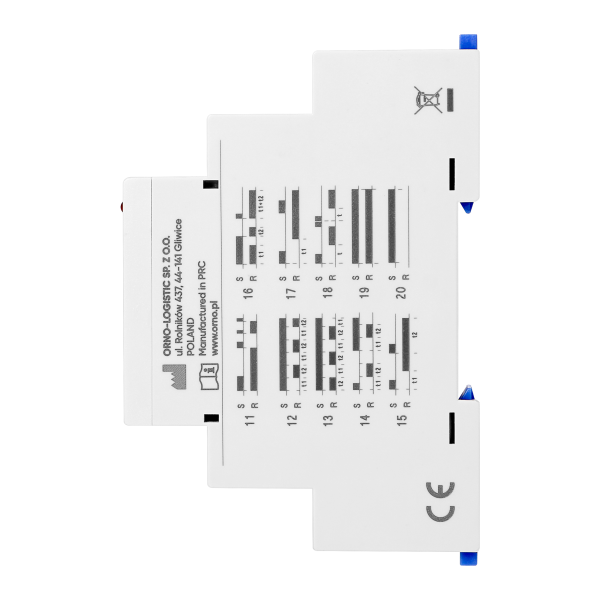

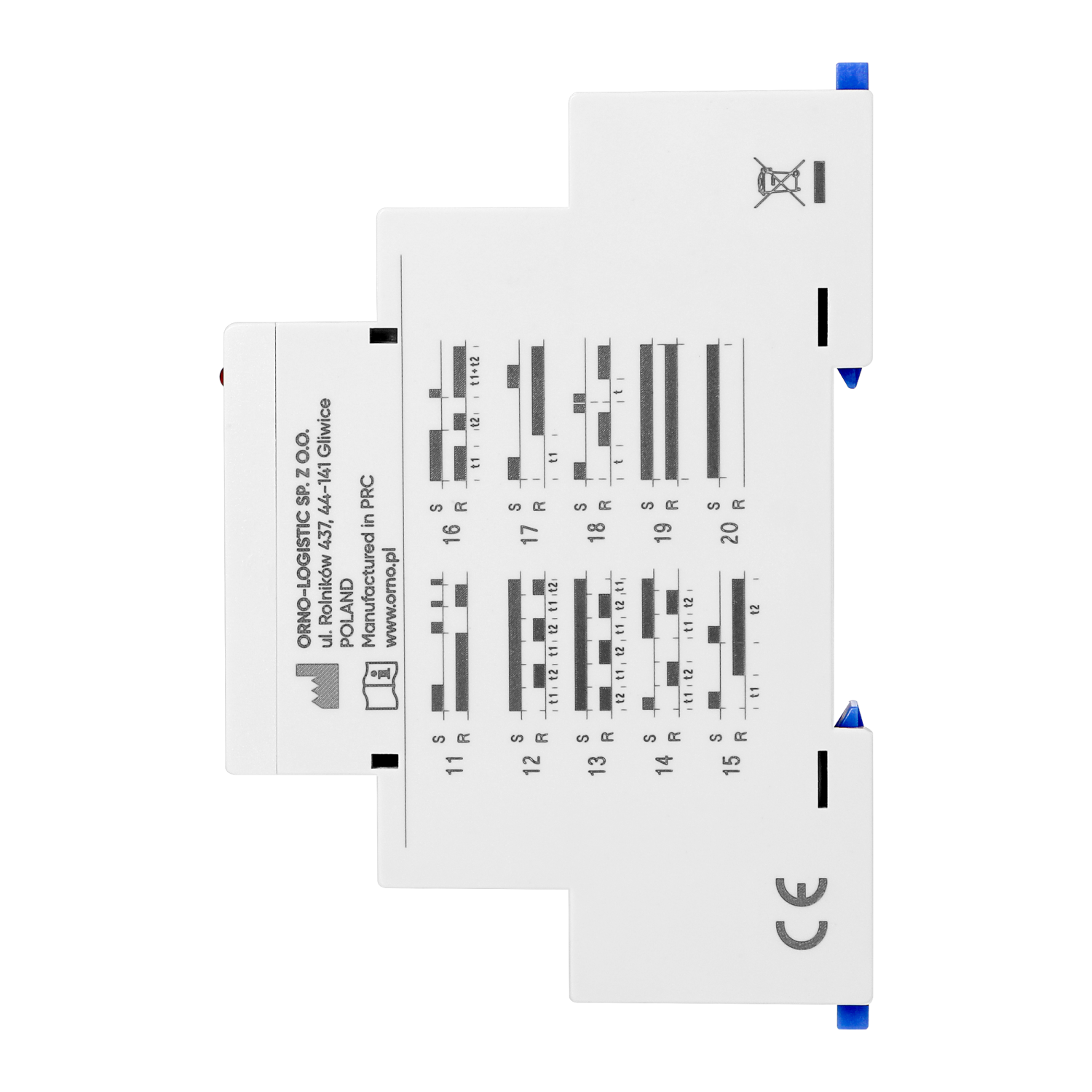

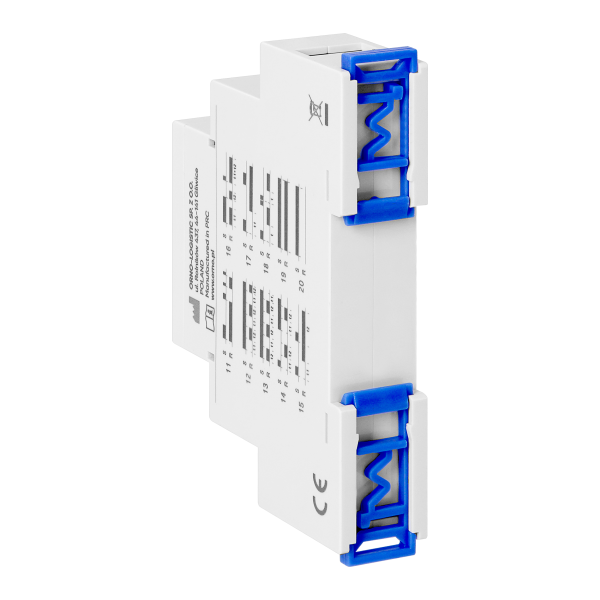

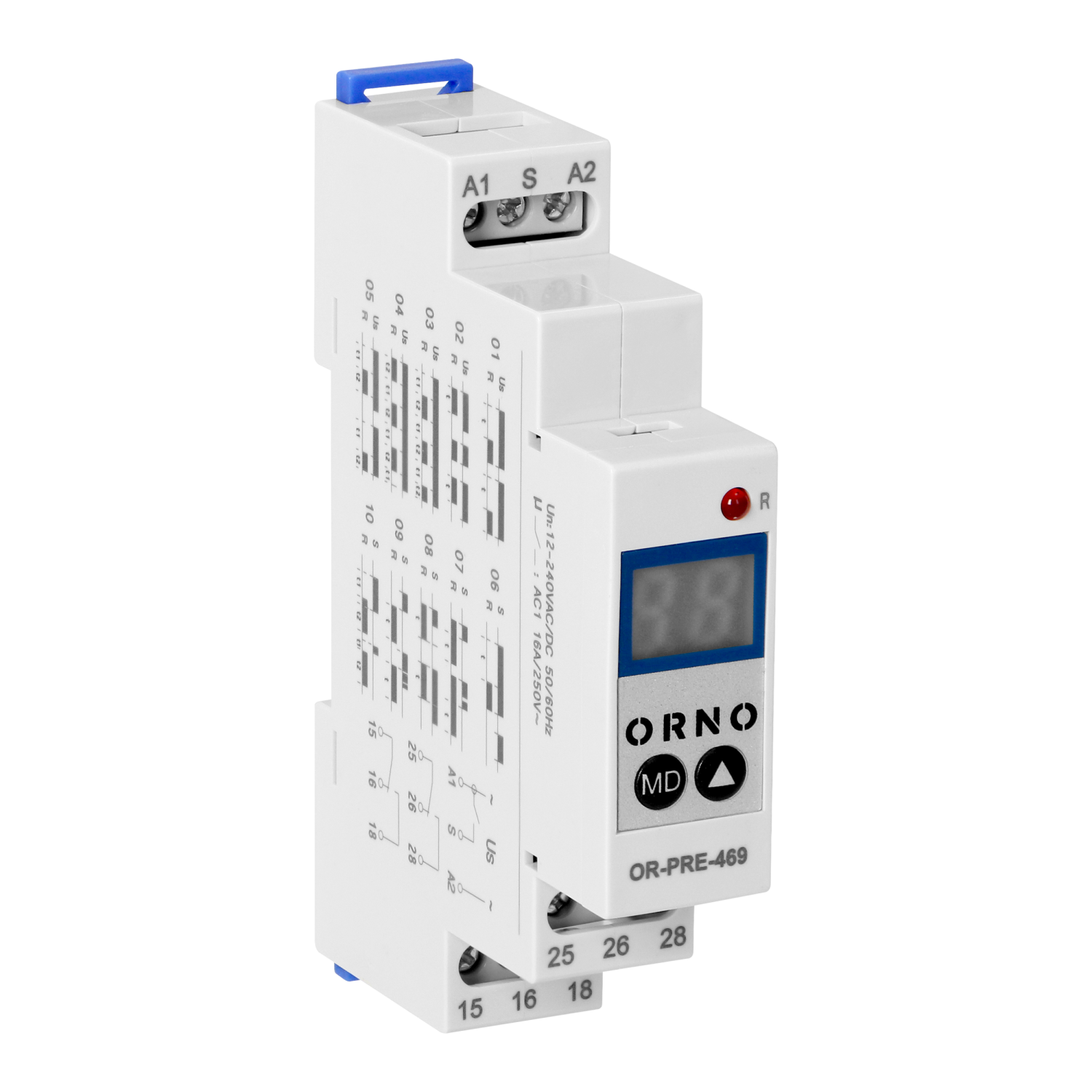

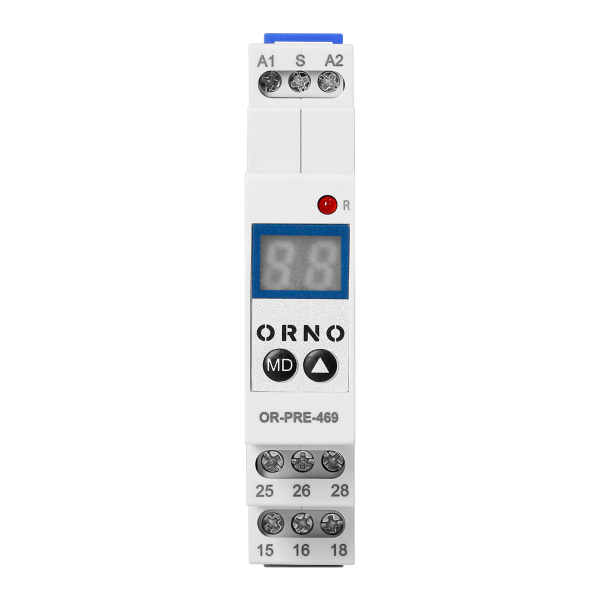

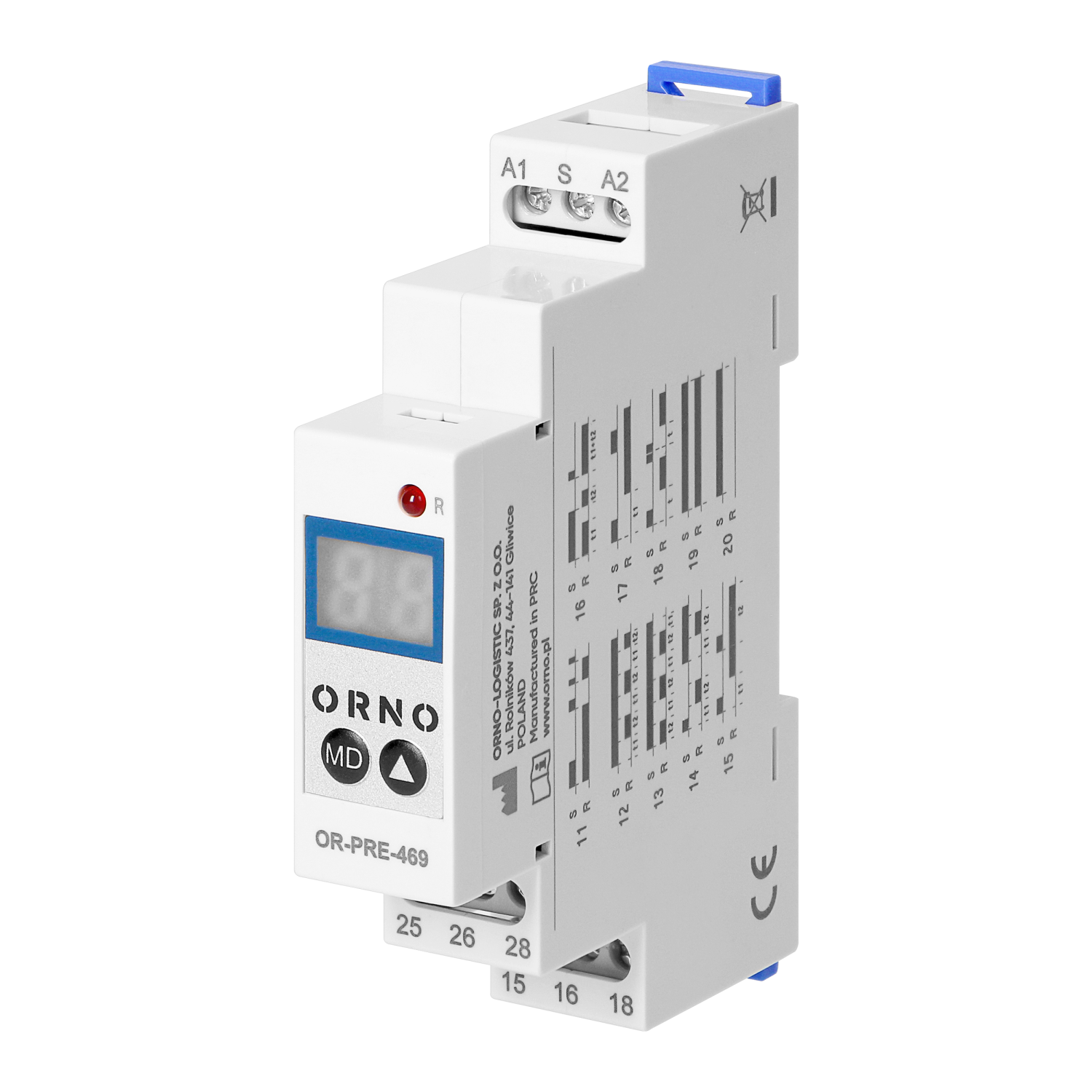

The 1-module digital time relay is designed for controlling electrical circuits in domestic and industrial installations.
It allows precise time setting from 0.1s to 99 days, offering 20 operating modes, including 5 power-controlled delay modes and 13 signal-controlled modes. It also supports ON/OFF mode.

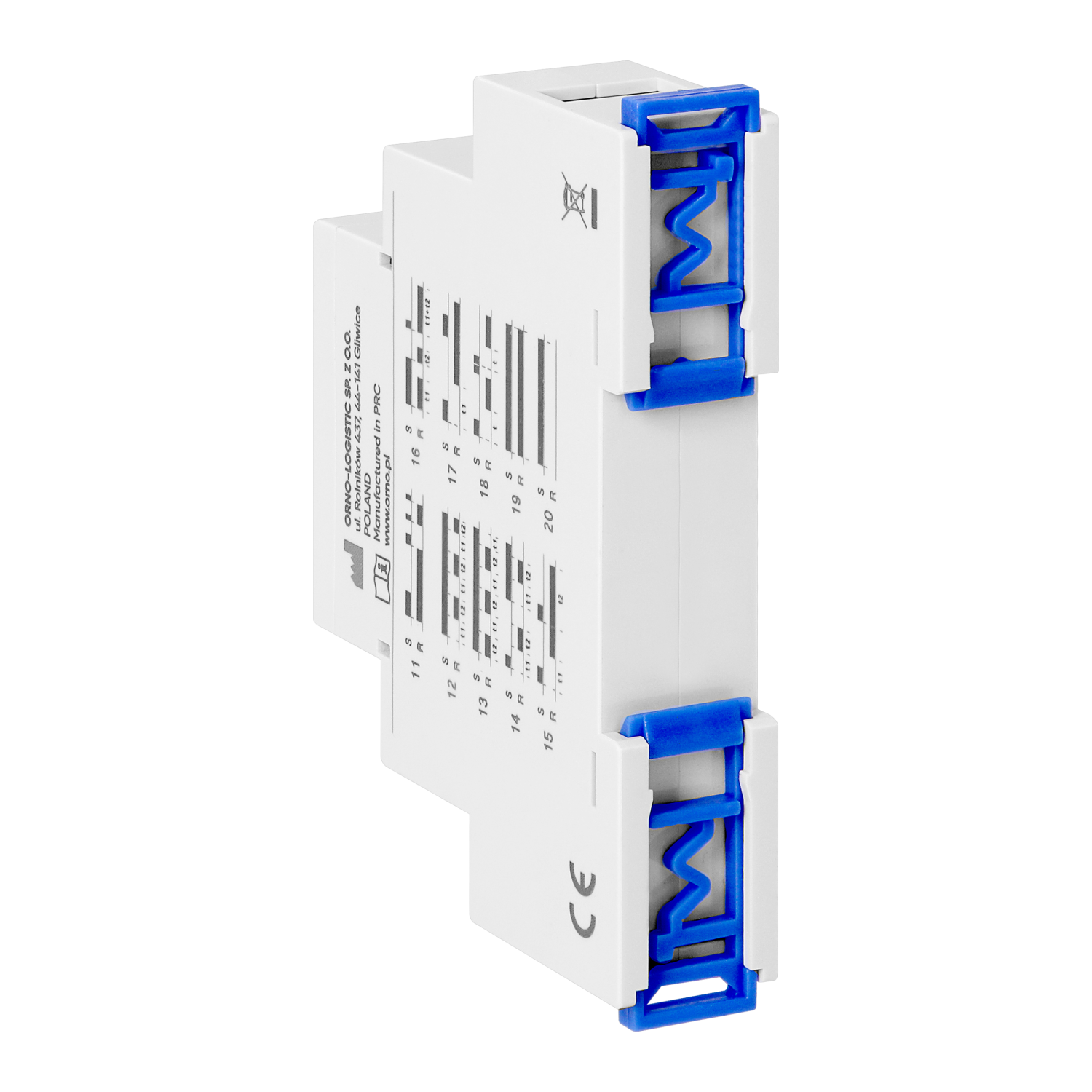

The relay is suitable for mounting on a DIN rail, allowing it to be easily placed in a switchboard or flush-mounted box. It has 1 NO contact and 1 switching contact, providing a wide range of possible applications.
The unit is designed to operate at 12-240V AC/DC and supports a control voltage of 230V, 50Hz. The rated switching current is 16A (250V AC) and the maximum power is 3VA. The accuracy of operation is 1 second per day.
The relay is used, among others, in controlling lighting, heating elements, motors and fans.
The product complies with standards GB/T14048.5, IEC 6094-5-1, EN 61812-2.
The dimensions measure: 90x18x64 mm.
| General Information: | |
|---|---|
| Type of excitation: | Cyfrowy wielofunkcyjny |
| Function: | Wielofunkcyjność |
| 1st interval unit: | Minuty/godziny |
| 1st interval: | 0-99 |
| Mounting method: | Szyna DIN |
| Width in number of modular spacings: | 1 |
| Built-in height [mm]: | 90 |
| Number of contacts as normally open contact: | 1 |
| Number of changeover switches: | 1 |
| Control voltage 1 [V]: | 230 |
| Type of control voltage 1: | AC/DC |
| Frequency control voltage 1 [Hz]: | 50 |
| Supply voltage [V]: | 12-240 |
| Voltage type (supply voltage): | AC/DC |
| Nominal switching current at 250 V AC [A]: | 16 |
| Maximum power [VA]: | 3 |
| Operating accuracy per day [s]: | 1 |
| Storage Temperature [°C]: | (-35 - +75) |
| Operating Temperature [°C]: | (-20 - +55) |
| Height [mm]: | 90 |
| Width [mm]: | 18 |
| Depth [mm]: | 64 |
| Standards: | GB/T14048.5, IEC 6094-5-1, EN 61812-2 |
| Ingress protection: | IP20 |
| Number of programmes: | 20 |
