Time relays

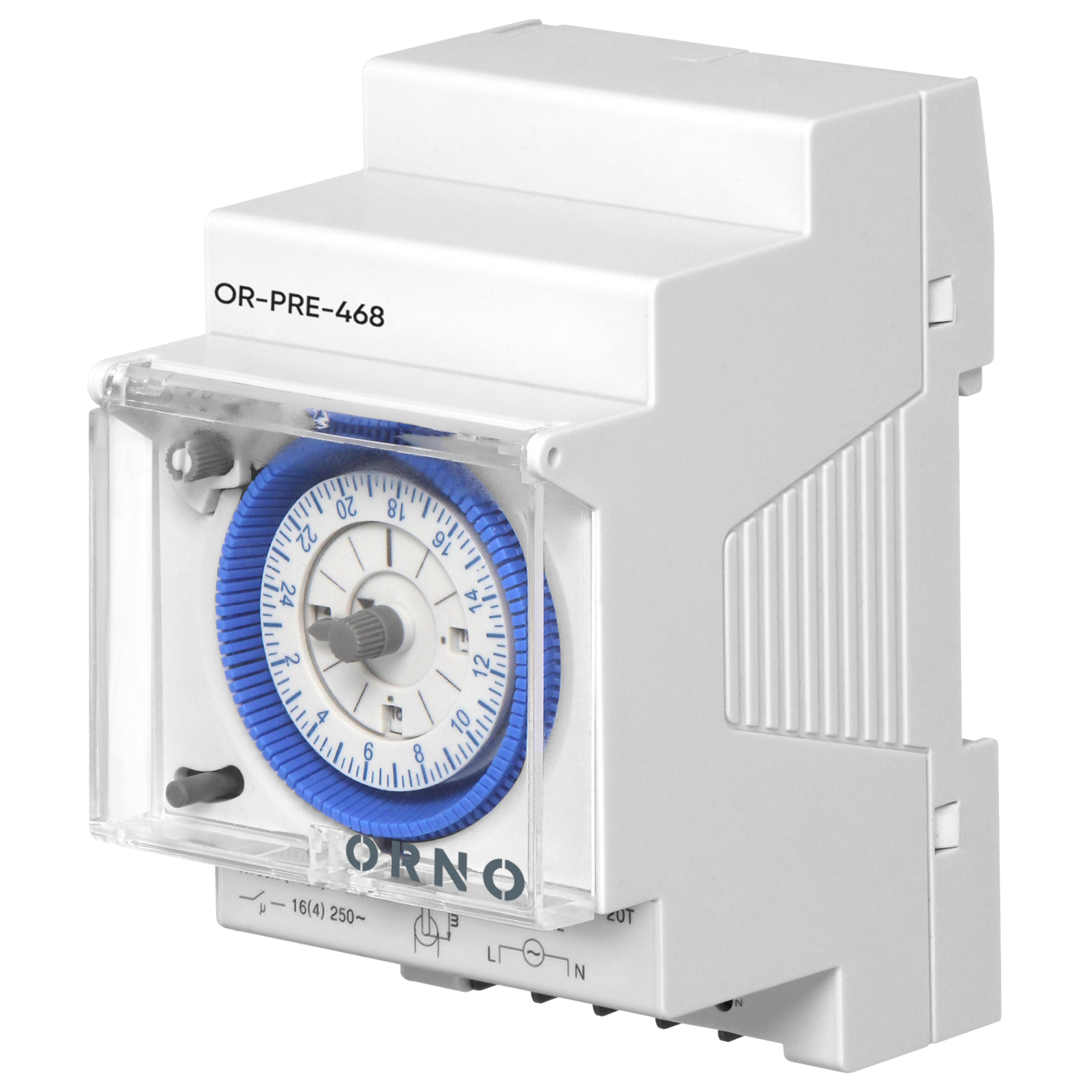

The mechanical time switch is a perfect solution to control lighting, electrical appliances or other systems that require an exact work schedule.
The device is equipped with a 96-pin dial, designed for precise timing control in electrical installations. The switch is based on quartz technology to enable the programming of a daily cycle with a minimum switching time of 15 minutes.
The unit has a wide supply voltage range of 110-230V AC. It has one control channel and a changeover contact that provides reliable switching between circuits, with a rated current of 16A and a voltage of 250V AC. The maximum LED switching power is 2x40W for modern energy-efficient lighting. A built-in power reserve of 200 hours protects the operating schedule in the event of a power outage.
Its small dimensions (53.3x90x65 mm) allow for easy installation even in areas with limited space. Thanks to its compact design with a width of three modules (53.3 mm) and mounting on a standard DIN rail, the programmer is perfect for installation in electrical switchboards.
The device complies with EN 60529 standards.
| General information: | |
|---|---|
| Mounting method: | Szyna DIN |
| Number of channels: | 1 |
| Supply voltage [V]: | 110-230 |
| Voltage type (supply voltage): | AC |
| Frequency supply voltage [Hz]: | 50/60 |
| Autonomy in hours: | 200 |
| Accuracy per day [s]: | 1 |
| 24 h program: | Tak |
| Contact type: | Styk przełączny |
| Nominal switching current at 250 V AC [A]: | 16 |
| Max. switching power [W]: | 1000 |
| Max. switching power LED [W]: | 500 |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 3 |
| Width [mm]: | 53.3 |
| Height [mm]: | 90 |
| Depth [mm]: | 65 |
| Type of dial: | 96 pinów |
| Operating Temperature [°C]: | (-20 - +55) |
| Standards: | EN 60529 |
