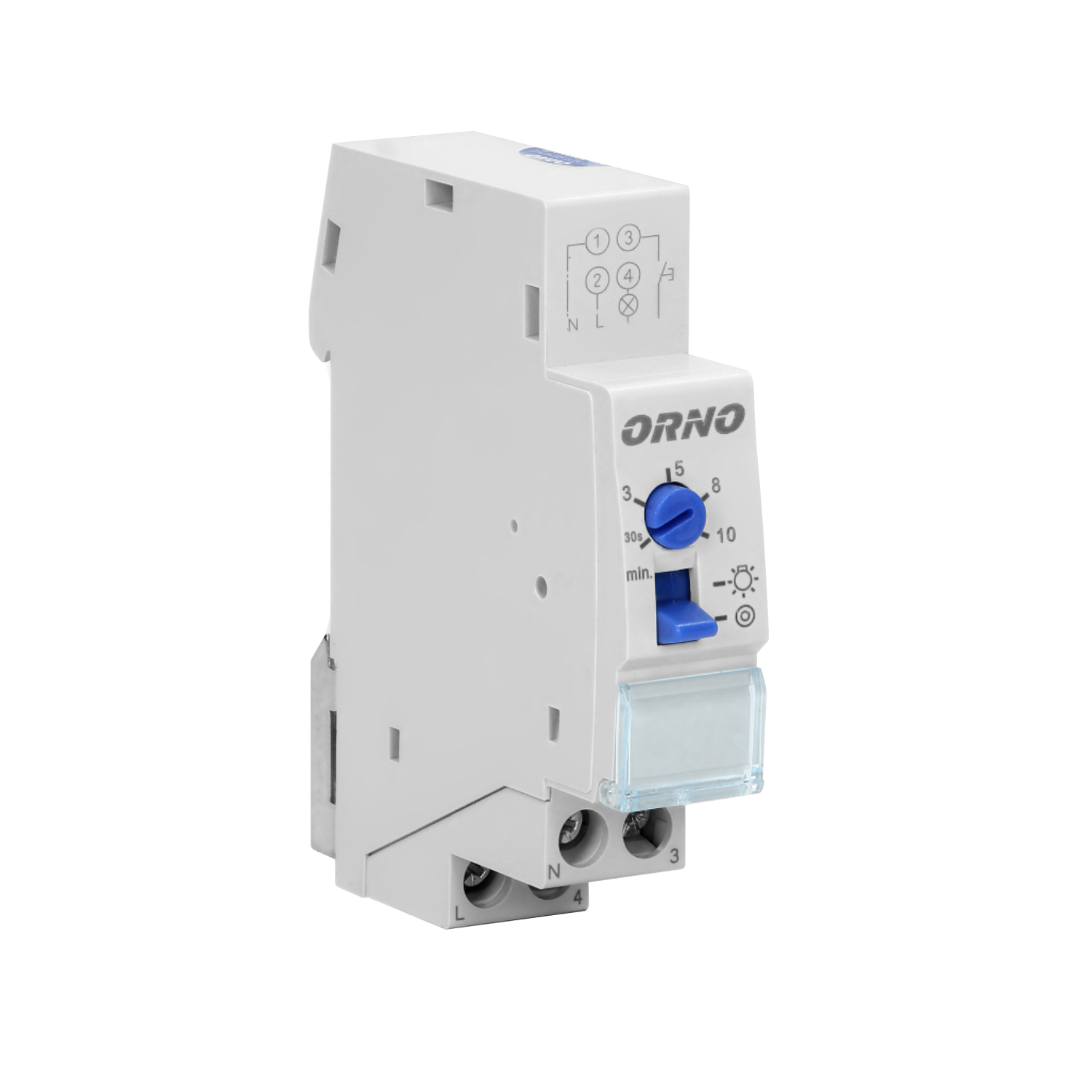

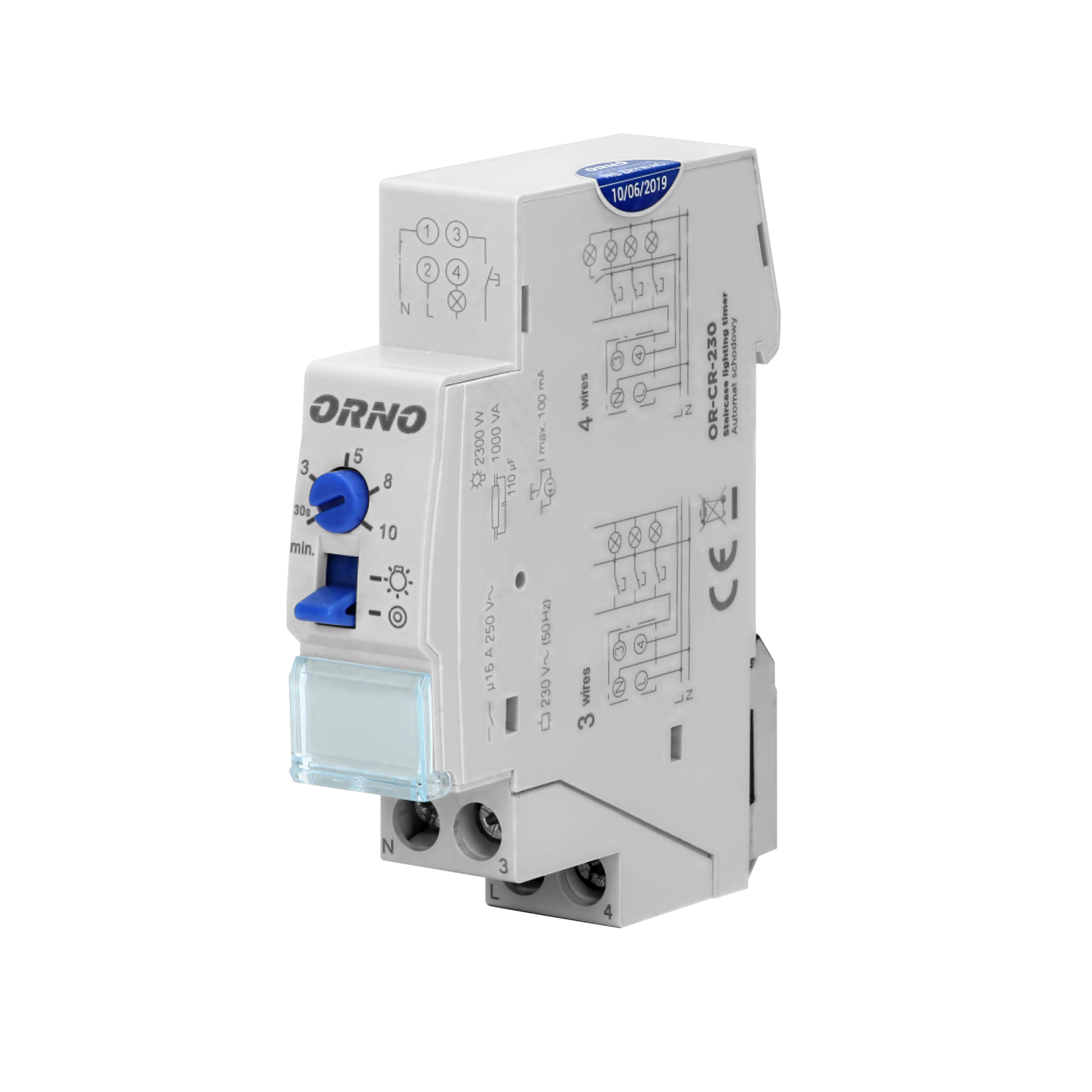

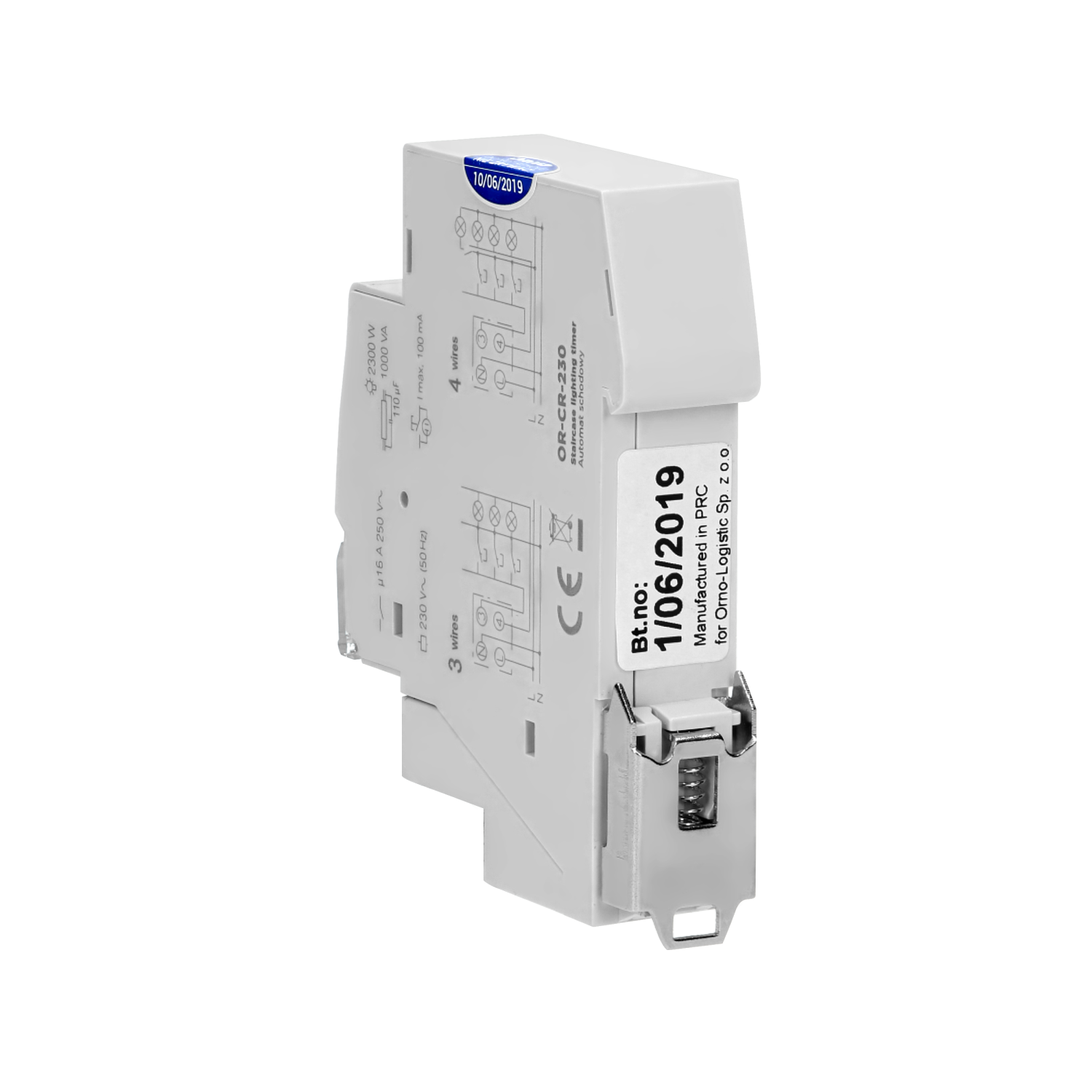

Time relays

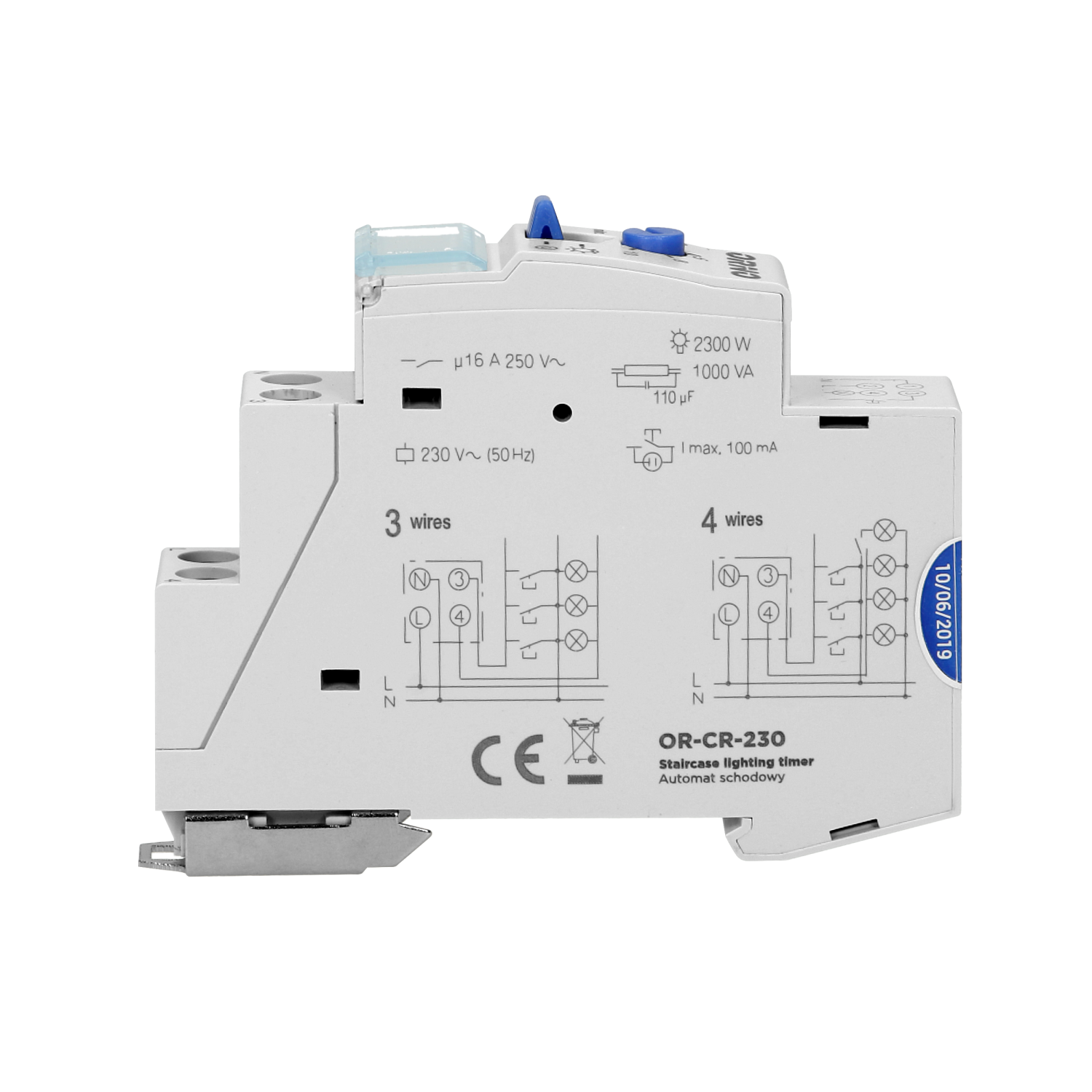

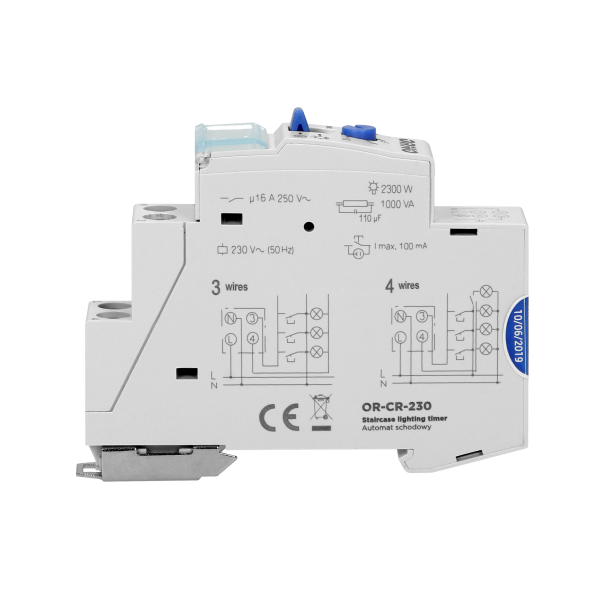

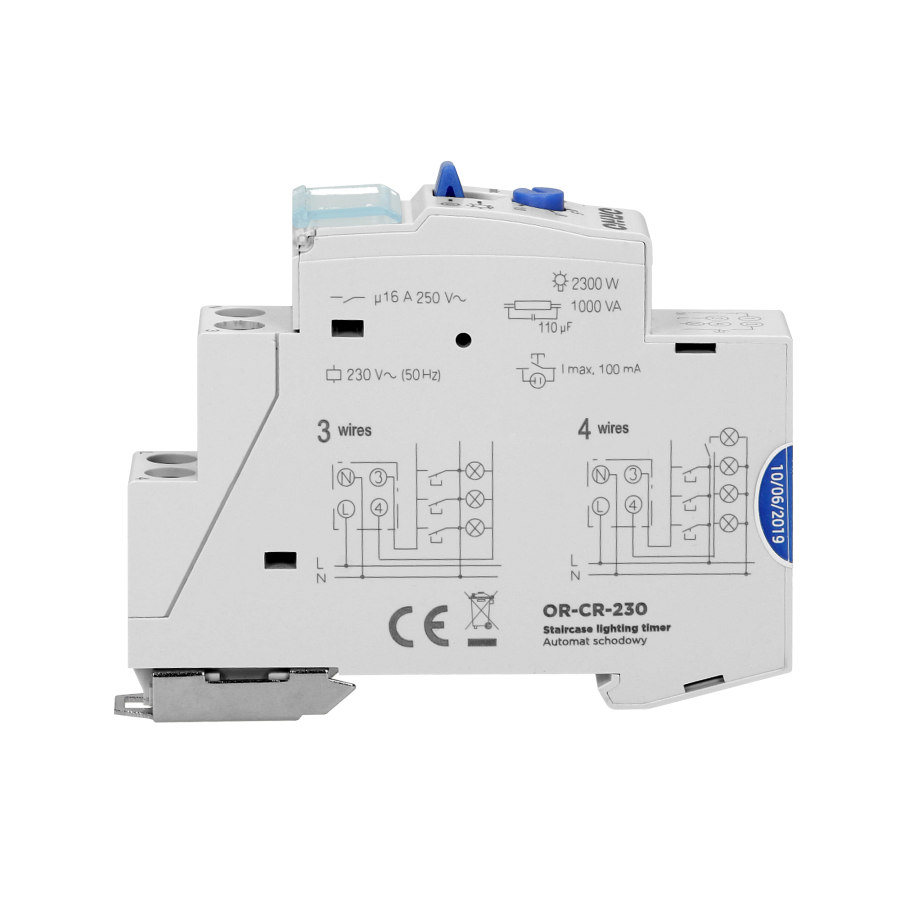

The timer is used to keep ON the lighting in corridors, staircases, passageways office buildings and hotels or other facilities for a specified period, after which the lights will be turned OFF automatically. Adjustable working time: 30 sec.-20 min. Two modes of operation - continuous or temporary. 3 or 4-wire installation 1-modular housing installation on standard DIN rail Collaborates with LED lighting.
| General information: | |
|---|---|
| Nominal voltage: | 230V~, 50Hz |
| Max. load: | 2300 |
| Current: | 10 A |
| Degree of protection (IP): | 20 |
| Installation: | a DIN rail |
| Built-in battery: | No |
| Dimensions - depth: | 66 mm |
| Dimensions - width: | 17.5 mm |
| Dimensions - height: | 80 mm |
