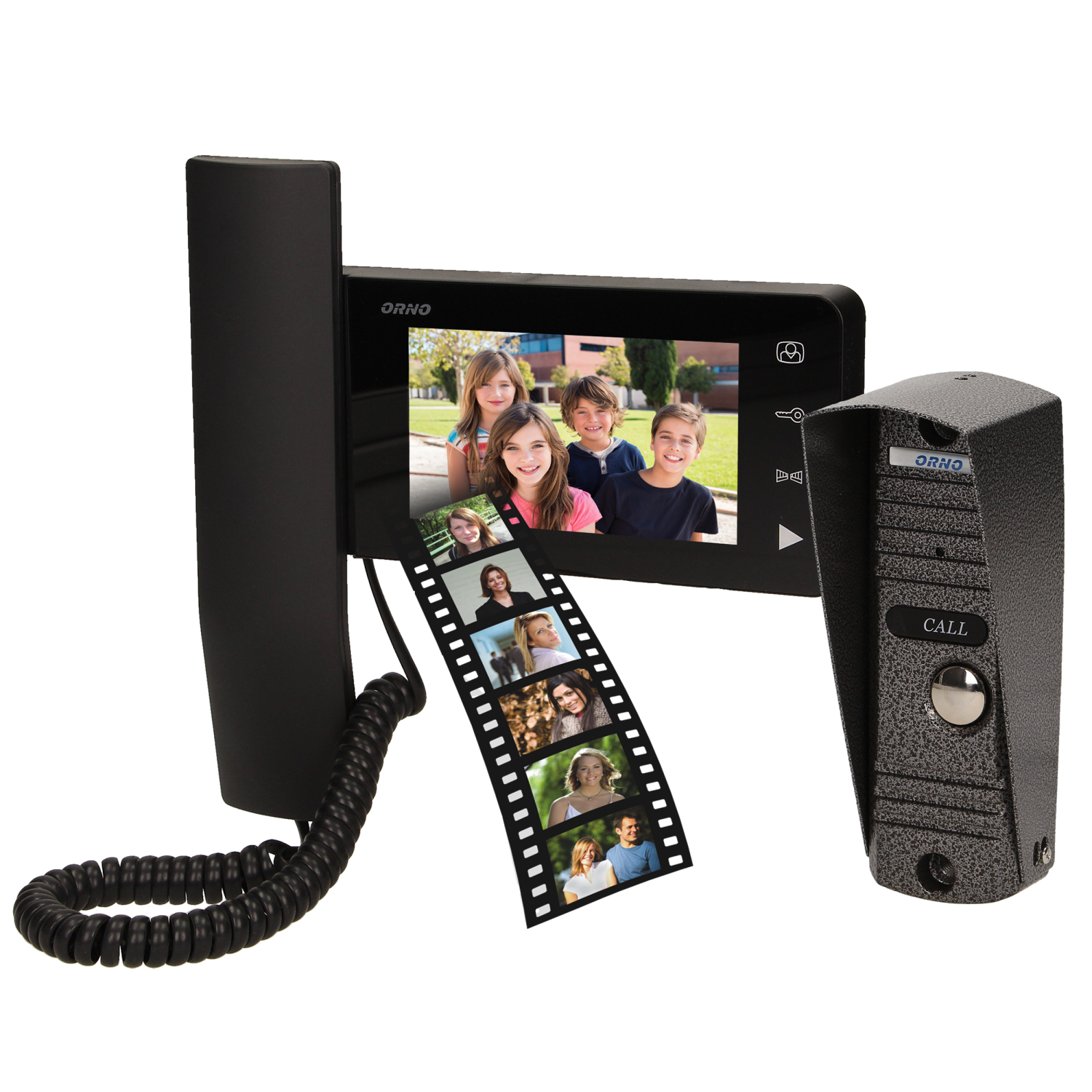

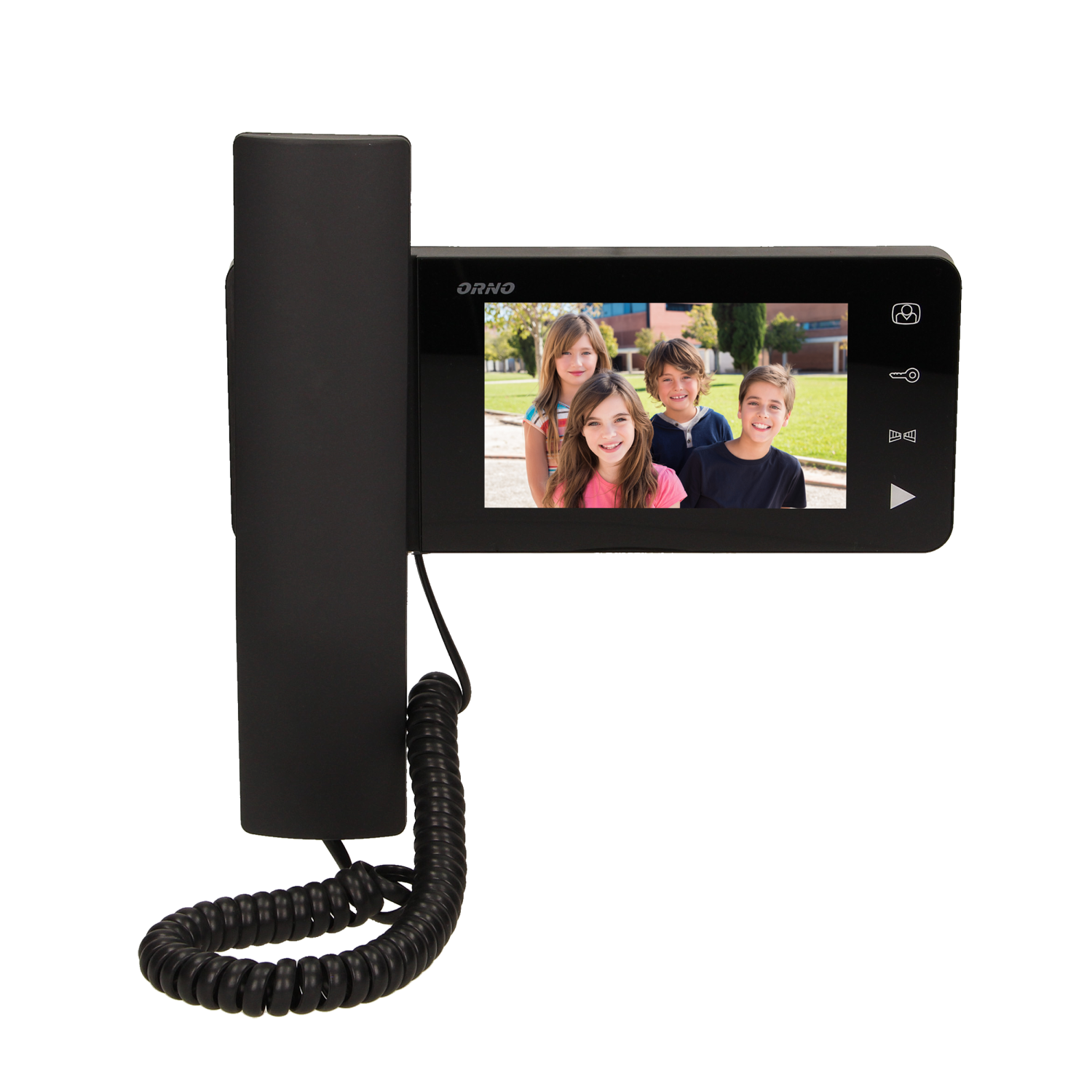

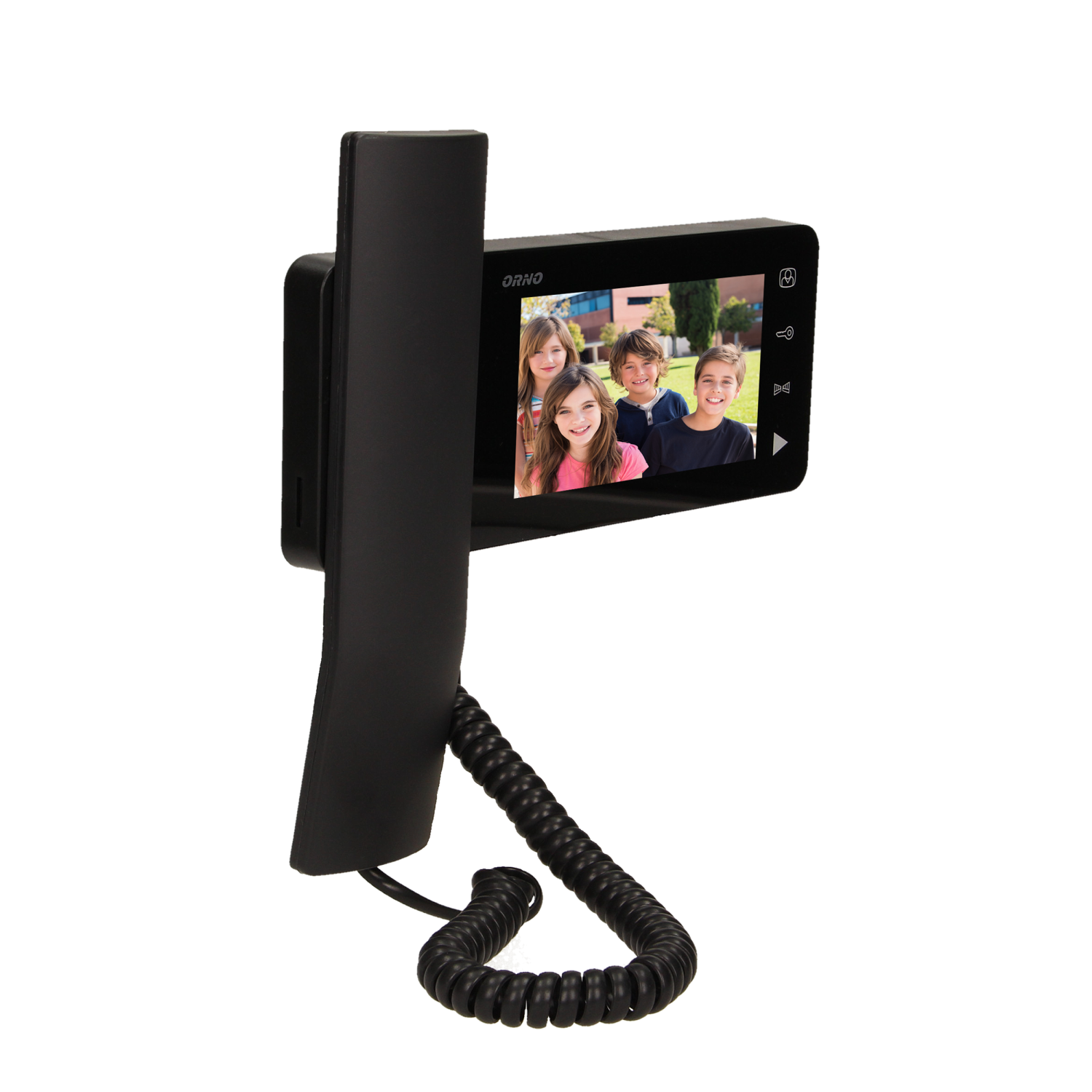

Video doorphone set with multicolor, ultra-flat 4.3” LCD display, which can be used to monitor two entrances (can be connected to 2 video cameras). Its touch monitor has backlit.The set has got an inbuilt memory unit which automatically keeps record of approx. 20 color images. Other features of the set: smooth adjustment of monitor parameters (brightness, talk and ring volume), 9 ringtones to choose from, “pin-hole” CCD camera built in a vandal-proof external panel. The set is suitable for surface-mounting or flush-mounting and the external panel comes with an additional protective hood. Night vision is guaranteed by IR lighting. The set enables gate control. It is powered with 13.5V DC supply unit included to the set. The electric strike is powered with direct current, its power consumption does not exceed 500 mA and it does not require any additional supply unit.
General information: |
---|
Type: | single-family |
Number of wires: | 4+2 |
Type of power supply: | mains power supply |
Type of transmission: | wired |
Possibility of extension by an additional external panel: | Yes |
Possibility of extension by an additional monitor: | Yes |
Possibility of extension by an additional video uniphone: | No |
Gate opening: | Yes |
Current supply of the electric strike: | power supply from a videodoorphone |
Possibility of extension by an additional cctv camera: | No |

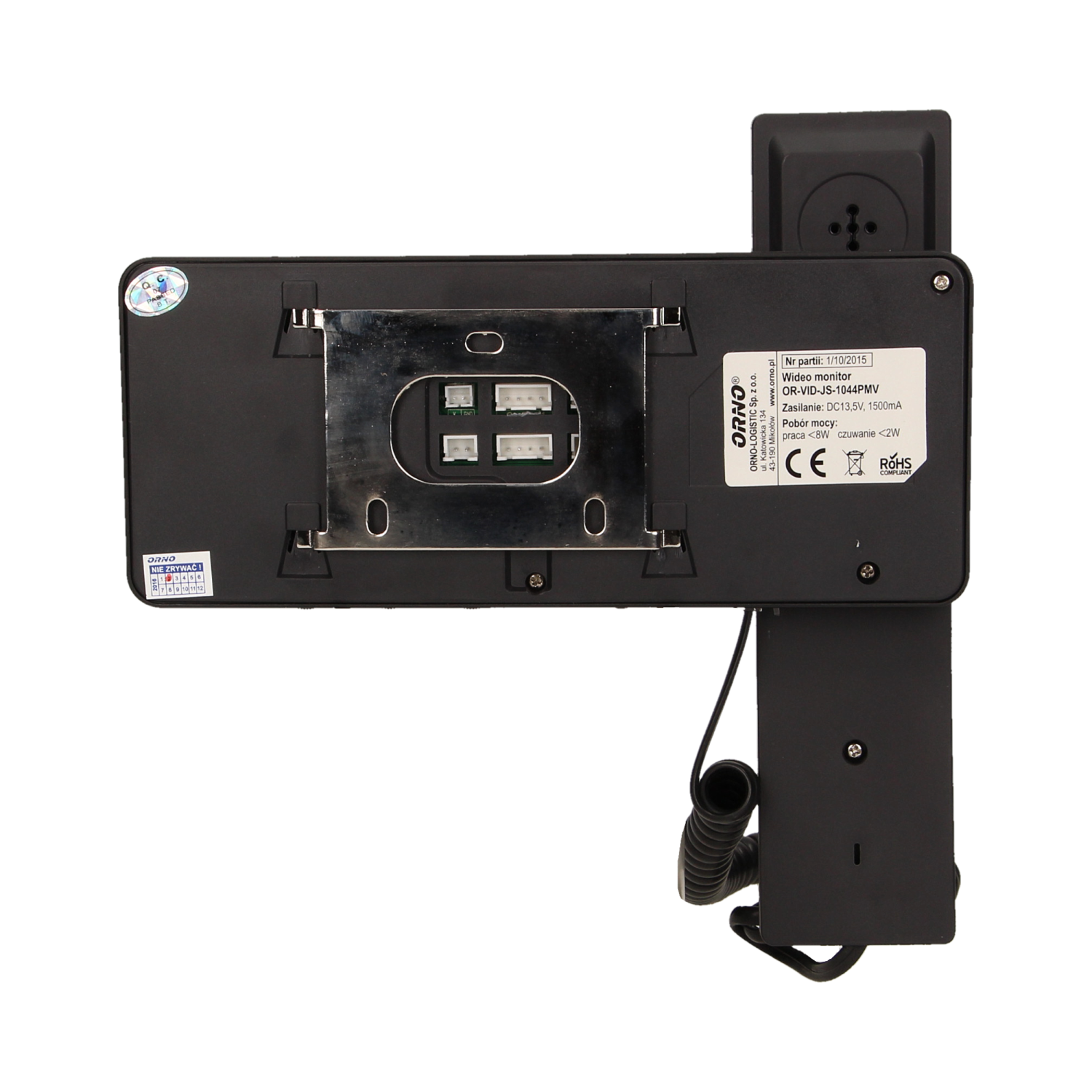

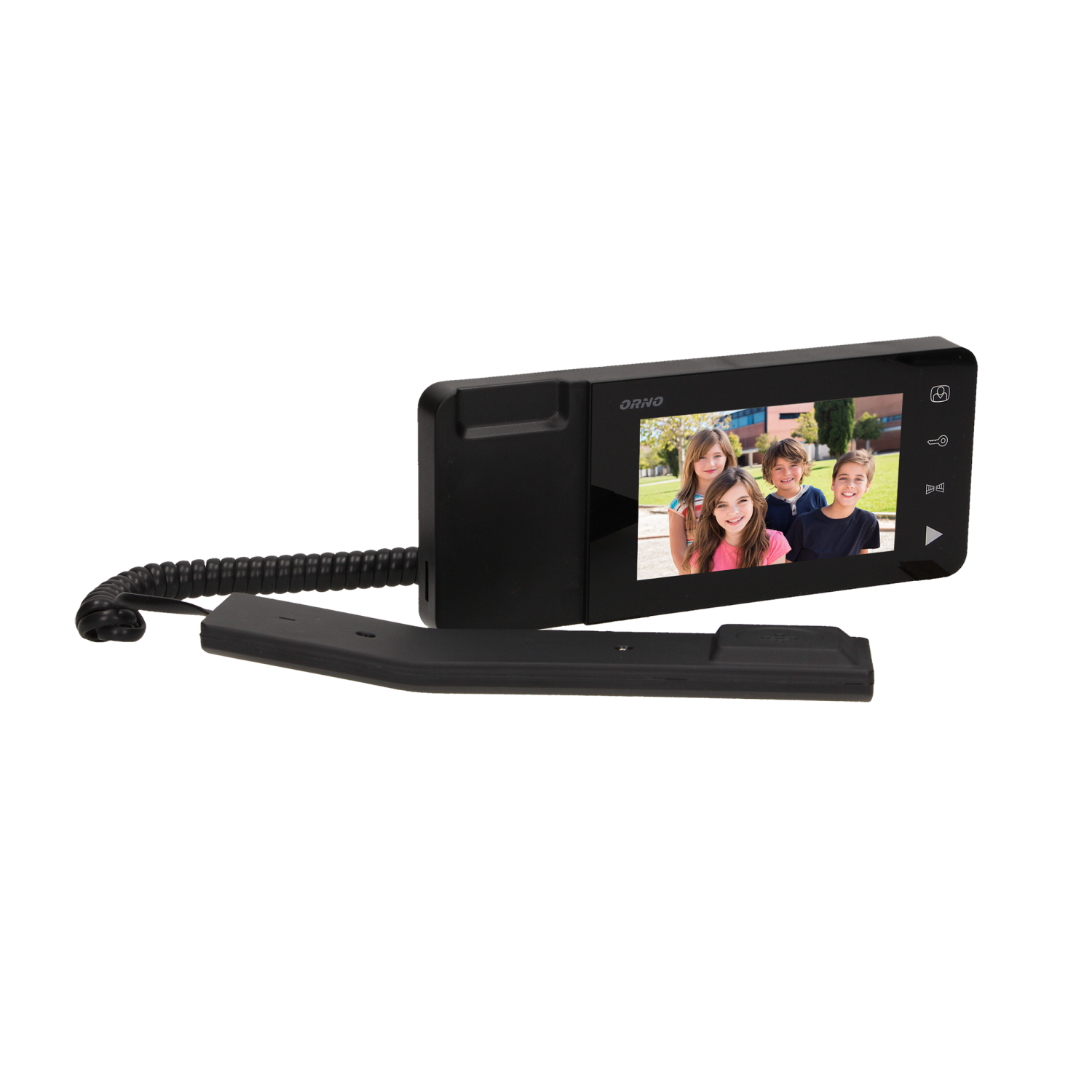

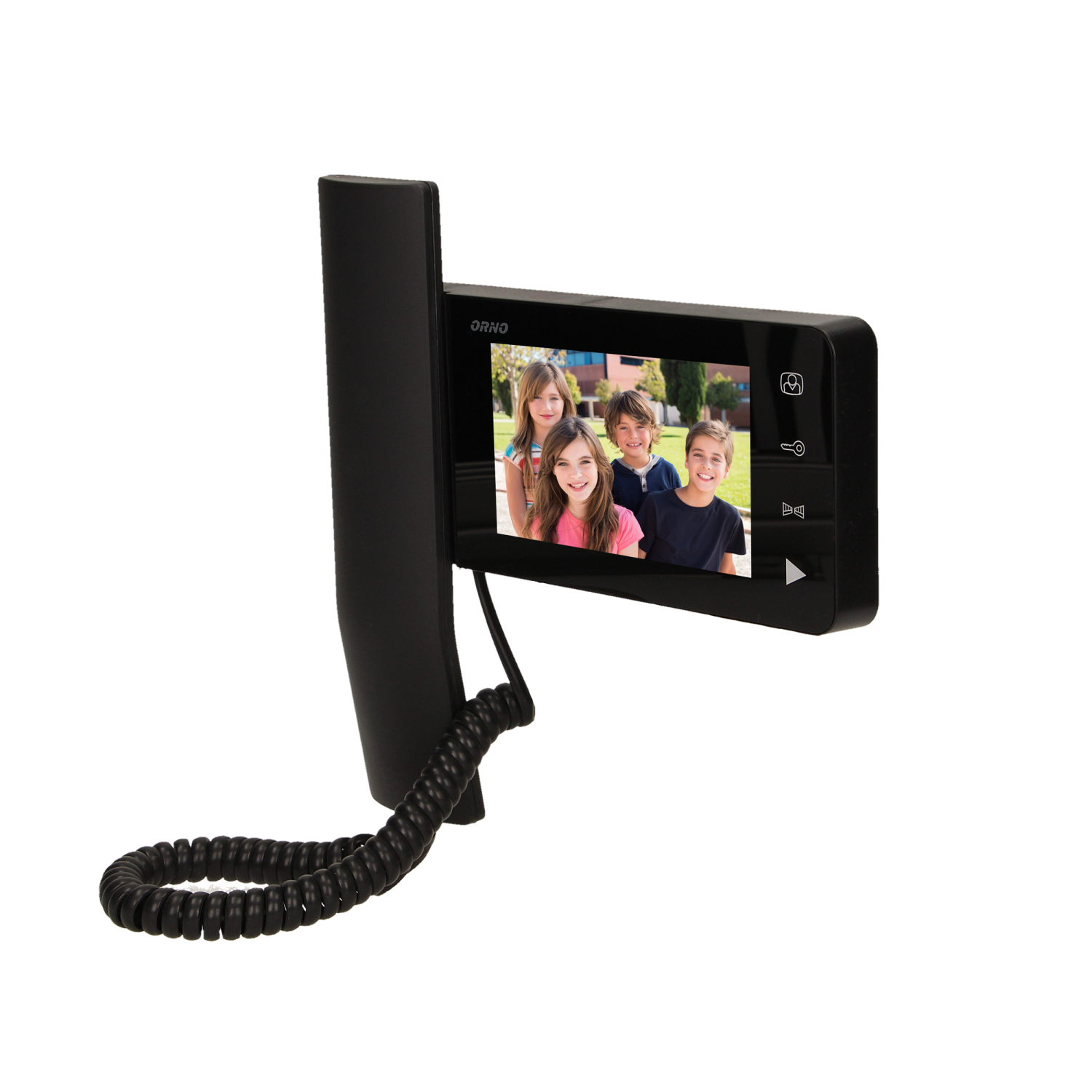

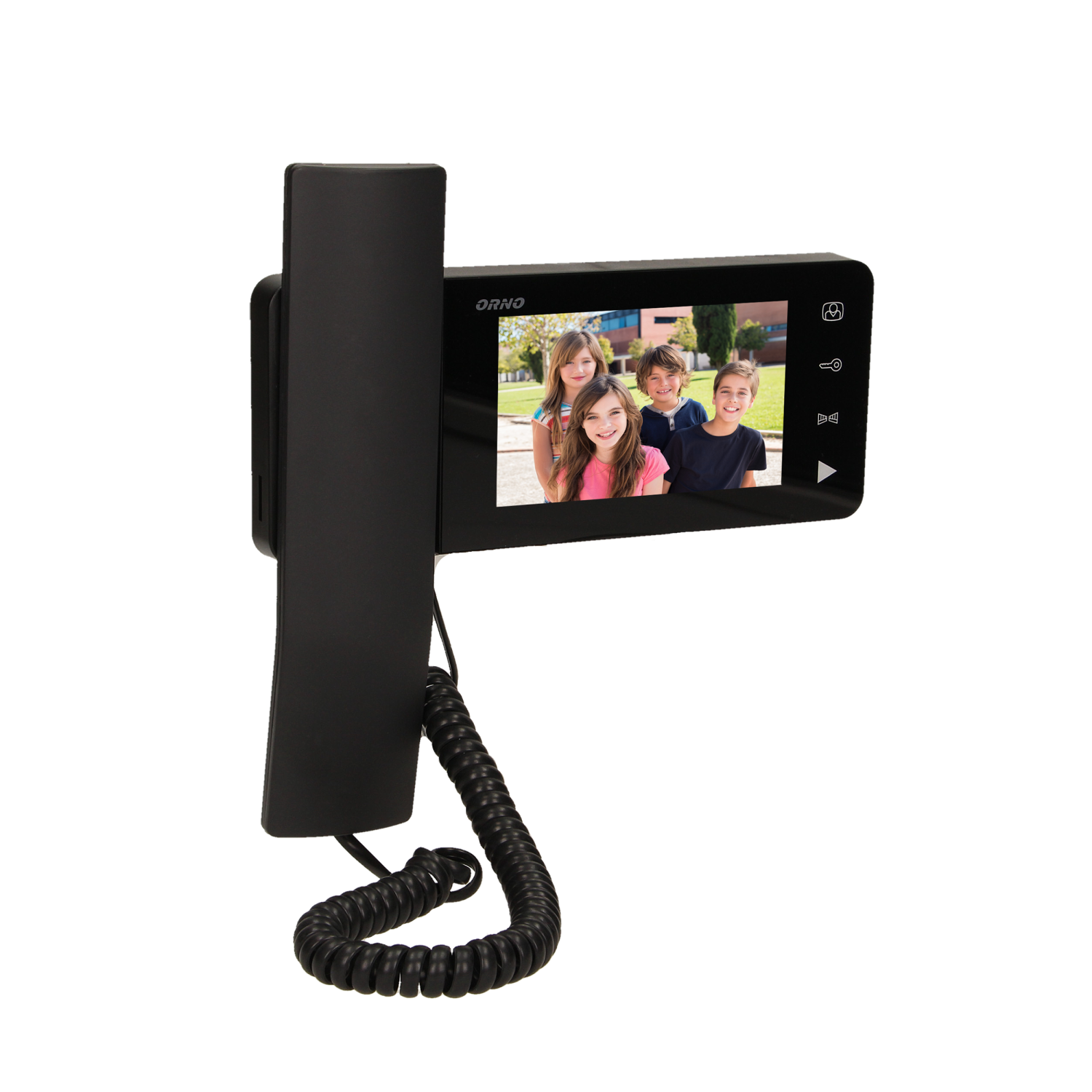

Monitor: |
---|
SD card reader: | No |
Number of ringtones: | 9 |
Operation: | via handset |
Display: | 4.3 " |
Resolution of the monitor's screen: | 480/272 |
Memory: | Yes |
Intercom function: | No |
Touch screen: | No |
Dimensions of the of the monitor - width (mm): | 191 mm |
Dimensions of the of the monitor - height (mm): | 189 mm |
Dimensions of the of the monitor - depth (mm): | 25 mm |

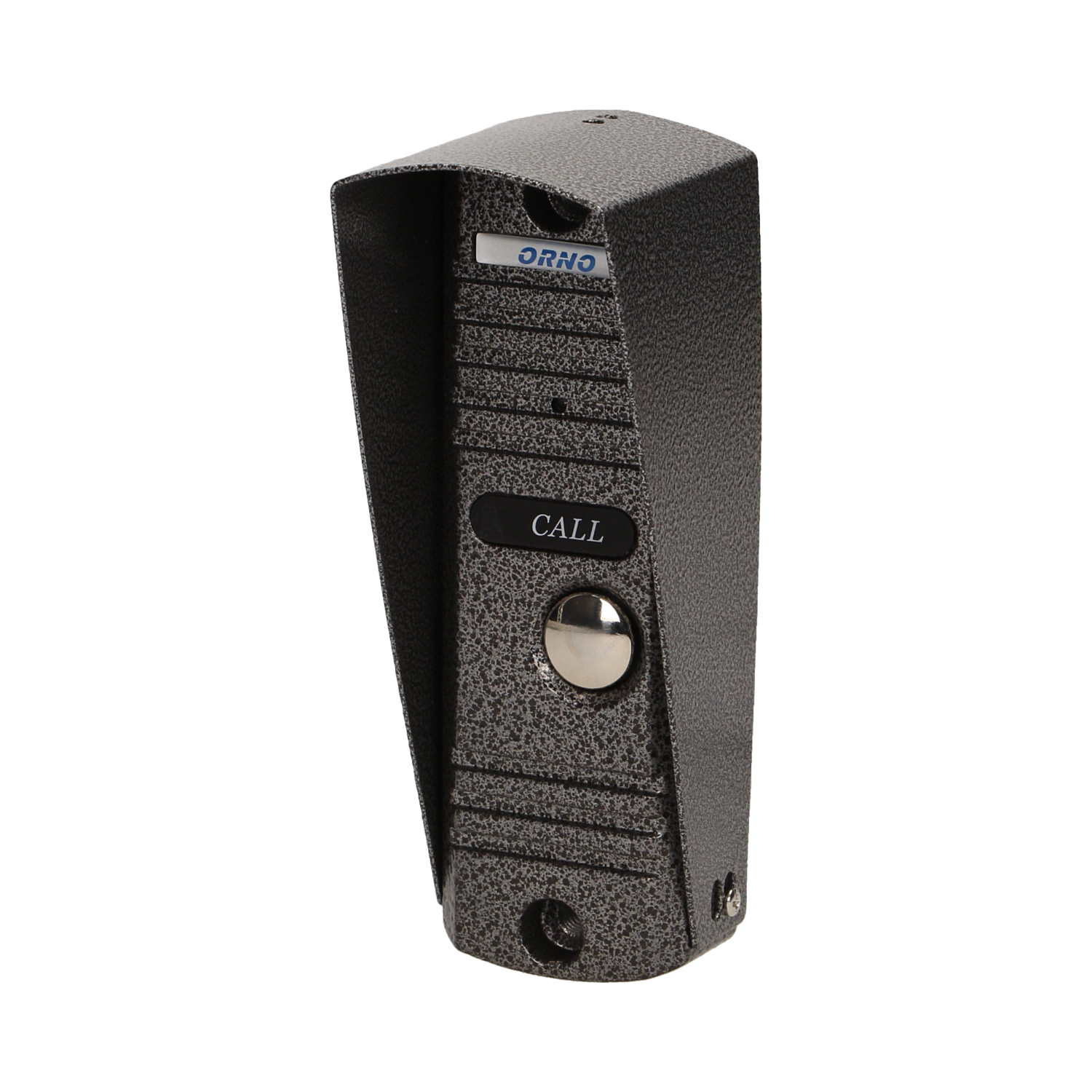

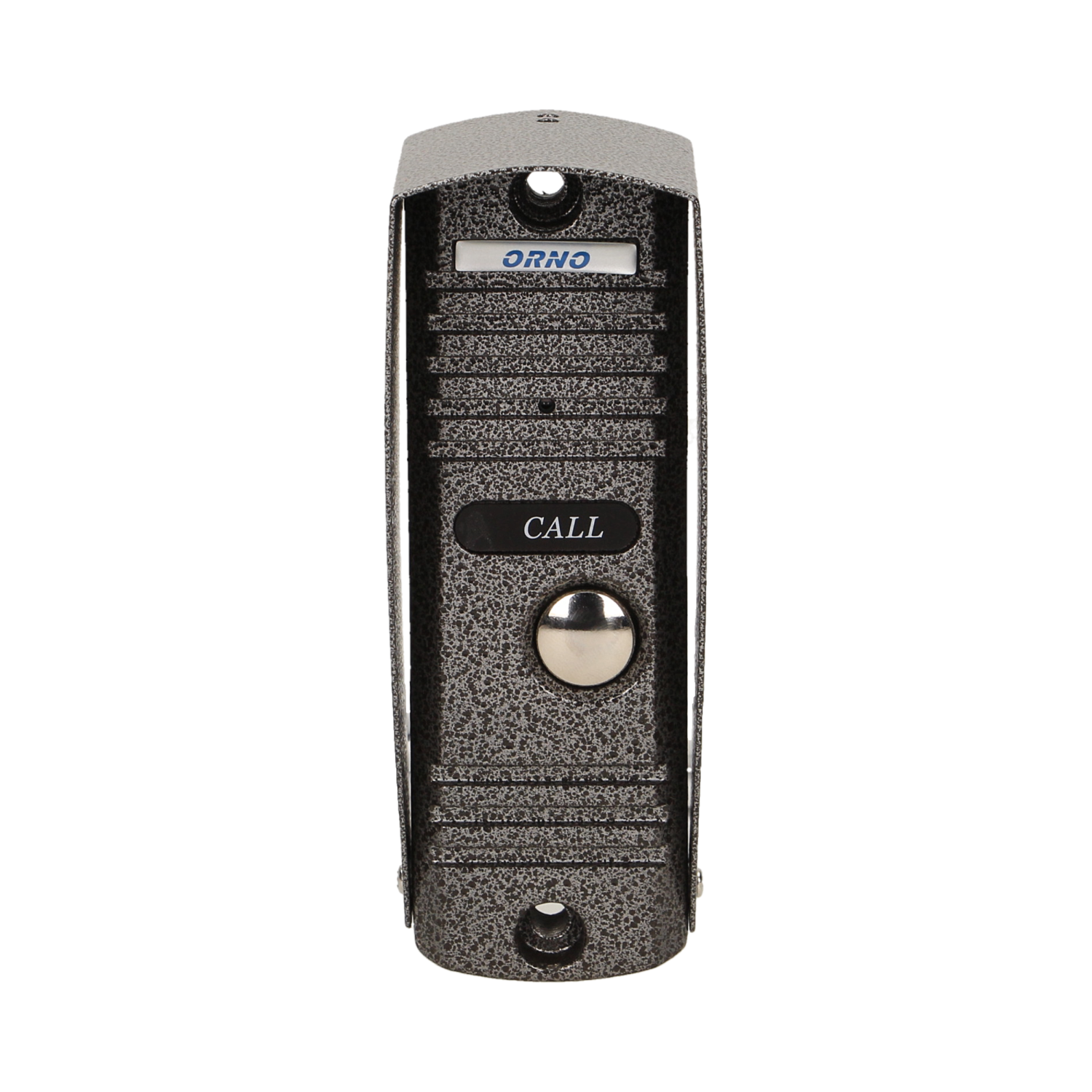

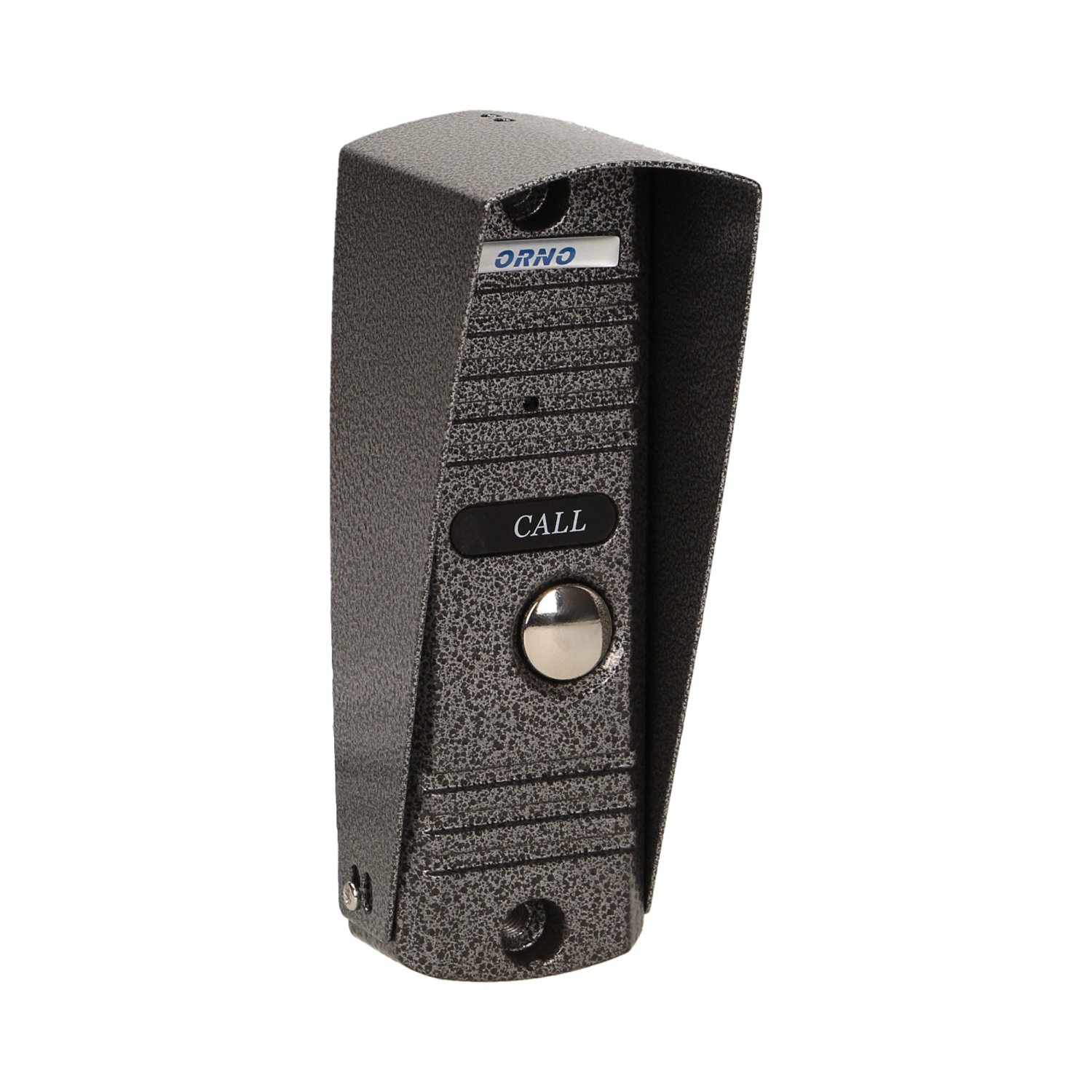

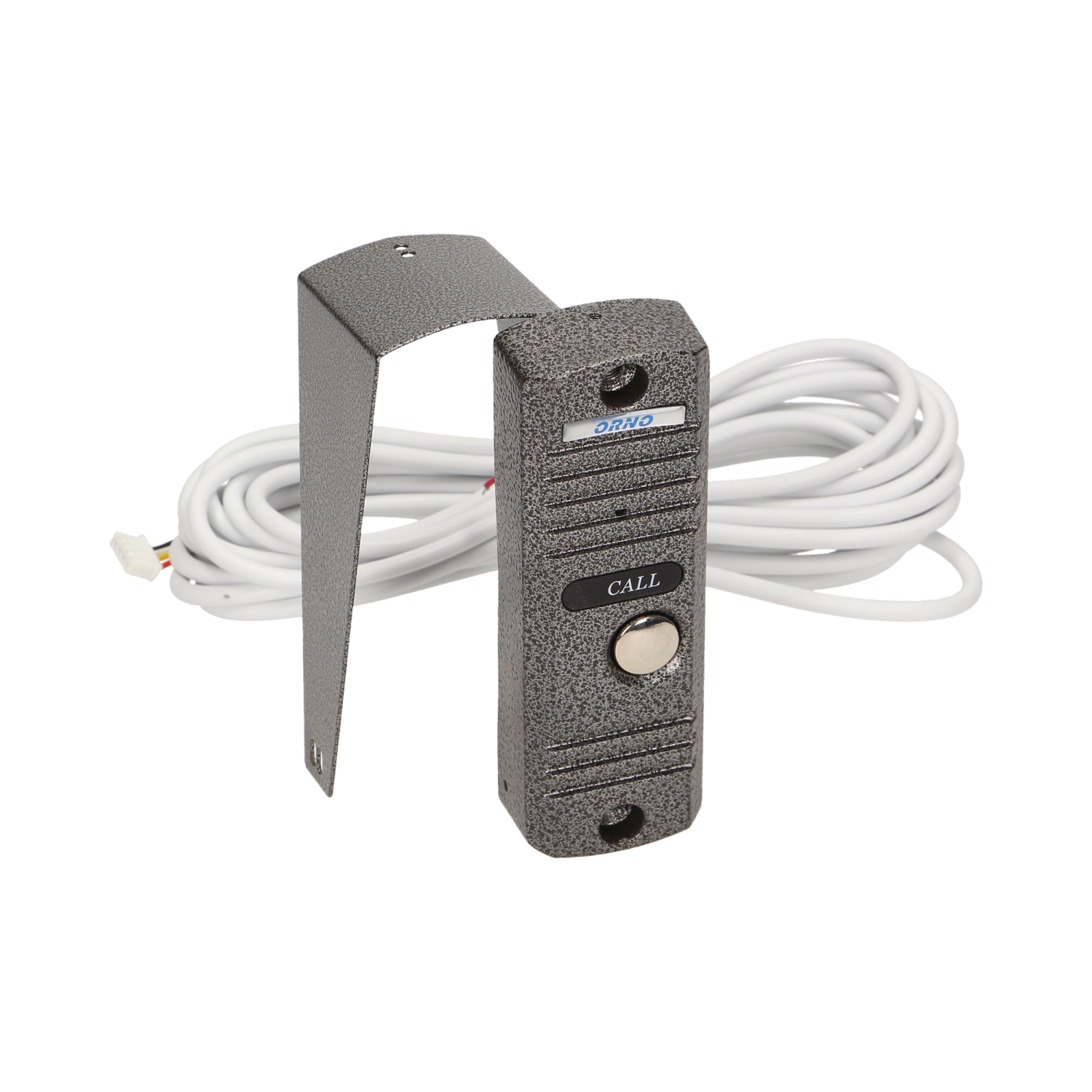

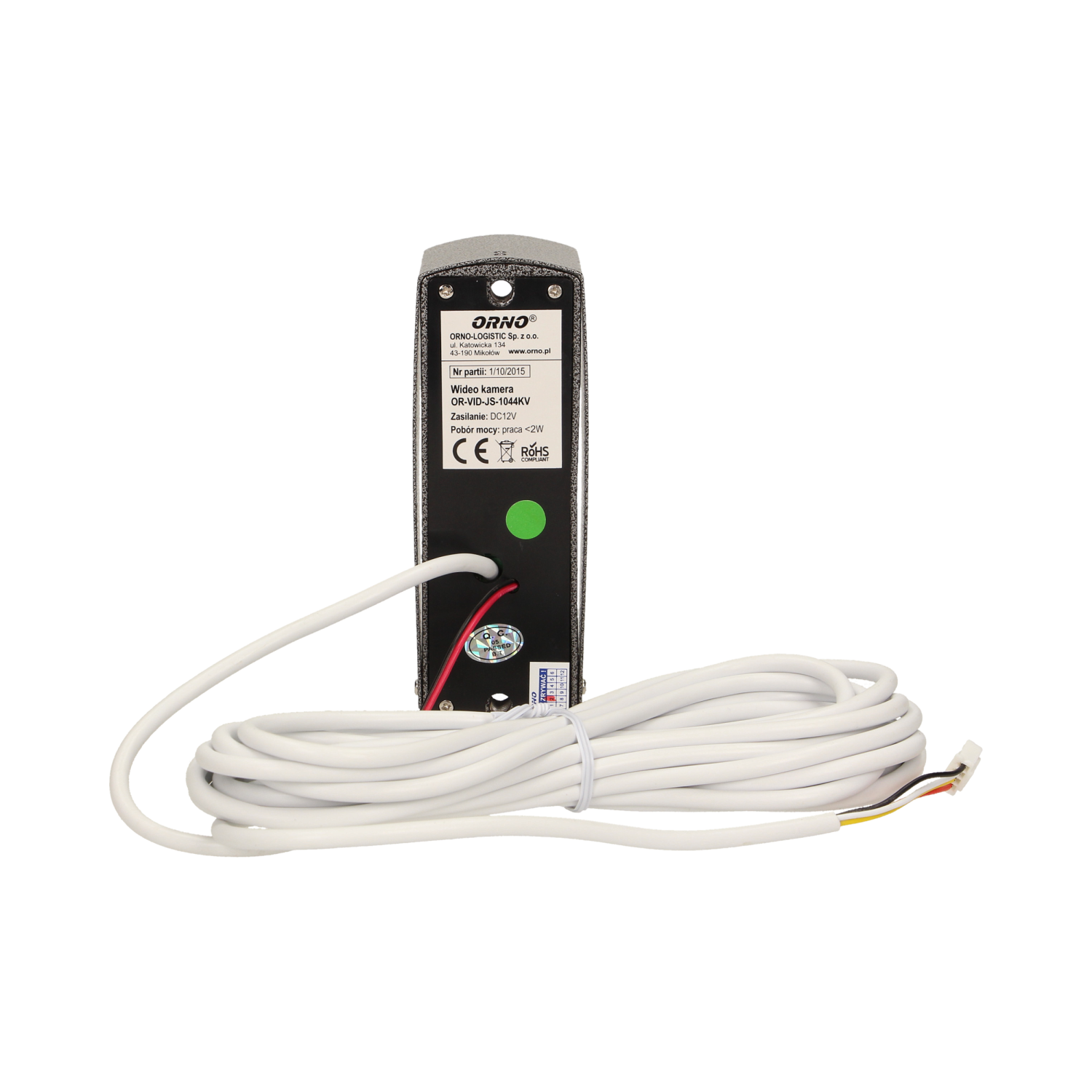

External panel with a camera: |
---|
Resolution of the camera: | 0,3 Mpix |
Vertical/horizontal camera's view angle: | 26° / 36° |
Card and proximity tags reader: | No |
Type of camera: | pin-hole |
Keypad: | No |
Night lighting: | infrared |
Dimensions of the external panel - depth: | 27 mm |
Dimensions of the external panel - width: | 70 mm |
Dimensions of the external panel - height: | 160 mm |
