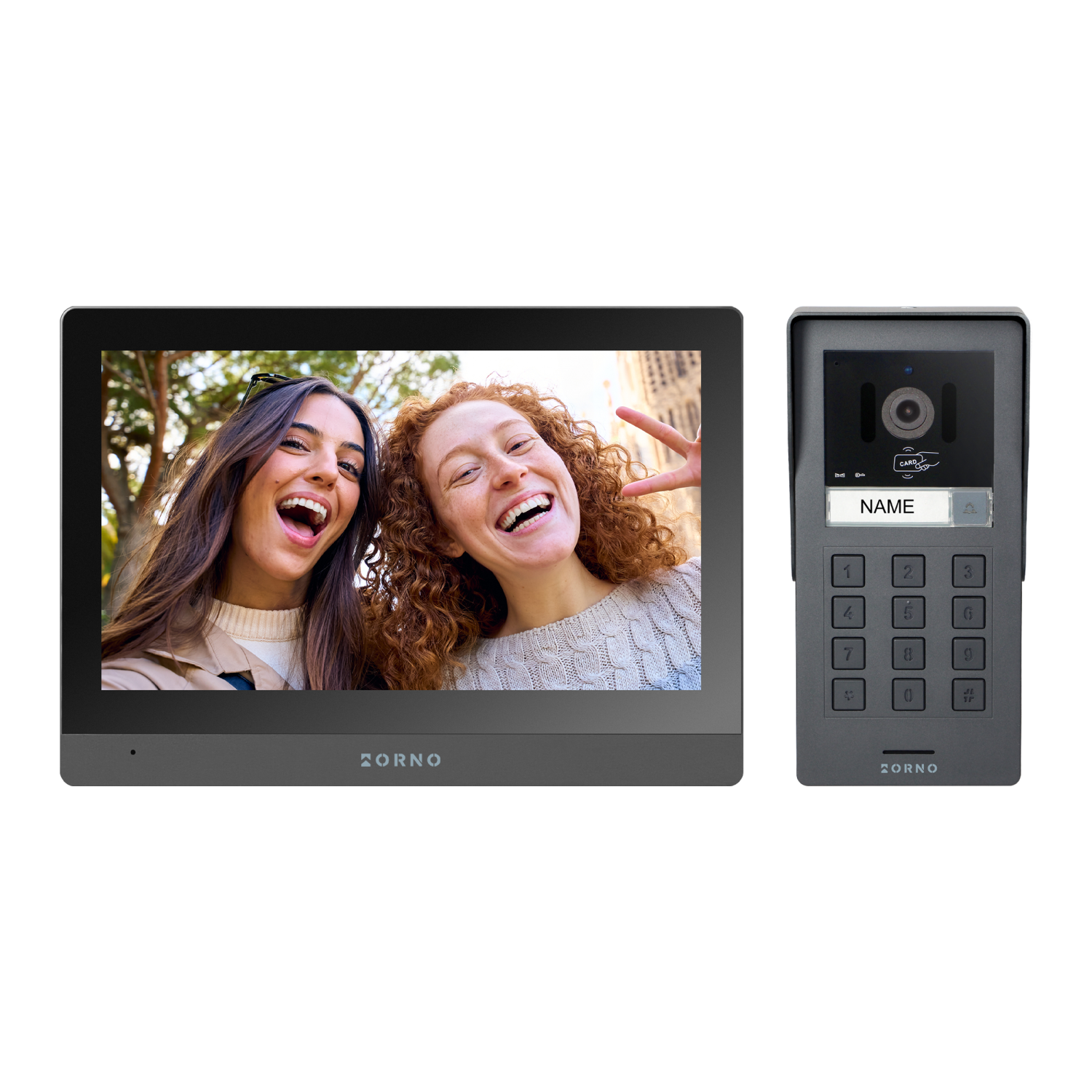

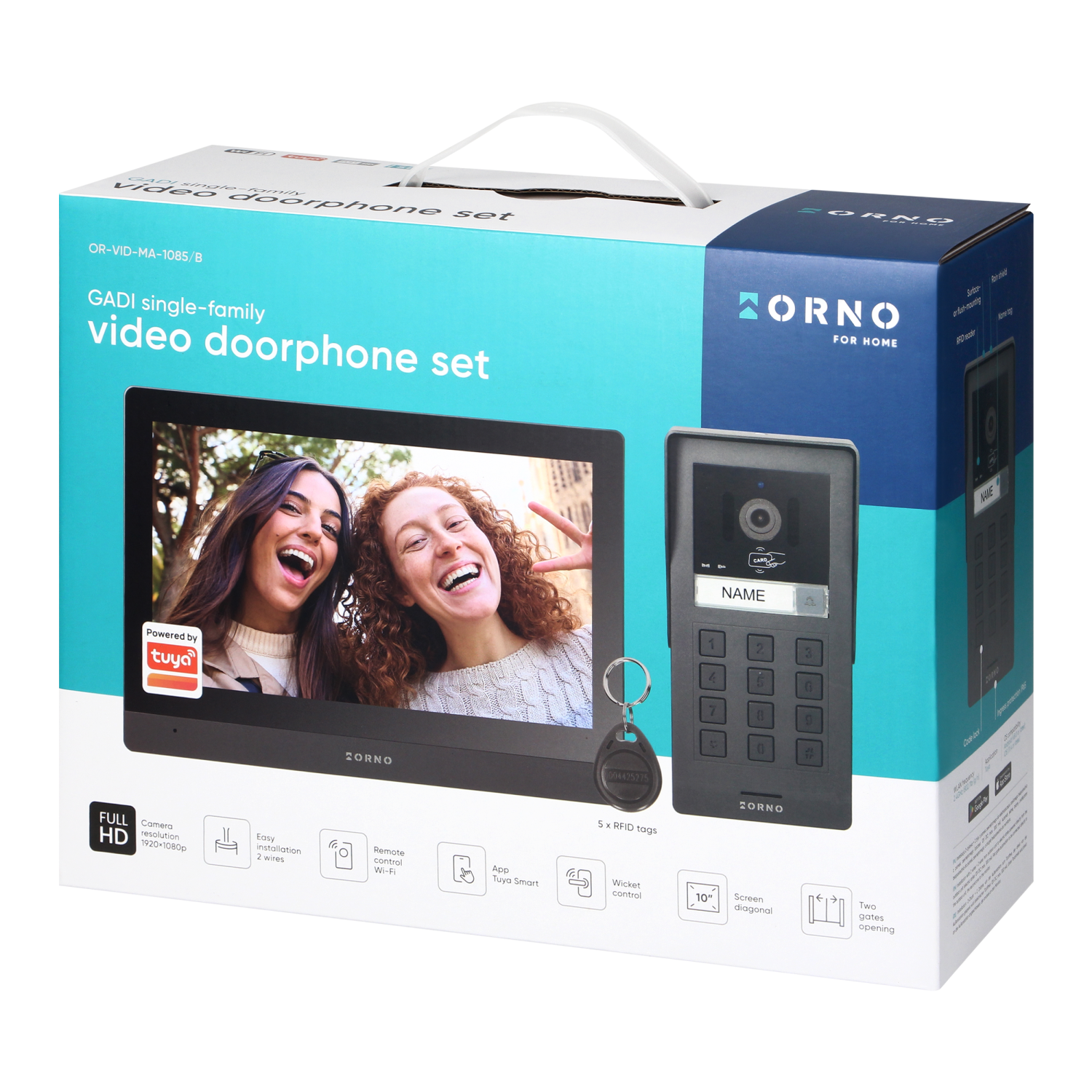

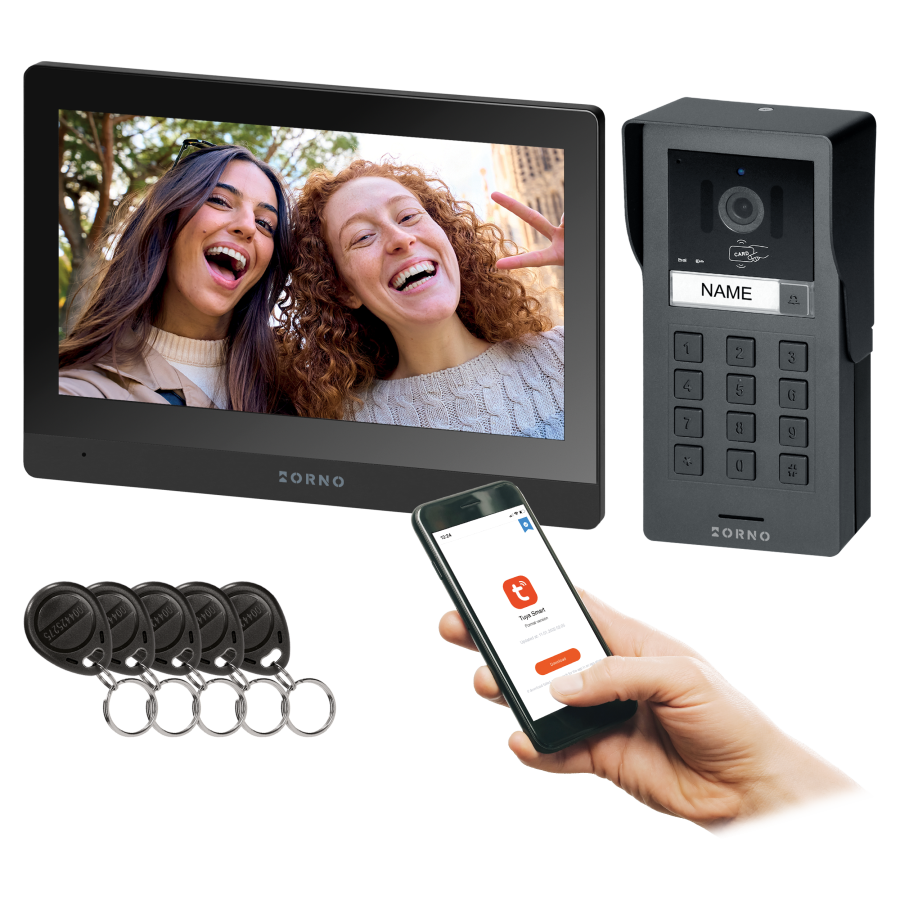

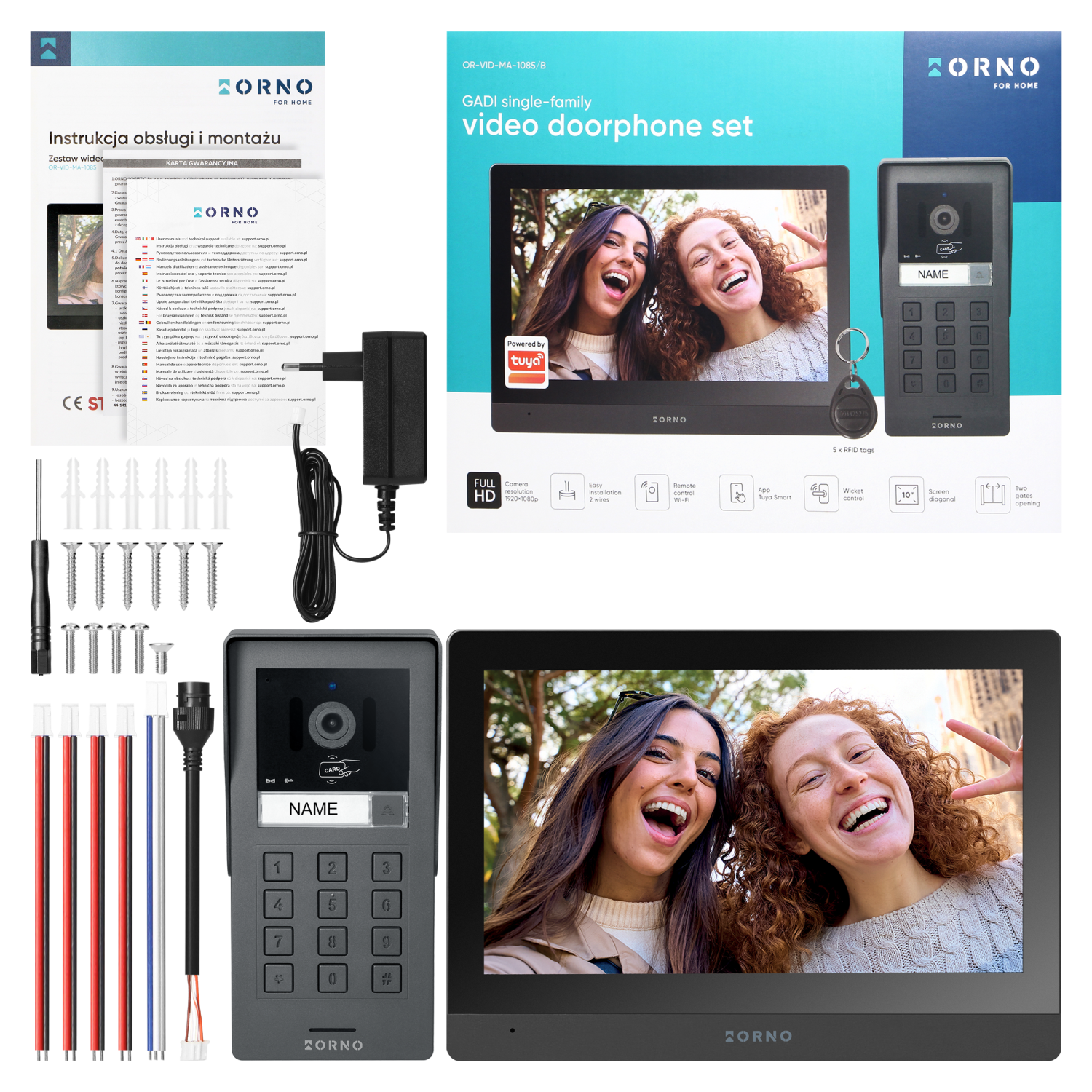

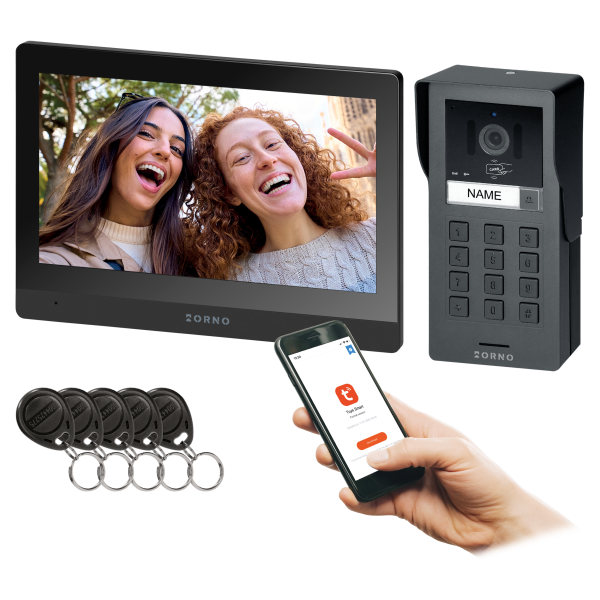

GADI, single-family video doorphone set, 2-wires, 10", Wi-Fi, touch screen, Full HD, RFID reader, code lock

The GADI video doorphone set for single-family houses provides full control and monitoring of the entrance to the property. Designed to provide safety and convenience of use with the help of smart technology.

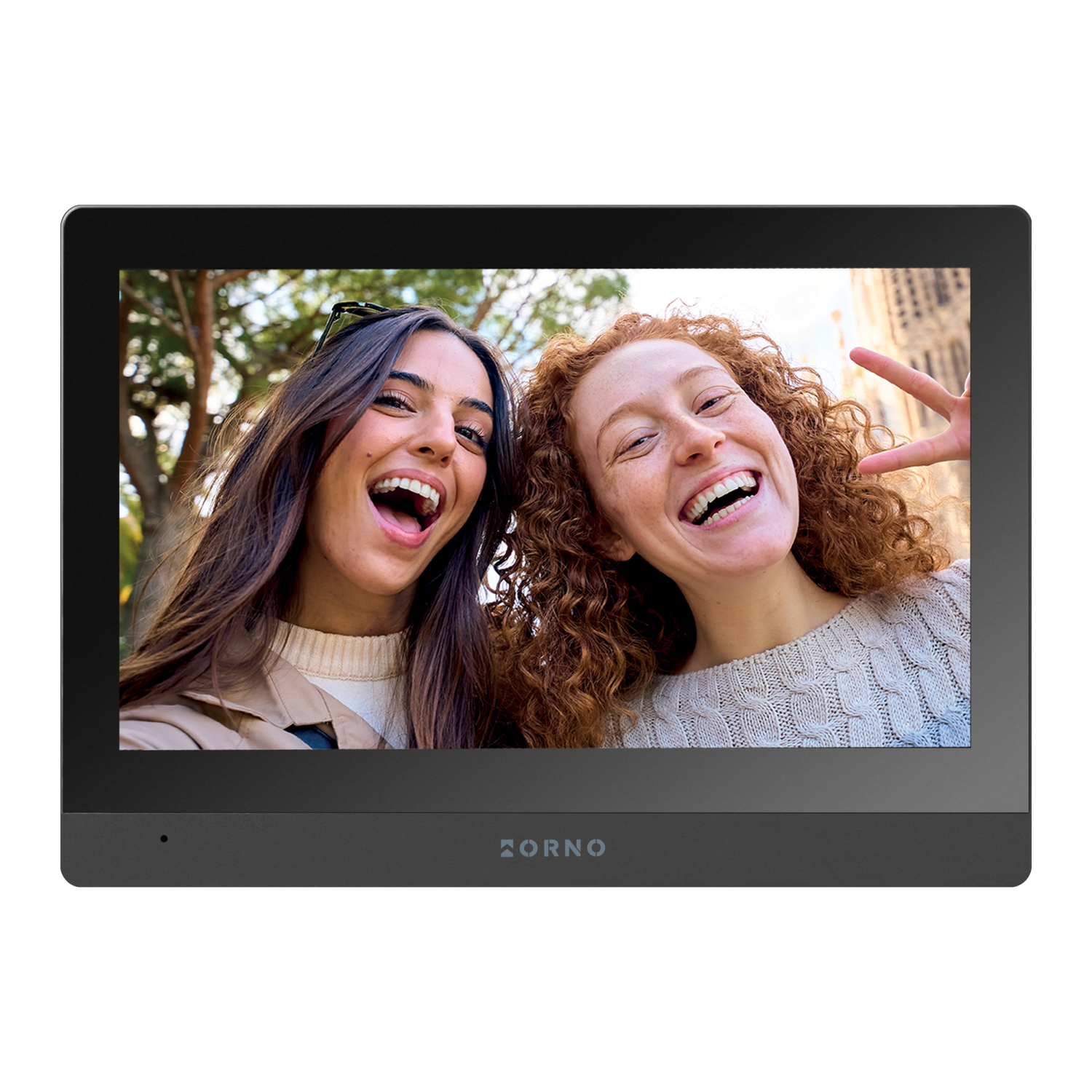

The GADI monitor is equipped with a large 10-inch touch screen that guarantees clear colour picture and intuitive navigation. Thanks to the 2-wire connection, installation is simple and allows for independent connection, regardless of polarity.

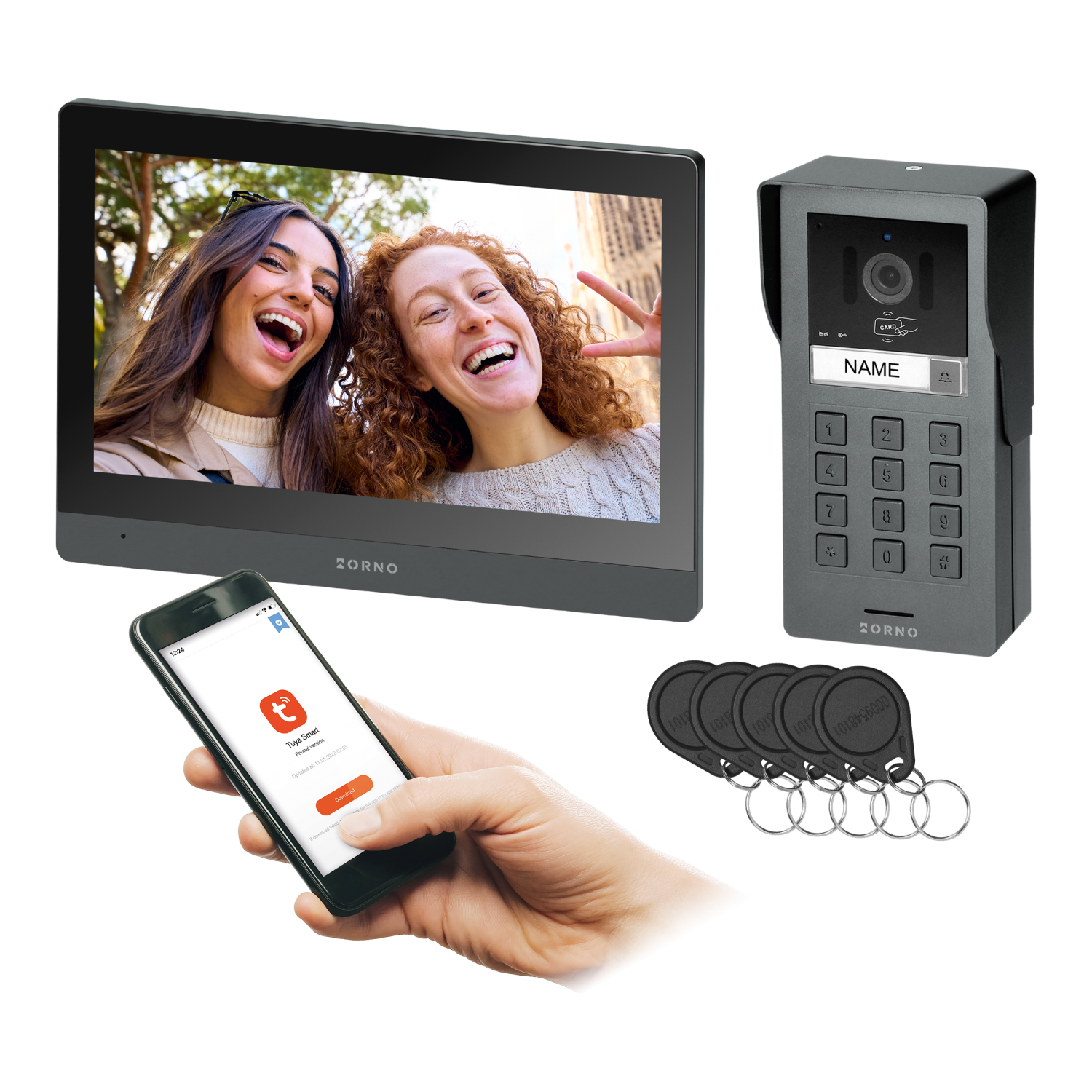

Advanced smart feature facilitates to remotely control the device via Wi-Fi and the Tuya Smart application, which can be operated from anywhere in the world. This makes it easy to monitor entry to the property. Simply install the Tuya Smart platform on your Android or iOS smartphone and synchronize it with the GADI video monitor.

The wicket and two gates (e.g. entrance and garage) may be conveniently controlled both from the monitor and the mobile application. As there is no need to provide additional power to the electric lock, the number of cables running through the garden is minimized. The electric strike with a maximum current consumption of 300mA is powered directly from the video intercom.

The device is equipped with additional functions, such as a microSD card reader and an answering machine. This is to provide a comprehensive solution for entry control and monitoring. The user does not have to worry about the possible lack of video and photo recordings during an absence or during an already received call. The microSD card enables the log recording function, and the answering machine allows the guest to leave a voice message. The video monitor has 5 built-in melodies, and the microSD card facilitates to upload your favourite music in mp3 format. This feature allows to individually adjust the call sound. The different volume levels, including complete mute, as well as the option of setting a specific level for three different times of the day provide full freedom to adjust the sound to your own preferences. The photo frame and weather forecast functions allow to read photos stored on the microSD card and check the current weather conditions in a standby mode. This is a practical purpose of the device even when not in use. It simultaneously looks aesthetic.

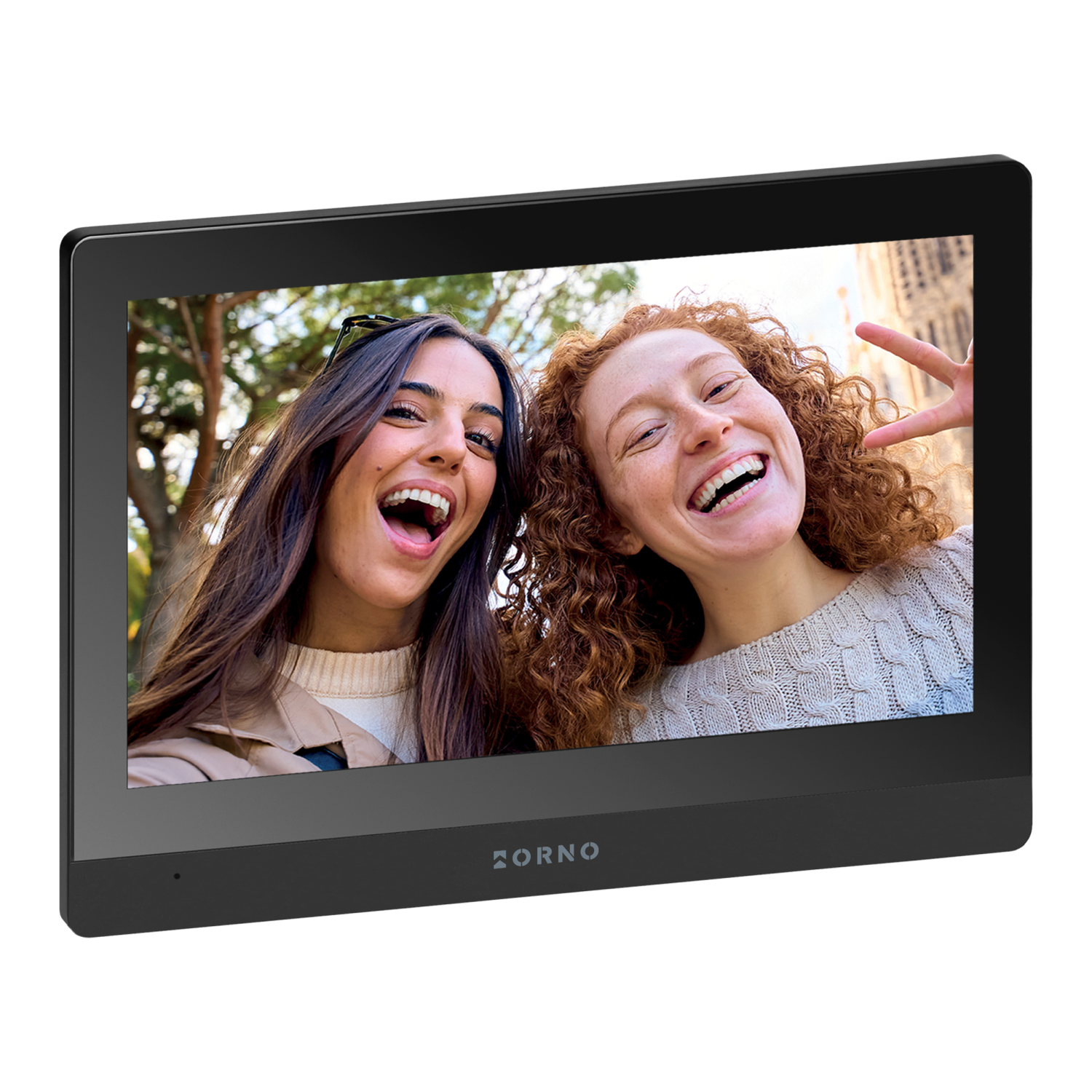

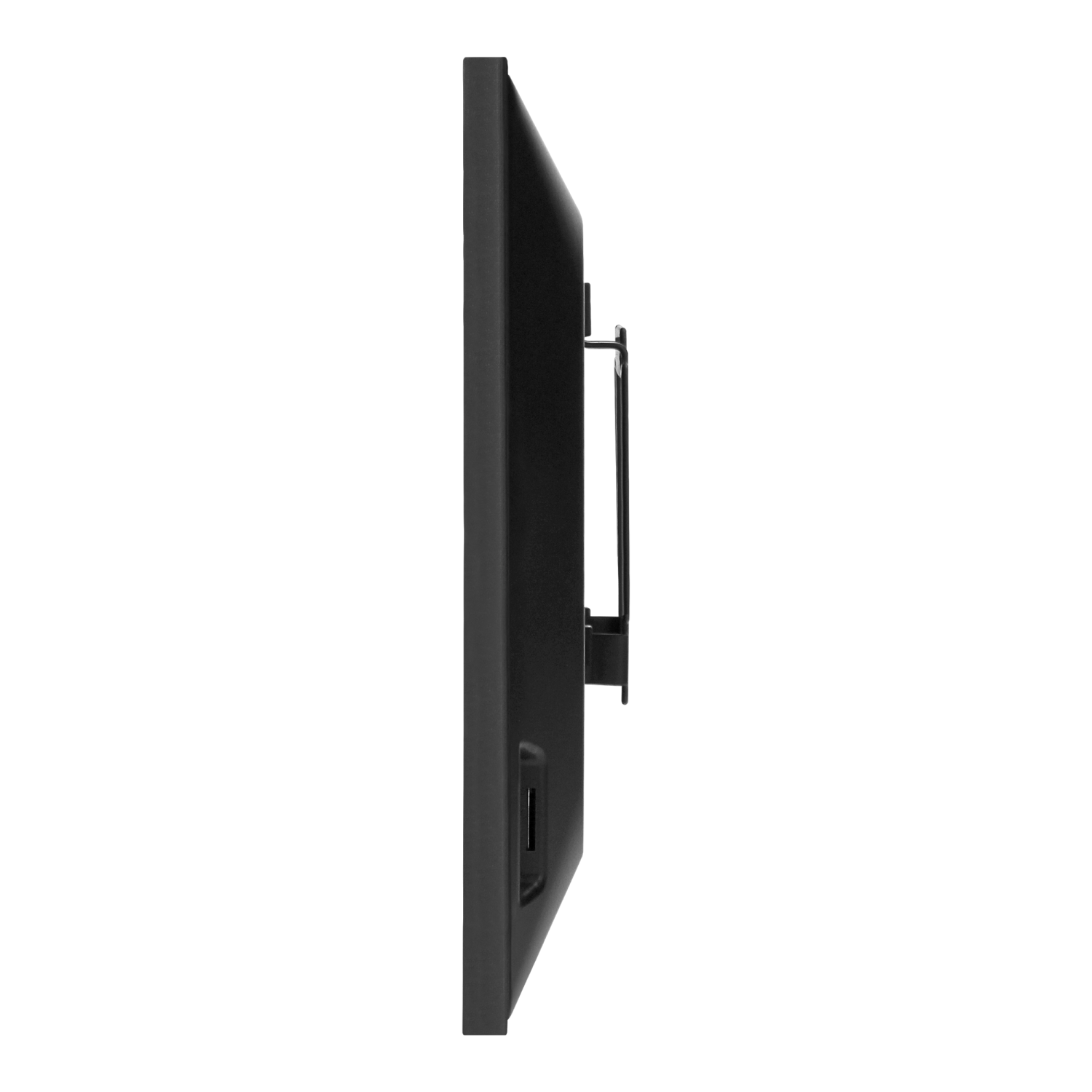

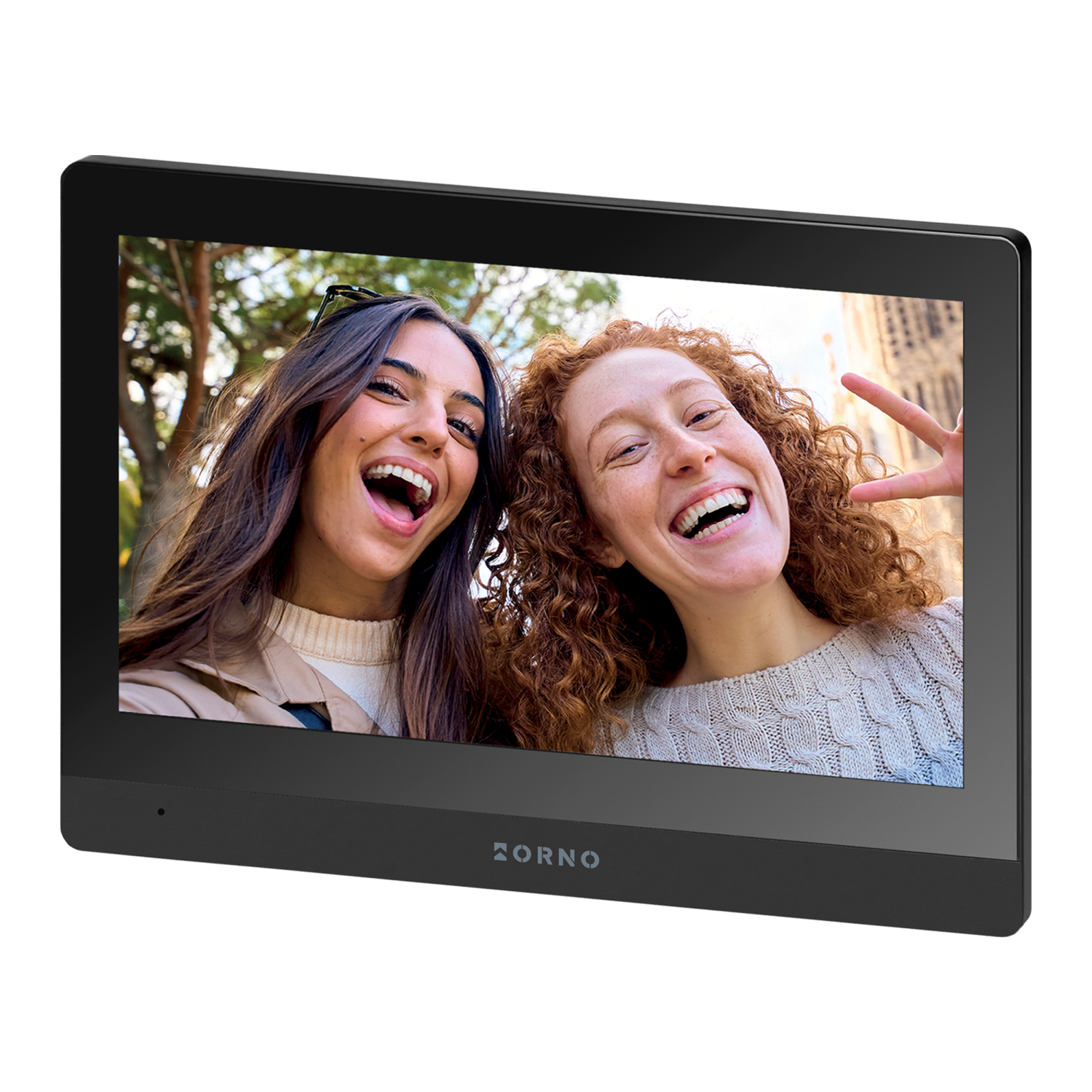

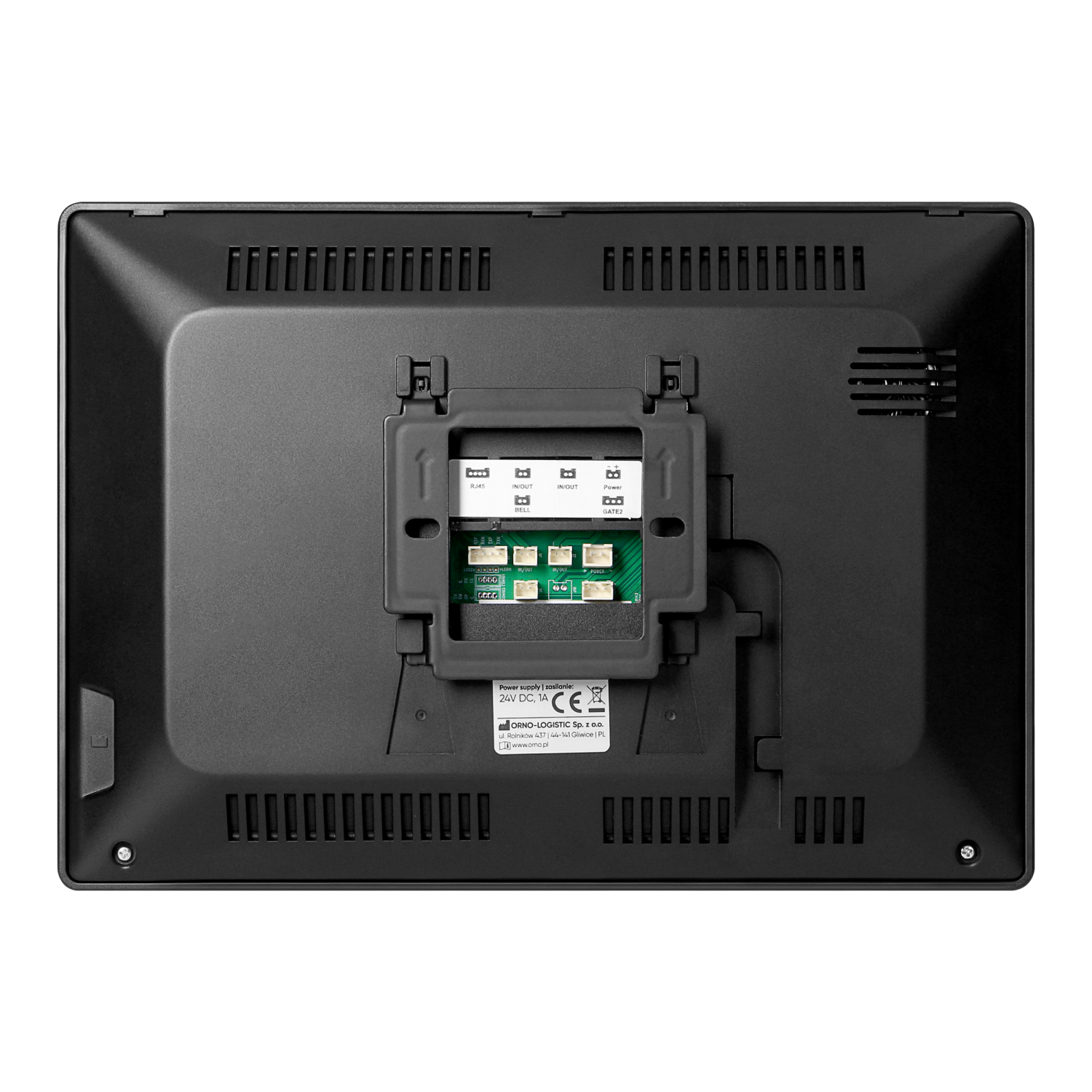

Video monitor in black, made of high-quality plastic. The dimensions measure 255x180x26 mm. Surface mounted.

The GADI outdoor unit is equipped with a 2MP camera that both takes photos and records very good video in Full HD quality. A wide viewing angle of 52° vertically and 105° horizontally provides a full image in front of the gate.

Additionally, IR lighting guarantees visibility at night, without blinding the visitor (range up to 1 m).

The built-in motion sensor records photos and videos when a movement is detected (it may detect an intruder and alert about this event). The data is then recorded on a microSD card installed in the monitor.

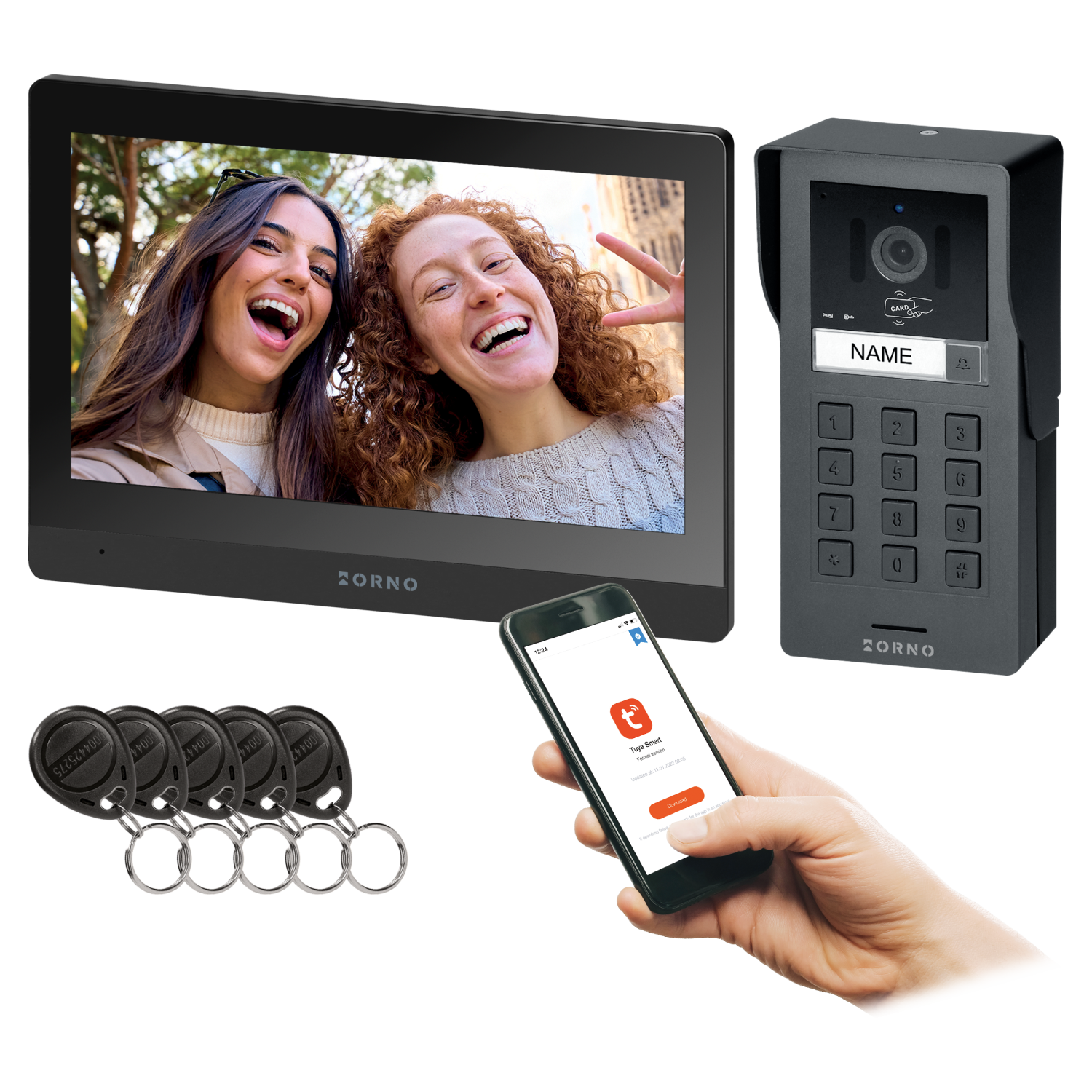

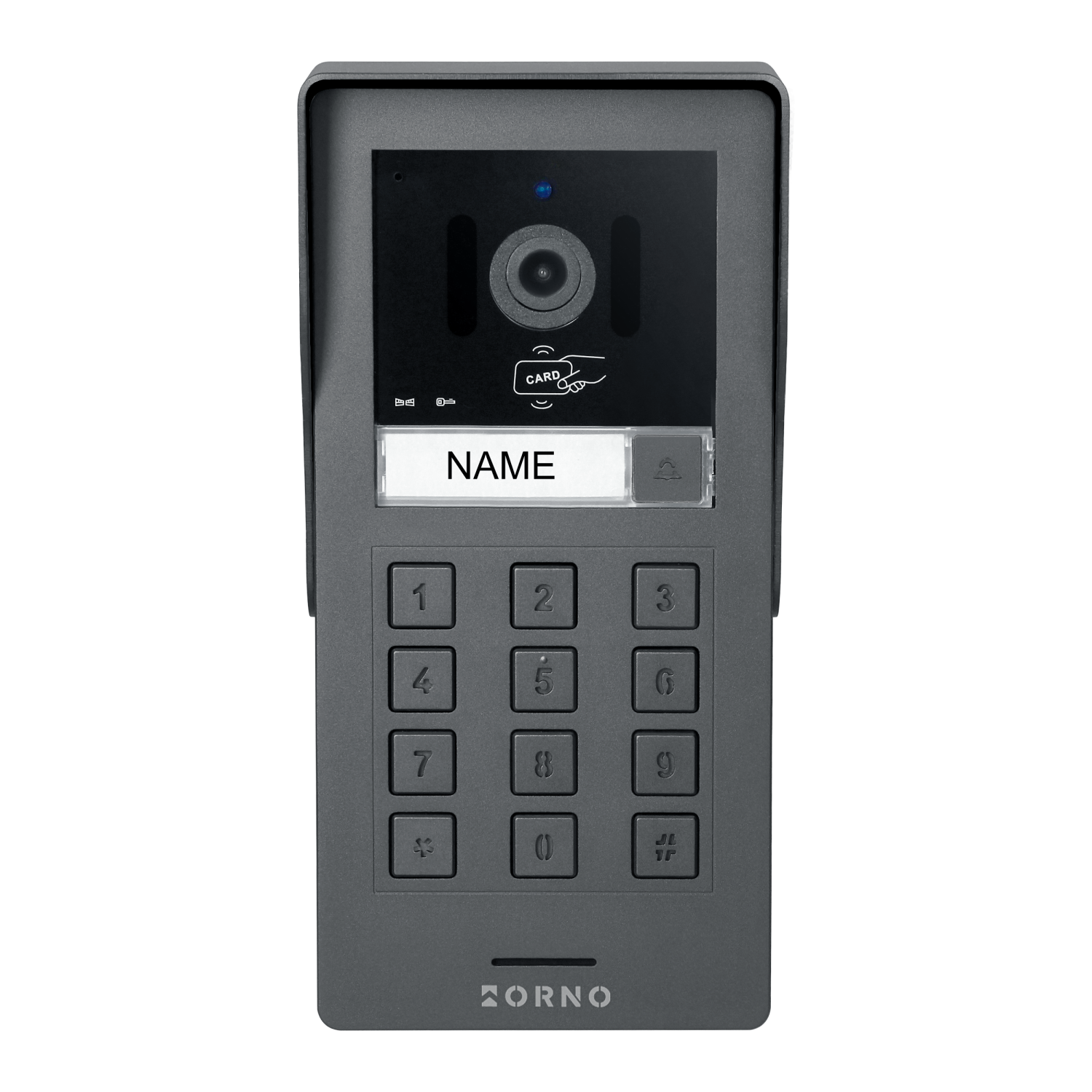

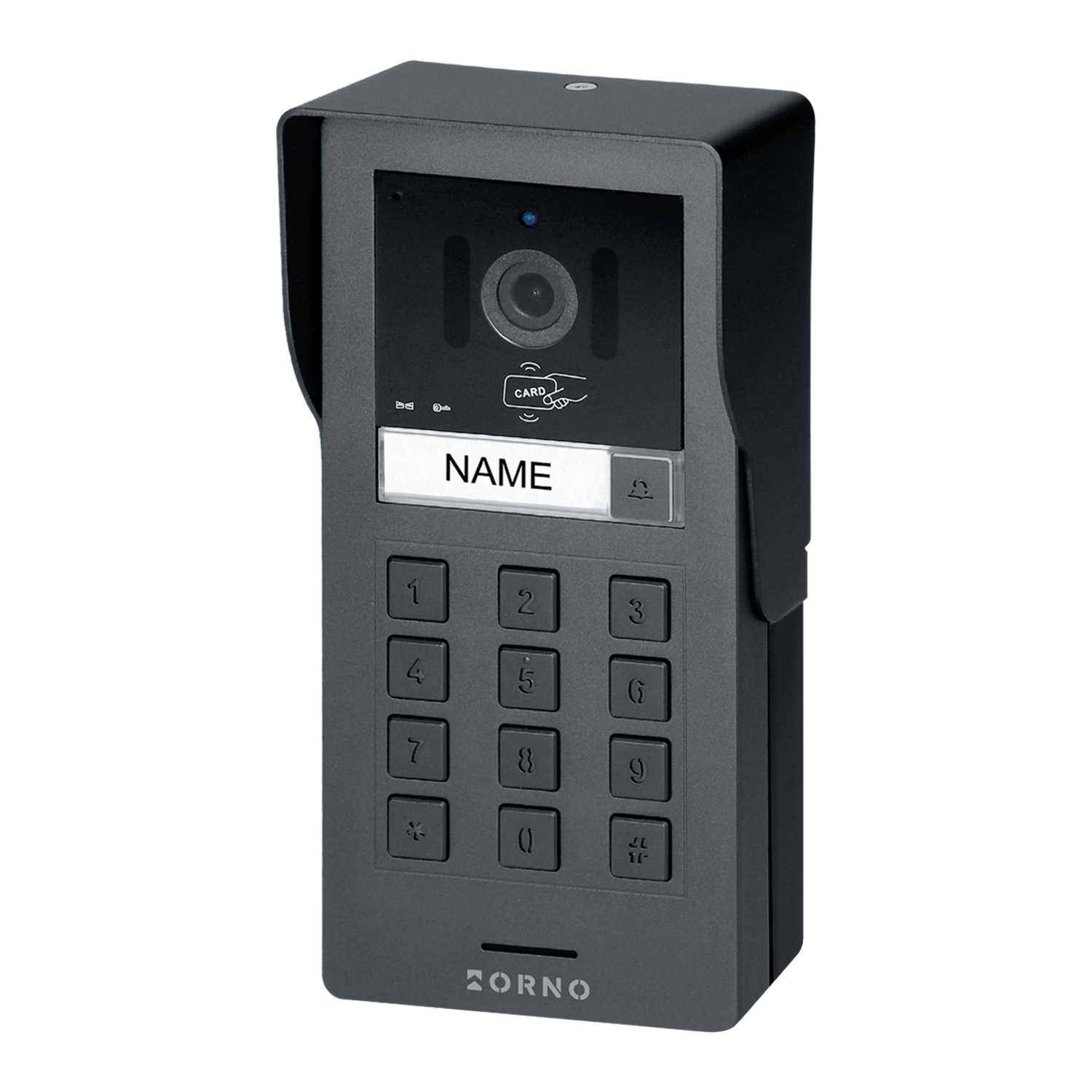

The aluminium outdoor unit has an IP65 rating and a rain cover, thus guaranteeing durability. The built-in code lock and 125 kHz RFID card and key tag reader facilitate entry for authorized persons, and the name tag allows guests to easily find the right property without the risk of confusion. The set includes 5 key tags.

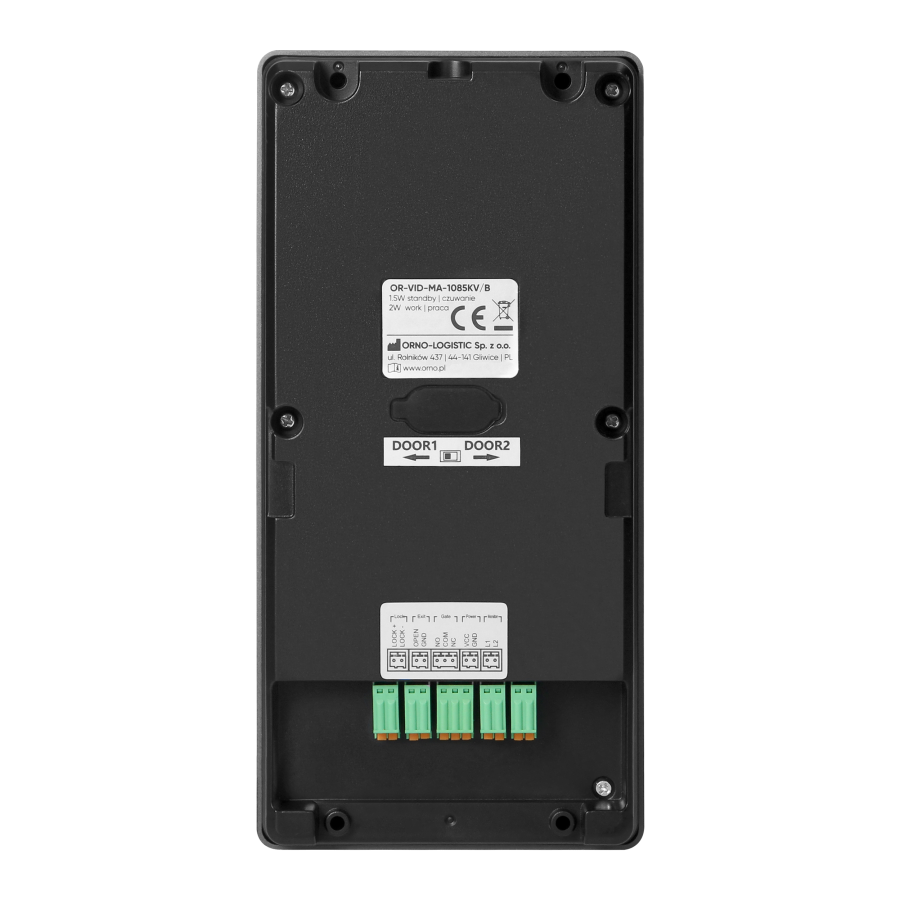

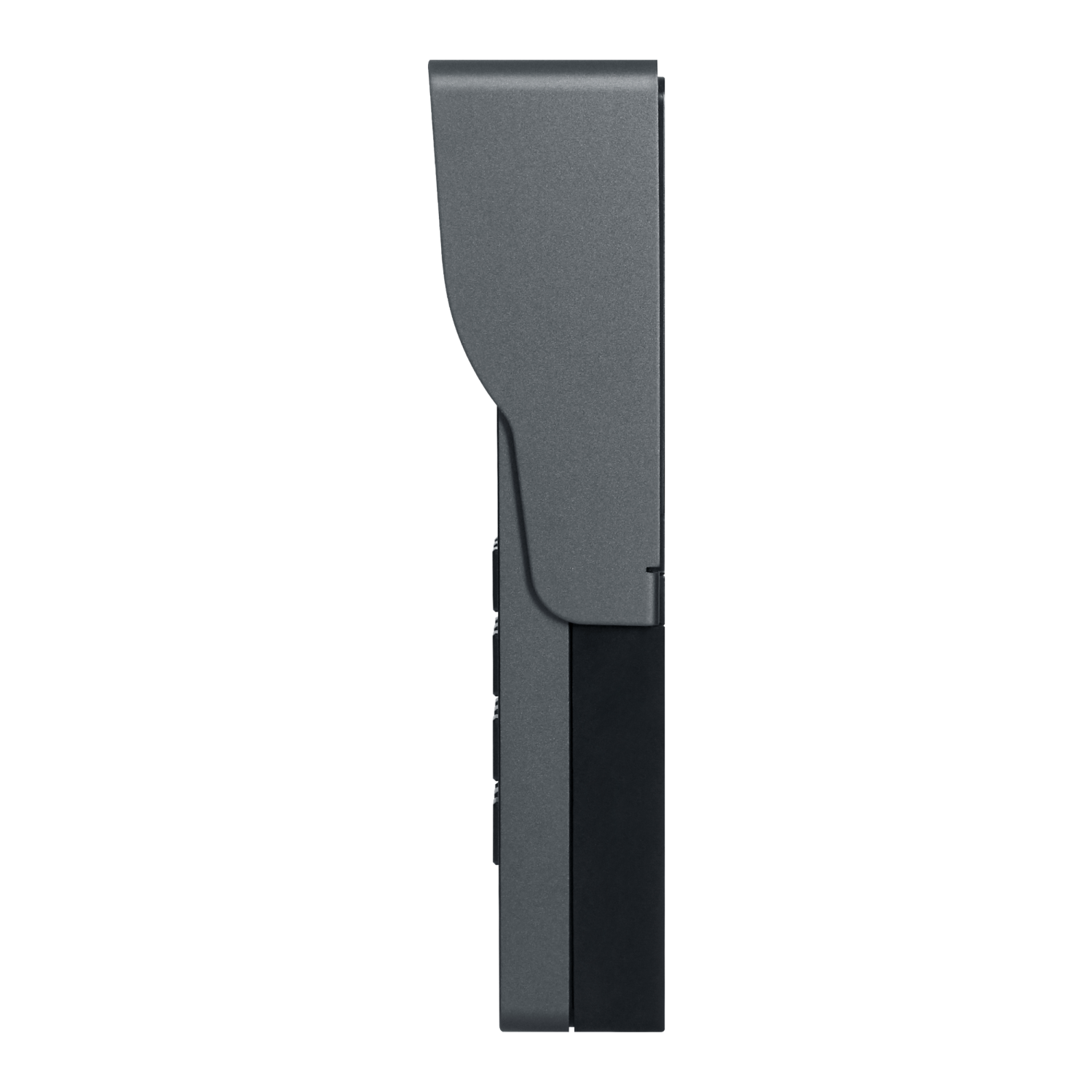

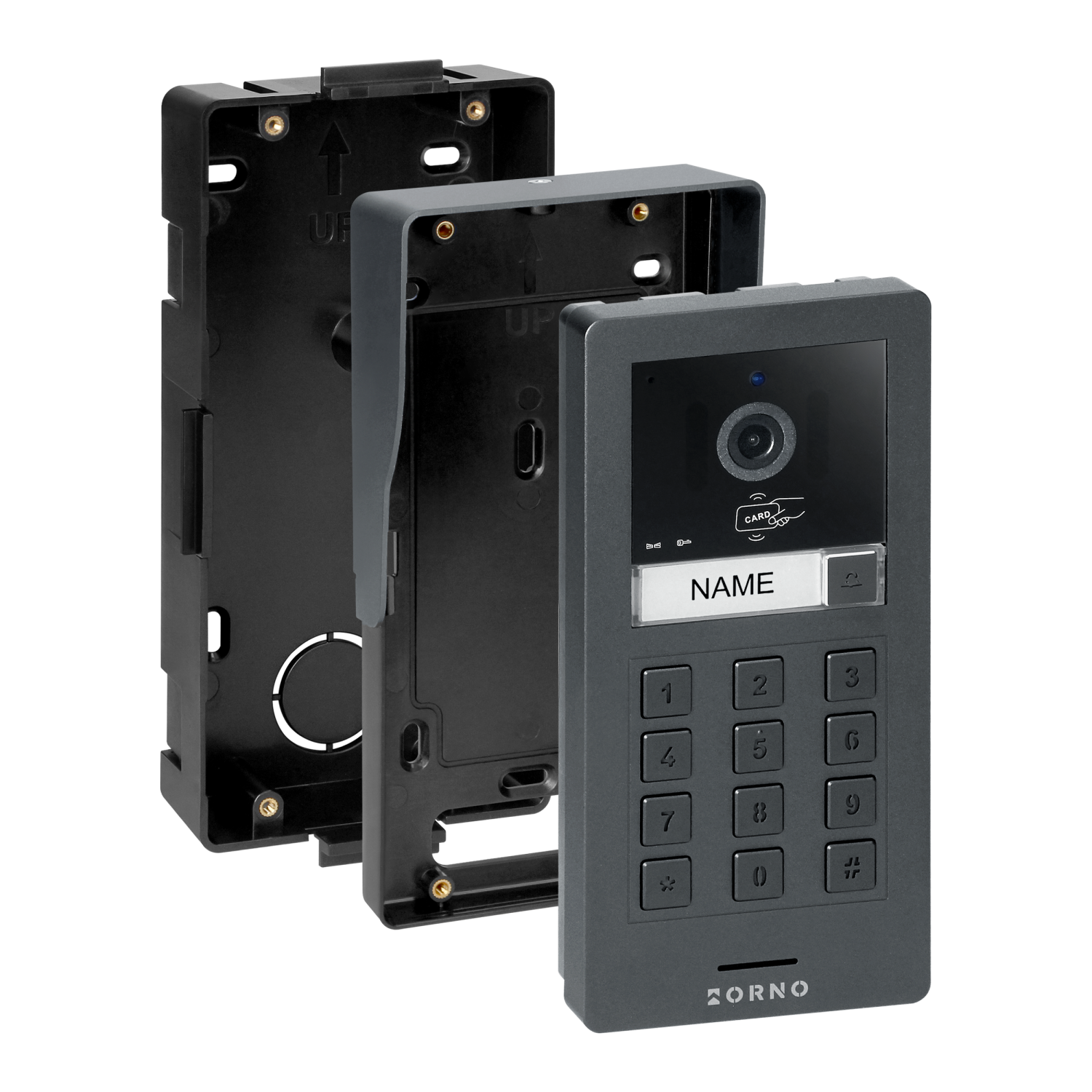

The outdoor unit is anthracite with dimensions of 91x184x43 mm. It may be surface of flush mounted which is a universal solution.

The possibility of expanding the GADI set with additional monitors (max. 6 in the set), an outdoor unit (max. 2 in the set) and additional IP cameras (max. 2 in the set) increases the sense of security, thus providing a full system for entrance controlling and monitoring even in a multi-story house. The built-in intercom enables communication of household members between the floors.
