ALERTO, video doorphone set, 4-wire, 7", Wi-Fi, touch panel, black

OR-VID-MD-1084/B

Description

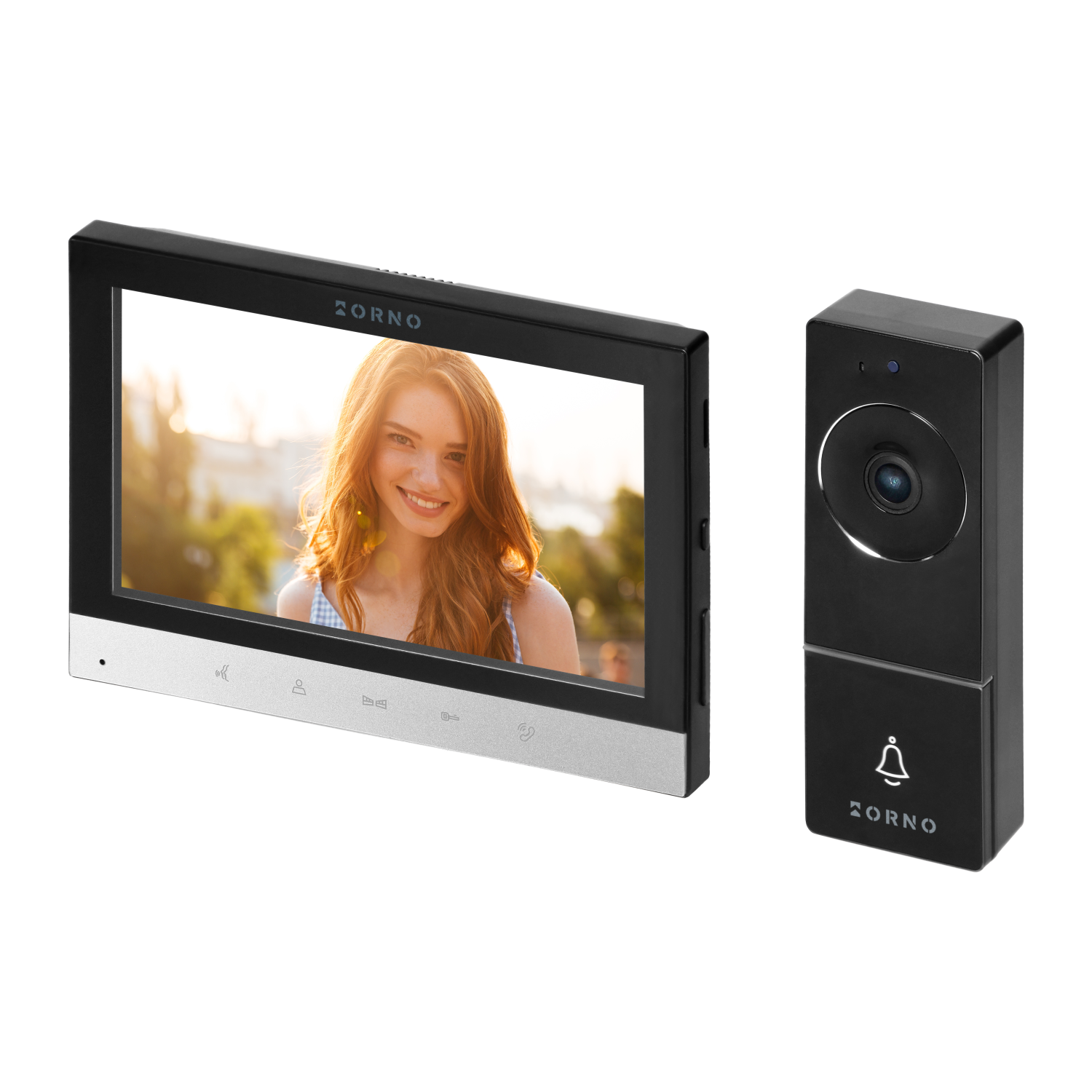

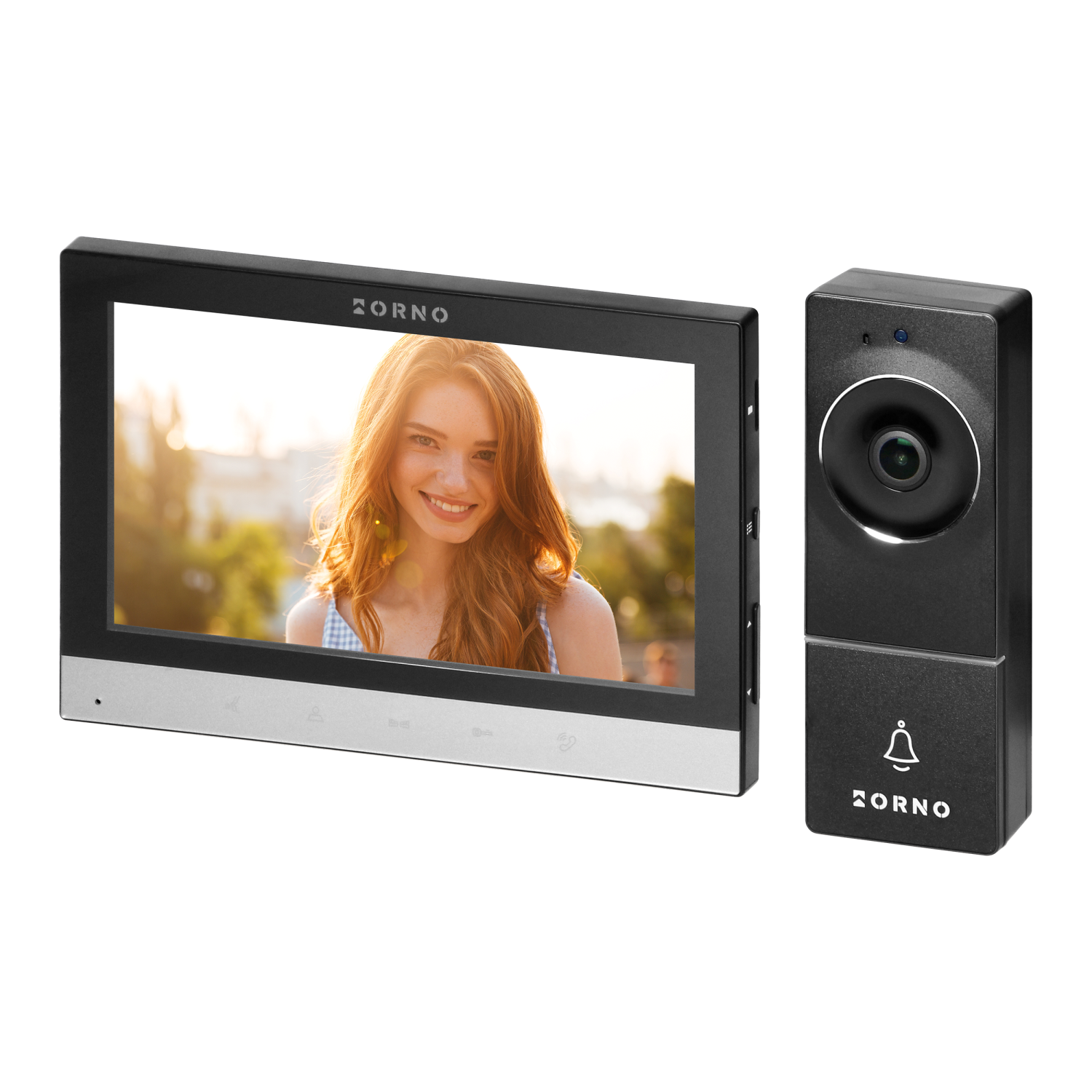

The ALERTO videodoorphone set is designed for single-family houses and provides security and control of the entrance to the property. ALERTO is characterised by an intuitive 4-wire connection, which enables easy, fully secure and self-assembly and reduces the number of cables leading to the wicket.

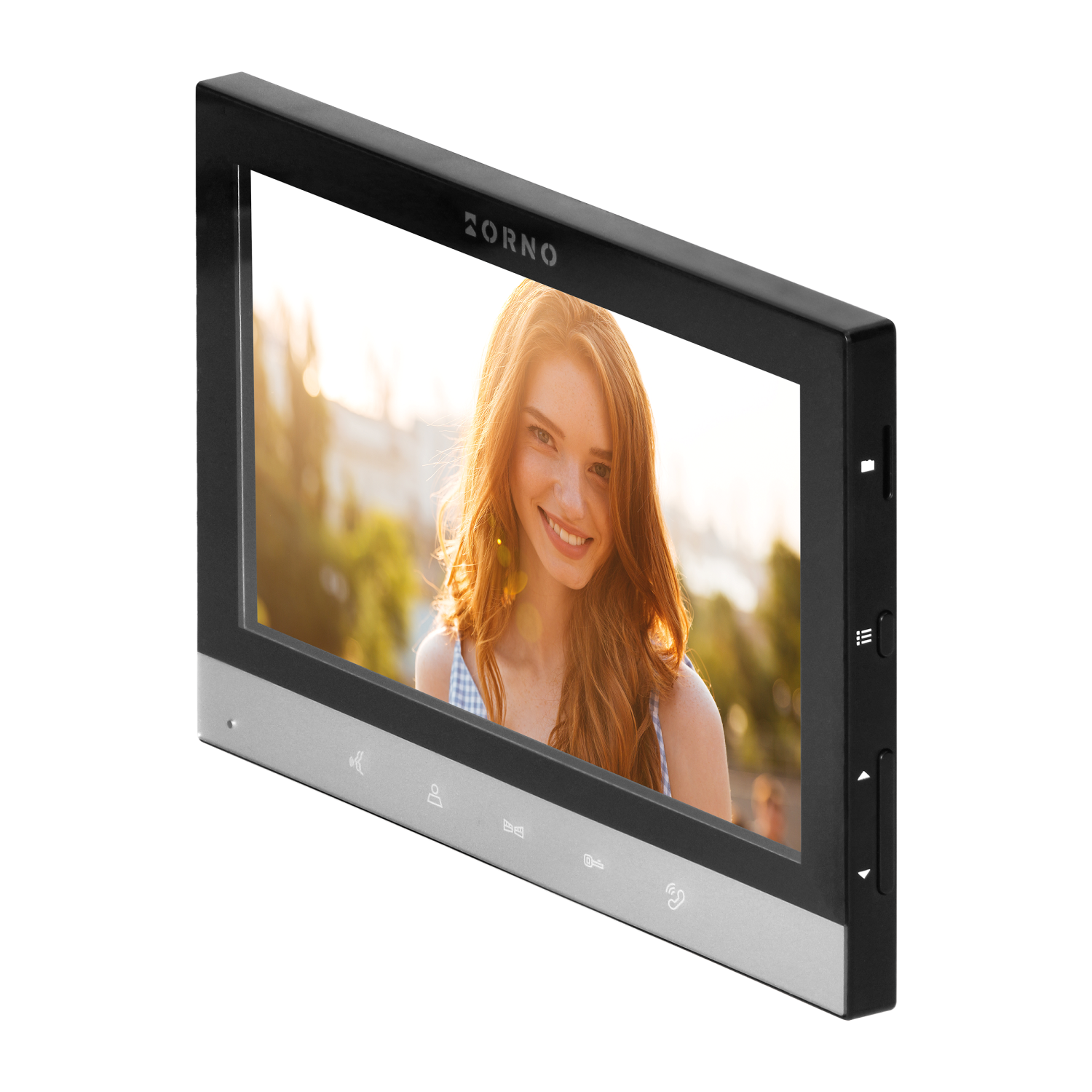

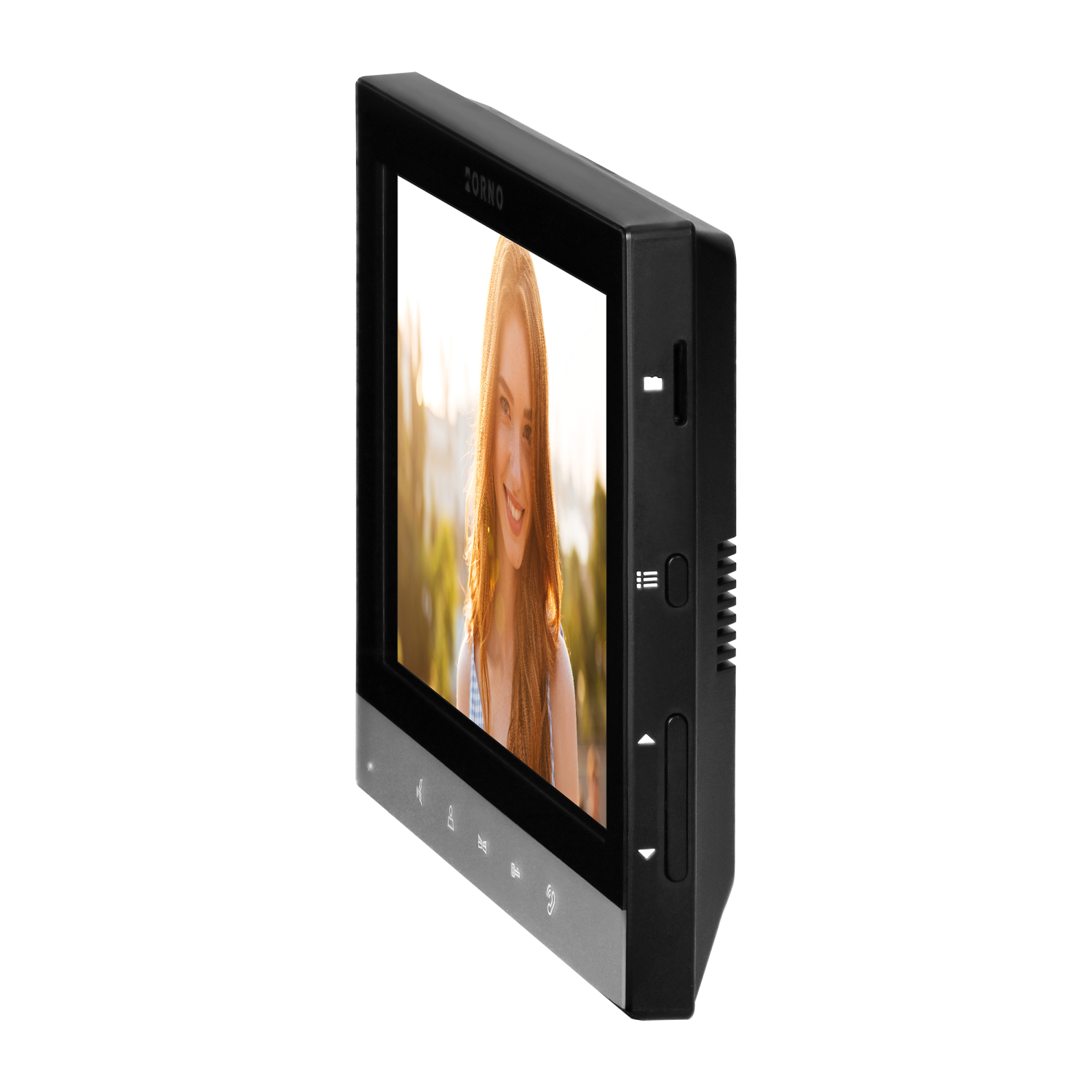

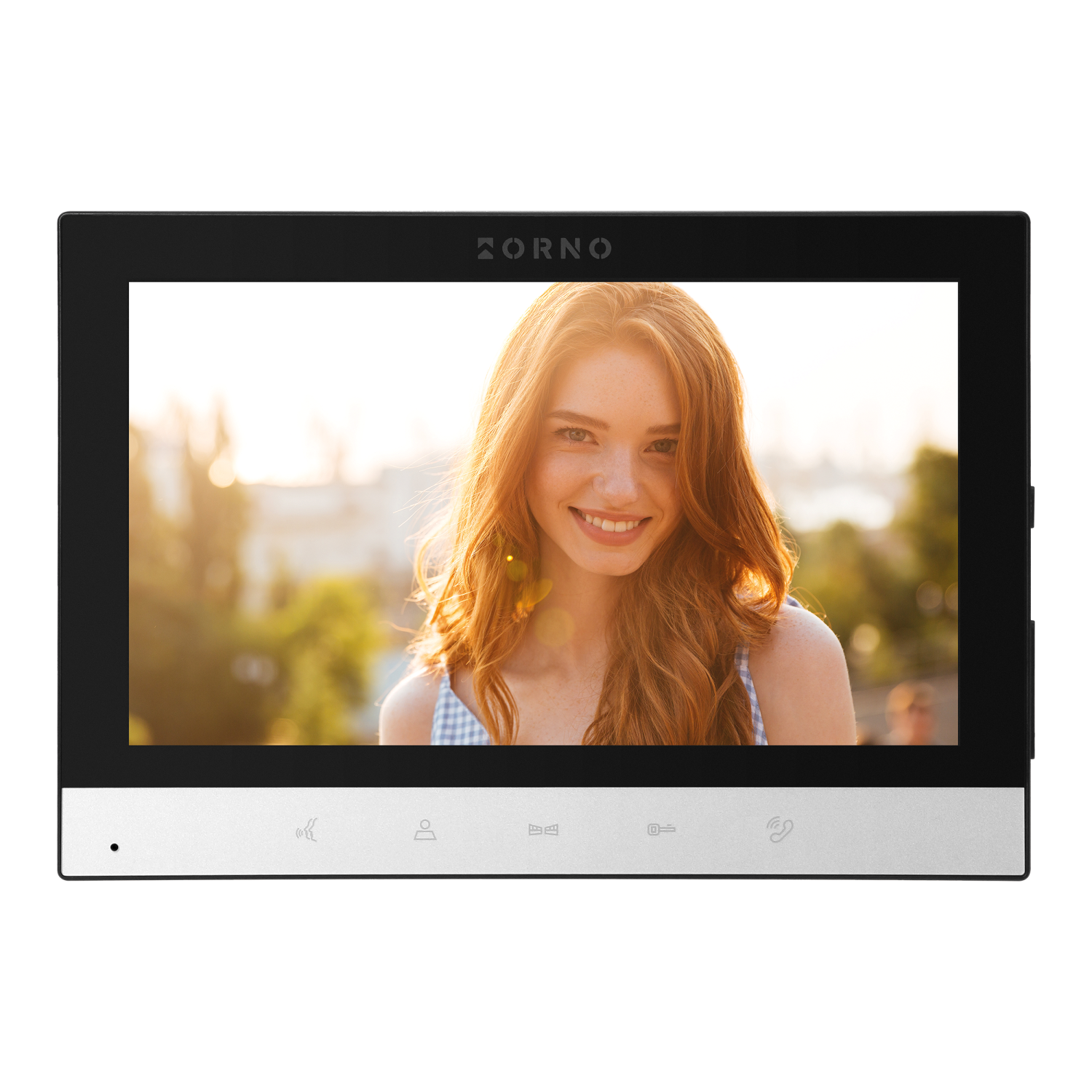

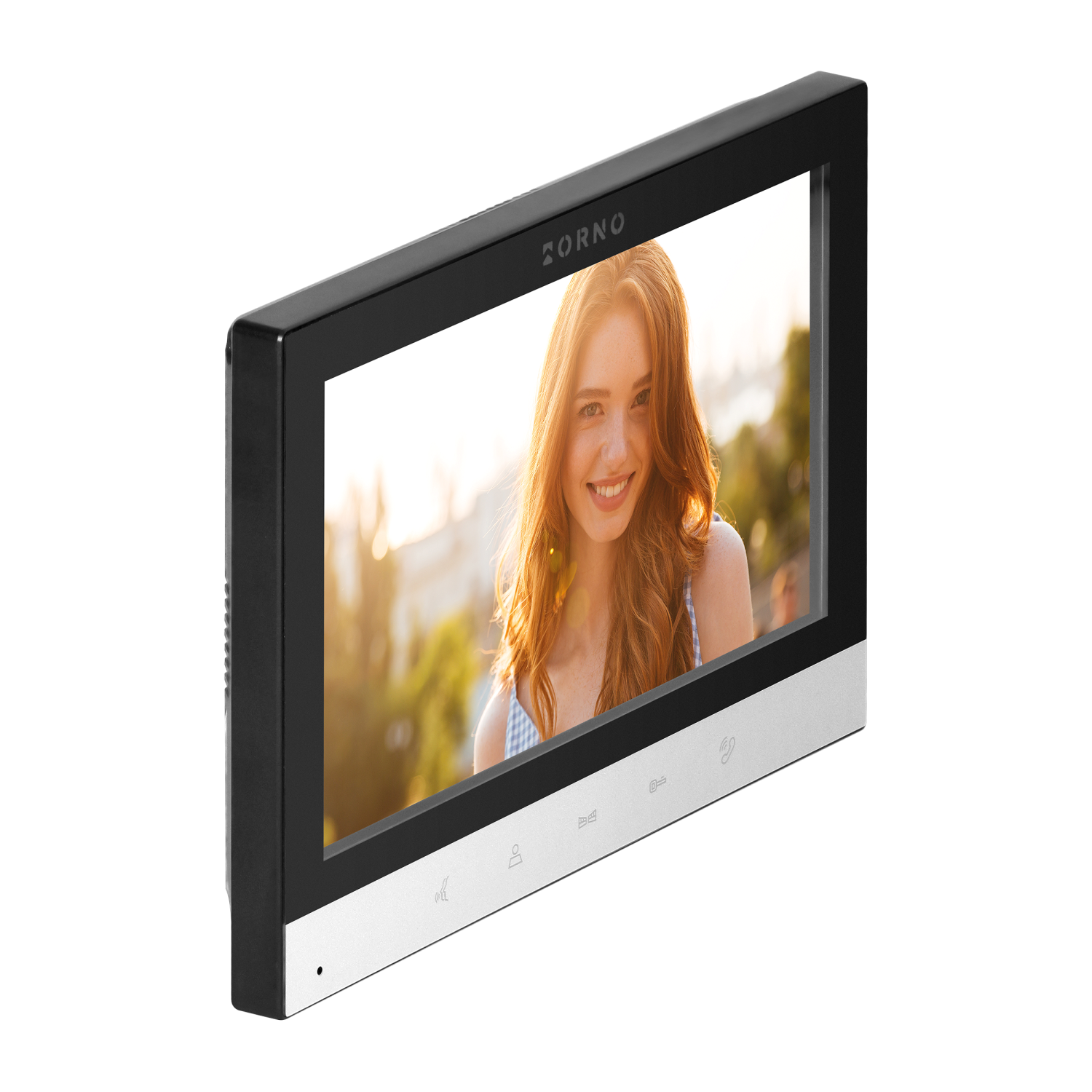

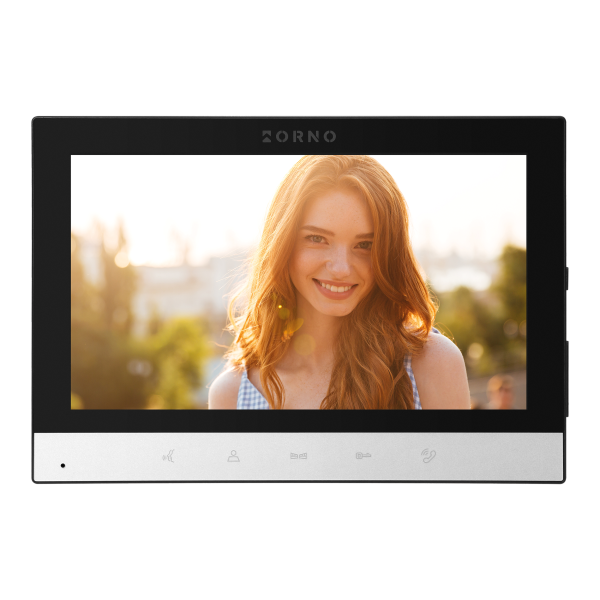

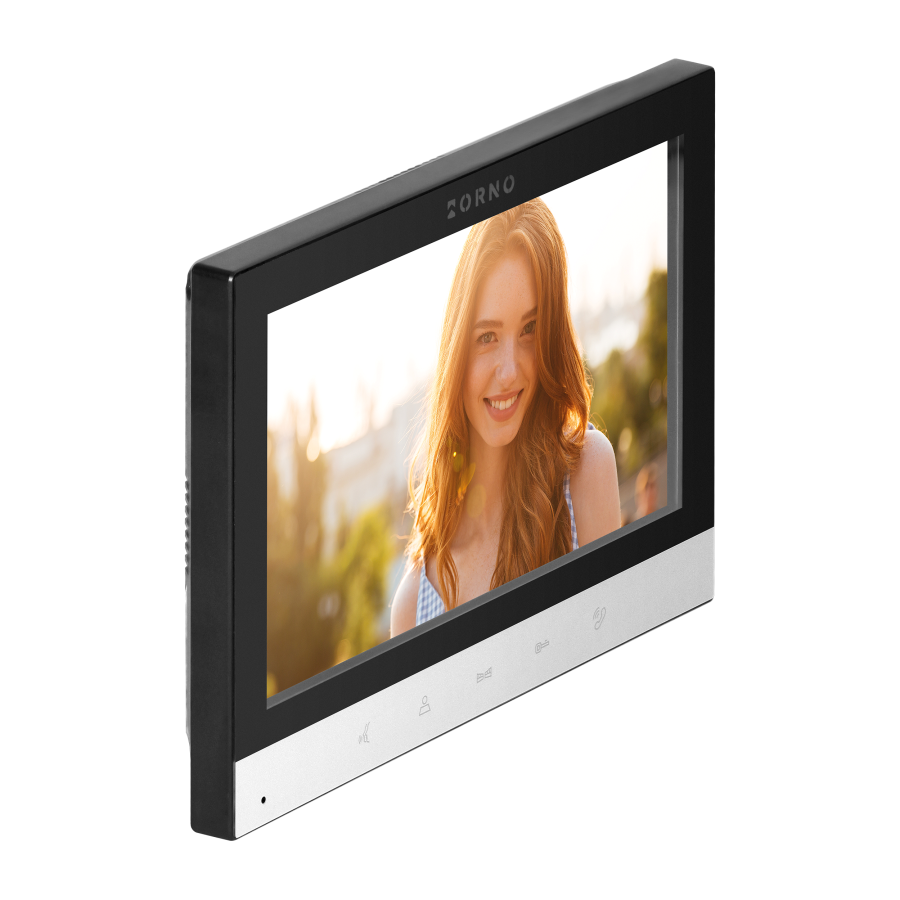

ALERTO has a large 7-inch screen with a resolution of 1024x600 pixels. The monitor not only provides a large and clear image, but also allows intuitive navigation using touch buttons. The colour screen also offers a full picture in front of the wicket, thanks to the wide viewing angle from the camera in the outdoor unit - 120° horizontally and 65° vertically. Controlling the wicket and gate increases convenience. The power supply of the electric strike (max. 300mA) does not require an additional connection to the wicket, which eliminates the need to run additional wires through the garden.

The internal memory allows 120 photos to be stored and an additional microSD card allows video recording to provide comprehensive protection. 12 different melodies and a volume control, tailored to three different times of the day, allow you to personalise your call sound.

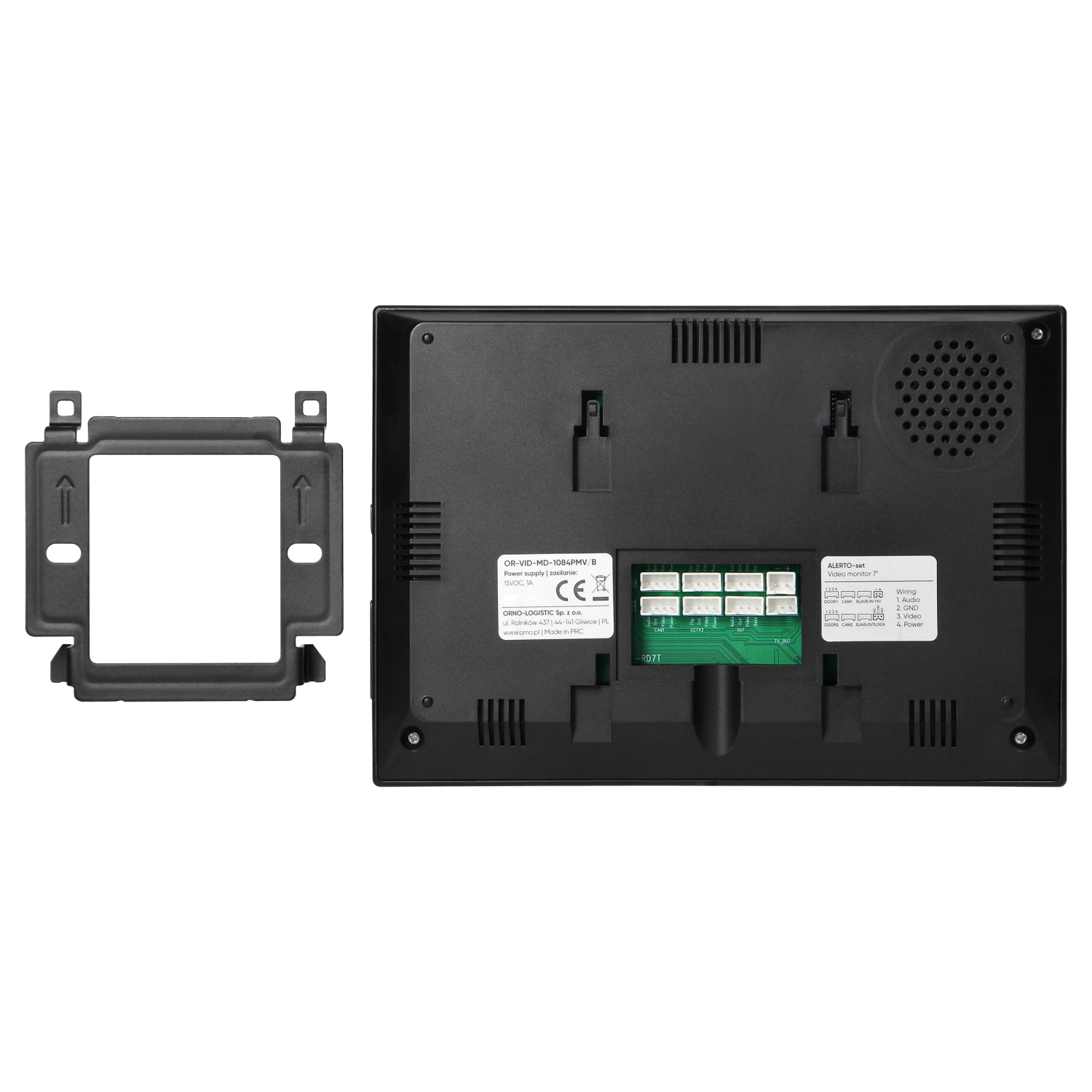

The dimensions of the monitor are 180x125mm. Black colour.

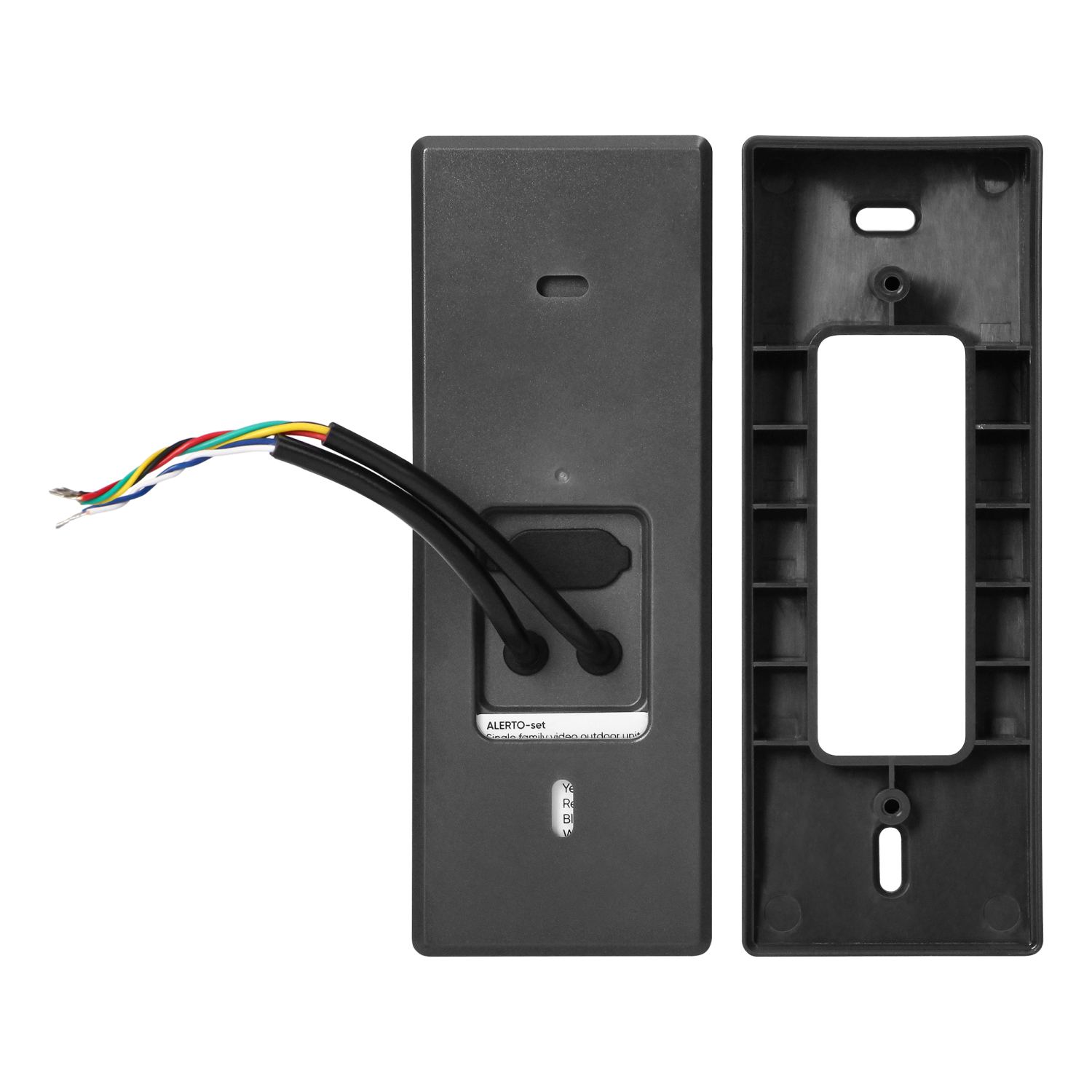

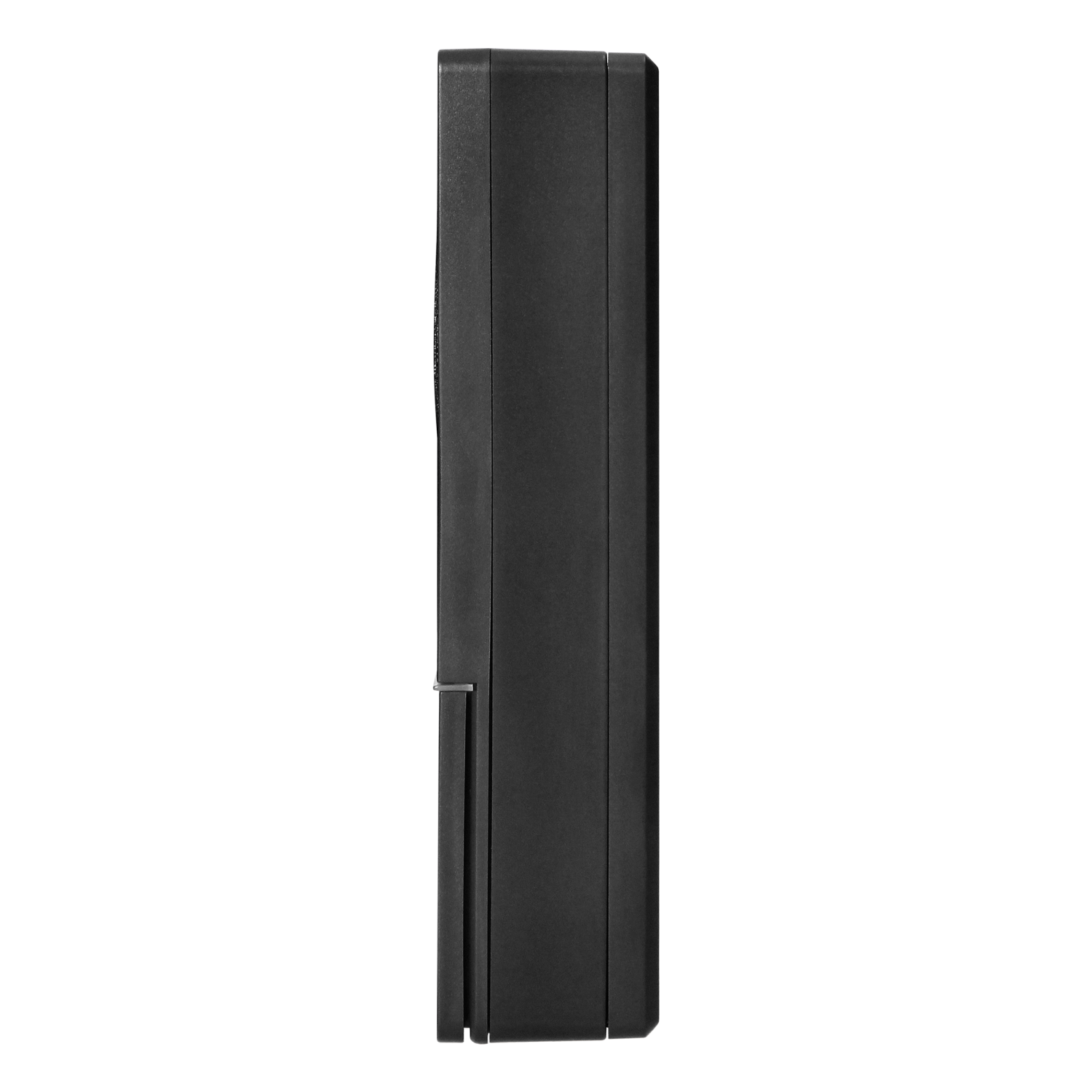

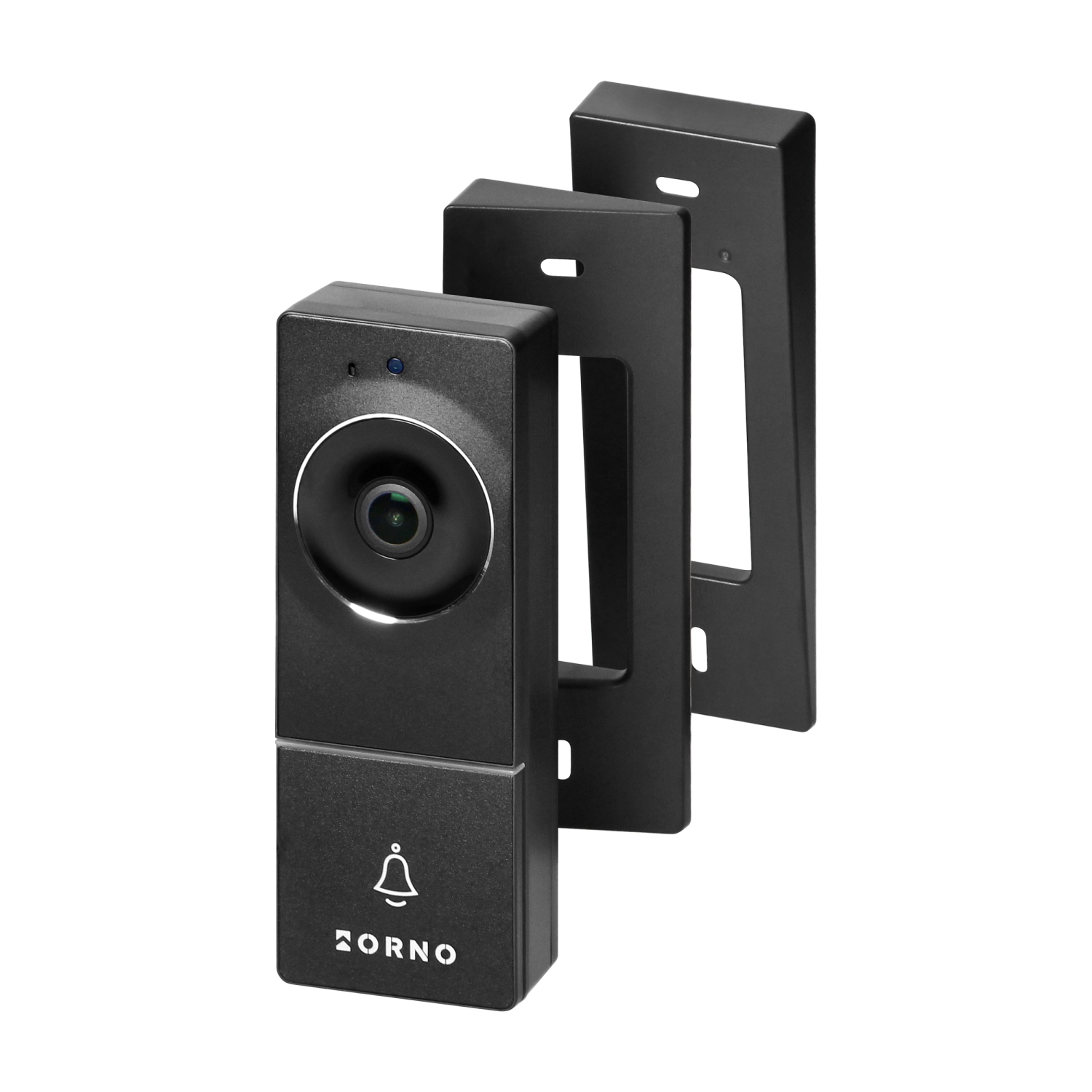

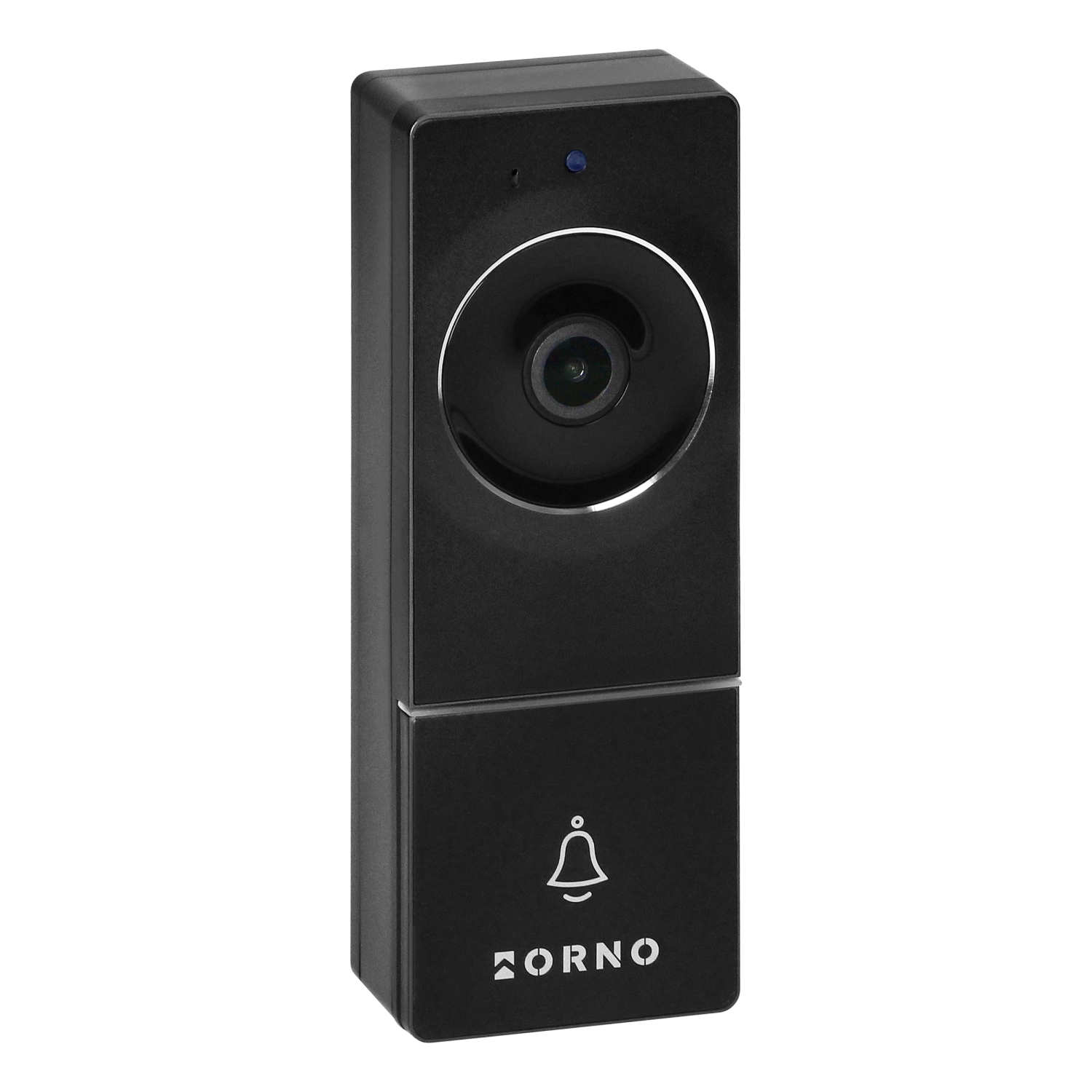

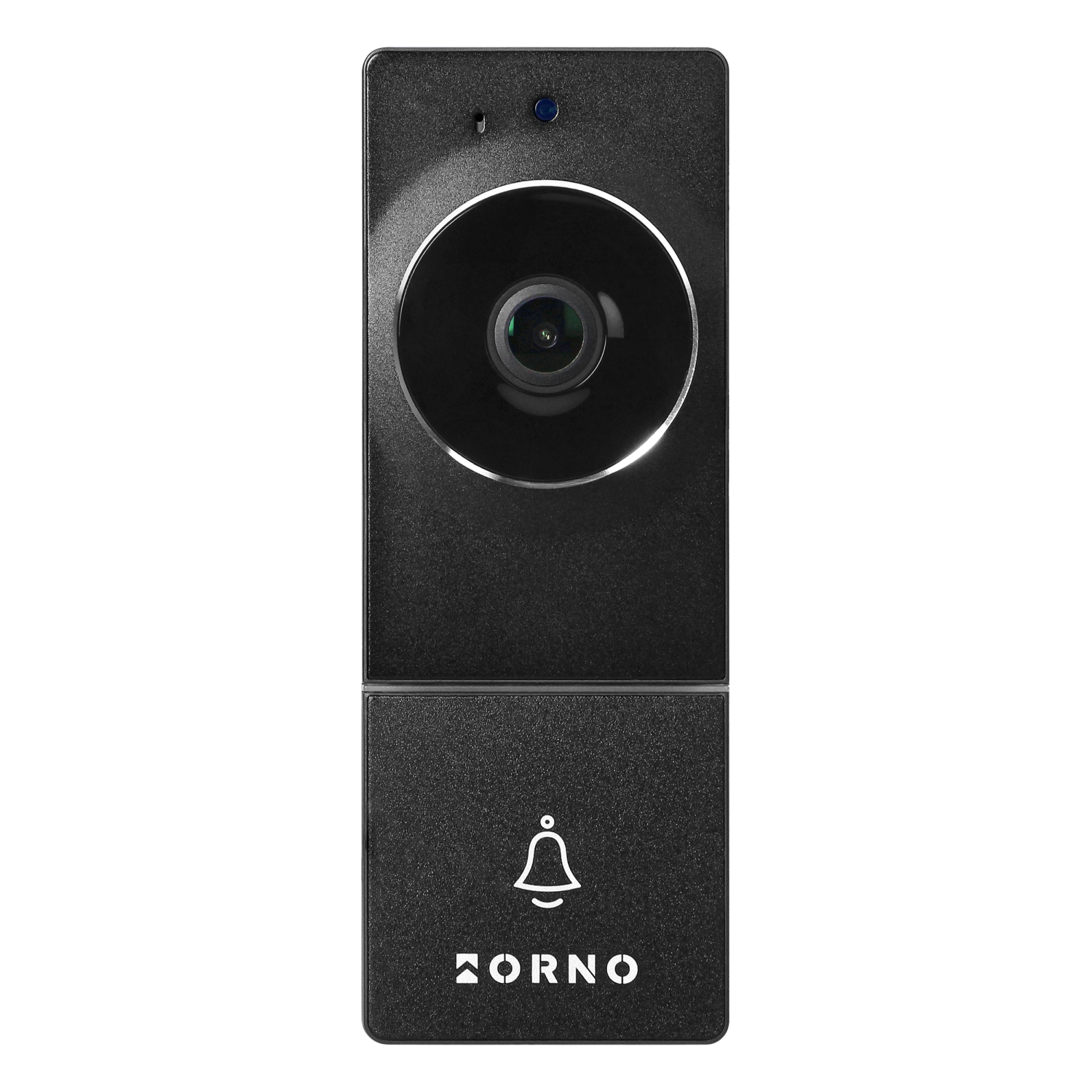

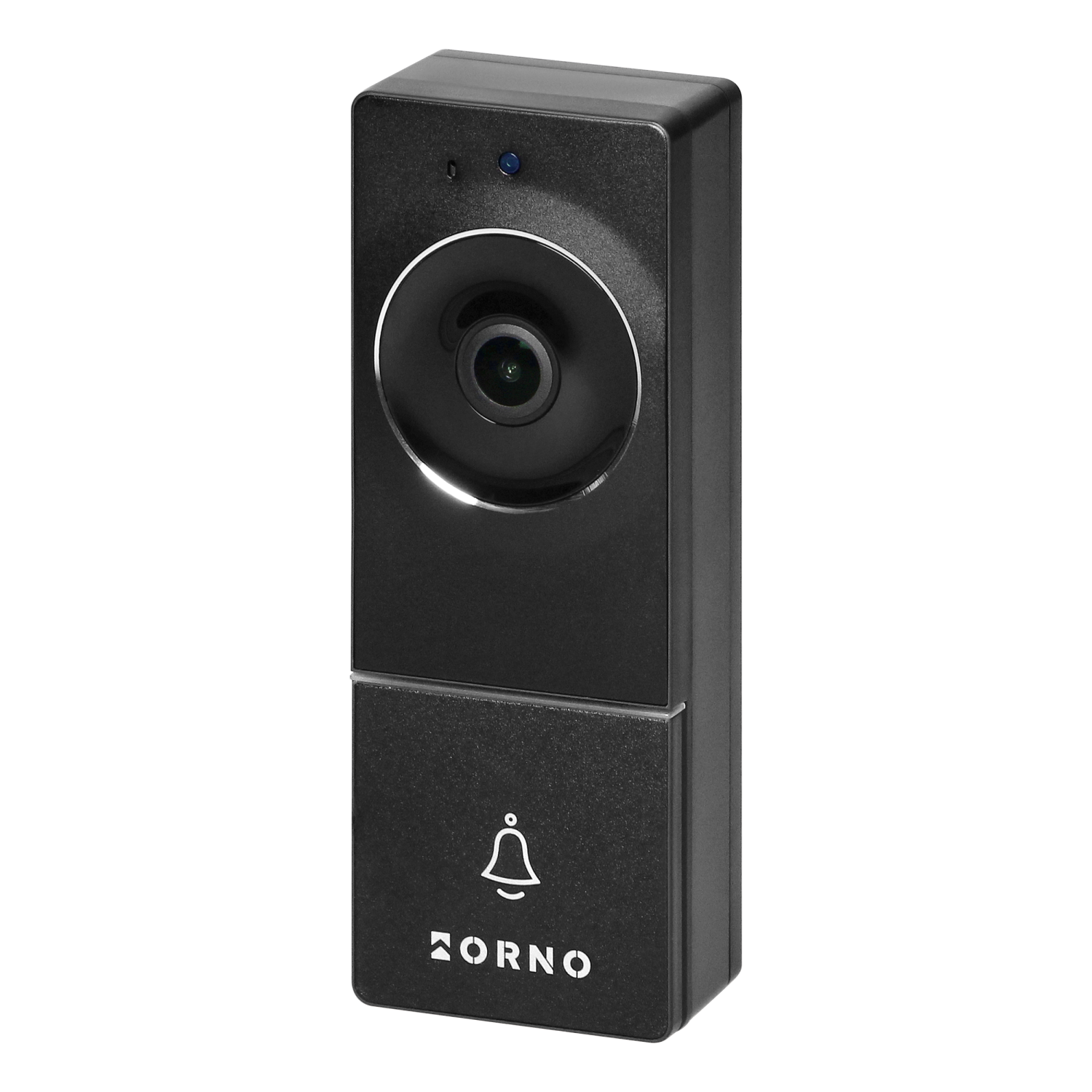

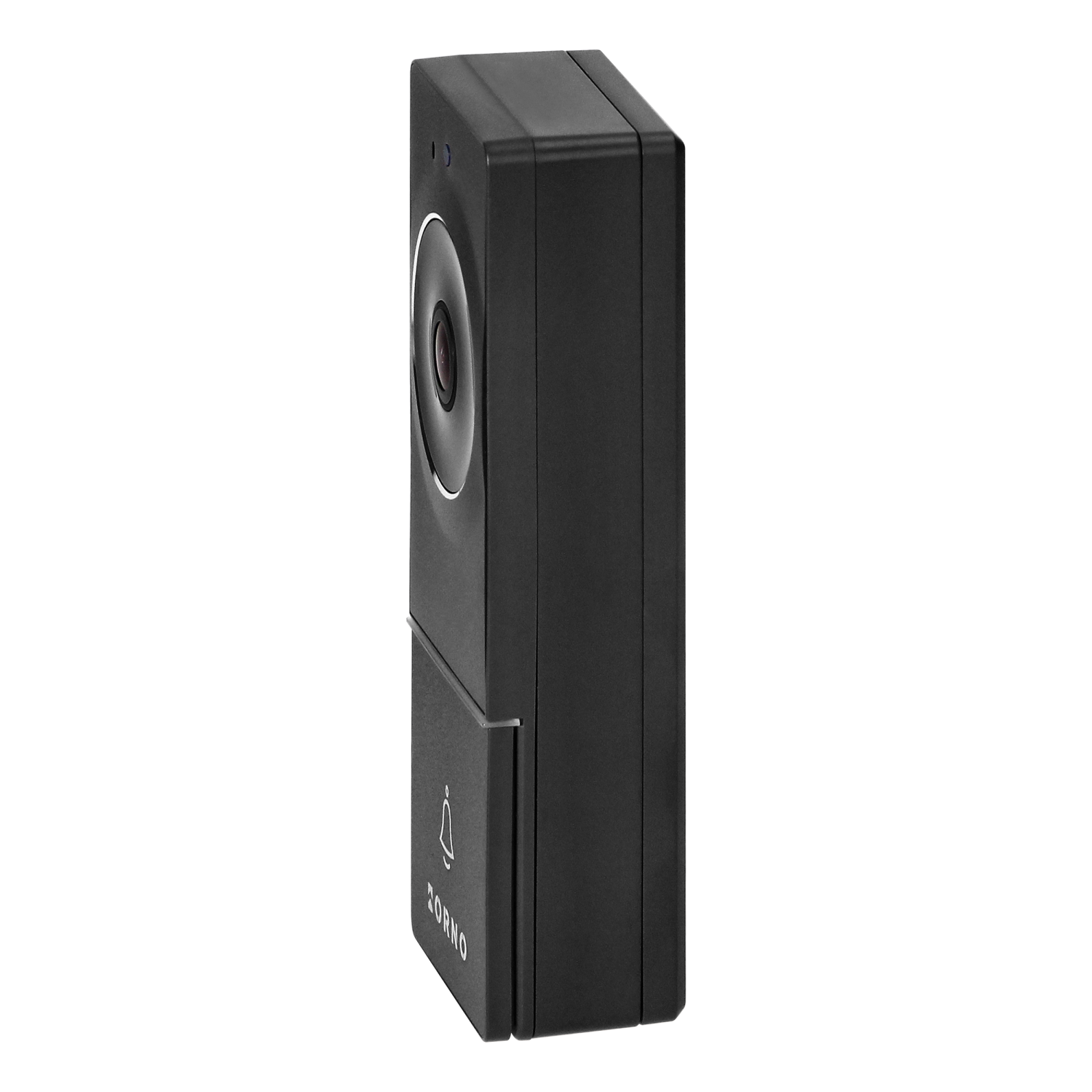

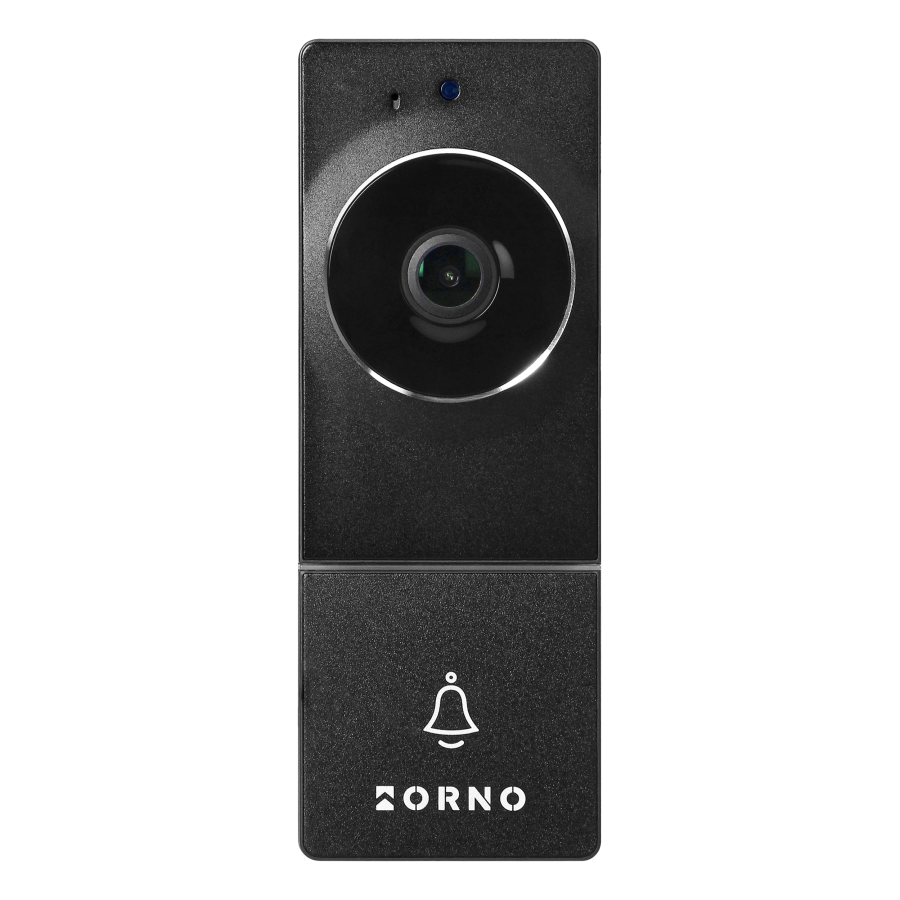

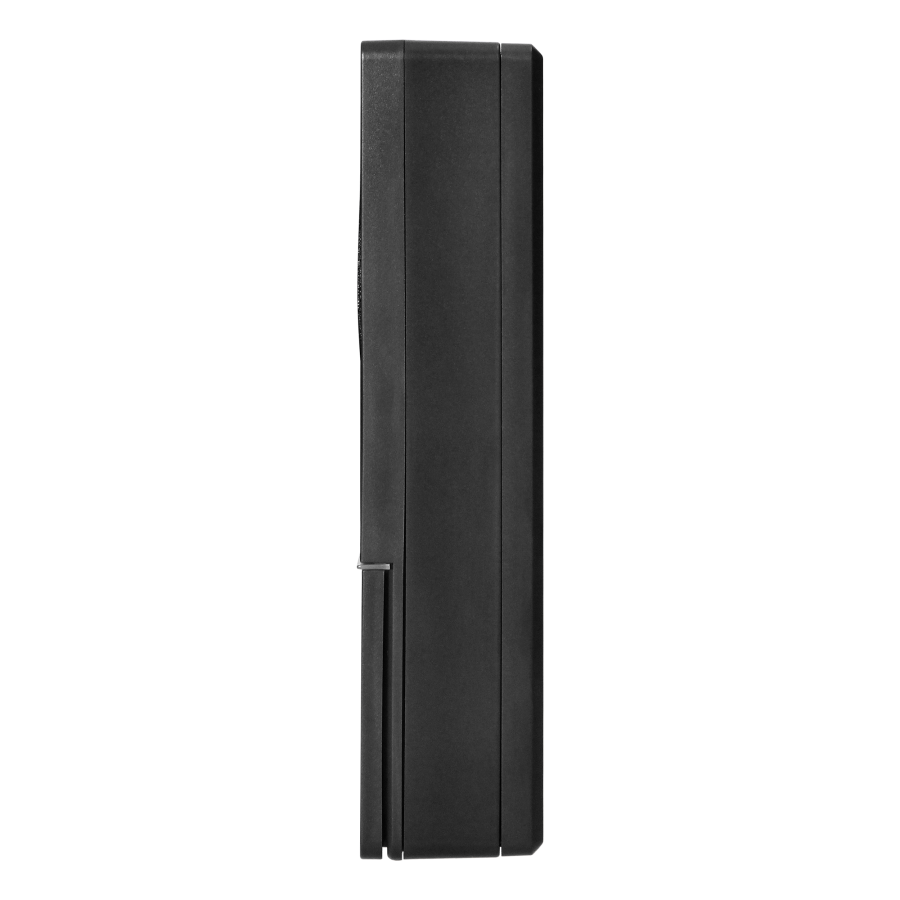

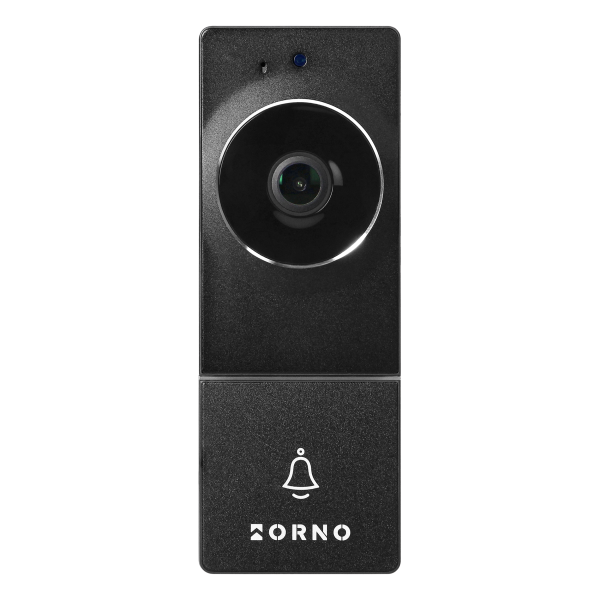

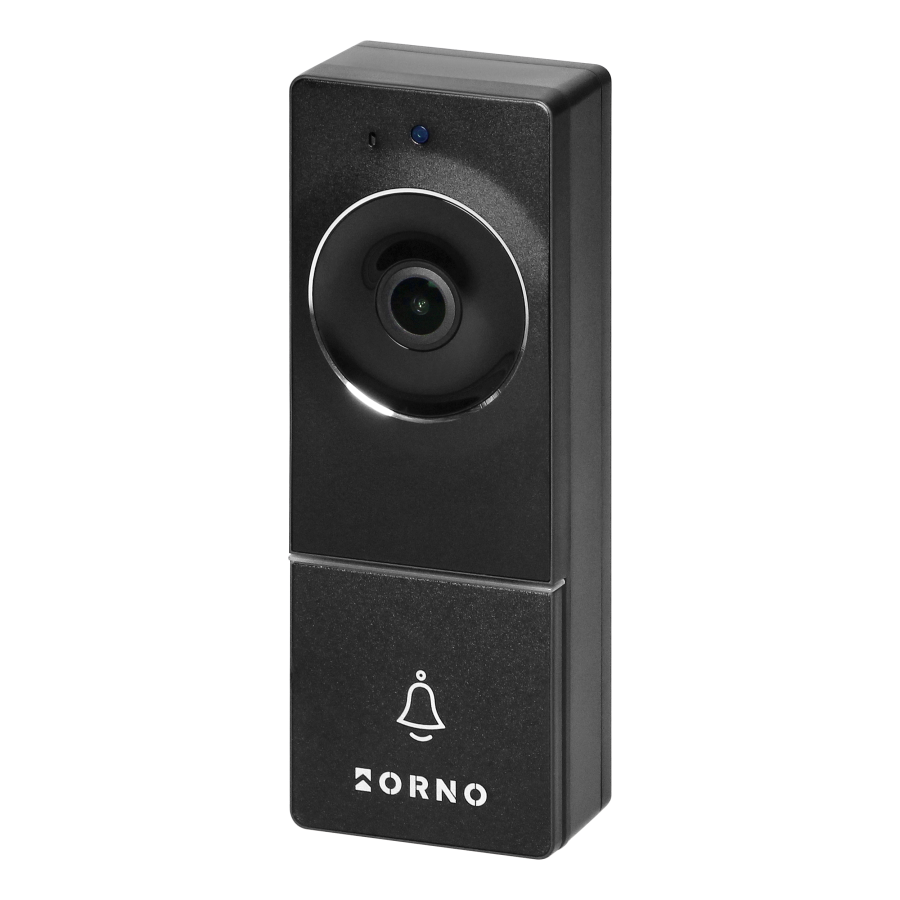

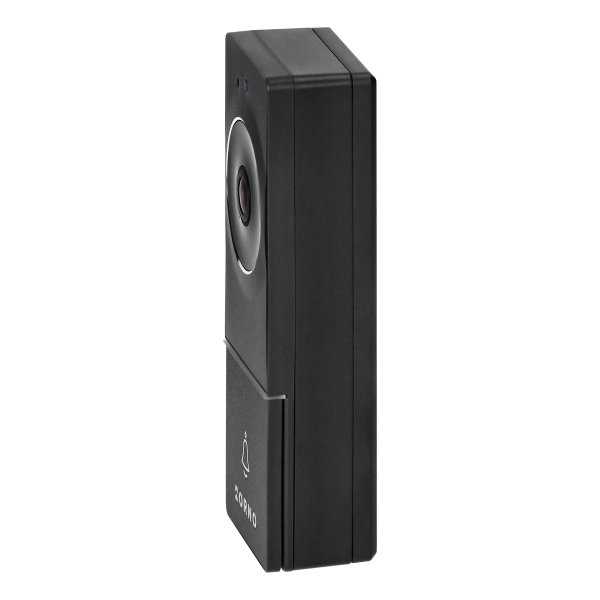

The outdoor unit is equipped with an IR night light function to ensure visibility after dark without blinding the visitor. The IP65 degree of protection guarantees durability and resistance to corrosion, while adding to the aesthetics with its modern design. The compact dimensions (50x136mm) allow the device to be installed anywhere, even on a fence post.

Made of durable plastic, in black.

The set can be extended with additional monitors (max. 4 per set), an outdoor unit (max. 2 per set) and a CCTV camera (max. 2 per set). This makes it possible to create a complete monitoring and entrance control system. The additional monitors, with intercom function, will enable communication in a multi-storey house and also increase the feeling of peace of mind, as the camera on the outdoor unit or CCTV can be viewed at any time.

General information:
Type: jednorodzinny
With video: tak
Current supply: Zasilanie sieciowe
Nominal voltage [V]: 15V DC 1A
Type of transmission: przewodowy
Can be connected to smartphone: nie
Installation technique: System wieloprzewodowy
Number of wires (*from outdoor unit to electric strike): 4 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 4
Expandable to max. number of outdoor stations: 2
Expandable to max. number of CCTV cameras: 2
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
Connection system of the electric strike: z panelem zewnętrznym
With automatic door opener: tak
With day/night function: tak
Monitor:
Mounting method indoor station: Montaż natynkowy
Hands free: tak
Screen diagonal [inch]: 7"
Screen resolution: 1024x600
Touch screen: nie
Property picture system: Kolor
With memory function: tak
SD card reader: tak
Internal communication: tak
Number of ringtones: 12
Specific call tone: tak
Loudness control: tak
Mutable call tone: nie
Material indoor station: Tworzywo sztuczne
Colour indoor station: Czarno-srebrny
Dimensions of the monitor - Width [mm]: 180
Dimensions of the monitor - Height [mm]: 125
Dimensions of the monitor - Depth [mm]: 22
Outdoor unit:
Number of call buttons: 1
Mounting method outdoor station: Montaż natynkowy
Camera resolution: 700 TVL
Camera view angle (horizontal): 120°
Camera view angle (vertical): 65°
Night light: IR
With digital door code: nie
Card and proximity tags reader: nie
Label space/information surface: nie
With cover: nie
Degree of protection (IP): IP65
Material outdoor station: Tworzywo sztuczne
Colour outdoor station: Czarny
Width [mm]: 50
Height [mm]: 136
Depth [mm]: 31

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:48:05Download
Product data sheetENpdf2025-05-07 13:01:04Download
User manualPLpdf2025-06-25 15:28:55Download
User manualENpdf2025-06-25 15:28:55Download
User manualDEpdf2025-06-25 15:28:55Download
User manualSLpdf2025-06-25 15:28:55Download
