OR-VID-AR-1031
Archived product

Description

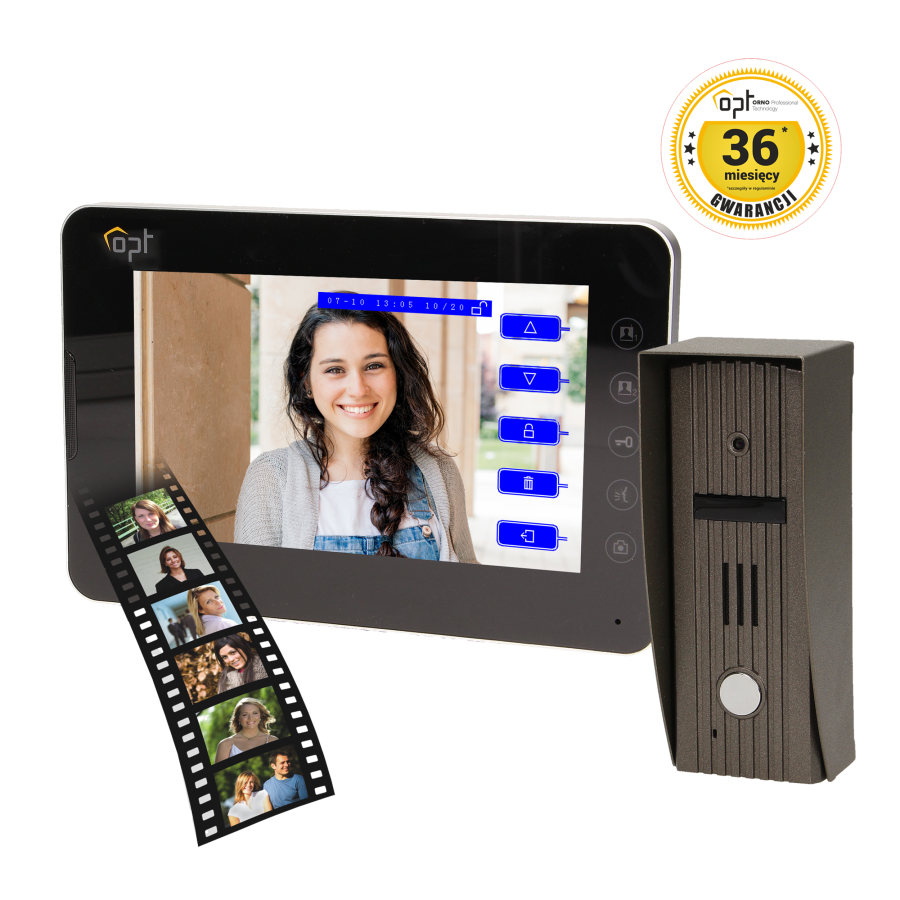

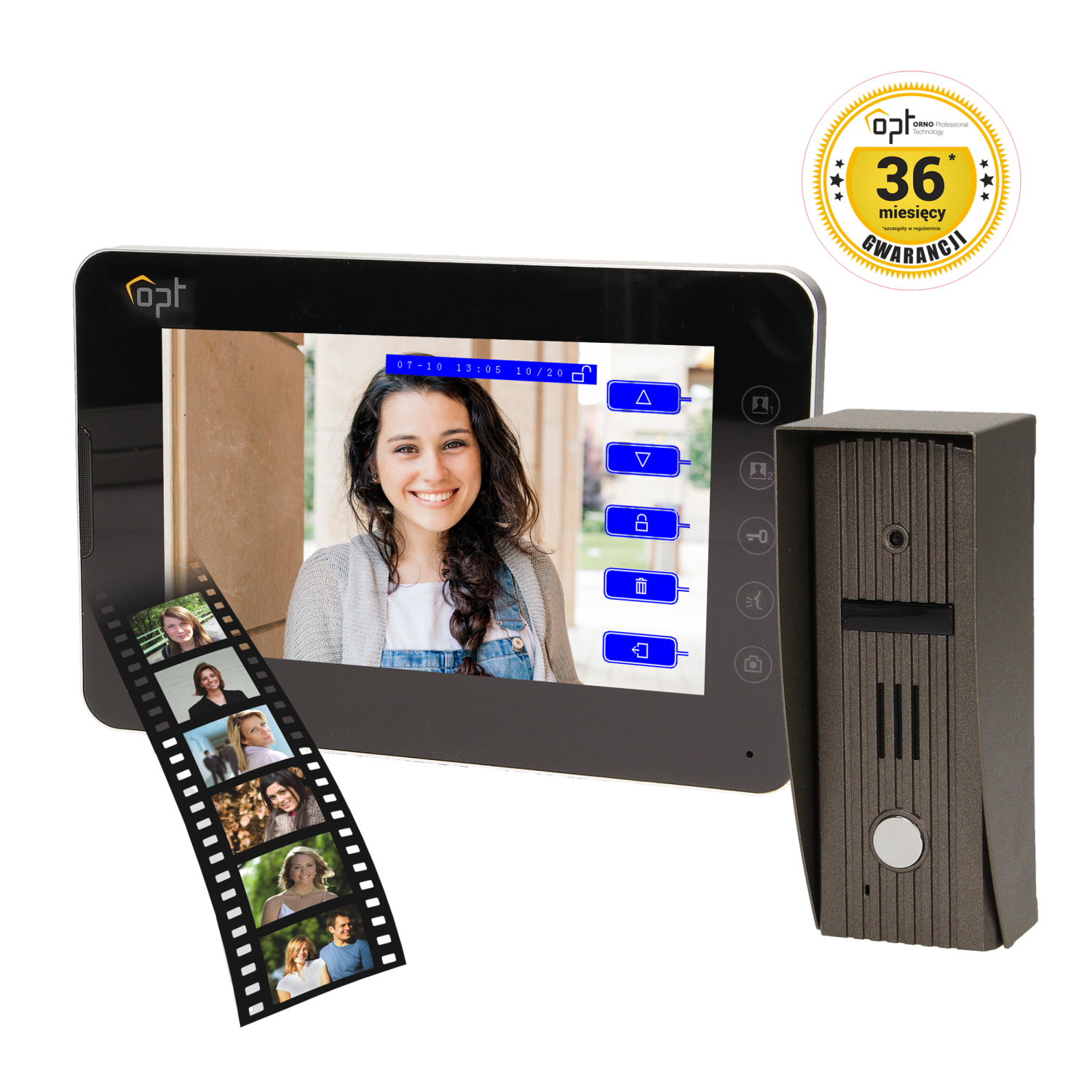

Ultra slim LCD monitor, with smooth adjustment of parameters (brightness, color, volume & conversation) and 9 selectable ringtones. Built-in memory unit. A touch panel with backlit buttons. External panel with camera can be surface or flush mounted. It's equipped with infrared lighting that enables night vision. Electric strike requires a 12VDC power supply (not included).

General information:
Type: single-family
Number of wires: 4+2
Type of power supply: mains power supply
Type of transmission: wired
Possibility of extension by an additional external panel: Yes
Possibility of extension by an additional monitor: Yes
Possibility of extension by an additional video uniphone: No
Gate opening: No
Current supply of the electric strike: from the external power supply
Connection system: 4-wire
Possibility of extension by an additional cctv camera: No

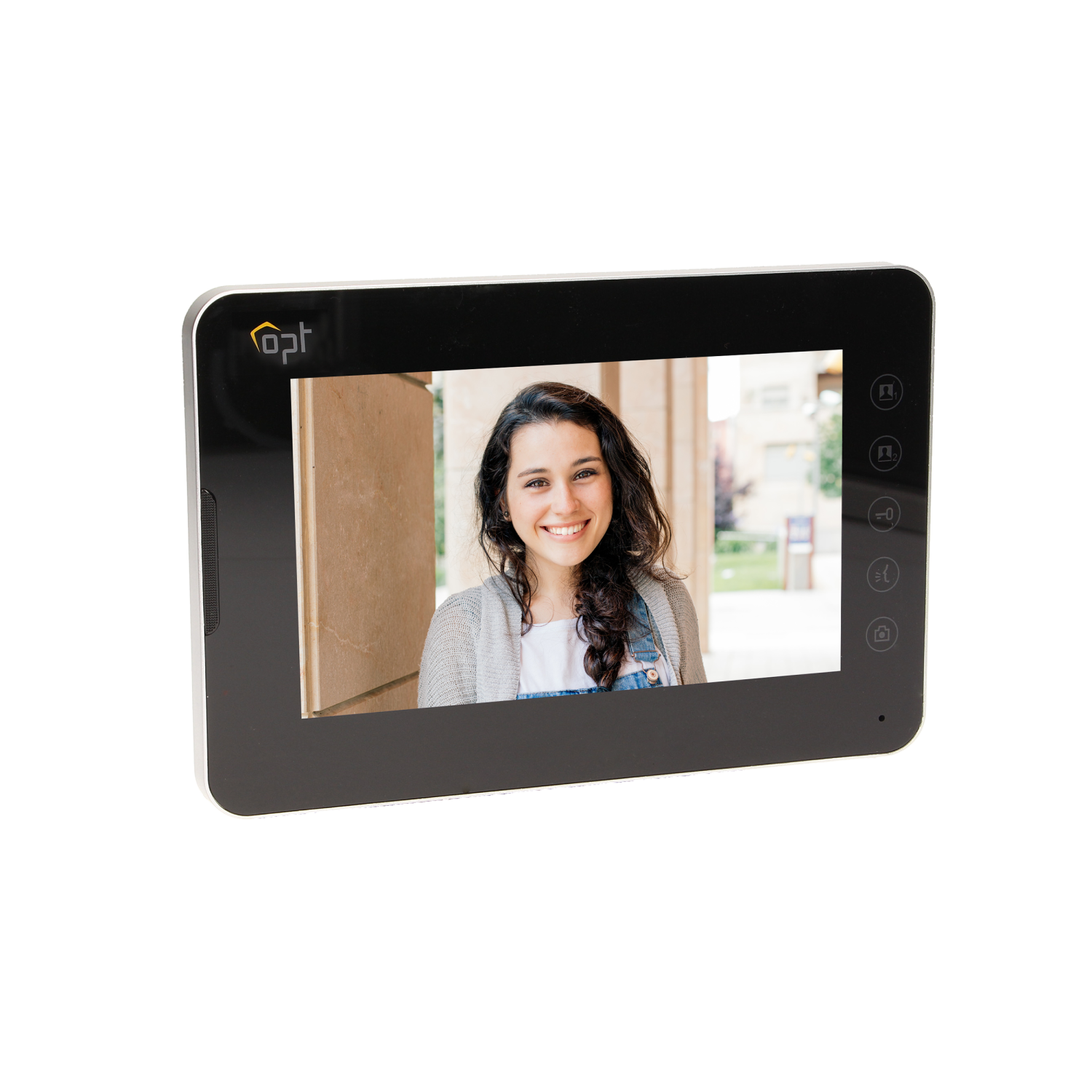

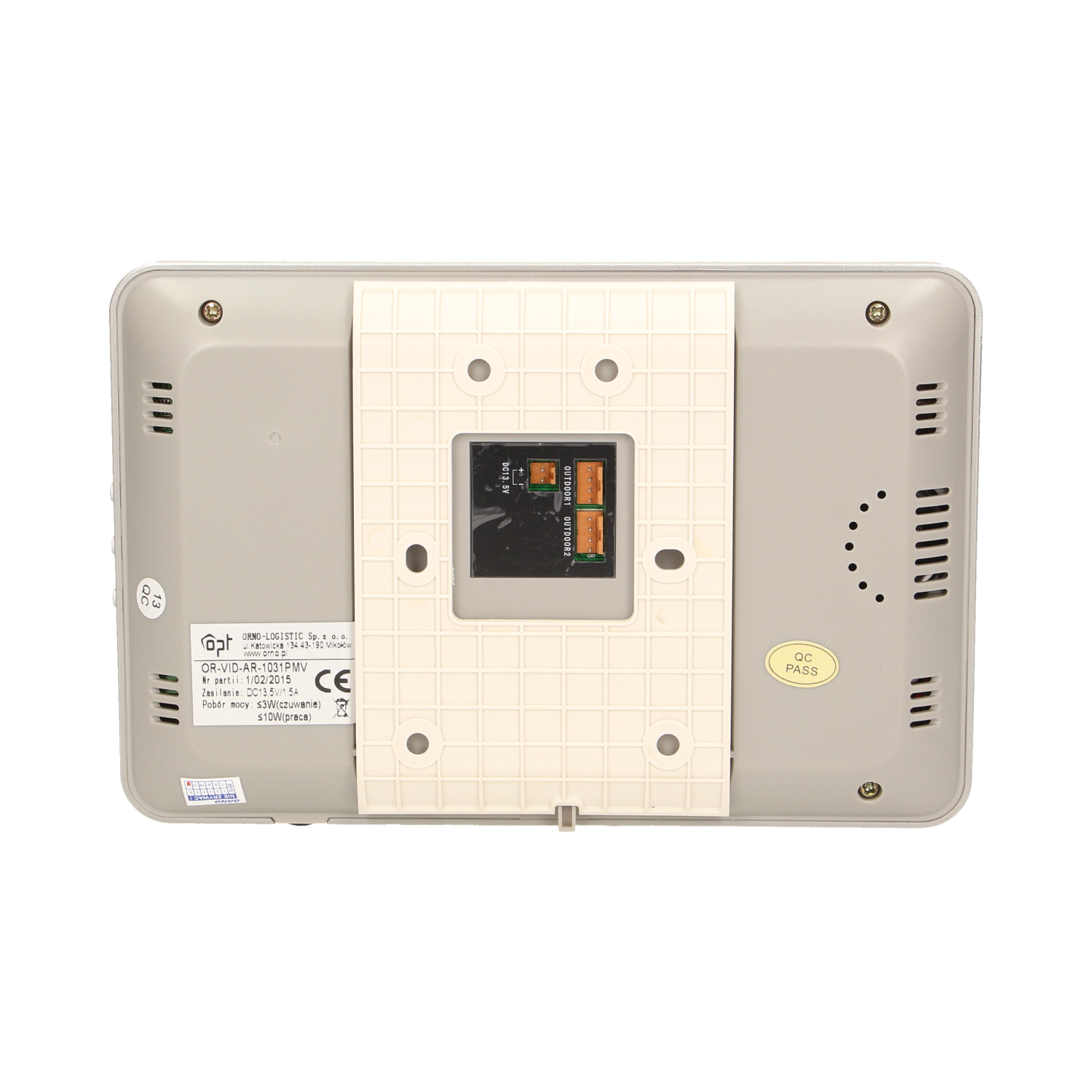

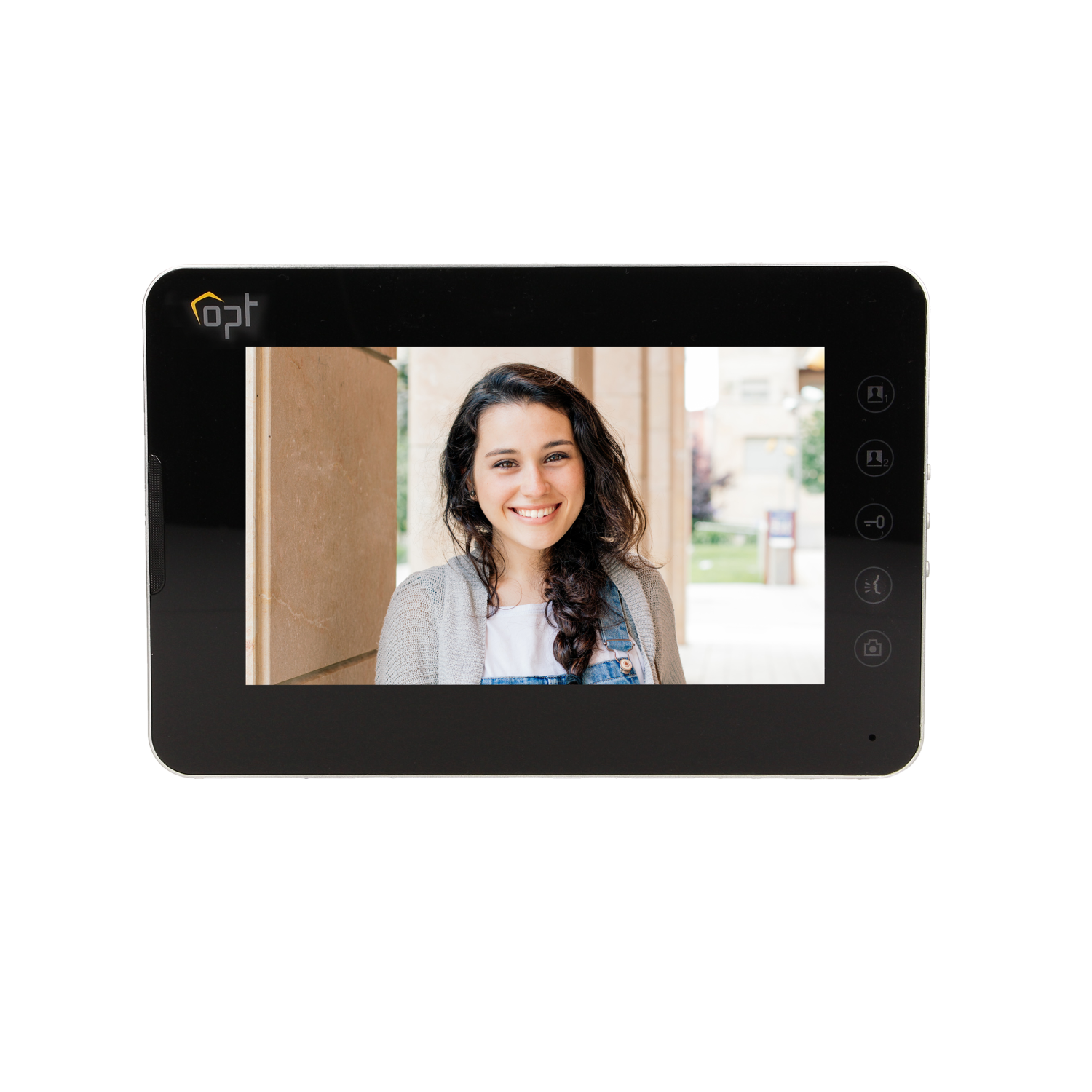

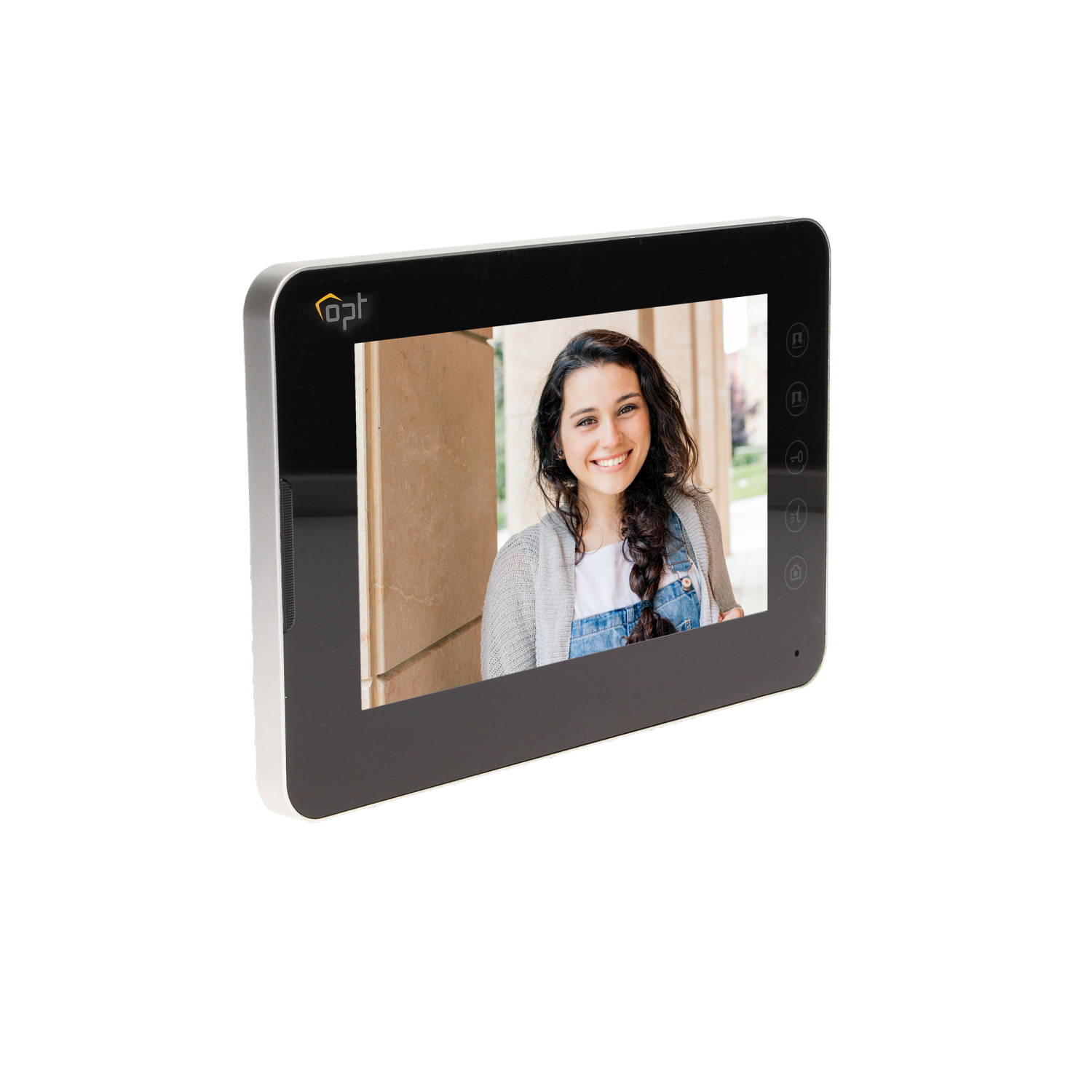

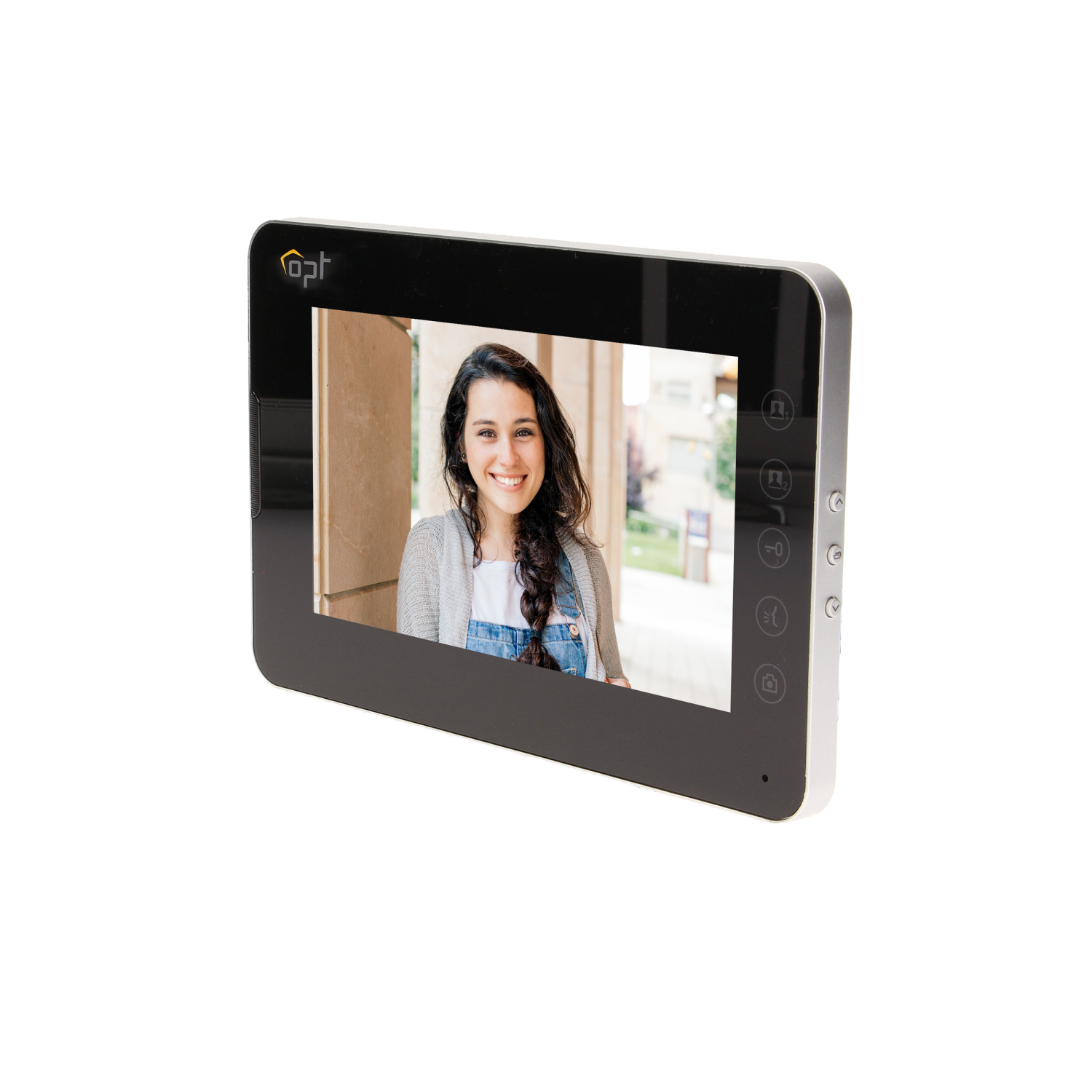

Monitor:
SD card reader: No
Number of ringtones: 9
Operation: hands-free
Display: 7 "
Resolution of the monitor's screen: 800 / 600
Colour of the monitor: black
Memory: Yes
Intercom function: No
Touch screen: No
Dimensions of the of the monitor - width (mm): 208 mm
Dimensions of the of the monitor - height (mm): 138 mm
Dimensions of the of the monitor - depth (mm): 22 mm

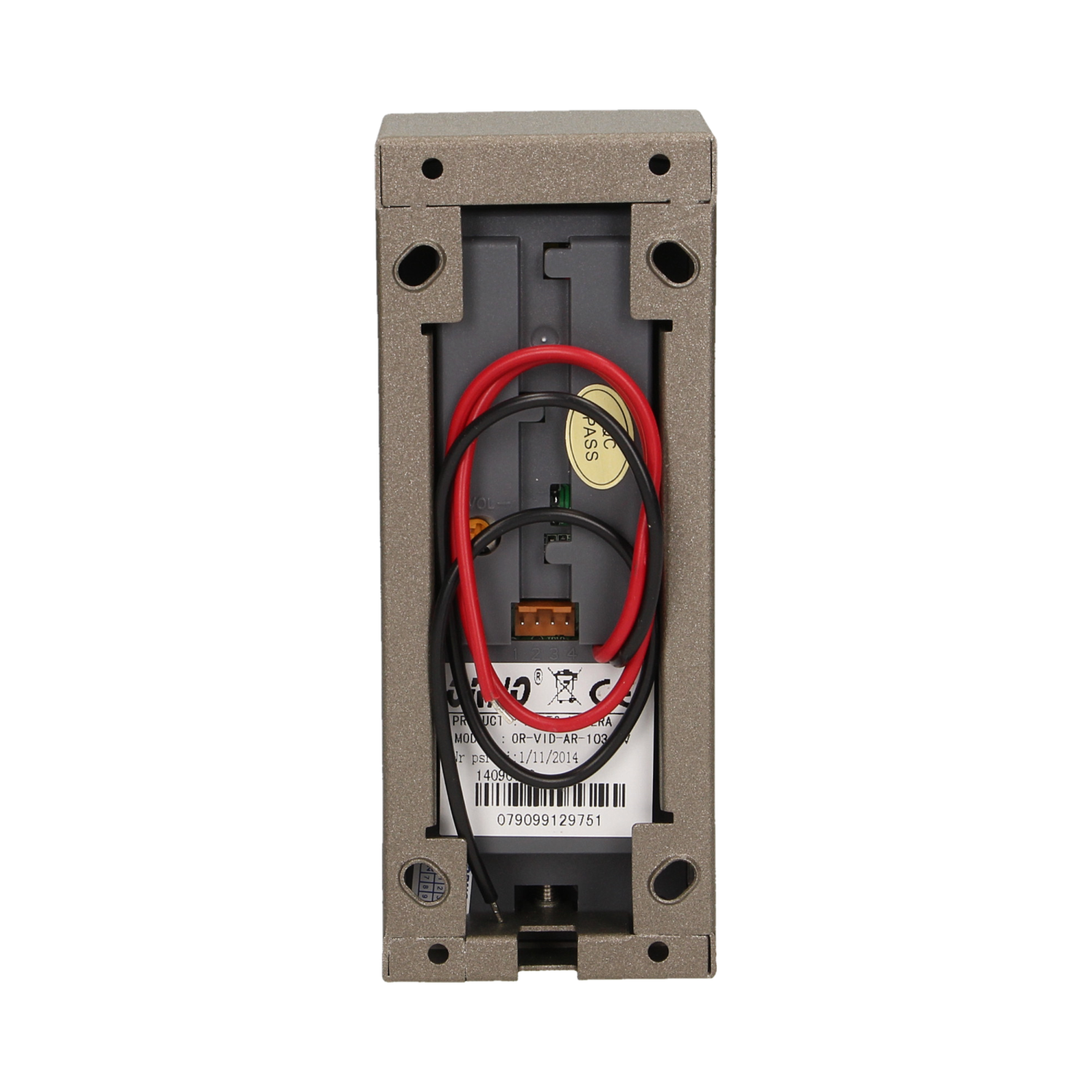

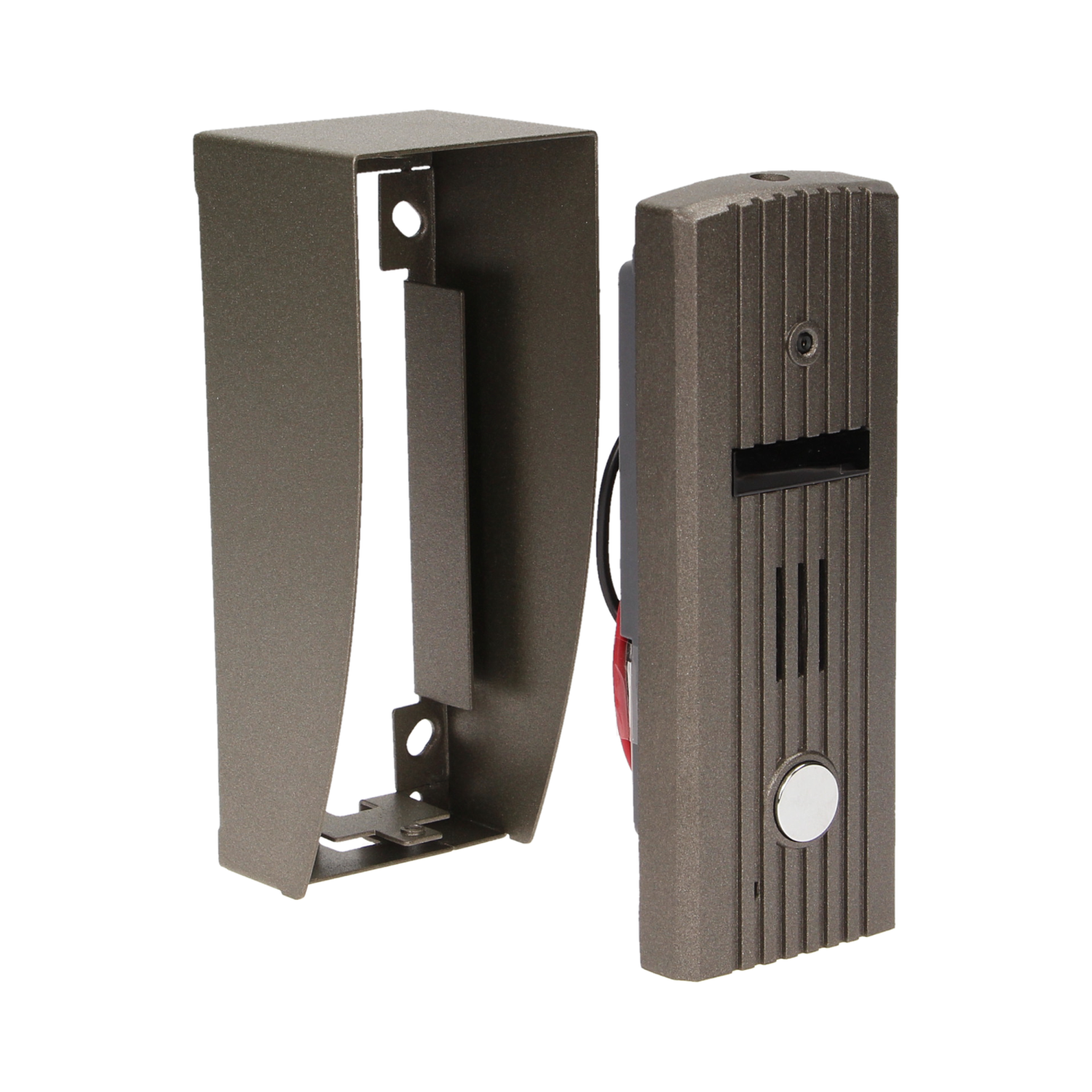

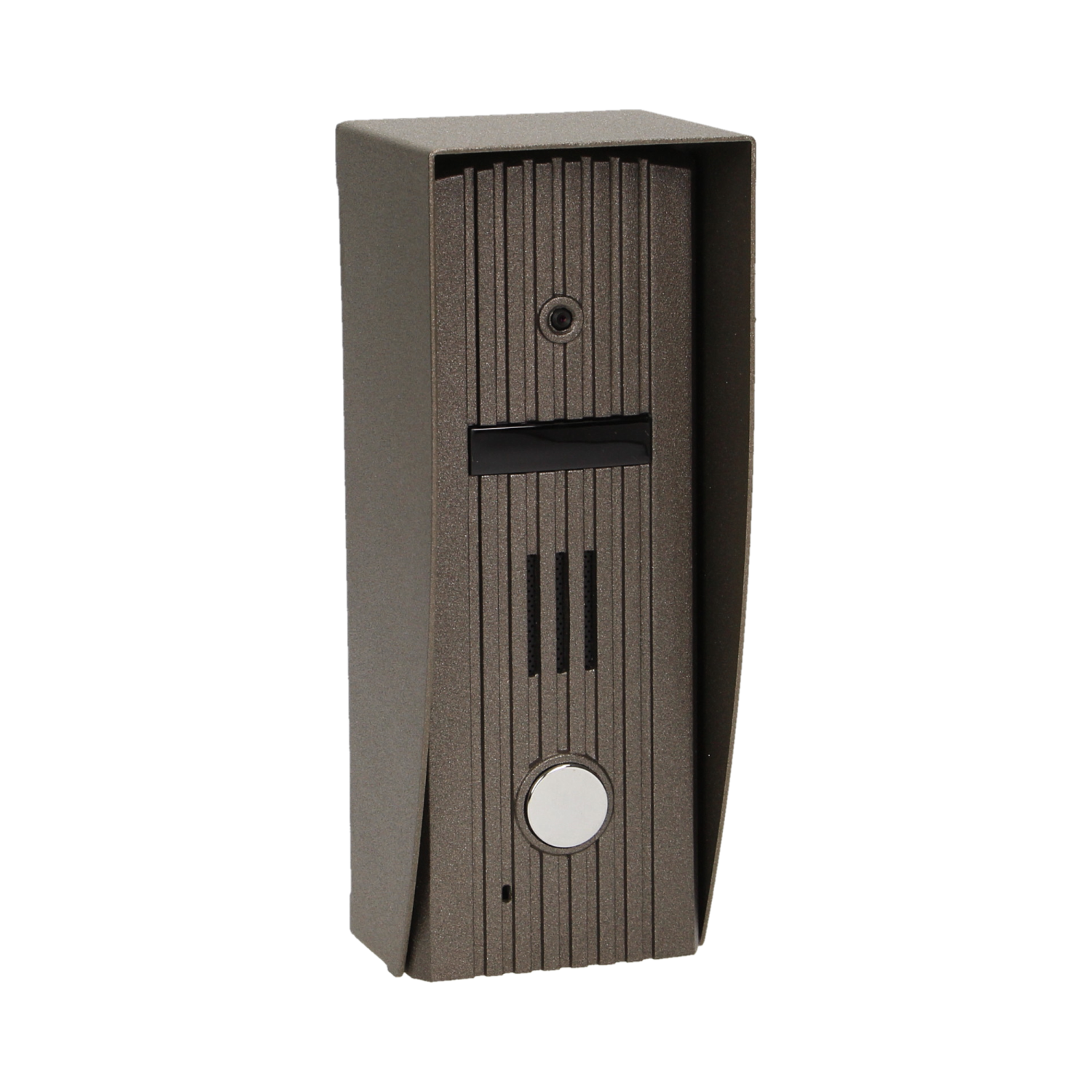

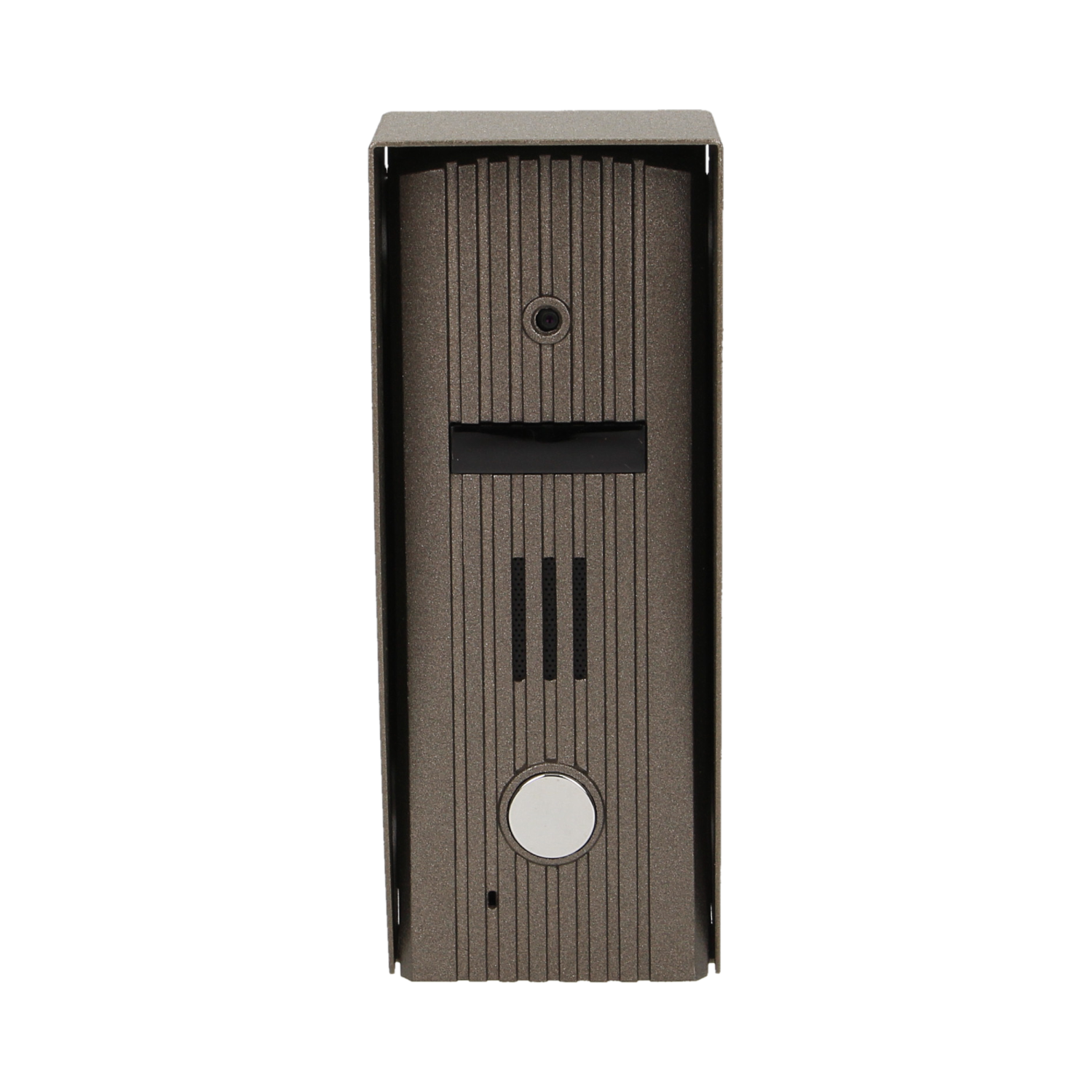

External panel with a camera:
Resolution of the camera: 420 TVL
Vertical/horizontal camera's view angle: 32° / 43°
Card and proximity tags reader: No
Type of camera: pin-hole
Installation: surface mounting/ flush mounting
Keypad: No
Night lighting: infrared
Dimensions of the external panel - depth: 51 mm
Dimensions of the external panel - width: 142.5 mm
Dimensions of the external panel - height: 56 mm
