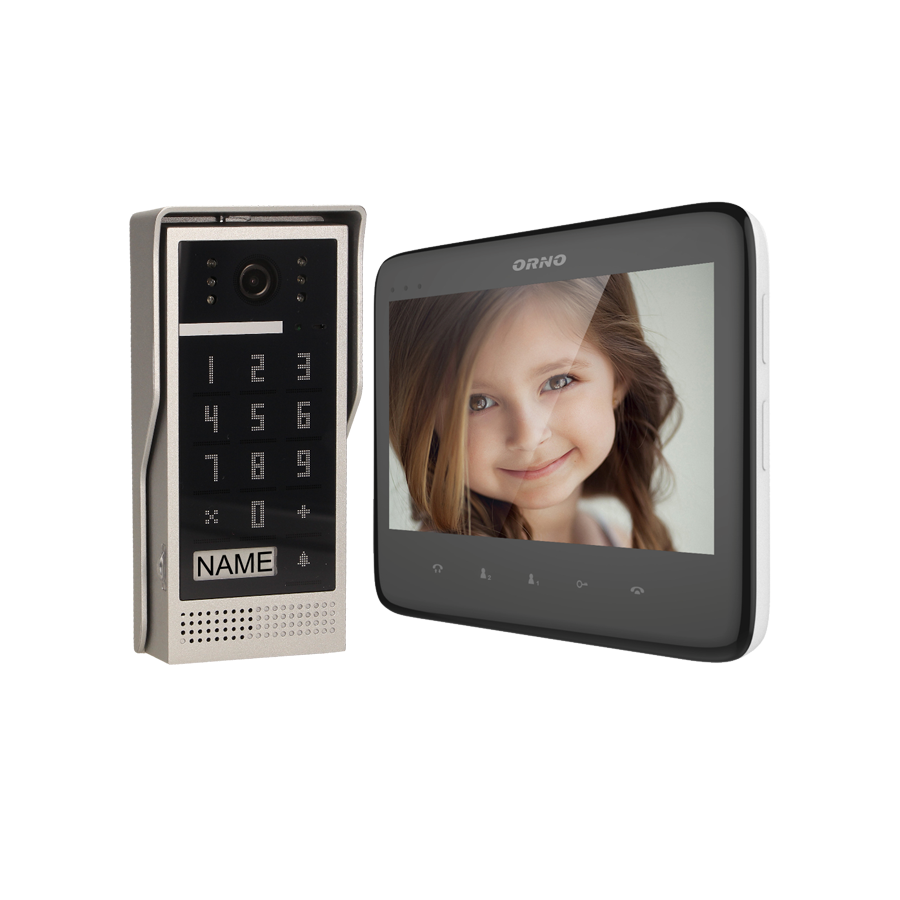

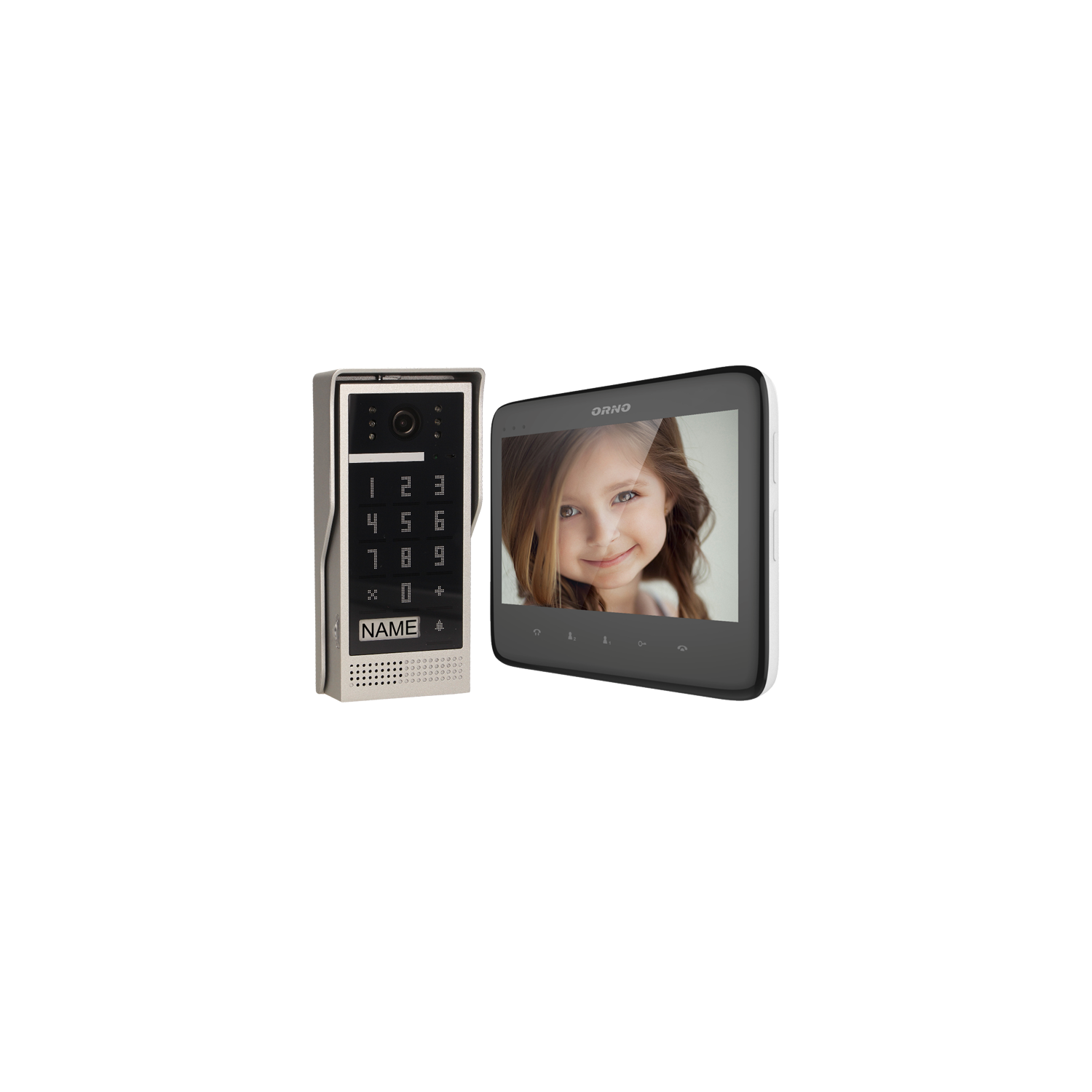

It is a modern videodoorphone equipped with an ultra slim LCD monitor with smooth adjustment of parameters (brightness, color contrast, volume tone & conversation), 16 selectable ringtones, a touch panel with backlit buttons. External panel with camera requires surface mounting. It's equipped with infrared lighting that enables night vision, backlit place for name. Numeric keypad (which is illuminated at a low light intensity) enables setting the time of the lock opening and change of the opening code. Intercom function is available after using an additional monitor. DC power supply from the power supply to the 15V DC socket or, optionally, from the power supply to the OR-VID-VP-1009ZD DIN rail. 12V electric strike with power consumption of no more than 300mA does not require additional power supply.
| General information: |
|---|
| Type: | single-family |
| Number of wires: | 5+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | No |
| Current supply of the electric strike: | power supply from a videodoorphone |
| Connection system: | 5-wire |
| Possibility of extension by an additional cctv camera: | No |
| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 16 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800/480 |
| Colour of the monitor: | black |
| Memory: | No |
| Intercom function: | Yes |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 216 mm |
| Dimensions of the of the monitor - height (mm): | 129.7 mm |
| Dimensions of the of the monitor - depth (mm): | 23 mm |
| External panel with a camera: |
|---|
| Resolution of the camera: | 600 TVL |
| Vertical/horizontal camera's view angle: | 64 st,/94 st, |
| Card and proximity tags reader: | No |
| Type of camera: | traditional lens |
| Installation: | surface mounting |
| Keypad: | Yes |
| Night lighting: | Infrared |
| Dimensions of the external panel - depth: | 24 mm |
| Dimensions of the external panel - width: | 63 mm |
| Dimensions of the external panel - height: | 150 mm |
