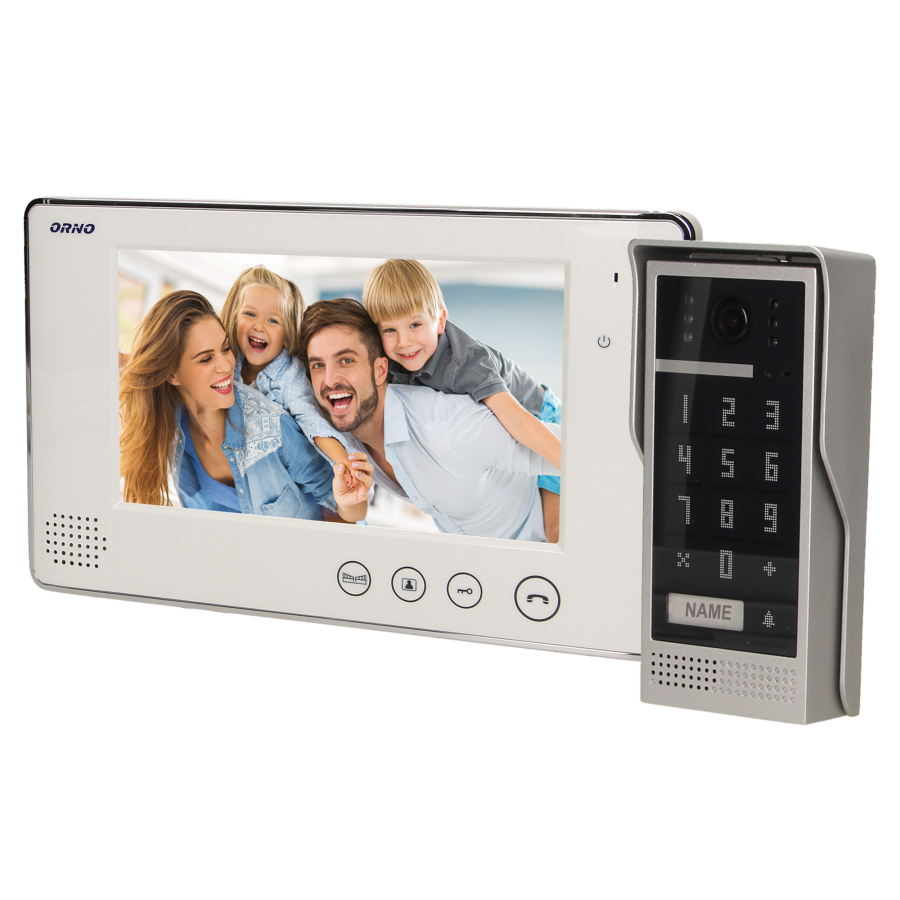

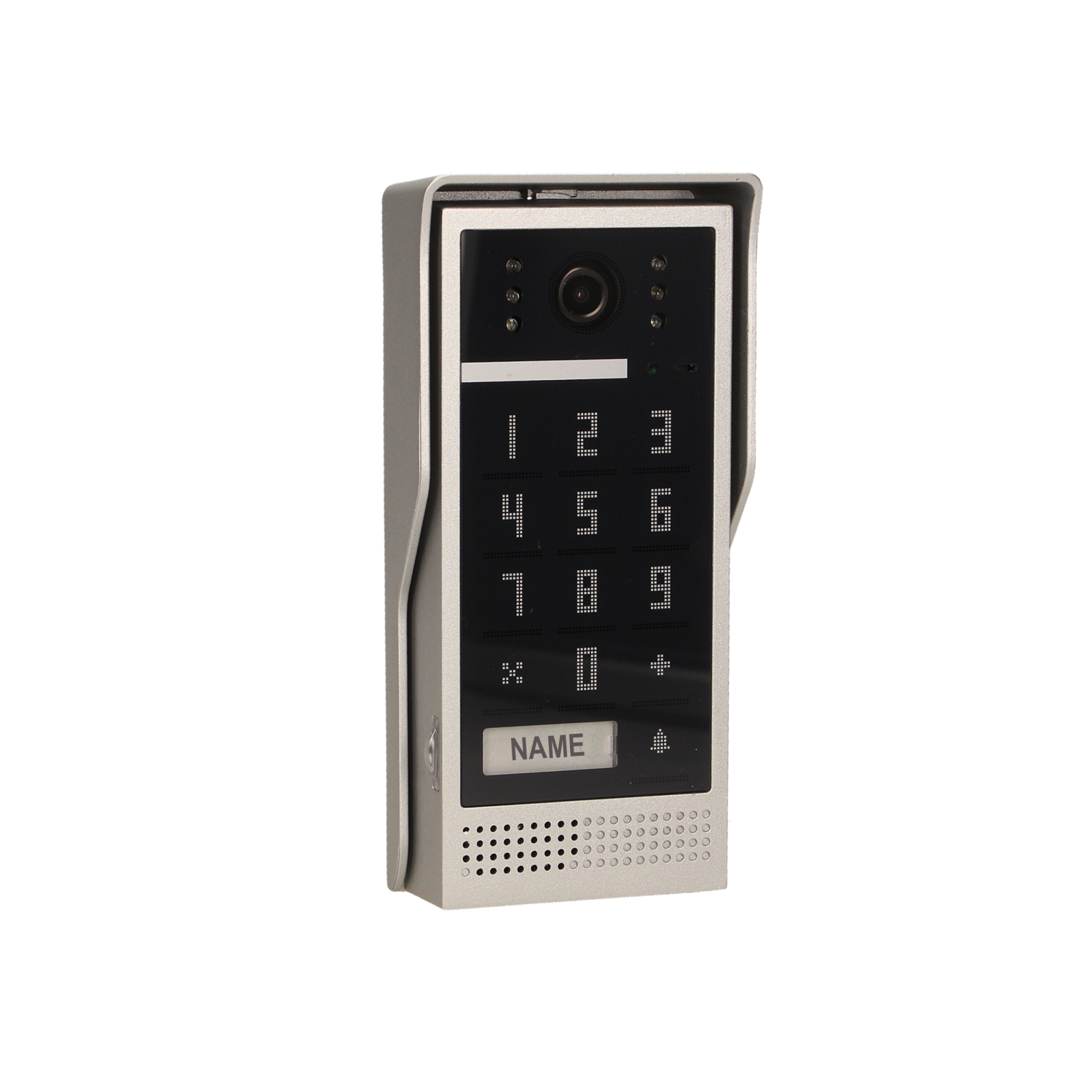

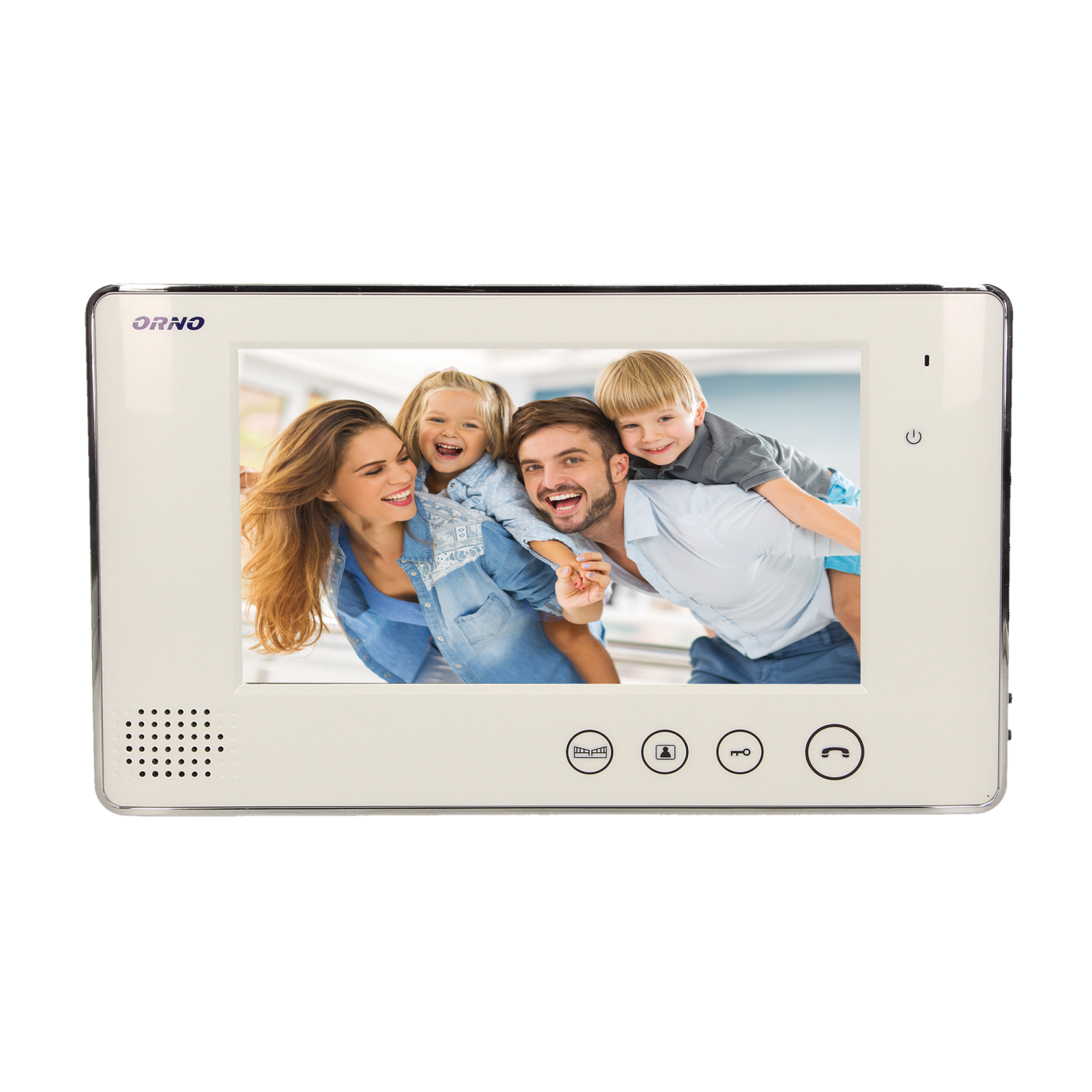

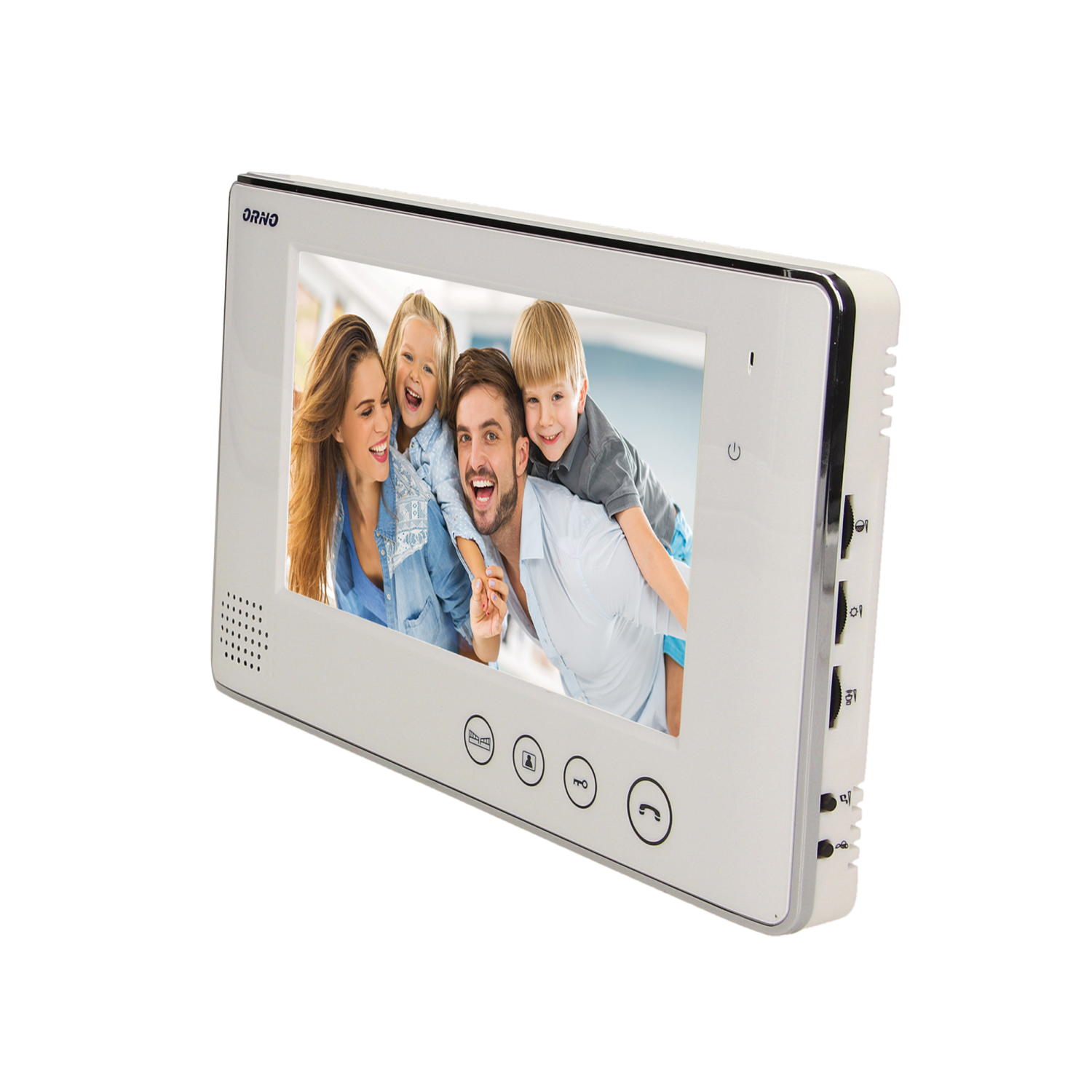

Ultra slim LCD monitor, whith smooth adjustment of parameters (brightness, colour & volume) 14 selectable ringtones A touch panel with backlit buttons External panel with camera requires surface mounting It's equipped with infrared lighting that enable night vision Additional gate control function Lock open with the keypad Electric strike doesn't require additional power supply.
| General information: |
|---|
| Type: | single-family |
| Number of wires: | 5+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | No |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | Yes |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from a videodoorphone |
| Connection system: | 5-wire |
| Possibility of extension by an additional cctv camera: | No |

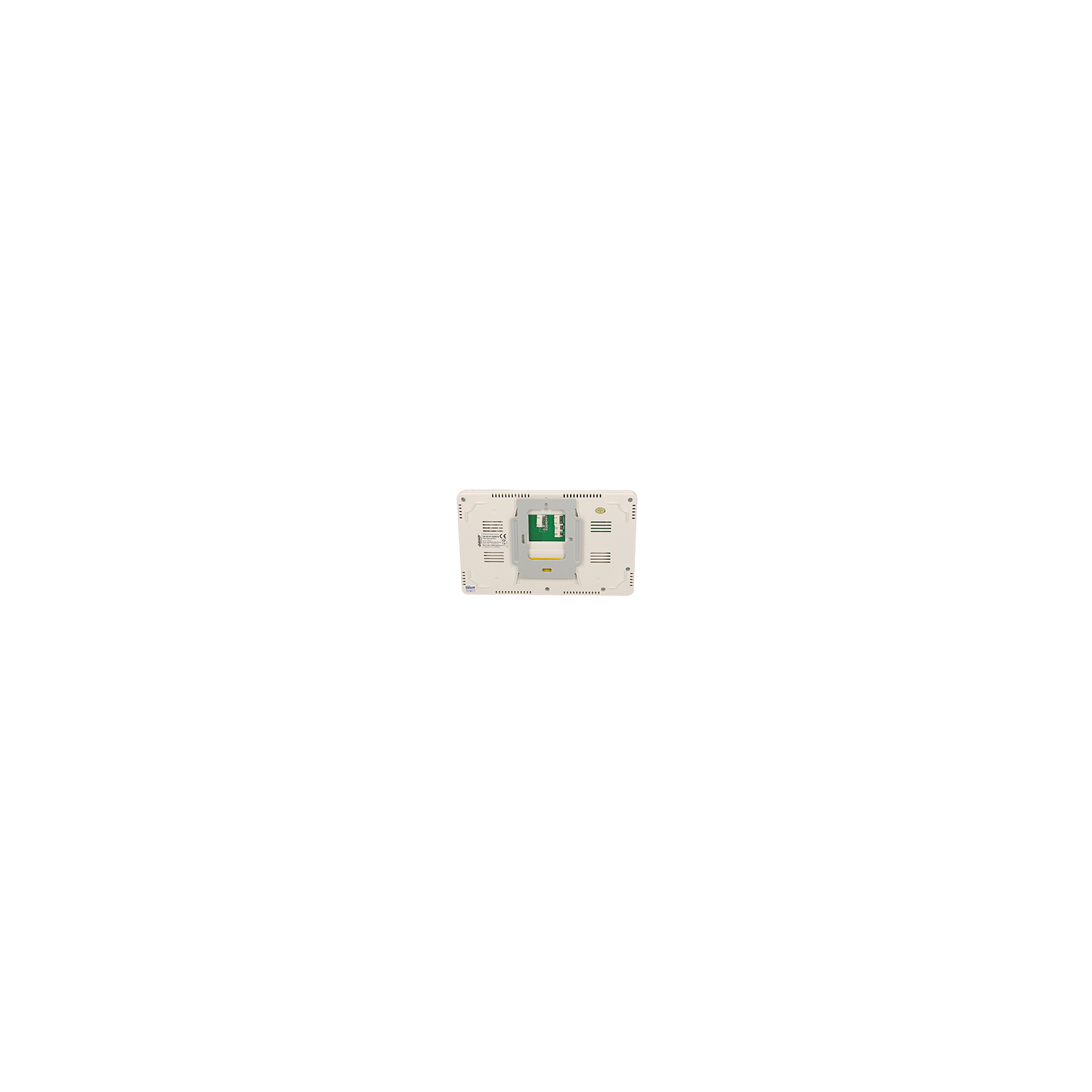

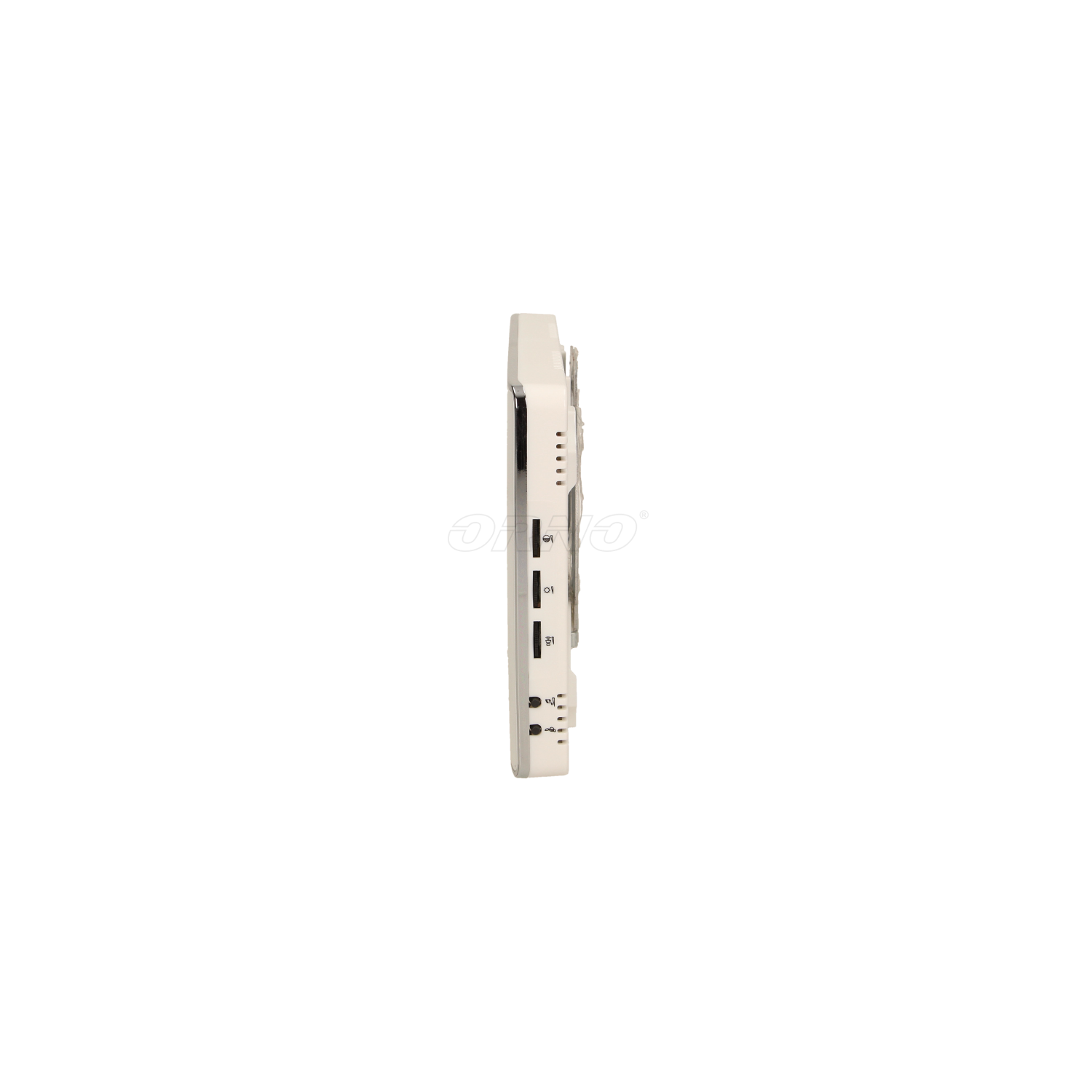

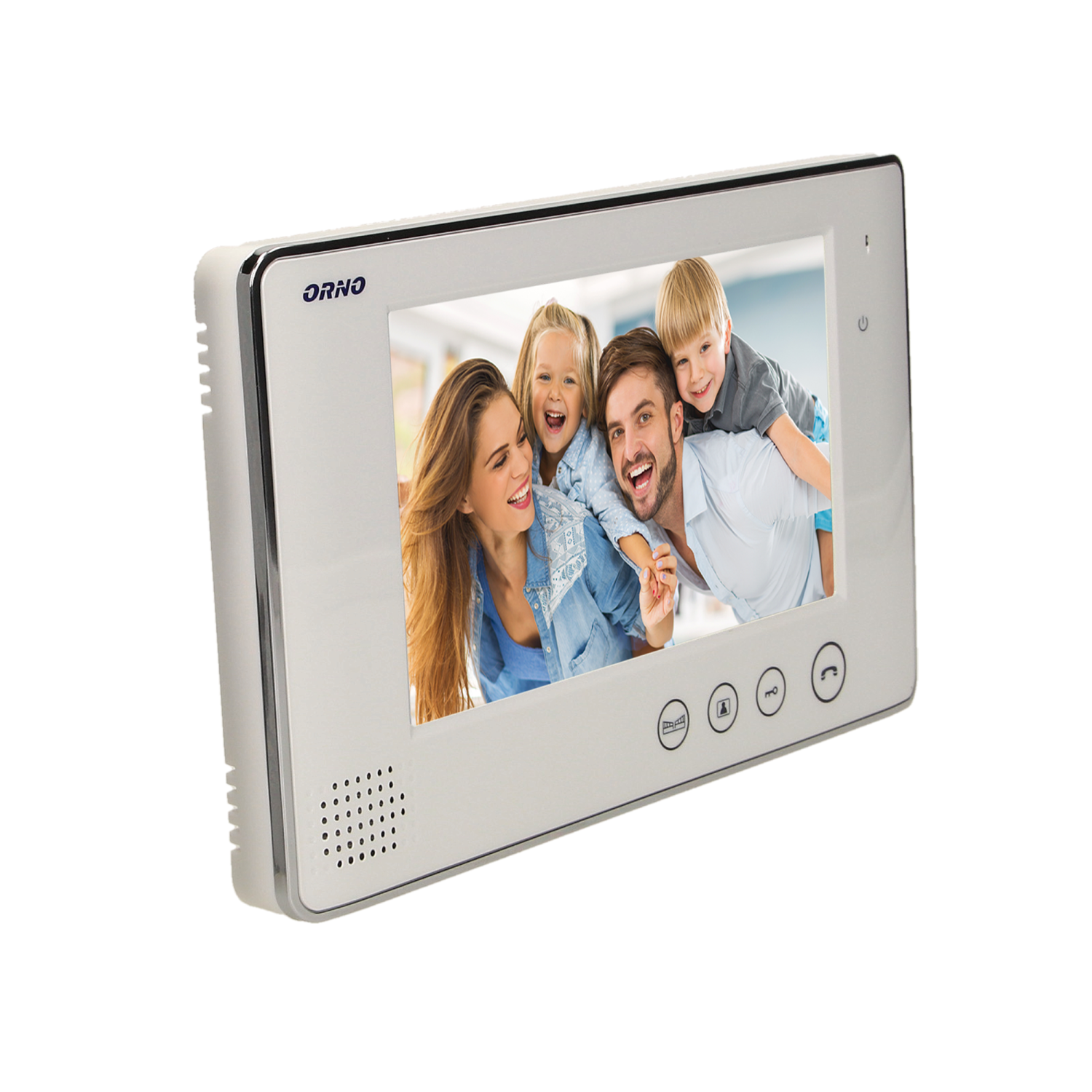

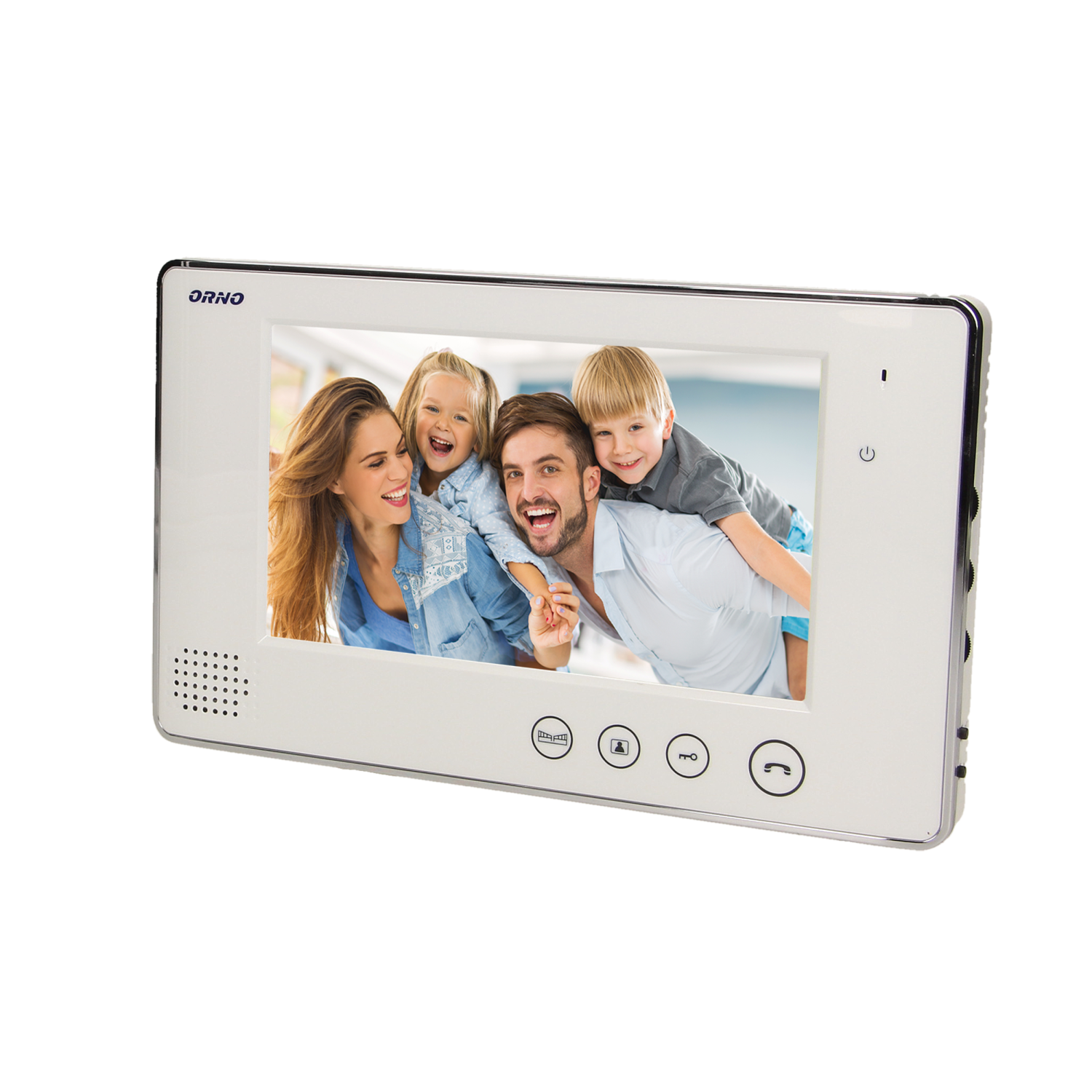

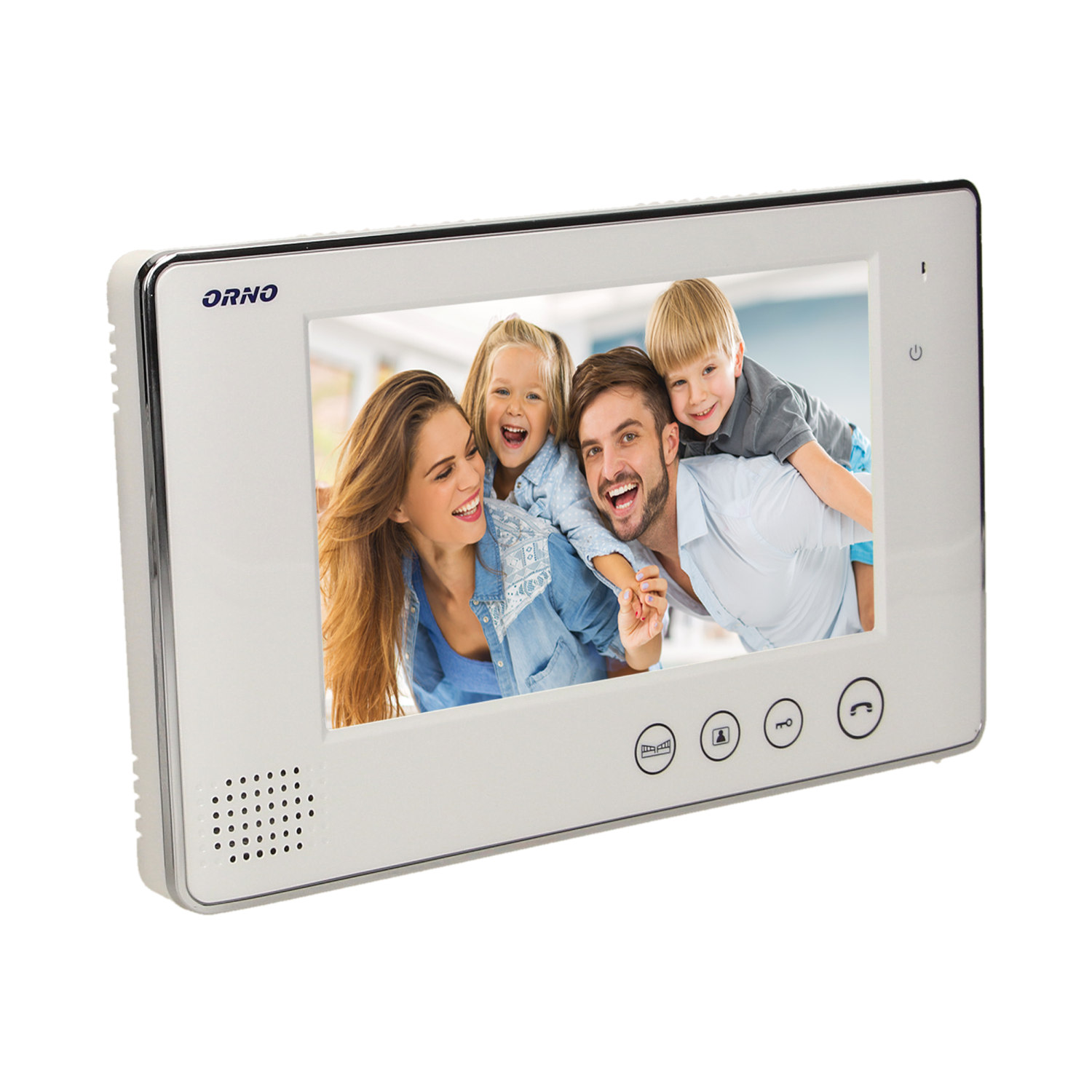

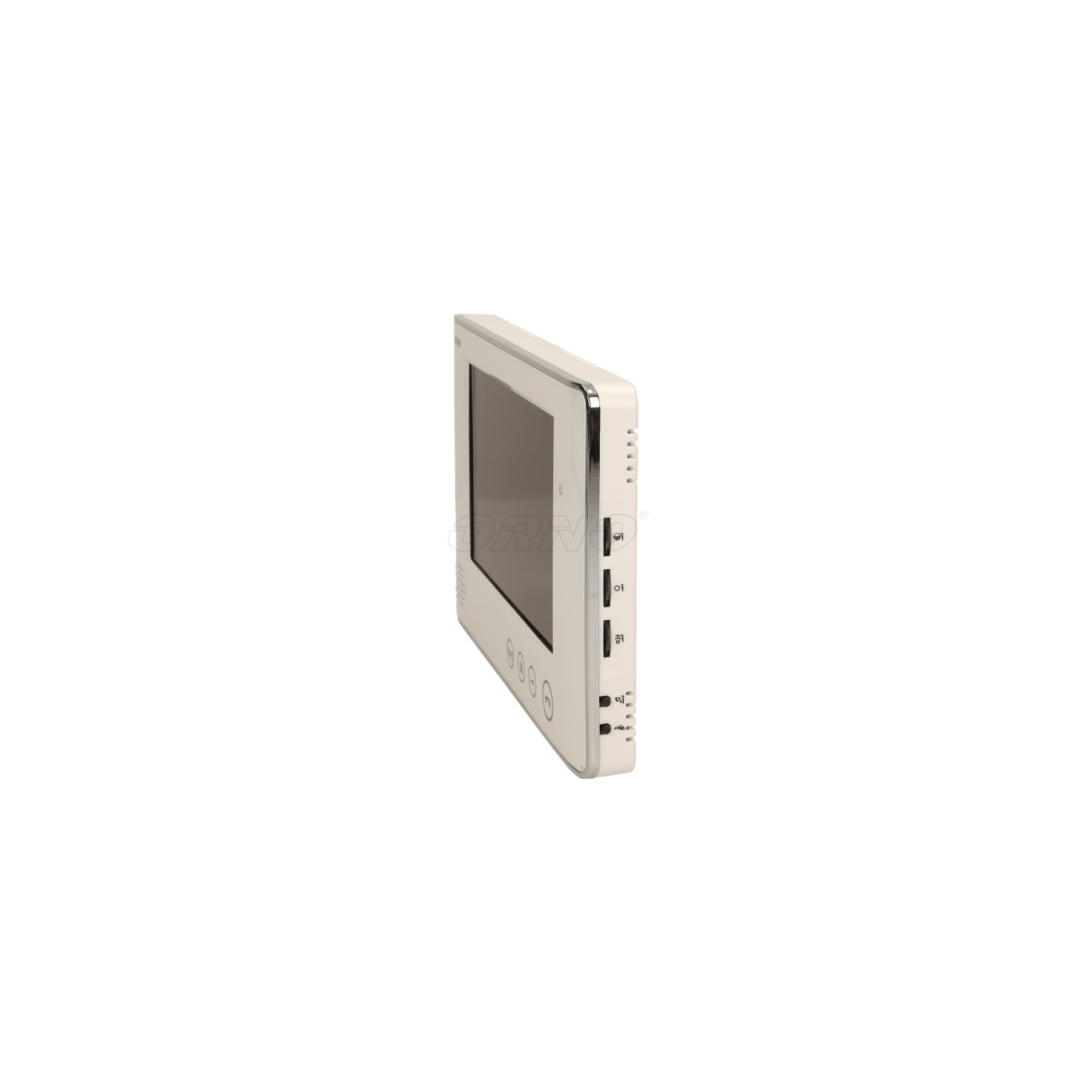

| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 14 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 480/234 |
| Memory: | No |
| Intercom function: | No |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 232 mm |
| Dimensions of the of the monitor - height (mm): | 140 mm |
| Dimensions of the of the monitor - depth (mm): | 21 mm |

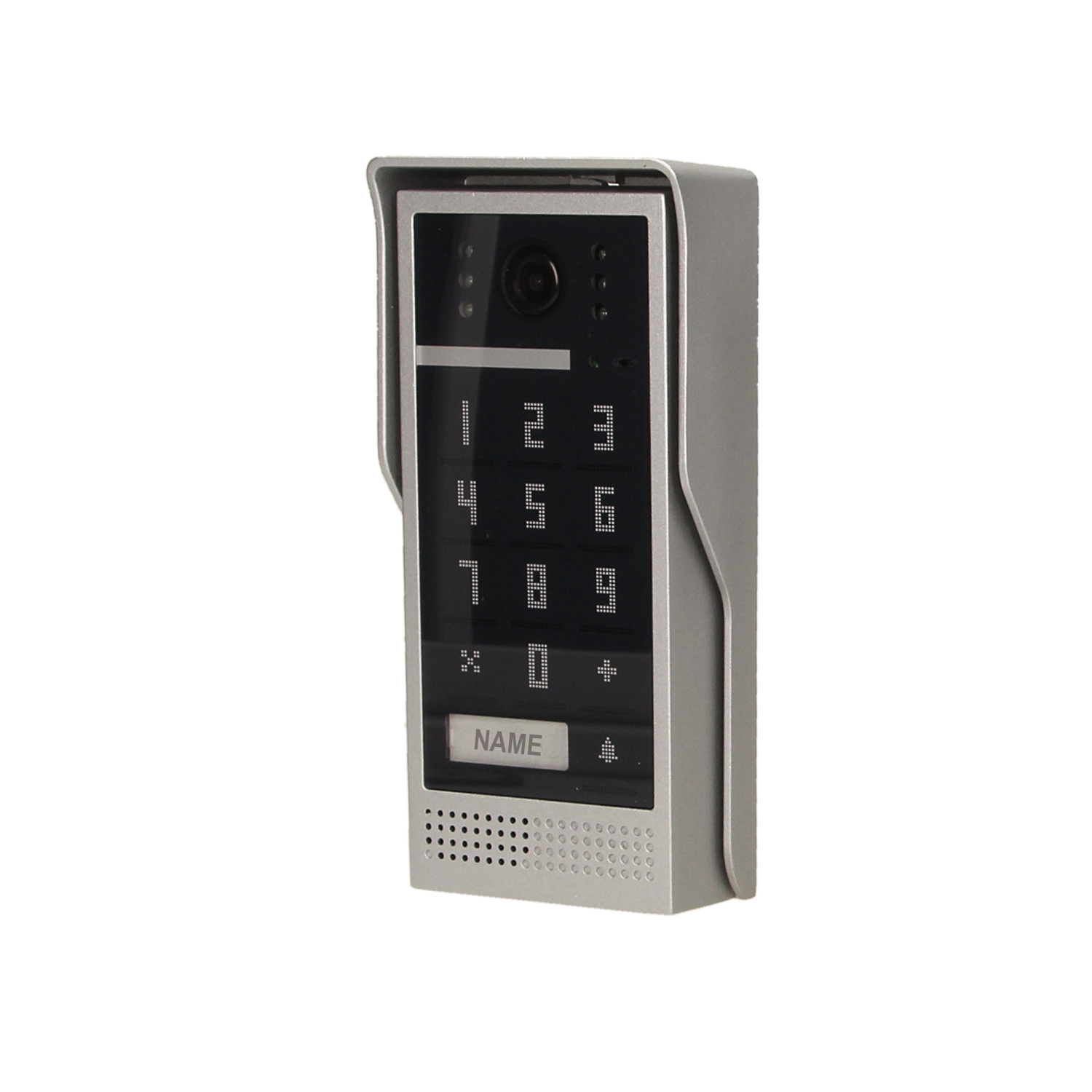

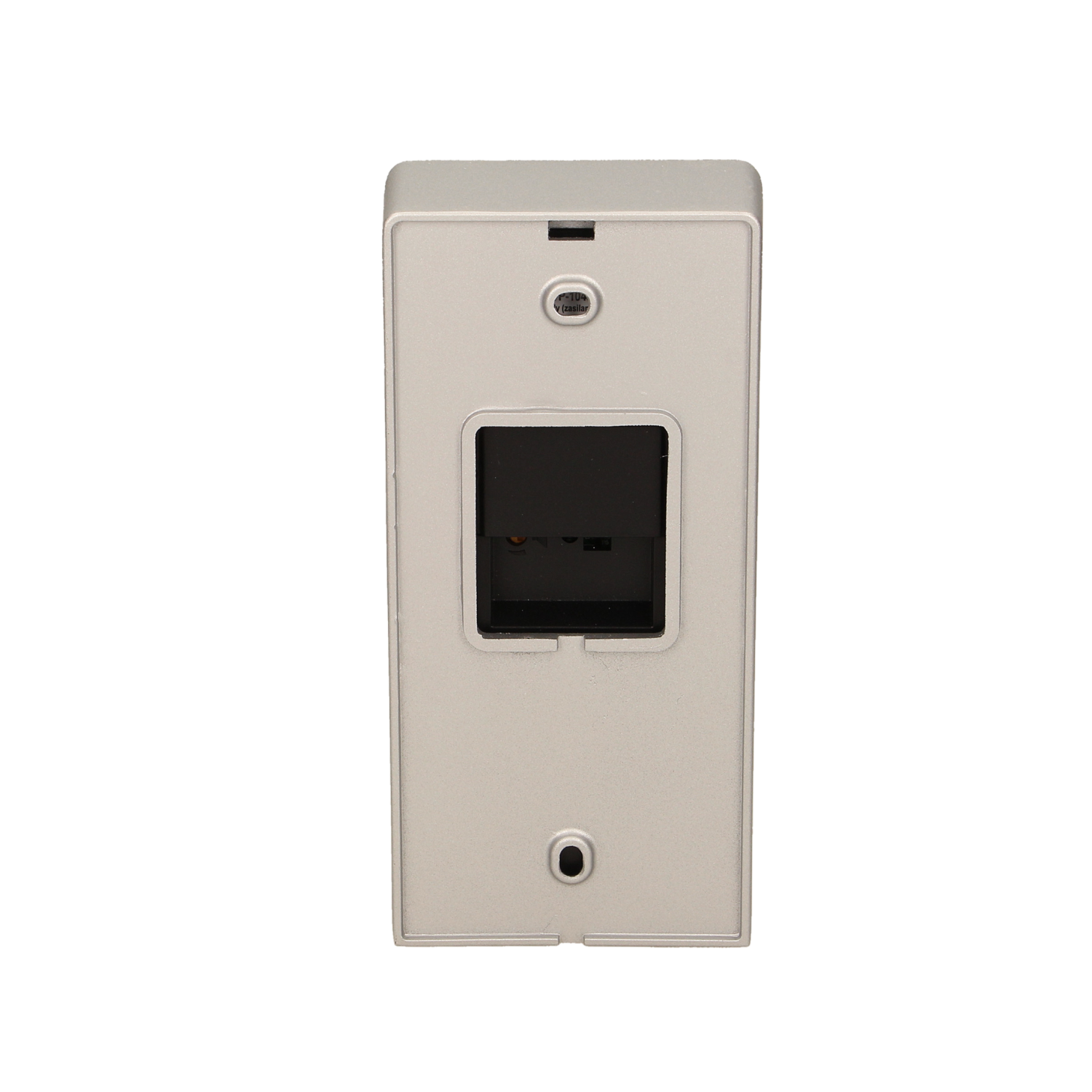

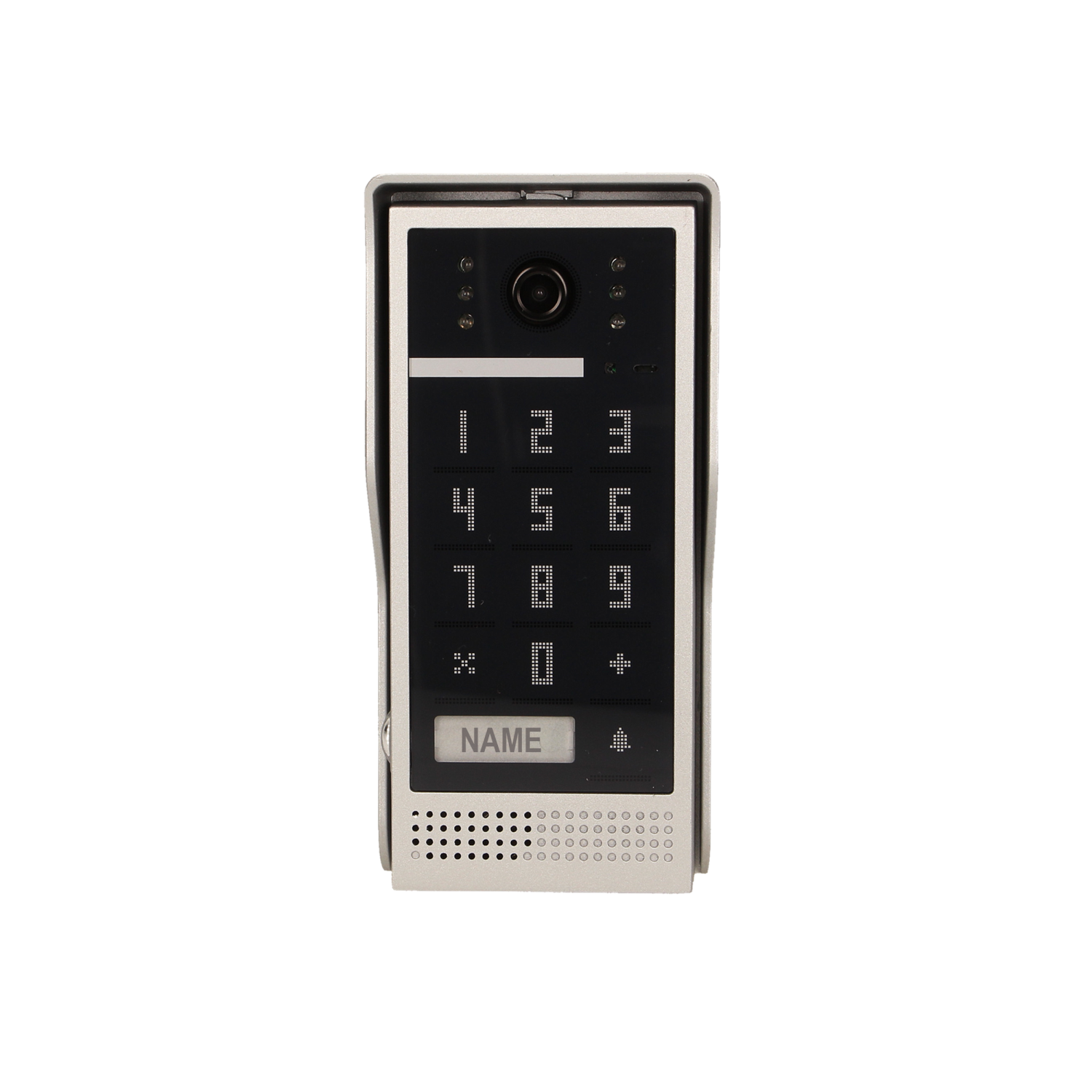

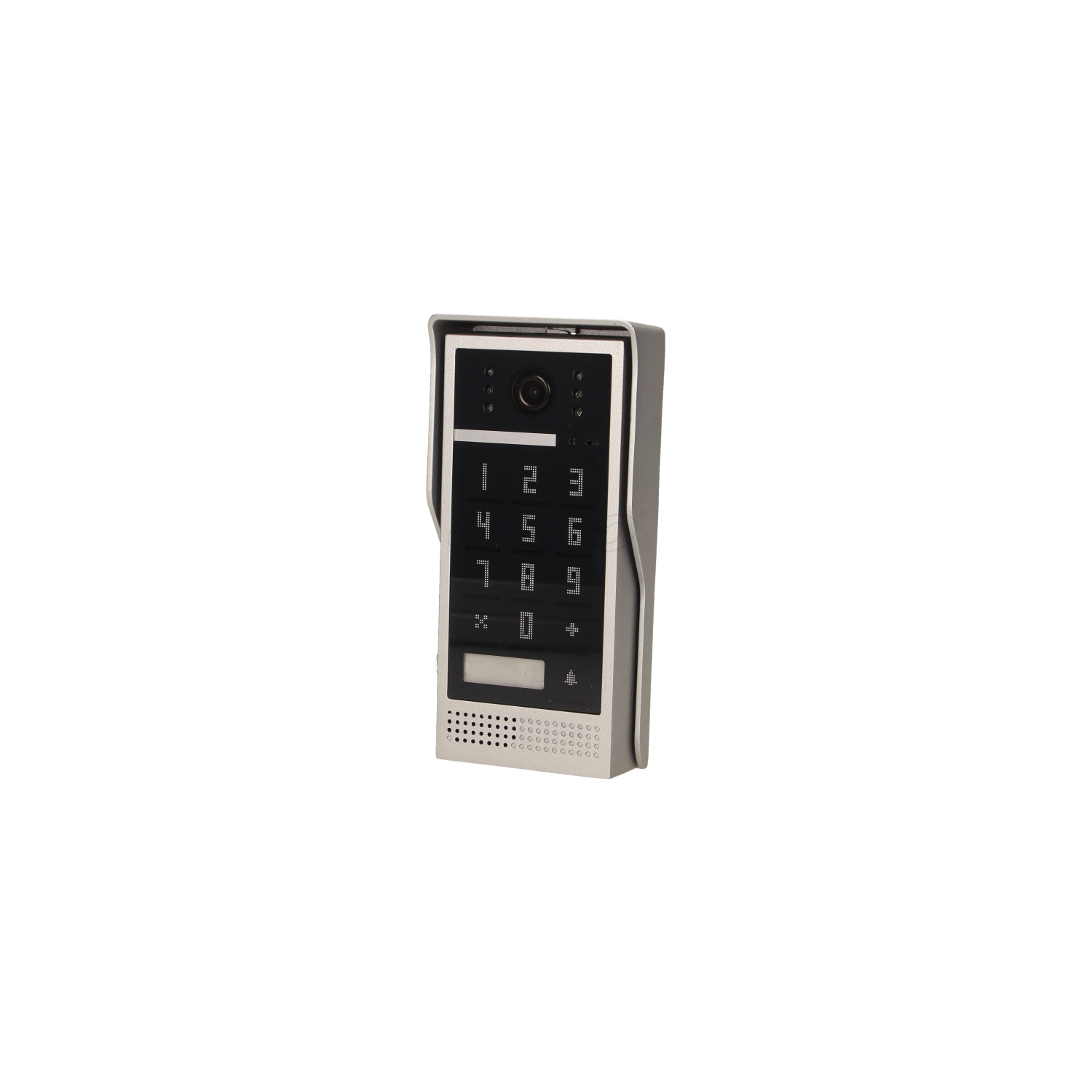

| External panel with a camera: |
|---|
| Resolution of the camera: | 600 TVL |
| Vertical/horizontal camera's view angle: | 64 st./96 st. |
| Card and proximity tags reader: | No |
| Type of camera: | traditional lens |
| Keypad: | Yes |
| Night lighting: | Infrared |
| Dimensions of the external panel - depth: | 42 mm |
| Dimensions of the external panel - width: | 56 mm |
| Dimensions of the external panel - height: | 124 mm |
