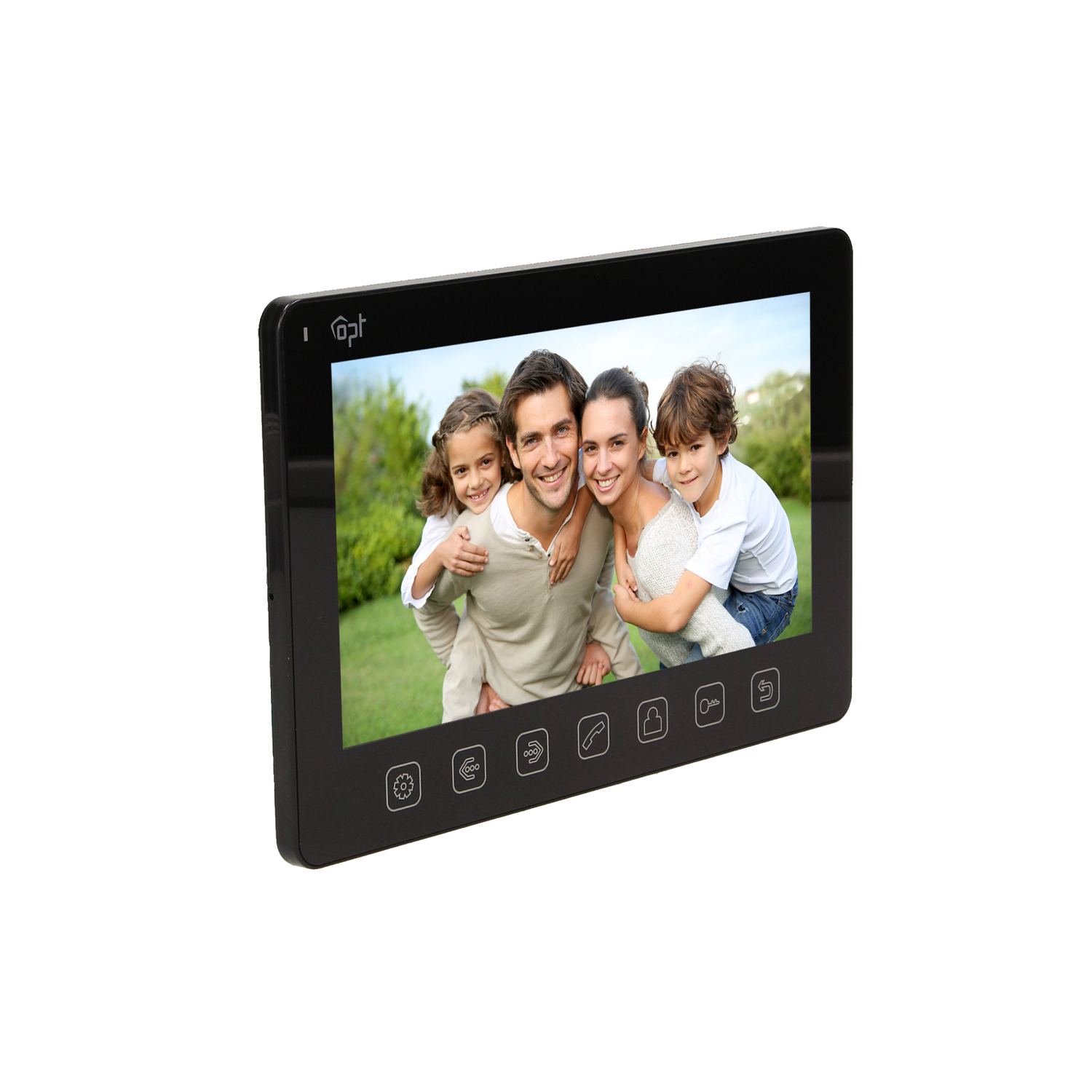

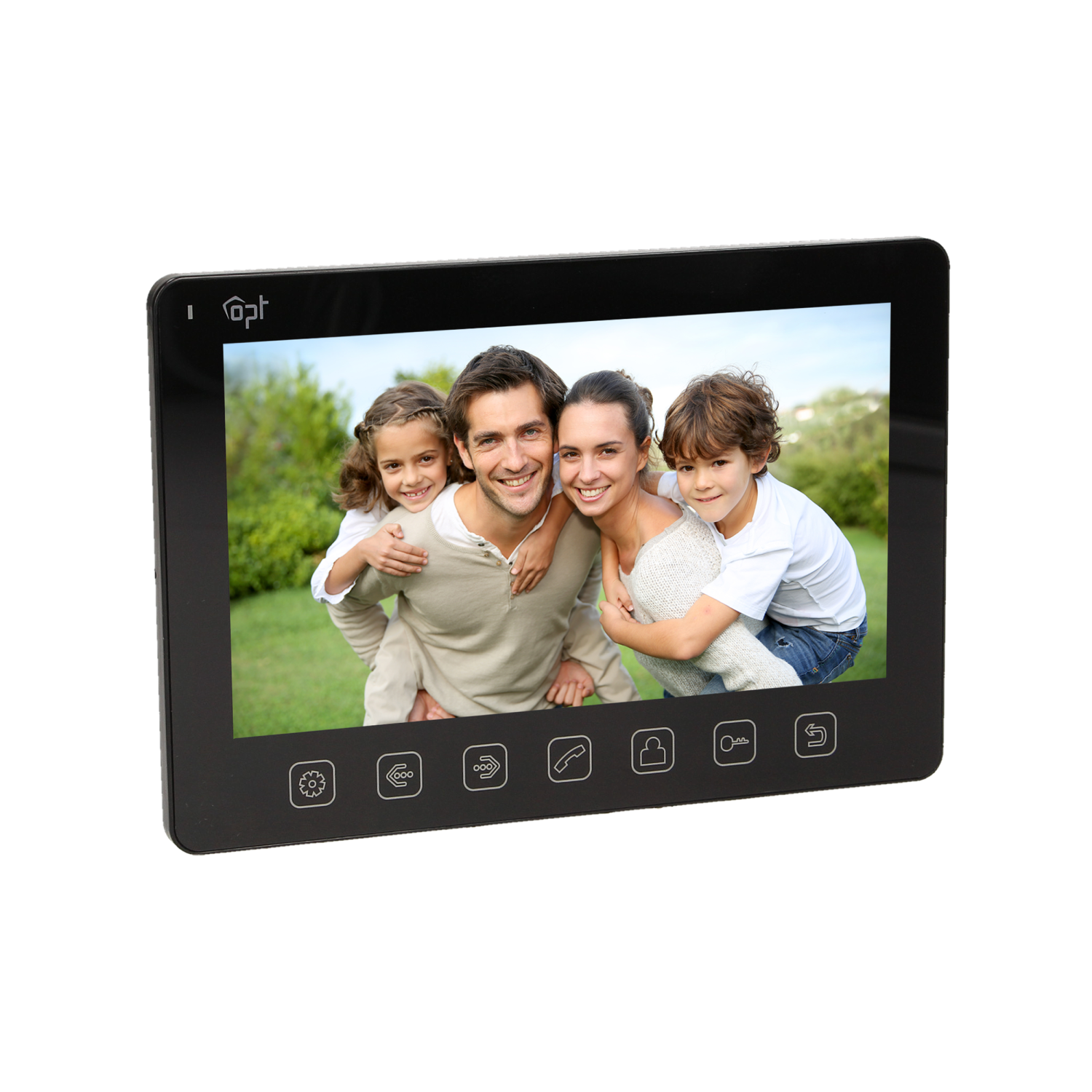

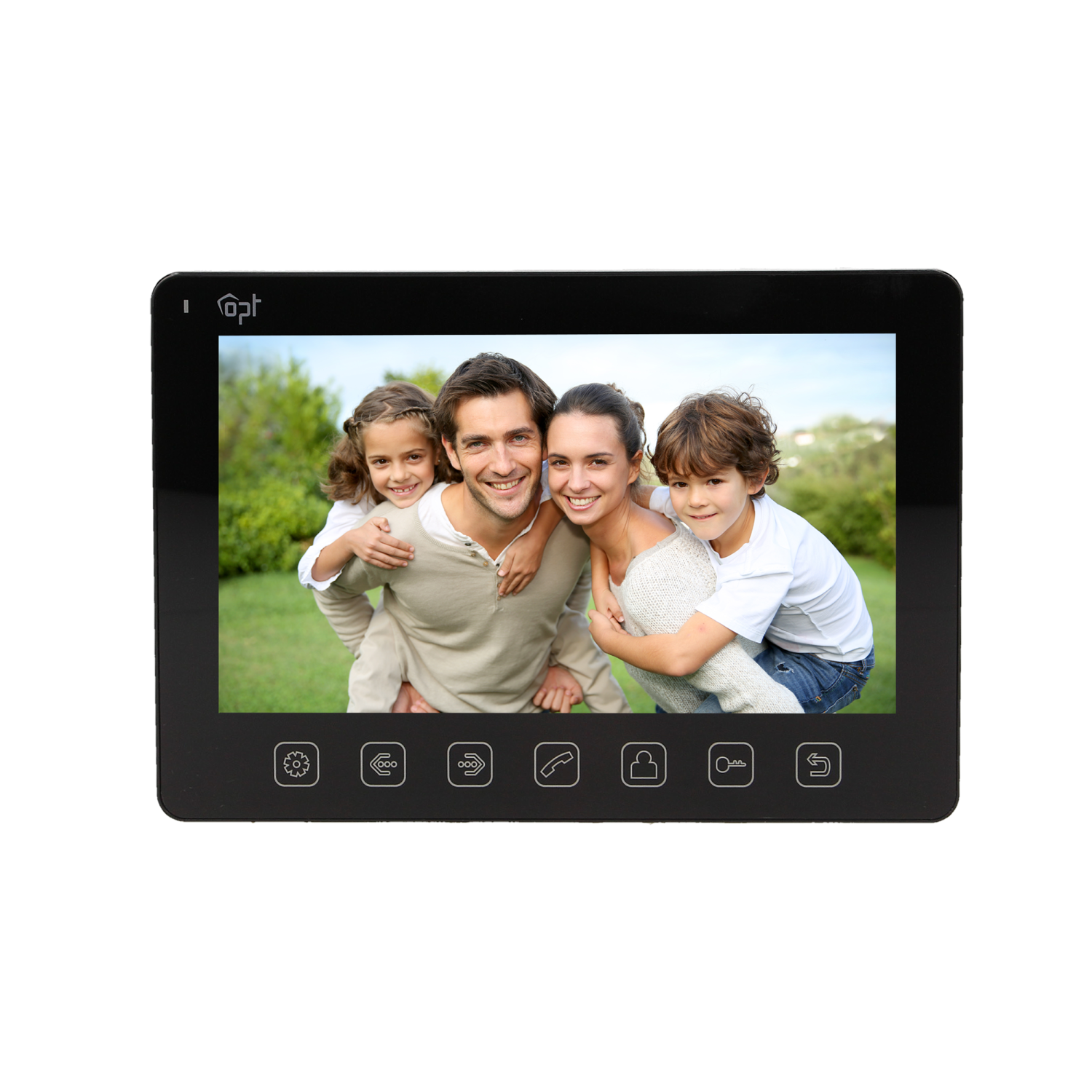

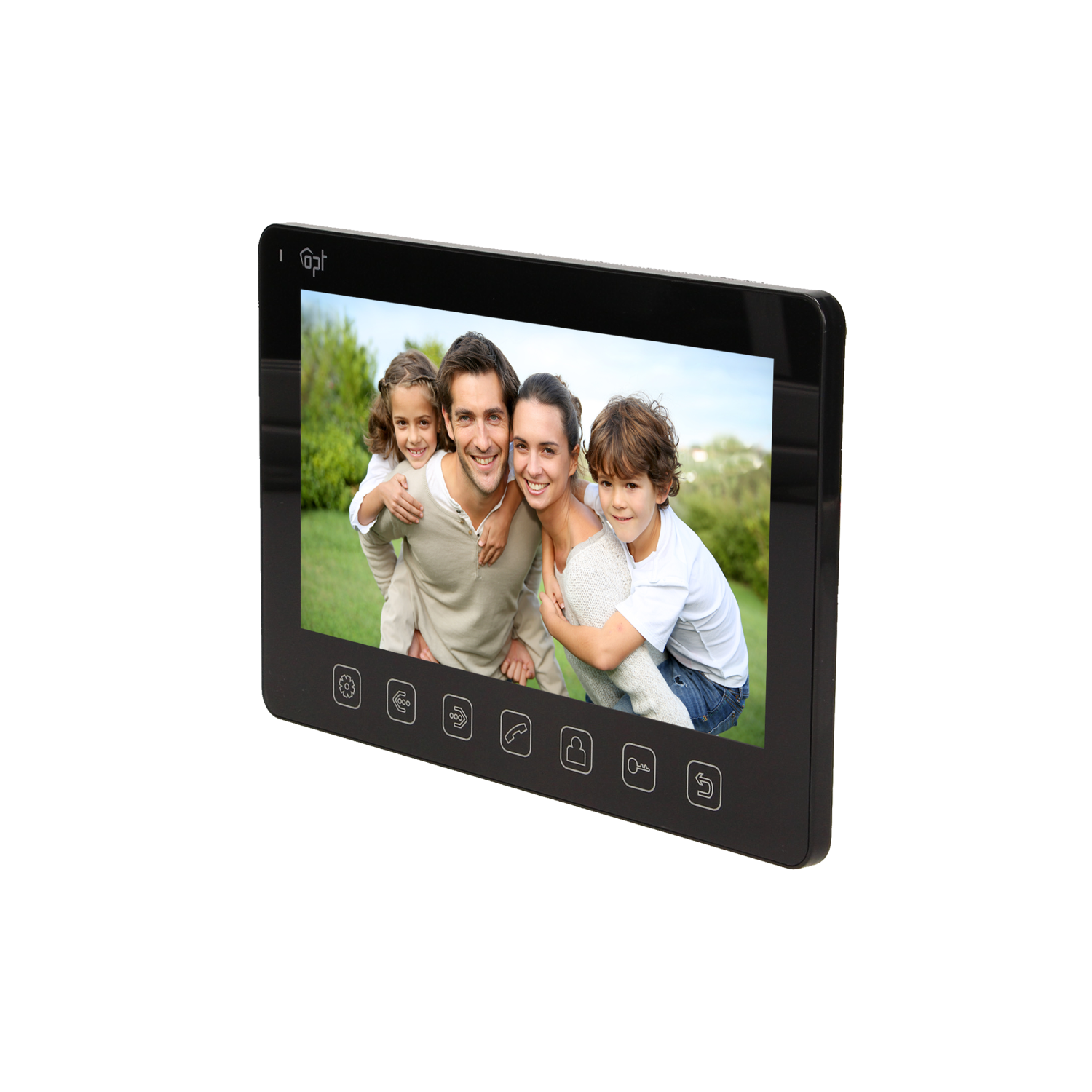

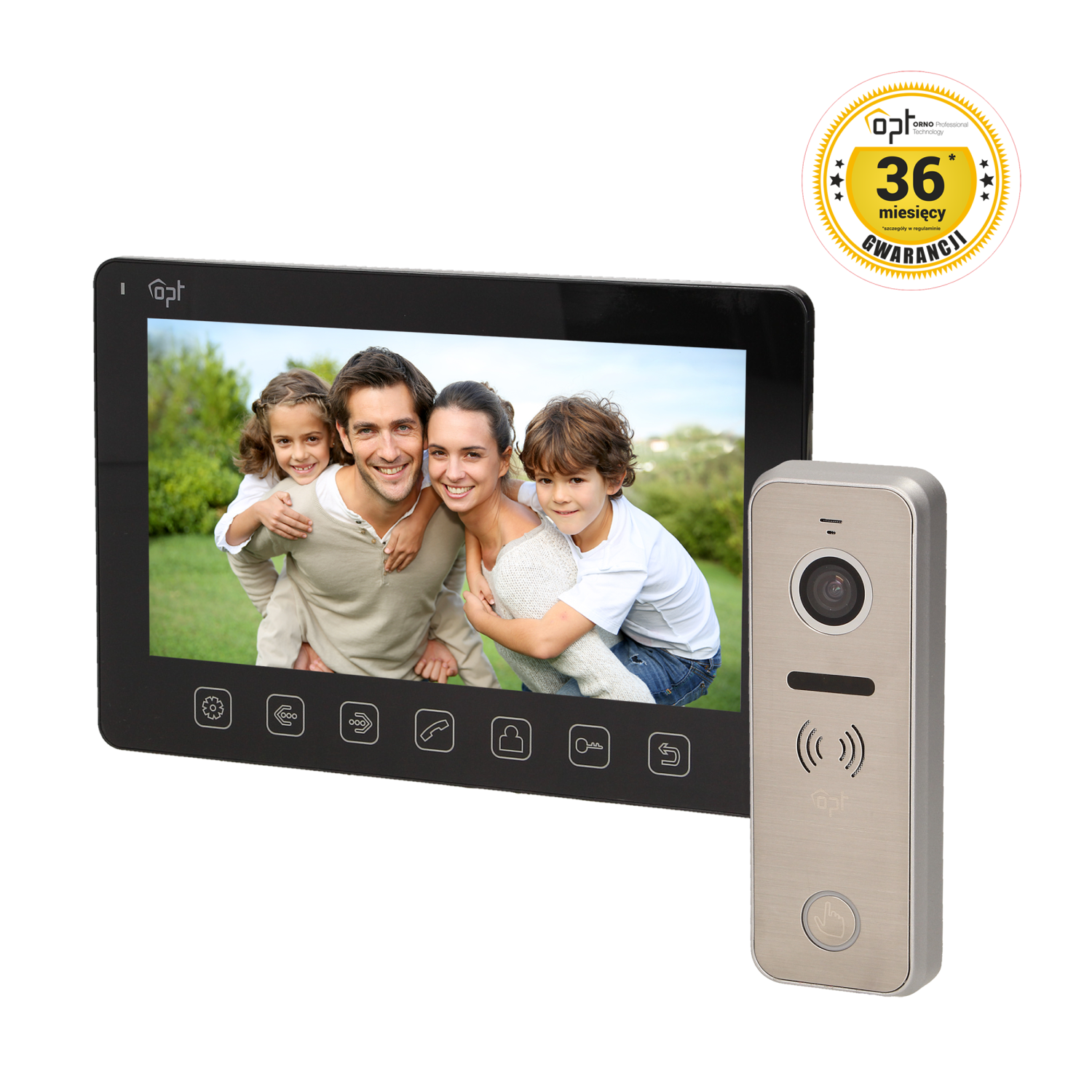

Hands-free video doorphone set with multicolor, ultra-flat 7” LCD display, which can be used to monitor two entrances (can be connected to 2 video cameras). Its touch monitor has backlit buttons and is comes in two color options (white or black). OSD menu is available both in Polish and English version. Other features of the set: smooth adjustment of monitor parameters (brightness and color, talk and ring volume, calling time), 12 ringtones to choose from, wide-angle camera lens, vandal-proof casing of the external unit, excellent night vision guaranteed by bright LED diodes, intercom function with the use of an additional monitor. The set is powered with 14.5V DC supply unit included to the set, but the electric strike requires an additional 12V DC supply unit.
| General information: |
|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | No |
| Current supply of the electric strike: | from the external power supply |
| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | Yes |
| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 12 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800/480 |
| Colour of the monitor: | black |
| Memory: | No |
| Intercom function: | No |
| Touch screen: | No |
| Other features of the monitor: | menu in Polish and English |
| Dimensions of the of the monitor - width (mm): | 127 mm |
| Dimensions of the of the monitor - height (mm): | 185 mm |
| Dimensions of the of the monitor - depth (mm): | 17 mm |

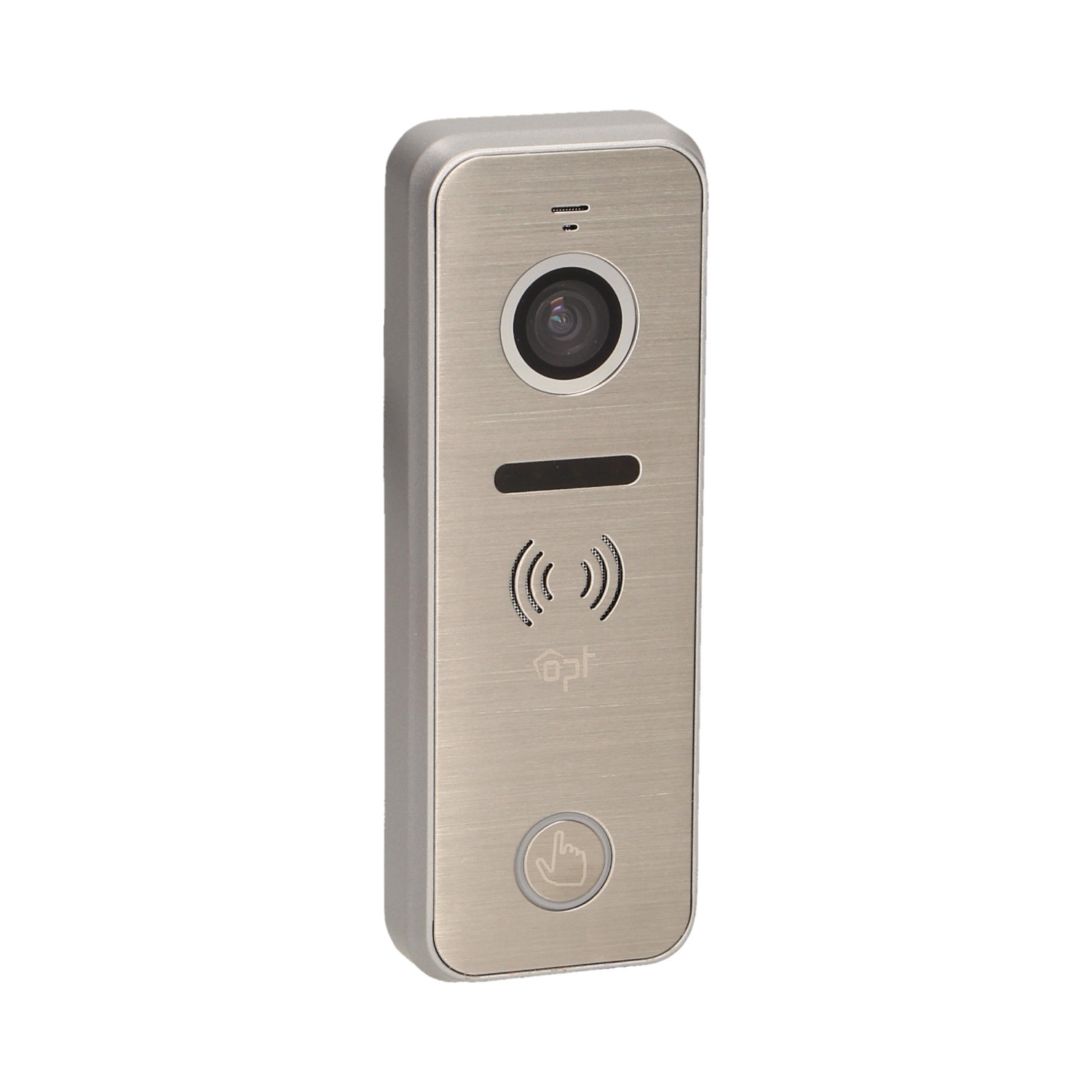

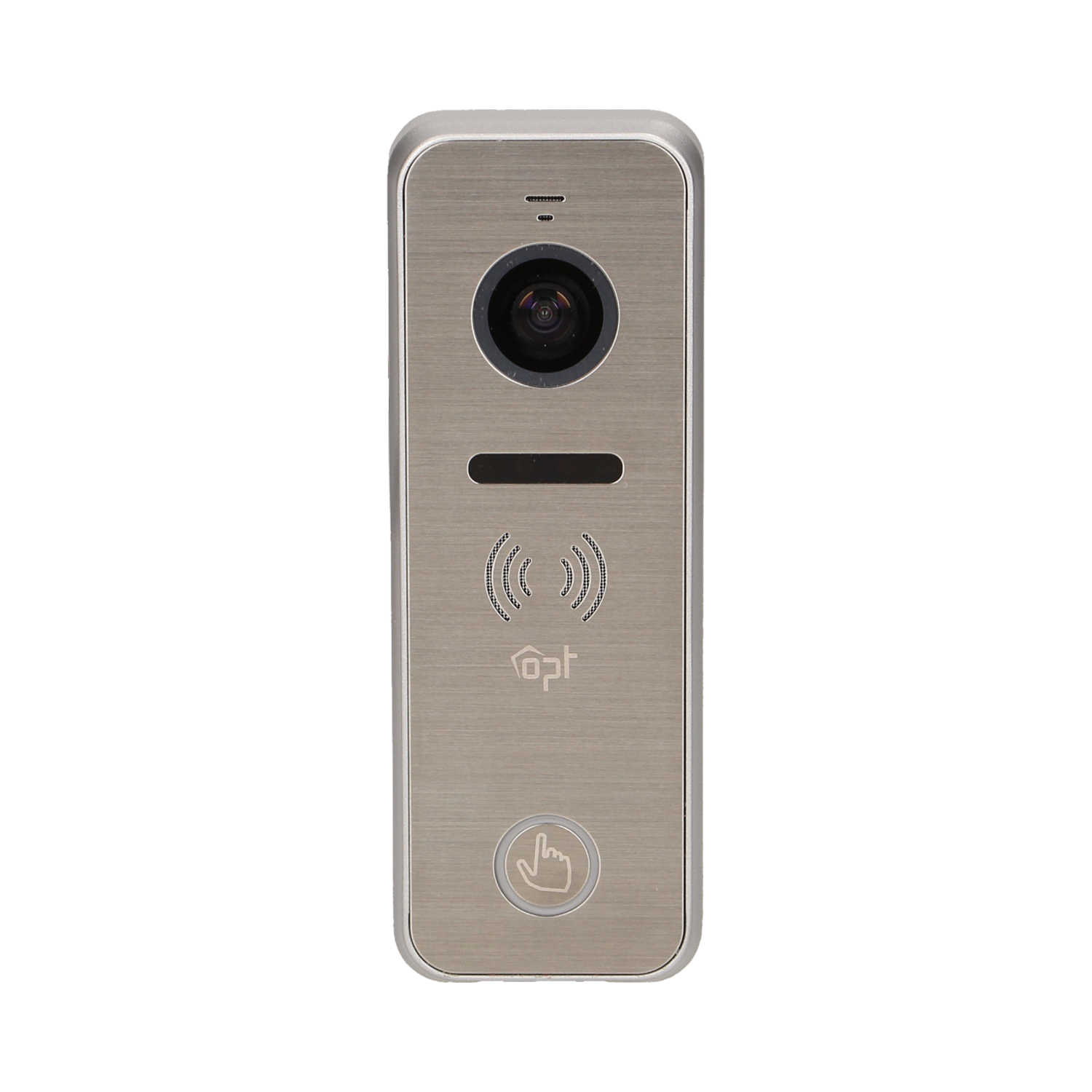

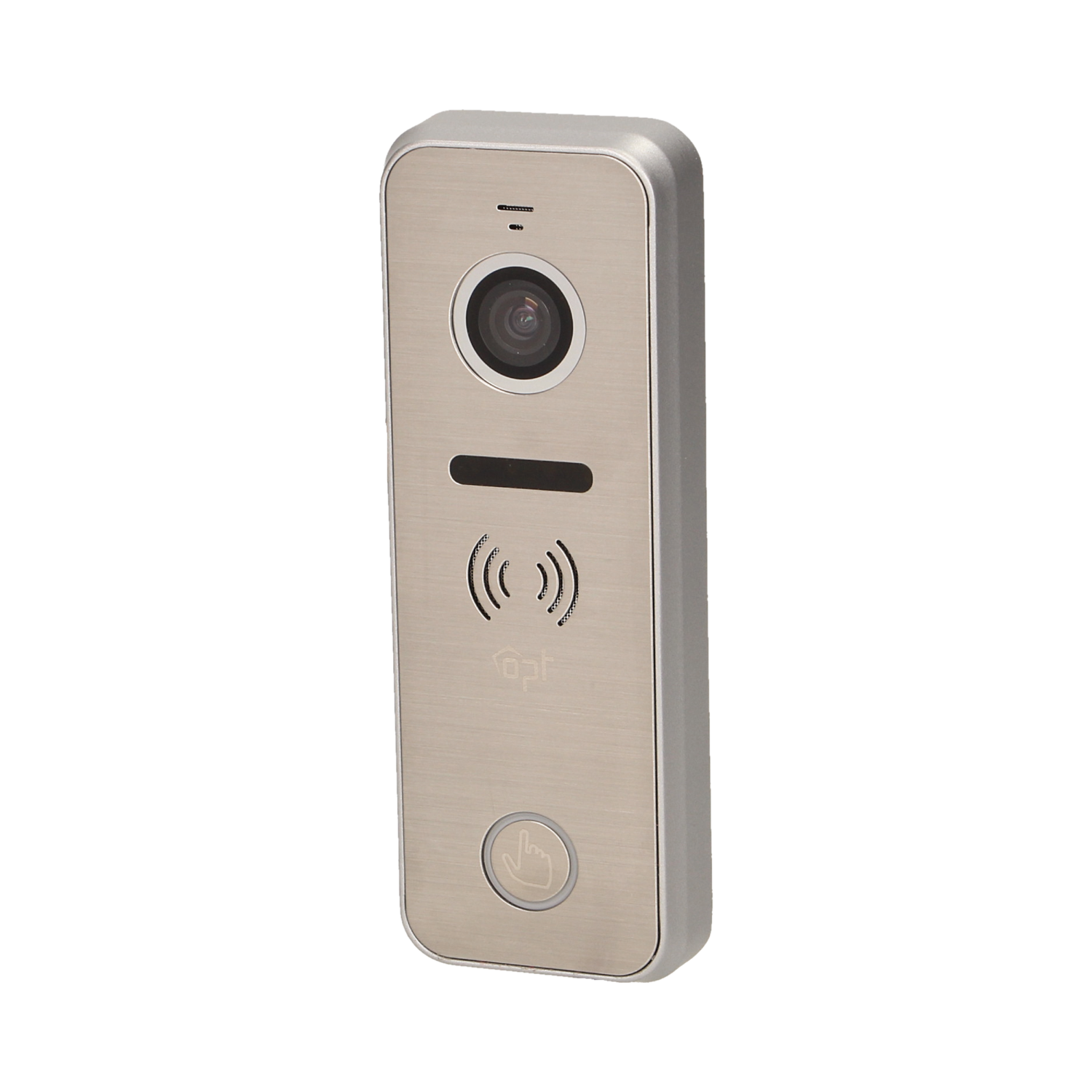

| External panel with a camera: |
|---|
| Resolution of the camera: | 800 TVL |
| Card and proximity tags reader: | No |
| Type of camera: | traditional lens |
| Installation: | surface mounting |
| Keypad: | No |
| Night lighting: | white LEDs |
| Dimensions of the external panel - depth: | 15.5 mm |
| Dimensions of the external panel - width: | 133.2 mm |
| Dimensions of the external panel - height: | 48 mm |
