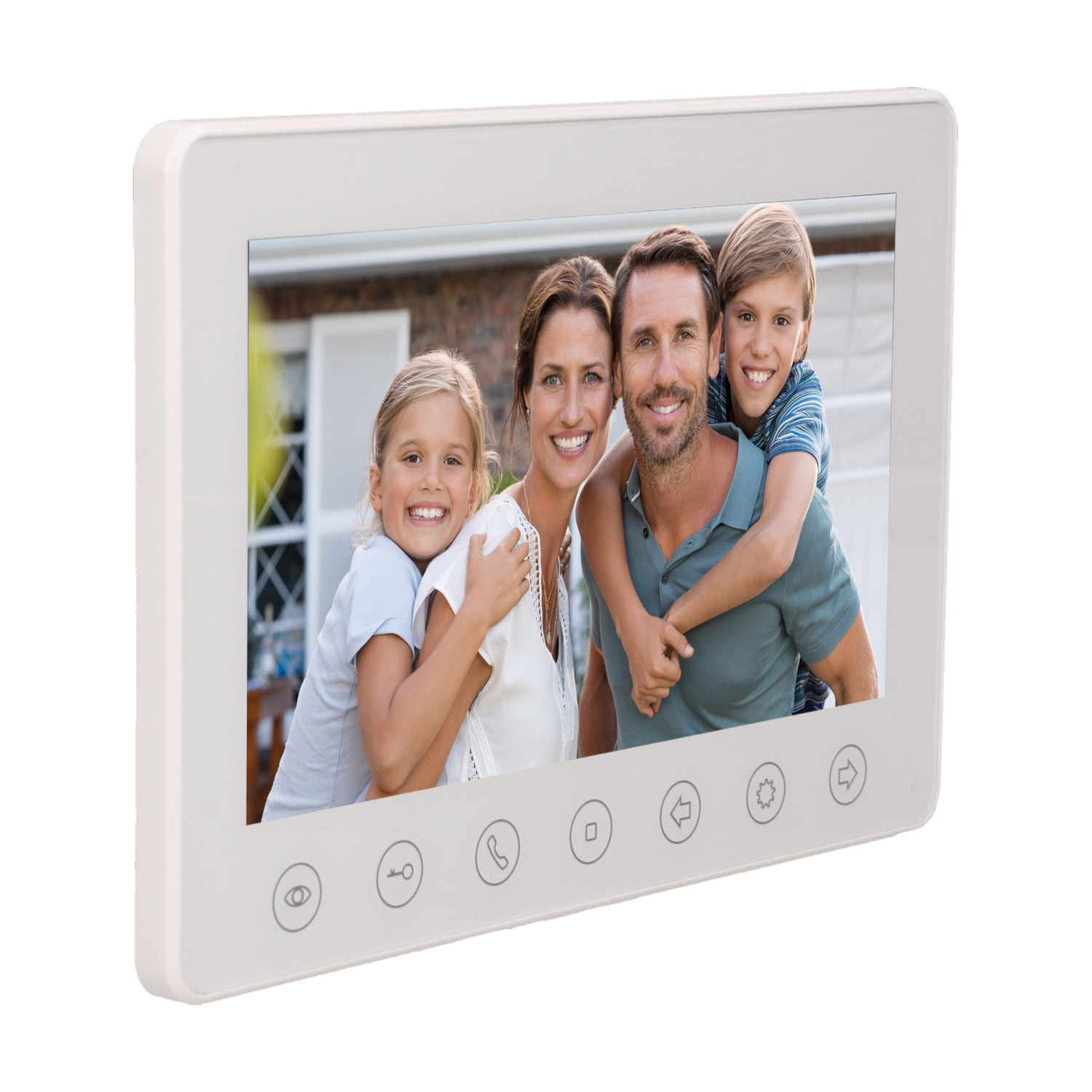

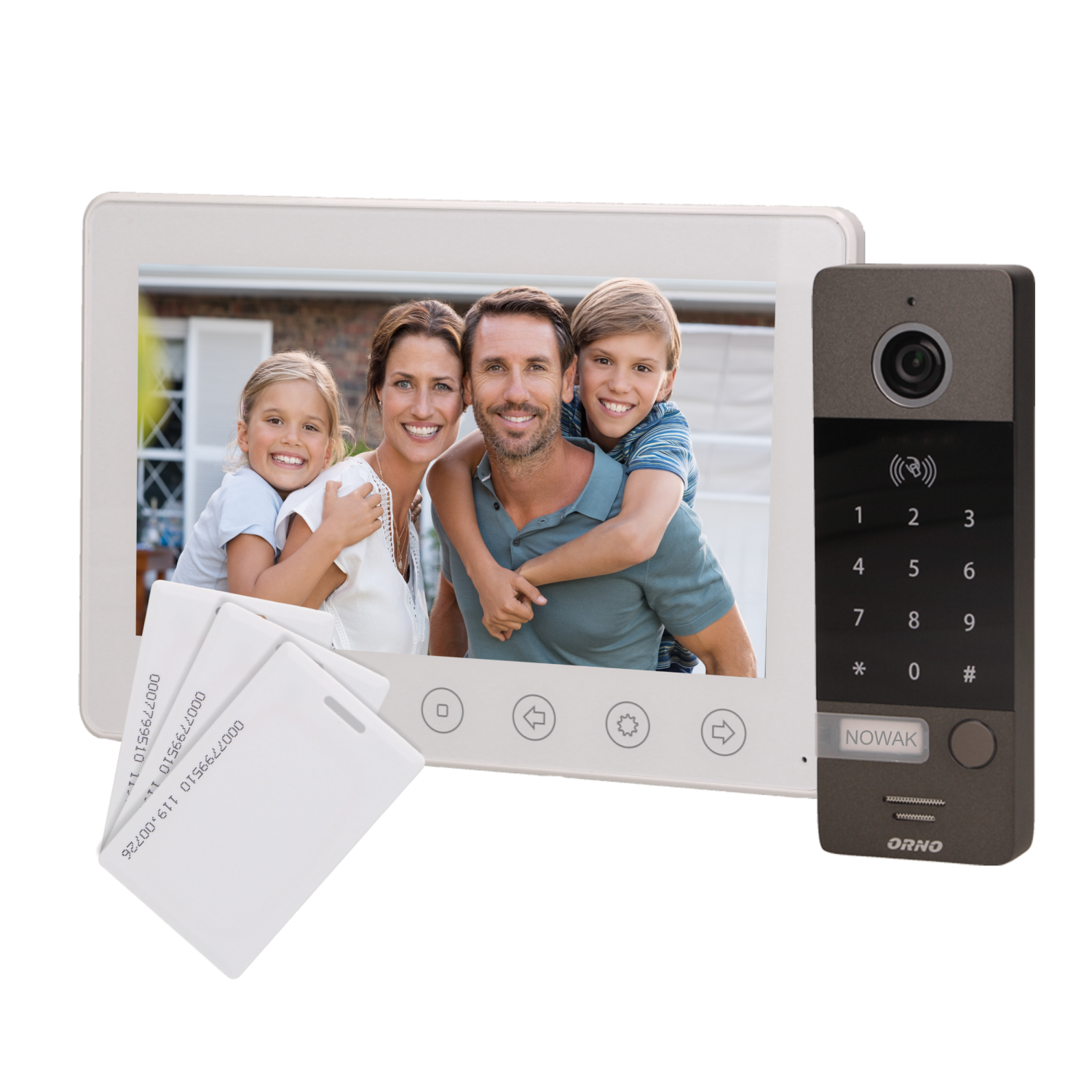

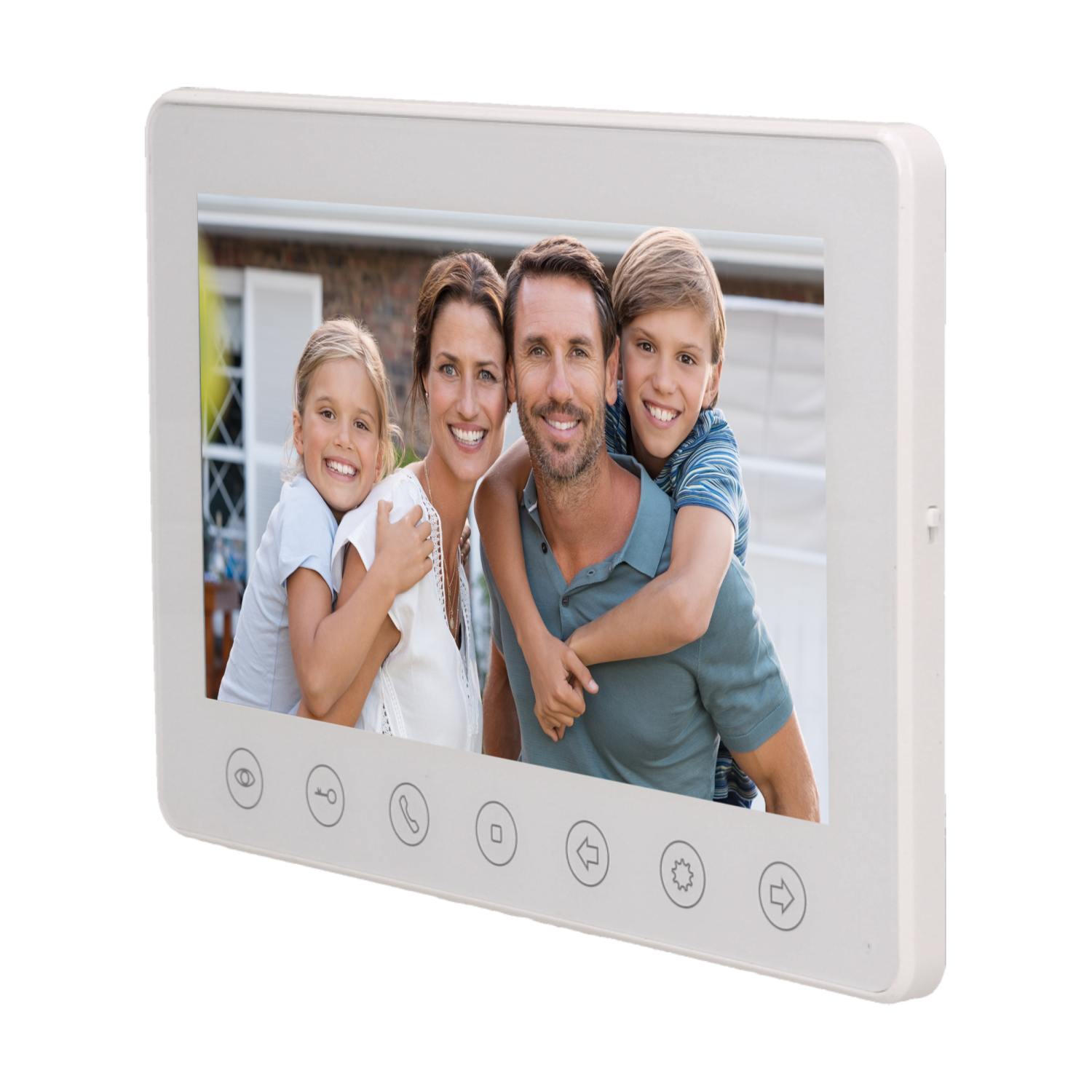

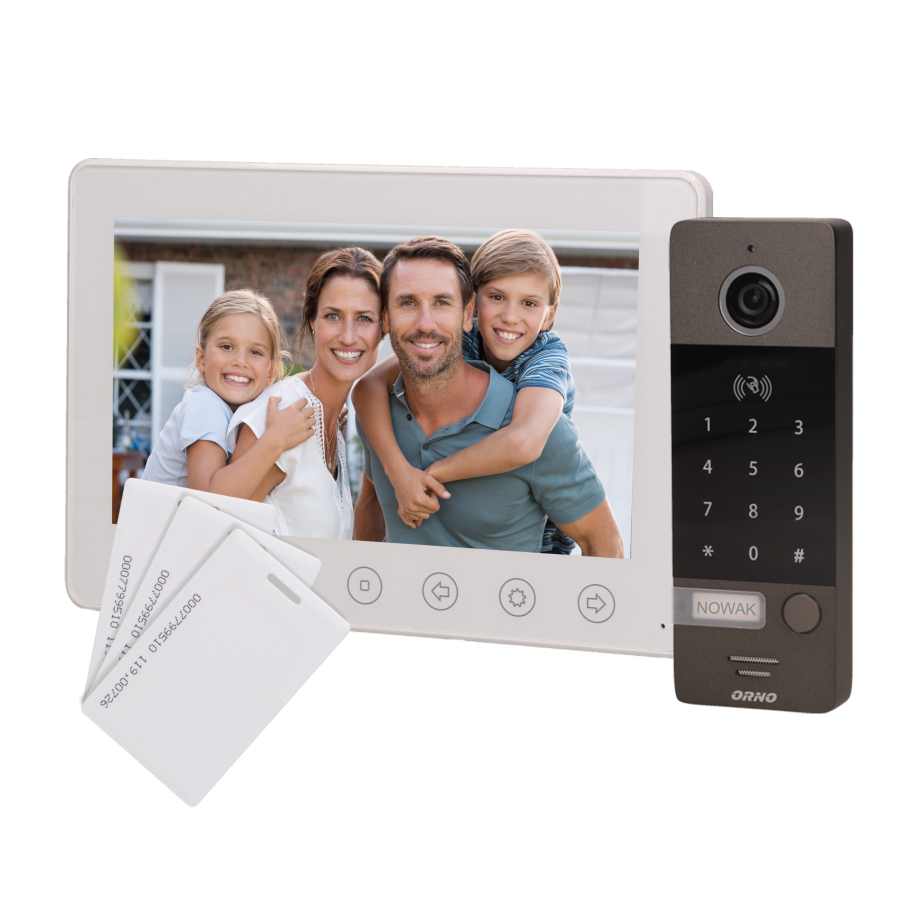

It is a modern videodoorphone equipped with an ultra-slim 7” LCD monitor with smooth adjustment of parameters (brightness, color contrast, volume tone & conversation, calling time), 13 selectable ringtones and a touch panel with backlit buttons. Additional gate control function only with the application of OR-VID-EX-1034ME (not included). OSD menu in Polish and English. It supports two inputs (the possibility of connecting two video cameras). External panel, which requires surface mounting, is equipped with bright LEDs that enable night vision. The built-in RFiD reader allows to open the bolt using a card or a proximity tag. Numeric keypad (which is illuminated at a low light intensity) allows to log in 100 users. Intercom function is available after using an additional monitor. DC power supply from the power supply to the 15V DC socket. Electric strike requires additional power supply (12VDC power supply included).
| General information: |
|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | No |
| Current supply of the electric strike: | powered from the videodoorphone |
| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | Yes |

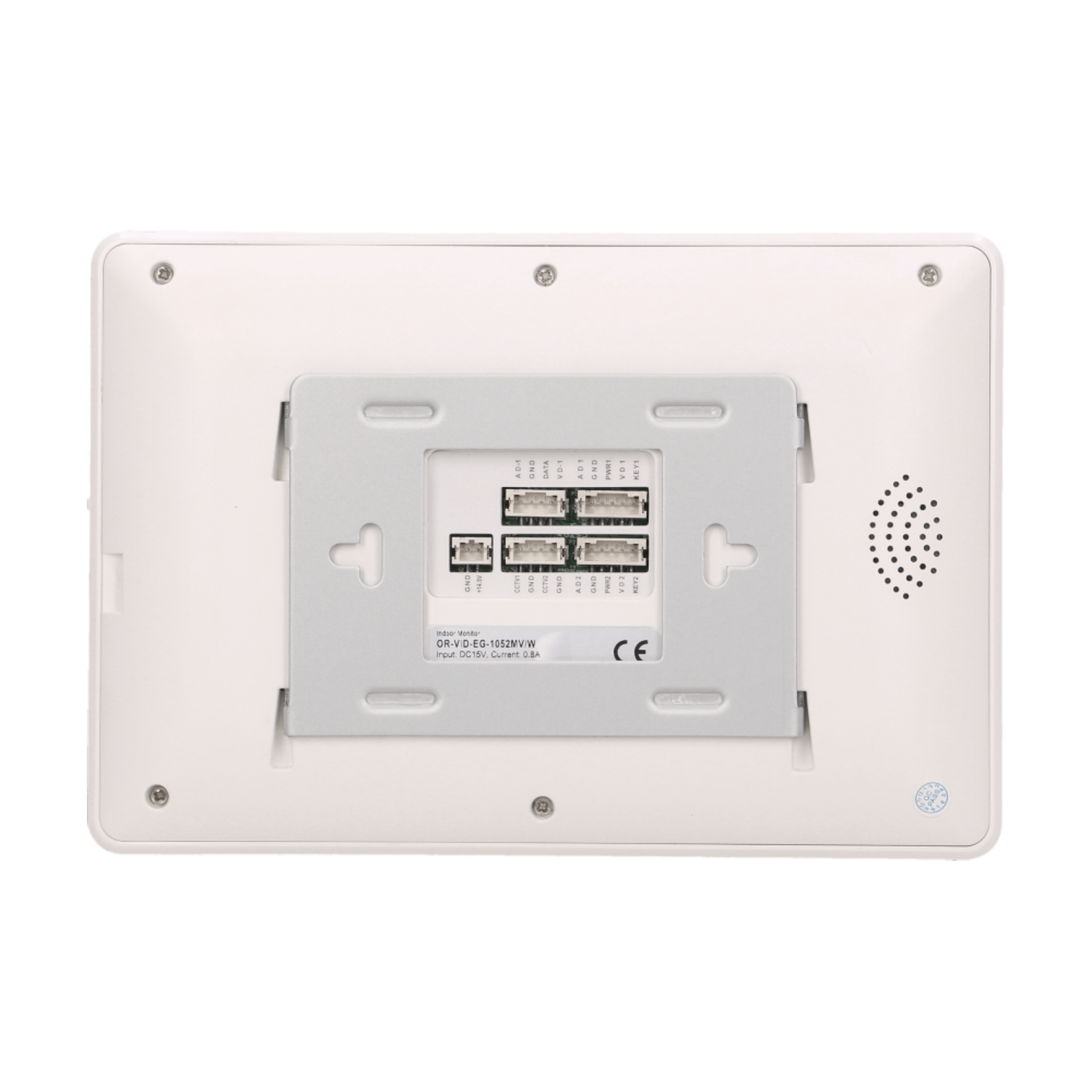

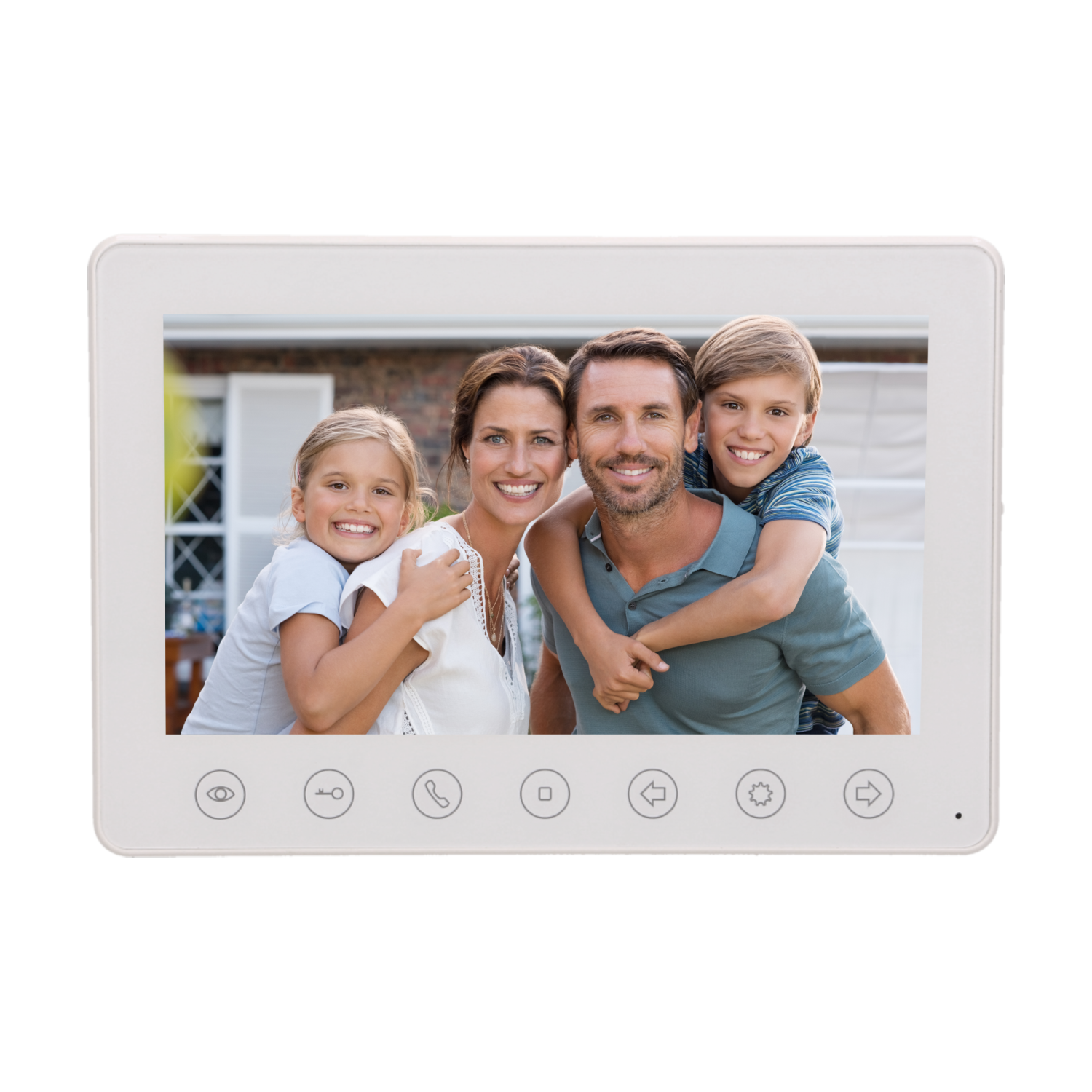

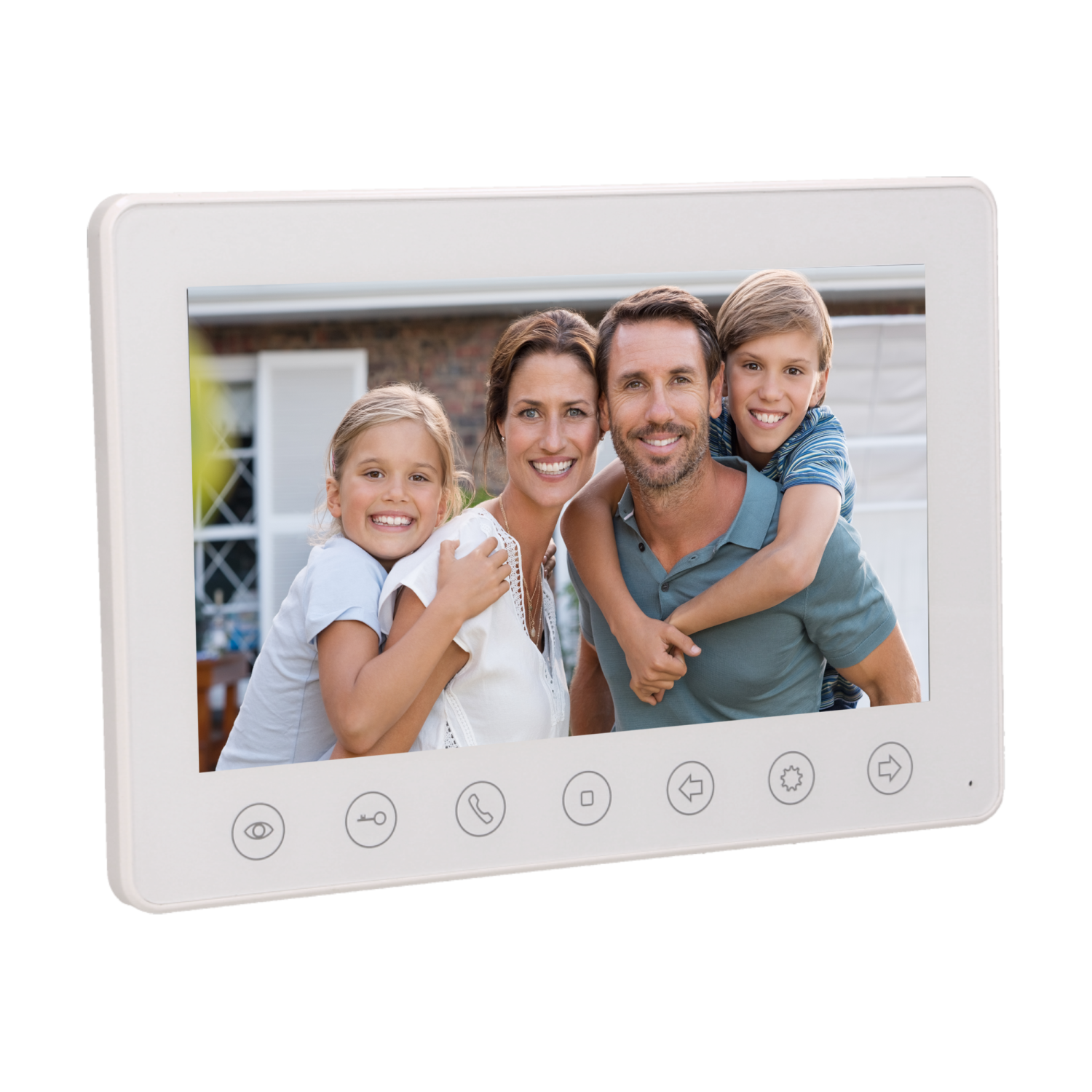

| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 13 |
| Operation: | hands-free |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800 / 480 |
| Colour of the monitor: | white |
| Memory: | No |
| Intercom function: | Yes |
| Touch screen: | No |
| Other features of the monitor: | touch panel of the monitor with backlit buttons, English and Polish OSD menu, additional gate control with use of OR-VID-EX-1034ME (not included) |
| Dimensions of the of the monitor - width (mm): | 185 mm |
| Dimensions of the of the monitor - height (mm): | 127 mm |
| Dimensions of the of the monitor - depth (mm): | 17 mm |

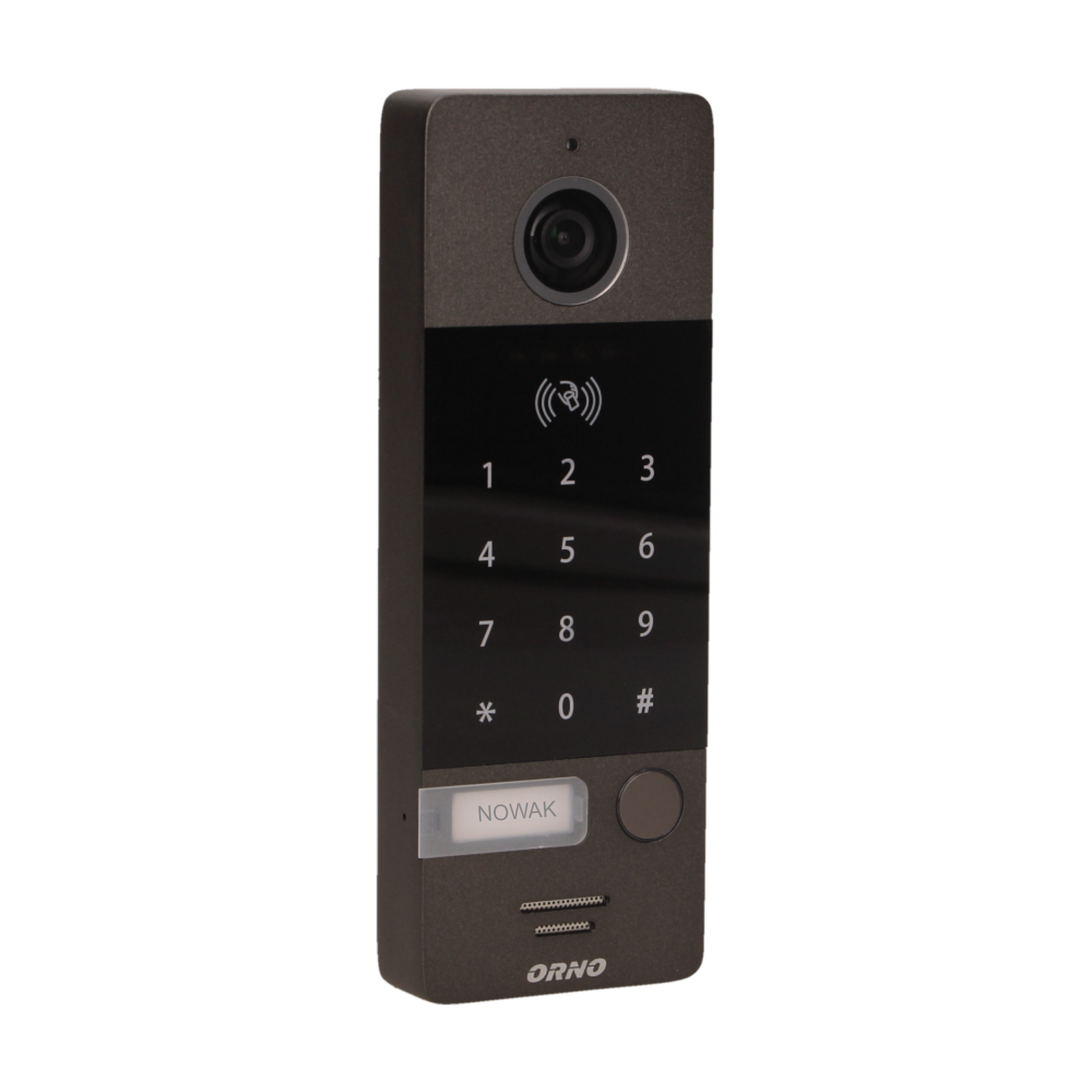

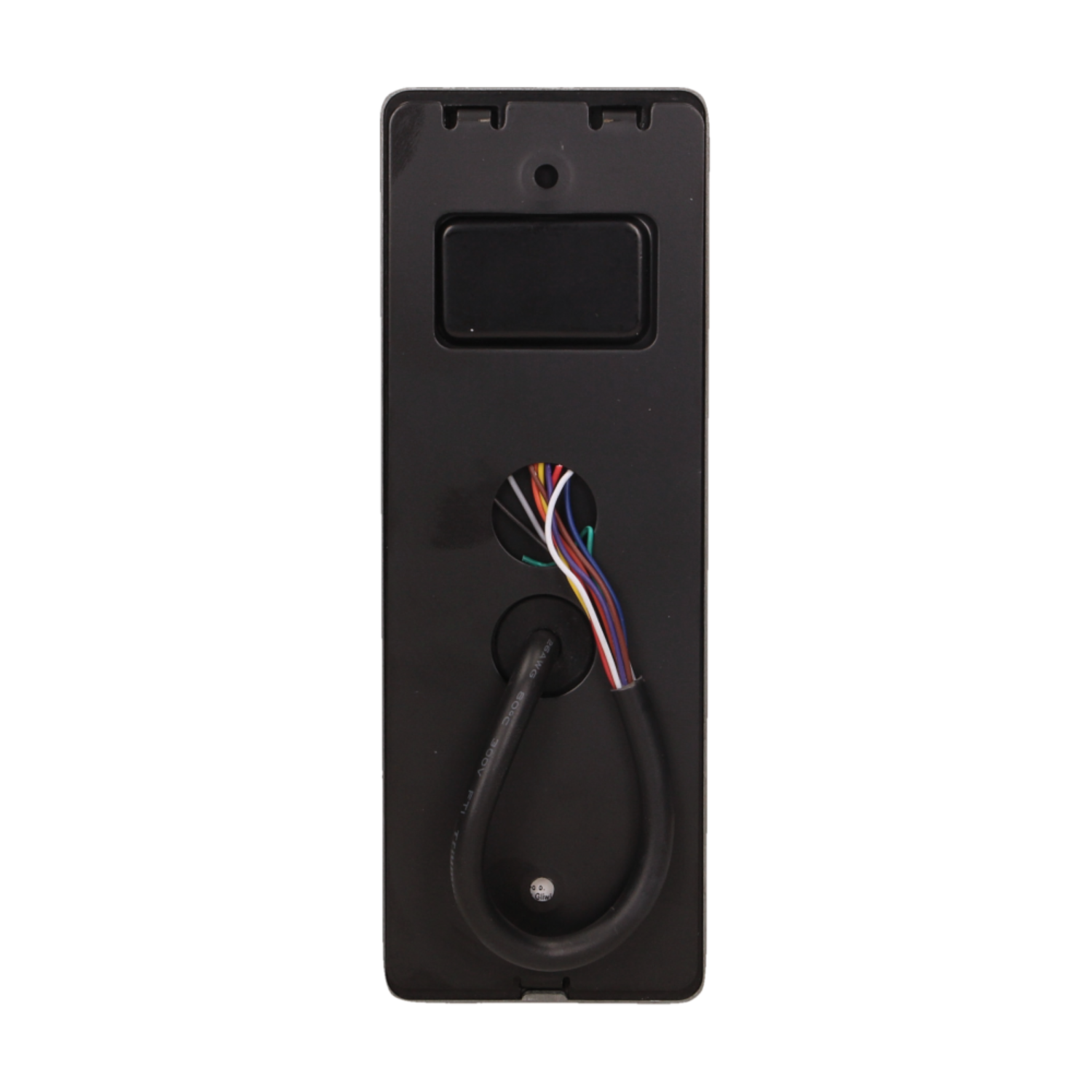

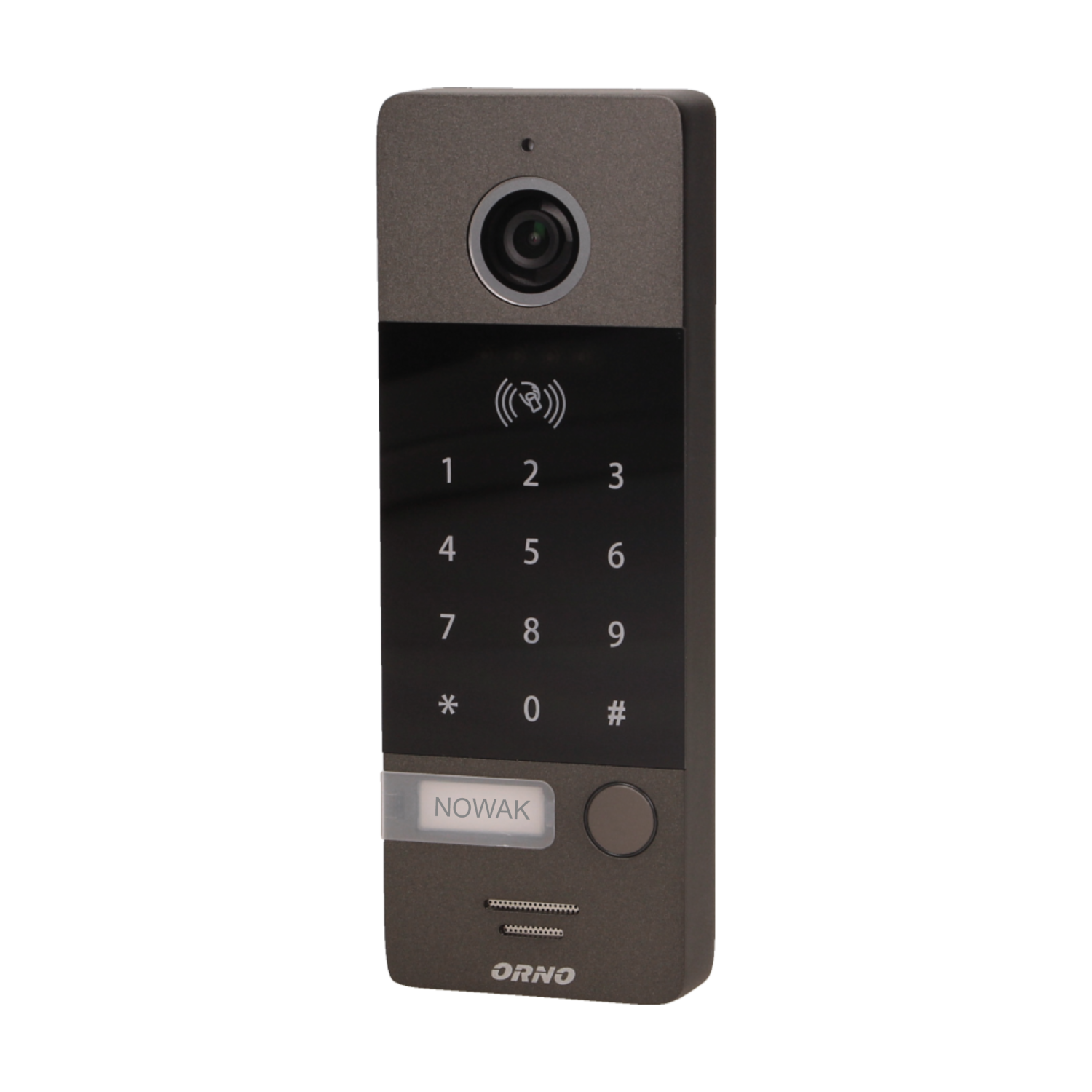

| External panel with a camera: |
|---|
| Resolution of the camera: | 800TVL |
| Vertical/horizontal camera's view angle: | 96deg. / 122deg. |
| Card and proximity tags reader: | Yes |
| Type of camera: | standard lens |
| Installation: | surface mounting |
| Keypad: | Yes |
| Night lighting: | white LED diodes |
| Dimensions of the external panel - depth: | 18 mm |
| Dimensions of the external panel - width: | 55 mm |
| Dimensions of the external panel - height: | 154 mm |
